Operation
47
(2) Attach the engine shut-off cord to your left
wrist, and then attach the clip to the en-
gine shut-off switch.
WARNING
EWJ00580
Check that the engine shut-off cord is not
frayed or broken, and keep it free from the
handlebars so that the engine stops if the
operator falls off. The engine shut-off cord
may not pull free if wrapped around the
handlebars when the operator falls off, al-
lowing the watercraft to continue to run
and cause an accident.
NOTE:
It is not possible to start the engine with the
clip removed from the engine shut-off switch.
(3) Push the start switch (green button), and
then release it as soon as the engine
starts to run.
NOTE:
The engine will not start if the throttle lever is
squeezed.
CAUTION:
ECJ00480

Never push the start switch while the en-
gine is running.

Do not operate the start switch for more
than 5 seconds, otherwise the battery
will be discharged and the engine will
not start. Also, the starter motor could
be damaged. If the engine does not start
in 5 seconds, release the start switch,
wait 15 seconds, and then try again.
1Clip
2Engine shut-off switch
3Engine shut-off cord
UF1G74E0.book Page 47 Monday, July 31, 2006 10:10 AM

Operation
48
EJU32860Stopping the engine
To stop the engine, release the throttle lever,
and then push the engine stop switch (red
button).
WARNING
EWJ00600
You need throttle to steer. Shutting the en-
gine off can cause you to hit an obstacle
you are attempting to avoid. A collision
could result in severe injury or death.
EJU32870Leaving the watercraft
If leaving the watercraft, remove the engine
shut-off cord to reduce the chance of acciden-
tal starting or unauthorized use by children or
others.
EJU32900
Operating your watercraft EJU32940Getting to know your watercraft
Operating your watercraft requires skills ac-
quired through practice over a period of time.
Take the time to learn the basic techniques
well before attempting more difficult maneu-
vers.
Operating your new watercraft can be a very
enjoyable activity, providing you with hours of
pleasure. However, it is essential to familiar-
ize yourself with the operation of the water-
craft to achieve the skill level necessary to
enjoy riding safely.
Before operating this watercraft, read this
owner’s/operator’s manual, the Riding Prac-
tice Guide, and all warning and caution labels
on the watercraft. Pay particular attention to
the safety information on pages 9. These ma-
terials should give you an understanding of
the watercraft and its operation.
Remember: This watercraft is designed to
carry the operator and 1 passenger. Never
exceed the maximum load limit or allow more
than 2 persons to ride the watercraft at any
time.
EJU36040Learning to operate your watercraft
Before operating the watercraft, always per-
form the pre-operation checks listed on page
38. The short time spent checking the water-
craft will reward you with added safety and re-
liability.
Check local laws before operating your water-
craft.
Operate defensively at safe speeds and keep
a safe distance away from people, objects,
Maximum load:
160 kg (353 lb)
Load is the total weight of cargo, oper-
ator, and passenger.
UF1G74E0.book Page 48 Monday, July 31, 2006 10:10 AM

Maintenance and care
60
EJU33490
Storage
WARNING
EWJ00330
Always place the watercraft upright in a
horizontal position when storing it, other-
wise fuel could leak out into the engine or
engine compartment, which could create a
fire hazard.
Storage for long periods of time, such as win-
ter storage, requires preventive maintenance
to ensure against deterioration. It is advisable
to have the watercraft serviced by a Yamaha
dealer prior to storage. However, the following
procedures can be performed by the owner.
EJU33520Flushing the cooling system
Flushing the cooling system is essential to
prevent it from clogging with salt, sand, or dirt.
WARNING
EWJ00270
Do not start the engine on land if anyone is
behind the watercraft. Hot water and
steam spurting from the exhaust outlet
into the air can cause serious burns.
CAUTION:
ECJ00130

Do not supply water to the cooling water
passages when the engine is not run-
ning. The water could flow back through
the muffler into the crankcase, causing
severe engine damage.

Do not run the engine for more than 15
seconds on land without supplying wa-
ter, otherwise the engine could over-
heat.

Do not run the engine over 4000 r/min on
land, otherwise the catalytic converter
could be seriously damaged.
(1) Remove the watercraft from the water
and place it in a horizontal position.(2) Remove the flushing hose connector
cap, and then insert the garden hose
adapter into the flushing hose connector
and turn it until it is securely connected.
(3) Connect the garden hose adapter to a
water tap using a garden hose.
NOTE:
A garden hose is not included and must be
purchased separately.
(4) Start the engine, and then immediately
turn the water supply on until water flows
out continually from the cooling water pi-
lot outlet.
(5) Run the engine at idling speed for about
3 minutes watching the engine condition.
If the engine stops while flushing, turn the
water supply off immediately and repeat
the above steps.
(6) Turn the water supply off, and then force
the remaining water out of the cooling
water passages by running the engine at
4000 r/min or less for 10 to 15 seconds.
(7) Stop the engine.
(8) Remove the garden hose adapter and in-
stall the flushing hose connector cap.
1Flushing hose connector cap
2Garden hose adapter
3Flushing hose connector
UF1G74E0.book Page 60 Monday, July 31, 2006 10:10 AM

Maintenance and care
61
EJU33580Lubrication
WARNING
EWJ00260
Do not spray flammable rust inhibitor
products on engine surfaces while the en-
gine is hot. The sprayed substance or pro-
pellants could catch fire.
(1) Remove the spark plugs and pour ap-
proximately one tablespoon of engine oil
into each cylinder.
(2) Grease the spark plug threads and rein-
stall the spark plugs.
(3) With the spark plug caps removed from
the spark plugs, crank the engine for 3
seconds or less using the start switch.
(4) Lubricate all cables such as the throttle
and steering cables.
NOTE:
Use a suitable marine grease applicator to
pressure-lubricate the cables and purge out
any moisture between the inner and outer ca-
bles.
(5) Lubricate the areas of the watercraft
specified in “Lubrication points” on page
68.
EJU33651Fuel system
WARNING
EWJ00290
GASOLINE AND ITS VAPORS ARE HIGH-
LY FLAMMABLE AND EXPLOSIVE!

Do not smoke when refueling, and keep
away from sparks, flames, and other
sources of ignition.

Stop the engine before refueling.

Refuel in a well-ventilated area with the
watercraft in a horizontal position.

Do not stand or sit on the watercraft
while refueling in case of fire.

Take care not to spill gasoline. If gaso-
line spills, wipe it up immediately with
dry rags. Always properly dispose of
gasoline-soaked rags.

Avoid overfilling the fuel tank. Stop fill-
ing when the fuel level just reaches the
bottom of the filler tube. Do not fill up the
filler tube because fuel expands as it
warms up and could overflow. If tempo-
rarily leaving the watercraft with a full
fuel tank, do not leave it in direct sun-
light. Leave it in a well-ventilated area
with the watercraft in a horizontal posi-
tion.

Tighten the fuel tank filler cap securely
after refueling.

If you should swallow some gasoline, in-
hale a lot of gasoline vapor, or get gaso-
line in your eyes, get immediate medical
attention.

If any gasoline spills on your skin or
clothing, immediately wash the affected
area with soap and water and change
your clothes.
Top off the fuel tank with fresh gasoline and
add 470 ml (15.9 US oz, 16.5 Imp oz) of
Yamaha Fuel Stabilizer and Conditioner.
CAUTION:
ECJ00140
Use only Yamaha Fuel Stabilizer and Con-
ditioner, otherwise the catalytic converter
could be seriously damaged.
EJU33680Battery
If the watercraft will not be used for more than
a month, remove the battery from the water-
craft and store it in a cool, dry place.
(1) Disconnect the negative (–) battery lead
first, then the positive (+) battery lead and
breather hose, and then remove the bat-
tery from the watercraft.
UF1G74E0.book Page 61 Monday, July 31, 2006 10:10 AM

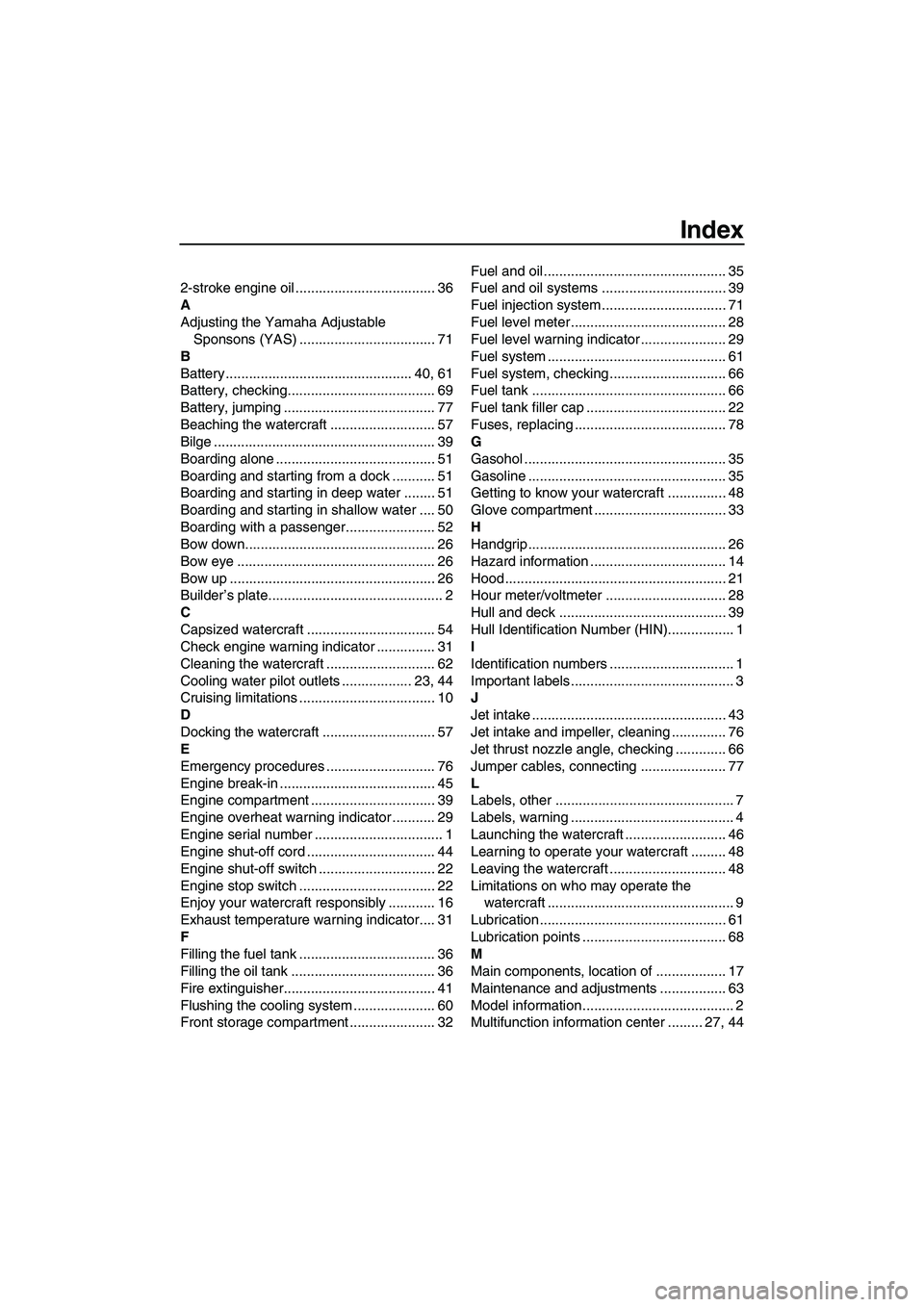

Index
2-stroke engine oil .................................... 36
A
Adjusting the Yamaha Adjustable
Sponsons (YAS) ................................... 71
B
Battery ................................................ 40, 61
Battery, checking...................................... 69
Battery, jumping ....................................... 77
Beaching the watercraft ........................... 57
Bilge ......................................................... 39
Boarding alone ......................................... 51
Boarding and starting from a dock ........... 51
Boarding and starting in deep water ........ 51
Boarding and starting in shallow water .... 50
Boarding with a passenger....................... 52
Bow down................................................. 26
Bow eye ................................................... 26
Bow up ..................................................... 26
Builder’s plate............................................. 2
C
Capsized watercraft ................................. 54
Check engine warning indicator ............... 31
Cleaning the watercraft ............................ 62
Cooling water pilot outlets .................. 23, 44
Cruising limitations ................................... 10
D
Docking the watercraft ............................. 57
E
Emergency procedures ............................ 76
Engine break-in ........................................ 45
Engine compartment ................................ 39
Engine overheat warning indicator ........... 29
Engine serial number ................................. 1
Engine shut-off cord ................................. 44
Engine shut-off switch .............................. 22
Engine stop switch ................................... 22
Enjoy your watercraft responsibly ............ 16
Exhaust temperature warning indicator.... 31
F
Filling the fuel tank ................................... 36
Filling the oil tank ..................................... 36
Fire extinguisher....................................... 41
Flushing the cooling system ..................... 60
Front storage compartment ...................... 32Fuel and oil............................................... 35
Fuel and oil systems ................................ 39
Fuel injection system ................................ 71
Fuel level meter ........................................ 28
Fuel level warning indicator ...................... 29
Fuel system .............................................. 61
Fuel system, checking .............................. 66
Fuel tank .................................................. 66
Fuel tank filler cap .................................... 22
Fuses, replacing ....................................... 78
G
Gasohol .................................................... 35
Gasoline ................................................... 35
Getting to know your watercraft ............... 48
Glove compartment .................................. 33
H
Handgrip ................................................... 26
Hazard information ................................... 14
Hood ......................................................... 21
Hour meter/voltmeter ............................... 28
Hull and deck ........................................... 39
Hull Identification Number (HIN)................. 1
I
Identification numbers ................................ 1
Important labels .......................................... 3
J
Jet intake .................................................. 43
Jet intake and impeller, cleaning .............. 76
Jet thrust nozzle angle, checking ............. 66
Jumper cables, connecting ...................... 77
L
Labels, other .............................................. 7
Labels, warning .......................................... 4
Launching the watercraft .......................... 46
Learning to operate your watercraft ......... 48
Leaving the watercraft .............................. 48
Limitations on who may operate the
watercraft ................................................ 9
Lubrication................................................ 61
Lubrication points ..................................... 68
M
Main components, location of .................. 17
Maintenance and adjustments ................. 63
Model information....................................... 2
Multifunction information center ......... 27, 44
UF1G74E0.book Page 1 Monday, July 31, 2006 10:10 AM

Index
O
Oil filter ..................................................... 66
Oil injection system, checking .................. 66
Oil level warning indicator ........................ 29
Oil pump, bleeding ................................... 71
Oil tank ..................................................... 66
Oil tank filler cap....................................... 22
Operating your watercraft......................... 48
Operation ................................................. 45
Operation of controls and other
functions ............................................... 21
Operation requirements ........................... 11
Owner’s/operator’s manual and tool kit .... 63
P
Periodic maintenance chart...................... 65
Post-operation care .................................. 58
Pre-operation check list............................ 38
Pre-operation check points ...................... 39
Pre-operation checks ............................... 38
Primary Identification (PRI-ID) number ...... 1
Q
Quick Shift Trim System (QSTS) ............. 42
Quick Shift Trim System (QSTS)
selector ................................................. 25
R
Recommended equipment ....................... 13
Riding with a passenger ........................... 49
Rough water operation ............................. 57
S
Safe boating rules .................................... 15
Seat .......................................................... 21
Spark plugs, cleaning and adjusting ........ 67
Speedometer............................................ 28
Start switch............................................... 23
Starting the engine ................................... 46
Starting the watercraft .............................. 50
Steering system ................................. 24, 42
Stern drain plugs ...................................... 40
Stern rope holes ....................................... 27
Stopping the engine ................................. 48
Stopping the watercraft ............................ 56
Storage..................................................... 60
Storage compartments ............................. 32
Submerged watercraft .............................. 79
Switches ................................................... 44T
Tachometer .............................................. 28
Throttle cable, checking and adjusting ..... 67
Throttle lever ...................................... 23, 42
Towing the watercraft ............................... 78
Transporting ............................................. 59
Trolling speed, checking .......................... 71
Troubleshooting ....................................... 73
Troubleshooting chart .............................. 73
Turning the watercraft .............................. 55
W
Water separator ....................................... 39
Watercraft characteristics ......................... 14
Y
Yamaha Adjustable Sponsons (YAS) ...... 33
Yamaha Engine Management
System (YEMS) .................................... 27
UF1G74E0.book Page 2 Monday, July 31, 2006 10:10 AM
