YAMAHA GP1300R 2007 Manual PDF
Manufacturer: YAMAHA, Model Year: 2007, Model line: GP1300R, Model: YAMAHA GP1300R 2007Pages: 90, PDF Size: 5.78 MB
Page 71 of 90
Maintenance and care
64
wrench may also be necessary to tighten nuts
and bolts.

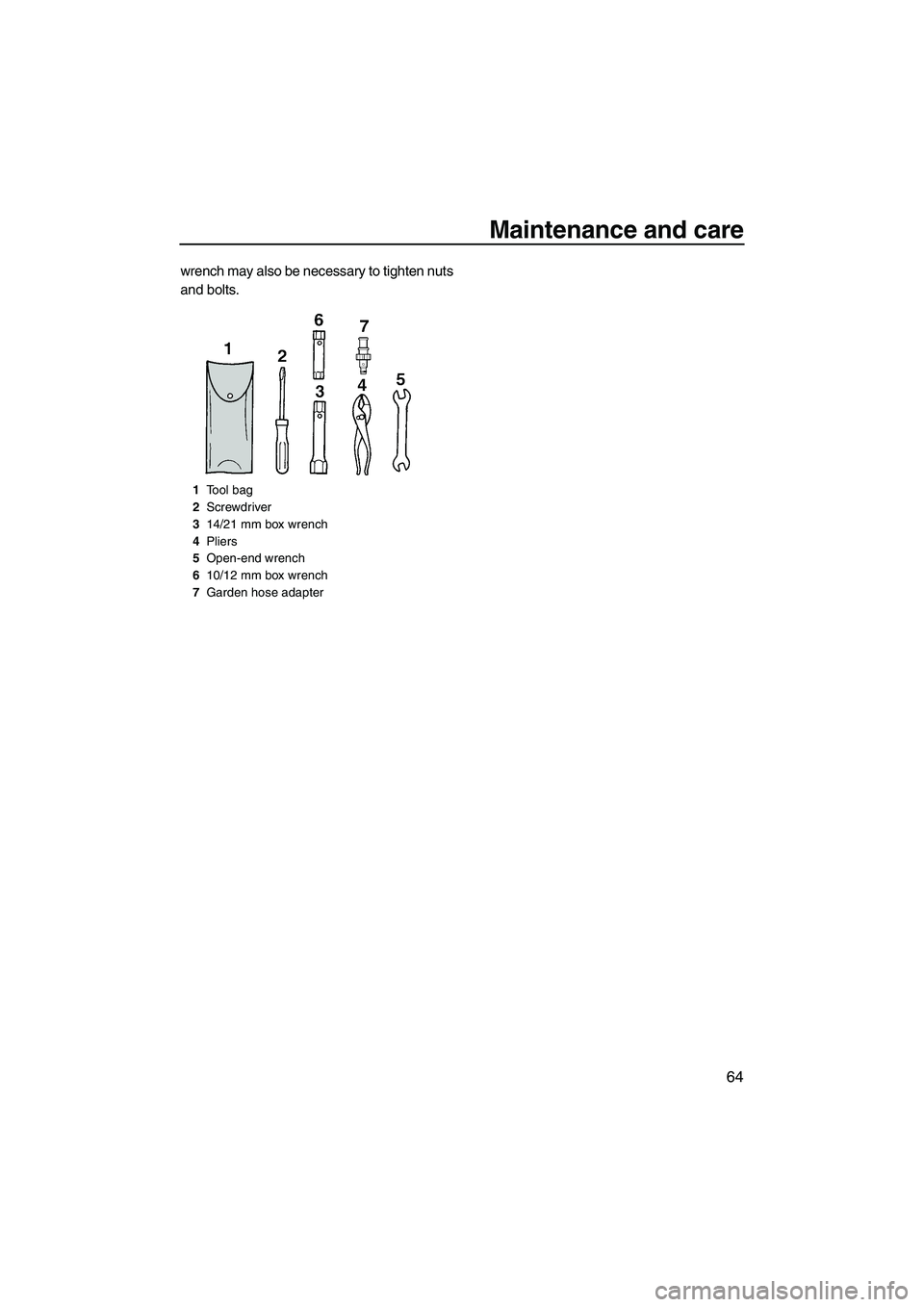

1Tool bag
2Screwdriver
314/21 mm box wrench
4Pliers
5Open-end wrench
610/12 mm box wrench
7Garden hose adapter
UF1G74E0.book Page 64 Monday, July 31, 2006 10:10 AM
Page 72 of 90
Maintenance and care
65
EJU33820Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, maintenance
may need to be performed more frequently depending on your operating conditions.
This “” mark indicates maintenance that you may do yourself.
This “” mark indicates work to be done by a Yamaha dealer.
* This operation should be performed after every use.
Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
Spark plugsCheck, clean, adjust 67
Lubrication pointsLubricate 68
Intermediate hous-
ingLubricate 68
Fuel systemCheck 66
Fuel tankCheck, clean 66
Oil injection sys-
temCheck, clean 66
Throttle shaftCheck—
Cooling water pas-
sagesFlush
*60
Water inlet strain-
erCheck, clean—
Bilge strainerClean—
Electric bilge
pump strainerCheck, clean—
ImpellerCheck—
Jet thrust nozzle
angleCheck, adjust 66
QSTS mechanismCheck, adjust—
Throttle cableCheck, adjust 67
Stern drain plugsCheck, replace 40
BatteryCheck, charge 69
Rubber couplingCheck—
Engine mountCheck—
Nuts and boltsCheck—
UF1G74E0.book Page 65 Monday, July 31, 2006 10:10 AM
Page 73 of 90
Maintenance and care
66
EJU34210Checking the fuel system
WARNING
EWJ00380
Gasoline is highly flammable and explo-
sive. Failure to check for and repair any
fuel leakage could result in a fire or explo-
sion. A fire or explosion can cause severe
injury or death. Shut the engine off. Do not
smoke. Avoid spilling gasoline.
Fuel in the fuel lines is pressurized.
Fuel can spray out and cause injury or a
fire hazard if a fuel line is disconnected.
Do not run the engine with a fuel line dis-
connected.
Check the fuel system for leaks, cracks, and
malfunctions. If any problem is found, consult
a Yamaha dealer.
Check:
Fuel tank filler cap and seal for damage.
Fuel in fuel tank for water and dirt.
Fuel tank for damage, cracks, and leakage.
Fuel hoses and joints for damage, cracks,
and leakage.
Air bleeding passages for leakage.EJU34230Fuel tank
Check the fuel tank for leakage and for water
in the tank. If water is found in the fuel system,
or if the fuel tank needs to be cleaned, have a
Yamaha dealer service the watercraft.
EJU34240Checking the oil injection system
Check the oil injection system for leakage,
cracks, and malfunctions. Have a Yamaha
dealer repair the oil injection system if neces-
sary.
Check:
Oil tank for damage, cracks, and leakage.
Oil in the oil tank for water and dirt.
Oil hoses and joints for damage, cracks,
and leakage.
Oil filter for dirt.
Oil pump for leakage.EJU34250Oil tank
Check the oil tank for leakage and for water in
the tank. If water is found in the oil injection
system, or if the oil tank needs to be cleaned,
have a Yamaha dealer service the watercraft.
EJU34260Oil filter
Have a Yamaha dealer check the oil filter for
dirt and clogs.
EJU34320Checking the jet thrust nozzle angle
Check the handlebars and jet thrust nozzle for
smooth operation.
Turn the handlebars as far as possible to the
right and left and check that the difference of
distances A and B between the jet thrust noz-
zle and the nozzle is within specification.
1Fuel tank
UF1G74E0.book Page 66 Monday, July 31, 2006 10:10 AM
Page 74 of 90
Maintenance and care
67
If the steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU34360Checking and adjusting the throttle
cable
Check that the throttle cable moves back to
the set position smoothly and that the throttle
lever free play is within specification.
(1) Squeeze and release the throttle lever. If
the throttle lever does not return smooth-
ly, have a Yamaha dealer service it.(2) Adjust the free play by loosening the lock-
nut and turning the adjuster.
EJU34371Cleaning and adjusting the spark
plugs
WARNING
EWJ00350
Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks to
escape, which could result in a fire or ex-
plosion.
The spark plug is an important engine compo-
nent and is easy to inspect. The condition of
the spark plug can indicate something about
the condition of the engine. For example, if the
center electrode porcelain is very white, this
could indicate an intake air leak or carburetion
problem in that cylinder. Do not attempt to di-
agnose any problems yourself. Have a
Yamaha dealer service the watercraft.
Remove and inspect the spark plugs periodi-
cally; heat and deposits will cause the spark
plugs to slowly break down and erode. If elec-
trode erosion becomes excessive, or if carbon Difference of A and B:
Maximum 5 mm (0.20 in)
1Locknut
2Adjuster
3Throttle lever free play
Throttle lever free play:
4.0–7.0 mm (0.16–0.28 in)
UF1G74E0.book Page 67 Monday, July 31, 2006 10:10 AM
Page 75 of 90
Maintenance and care
68
and other deposits are excessive, replace the
spark plug with the specified plug.
Measure the spark plug gap with a wire thick-
ness gauge. Replace the spark plugs or ad-
just the gap to specification if necessary.
To install a spark plug:
(1) Clean the gasket surface.
(2) Wipe any dirt from the threads of the
spark plug.
(3) Install the spark plug, and then tighten it
to the specified torque.
(4) Install the spark plug cap.
NOTE:
Wipe off any water on the spark plug or in-
side the spark plug cap before installing the
cap. Push the spark plug cap down until it is
securely installed.
If a torque wrench is not available when you
are installing a spark plug, a good estimate
of the correct torque is 1/4 turn to 1/2 turnpast finger tight using the spark plug
wrench included in the tool kit. Have the
spark plug adjusted to the correct torque
with a torque wrench as soon as possible.
EJU34410Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.
Throttle cable (handlebar end)
Squeeze the throttle lever and remove the
seal. Spray a rust inhibitor into the outer ca-
ble. Refit the seal securely.
Steering cable (handlebar end)
Steering cable (jet thrust nozzle end)
Jet thrust nozzle pivot shaft Specified spark plug:
BR8ES-11
1Spark plug gap
Spark plug gap:
1.0–1.1 mm (0.039–0.043 in)
Spark plug tightening torque:
25.0 Nm (18.4 ft-lb) (2.55 kgf-m)
Recommended water-resistant grease:
Yamaha Marine Grease/Yamaha
Grease A
1Seal
UF1G74E0.book Page 68 Monday, July 31, 2006 10:10 AM
Page 76 of 90
Maintenance and care
69
QSTS cable (jet thrust nozzle end)
QSTS cables (pulley end)
QSTS cables (handlebar end)
Remove the QSTS cable housing. Spray a
rust inhibitor into the outer cables. Reinstall
the QSTS cable housing.
Intermediate housing
Fill the intermediate housing with water-re-
sistant grease through the grease nipple
using a grease gun.
EJU34450Checking the battery
Check the level of the battery electrolyte and
make sure that the negative (–) and positive
(+) battery leads are tightened securely.
WARNING
EWJ00790
Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes, or clothing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten
egg, or vegetable oil. Call a physician im-
mediately.
Eyes: Flush with water for 15 minutes and
get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flames, cigarettes, etc., well away.
If using or charging the battery in an en-
closed space, make sure that it is well ven-
tilated. Always shield your eyes when
working near batteries.
Grease quantity:
Initial 10 hours or 1 month:
33.0–35.0 cm³ (1.12–1.18 US oz)
(1.16–1.23 Imp.oz)
Every 100 hours or 12 months:
6.0–8.0 cm³ (0.20–0.27 US oz)
(0.21–0.28 Imp.oz)
UF1G74E0.book Page 69 Monday, July 31, 2006 10:10 AM
Page 77 of 90
Maintenance and care
70
KEEP OUT OF THE REACH OF CHILDREN.
CAUTION:
ECJ00230
Be careful not to place the battery on its
side.
Be sure to remove the battery from the
battery compartment when adding elec-
trolyte or charging the battery.
To replenish the battery:
(1) Make sure that the electrolyte level is be-
tween the maximum and minimum level
marks.
(2) Refill the battery with distilled water if
necessary.
CAUTION:
ECJ00240
Normal tap water contains minerals that
are harmful to a battery. Use only distilled
water for replenishing the battery.
To recharge the battery:
CAUTION:
ECJ00250
Do not attempt to charge a battery hastily.
Battery life could be shortened.
It is recommended to have a Yamaha dealer
charge the battery. If you charge the battery
yourself, carefully read the battery charger in-structions before charging and follow the
points below.
(1) Remove all of the battery caps.
(2) If the electrolyte level is low, add distilled
water to raise it to the specified level.
(3) Set the charging rate to 1.9 ampere and
charge the battery slowly until the explo-
sive gases are discharged vigorously
from the battery cells.
To install the battery:
(1) Place the battery in the battery compart-
ment and connect the battery leads to the
battery terminals.
(2) Connect the breather hose to the battery.
(3) Secure the battery in place.
WARNING
EWJ00400
Be sure to connect the breather hose to
the battery. Fire or explosion could result
if the breather hose is damaged, obstruct-
ed, or not connected properly.
CAUTION:
ECJ00260
After installation, make sure that the bat-
tery leads are properly connected to the
battery terminals.
1Maximum level mark
2Minimum level mark
1Positive (+) battery terminal: Red lead
2Negative (–) battery terminal: Black lead
3Breather hose
UF1G74E0.book Page 70 Monday, July 31, 2006 10:10 AM
Page 78 of 90
Maintenance and care
71
EJU34490Fuel injection system
The fuel injection system was set at the
Yamaha factory. If the fuel injection system
needs to be adjusted, have a Yamaha dealer
service the watercraft.
CAUTION:
ECJ00220
Do not attempt to adjust the fuel injection
system. If the settings are disturbed by
someone who does not have the neces-
sary technical knowledge, poor engine
performance and damage may result.
EJU34500Checking the trolling speed
(1) Place the watercraft in the water.
(2) Start the engine and warm it up. Use the
tachometer in the multifunction informa-
tion center to check the trolling speed.
If the trolling speed is out of specification,
have a Yamaha dealer service the watercraft.
EJU34520Bleeding the oil pump
If the oil tank becomes completely empty, or
any hose connected to the oil pump has been
disconnected, the oil pump must be bled to
ensure proper oil flow.
If necessary, have a Yamaha dealer bleed the
oil pump.
EJU36190Adjusting the Yamaha Adjustable
Sponsons (YAS)
The Yamaha Adjustable Sponsons can be
adjusted to two positions to enhance water-
craft performance according to operator pref-
erence and operating conditions. (See page
33 for an explanation of the positions.)To adjust the YAS:
(1) Remove the bolts on both sponsons.
(2) Remove the sponsons, and then install
them in the desired position.
NOTE:
Be sure to install both sponsons in the same
position.
(3) Tighten the sponson bolts to the specified
torque. Trolling speed:
1350 ±100 r/min
1Bolt
Sponson bolt tightening torque:
18.0 Nm (13.3 ft-lb) (1.84 kgf-m)
UF1G74E0.book Page 71 Monday, July 31, 2006 10:10 AM
Page 79 of 90
Specifications
72
EJU34540
Specifications
Watercraft capacity:
Maximum people on board:
2 person
Maximum load capacity:
160 kg (353 lb)
Dimensions:
Length:
2930 mm (115.4 in)
Width:
1150 mm (45.3 in)
Height:
1020 mm (40.2 in)
Dry weight:
297 kg (655 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
114.7 kW@7000 r/min
Maximum fuel consumption:
57.0 L/h (15.1 US gal/h) (12.5 Imp.gal/h)
Cruising range at full throttle:
1.05 hour
Trolling speed:
1350 ±100 r/min
Engine:
Engine type:
2-stroke
Number of cylinders:
3
Engine displacement:
1297.0 cm³
Bore & stroke:
84.0 × 78.0 mm (3.31 × 3.07 in)
Compression ratio:
5.90 :1
Lubrication system:
Oil injection
Cooling system:
Water
Starting system:
Electric
Ignition system:
Digital C.D.I.
Spark plug:
BR8ES-11
Spark plug gap:
1.0–1.1 mm (0.039–0.043 in)Battery capacity:
12 V19.0 Ah
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle:
23.0 °+23.0 °
Jet thrust nozzle trim angle:
-10 °, -5 °, 0 °, 5 °, 10 °
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Minimum octane rating (PON):
86
Minimum octane rating (RON):
90
Recommended engine oil:
YAMALUBE 2-W
Fuel tank total capacity:
60.0 L (15.9 US gal) (13.2 Imp.gal)
Engine oil tank capacity:
5.5 L (1.45 US gal) (1.21 Imp.gal)
UF1G74E0.book Page 72 Monday, July 31, 2006 10:10 AM
Page 80 of 90
Trouble recovery
73
EJU34560
Troubleshooting
If you have any trouble with your watercraft, use this section to check for the possible cause.
If you cannot find the cause, or if the procedure for replacement or repair is not described in
this owner’s/operator’s manual, have a Yamaha dealer perform the necessary service.
EJU34580Troubleshooting chart
TROUBLE POSSIBLE CAUSE REMEDY PAGE
Engine does not
start (Starter motor
does not turn over)Engine shut-
off switchClip not in place Install clip
22
Fuse Burned out Replace the fuse and
check wiring78
Battery Run down Recharge 69
Poor terminal con-
nectionsTighten as required
69
Terminal corroded Clean 61
Starter motor Faulty Have serviced by
Yamaha dealer—
Warning sys-
temOverheat mode Cool down engine
29
Engine does not
start (Starter motor
turns over)Throttle lever Squeezed Release 23
Fuel Empty Refill as soon as pos-
sible36
Stale or contaminat-
edHave serviced by
Yamaha dealer66
Fuel tank Water or dirt present Have serviced by
Yamaha dealer66
Spark plug Fouled or defective Clean or replace 67
Spark plug
capNot connected or
looseConnect properly
67
Crankcase Filled with water Crank engine with
plug out until clean79
Fuel injec-
tion systemFuel pump faulty Have serviced by
Yamaha dealer—
Water tem -
perature sen-
sorFailed Have serviced by
Yamaha dealer 29
UF1G74E0.book Page 73 Monday, July 31, 2006 10:10 AM
