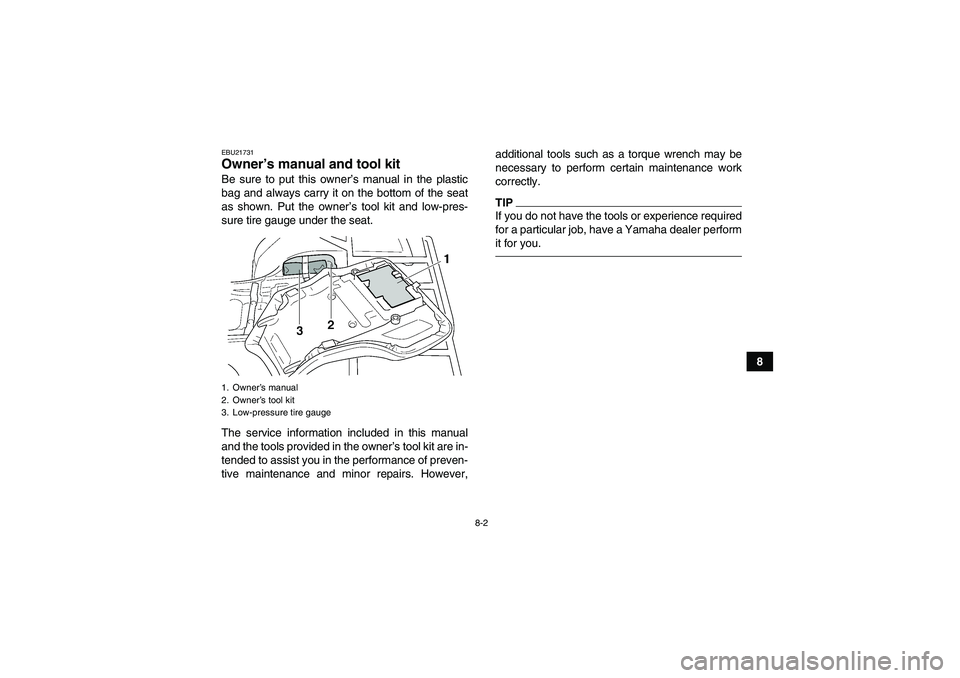

EBU21731Owner’s manual and tool kit Be sure to put this owner’s manual in the plastic
bag and always carry it on the bottom of the seat
as shown. Put the owner’s tool kit and low-pres-
sure tire gauge under the seat.
The service information included in this manual
and the tools provided in the owner’s tool kit are in-
tended to assist you in the performance of preven-
tive maintenance and minor repairs. However,additional tools such as a torque wrench may be
necessary to perform certain maintenance work
correctly.
TIPIf you do not have the tools or experience required
for a particular job, have a Yamaha dealer perform
it for you.
1. Owner’s manual
2. Owner’s tool kit
3. Low-pressure tire gaugeU1CT60E0.book Page 2 Monday, May 31, 2010 10:05 AM

8-3
8
EBU21743Periodic maintenance chart for the emission control system TIP
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills.NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
1*Fuel lineCheck fuel hoses for cracks or other damage, and
replace if necessary.√√√
2 Spark plugCheck condition and clean, regap, or replace if
necessary.√√√√√
3*ValvesCheck valve clearance and adjust if necessary.√ √√√
4*CarburetorCheck starter (choke) operation and correct if nec-
essary.
Check engine idling speed and adjust if neces-
sary.√√√√
5*Crankcase breather
systemCheck breather hose for cracks or other damage,
and replace if necessary.√√√
U1CT60E0.book Page 3 Monday, May 31, 2010 10:05 AM

8-4
8

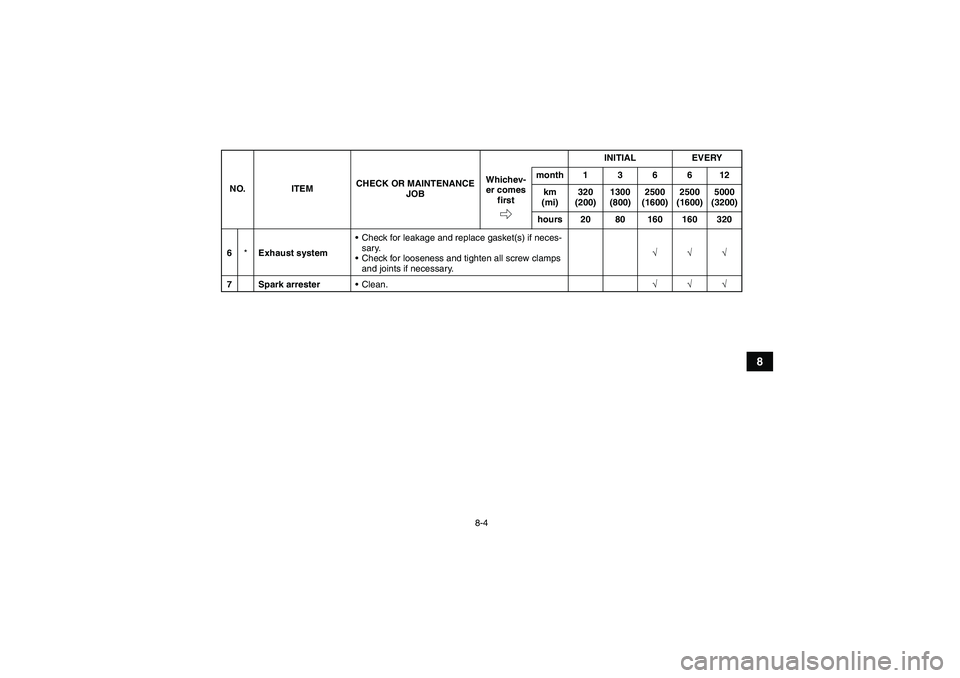

6*Exhaust systemCheck for leakage and replace gasket(s) if neces-
sary.
Check for looseness and tighten all screw clamps
and joints if necessary.√√√
7 Spark arresterClean.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
U1CT60E0.book Page 4 Monday, May 31, 2010 10:05 AM

8-5
8

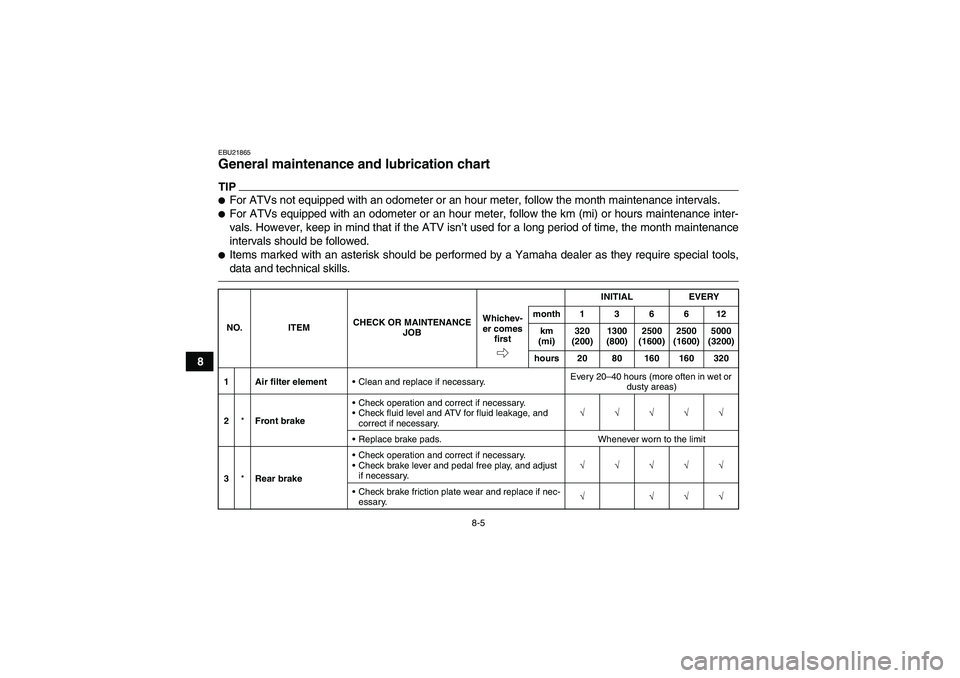

EBU21865General maintenance and lubrication chart TIP
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills.NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
1 Air filter elementClean and replace if necessary.Every 20–40 hours (more often in wet or
dusty areas)
2*Front brakeCheck operation and correct if necessary.
Check fluid level and ATV for fluid leakage, and
correct if necessary.√√√√√
Replace brake pads. Whenever worn to the limit
3*Rear brakeCheck operation and correct if necessary.
Check brake lever and pedal free play, and adjust
if necessary.√√√√√
Check brake friction plate wear and replace if nec-
essary.√ √√√
U1CT60E0.book Page 5 Monday, May 31, 2010 10:05 AM

8-6
8
4*Brake hosesCheck for cracks or other damage, and replace if
necessary.√√√√
Replace. Every 4 years
5*WheelsCheck runout and for damage, and replace if nec-
essary.√ √√√
6*TiresCheck tread depth and for damage, and replace if
necessary.
Check air pressure and balance, and correct if
necessary.√ √√√
7*Wheel hub bearingsCheck for looseness or damage, and replace if
necessary.√ √√√
8*V- b e l tCheck for wear, cracks or other damage, and re-
place if necessary.√ √√√
9*Drive shaft univer-
sal jointLubricate with lithium-soap-based grease.√√√
10*Chassis fastenersMake sure that all nuts, bolts, and screws are
properly tightened.√√√√√
11*Shock absorber as-
sembliesCheck operation and correct if necessary.
Check for oil leakage and replace if necessary.√√√
12*Stabilizer bushesCheck for cracks or other damage, and replace if
necessary.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
U1CT60E0.book Page 6 Monday, May 31, 2010 10:05 AM

8-7
8
13*Rear knuckle pivotsLubricate with lithium-soap-based grease.√√√
14*Steering shaftLubricate with lithium-soap-based grease.√√√
15*Steering systemCheck operation and repair or replace if damaged.
Check toe-in and adjust if necessary.√√√√√
16*Engine mountCheck for cracks or other damage, and replace if
necessary.√√√
17*Axle bootsCheck for cracks or other damage, and replace if
necessary.√√√√√
18 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
19Engine oil filter car-
tridgeReplace.√√√
20*Engine oil strainerClean.√√√
21 Differential gear oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√√
22 Final gear oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U1CT60E0.book Page 7 Monday, May 31, 2010 10:05 AM

8-8
8

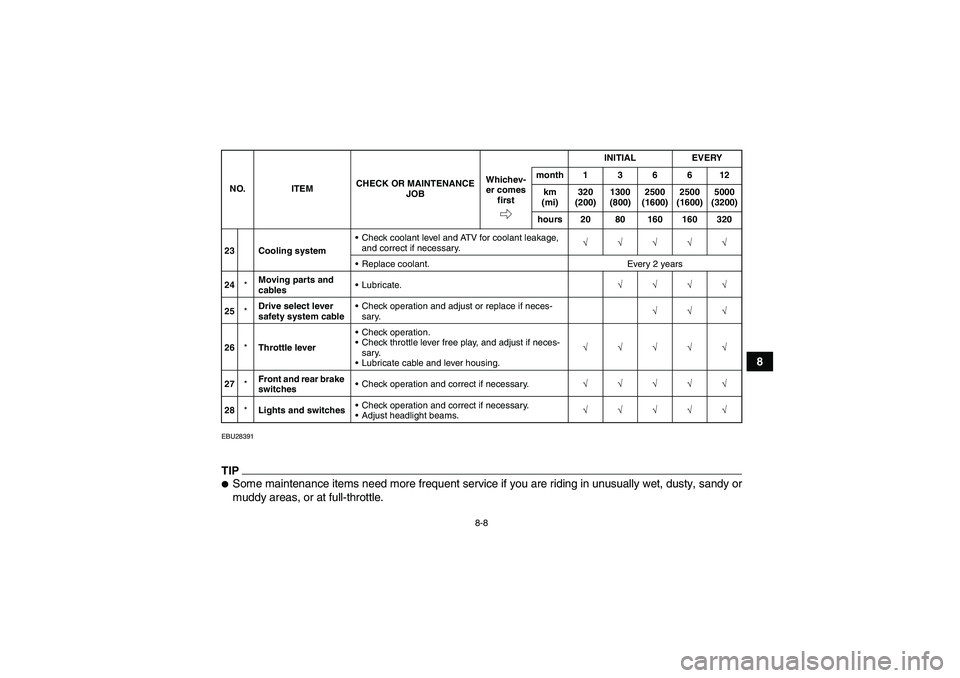

EBU28391TIP
Some maintenance items need more frequent service if you are riding in unusually wet, dusty, sandy or
muddy areas, or at full-throttle.23 Cooling systemCheck coolant level and ATV for coolant leakage,
and correct if necessary.√√√√√
Replace coolant. Every 2 years
24*Moving parts and
cablesLubricate.√√√√
25*Drive select lever
safety system cableCheck operation and adjust or replace if neces-
sary.√√√
26*Throttle leverCheck operation.
Check throttle lever free play, and adjust if neces-
sary.
Lubricate cable and lever housing.√√√√√
27*Front and rear brake
switchesCheck operation and correct if necessary.√√√√√
28*Lights and switchesCheck operation and correct if necessary.
Adjust headlight beams.√√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U1CT60E0.book Page 8 Monday, May 31, 2010 10:05 AM

8-9
8

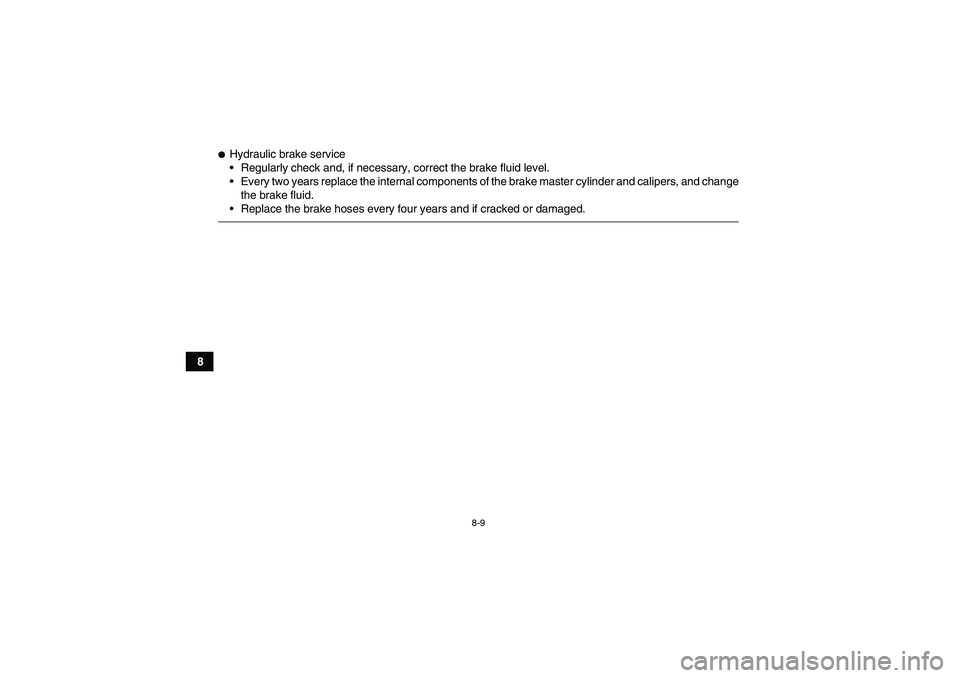

Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinder and calipers, and change
the brake fluid.
Replace the brake hoses every four years and if cracked or damaged.
U1CT60E0.book Page 9 Monday, May 31, 2010 10:05 AM

8-10
8

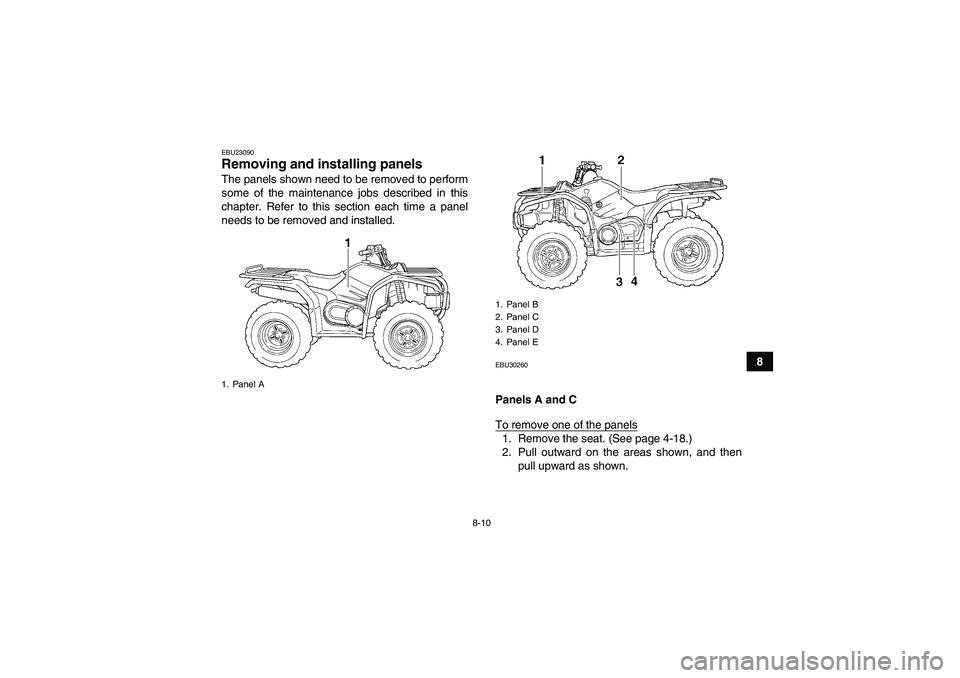

EBU23090Removing and installing panels The panels shown need to be removed to perform
some of the maintenance jobs described in this
chapter. Refer to this section each time a panel
needs to be removed and installed.
EBU30260Panels A and C
To remove one of the panels1. Remove the seat. (See page 4-18.)
2. Pull outward on the areas shown, and then
pull upward as shown.
1. Panel A
1. Panel B
2. Panel C
3. Panel D
4. Panel E
U1CT60E0.book Page 10 Monday, May 31, 2010 10:05 AM

8-11
8

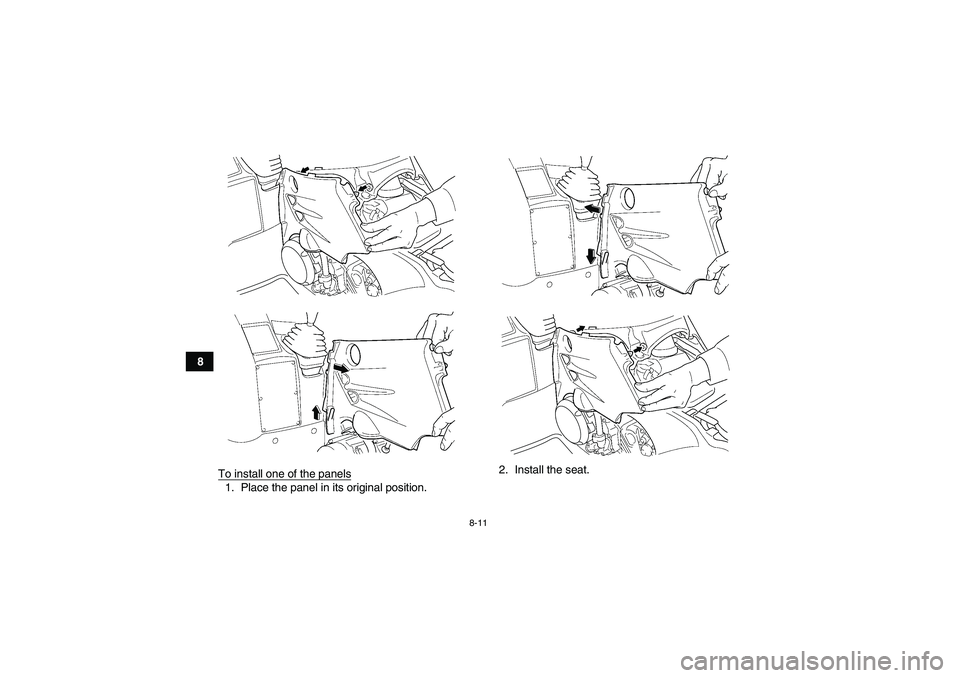

To install one of the panels
1. Place the panel in its original position.2. Install the seat.
