YAMAHA GRIZZLY 450 2011 Owners Manual

8-22
8
3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to raise
it to the correct level.
4. Check the oil filler bolt gasket for damage, and
replace it if necessary.
5. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.To change the final gear oil
1. Place the ATV on a level surface.
2. Remove the engine guard and the final gear
case guard by removing the bolts.
3. Place an oil pan under the final gear case to
collect the used oil.
4. Remove the final gear oil filler bolt, the final
gear oil drain bolt and their gasket to drain the
oil from the final gear case.
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelTightening torque:
Final gear oil filler bolt:
22 Nm (2.2 m·kgf, 16 ft·lbf)1
2
3
4
1. Engine guard
2. Final gear case guard
3. Bolt
2
33
U1CT60E0.book Page 22 Monday, May 31, 2010 10:05 AM

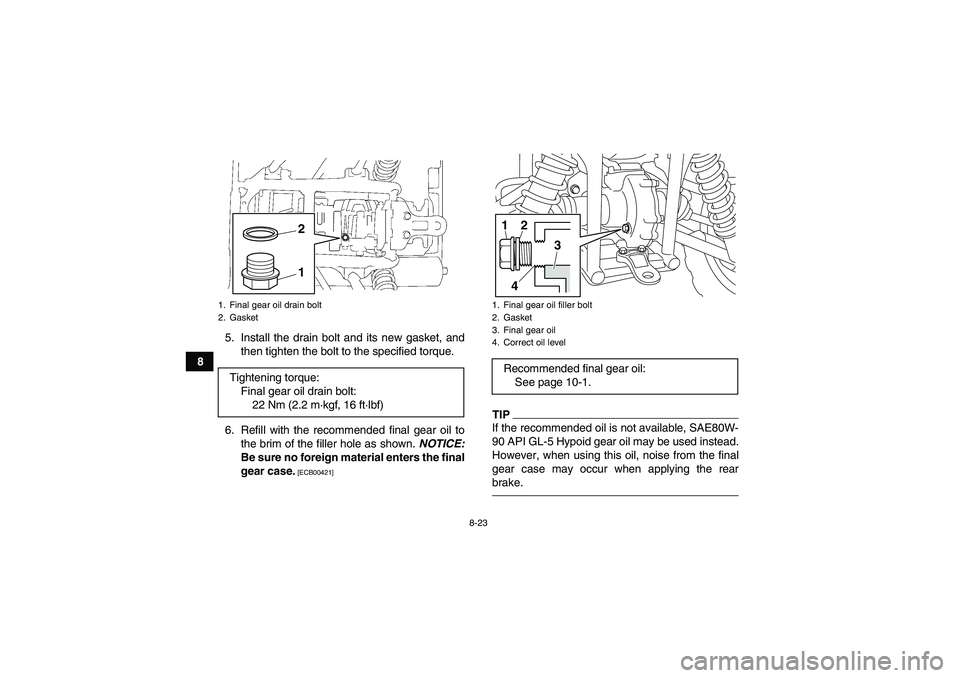

8-23
85. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
6. Refill with the recommended final gear oil to
the brim of the filler hole as shown. NOTICE:
Be sure no foreign material enters the final
gear case.
[ECB00421]
TIPIf the recommended oil is not available, SAE80W-
90 API GL-5 Hypoid gear oil may be used instead.
However, when using this oil, noise from the final
gear case may occur when applying the rear
brake.
1. Final gear oil drain bolt
2. GasketTightening torque:
Final gear oil drain bolt:
22 Nm (2.2 m·kgf, 16 ft·lbf)
12
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelRecommended final gear oil:
See page 10-1.1
2
3
4
U1CT60E0.book Page 23 Monday, May 31, 2010 10:05 AM

8-24
8 7. Check the oil filler bolt gasket for damage, and
replace it if necessary.
8. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.
9. Check the final gear case for oil leakage. If oil
is leaking, check for the cause.
10. Install the engine guard and the final gear
case guard by installing the bolts, and then
tightening them to the specified torques.
EBU23426Differential gear oil The differential gear case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the differential gear oil level must bechecked and the oil changed as follows at the in-
tervals specified in the periodic maintenance and
lubrication chart.
To check the differential gear oil level
1. Place the ATV on a level surface.
2. Remove the differential gear oil filler bolt and
its gasket, and then check the oil level in the
differential gear case. The oil level should be
at the brim of the filler hole. Tightening torque:
Final gear oil filler bolt:
22 Nm (2.2 m·kgf, 16 ft·lbf)
Tightening torques:
Engine guard bolt:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Final gear case guard bolt:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
1. Differential gear oil filler bolt
2. Gasket
3. Differential gear oil
4. Correct oil level
1
2
3
4
U1CT60E0.book Page 24 Monday, May 31, 2010 10:05 AM

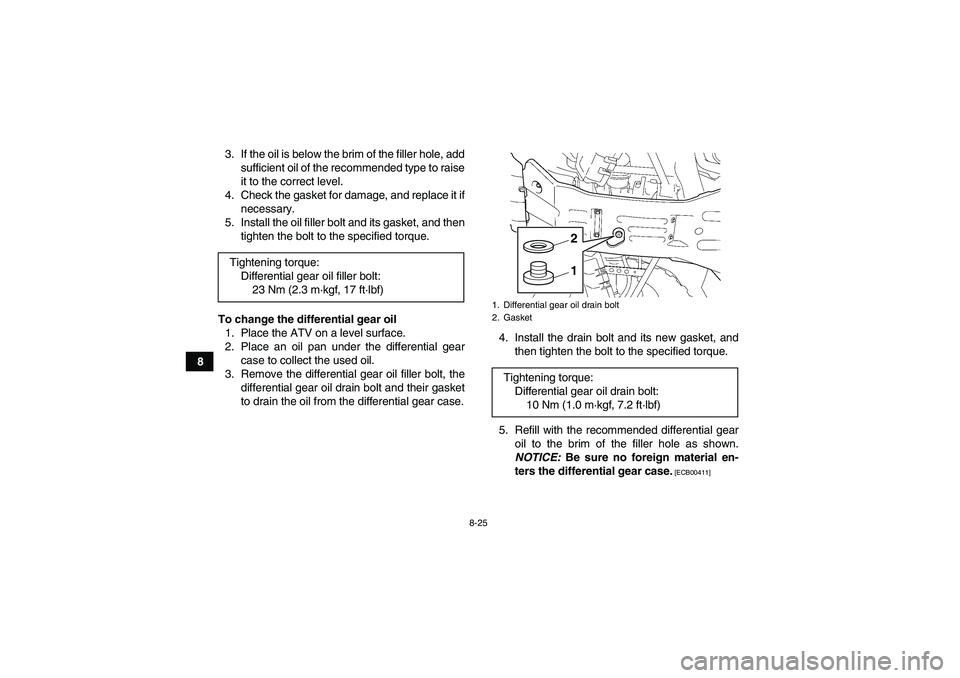

8-25
83. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to raise
it to the correct level.
4. Check the gasket for damage, and replace it if
necessary.
5. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.
To change the differential gear oil
1. Place the ATV on a level surface.
2. Place an oil pan under the differential gear
case to collect the used oil.
3. Remove the differential gear oil filler bolt, the
differential gear oil drain bolt and their gasket
to drain the oil from the differential gear case.4. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
5. Refill with the recommended differential gear
oil to the brim of the filler hole as shown.
NOTICE: Be sure no foreign material en-
ters the differential gear case.
[ECB00411]
Tightening torque:
Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1. Differential gear oil drain bolt
2. GasketTightening torque:
Differential gear oil drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
12
U1CT60E0.book Page 25 Monday, May 31, 2010 10:05 AM

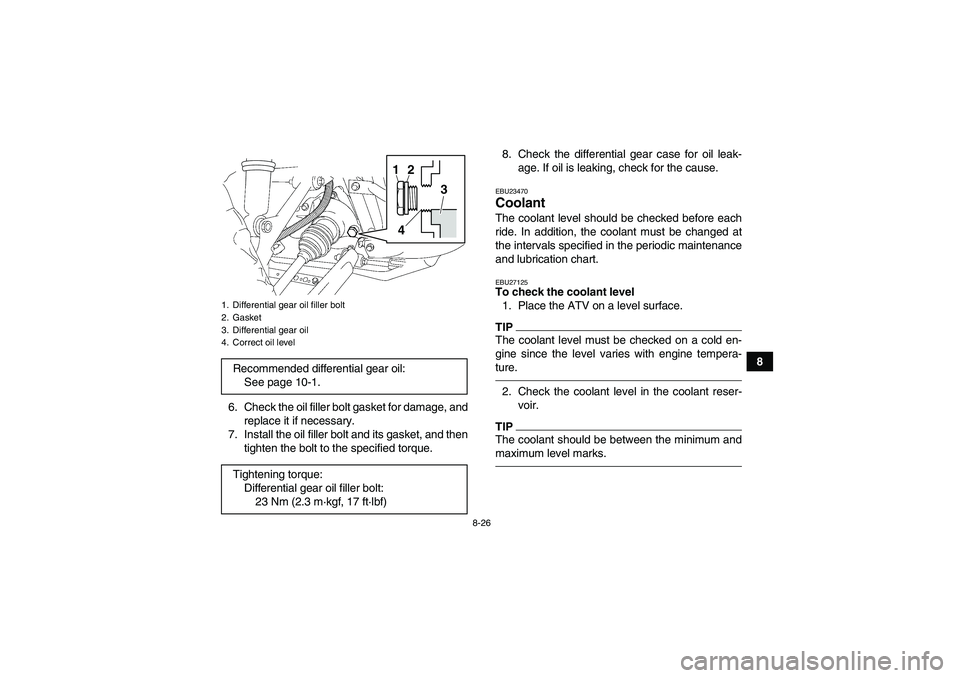

8-26
8
6. Check the oil filler bolt gasket for damage, and
replace it if necessary.
7. Install the oil filler bolt and its gasket, and then
tighten the bolt to the specified torque.8. Check the differential gear case for oil leak-
age. If oil is leaking, check for the cause.
EBU23470Coolant The coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27125To check the coolant level
1. Place the ATV on a level surface.TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture.2. Check the coolant level in the coolant reser-
voir.TIPThe coolant should be between the minimum and
maximum level marks.
1. Differential gear oil filler bolt
2. Gasket
3. Differential gear oil
4. Correct oil levelRecommended differential gear oil:
See page 10-1.
Tightening torque:
Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1
2
3
4
U1CT60E0.book Page 26 Monday, May 31, 2010 10:05 AM

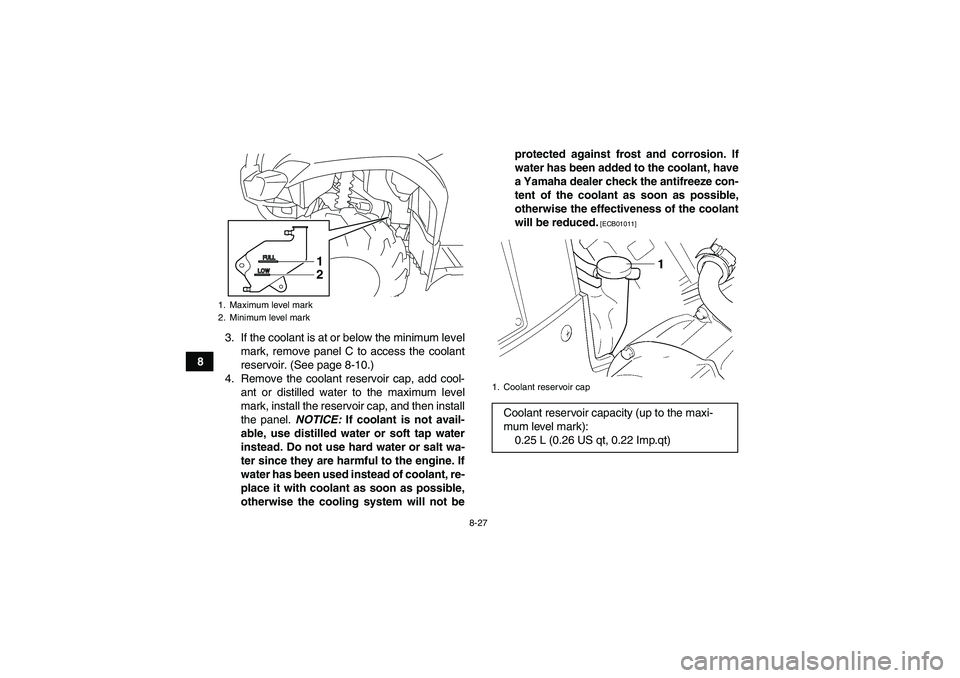

8-27
83. If the coolant is at or below the minimum level
mark, remove panel C to access the coolant
reservoir. (See page 8-10.)
4. Remove the coolant reservoir cap, add cool-
ant or distilled water to the maximum level
mark, install the reservoir cap, and then install
the panel. NOTICE: If coolant is not avail-
able, use distilled water or soft tap water
instead. Do not use hard water or salt wa-
ter since they are harmful to the engine. If
water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not beprotected against frost and corrosion. If
water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01011]
1. Maximum level mark
2. Minimum level mark
1
2
1. Coolant reservoir capCoolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
U1CT60E0.book Page 27 Monday, May 31, 2010 10:05 AM

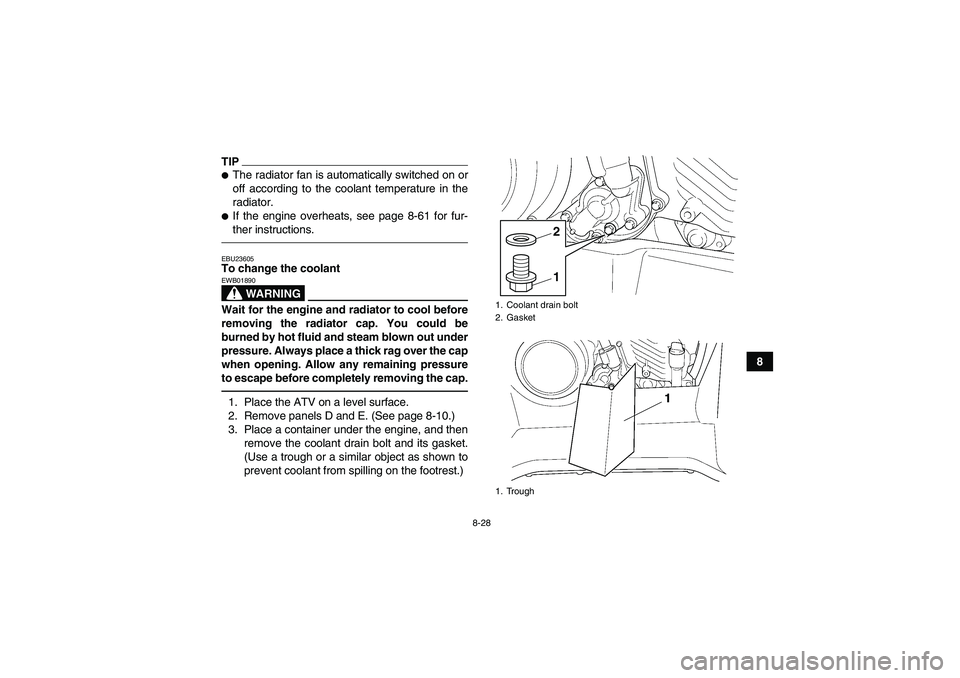

8-28
8
TIP
The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
If the engine overheats, see page 8-61 for fur-
ther instructions.EBU23605To change the coolant
WARNING
EWB01890Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap.1. Place the ATV on a level surface.
2. Remove panels D and E. (See page 8-10.)
3. Place a container under the engine, and then
remove the coolant drain bolt and its gasket.
(Use a trough or a similar object as shown to
prevent coolant from spilling on the footrest.)
1. Coolant drain bolt
2. Gasket
1. Trough
12
U1CT60E0.book Page 28 Monday, May 31, 2010 10:05 AM

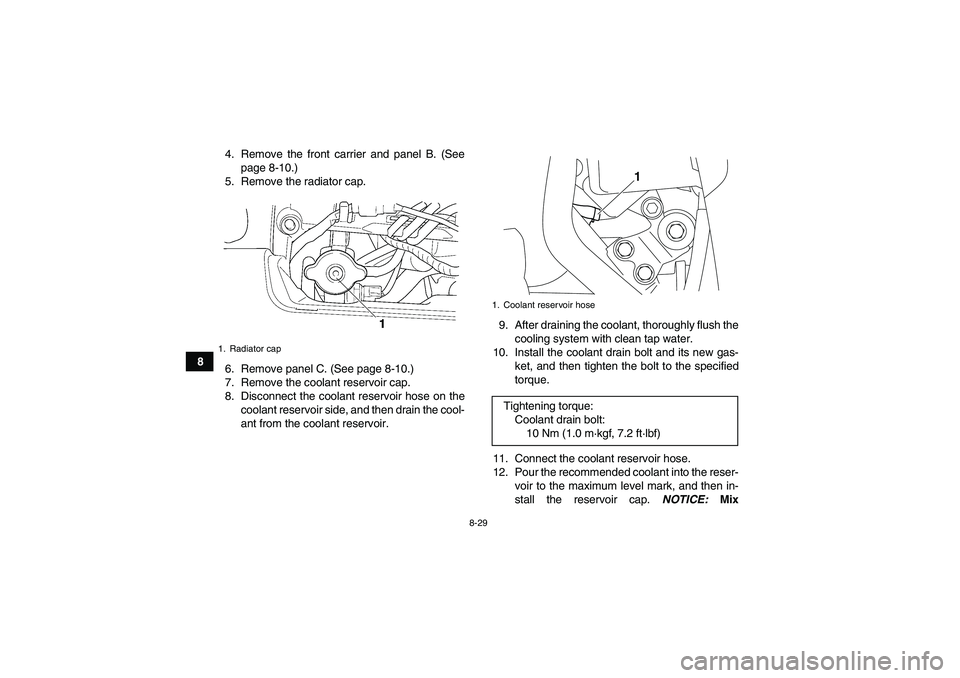

8-29
84. Remove the front carrier and panel B. (See
page 8-10.)
5. Remove the radiator cap.
6. Remove panel C. (See page 8-10.)
7. Remove the coolant reservoir cap.
8. Disconnect the coolant reservoir hose on the
coolant reservoir side, and then drain the cool-
ant from the coolant reservoir.9. After draining the coolant, thoroughly flush the
cooling system with clean tap water.
10. Install the coolant drain bolt and its new gas-
ket, and then tighten the bolt to the specified
torque.
11. Connect the coolant reservoir hose.
12. Pour the recommended coolant into the reser-
voir to the maximum level mark, and then in-
stall the reservoir cap. NOTICE: Mix
1. Radiator cap
1. Coolant reservoir hoseTightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
U1CT60E0.book Page 29 Monday, May 31, 2010 10:05 AM

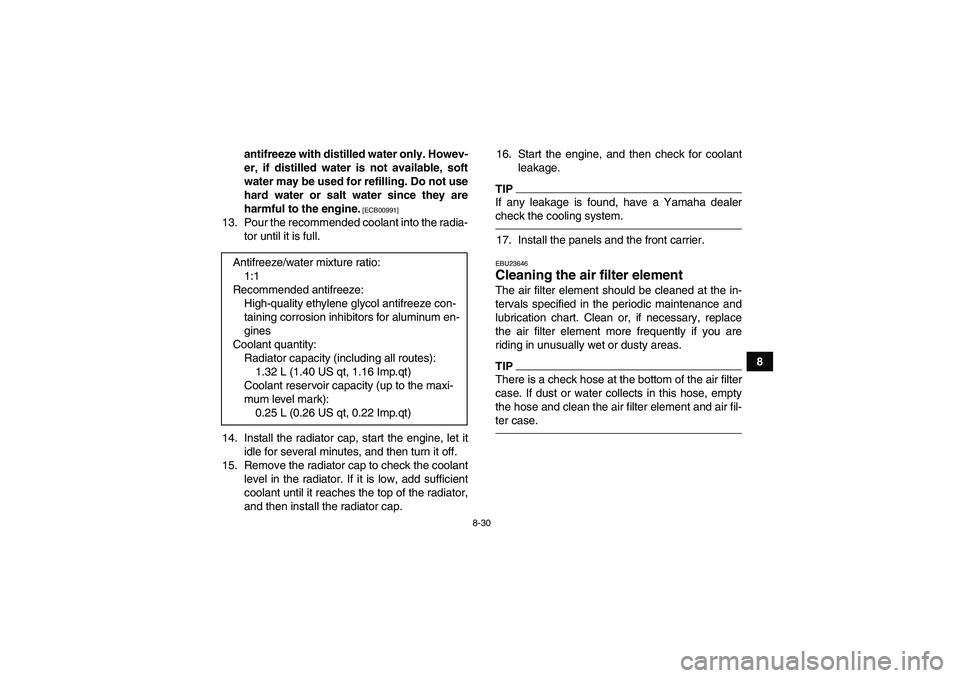

8-30
8 antifreeze with distilled water only. Howev-
er, if distilled water is not available, soft
water may be used for refilling. Do not use
hard water or salt water since they are
harmful to the engine.
[ECB00991]
13. Pour the recommended coolant into the radia-
tor until it is full.
14. Install the radiator cap, start the engine, let it
idle for several minutes, and then turn it off.
15. Remove the radiator cap to check the coolant
level in the radiator. If it is low, add sufficient
coolant until it reaches the top of the radiator,
and then install the radiator cap.16. Start the engine, and then check for coolant
leakage.
TIPIf any leakage is found, have a Yamaha dealer
check the cooling system.17. Install the panels and the front carrier.EBU23646Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are
riding in unusually wet or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines
Coolant quantity:
Radiator capacity (including all routes):
1.32 L (1.40 US qt, 1.16 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
U1CT60E0.book Page 30 Monday, May 31, 2010 10:05 AM

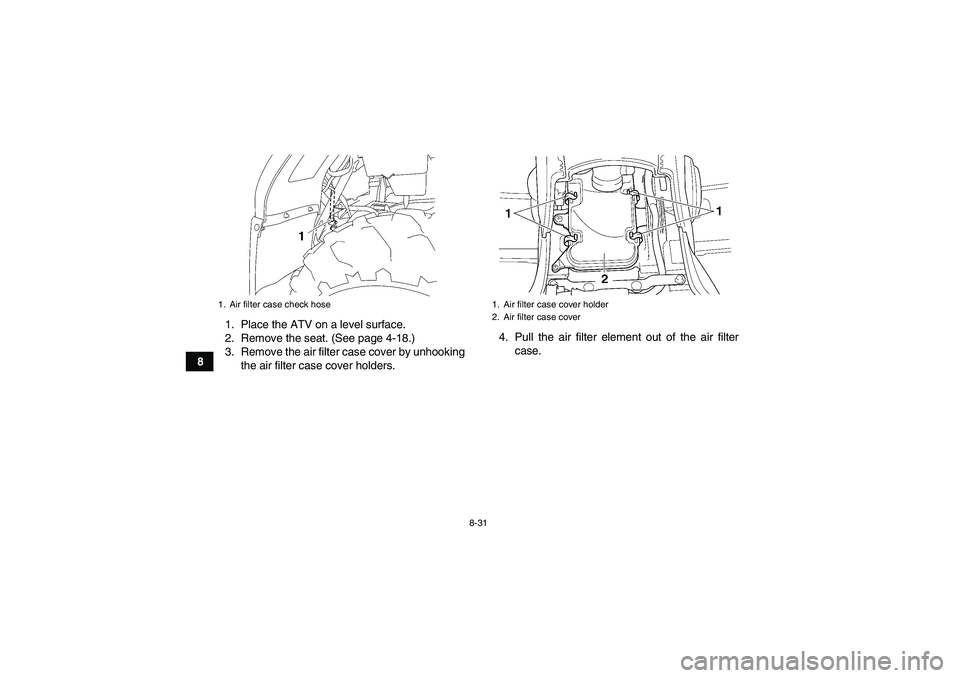

8-31
81. Place the ATV on a level surface.
2. Remove the seat. (See page 4-18.)
3. Remove the air filter case cover by unhooking
the air filter case cover holders.4. Pull the air filter element out of the air filter
case.
1. Air filter case check hose
1. Air filter case cover holder
2. Air filter case cover
U1CT60E0.book Page 31 Monday, May 31, 2010 10:05 AM
