YAMAHA KODIAK 450 2018 Owners Manual

8-18
8

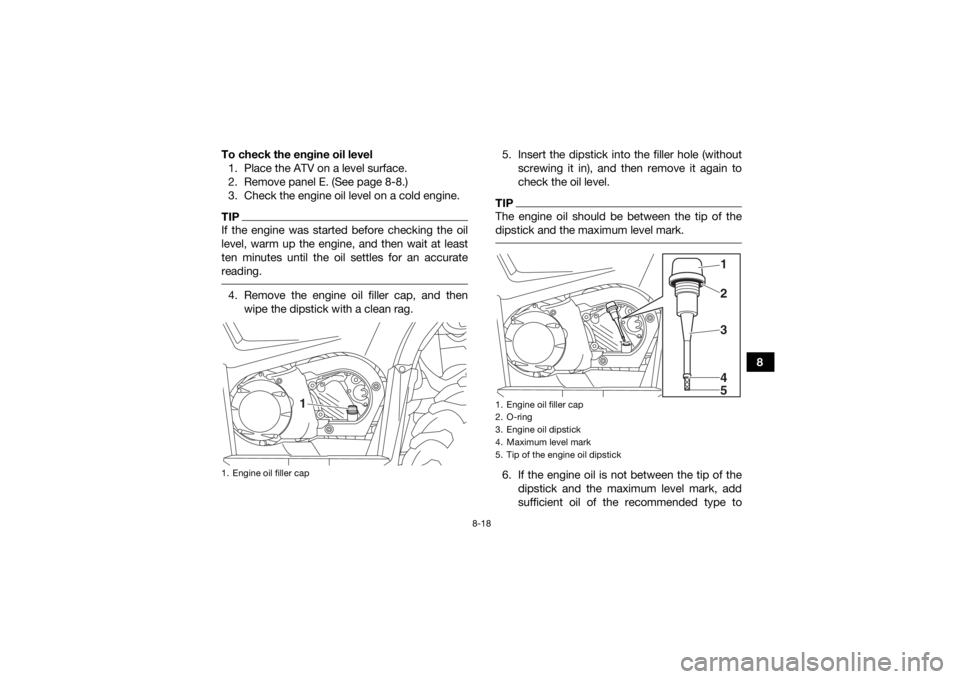

To check the engine oil level
1. Place the ATV on a level surface.
2. Remove panel E. (See page 8-8.)
3. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, warm up the engine, and then wait at least
ten minutes until the oil settles for an accurate
reading. 4. Remove the engine oil filler cap, and then wipe the dipstick with a clean rag. 5. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.
TIPThe engine oil should be between the tip of the
dipstick and the maximum level mark. 6. If the engine oil is not between the tip of thedipstick and the maximum level mark, add
sufficient oil of the recommended type to
1. Engine oil filler cap
1
1. Engine oil filler cap
2. O-ring
3. Engine oil dipstick
4. Maximum level mark
5. Tip of the engine oil dipstick
12345
UBB560E0.book Page 18 Friday, March 10, 2017 10:20 AM

8-19
8raise it to the correct level.
NOTICE: Be sure
the engine oil is at the correct level, other-
wise engine damage may result.
[ECB00852]
7. Check the filler cap O-ring for damage, and replace it if necessary.
8. Install the engine oil filler cap and the panel.
To change the engine oil (and replace the oil fil-
ter cartridge) 1. Place the ATV on a level surface.
2. Remove panel E. (See page 8-8.)
3. Start the engine, warm it up for several minu- tes, and then turn it off.
4. Place an oil pan under the engine to collect the used oil.
5. Remove the engine oil filler cap, and then re- move the engine oil drain bolt and its gasket
to drain the oil from the crankcase.
TIPSkip steps 6–10 if the oil filter cartridge is not be-
ing replaced. 6. Remove panels C and D. (See page 8-8.)
7. Remove the oil filter cartridge with an oil filterwrench.1. Engine oil drain bolt
2. Gasket
12
UBB560E0.book Page 19 Friday, March 10, 2017 10:20 AM

8-20
8

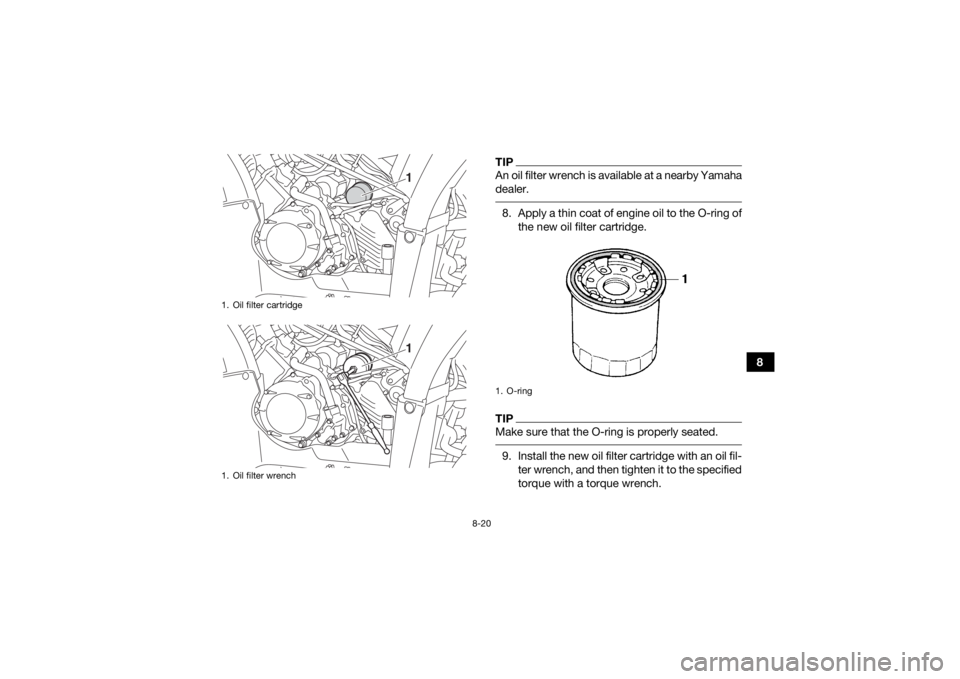

TIPAn oil filter wrench is available at a nearby Yamaha
dealer. 8. Apply a thin coat of engine oil to the O-ring ofthe new oil filter cartridge.TIPMake sure that the O-ring is properly seated. 9. Install the new oil filter cartridge with an oil fil-ter wrench, and then tighten it to the specified
torque with a torque wrench.
1. Oil filter cartridge
1. Oil filter wrench
11
1. O-ring
UBB560E0.book Page 20 Friday, March 10, 2017 10:20 AM

8-21
810. Install panels D and C.
11. Install the engine oil drain bolt and its new gasket, and then tighten the bolt to the spec-
ified torque. 12. Refill with the specified amount of the recom-
mended engine oil.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down. NOTICEECB00301In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
 Make sure that no foreign material enters the
crankcase.
1. Torque wrenchTightening torque:
Oil filter cartridge:17 N·m (1.7 kgf·m, 13 lb·ft)
Tightening torque: Engine oil drain bolt:27 N·m (2.7 kgf·m, 20 lb·ft)
1
Recommended oil:See page 10-1.
Oil quantity: Without oil filter cartridge replacement:2.30 L (2.43 US qt, 2.02 Imp.qt)
With oil filter cartridge replacement: 2.40 L (2.54 US qt, 2.11 Imp.qt)
UBB560E0.book Page 21 Friday, March 10, 2017 10:20 AM

8-22
8
13. Check the engine oil filler cap O-ring for dam-
age, and then install the filler cap.
14. Start the engine and let it idle for several mi- nutes while checking for oil leakage. If any oil
leakage is found, immediately turn the engine
off and check for the cause.
15. Turn the engine off, wait at least ten minutes, and then check the oil level and correct it if
necessary.
16. Install panel E.
EBU28566Final gear oilThe final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
To check the final gear oil level 1. Place the ATV on a level surface.
2. Remove the final gear oil filler bolt and its gas- ket, and then check the oil level in the final
gear case. The oil level should be at the brim
of the filler hole. 3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to
raise it to the correct level.
4. Check the oil filler bolt gasket for damage, and replace it if necessary.
5. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.

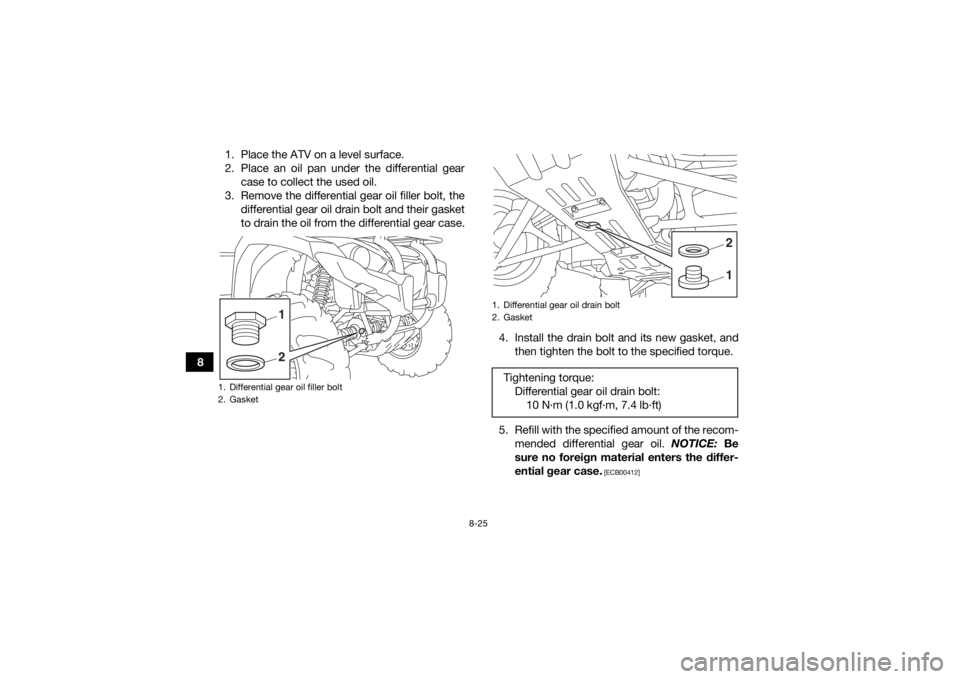

1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelTightening torque:Final gear oil filler bolt:22 N·m (2.2 kgf·m, 16 lb·ft)1
2
3
4
UBB560E0.book Page 22 Friday, March 10, 2017 10:20 AM

8-23
8To change the final gear oil
1. Place the ATV on a level surface.
2. Remove the final gear case guard by remov- ing the bolts.
3. Place an oil pan under the final gear case to collect the used oil.
4. Remove the final gear oil filler bolt, the final gear oil drain bolt and their gasket to drain the
oil from the final gear case. 5. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
6. Refill with the recommended final gear oil to the brim of the filler hole as shown. NOTICE:
Be sure no foreign material enters the final
gear case.
[ECB00422]

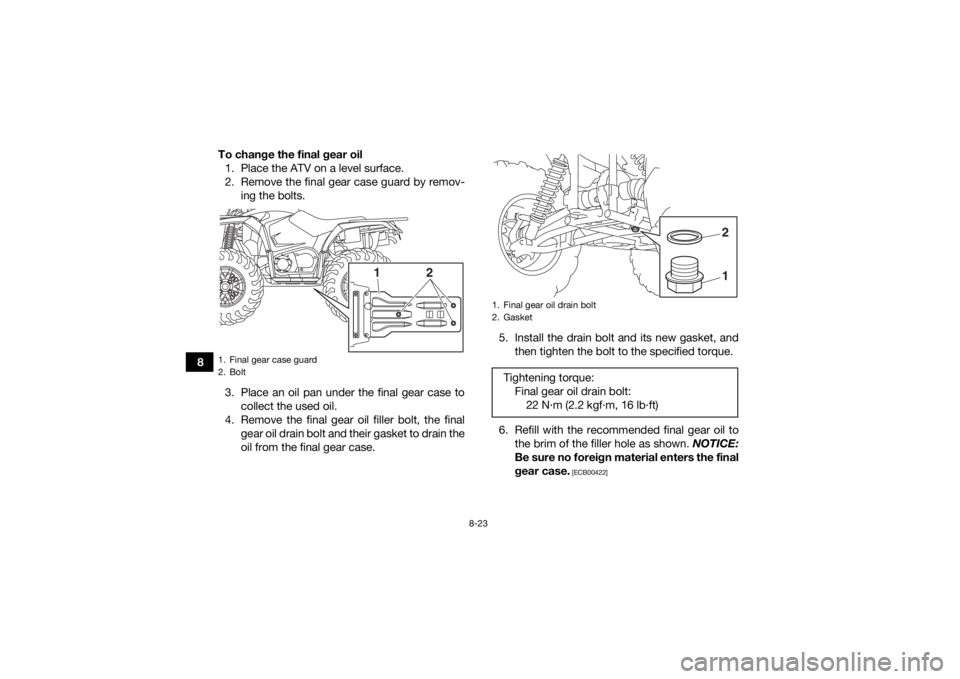

1. Final gear case guard
2. Bolt
1
2
1. Final gear oil drain bolt
2. GasketTightening torque: Final gear oil drain bolt:22 N·m (2.2 kgf·m, 16 lb·ft)
12
UBB560E0.book Page 23 Friday, March 10, 2017 10:20 AM

8-24
8
TIPIf the recommended oil is not available, SAE 80W-
90 API GL-5 Hypoid gear oil may be used instead.
However, when using this oil, noise from the final
gear case may occur when applying the rear
brake.
7. Check the oil filler bolt gasket for damage,and replace it if necessary.
8. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.
9. Check the final gear case for oil leakage. If oil is leaking, check for the cause.
10. Install the final gear case guard by installing the bolts, and then tightening them to the
specified torque.EBU23437Changing the differential gear oilThe differential gear case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the differential gear oil must be
changed as follows at the intervals specified in the
periodic maintenance and lubrication chart.
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelRecommended final gear oil:See page 10-1.1
2
3
4
Tightening torque: Final gear oil filler bolt:22 N·m (2.2 kgf·m, 16 lb·ft)
Tightening torque: Final gear case guard bolt:8 N·m (0.8 kgf·m, 5.9 lb·ft)
UBB560E0.book Page 24 Friday, March 10, 2017 10:20 AM

8-25
81. Place the ATV on a level surface.
2. Place an oil pan under the differential gear
case to collect the used oil.
3. Remove the differential gear oil filler bolt, the differential gear oil drain bolt and their gasket
to drain the oil from the differential gear case.
4. Install the drain bolt and its new gasket, andthen tighten the bolt to the specified torque.
5. Refill with the specified amount of the recom- mended differential gear oil. NOTICE: Be
sure no foreign material enters the differ-
ential gear case.
[ECB00412]
1. Differential gear oil filler bolt
2. Gasket
21
1. Differential gear oil drain bolt
2. GasketTightening torque: Differential gear oil drain bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
12
UBB560E0.book Page 25 Friday, March 10, 2017 10:20 AM

8-26
8
TIPDo not exceed the specified differential gear oil
quantity when filling. Overfilling will cause the oil
to seep out of the breather hose during and af-
ter riding.
 The differential gear case capacity is greater
than the recommended oil quantity, therefore
the oil level cannot be accurately checked from
the oil filler hole. 6. Check the oil filler bolt gasket for damage,
and replace it if necessary.
7. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.
8. Check the differential gear case for oil leak- age. If oil is leaking, check for the cause.
EBU23471CoolantThe coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27129To check the coolant level1. Place the ATV on a level surface.TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture. 2. Check the coolant level in the coolant reser- voir.TIPThe coolant should be between the minimum and
maximum level marks.
Recommended differential gear oil:See page 10-1.
Oil quantity: 0.35 L (0.37 US qt, 0.31 Imp.qt)
Tightening torque: Differential gear oil filler bolt:23 N·m (2.3 kgf·m, 17 lb·ft)
UBB560E0.book Page 26 Friday, March 10, 2017 10:20 AM

8-27
83. If the coolant is at or below the minimum level
mark, remove panel C to access the coolant
reservoir. (See page 8-8.)
4. Remove the coolant reservoir cap, add cool- ant or distilled water to the maximum level
mark, install the reservoir cap, and then install
the panel. NOTICE: If coolant is not avail-
able, use distilled water or soft tap water
instead. Do not use hard water or salt wa-
ter since they are harmful to the engine. If
water has been used instead of coolant,
replace it with coolant as soon as possible,
otherwise the cooling system will not be protected against frost and corrosion. If
water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible,
otherwise the effectiveness of the coolant
will be reduced.
[ECB01012]

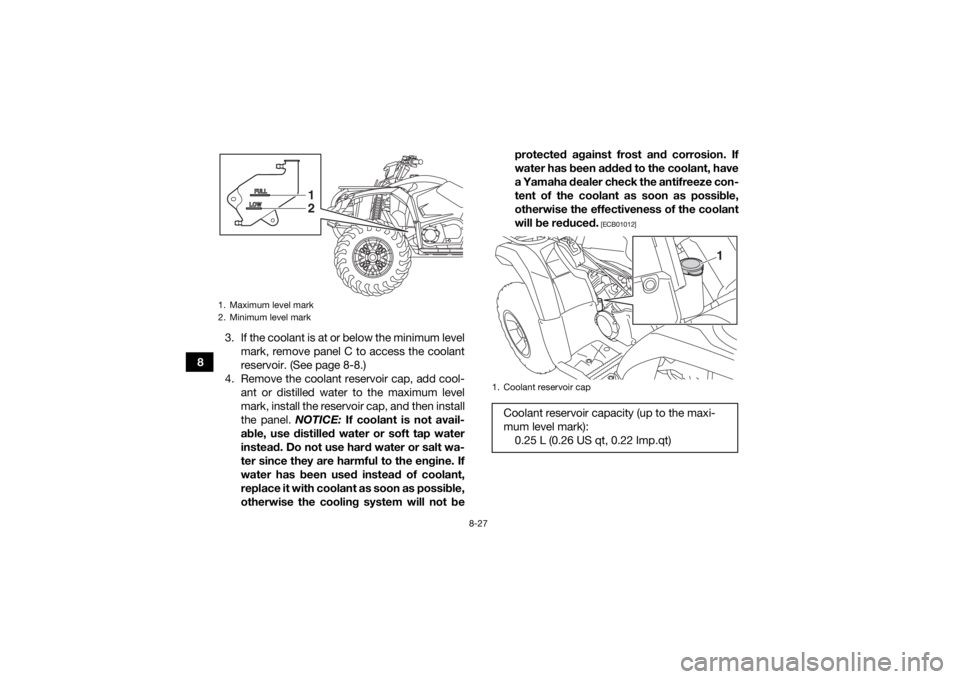

1. Maximum level mark
2. Minimum level mark
1
2
1. Coolant reservoir capCoolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
1
