YAMAHA KODIAK 450 2018 Owners Manual

8-48
8

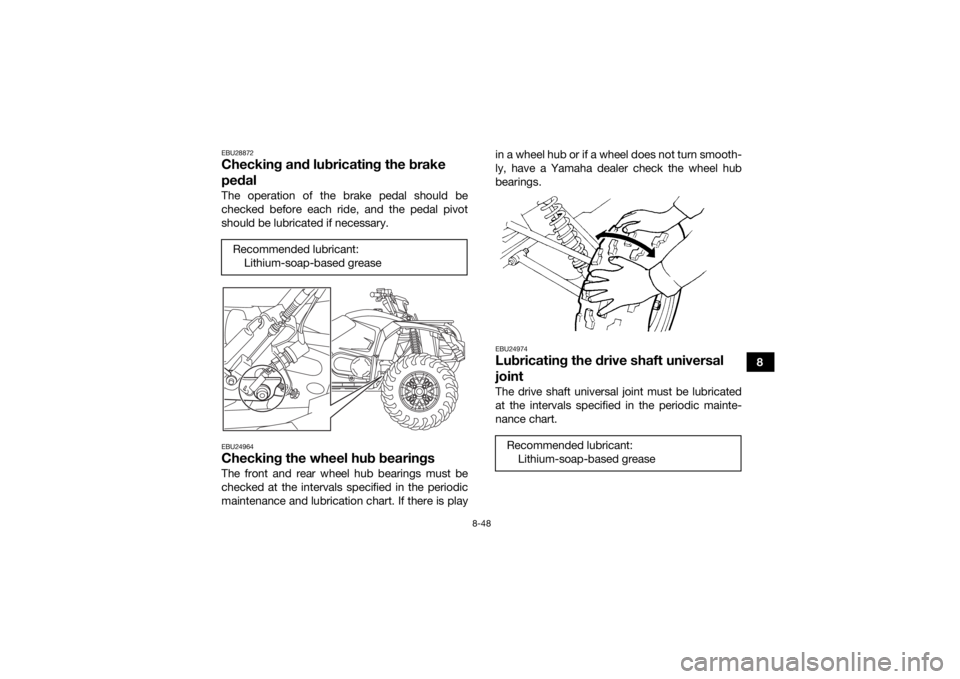

EBU28872Checking and lubricating the brake
pedalThe operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary.EBU24964Checking the wheel hub bearingsThe front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is playin a wheel hub or if a wheel does not turn smooth-
ly, have a Yamaha dealer check the wheel hub
bearings.
EBU24974Lubricating the drive shaft universal
jointThe drive shaft universal joint must be lubricated
at the intervals specified in the periodic mainte-
nance chart.
Recommended lubricant:
Lithium-soap-based greaseRecommended lubricant:Lithium-soap-based grease
UBB560E0.book Page 48 Friday, March 10, 2017 10:20 AM

8-49
8
TIPFor parts equipped with a grease nipple, use a
grease gun. EBU25023Checking the stabilizer bushesThe stabilizer bushes must be checked for cracks
or damage at the intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer replace the stabilizer bush-
es if necessary.

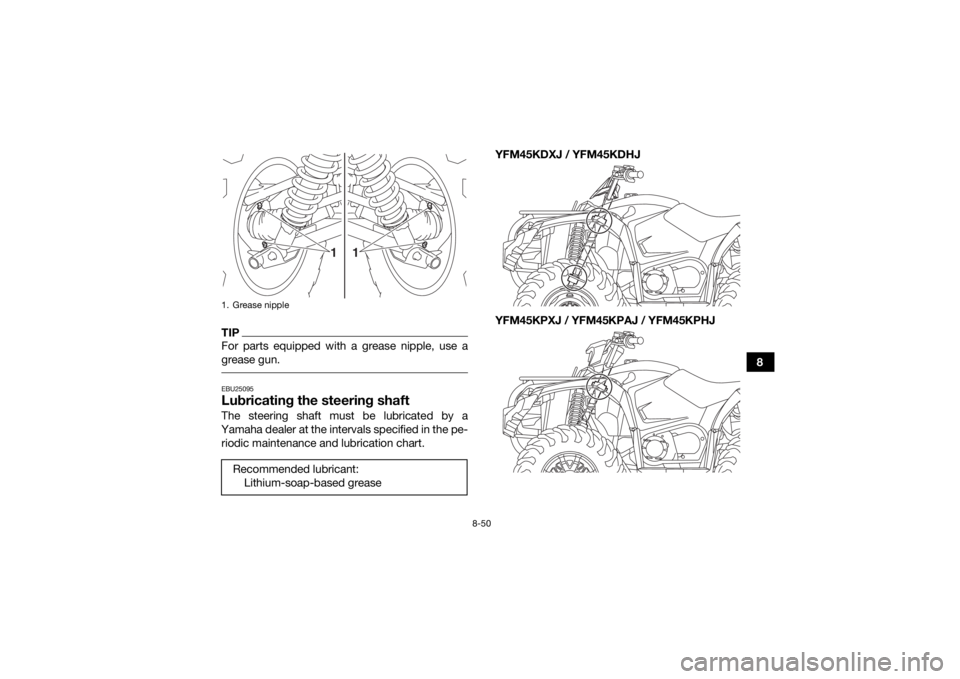

EBU25054Lubricating the rear knuckle pivotsThe rear knuckle pivots must be lubricated at the
intervals specified in the periodic maintenance
and lubrication chart.
1. Grease nipple
1
Recommended lubricant:Lithium-soap-based grease
UBB560E0.book Page 49 Friday, March 10, 2017 10:20 AM

8-50
8
TIPFor parts equipped with a grease nipple, use a

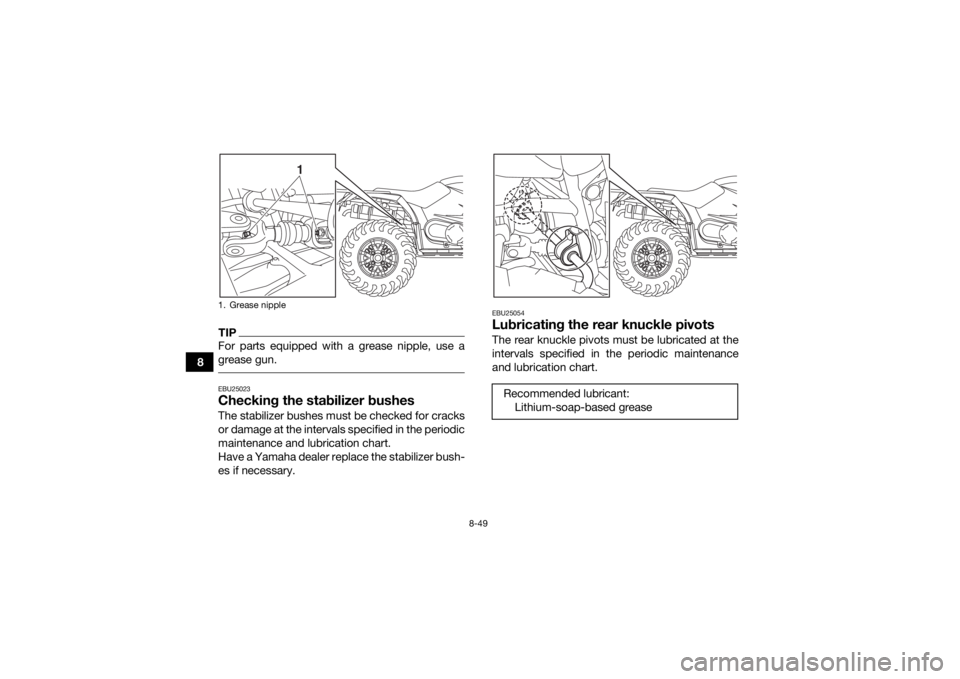

grease gun. EBU25095Lubricating the steering shaftThe steering shaft must be lubricated by a
Yamaha dealer at the intervals specified in the pe- riodic maintenance and lubrication chart. YFM45KDXJ / YFM45KDHJ
YFM45KPXJ / YFM45KPAJ / YFM45KPHJ1. Grease nippleRecommended lubricant:
Lithium-soap-based grease
1
1
UBB560E0.book Page 50 Friday, March 10, 2017 10:20 AM

8-51
8
TIPFor parts equipped with a grease nipple, use a
grease gun. EBU2918BBatteryThis model is equipped with a 12-volt VRLA
(valve-regulated lead-acid) battery. There is no
need to check the electrolyte or to add distilled
water. However, the battery lead connections
need to be checked and tightened, and the bat-
tery terminals cleaned if corroded. If the battery
seems to have discharged, recharge it as soon as
possible.TIPWear gloves and eye protection in a ventilated
area away from sparks and open flames. Wash
hands after handling.
 It is recommended to have the battery serviced
by a Yamaha dealer.
WARNING
EWB02161Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can cau-
se severe burns. Avoid contact with skin, eyes
or clothing. Always shield your eyes when
working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of
ignition away. Ventilate when charging or using
in an enclosed space.
KEEP OUT OF REACH OF CHILDREN. To remove the battery
1. Remove the seat. (See page 4-13.)
2. Remove the battery holding plate by remov- ing the bolts.
UBB560E0.book Page 51 Friday, March 10, 2017 10:20 AM

8-52
8
3. Disconnect the negative battery lead first,
then the positive battery lead by removing
their bolt. NOTICE: When removing the bat-
tery, the main switch must be off, and the
negative lead must be disconnected be-
fore the positive lead.
[ECB01002]
4. Pull the battery out of its compartment.
NOTICEECB00622Never attempt to open the battery or remove
the battery cell seals, as this would permanent-
ly damage the battery. To charge the battery
 Confirm the recommended charging rate as
specified on the battery itself.
 Select a suitable charger and follow the manu-
facturer’s instructions.NOTICEECB00933To charge a VRLA (valve-regulated lead-acid)
battery, a special battery charger is required.
Using a conventional battery charger will dam-
age the battery. To store the battery
If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
 If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.
1. Bolt
2. Battery holding plate
3. Positive battery lead (red)
4. Negative battery lead (black)
1
4
3
2
1
UBB560E0.book Page 52 Friday, March 10, 2017 10:20 AM

8-53
8
NOTICEECB00942Always keep the battery charged. Storing the
battery in a discharged state for an extended
period of time will cause permanent battery
damage.
 Do not store the battery in an excessively
cold or warm place [below freezing or above
30 °C (90 °F)]. To install the battery
1. Place the battery in its compartment.
2. Connect the positive battery lead first, then connect the negative battery lead by installing
their bolt. NOTICE: When installing the bat-
tery, the main switch must be off, and the
positive lead must be connected before
the negative lead.
[ECB01111]
3. Install the battery holding plate by installing the bolts.
4. Install the seat. (See page 4-13.)TIP Make sure the positive and negative battery
leads are installed as shown.
 Fully charge the battery before installing it. 1. Positive battery lead (red)
2. Negative battery lead (black)
2
1
UBB560E0.book Page 53 Friday, March 10, 2017 10:20 AM

8-54
8

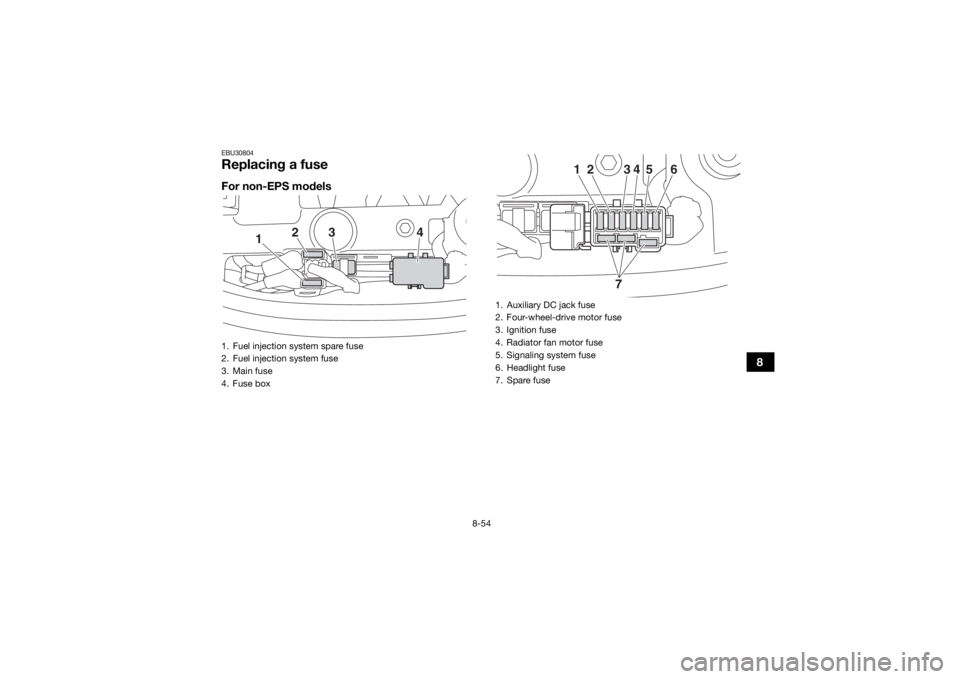

EBU30804Replacing a fuseFor non-EPS models1. Fuel injection system spare fuse
2. Fuel injection system fuse
3. Main fuse
4. Fuse box
1
2
3
4
1. Auxiliary DC jack fuse
2. Four-wheel-drive motor fuse
3. Ignition fuse
4. Radiator fan motor fuse
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
1
2
34
5
6
7
UBB560E0.book Page 54 Friday, March 10, 2017 10:20 AM

8-55

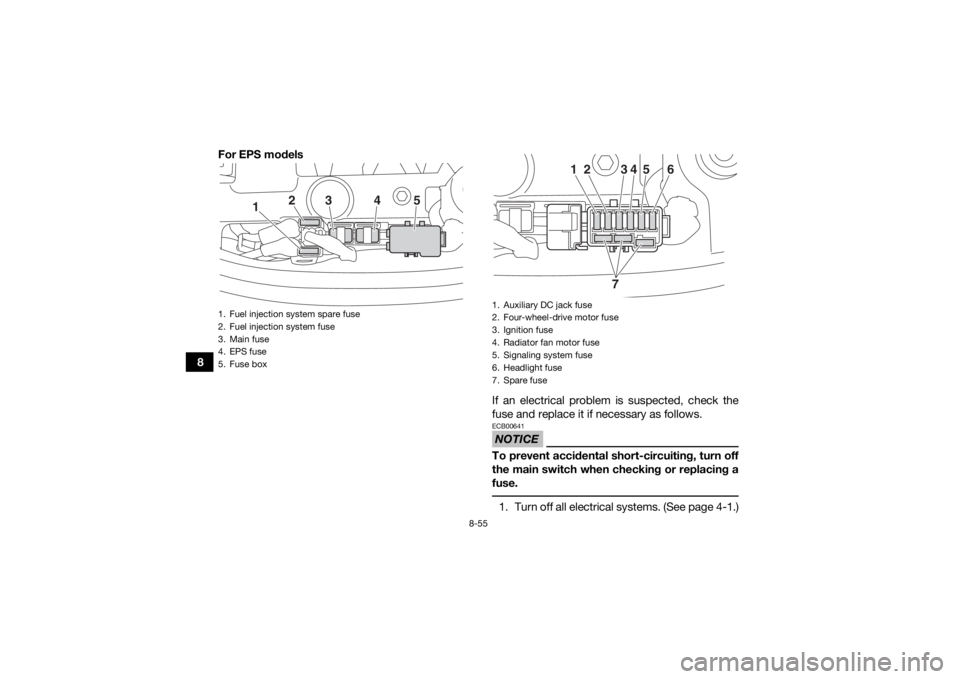

8For EPS models
If an electrical problem is suspected, check the
fuse and replace it if necessary as follows.
NOTICEECB00641To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse. 1. Turn off all electrical systems. (See page 4-1.)
1. Fuel injection system spare fuse
2. Fuel injection system fuse
3. Main fuse
4. EPS fuse
5. Fuse box
1
2
3
4
5
1. Auxiliary DC jack fuse
2. Four-wheel-drive motor fuse
3. Ignition fuse
4. Radiator fan motor fuse
5. Signaling system fuse
6. Headlight fuse
7. Spare fuse
1
2
34
5
6
7
UBB560E0.book Page 55 Friday, March 10, 2017 10:20 AM

8-56
8
2. Remove the seat. (See page 4-13.)
3. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the spec- ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02173]
4. Turn on the main switch, start the engine, and then turn on the circuit in question.
5. If the fuse immediately blows again, have a Yamaha dealer check the vehicle.
Specified fuses:
Main fuse:40.0 A
Headlight fuse: 15.0 A
Ignition fuse: 10.0 A
Four-wheel-drive motor fuse: 3.0 A
Signaling system fuse: 10.0 A
Radiator fan motor fuse: 20.0 A
Auxiliary DC jack fuse: 10.0 A
Fuel injection system fuse: 10.0 A
EPS fuse: 40.0 A (YFM45KPAJ, YFM45KPHJ,
YFM45KPXJ)
UBB560E0.book Page 56 Friday, March 10, 2017 10:20 AM

8-57
8

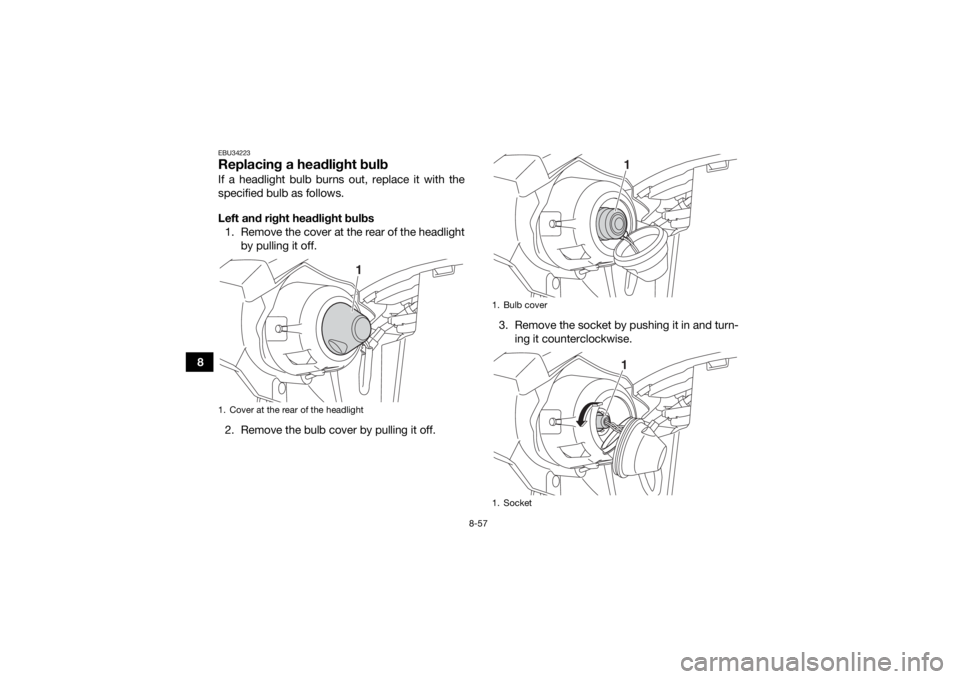

EBU34223Replacing a headlight bulbIf a headlight bulb burns out, replace it with the
specified bulb as follows.
Left and right headlight bulbs1. Remove the cover at the rear of the headlight by pulling it off.
2. Remove the bulb cover by pulling it off. 3. Remove the socket by pushing it in and turn-
ing it counterclockwise.1. Cover at the rear of the headlight
1
1. Bulb cover
1. Socket
11
UBB560E0.book Page 57 Friday, March 10, 2017 10:20 AM
