EAU10110

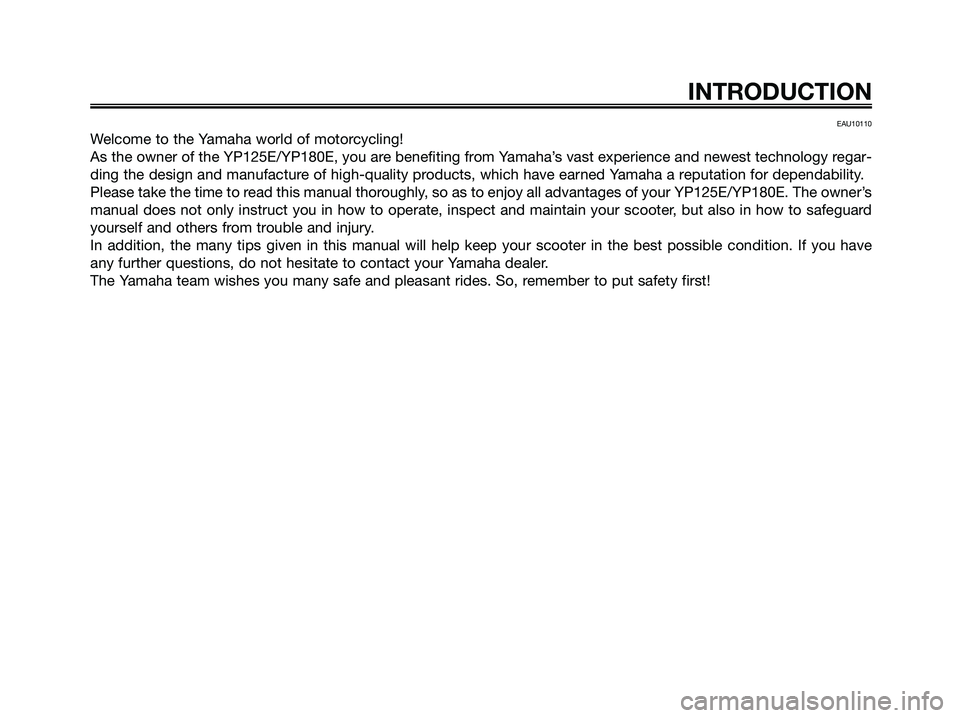

Welcome to the Yamaha world of motorcycling!
As the owner of the YP125E/YP180E, you are benefiting from Yamaha’s vast experience and newest technology regar-
ding the design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your YP125E/YP180E. The owner’s
manual does not only instruct you in how to operate, inspect and maintain your scooter, but also in how to safeguard
yourself and others from trouble and injury.
In addition, the many tips given in this manual will help keep your scooter in the best possible condition. If you have
any further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
INTRODUCTION
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 3

EAU34110

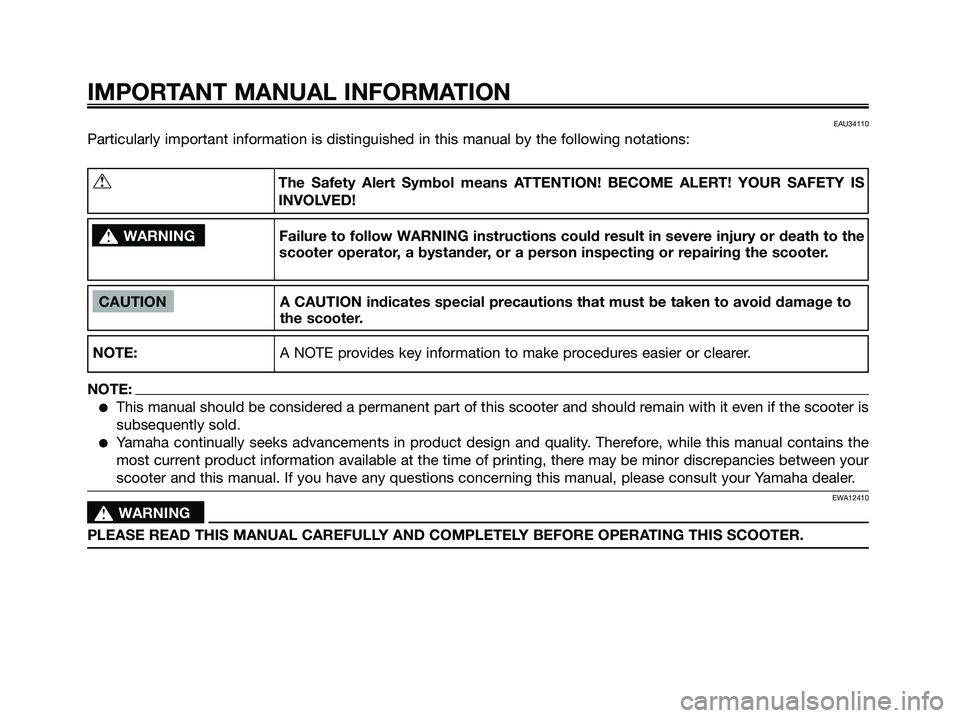

Particularly important information is distinguished in this manual by the following notations:
IMPORTANT MANUAL INFORMATION
CAUTION A CAUTION indicates special precautions that must be taken to avoid damage to
the scooter.
NOTE:A NOTE provides key information to make procedures easier or clearer.
NOTE:
This manual should be considered a permanent part of this scooter and should remain with it even if the scooter is
subsequently sold.
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the
most current product information available at the time of printing, there may be minor discrepancies between your
scooter and this manual. If you have any questions concerning this manual, please consult your Yamaha dealer.
EWA12410
s s
WARNING
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS SCOOTER.
s s
WARNINGFailure to follow WARNING instructions could result in severe injury or death to the
scooter operator, a bystander, or a person inspecting or repairing the scooter.
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!t
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 4

EAUS1171

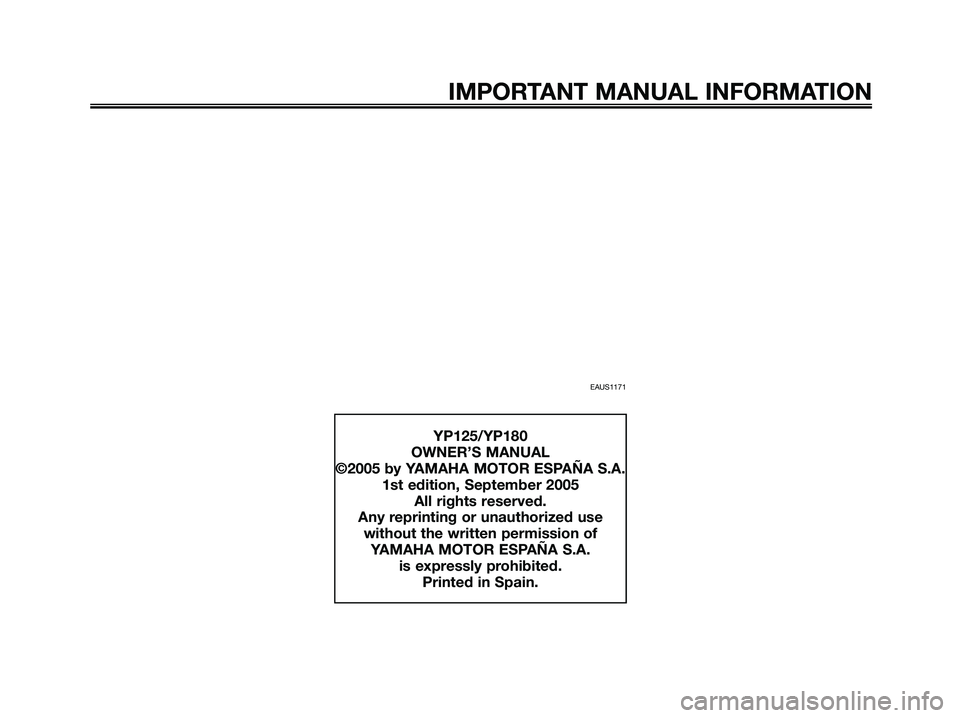

IMPORTANT MANUAL INFORMATION
YP125/YP180
OWNER’S MANUAL
©2005 by YAMAHA MOTOR ESPAÑA S.A.
1st edition, September 2005
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
YAMAHA MOTOR ESPAÑA S.A.
is expressly prohibited.
Printed in Spain.
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 5

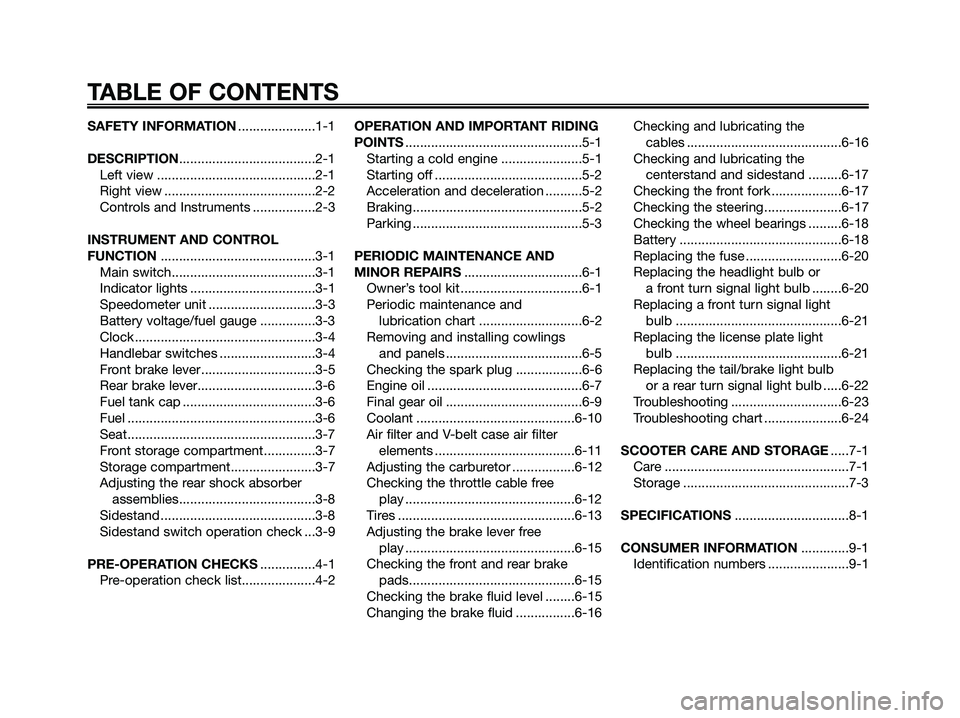

SAFETY INFORMATION.....................1-1
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and Instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTION..........................................3-1
Main switch.......................................3-1
Indicator lights ..................................3-1
Speedometer unit .............................3-3
Battery voltage/fuel gauge ...............3-3
Clock .................................................3-4
Handlebar switches ..........................3-4
Front brake lever...............................3-5
Rear brake lever................................3-6
Fuel tank cap ....................................3-6
Fuel ...................................................3-6
Seat...................................................3-7
Front storage compartment..............3-7
Storage compartment.......................3-7
Adjusting the rear shock absorber
assemblies.....................................3-8
Sidestand ..........................................3-8
Sidestand switch operation check ...3-9
PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2OPERATION AND IMPORTANT RIDING
POINTS................................................5-1
Starting a cold engine ......................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-2
Parking ..............................................5-3
PERIODIC MAINTENANCE AND
MINOR REPAIRS................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ............................6-2
Removing and installing cowlings
and panels .....................................6-5
Checking the spark plug ..................6-6
Engine oil ..........................................6-7
Final gear oil .....................................6-9
Coolant ...........................................6-10
Air filter and V-belt case air filter
elements ......................................6-11
Adjusting the carburetor .................6-12
Checking the throttle cable free
play ..............................................6-12
Tires ................................................6-13
Adjusting the brake lever free
play ..............................................6-15
Checking the front and rear brake
pads.............................................6-15
Checking the brake fluid level ........6-15
Changing the brake fluid ................6-16Checking and lubricating the
cables ..........................................6-16
Checking and lubricating the
centerstand and sidestand .........6-17
Checking the front fork ...................6-17
Checking the steering.....................6-17
Checking the wheel bearings .........6-18
Battery ............................................6-18
Replacing the fuse ..........................6-20
Replacing the headlight bulb or
a front turn signal light bulb ........6-20
Replacing a front turn signal light
bulb .............................................6-21
Replacing the license plate light
bulb .............................................6-21
Replacing the tail/brake light bulb
or a rear turn signal light bulb .....6-22
Troubleshooting ..............................6-23
Troubleshooting chart .....................6-24
SCOOTER CARE AND STORAGE.....7-1
Care ..................................................7-1
Storage .............................................7-3
SPECIFICATIONS...............................8-1
CONSUMER INFORMATION.............9-1
Identification numbers ......................9-1
TABLE OF CONTENTS
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 6

EAU10260

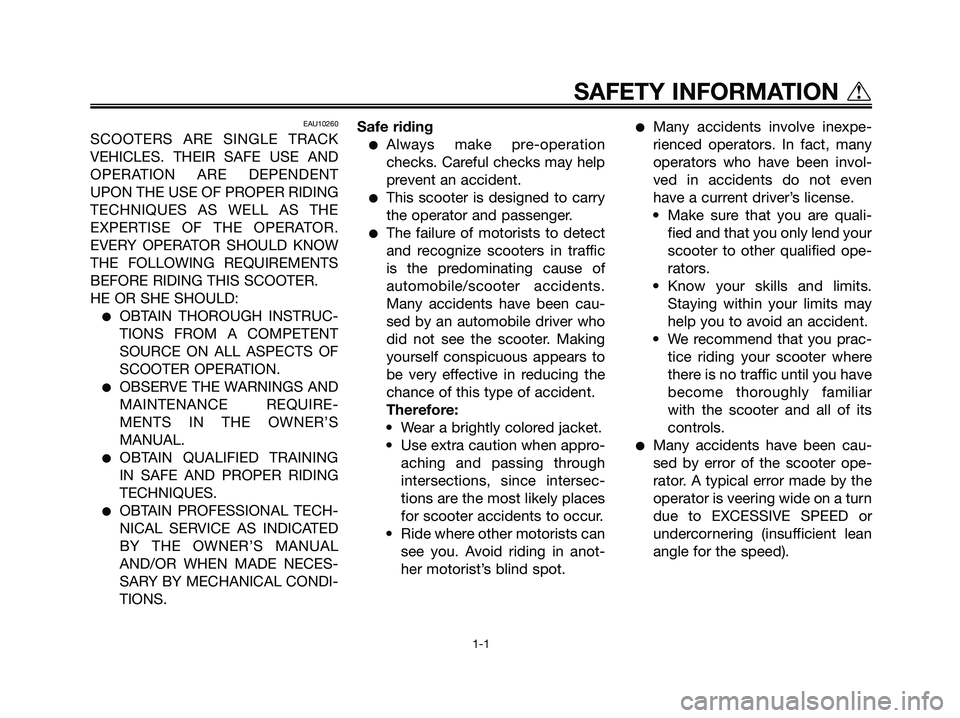

SCOOTERS ARE SINGLE TRACK
VEHICLES. THEIR SAFE USE AND
OPERATION ARE DEPENDENT
UPON THE USE OF PROPER RIDING
TECHNIQUES AS WELL AS THE
EXPERTISE OF THE OPERATOR.
EVERY OPERATOR SHOULD KNOW
THE FOLLOWING REQUIREMENTS
BEFORE RIDING THIS SCOOTER.
HE OR SHE SHOULD:
OBTAIN THOROUGH INSTRUC-
TIONS FROM A COMPETENT
SOURCE ON ALL ASPECTS OF
SCOOTER OPERATION.
OBSERVE THE WARNINGS AND
MAINTENANCE REQUIRE-
MENTS IN THE OWNER’S
MANUAL.
OBTAIN QUALIFIED TRAINING
IN SAFE AND PROPER RIDING
TECHNIQUES.
OBTAIN PROFESSIONAL TECH-
NICAL SERVICE AS INDICATED
BY THE OWNER’S MANUAL
AND/OR WHEN MADE NECES-
SARY BY MECHANICAL CONDI-
TIONS.Safe riding
Always make pre-operation
checks. Careful checks may help
prevent an accident.
This scooter is designed to carry
the operator and passenger.
The failure of motorists to detect
and recognize scooters in traffic
is the predominating cause of
automobile/scooter accidents.
Many accidents have been cau-
sed by an automobile driver who
did not see the scooter. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when appro-
aching and passing through
intersections, since intersec-
tions are the most likely places
for scooter accidents to occur.
• Ride where other motorists can
see you. Avoid riding in anot-
her motorist’s blind spot.
Many accidents involve inexpe-
rienced operators. In fact, many
operators who have been invol-
ved in accidents do not even
have a current driver’s license.
• Make sure that you are quali-
fied and that you only lend your
scooter to other qualified ope-
rators.
• Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
• We recommend that you prac-
tice riding your scooter where
there is no traffic until you have
become thoroughly familiar
with the scooter and all of its
controls.
Many accidents have been cau-
sed by error of the scooter ope-
rator. A typical error made by the
operator is veering wide on a turn
due to EXCESSIVE SPEED or
undercornering (insufficient lean
angle for the speed).
SAFETY INFORMATION t
1-1
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 7

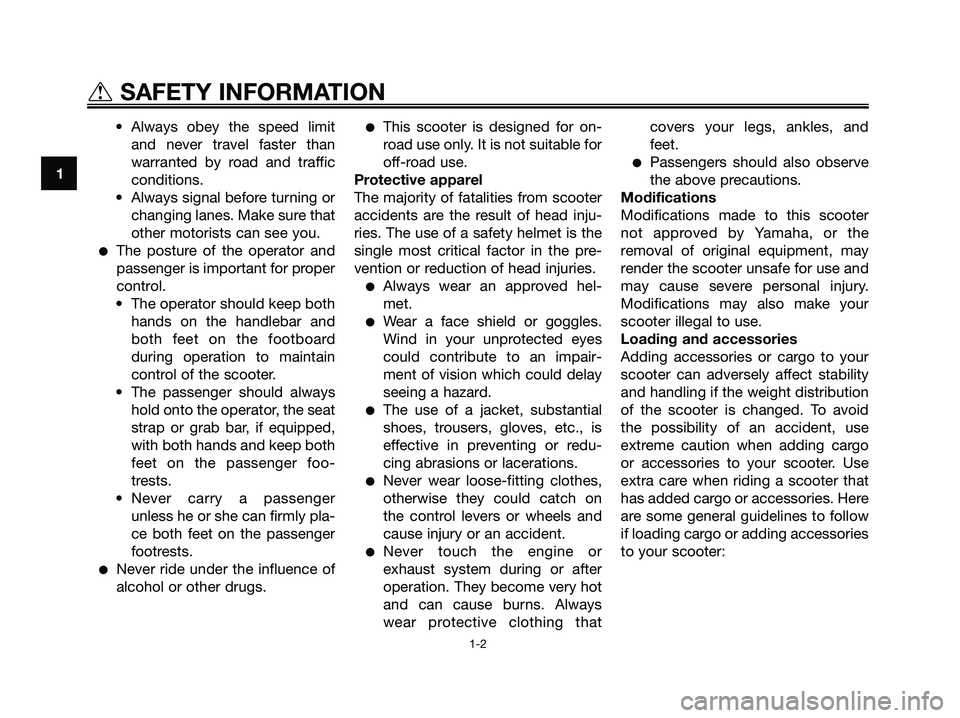

• Always obey the speed limit
and never travel faster than
warranted by road and traffic
conditions.
• Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
The posture of the operator and
passenger is important for proper
control.
• The operator should keep both
hands on the handlebar and
both feet on the footboard
during operation to maintain
control of the scooter.
• The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger foo-
trests.
• Never carry a passenger
unless he or she can firmly pla-
ce both feet on the passenger
footrests.
Never ride under the influence of
alcohol or other drugs.
This scooter is designed for on-
road use only. It is not suitable for
off-road use.
Protective apparel
The majority of fatalities from scooter
accidents are the result of head inju-
ries. The use of a safety helmet is the
single most critical factor in the pre-
vention or reduction of head injuries.
Always wear an approved hel-
met.
Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impair-
ment of vision which could delay
seeing a hazard.
The use of a jacket, substantial
shoes, trousers, gloves, etc., is
effective in preventing or redu-
cing abrasions or lacerations.
Never wear loose-fitting clothes,
otherwise they could catch on
the control levers or wheels and
cause injury or an accident.
Never touch the engine or
exhaust system during or after
operation. They become very hot
and can cause burns. Always
wear protective clothing thatcovers your legs, ankles, and
feet.
Passengers should also observe
the above precautions.
Modifications
Modifications made to this scooter
not approved by Yamaha, or the
removal of original equipment, may
render the scooter unsafe for use and
may cause severe personal injury.
Modifications may also make your
scooter illegal to use.
Loading and accessories
Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution
of the scooter is changed. To avoid
the possibility of an accident, use
extreme caution when adding cargo
or accessories to your scooter. Use
extra care when riding a scooter that
has added cargo or accessories. Here
are some general guidelines to follow
if loading cargo or adding accessories
to your scooter:1
tSAFETY INFORMATION
1-2
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 8

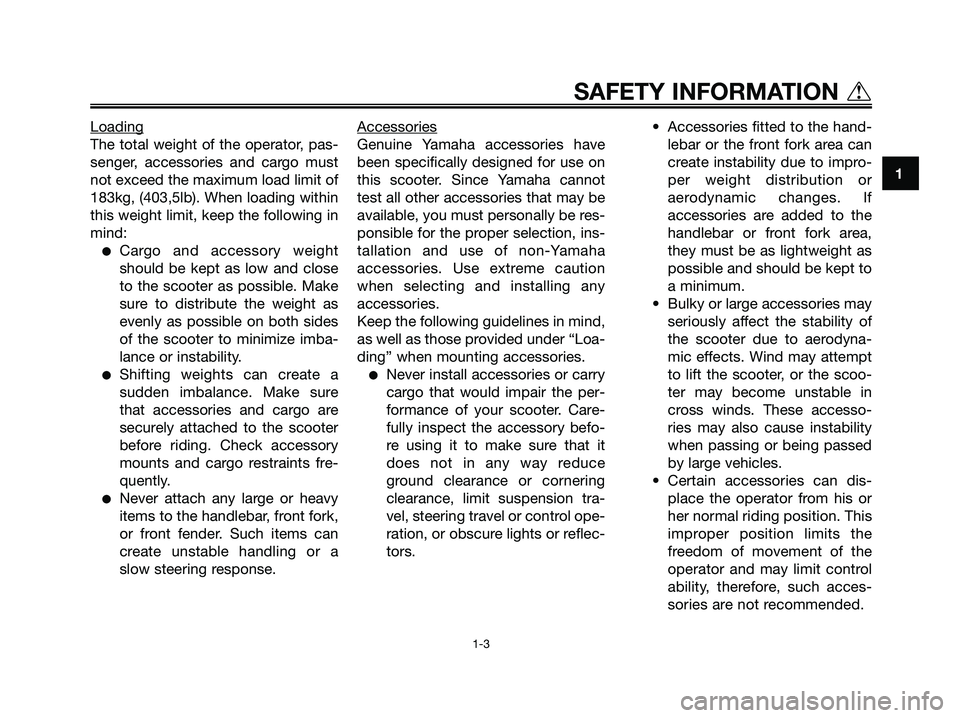

Loading
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit of
183kg, (403,5lb). When loading within
this weight limit, keep the following in
mind:
Cargo and accessory weight
should be kept as low and close
to the scooter as possible. Make
sure to distribute the weight as
evenly as possible on both sides
of the scooter to minimize imba-
lance or instability.
Shifting weights can create a
sudden imbalance. Make sure
that accessories and cargo are
securely attached to the scooter
before riding. Check accessory
mounts and cargo restraints fre-
quently.
Never attach any large or heavy
items to the handlebar, front fork,
or front fender. Such items can
create unstable handling or a
slow steering response.Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this scooter. Since Yamaha cannot
test all other accessories that may be
available, you must personally be res-
ponsible for the proper selection, ins-
tallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any
accessories.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
Never install accessories or carry
cargo that would impair the per-
formance of your scooter. Care-
fully inspect the accessory befo-
re using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension tra-
vel, steering travel or control ope-
ration, or obscure lights or reflec-
tors.• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodyna-
mic effects. Wind may attempt
to lift the scooter, or the scoo-
ter may become unstable in
cross winds. These accesso-
ries may also cause instability
when passing or being passed
by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the
freedom of movement of the
operator and may limit control
ability, therefore, such acces-
sories are not recommended.
1
SAFETY INFORMATION t
1-3
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 9

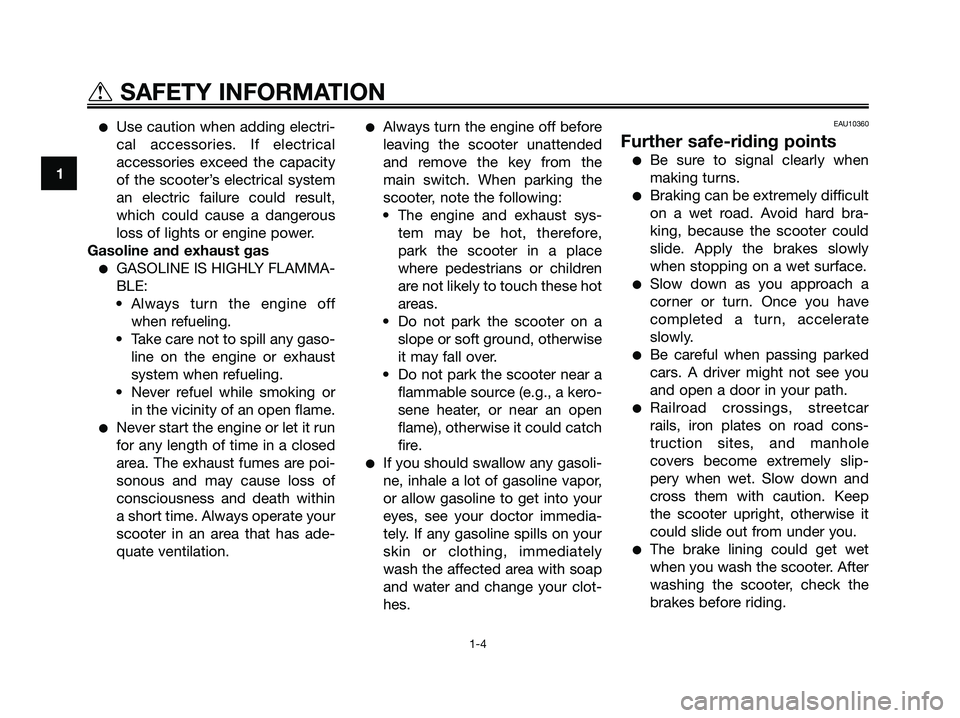

Use caution when adding electri-
cal accessories. If electrical
accessories exceed the capacity
of the scooter’s electrical system
an electric failure could result,
which could cause a dangerous
loss of lights or engine power.
Gasoline and exhaust gas
GASOLINE IS HIGHLY FLAMMA-
BLE:
• Always turn the engine off
when refueling.
• Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.
• Never refuel while smoking or
in the vicinity of an open flame.
Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within
a short time. Always operate your
scooter in an area that has ade-
quate ventilation.
Always turn the engine off before
leaving the scooter unattended
and remove the key from the
main switch. When parking the
scooter, note the following:
• The engine and exhaust sys-
tem may be hot, therefore,
park the scooter in a place
where pedestrians or children
are not likely to touch these hot
areas.
• Do not park the scooter on a
slope or soft ground, otherwise
it may fall over.
• Do not park the scooter near a
flammable source (e.g., a kero-
sene heater, or near an open
flame), otherwise it could catch
fire.
If you should swallow any gasoli-
ne, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immedia-
tely. If any gasoline spills on your
skin or clothing, immediately
wash the affected area with soap
and water and change your clot-
hes.
EAU10360
Further safe-riding points
Be sure to signal clearly when
making turns.
Braking can be extremely difficult
on a wet road. Avoid hard bra-
king, because the scooter could
slide. Apply the brakes slowly
when stopping on a wet surface.
Slow down as you approach a
corner or turn. Once you have
completed a turn, accelerate
slowly.
Be careful when passing parked
cars. A driver might not see you
and open a door in your path.
Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Slow down and
cross them with caution. Keep
the scooter upright, otherwise it
could slide out from under you.
The brake lining could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.
1
tSAFETY INFORMATION
1-4
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 10
