YAMAHA MAJESTY 180 2005 User Guide

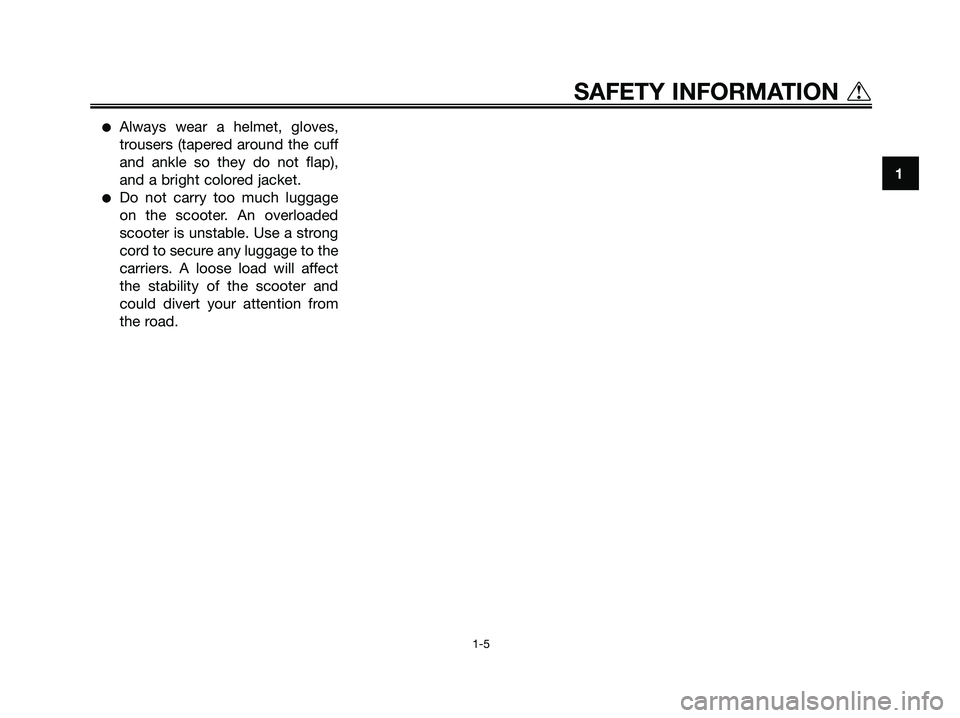

Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap),
and a bright colored jacket.
Do not carry too much luggage
on the scooter. An overloaded
scooter is unstable. Use a strong
cord to secure any luggage to the
carriers. A loose load will affect
the stability of the scooter and
could divert your attention from
the road.
1
SAFETY INFORMATION t
1-5
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 11

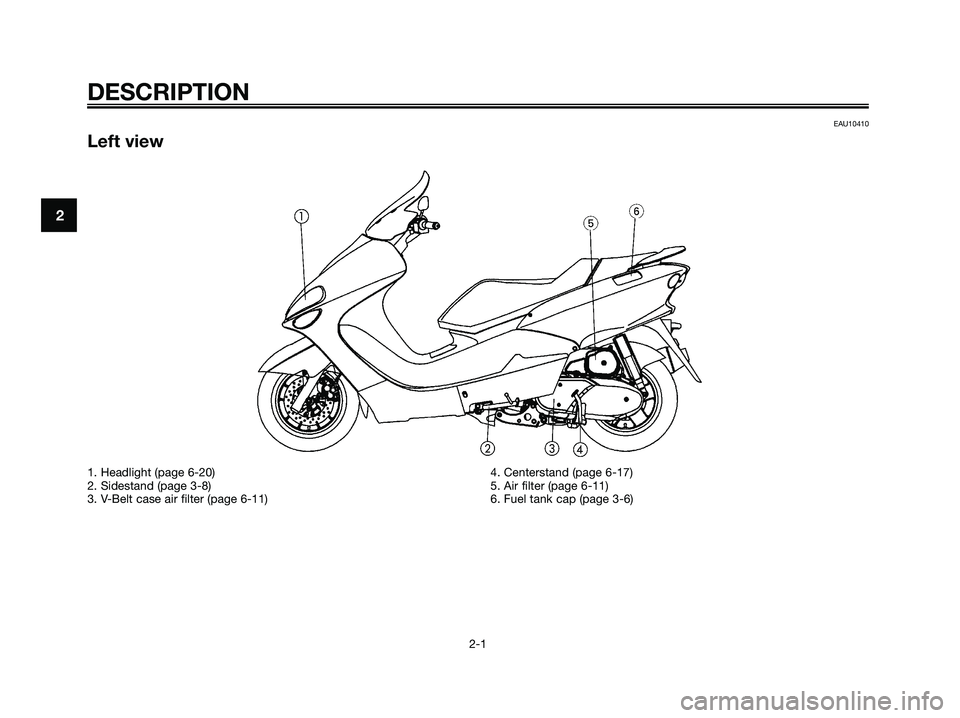

EAU10410
Left view
DESCRIPTION
2-1
2
1. Headlight (page 6-20)
2. Sidestand (page 3-8)
3. V-Belt case air filter (page 6-11)4. Centerstand (page 6-17)
5. Air filter (page 6-11)
6. Fuel tank cap (page 3-6)
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 12

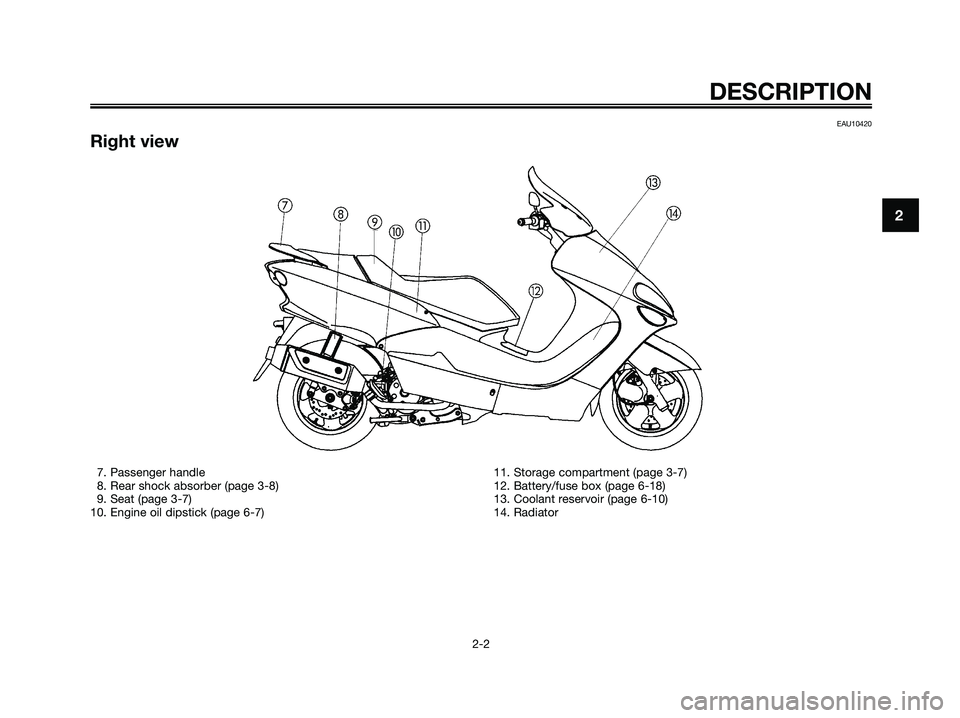

EAU10420
Right view
DESCRIPTION
2-2
2
7. Passenger handle
8. Rear shock absorber (page 3-8)
9. Seat (page 3-7)
10. Engine oil dipstick (page 6-7)11. Storage compartment (page 3-7)
12. Battery/fuse box (page 6-18)
13. Coolant reservoir (page 6-10)
14. Radiator
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 13

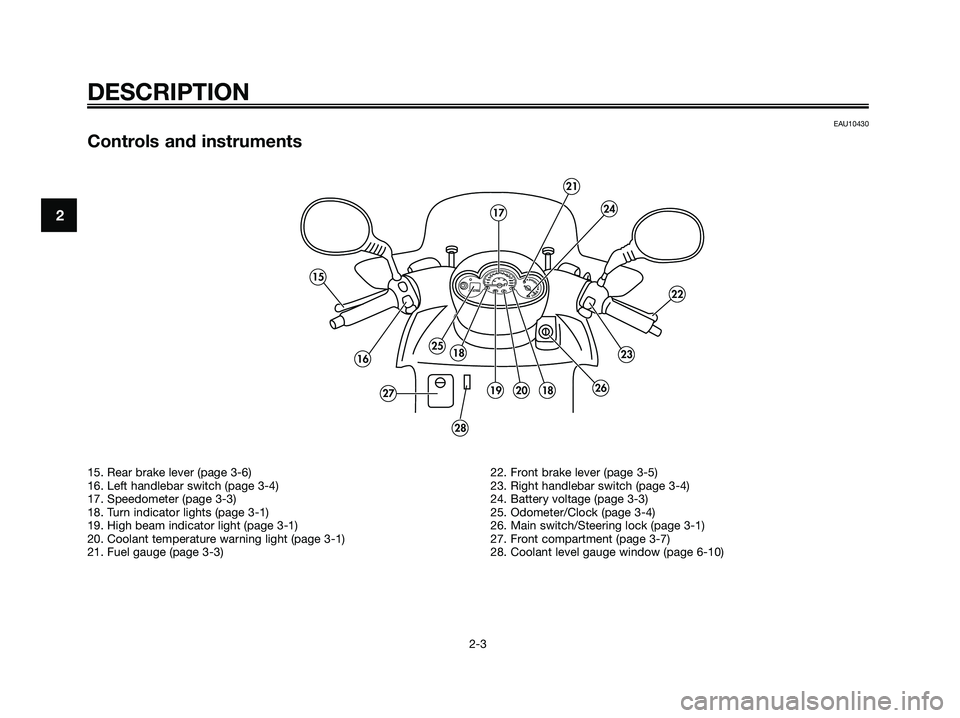

EAU10430
Controls and instruments
DESCRIPTION
2-3
224
21
17
23
22
2619201827
182516
15
28
15. Rear brake lever (page 3-6)
16. Left handlebar switch (page 3-4)
17. Speedometer (page 3-3)
18. Turn indicator lights (page 3-1)
19. High beam indicator light (page 3-1)
20. Coolant temperature warning light (page 3-1)
21. Fuel gauge (page 3-3)22. Front brake lever (page 3-5)
23. Right handlebar switch (page 3-4)
24. Battery voltage (page 3-3)
25. Odometer/Clock (page 3-4)
26. Main switch/Steering lock (page 3-1)
27. Front compartment (page 3-7)
28. Coolant level gauge window (page 6-10)
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 14

EAU10450
Main switch
The main switch controls the ignition
and lighting systems. The various
main switch positions are described
below.
EAU10630
ON
All electrical systems are supplied
with power, and the engine can be
started. The key cannot be removed.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAUM1020
“h”
The coolant temperature warning light
should come on when the key is tur-
ned to “h”. (See page 3-2.)
EAU10700
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
T
o lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF”
position, release it, and then turn
it to “LOCK”.
3. Remove the key.
T
o unlock the steering
Insert the key and turn it to “OFF”.
EWA10060
s s
WARNING
Never turn the key to “OFF” or
“LOCK” while the vehicle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the vehi-
cle is stopped before turning the
key to “OFF” or “LOCK”.
EAU10980
Indicator lights
1. Turn signal indicator lights
2. High beam indicator light
121
3
INSTRUMENT AND CONTROL FUNCTIONS
3-1
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 15

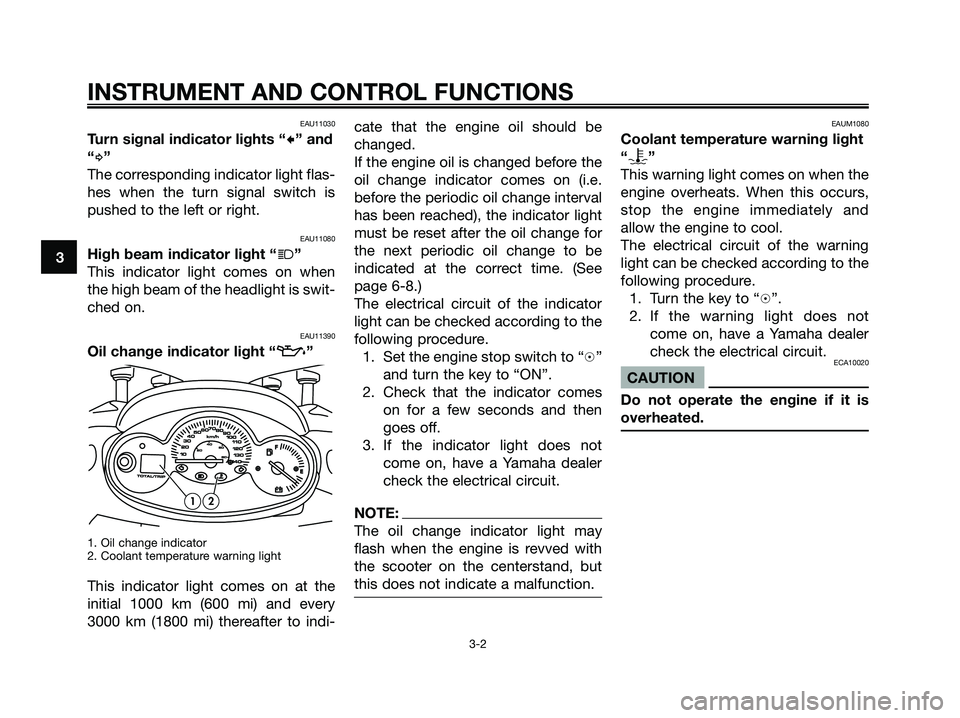

EAU11030
Turn signal indicator lights “c” and
“
d”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “j”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAU11390
Oil change indicator light “z”
1. Oil change indicator
2. Coolant temperature warning light
This indicator light comes on at the
initial 1000 km (600 mi) and every
3000 km (1800 mi) thereafter to indi-cate that the engine oil should be
changed.
If the engine oil is changed before the
oil change indicator comes on (i.e.
before the periodic oil change interval
has been reached), the indicator light
must be reset after the oil change for
the next periodic oil change to be
indicated at the correct time. (See
page 6-8.)
The electrical circuit of the indicator
light can be checked according to the
following procedure.
1. Set the engine stop switch to “h”
and turn the key to “ON”.
2. Check that the indicator comes
on for a few seconds and then
goes off.
3. If the indicator light does not
come on, have a Yamaha dealer
check the electrical circuit.
NOTE:
The oil change indicator light may
flash when the engine is revved with
the scooter on the centerstand, but
this does not indicate a malfunction.
EAUM1080
Coolant temperature warning light
“
y”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and
allow the engine to cool.
The electrical circuit of the warning
light can be checked according to the
following procedure.
1. Turn the key to “h”.
2. If the warning light does not
come on, have a Yamaha dealer
check the electrical circuit.
ECA10020
CAUTION
Do not operate the engine if it is
overheated.
12
3
INSTRUMENT AND CONTROL FUNCTIONS
3-2
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 16

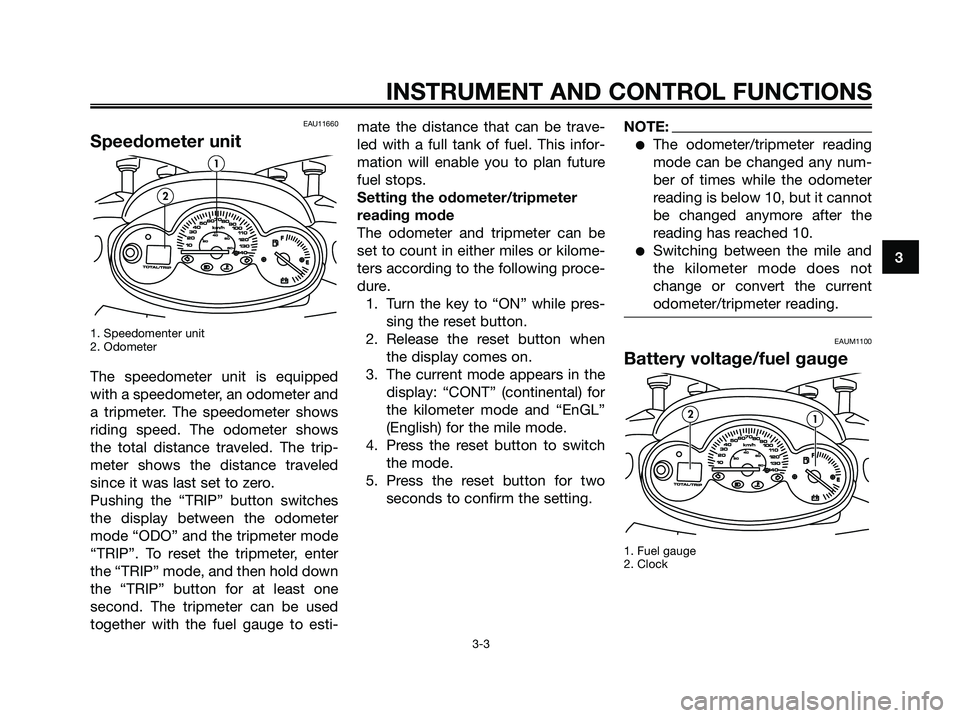

EAU11660
Speedometer unit
1. Speedomenter unit
2. Odometer
The speedometer unit is equipped
with a speedometer, an odometer and
a tripmeter. The speedometer shows
riding speed. The odometer shows
the total distance traveled. The trip-
meter shows the distance traveled
since it was last set to zero.
Pushing the “TRIP” button switches
the display between the odometer
mode “ODO” and the tripmeter mode
“TRIP”. To reset the tripmeter, enter
the “TRIP” mode, and then hold down
the “TRIP” button for at least one
second. The tripmeter can be used
together with the fuel gauge to esti-mate the distance that can be trave-
led with a full tank of fuel. This infor-
mation will enable you to plan future
fuel stops.
Setting the odometer/tripmeter
reading mode
The odometer and tripmeter can be
set to count in either miles or kilome-
ters according to the following proce-
dure.
1. Turn the key to “ON” while pres-
sing the reset button.
2. Release the reset button when
the display comes on.
3. The current mode appears in the
display: “CONT” (continental) for
the kilometer mode and “EnGL”
(English) for the mile mode.
4. Press the reset button to switch
the mode.
5. Press the reset button for two
seconds to confirm the setting.
NOTE:
The odometer/tripmeter reading
mode can be changed any num-
ber of times while the odometer
reading is below 10, but it cannot
be changed anymore after the
reading has reached 10.
Switching between the mile and
the kilometer mode does not
change or convert the current
odometer/tripmeter reading.
EAUM1100
Battery voltage/fuel gauge
1. Fuel gauge
2. Clock
21
2
1
3
INSTRUMENT AND CONTROL FUNCTIONS
3-3
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 17

When the key is turned to “OFF”, the
voltage/fuel gauge indicates the bat-
tery voltage.
NOTE:
If the battery voltage drops to 10 V,
have a Yamaha dealer check the bat-
tery.
When the key is turned to “ON”, the
voltage/fuel gauge indicates the
amount of fuel in the fuel tank after
indicating the battery voltage for two
seconds. The needle moves towards
“E” (empty) as the fuel level decrea-
ses. When the needle reaches “E”,
refuel as soon as possible.
NOTE:
Do not allow the fuel tank to empty
itself completely.
EAU12330
Anti-theft alarm (optional)
This motorcycle can be equipped
with an optional anti-theft alarm by a
Yamaha dealer. Contact a Yamaha
dealer for more information.
EAUS1210
Clock
To set the clock
1. Turn the key to “ON”.
2. Press the “TRIP” button for two
seconds, and the hour display
will flash.
3. Press the “TRIP” button to set
the hours.
4. Press the “TRIP” button for two
seconds, and the first minute
digit will flash.
5. Press the “TRIP” button to set
the first minute digit.
6. Press the “TRIP” button for two
more seconds, and the second
minute digit will flash.
7. Press the “TRIP” button to set
the second minute digit.
8. Press the “TRIP” button for two
seconds to set the clock.
EAU12343
Handlebar switches
1. Dimmer switch “j, k”
2. Turn signal switch “b”
3. Horn switch“a”
EAUS1020
Dimmer switch “j/k”
Set this switch to “
j” for the high
beam and to “
k” for the low beam.
With the headlight on low beam,
press this switch downwards to flash
the headlight.
1
32
3
INSTRUMENT AND CONTROL FUNCTIONS
3-4
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 18

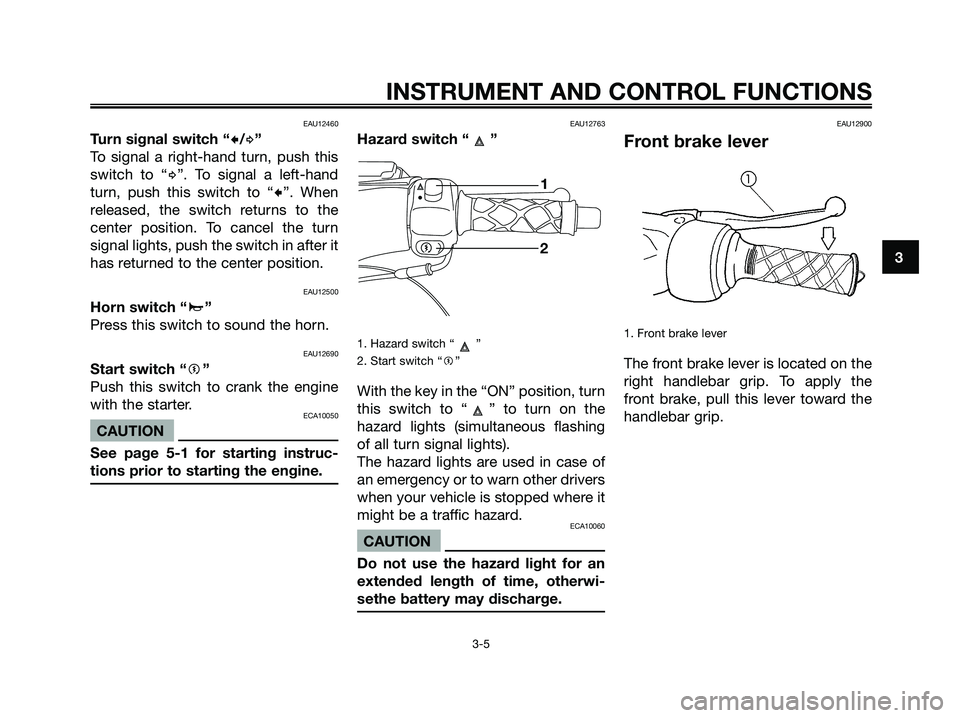

EAU12460
Turn signal switch “c/d”
To signal a right-hand turn, push this
switch to “
d”. To signal a left-hand
turn, push this switch to “
c”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “a”
Press this switch to sound the horn.
EAU12690
Start switch “g”
Push this switch to crank the engine
with the starter.
ECA10050
CAUTION
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU12763
Hazard switch “ ”
1. Hazard switch “ ”
2. Start switch “g”
With the key in the “ON” position, turn
this switch to “ ” to turn on the
hazard lights (simultaneous flashing
of all turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
ECA10060
CAUTION
Do not use the hazard light for an
extended length of time, otherwi-
sethe battery may discharge.
EAU12900
Front brake lever
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
•1
2 g
3
INSTRUMENT AND CONTROL FUNCTIONS
3-5
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 19

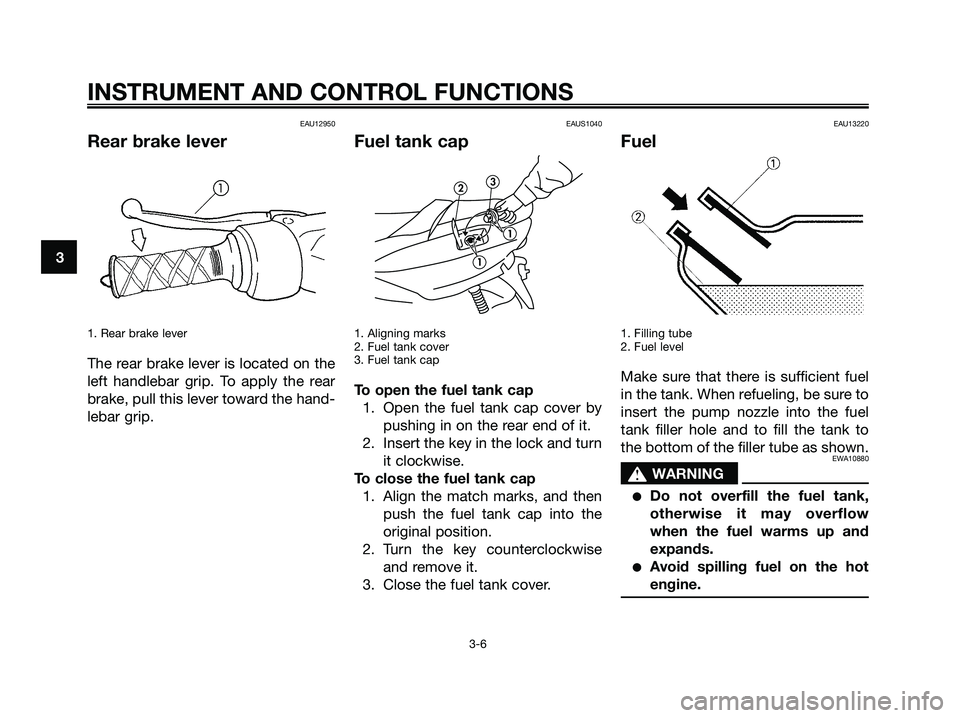

EAU12950
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
EAUS1040
Fuel tank cap
1. Aligning marks
2. Fuel tank cover
3. Fuel tank cap
To open the fuel tank cap
1. Open the fuel tank cap cover by
pushing in on the rear end of it.
2. Insert the key in the lock and turn
it clockwise.
To close the fuel tank cap
1. Align the match marks, and then
push the fuel tank cap into the
original position.
2. Turn the key counterclockwise
and remove it.
3. Close the fuel tank cover.
EAU13220
Fuel
1. Filling tube
2. Fuel level
Make sure that there is sufficient fuel
in the tank. When refueling, be sure to
insert the pump nozzle into the fuel
tank filler hole and to fill the tank to
the bottom of the filler tube as shown.
EWA10880
s s
WARNING
Do not overfill the fuel tank,
otherwise it may overflow
when the fuel warms up and
expands.
Avoid spilling fuel on the hot
engine.
1
1
23
3
INSTRUMENT AND CONTROL FUNCTIONS
3-6
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 20
