YAMAHA MAJESTY 180 2005 Owner's Manual

ECA10070
CAUTION
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfa-
ces or plastic parts.
EAU13890

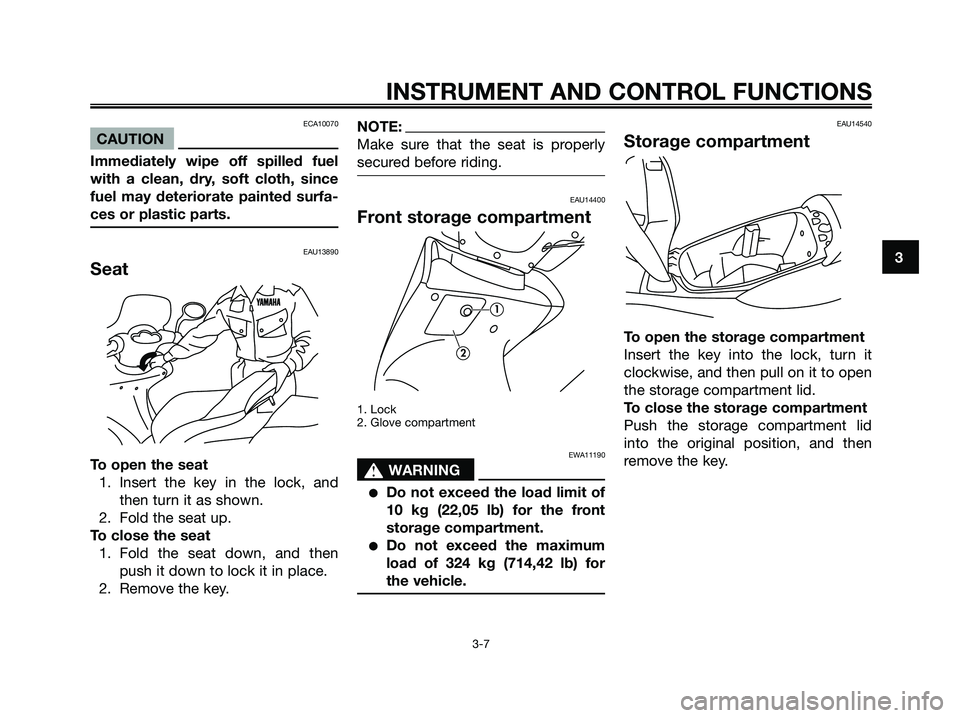

Seat
To open the seat
1. Insert the key in the lock, and
then turn it as shown.
2. Fold the seat up.
To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key.
NOTE:
Make sure that the seat is properly
secured before riding.
EAU14400
Front storage compartment
1. Lock
2. Glove compartment
EWA11190
s s
WARNING
Do not exceed the load limit of
10 kg (22,05 lb) for the front
storage compartment.
Do not exceed the maximum
load of 324 kg (714,42 lb) for
the vehicle.
EAU14540
Storage compartment
To open the storage compartment
Insert the key into the lock, turn it
clockwise, and then pull on it to open
the storage compartment lid.
To close the storage compartment
Push the storage compartment lid
into the original position, and then
remove the key.
1
2
3
INSTRUMENT AND CONTROL FUNCTIONS
3-7
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 21

EWA10960
s s
WARNING
Do not exceed the load limit of
10 kg (22,05 lb) for the storage
compartment.
Do not exceed the maximum
load of 324 kg (714,42 lb) for
the vehicle.
EAU14880
Adjusting the shock
absorber assemblies
1. Shock-absorber pre-tensioned strut
Each shock absorber assembly is
equipped with a spring preload adjus-
ting ring.
ECA10100
CAUTION
Never attempt to turn an adjusting
mechanism beyond the maximum
or minimum settings.
EWA10210
s s
WARNING
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock
absorber assembly in direction (a). To
decrease the spring preload and the-
reby soften the suspension, turn the
adjusting ring on each shock absor-
ber assembly in direction (b).
NOTE:
Align the appropriate notch in the
adjusting ring with the position indica-
tor on the shock absorber.
EAU15300
Sidestand
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the motorcycle upright.
NOTE:
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain
situations. (See further down for an
explanation of the ignition circuit cut-
off system.)
EWA10240
s s
WARNING
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
Spring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
3,4
1
a
b
3
INSTRUMENT AND CONTROL FUNCTIONS
3-8
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 22

and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi-
lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro-
perly.
EAUT1091

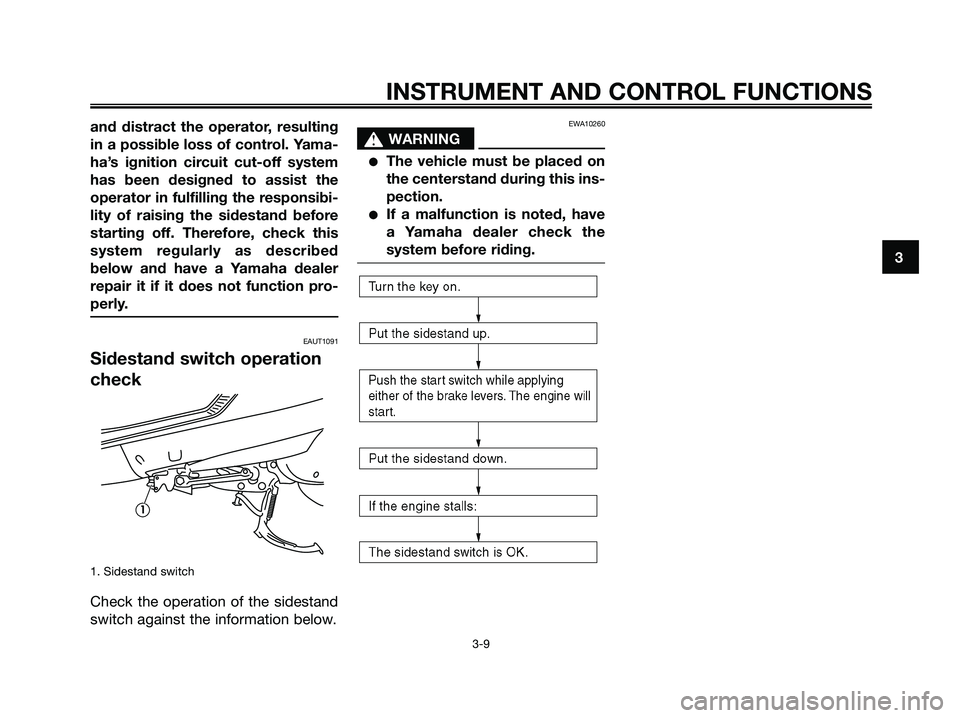

Sidestand switch operation
check
1. Sidestand switch
Check the operation of the sidestand
switch against the information below.
EWA10260
s s
WARNING
The vehicle must be placed on
the centerstand during this ins-
pection.
If a malfunction is noted, have
a Yamaha dealer check the
system before riding.
1
3
INSTRUMENT AND CONTROL FUNCTIONS
3-9
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 23

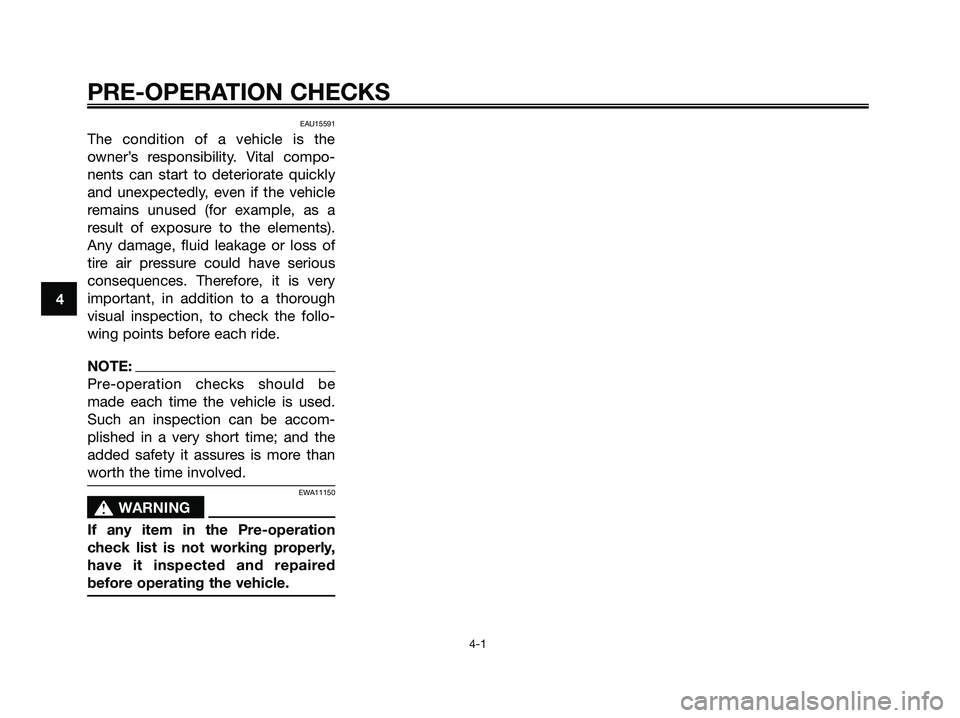

EAU15591
The condition of a vehicle is the
owner’s responsibility. Vital compo-
nents can start to deteriorate quickly
and unexpectedly, even if the vehicle
remains unused (for example, as a
result of exposure to the elements).
Any damage, fluid leakage or loss of
tire air pressure could have serious
consequences. Therefore, it is very
important, in addition to a thorough
visual inspection, to check the follo-
wing points before each ride.
NOTE:
Pre-operation checks should be
made each time the vehicle is used.
Such an inspection can be accom-
plished in a very short time; and the
added safety it assures is more than
worth the time involved.
EWA11150
s s
WARNING
If any item in the Pre-operation
check list is not working properly,
have it inspected and repaired
before operating the vehicle.
4
PRE-OPERATION CHECKS
4-1
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 24

EAU15603
Pre-operation check list
PRE-OPERATION CHECKS
4-2
4
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary. 3-3, 3-6
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 6-7
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-9
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 6-10
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Front brake• Replace if necessary. 3-5, 6-15
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Rear brake• Replace if necessary. 3-6, 6-15
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
5-2, 6-12
• If necessary, have Yamaha dealer adjust cable free play and lubricate cable
and grip housing.
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 25

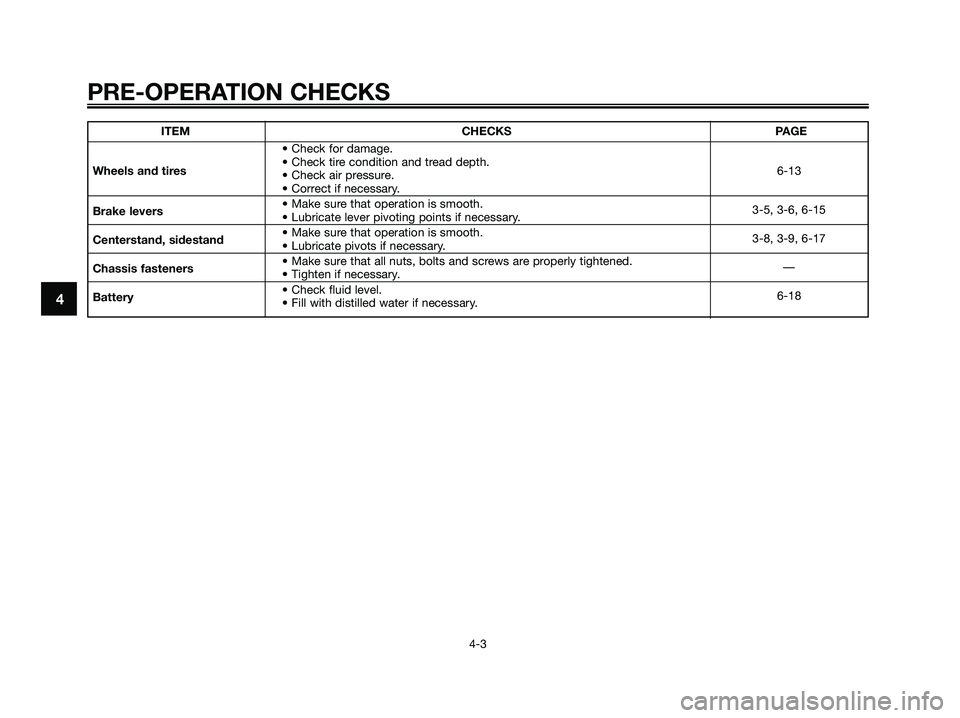

ITEM CHECKS PAGE
• Check for damage.
Wheels and tires• Check tire condition and tread depth.
6-13
• Check air pressure.
• Correct if necessary.
Brake levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.3-5, 3-6, 6-15
Centerstand, sidestand• Make sure that operation is smooth.
• Lubricate pivots if necessary.3-8, 3-9, 6-17
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.—
Battery• Check fluid level.
• Fill with distilled water if necessary.6-18
PRE-OPERATION CHECKS
4-3
4
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 26

EAU15980
EWA10870
s s
WARNING
Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer
regarding any control or func-
tion that you do not thoroughly
understand.
Never start the engine or ope-
rate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of cons-
ciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
For safety, always start the
engine with the centerstand
down.
EAUM1210

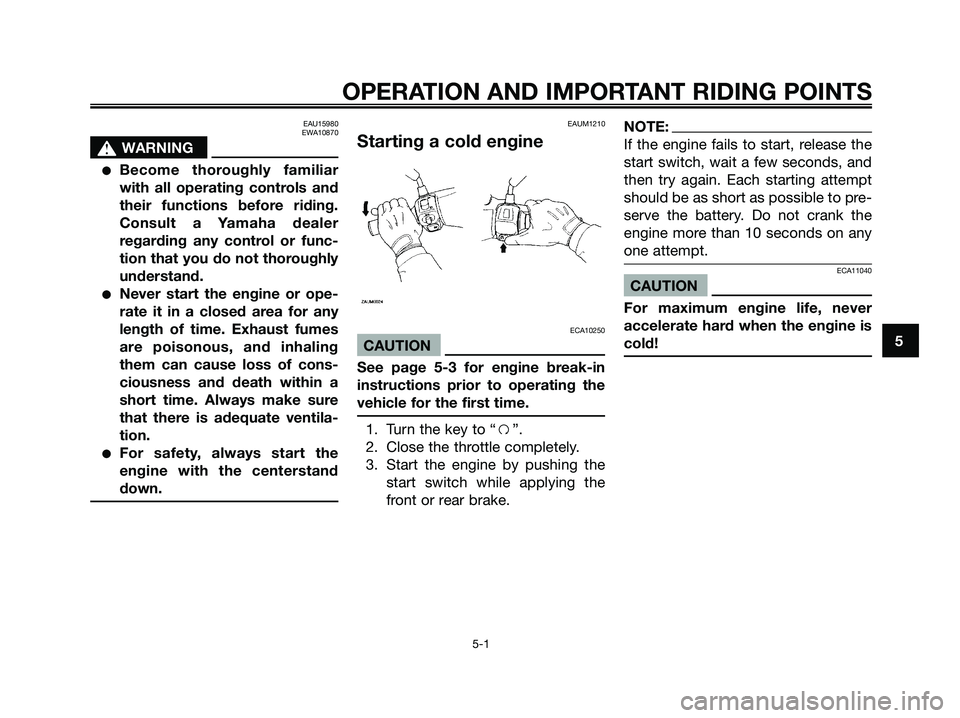

Starting a cold engine
ECA10250
CAUTION
See page 5-3 for engine break-in
instructions prior to operating the
vehicle for the first time.
1. Turn the key to “f”.
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the
front or rear brake.
NOTE:
If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the
engine more than 10 seconds on any
one attempt.
ECA11040
CAUTION
For maximum engine life, never
accelerate hard when the engine is
cold!
5
OPERATION AND IMPORTANT RIDING POINTS
5-1
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 27

EAU16760

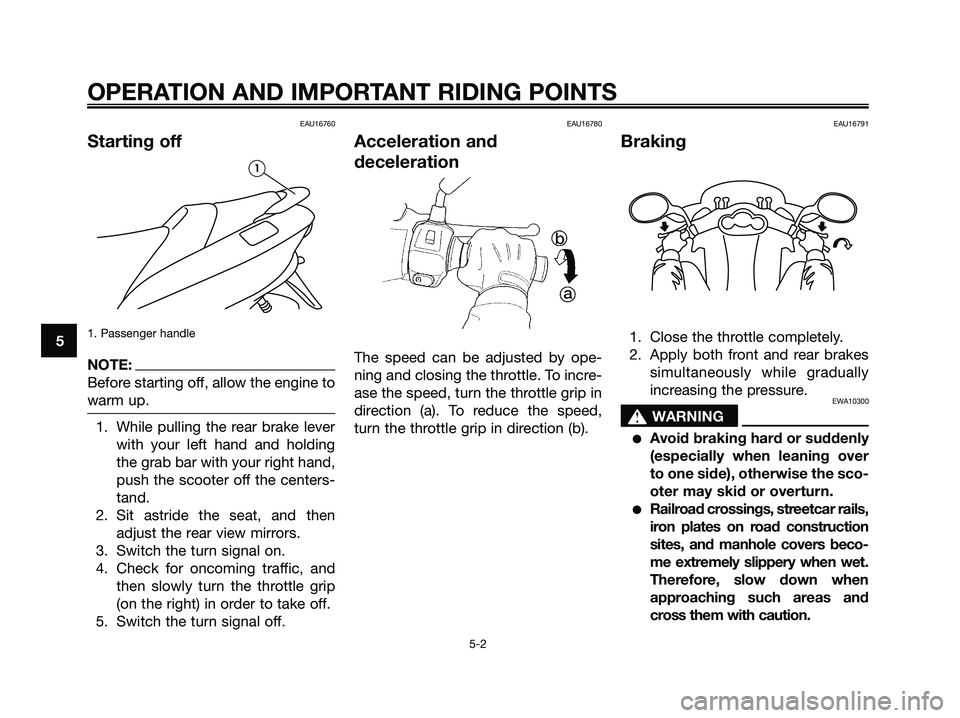

Starting off
1. Passenger handle
NOTE:
Before starting off, allow the engine to
warm up.
1. While pulling the rear brake lever
with your left hand and holding
the grab bar with your right hand,
push the scooter off the centers-
tand.
2. Sit astride the seat, and then
adjust the rear view mirrors.
3. Switch the turn signal on.
4. Check for oncoming traffic, and
then slowly turn the throttle grip
(on the right) in order to take off.
5. Switch the turn signal off.
EAU16780
Acceleration and
deceleration
The speed can be adjusted by ope-
ning and closing the throttle. To incre-
ase the speed, turn the throttle grip in
direction (a). To reduce the speed,
turn the throttle grip in direction (b).
EAU16791
Braking
1. Close the throttle completely.
2. Apply both front and rear brakes
simultaneously while gradually
increasing the pressure.
EWA10300
s s
WARNING
Avoid braking hard or suddenly
(especially when leaning over
to one side), otherwise the sco-
oter may skid or overturn.
Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers beco-
me extremely slippery when wet.
Therefore, slow down when
approaching such areas and
cross them with caution.
1
5
OPERATION AND IMPORTANT RIDING POINTS
5-2
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 28

Keep in mind that braking on a
wet road is much more difficult.
Ride slowly down a hill, as bra-
king downhill can be very diffi-
cult.
EAU16830

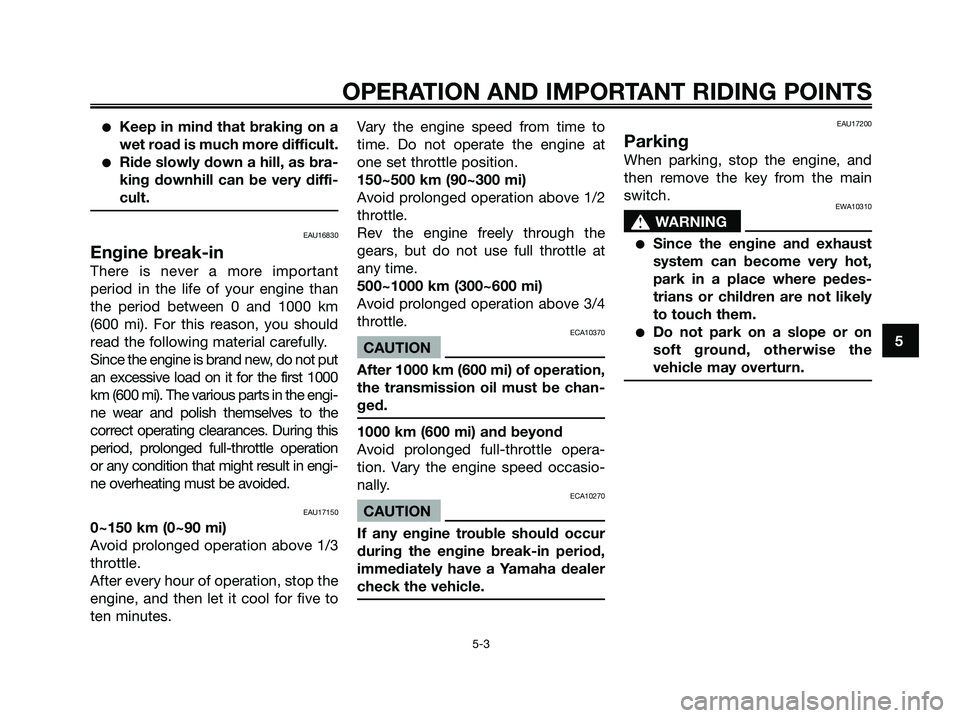

Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1000 km
(600 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not put
an excessive load on it for the first 1000
km (600 mi). The various parts in the engi-
ne wear and polish themselves to the
correct operating clearances. During this
period, prolonged full-throttle operation
or any condition that might result in engi-
ne overheating must be avoided.
EAU17150
0~150 km (0~90 mi)
Avoid prolonged operation above 1/3
throttle.
After every hour of operation, stop the
engine, and then let it cool for five to
ten minutes.Vary the engine speed from time to
time. Do not operate the engine at
one set throttle position.
150~500 km (90~300 mi)
Avoid prolonged operation above 1/2
throttle.
Rev the engine freely through the
gears, but do not use full throttle at
any time.
500~1000 km (300~600 mi)
Avoid prolonged operation above 3/4
throttle.
ECA10370
CAUTION
After 1000 km (600 mi) of operation,
the transmission oil must be chan-
ged.
1000 km (600 mi) and beyond
Avoid prolonged full-throttle opera-
tion. Vary the engine speed occasio-
nally.
ECA10270
CAUTION
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
EAU17200
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
EWA10310
s s
WARNING
Since the engine and exhaust
system can become very hot,
park in a place where pedes-
trians or children are not likely
to touch them.
Do not park on a slope or on
soft ground, otherwise the
vehicle may overturn.5
OPERATION AND IMPORTANT RIDING POINTS
5-3
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 29

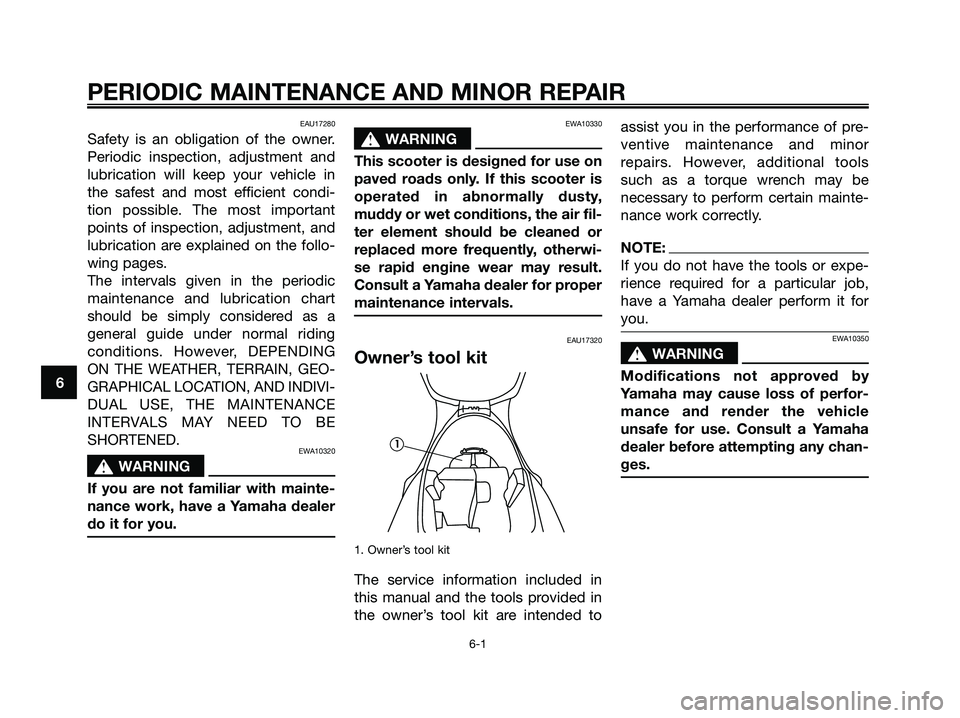

EAU17280
Safety is an obligation of the owner.
Periodic inspection, adjustment and
lubrication will keep your vehicle in
the safest and most efficient condi-
tion possible. The most important
points of inspection, adjustment, and
lubrication are explained on the follo-
wing pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a
general guide under normal riding
conditions. However, DEPENDING
ON THE WEATHER, TERRAIN, GEO-
GRAPHICAL LOCATION, AND INDIVI-
DUAL USE, THE MAINTENANCE
INTERVALS MAY NEED TO BE
SHORTENED.
EWA10320
s s
WARNING
If you are not familiar with mainte-
nance work, have a Yamaha dealer
do it for you.
EWA10330
s s
WARNING
This scooter is designed for use on
paved roads only. If this scooter is
operated in abnormally dusty,
muddy or wet conditions, the air fil-
ter element should be cleaned or
replaced more frequently, otherwi-
se rapid engine wear may result.
Consult a Yamaha dealer for proper
maintenance intervals.
EAU17320
Owner’s tool kit
1. Owner’s tool kit
The service information included in
this manual and the tools provided in
the owner’s tool kit are intended toassist you in the performance of pre-
ventive maintenance and minor
repairs. However, additional tools
such as a torque wrench may be
necessary to perform certain mainte-
nance work correctly.
NOTE:
If you do not have the tools or expe-
rience required for a particular job,
have a Yamaha dealer perform it for
you.
EWA10350
s s
WARNING
Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle
unsafe for use. Consult a Yamaha
dealer before attempting any chan-
ges.
1
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-1
5XL-F8199-E3.qxd 19/09/2005 16:26 Página 30
