7-5
SCOOTER CARE AND STORAGE
1
2
3
4
5
67
8
95.Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
6.Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground.
Alternatively, turn the wheels a
little every month in order to pre-
vent the tires from becoming
degraded in one spot.
7.Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.8.Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery
in an excessively cold or warm
place (less than 0 ¡C or more
than 30 ¡C). For more informa-
tion on storing the battery, see
page 6-32.
NOTE:
Make any necessary repairs before
storing the scooter.
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 90

SPECIFICATIONS
Specifications.....................................................................................8-1
Conversion table.................................................................................8-5
8
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 91

Specifications
ModelYP250
Dimensions
Overall length2,140 mm
Overall width780 mm
Overall height1,350 mm
Seat height730 mm
Wheelbase1,535 mm
Ground clearance120 mm
Minimum turning radius2,700 mm
Basic weight (with oil and full
fuel tank)168 kg
Engine
Engine typeLiquid-cooled 4-stroke, SOHC
Cylinder arrangementForward inclined single
cylinder
Displacement249 cm
3
Bore ´Stroke69.0 ´66.8 mm
Compression ratio10:1
Starting systemElectric starter
Lubrication systemWet sump
EAU01038
SPECIFICATIONS
1
2
3
4
5
6
78
9
8-1
Engine oil
Type
Recommended engine oil
classificationAPI Service SE, SF, SG type
or highercCBe sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled ÒEnergy
ConservingÓ) contain anti-friction additives which will cause
clutch and/or starter clutch slippage, resulting in reduced
component life and poor engine performance.
Quantity
Periodic oil change1.2 L
Total amount (dry engine)1.4 L
–10° 0° 10° 20° 30°
40°
SAE 10W/30
SAE 10W/40
SAE 20W/40
SAE 20W/50
–20°
SAE 15W/40 50°C
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 92

8-2
SPECIFICATIONS
1
2
3
4
5
6
78
9
Final gear case oil
TypeEngine oil SAE 10W-30
(API SE)
Total amount0.25 L
Radiator capacity
(including all routes)1.4 L
Air filterWet type element
Fuel
TypeRegular unleaded gasoline
Fuel tank capacity12 L
Carburetor
ManufacturerTEIKEI
Model ´ quantityY28V-1E ´ 1
Spark plug
Manufacturer/modelNGK / DR8EA
Spark plug gap0.6Ð0.7 mm
Clutch typeDry, centrifugal automatic
Transmission
Primary reduction systemHelical gear
Primary reduction ratio40/15 (2.666)
Secondary reduction systemHelical gear
Secondary reduction ratio38/15 (2.533)
Transmission typeV-belt automatic
OperationCentrifugal automatic typeChassis
Frame typeSteel tube underbone
Caster angle28¡
Trail103 mm
Tires
Front
TypeTubeless
Size110/90-12 64L
Manufacturer/INOUE / MB67
modelMICHELIN / BOPPER
Rear
TypeTubeless
Size130/70-12 62L
Manufacturer/INOUE / MB67
modelMICHELIN / BOPPER
Maximum load*187 kg
Air pressure (cold tire)
up to 90 kg load*
Front175 kPa (1.75 kg/cm
2, 1.75 bar)
Rear200 kPa (2.00 kg/cm2, 2.00 bar)
90 kg loadÐmaximum load*
Front200 kPa (2.00 kg/cm2, 2.00 bar)
Rear225 kPa (2.25 kg/cm2, 2.25 bar)
* Total weight of rider, passenger, cargo and accessories
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 93

Wheels
Front
TypeCast wheel
Size12 ´MT2.75
Rear
TypeCast wheel
Size12 ´MT3.50
Brakes
Front
TypeSingle disc brake
OperationRight hand
FluidDOT 4
Rear
TypeSingle disc brake
OperationLeft hand
FluidDOT 4
Suspension
FrontTelescopic fork
RearUnit swingSpring/shock absorbers
FrontCoil spring/oil damper
RearCoil spring/oil damper
Wheel travel
Front100 mm
Rear90 mm
Electrical
Ignition systemTransistorized coil ignition
(digital)
Charging system
TypeA.C. magneto
Standard output14 V, 19.5 A @ 5,000 r/min
Battery
TypeGT7B-4
Voltage, capacity12 V, 6.5 AH
Headlight bulb typeHalogen bulb
Bulb voltage, wattage ´quantity
Headlight12 V, 60/55 W ´1
12 V, 55 W ´1
Tail/brake light12 V, 5/21 W ´2
Front turn signal light12 V, 21 W ´2
Rear turn signal light12 V, 16 W ´2
SPECIFICATIONS
1
2
3
4
5
6
78
9
8-3
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 94

8-4
SPECIFICATIONS
1
2
3
4
5
6
78
9
Auxiliary light12 V, 5 W ´1
License plate light12 V, 5 W ´1
Meter lighting12 V, 1.7 W ´3
High beam indicator light12 V, 1.7 W ´1
Turn indicator light12 V, 3.4 W ´2
Oil change indicator light12 V, 1.7 W ´1
Fuses
Main fuse30 A
Headlight fuse15 A
Signaling system fuse15 A
Ignition fuse7.5 A
Radiator fan fuse4 A
Clock fuse (back up)10 A
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 95

1
2
3
4
5
6
78
9
8-5
SPECIFICATIONS
EAU01064
Conversion tableAll specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit data to
IMPERIAL unit data.
Ex.
METRICMULTIPLIERIMPERIAL
** mm´0.03937=** in
2 mm´0.03937=0.08 in
METRIC TO IMPERIAL
Metric unitMultiplierImperial unit
m¥kg7.233ft¥lb
Torquem¥kg86.794in¥lb
cm¥kg0.0723ft¥lb
cm¥kg0.8679in¥lb
Weightkg2.205lbg0.03527oz
Speedkm/hr0.6214mph
km0.6214mi
m3.281ft
Distancem1.094yd
cm0.3937in
mm0.03937in
cc (cm3)0.03527oz (IMP liq.)
Volume/cc (cm3)0.06102cu¥in
CapacityL (liter)0.8799qt (IMP liq.)L (liter)0.2199gal (IMP liq.)
kg/mm55.997lb/in
Misc.kg/cm214.2234psi (lb/in2)Centigrade (¡C)
9/5 + 32
Fahrenheit (¡F)
CONVERSION TABLE
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 96

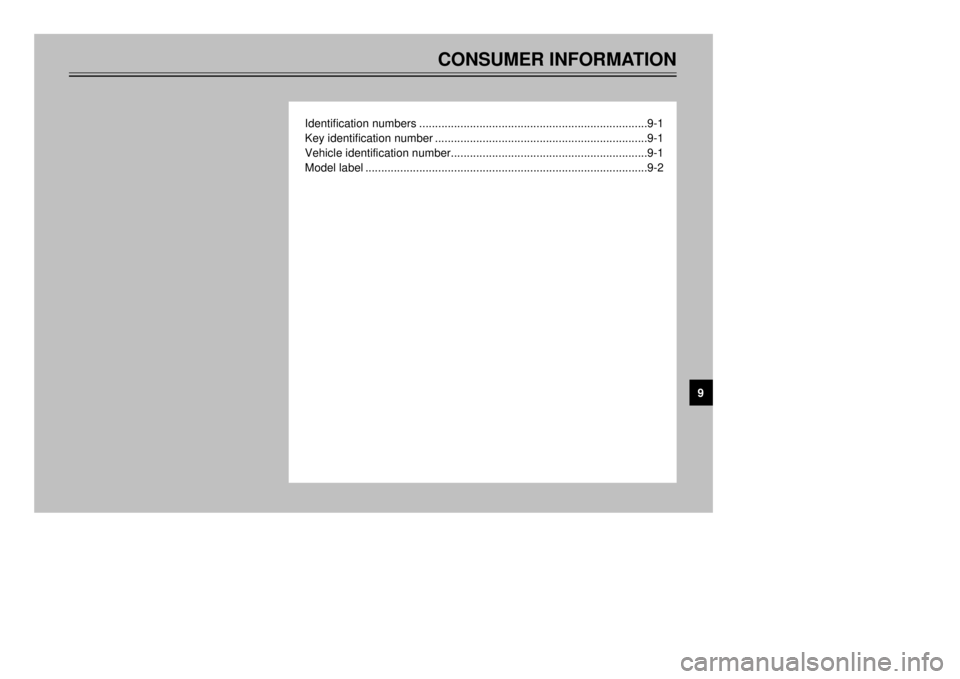

CONSUMER INFORMATION
Identification numbers........................................................................9-1
Key identification number...................................................................9-1
Vehicle identification number..............................................................9-1
Model label.........................................................................................9-2
9
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 97

1
1
EAU02944
Identification numbersRecord the key identification number,
vehicle identification number and
model label information in the spaces
provided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the
vehicle is stolen.
1.KEY IDENTIFICATION
NUMBER:
2.VEHICLE IDENTIFICATION
NUMBER:
3.MODEL LABEL INFORMATION:
EAU01041
Key identification numberThe key identification number is
stamped into the key tag.
Record this number in the space pro-
vided and use it for reference when
ordering a new key.
EAU01044
Vehicle identification numberThe vehicle identification number is
stamped into the frame.NOTE:
The vehicle identification number is
used to identify your scooter and may
be used to register your scooter with
the licensing authority in your area.
1.Key identification number1.Vehicle identification number
9-1
EAU01039
CONSUMER INFORMATION
1
2
3
4
5
6
7
89
1
6
5GM-9-E1(No ABS) 9/27/00 2:18 PM Page 98

9-2
CONSUMER INFORMATION
1
2
4
5
6
7
89
1
EAU03097
Model labelThe model label is affixed to the
inside of the rear storage compart-
ment. (See page 3-13 for rear stor-
age compartment opening and clos-
ing procedures.) Record the
information on this label in the space
provided. This information will be
needed when ordering spare parts
from a Yamaha dealer.1.Model label
