Periodic maintenance an d a djustment
6-27
6
EAUM1653

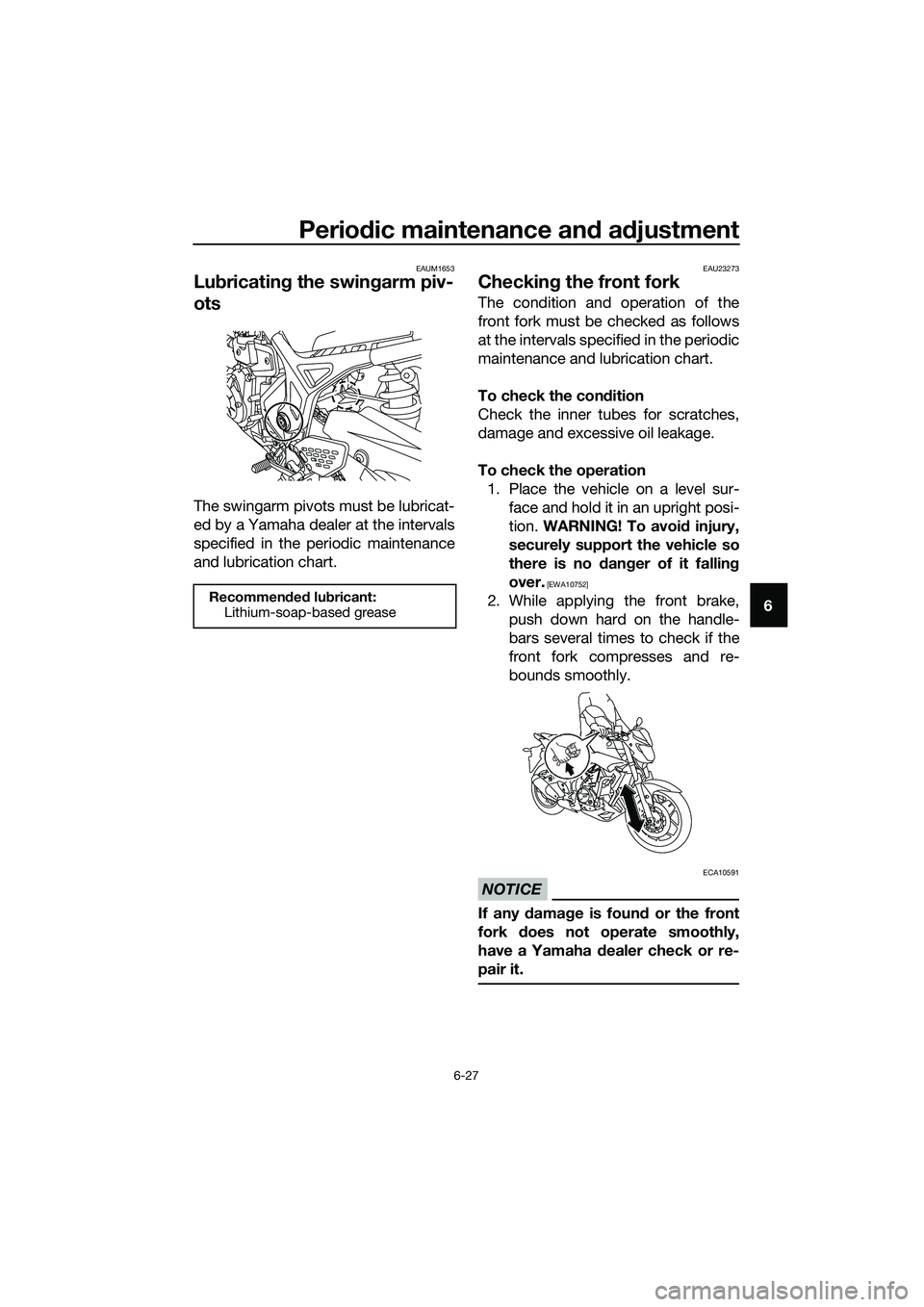

Lub ricatin g the swin garm piv-
ots
The swingarm pivots must be lubricat-
ed by a Yamaha dealer at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU23273
Checkin g the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
To check the con dition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation 1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. WARNING! To avoi d injury,
securely support the vehicle so
there is no dan ger of it fallin g
over.
[EWA10752]
2. While applying the front brake, push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
NOTICE
ECA10591
If any damag e is foun d or the front
fork does not operate smoothly,
have a Yamaha d ealer check or re-
pair it.
Recommen ded lu bricant:
Lithium-soap-based grease
UB9AE0E0.book Page 27 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-28
6
EAU23285

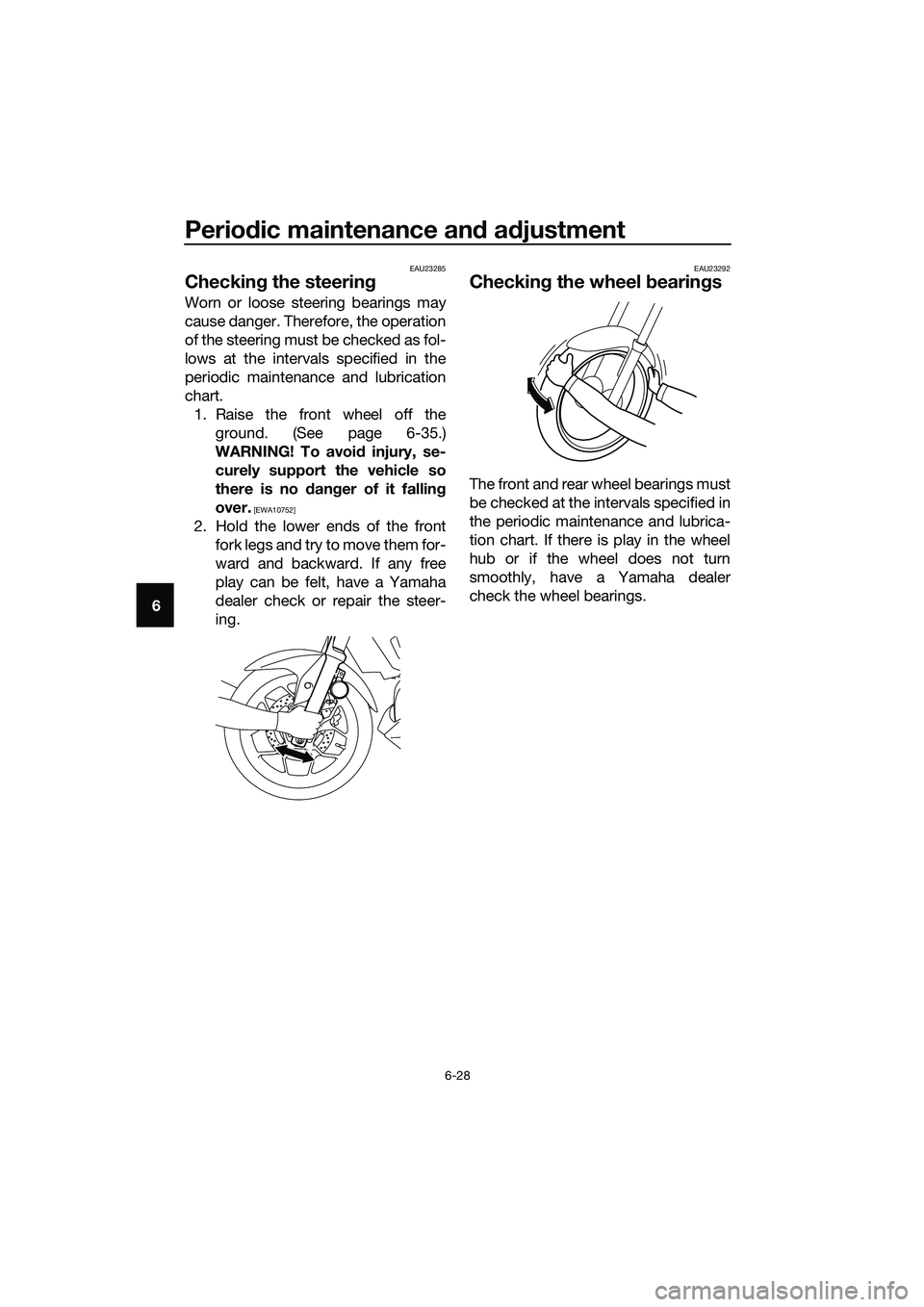

Checkin g the steerin g
Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Raise the front wheel off the ground. (See page 6-35.)
WARNING! To avoi d injury, se-
curely support the vehicle so
there is no dan ger of it fallin g
over.
[EWA10752]
2. Hold the lower ends of the front fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steer-
ing.
EAU23292
Checkin g the wheel b earings
The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
UB9AE0E0.book Page 28 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-29
6
EAU62521
Battery
The battery is located under the rider
seat. (See page 3-18.)
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery lead connections need to
be checked and, if necessary, tight-
ened.
WARNING
EWA10761
z Electrolyte is poisonous an d
d an gerous since it contains sul-
furic aci d, which causes severe
b urns. Avoi d any contact with
skin, eyes or clothin g an d al-
ways shiel d your eyes when
workin g near b atteries. In case
of contact, ad minister the fol-
lowin g FIRST AID.
EXTERNAL: Flush with plenty of water.
INTERNAL: Drink lar ge quan-
tities of water or milk an d im-
me diately call a physician.
EYES: Flush with water for 15 minutes an d seek prompt
me dical attention. z
Batteries pro duce explosive hy-
d ro gen gas. Therefore, keep
sparks, flames, ci garettes, etc.,
away from the battery an d pro-
vi de sufficient ventilation when
char gin g it in an enclose d
space.
z KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
NOTICE
ECA10621
Never attempt to remove the b attery
cell seals, as this woul d permanently
d amag e the b attery.
To char ge the b attery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quick-
ly if the vehicle is equipped with op-
tional electrical accessories.
NOTICE
ECA16522
To char ge a VRLA (Valve Re gulate d
Lea d Aci d) battery, a special (con-
stant-volta ge) battery char ger is re-
quire d. Usin g a conventional battery
char ger will d amage the battery.
To store the battery
1. If the vehicle will not be used for more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removin g the
b attery, be sure the key is
turne d to “ ”, then disconnect
the ne gative lea d b efore discon-
nectin g the positive lea d.
[ECA17712]
1. Battery
2. Negative battery lead (black)
3. Positive battery lead (red)
1
2
3
UB9AE0E0.book Page 29 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-30
6 2. If the battery will be stored for
more than two months, check it at
least once a month and fully
charge it if necessary.
3. Fully charge the battery before in- stallation. NOTICE: When install-
in g the b attery, be sure the key
is turne d to “ ”, then connect
the positive lea d before con-
nectin g the ne gative lea d.
[ECA17722]
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
NOTICE
ECA16531
Always keep the battery char ged .
Storin g a d ischar ged battery can
cause permanent battery damag e.
EAUN0821
Replacin g the fuses
The main fuse is located under the
passenger seat.
To access the main fuse, proceed as
follows.
1. Remove the passenger seat. (See page 3-18.)
2. Remove the tray by removing the quick fasteners.
3. Pull back the starter relay cover, and then disconnect the starter re-
lay coupler as shown.
4. Connect the starter relay coupler, and then slide the cover to its orig-
inal position.
1. Quick fastener
2. Tray
1. Starter relay cover
2. Starter relay coupler
3. Main fuse
4. Spare main fuse
2 1
1
2
3
4
UB9AE0E0.book Page 30 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-31
6
5. Place the tray in its original posi-
tion, and then install the quick fas-
teners.
6. Install the passenger seat.
Fuse box 1 is located behind the center
cover. (See page 3-18.)
Fuse box 1
Fuse box 2 is located under the rider
seat. (See page 3-18.) Fuse
box 2
If a fuse is blown, replace it as follows. 1. Turn the key to “ ” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a hi gher ampera ge
ratin g than recommen ded to
avoi d causin g extensive dam-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
1. Fuse box 1
1. Ignition fuse
2. Signaling system fuse
3. ABS control unit fuse
4. Backup fuse (for clock)
5. Headlight fuse
6. Radiator fan motor fuse
7. Spare fuse
1
71
2
3
5
6
4
1. Fuse box 2
1. Spare fuse
2. ABS solenoid fuse
3. ABS motor fuse
1
123
UB9AE0E0.book Page 31 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-32
6 3. Turn the key to “ ” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
EAU68470
Replacin g the hea dlig ht bul b
This model is equipped with halogen
bulb headlight. If a headlight bulb
burns out, have a Yamaha dealer re-
place it and, if necessary, adjust the
headlight beam.
NOTICE
ECA17871
Hea dlig ht lens:
Do not affix any type of tinted film or
stickers to the head light lens.
Do not use a hea dlig ht bul b of a
wattag e higher than specified .
Specified fuses:
Main fuse: 30.0 A
Headlight fuse:
15.0 A
Signaling system fuse: 7.5 A
Ignition fuse: 15.0 A
Radiator fan motor fuse:
7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse: 15.0 A
ABS control unit fuse:
7.5 A
Backup fuse: 7.5 A
UB9AE0E0.book Page 32 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-33
6
EAU44941

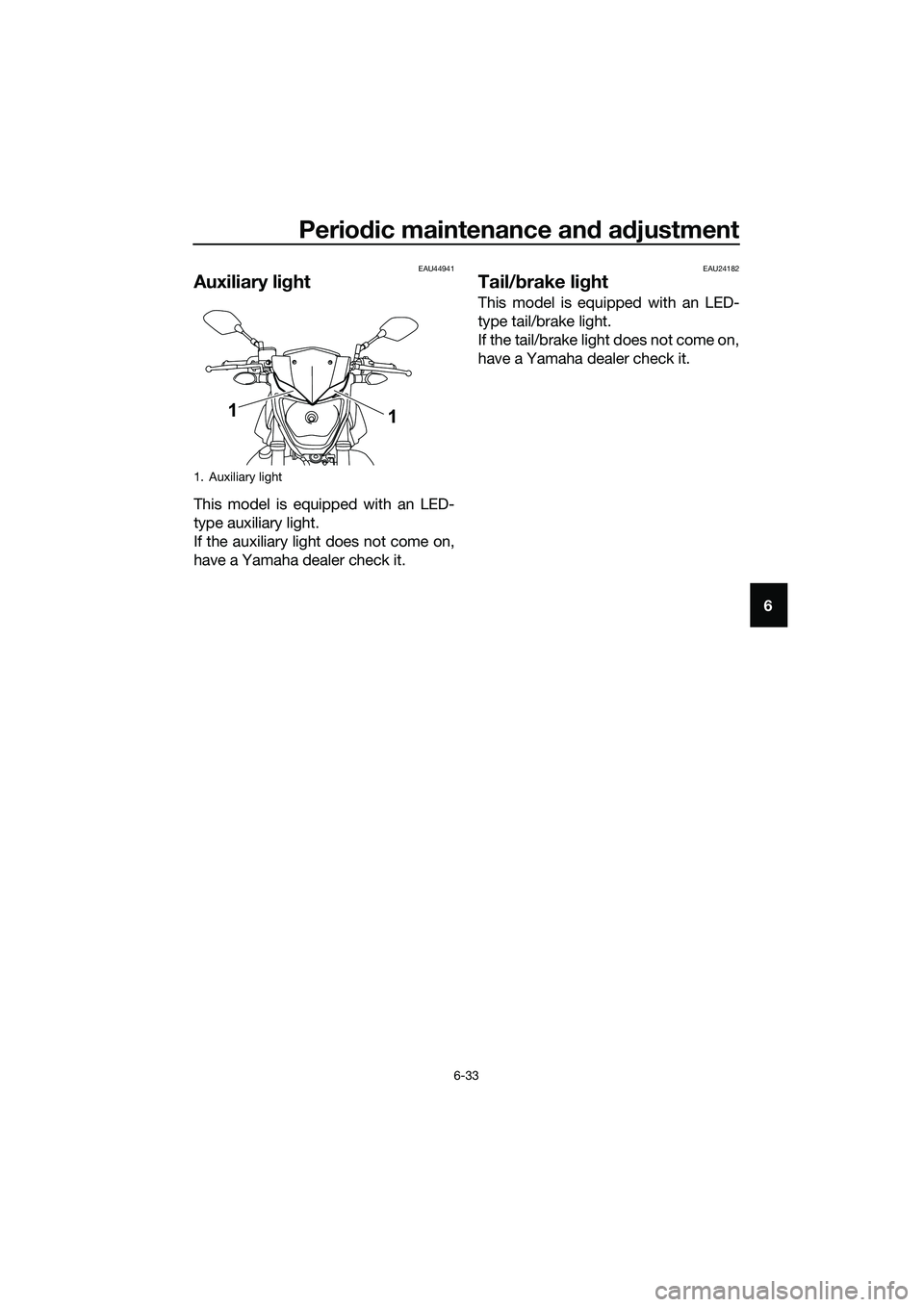

Auxiliary lig ht
This model is equipped with an LED-
type auxiliary light.
If the auxiliary light does not come on,
have a Yamaha dealer check it.
EAU24182
Tail/brake li ght
This model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
1. Auxiliary light
1
1
UB9AE0E0.book Page 33 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-34
6
EAU62590

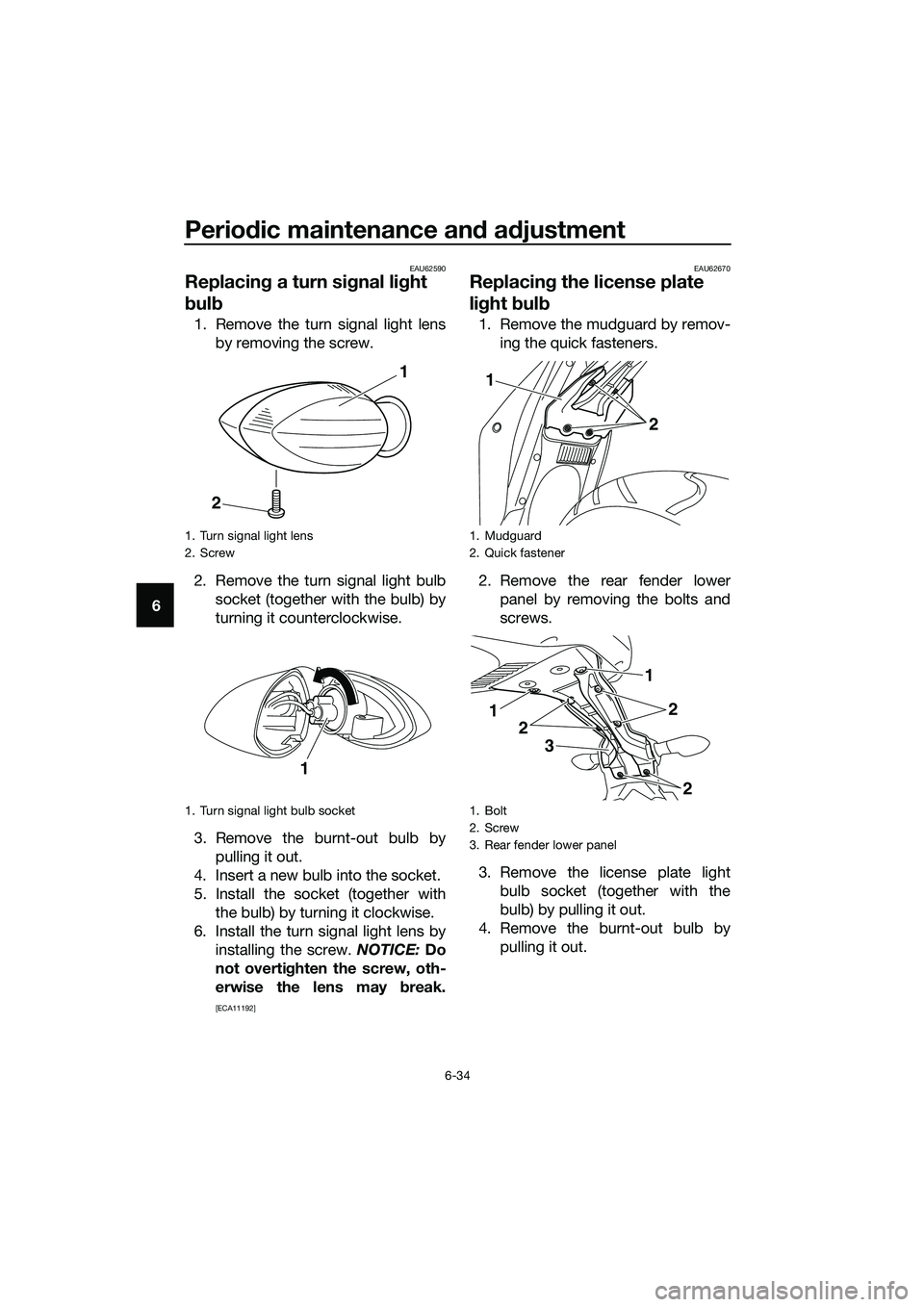

Replacin g a turn si gnal li ght
b ul b
1. Remove the turn signal light lens
by removing the screw.
2. Remove the turn signal light bulb socket (together with the bulb) by
turning it counterclockwise.
3. Remove the burnt-out bulb by pulling it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the bulb) by turning it clockwise.
6. Install the turn signal light lens by installing the screw. NOTICE: Do
not overti ghten the screw, oth-
erwise the lens may b reak.
[ECA11192] EAU62670
Replacin
g the license plate
li g ht bul b
1. Remove the mudguard by remov-
ing the quick fasteners.
2. Remove the rear fender lower panel by removing the bolts and
screws.
3. Remove the license plate light bulb socket (together with the
bulb) by pulling it out.
4. Remove the burnt-out bulb by pulling it out.
1. Turn signal light lens
2. Screw
1. Turn signal light bulb socket
1
2
1
1. Mudguard
2. Quick fastener
1. Bolt
2. Screw
3. Rear fender lower panel
1
2
3
2
1
2
2
1
UB9AE0E0.book Page 34 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-35
6
5. Insert a new bulb into the socket.
6. Install the socket (together with
the bulb) by pushing it in.
7. Install the rear fender lower panel by installing the bolts and screws.
8. Install the mudguard by installing the quick fasteners.
EAU24351
Supportin g the motorcycle
Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motorcy-
cle is in a stable and level position be-
fore starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcy- cle by using a motorcycle stand
or, if an additional motorcycle
stand is not available, by placing a
jack under the frame in front of the
rear wheel.
2. Raise the front wheel off the ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placing
a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
1. License plate light bulb
2. License plate light bulb socket
2
1
UB9AE0E0.book Page 35 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-36
6
EAU25872
Trou bleshootin g
Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWA15142
When checkin g the fuel system, do
not smoke, an d make sure there are
no open flames or sparks in the ar-
ea, inclu din g pilot lig hts from water
heaters or furnaces. Gasoline or
g asoline vapors can i gnite or ex-
plod e, causin g severe injury or prop-
erty damag e.
UB9AE0E0.book Page 36 Thursday, March 23, 2017 2:48 PM
