YAMAHA MT-03 2018 Workshop Manual

Periodic maintenance an d a djustment
6-7
6
EAU19643
Checkin g the spark plu gs
The spark plugs are important engine
components, which should be
checked periodically, preferably by a
Yamaha dealer. Since heat and depos- its will cause any spark plug to slowly
erode, they should be removed and
checked in accordance with the peri-
odic maintenance and lubrication
chart. In addition, the condition of the
spark plugs can reveal the condition of
the engine.
The porcelain insulator around the
center electrode of each spark plug
should be a medium-to-light tan (the
ideal color when the vehicle is ridden
normally), and all spark plugs installed
in the engine should have the same
color. If any spark plug shows a dis-
tinctly different color, the engine could
be operating improperly. Do not at-
tempt to diagnose such problems
yourself. Instead, have a Yamaha deal-
er check the vehicle.
If a spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced.
Before installing a spark plug, the
spark plug gap should be measured
with a wire thickness gauge and, if
necessary, adjusted to specification. Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the spark
plug threads.
TIP
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4–
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.
Specified
spark plu g:
NGK/LMAR8A-9
1. Spark plug gap
Spark plu g g ap:
0.8–0.9 mm (0.031–0.035 in)
Ti ghtenin g torque:
Spark plug: 13 N·m (1.3 kgf·m, 9.6 lb·ft)
UB9AE0E0.book Page 7 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-8
6
EAU36112
Canister
This model is equipped with a canister
to prevent the discharging of fuel vapor
into the atmosphere. Before operating
this vehicle, make sure to check the
following:
z Check each hose connection.
z Check each hose and canister for
cracks or damage. Replace if
damaged.
z Make sure that the canister
breather is not blocked, and if
necessary, clean it.
EAUN1150
Engine oil an d oil filter car-
tri dge
The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the en gine oil level
1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Wait a few minutes until the oil set- tles, and then check the oil level
through the engine oil level check
window located at the bottom-
right side of the crankcase.
TIP
The engine oil should be between the
minimum and maximum level marks.
1. Engine oil filler cap
2. Engine oil level check window
3. Maximum level mark
4. Minimum level mark
3
4
1
2
UB9AE0E0.book Page 8 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment

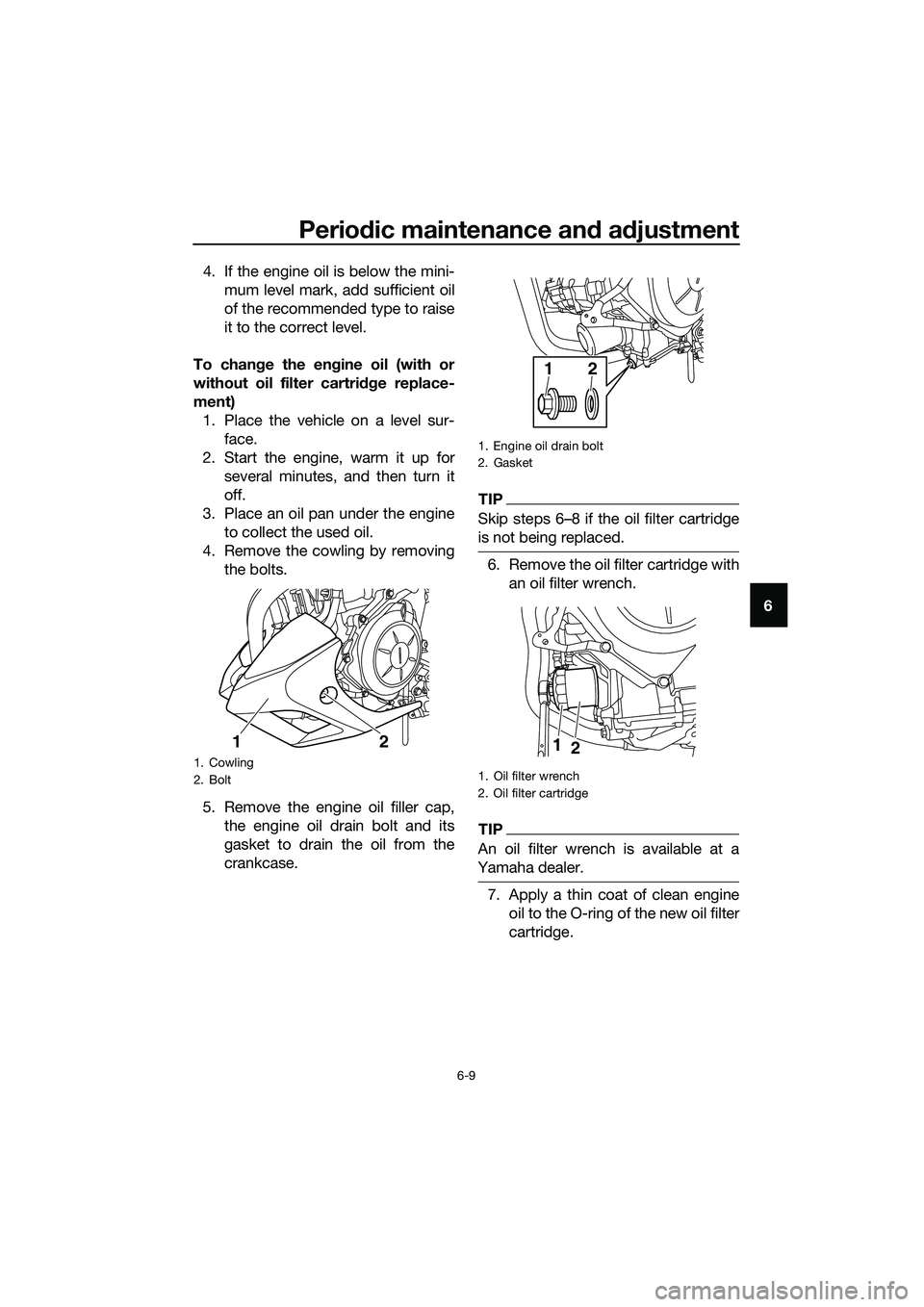

6-9
6
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To chan ge the en gine oil (with or
without oil filter cartri dge replace-
ment) 1. Place the vehicle on a level sur- face.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Place an oil pan under the engine to collect the used oil.
4. Remove the cowling by removing the bolts.
5. Remove the engine oil filler cap, the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.
TIP
Skip steps 6–8 if the oil filter cartridge
is not being replaced.
6. Remove the oil filter cartridge withan oil filter wrench.
TIP
An oil filter wrench is available at a
Yamaha dealer.
7. Apply a thin coat of clean engine oil to the O-ring of the new oil filter
cartridge.
1. Cowling
2. Bolt
12
1. Engine oil drain bolt
2. Gasket
1. Oil filter wrench
2. Oil filter cartridge
12
12
UB9AE0E0.book Page 9 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment

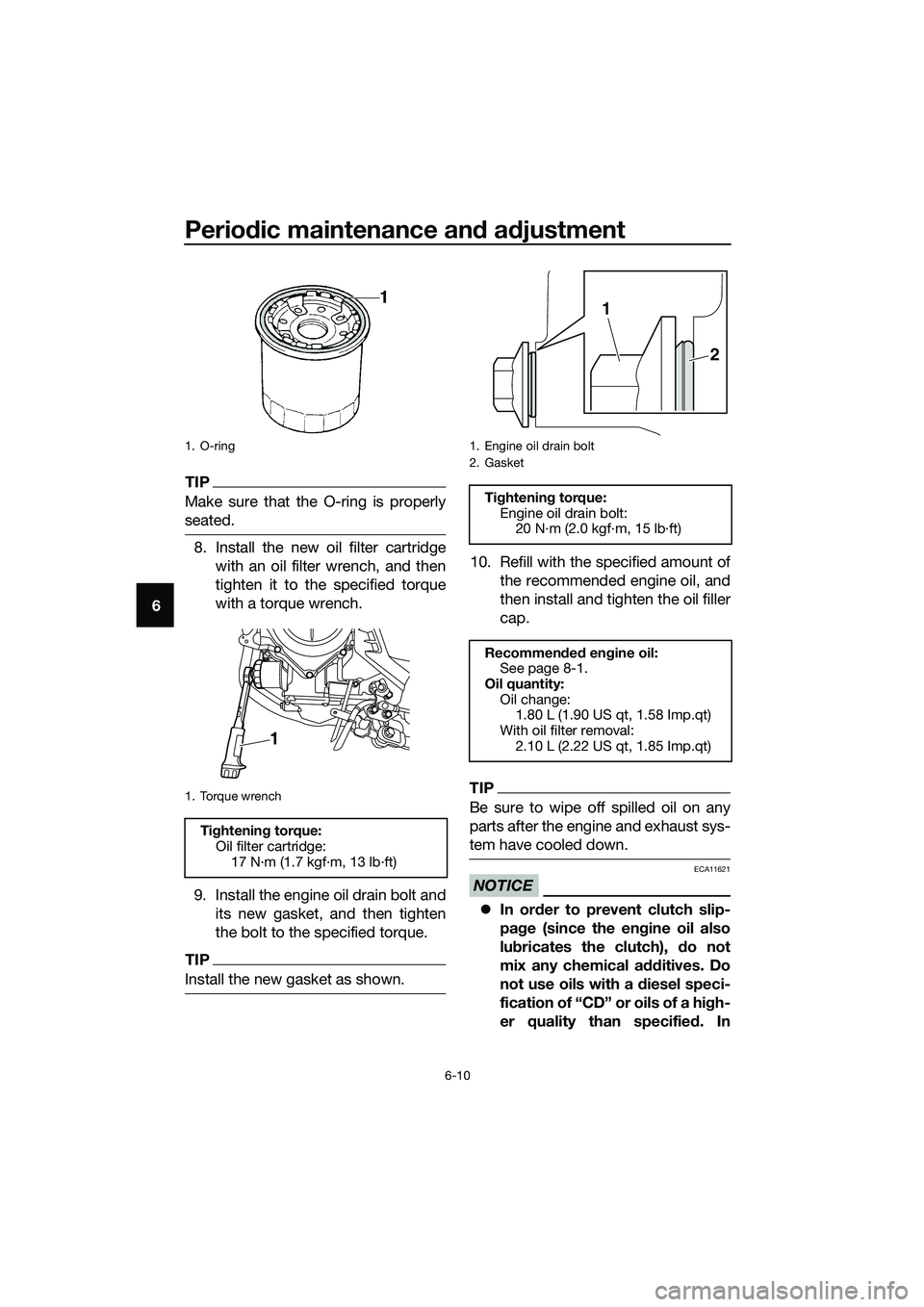

6-10
6
TIP
Make sure that the O-ring is properly
seated.
8. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.
9. Install the engine oil drain bolt and its new gasket, and then tighten
the bolt to the specified torque.
TIP
Install the new gasket as shown.
10. Refill with the specified amount of the recommended engine oil, and
then install and tighten the oil filler
cap.
TIP
Be sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.
NOTICE
ECA11621
zIn or der to prevent clutch slip-
pa ge (since the en gine oil also
lu bricates the clutch), do not
mix any chemical add itives. Do
not use oils with a d iesel speci-
fication of “CD” or oils of a hi gh-
er quality than specified . In
1. O-ring
1. Torque wrench
Tightenin g torque:
Oil filter cartridge: 17 N·m (1.7 kgf·m, 13 lb·ft)
1
1. Engine oil drain bolt
2. Gasket
Tightening torque:
Engine oil drain bolt: 20 N·m (2.0 kgf·m, 15 lb·ft)
Recommen ded en gine oil:
See page 8-1.
Oil quantity:
Oil change:1.80 L (1.90 US qt, 1.58 Imp.qt)
With oil filter removal:
2.10 L (2.22 US qt, 1.85 Imp.qt)
2
1
UB9AE0E0.book Page 10 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment
6-11
6
a
ddition, do not use oils la bele d
“ENERGY CONSERVING II” or
hi gher.
z Make sure that no forei gn mate-
rial enters the crankcase.
11. Install the cowling by installing the bolts.
12. Start the engine, and then let it idle for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
TIP
After the engine is started, the engine
oil pressure warning light should go off.
NOTICE
ECA20860
If the oil pressure warnin g li ght flick-
ers or remains on even if the oil level
is correct, imme diately turn the en-
g ine off an d have a Yamaha dealer
check the vehicle.
13. Turn the engine off, wait a few minutes until the oil settles, and
then check the oil level and cor-
rect it if necessary.
EAU20071
Coolant
The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU38176To check the coolant level1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion.
TIP
zThe coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
z Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the
coolant reservoir.
TIP
The coolant should be between the
minimum and maximum level marks.
1. Maximum level mark
2. Minimum level mark
3. Coolant reservoir
1
2
3
UB9AE0E0.book Page 11 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment

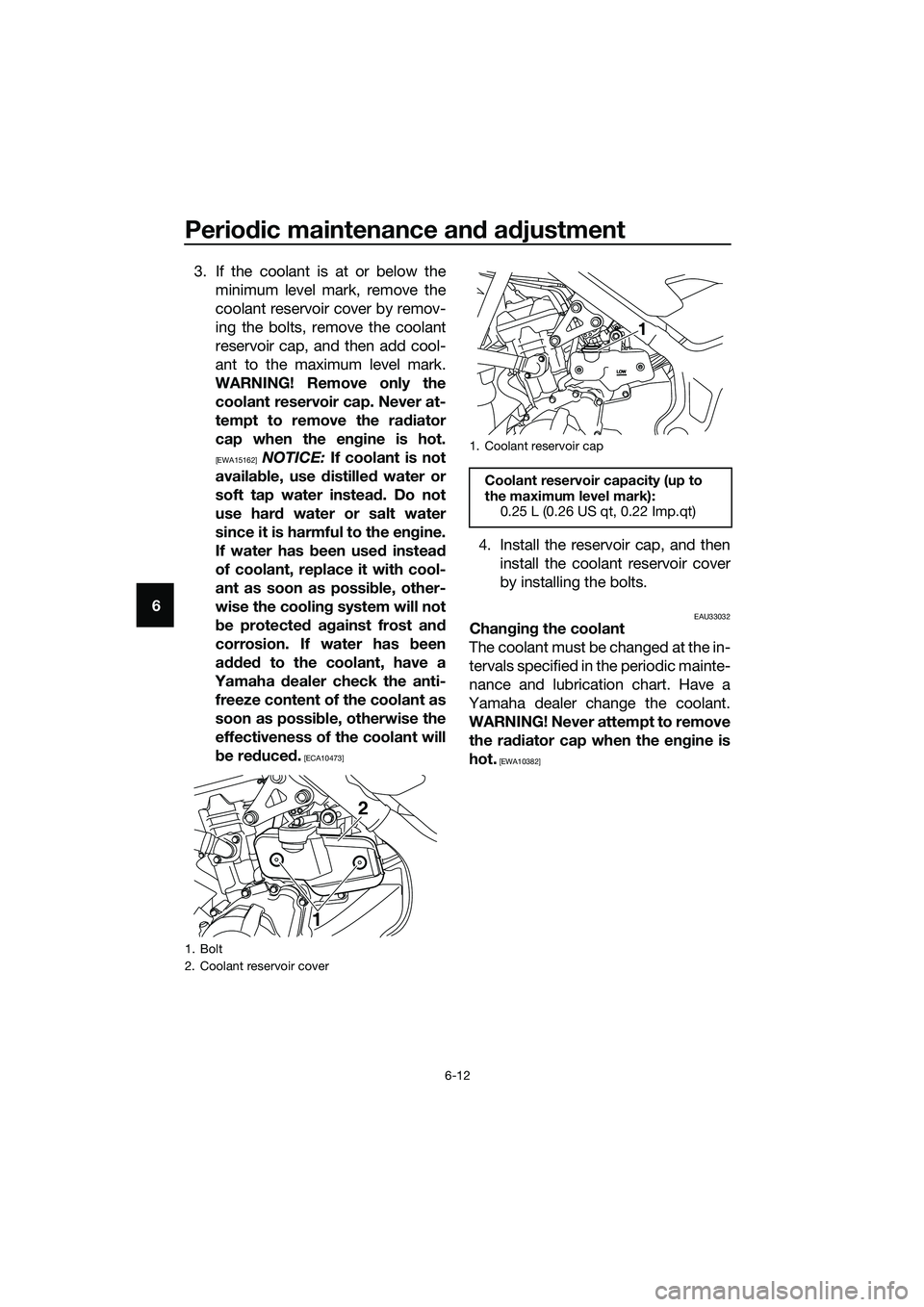

6-12
6 3. If the coolant is at or below the
minimum level mark, remove the
coolant reservoir cover by remov-
ing the bolts, remove the coolant
reservoir cap, and then add cool-
ant to the maximum level mark.
WARNING! Remove only the coolant reservoir cap. Never at-
tempt to remove the ra diator
cap when the en gine is hot.
[EWA15162] NOTICE: If coolant is not
availa ble, use d istilled water or
soft tap water instea d. Do not
use har d water or salt water
since it is harmful to the en gine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possi ble, other-
wise the coolin g system will not
b e protecte d a gainst frost an d
corrosion. If water has been
a dde d to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possi ble, otherwise the
effectiveness of the coolant will
b e re duce d.
[ECA10473]
4. Install the reservoir cap, and then
install the coolant reservoir cover
by installing the bolts.
EAU33032Chan gin g the coolant
The coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart. Have a
Yamaha dealer change the coolant.
WARNING! Never attempt to remove the ra diator cap when the en gine is
hot.
[EWA10382]
1. Bolt
2. Coolant reservoir cover
2
1
1. Coolant reservoir cap
Coolant reservoir capacity (up to
the maximum level mark): 0.25 L (0.26 US qt, 0.22 Imp.qt)
1
UB9AE0E0.book Page 12 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment

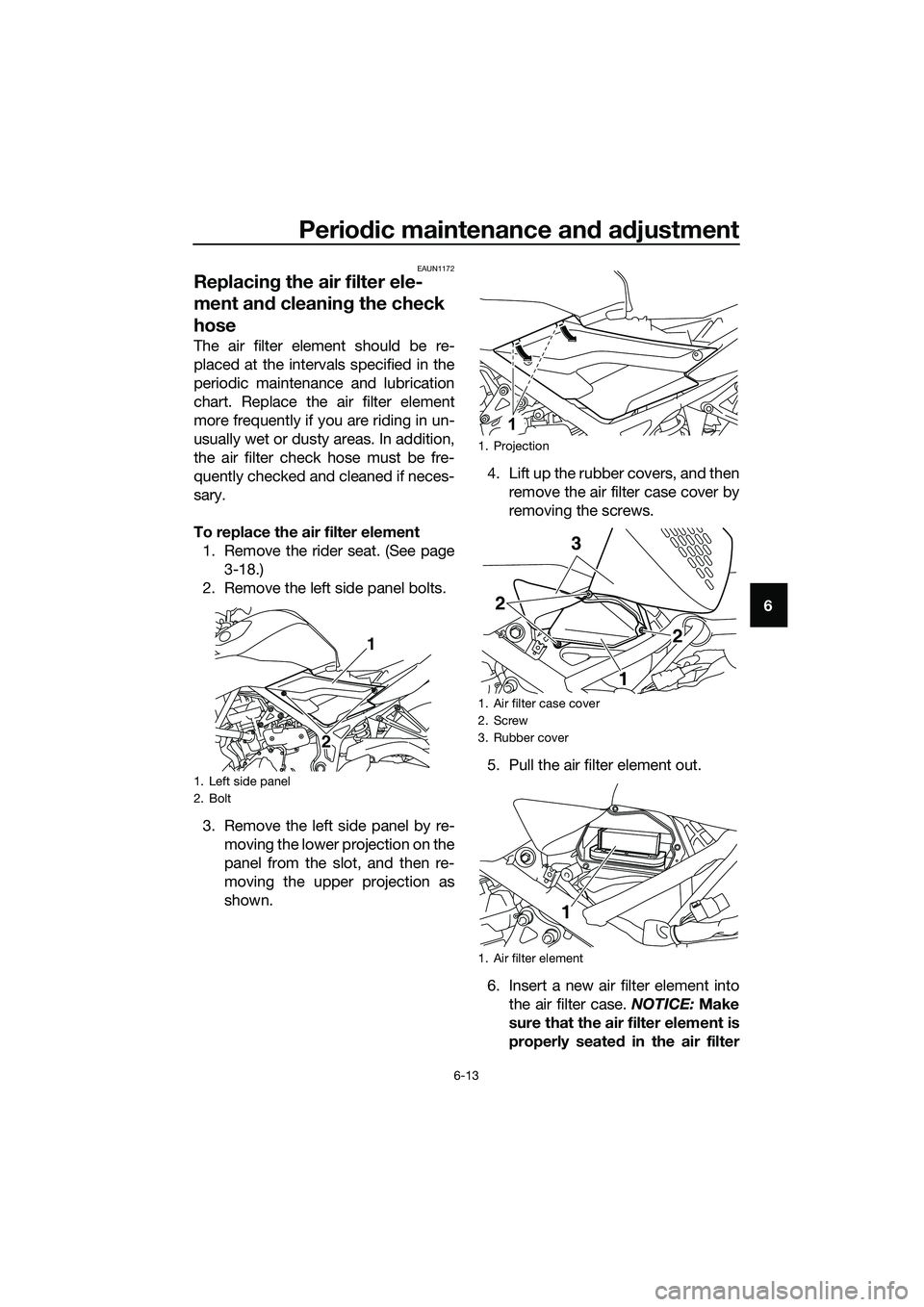

6-13
6
EAUN1172
Replacin g the air filter ele-
ment an d cleanin g the check
hose
The air filter element should be re-
placed at the intervals specified in the
periodic maintenance and lubrication
chart. Replace the air filter element
more frequently if you are riding in un-
usually wet or dusty areas. In addition,
the air filter check hose must be fre-
quently checked and cleaned if neces-
sary.
To replace the air filter element
1. Remove the rider seat. (See page 3-18.)
2. Remove the left side panel bolts.
3. Remove the left side panel by re- moving the lower projection on the
panel from the slot, and then re-
moving the upper projection as
shown. 4. Lift up the rubber covers, and then
remove the air filter case cover by
removing the screws.
5. Pull the air filter element out.
6. Insert a new air filter element into the air filter case. NOTICE: Make
sure that the air filter element is
properly seated in the air filter
1. Left side panel
2. Bolt
1
2
1. Projection
1. Air filter case cover
2. Screw
3. Rubber cover
1. Air filter element
1
1 2
2 3
1
UB9AE0E0.book Page 13 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment

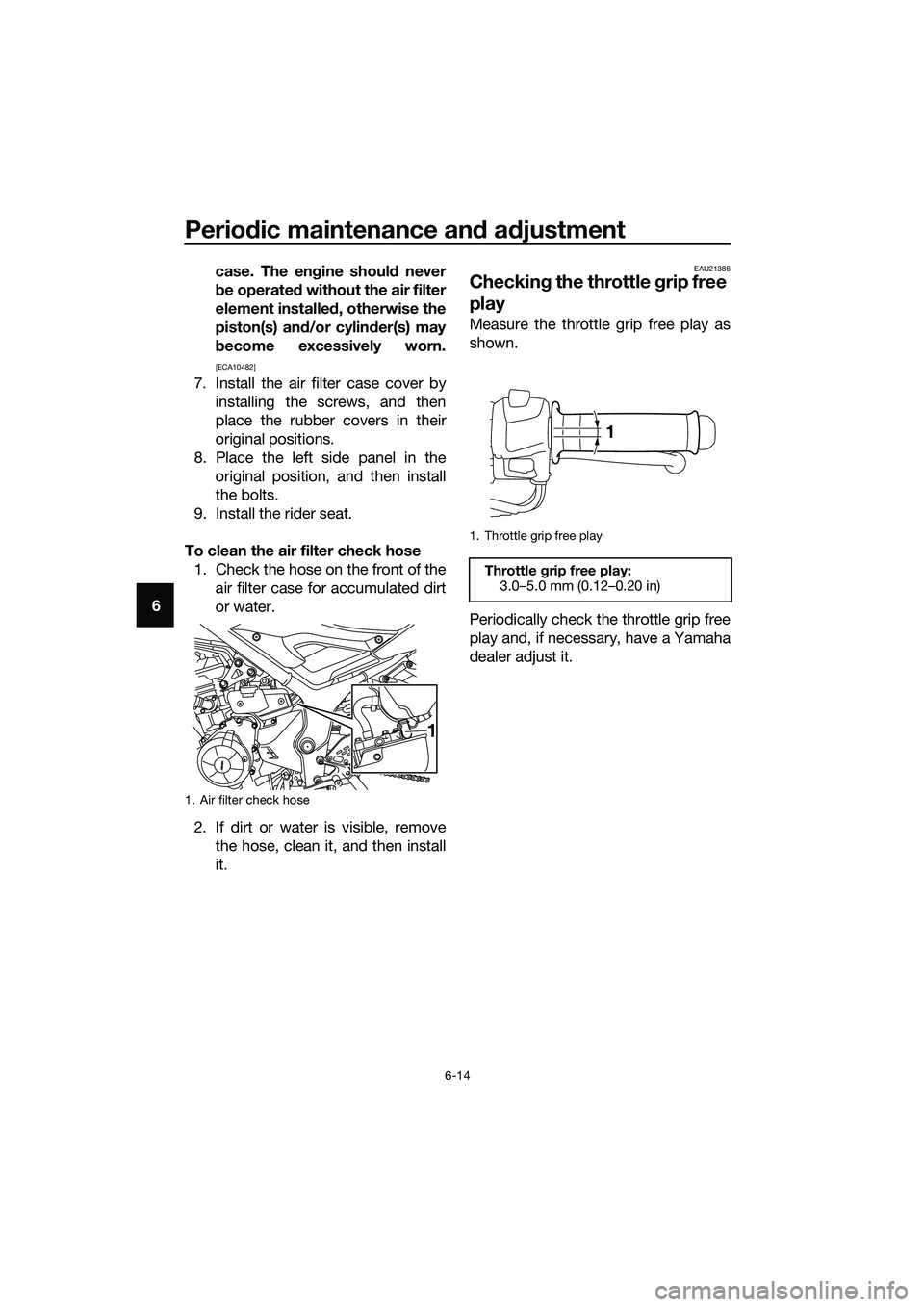

6-14
6 case. The en
gine shoul d never
b e operated without the air filter
element installe d, otherwise the
piston(s) an d/or cylin der(s) may
b ecome excessively worn.
[ECA10482]
7. Install the air filter case cover by
installing the screws, and then
place the rubber covers in their
original positions.
8. Place the left side panel in the original position, and then install
the bolts.
9. Install the rider seat.
To clean the air filter check hose 1. Check the hose on the front of the air filter case for accumulated dirt
or water.
2. If dirt or water is visible, remove the hose, clean it, and then install
it.
EAU21386
Checkin g the throttle grip free
play
Measure the throttle grip free play as
shown.
Periodically check the throttle grip free
play and, if necessary, have a Yamaha
dealer adjust it.
1. Air filter check hose
1
1. Throttle grip free play
Throttle g rip free play:
3.0–5.0 mm (0.12–0.20 in)
1
UB9AE0E0.book Page 14 Thursday, March 23, 2017 2:48 PM

Periodic maintenance an d a djustment

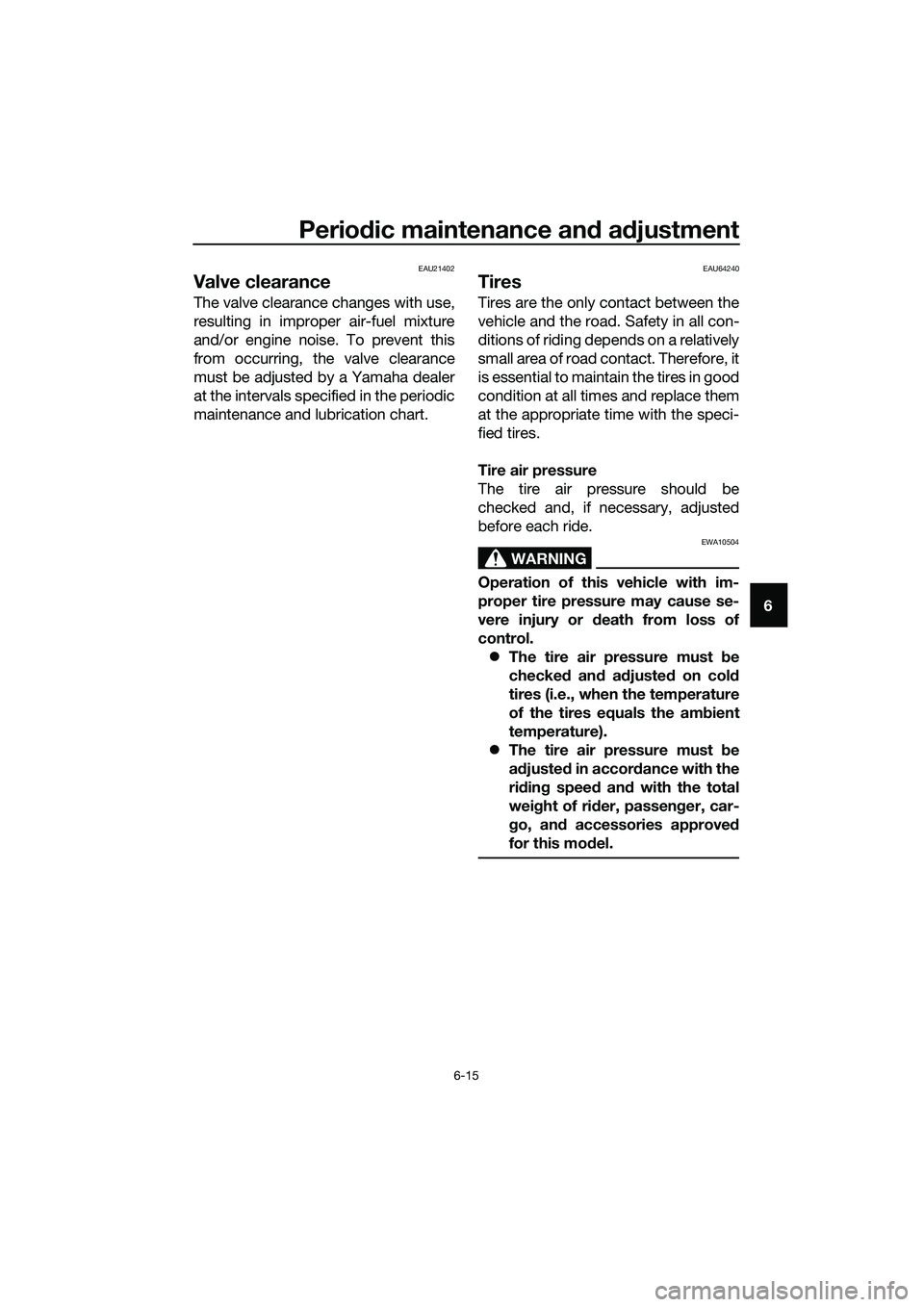

6-15
6
EAU21402
Valve clearance
The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU64240
Tires
Tires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
WARNING
EWA10504
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or d eath from loss of
control. z The tire air pressure must b e
checked and a djuste d on col d
tires (i.e., when the temperature
of the tires equals the am bient
temperature).
z The tire air pressure must b e
a d juste d in accor dance with the
ri din g speed and with the total
wei ght of ri der, passen ger, car-
g o, an d accessories approve d
for this mo del.
UB9AE0E0.book Page 15 Thursday, March 23, 2017 2:48 PM

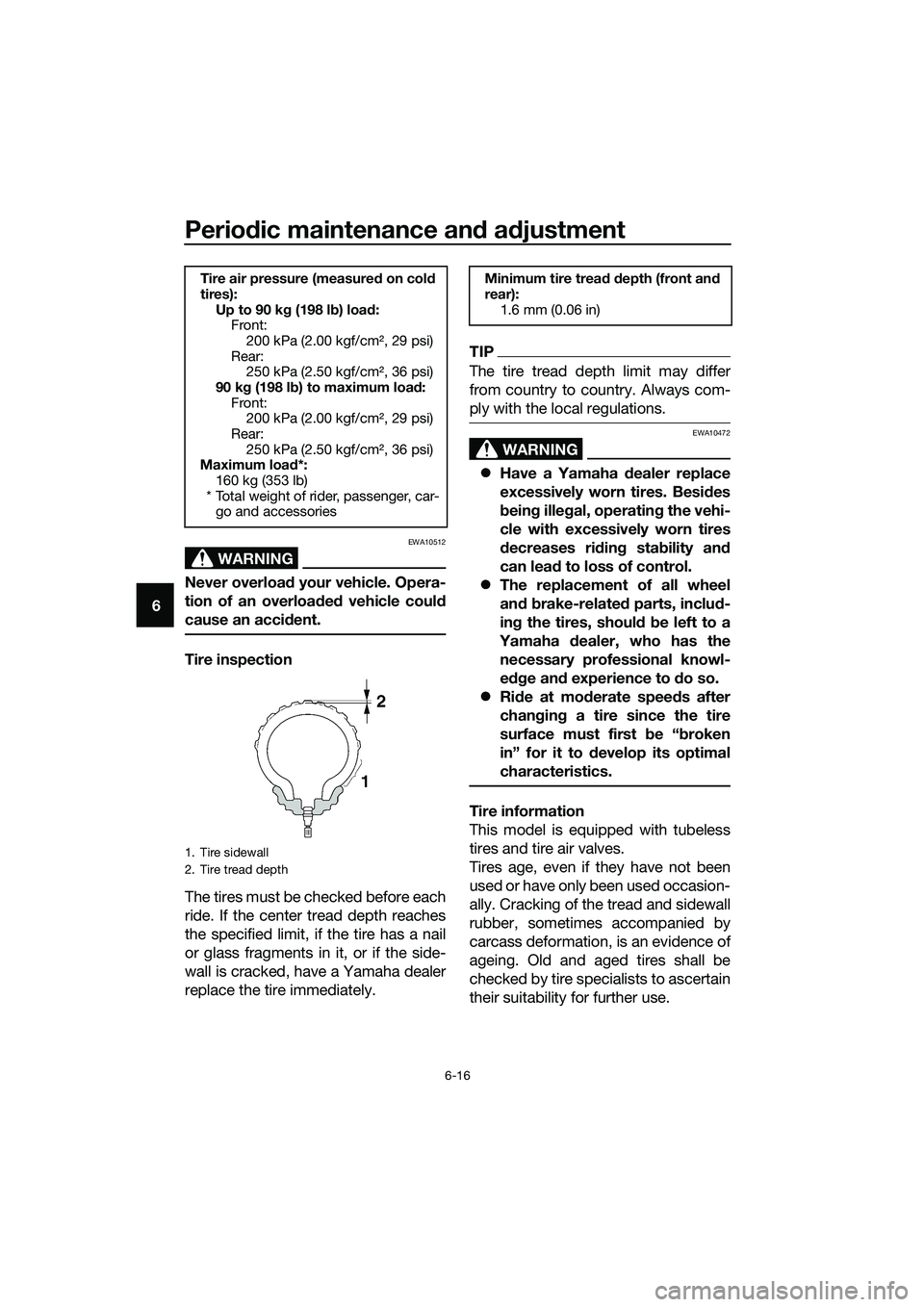

Periodic maintenance an d a djustment
6-16
6
WARNING
EWA10512
Never overloa d your vehicle. Opera-
tion of an overloa ded vehicle coul d
cause an acci dent.
Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail
or glass fragments in it, or if the side-
wall is cracked, have a Yamaha dealer
replace the tire immediately.
TIP
The tire tread depth limit may differ
from country to country. Always com-
ply with the local regulations.
WARNING
EWA10472
z Have a Yamaha dealer replace
excessively worn tires. Besi des
b ein g ille gal, operatin g the vehi-
cle with excessively worn tires
d ecreases ri din g sta bility an d
can lead to loss of control.
z The replacement of all wheel
and b rake-relate d parts, inclu d-
in g the tires, shoul d b e left to a
Yamaha dealer, who has the
necessary professional knowl-
e dge an d experience to do so.
z Ride at mo derate spee ds after
chan gin g a tire since the tire
surface must first b e “broken
in” for it to develop its optimal
characteristics.
Tire information
This model is equipped with tubeless
tires and tire air valves.
Tires age, even if they have not been
used or have only been used occasion-
ally. Cracking of the tread and sidewall
rubber, sometimes accompanied by
carcass deformation, is an evidence of
ageing. Old and aged tires shall be
checked by tire specialists to ascertain
their suitability for further use.
Tire air pressure (measure d on col d
tires): Up to 90 k g (198 l b) loa d:
Front:
200 kPa (2.00 kgf/cm², 29 psi)
Rear: 250 kPa (2.50 kgf/cm², 36 psi)
90 k g (198 l b) to maximum loa d:
Front: 200 kPa (2.00 kgf/cm², 29 psi)
Rear: 250 kPa (2.50 kgf/cm², 36 psi)
Maximum load *:
160 kg (353 lb)
* Total weight of rider, passenger, car- go and accessories
1. Tire sidewall
2. Tire tread depth
Minimum tire trea d d epth (front an d
rear): 1.6 mm (0.06 in)
UB9AE0E0.book Page 16 Thursday, March 23, 2017 2:48 PM
