dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories,
and Modifications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accessories
or modifications are not suitable be-
cause of potential safety hazards to you
or others. Installing aftermarket prod-
ucts or having other modifications per-
formed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.

Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,
limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds. These ac-
cessories may also cause
instability when passing or being
passed by large vehicles.
Certain accessories can dis- place the operator from his or
her normal riding position. This
improper position limits the free- dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.

Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match the
performance capabilities and to provide
the best combination of handling, brak-
ing, and comfort. Other tires, rims, siz-
es, and combinations may not be
appropriate. Refer to page 6-16 for tire
specifications and more information on
replacing your tires.
Transporting the Motorcycle
Be sure to observe following instruc-
tions before transporting the motorcy-
cle in another vehicle.

Remove all loose items from the
motorcycle.
B87-9-E0_1.book 4 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Safety information
1-5
1
2
3
4
5
6
7
8
9
10
11
12

Check that the fuel cock (if
equipped) is in the “OFF” position
and that there are no fuel leaks.

Point the front wheel straight
ahead on the trailer or in the truck
bed, and choke it in a rail to pre-
vent movement.

Shift the transmission in gear (for
models with a manual transmis-
sion).

Secure the motorcycle with
tie-downs or suitable straps that
are attached to solid parts of the
motorcycle, such as the frame or
upper front fork triple clamp (and
not, for example, to rubber-mount-
ed handlebars or turn signals, or
parts that could break). Choose
the location for the straps carefully
so the straps will not rub against
painted surfaces during transport.

The suspension should be com-
pressed somewhat by the
tie-downs, if possible, so that the
motorcycle will not bounce exces-
sively during transport.
B87-9-E0_1.book 5 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

2-1
123
4
5
6
7
8
9
10
11
12
Description
EAU10411
Left view
1
2
3
4,5,6
7
8
9
11
10
1. Front fork spring preload adjusting bolt (page 3-26)
2. Shock absorber assembly rebound damping force adjusting screw (page 3-28)
3. Seat (page 3-25)
4. Fuse box 2 (page 6-31)
5. Main fuse (page 6-31)
6. Fuel injection system fuse (page 6-31)
7. Storage compartment (page 3-26) 8. Shock absorber assembly spring
preload adjusting ring (page 3-28)
9. Shift pedal (page 3-18)
10.Engine oil drain bolt (page 6-9)
11.Coolant drain bolt (page 6-12)
B87-9-E0_1.book 1 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Description
2-2
12
3
4
5
6
7
8
9
10
11
12
EAU10421
Right view
2
1
3
4
6
7
8
9
10
5
1. Fuel tank cap (page 3-22)
2. Front fork rebound damping force adjusting screw (page 3-26)
3. Headlight (page 6-34)
4. Fuse box 1 (page 6-31)
5. Coolant reservoir (page 6-11)
6. Engine oil level check window (page 6-9)
7. Engine oil filler cap (page 6-9)
8. Brake pedal (page 3-19) 9. Rear brake light switch (page 6-20)
10.Rear brake fluid reservoir (page 6-21)
B87-9-E0_1.book 2 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Description
2-3
123
4
5
6
7
8
9
10
11
12
EAU10431

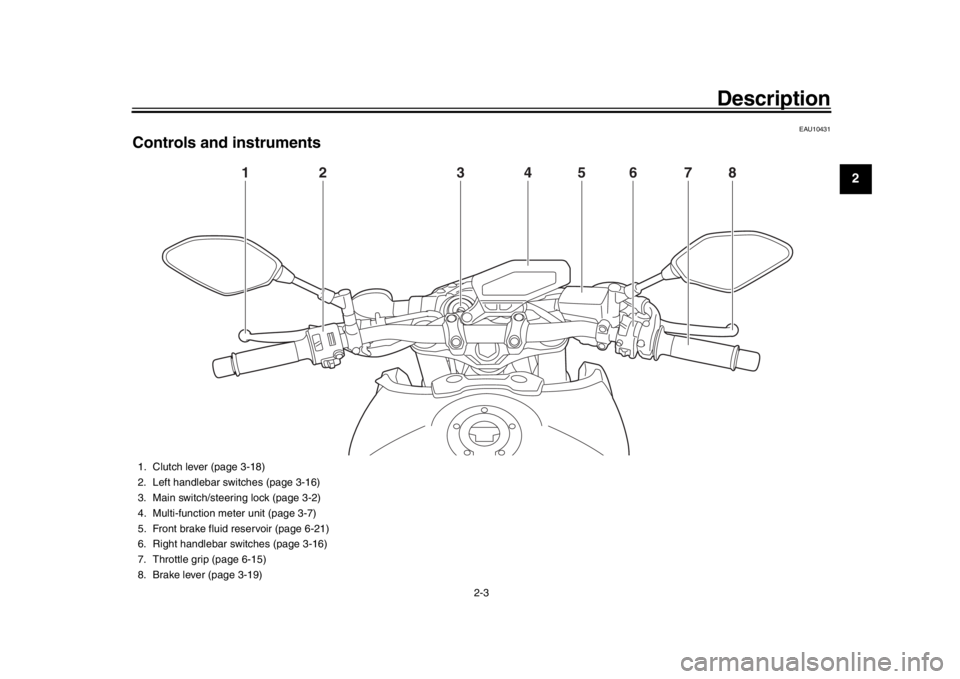

Controls and instruments
1
2
3
4
5
6
7
8
1. Clutch lever (page 3-18)
2. Left handlebar switches (page 3-16)
3. Main switch/steering lock (page 3-2)
4. Multi-function meter unit (page 3-7)
5. Front brake fluid reservoir (page 6-21)
6. Right handlebar switches (page 3-16)
7. Throttle grip (page 6-15)
8. Brake lever (page 3-19)
B87-9-E0_1.book 3 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

3-1
1
23
4
5
6
7
8
9
10
11
12
Instrument and control functions
EAU10978
Immobilizer systemThis vehicle is equipped with an immo-
bilizer system to help prevent theft by
re-registering codes in the standard
keys. This system consists of the fol-
lowing:
a code re-registering key (with a
red bow)

two standard keys (with a black
bow) that can be re-registered with
new codes

a transponder (which is installed in
the code re-registering key)

an immobilizer unit

an ECU

an immobilizer system indicator light (See page 3-6.)
The key with the red bow is used to reg-
ister codes in each standard key. Since
re-registering is a difficult process, take
the vehicle along with all three keys to
a Yamaha dealer to have them re-reg-
istered. Do not use the key with the red
bow for driving. It should only be used
for re-registering the standard keys. Al-
ways use a standard key for driving.
NOTICE
ECA11822

DO NOT LOSE THE CODE
RE-REGISTERING KEY! CON-
TACT YOUR DEALER IMMEDI-
ATELY IF IT IS LOST! If the code
re-registering key is lost, regis-
tering new codes in the stan-
dard keys is impossible. The
standard keys can still be used
to start the vehicle, however if
code re-registering is required
(i.e., if a new standard key is
made or all keys are lost) the en-
tire immobilizer system must be
replaced. Therefore, it is highly
recommended to use either
standard key and keep the code
re-registering key in a safe place.

Do not submerse any key in wa-
ter.

Do not expose any key to exces-
sively high temperatures.

Do not place any key close to
magnets (this includes, but not
limited to, products such as
speakers, etc.).

Do not place items that transmit
electrical signals close to any
key.

Do not place heavy items on any
key.

Do not grind any key or alter its
shape.

Do not disassemble the plastic
part of any key.

Do not put two keys of any im-
mobilizer system on the same
key ring.

Keep the standard keys as well
as keys of other immobilizer
systems away from this vehi-
cle’s code re-registering key.

Keep other immobilizer system
keys away from the main switch
as they may cause signal inter-
1. Code re-registering key (red bow)
2. Standard keys (black bow)
B87-9-E0_1.book 1 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Instrument and control functions
3-2
1
234
5
6
7
8
9
10
11
12
ference.
EAU10474
Main switch/steering lockThe main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.TIPBe sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code
re-registering key (red bow), keep it in a
safe place and only use it for codere-registering.
EAU36871
ON
All electrical circuits are supplied with
power, the meter lighting, taillight, li- cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.
TIPThe headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even ifthe engine stalls.
EAU10662
OFF
All electrical syst
ems are off. The key
can be removed.
WARNING
EWA10062
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result inloss of control or an accident.
EAU1068A
LOCK
The steering is locked and all electrical
systems are off. The key can be re-
moved.
P
ON
OFF
LOCK
B87-9-E0_1.book 2 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Instrument and control functions
3-3
1
23
4
5
6
7
8
9
10
11
12 To lock the steering
1. Turn the handlebars all the way to
the left.
2. With the key in the “OFF” position, push the key in and turn it to
“LOCK”.
3. Remove the key.TIPIf the steering will not lock, try turningthe handlebars back to the right slightly. To unlock the steering
From the “LOCK” position, push the
key and turn it to “OFF”.
EAU59680
(Parking)
The hazard lights and turn signal lights
can be turned on, but all other electrical
systems are off. The key can be re-
moved.
The steering must be locked before the
key can be turned to “ ”.NOTICE
ECA20760
Using the hazard or turn signal
lights for an extended length of time
may cause the battery to discharge.
1. Push.
2. Turn.12
1. Push.
2. Turn.12
B87-9-E0_1.book 3 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Instrument and control functions
3-4
1
234
5
6
7
8
9
10
11
12
EAU49398
Indicator lights and warning
lights
EAU11022
Turn signal indicator light “ ”
This indicator light flashes when a turn
signal light is flashing.
EAU11061
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11081
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11256
Oil level warning light “ ”
This warning light comes on if the en-
gine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on after
confirming that the oil level is correct
(see page 6-9), have a Yamaha dealer
check the vehicle.TIP
Even if the oil level is sufficient, the
warning light may flicker when rid-
ing on a slope or during sudden acceleration or deceleration, but
this is not a malfunction.

This model is equipped with a
self-diagnosis device for the oil
level detection circuit. If a problem
is detected in the oil level detection
circuit, the oil level warning light
will flash repeatedly. If this occurs,
have a Yamaha dealer check thevehicle.
EAU11447
Coolant temperature warning light
“”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the en-
gine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
1. Traction control system indicator light
“ ” (for equipped models)
2. Neutral indicator light “ ”
3. High beam indicator light “ ”
4. Turn signal indicator light “ ”
5. Oil level warning light “ ”
6. Coolant temperature warning light “ ”
7. Engine trouble warning light “ ”
8. Anti-lock Brake System (ABS) warning light “ ” (for ABS models)
9. Immobilizer system indicator light “ ”
2
1
3
4
5
6
7
89
ABS
B87-9-E0_1.book 4 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分

Instrument and control functions
3-5
1
23
4
5
6
7
8
9
10
11
12
NOTICE
ECA10022
Do not continue to operate the en-gine if it is overheating.TIP
For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.

If the engine overheats, see page6-45 for further instructions.
EAU73500
Engine trouble warning light “ ”
MT09
This warning light comes on if a prob-
lem is detected in the electrical circuit
monitoring the engine. If this occurs,
have a Yamaha dealer check the
self-diagnosis system. (See page 3-14
for an explanation of the self-diagnosis
mode.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
MT09A
This warning light comes on if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the
on-board diagnostic system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the vehicle.
EAU58530
ABS warning light “ ” (for ABS
models)
In normal operation, the ABS warning
light comes on when the key is turned
to “ON”, and goes off after traveling at a
speed of 10 km/h (6 mi/h) or higher.If the ABS warning light:

does not come on when the key is
turned to “ON”

comes on or flashes while riding

does not go off after traveling at a
speed of 10 km/h (6 mi/h) or higher
The ABS may not work correctly. If any
of the above occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 3-20 for an expla-
nation of the ABS.)WARNING
EWA16041
If the ABS warning light does not go
off after traveling at a speed of 10
km/h (6 mi/h) or higher, or if the
warning light comes on or flashes
while riding, the brake system re-
verts to conventional braking. If ei-
ther of the above occurs, or if the
warning light does not come on at
all, use extra caution to avoid possi-
ble wheel lock during emergency
braking. Have a Yamaha dealer
check the brake system and electri-cal circuits as soon as possible.
ABS
B87-9-E0_1.book 5 ページ ２０１５年１２月１６日　水曜日　午前１０時２１分
