YAMAHA RHINO 700 2013 Owners Manual

10-2
1
2
3
4
5
6
7
8
910
11
12
13
14
Type:SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade: API service SG type or higher, JASO standard MAEngine oil quantity:Without oil filter cartridge replacement:
2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter cartridge replacement: 2.10 L (2.22 US qt, 1.85 Imp.qt)Final gear oil:Type:
SAE 80 API GL-4 Hypoid gear oil
Quantity: 0.25 L (0.26 US qt, 0.22 Imp.qt)Differential gear oil:Type:
SAE 80 API GL-4 Hypoid gear oil Quantity:
0.18 L (0.19 US qt, 0.16 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the maximum level mark):
0.32 L (0.34 US qt, 0.28 Imp.qt)
Radiator capacity (including all routes): 2.35 L (2.48 US qt, 2.07 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:YXR7FD Regular unleaded gasoline only
YXR7FSPD Regular unleaded gasoline only
YXR700FAD Unleaded gasoline only
Fuel tank capacity: 30.0 L (7.93 US gal, 6.60 Imp.gal)Fuel injection:Throttle body:
ID mark:5B41 00Spark plug (s):Manufacturer/model:NGK/CPR7EA-9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:Wet, centrifugal automaticTransmission:Primary reduction system:
V-belt

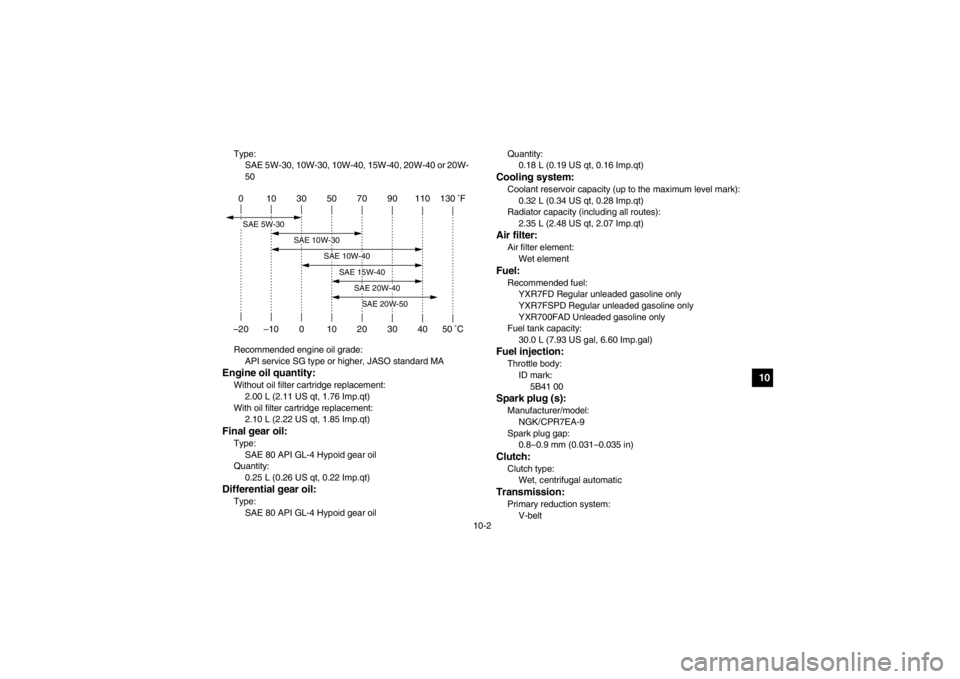

0 10 30 50 70 90 110 130 ˚F
–20 –10 0 10 20 30 40 50 ˚CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
1RB7A_EE.book Page 2 Tuesday, April 24, 2012 9:07 AM

10-3
Secondary reduction system:
Shaft drive
Secondary reduction ratio: 41/21 × 17/12 × 33/9 (10.142)
Transmission type:
V-belt automatic
Operation: Right hand operation
Reverse gear: 23/14 × 28/23 (2.000)
Low range:
31/16 (1.938)
High range: 31/21 (1.476)
Chassis:Frame type:
Steel tube frame
Caster angle: 5.0 °
Trail: 26.0 mm (1.02 in)Front tire:Type:Tubeless
Size: 25 x 8-12NHS
Manufacturer/model:
MAXXIS/M951Y
Rear tire:Type:Tubeless
Size:
25 x 10-12NHS
Manufacturer/model: MAXXIS/M952YLoading:Maximum loading limit:
YXR7FD 367.0 kg (809 lb)
YXR7FSPD 359.0 kg (791 lb)
YXR700FAD 367.0 kg (809 lb)
(Total weight of rider, passenger, cargo, accessories, and
tongue)Tire air pressure (measured on cold tires):Recommended:Front:
70.0 kPa (0.700 kgf/cm², 10 psi)
Rear: 98.0 kPa (0.980 kgf/cm², 14 psi)
Minimum: Front:63.0 kPa (0.630 kgf/cm², 9 psi)
Rear: 91.0 kPa (0.910 kgf/cm², 13 psi)Front wheel:Wheel type: YXR7FD Panel wheel
YXR7FSPD Cast wheel
YXR700FAD Panel wheel
Rim size:
12 × 6.0AT
1RB7A_EE.book Page 3 Tuesday, April 24, 2012 9:07 AM

10-4
Rear wheel:Wheel type:YXR7FD Panel wheel
YXR7FSPD Cast wheel
YXR700FAD Panel wheel
Rim size: 12 × 7.5ATFront brake:Type:
Disc brake
Operation: Unified brake
Specified brake fluid: DOT 4Rear brake:Type:Disc brake
Operation: Unified brake
Specified brake fluid:
DOT 4Front suspension:Type:Double wishbone
Spring/shock absorber type:
YXR7FD Coil spring/oil damper
YXR7FSPD Coil spring/gas-oil damper
YXR700FAD Coil spring/oil damper
Wheel travel: 185 mm (7.3 in)
Rear suspension:Type:Double wishbone
Spring/shock absorber type:
YXR7FD Coil spring/oil damper
YXR7FSPD Coil spring/gas-oil damper
YXR700FAD Coil spring/oil damper
Wheel travel: 185 mm (7.3 in)Electrical system:Ignition system:TCI
Charging system: AC magnetoBattery:Model:U1-H11L
Voltage, capacity: 12 V, 28.0 AhHeadlight:Bulb type:Krypton bulbBulb voltage, wattage
× quantity:
Headlight:
12 V, 30.0/30.0 W × 2
Tail/brake light: 12 V, 5.0/21.0 W × 2
Neutral indicator light: LED
Reverse indicator light:
LED
1RB7A_EE.book Page 4 Tuesday, April 24, 2012 9:07 AM

10-5
Coolant temperature warning light:
LED
Engine trouble warning light: LED
Parking brake indicator light:
LED
On-Command four-wheel-drive/differential gear lock indica-
tor:
LCD
High-range indicator light: LED
Low-range indicator light: LED
Differential gear lock indicator light:
LED
Helmet/Seat belt indicator light: 14 V, 1.7 W
Fuses:Main fuse:
40.0 A
Fuel injection system fuse: 10.0 A
Headlight fuse: 15.0 A
Signaling system fuse:
10.0 A
Ignition fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
Backup fuse:
10.0 A Four-wheel-drive motor fuse:
10.0 A
Radiator fan fuse: 25.0 A
For Europe only
The figures quoted are emission levels and are not
necessarily safe working levels. Whilst there is a
correlation between the emission and exposure
levels, this cannot be used reliably to determine
whether or not further precautions are required.
Factors that influence the actual level of exposure
of work-force include the characteristics of the
work room, the other sources of noise, etc. i.e. the
number of machines and other adjacent process-
es, and the length of time for which an operator is
exposed to the noise. Also the permissible expo-
sure level can vary from country. This information,
however, will enable the user of the machine to
make a better evaluation of the hazard and risk.
1RB7A_EE.book Page 5 Tuesday, April 24, 2012 9:07 AM

11-1
1
2
3
4
5
6
7
8
9
1011
12
13
14
1-CONSUMER INFORMATION
EVU00090Identification number records
Record the vehicle identification number and
model label information in the spaces provid-
ed for assistance when ordering spare parts
from a Yamaha dealer or for reference, in
case the vehicle is stolen.1. VEHICLE IDENTIFICATION NUMBER:ACA-02E2. MODEL LABEL INFORMATION:ACA-01E

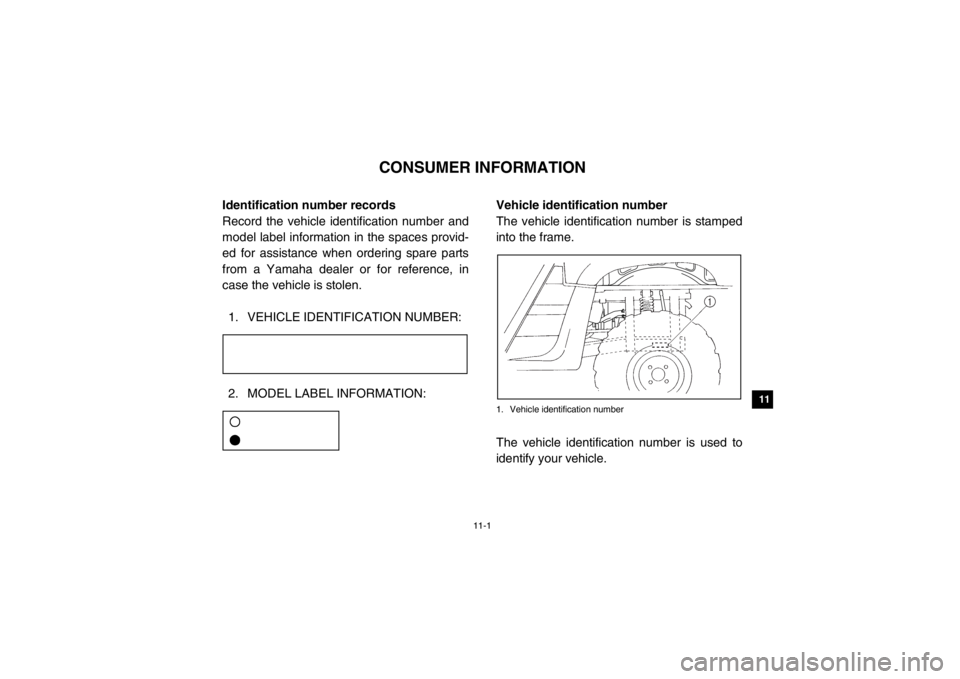

EVU00110Vehicle identification number
The vehicle identification number is stamped
into the frame.1. Vehicle identification numberThe vehicle identification number is used to
identify your vehicle.
1RB7A_EE.book Page 1 Tuesday, April 24, 2012 9:07 AM

11-2

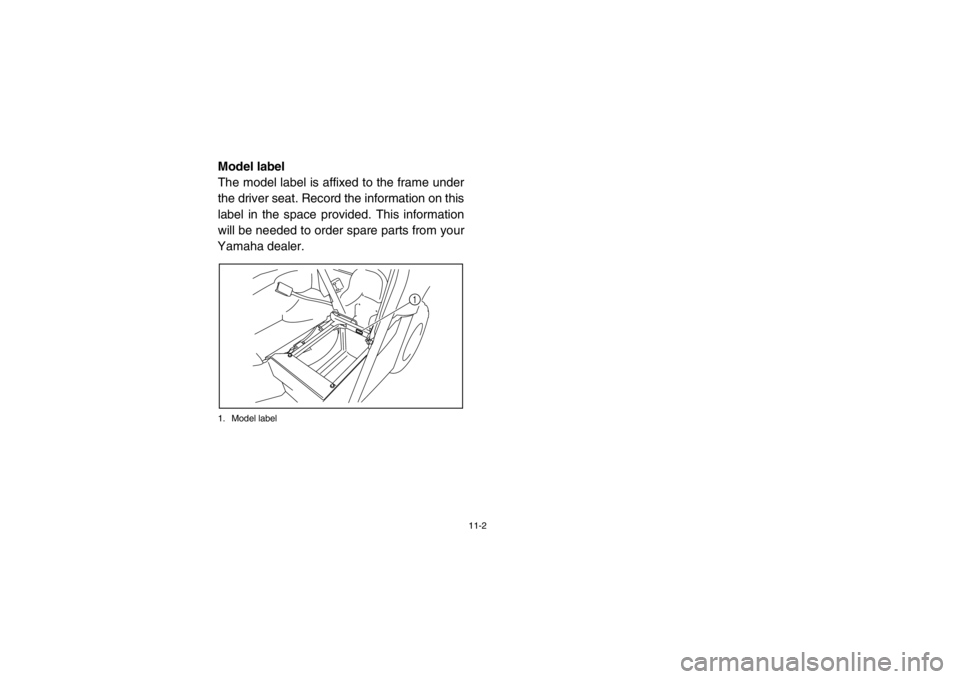

EVU00121Model label
The model label is affixed to the frame under
the driver seat. Record the information on this
label in the space provided. This information
will be needed to order spare parts from your
Yamaha dealer.1. Model label
1
1RB7A_EE.book Page 2 Tuesday, April 24, 2012 9:07 AM
