PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
1
2
3
4
567
8
9
10
11
12
6. Pull the wheel axle out, and then
remove the collar and wheel.
NOTICE: Do not apply the brake
after the wheel and brake disc
have been removed, otherwise
the brake pads will be forced
shut.
[ECA11073]
To install the front wheel 1. Install the speedometer gear unit into the wheel hub so that the pro-
jections mesh with the slots.
2. Install the collar into the right side of the wheel hub.
3. Lift the wheel up between the fork legs.
TIPMake sure that there is enough space
between the brake pads before insert-
ing the brake disc and that the slot in
the speedometer gear unit fits over theretainer on the fork leg.
4. Insert the wheel axle from the left-hand side, and then install the
washer and axle nut.
5. Take the motorcycle off the center- stand so that the front wheel is on
the ground, and then put the side-
stand down.
6. Tighten the axle nut and the wheel axle holder nuts to their specified
torques
7. While applying the front brake, push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
8. Connect the speedometer cable.
1. Slot
2. Speedometer gear unit
3. Projection
2
3
1
1. Retainer
2. Slot
1
2
Tightening torques:
Axle nut:104 Nm (10.4 m·kgf, 74 ft·lbf)
Wheel axle holder nut: 9 Nm (0.9 m·kgf, 6.5 ft·lbf)
2RD-9-E0.book 36 ページ ２０１３年１１月２８日　木曜日　午後４時１８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-37
1
2
3
4
56
7
8
9
10
11
12
EAU25081
Rear wheel
EAU59611
To remove the rear wheel
WARNING
EWA10822
To avoid injury, securely support the
vehicle so there is no danger of itfalling over. 1. Loosen the axle nut and the brake torque rod nut at the brake shoe
plate.
2. Disconnect the brake torque rod from the brake shoe plate by re-
moving the nut, washer and the
bolt.
3. Place the motorcycle on the cen-terstand.
4. Remove the brake pedal free play adjusting nut, and then disconnect
the brake rod from the brake cam-
shaft lever.
5. Loosen the drive chain puller lock- nut and the drive chain slack ad-
justing bolt on both ends of the swingarm.
6. Remove the axle nut and washer.
7. While supporting the rear wheel, pull the wheel axle out.
8. Remove the chain puller assem- blies and the spacer.
1. Brake rod
2. Brake camshaft lever
3. Brake pedal free play adjusting nut
4. Drive chain slack adjusting bolt
5. Drive chain puller locknut
6. Drive chain puller
7. Washer
8. Axle nut
9. Brake torque rod nut
10.Brake torque rod1 10
34
5
6
7
8
9
7
2
1. Drive chain slack adjusting bolt
2. Drive chain puller locknut
3. Axle nut
4. Washer
3
2
1
4
2RD-9-E0.book 37 ページ ２０１３年１１月２８日　木曜日　午後４時１８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-38
1
2
3
4
567
8
9
10
11
12
9. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
TIPThe drive chain does not need to be
disassembled in order to remove andinstall the wheel.
To install the rear wheel1. Install the spacer into left side of the wheel hub.
2. Install the chain pullers and the wheel by inserting the wheel axle
from the left-hand side.
3. Install the drive chain onto the rear sprocket. 4. Install the washer and axle nut.
5. Install the brake rod onto the brake
camshaft lever, and then install the
brake pedal free play adjusting nut
onto the brake rod.
6. Connect the brake torque rod to the brake shoe plate by installing
the bolt, washer and nut.
7. Adjust the drive chain slack. (See page 6-22.)
8. Take the motorcycle off the center- stand so that the rear wheel is on
the ground, and then put the side-
stand down.
9. Tighten the brake torque rod nut and axle nut to the specified
torques.
10. Adjust the brake pedal free play. (See page 6-18.)
WARNING
EWA10661
After adjusting the brake pedal free
play, check the operation of the
brake light.
1. Drive chain
1
Tightening torques:Brake torque rod nut:19 Nm (1.9 m·kgf, 14 ft·lbf)
Axle nut: 129 Nm (12.9 m·kgf, 92 ft·lbf)
2RD-9-E0.book 38 ページ ２０１３年１１月２８日　木曜日　午後４時１８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-39
1
2
3
4
56
7
8
9
10
11
12
EAU25852
TroubleshootingAlthough Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15142
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from water heaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.
2RD-9-E0.book 39 ページ ２０１３年１１月２８日　木曜日　午後４時１８分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-40
1
2
3
4
567
8
9
10
11
12
EAU60030

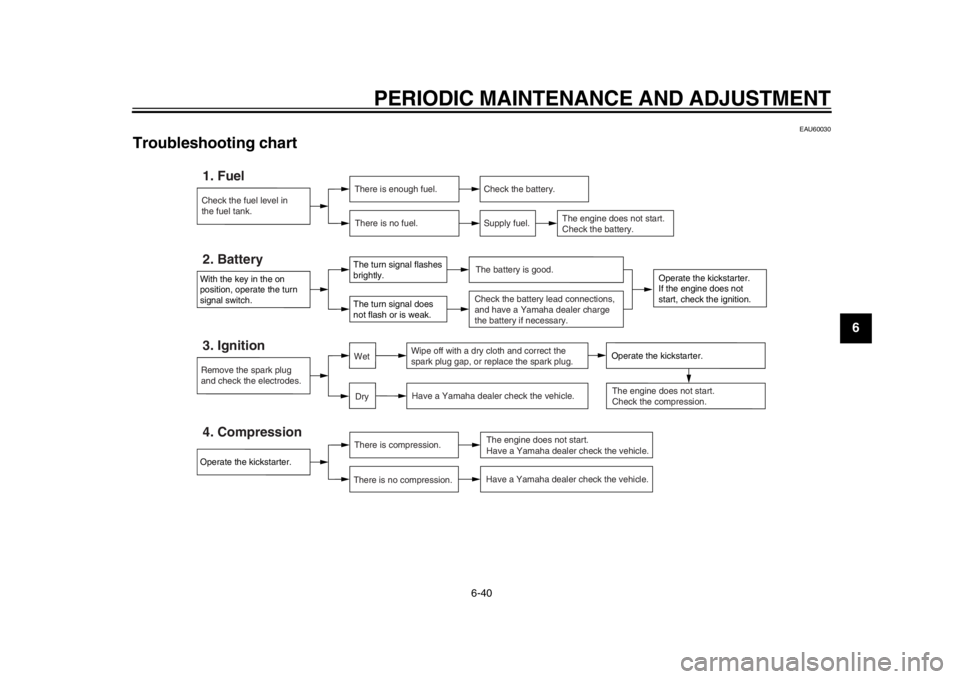

Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Operate the kickstarter.4. Compression
There is compression.
There is no compression.
Have a Yamaha dealer check the vehicle.The engine does not start.
Have a Yamaha dealer check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug. Have a Yamaha dealer check the vehicle.
The engine does not start.
Check the compression.
Operate the kickstarter.
If the engine does not
start, check the ignition.
With the key in the on
position, operate the turn
signal switch.2. Battery
The turn signal flashes
brightly.
The turn signal does
not flash or is weak.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
DryWet
Operate the kickstarter.
2RD-9-E0.book 40 ページ ２０１３年１１月２８日　木曜日　午後４時１８分

7-1
1
2
3
4
5
67
8
9
10
11
12
MOTORCYCLE CARE AND STORAGE
EAU37834
Matte color cautionNOTICE
ECA15193
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use be-
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage
their surface. Wax also should not
be applied to any matte colored fin-ished parts.
EAU26005
CareWhile the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your mo-
torcycle looking good, extend its life
and optimize its performance.
Before cleaning 1. Cover the muffler outlet with a plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers as well as all electrical couplers
and connectors, including the
spark plug cap, are tightly in-
stalled.
3. Remove extremely stubborn dirt, like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod- ucts onto seals, gaskets, sprock-
ets, the drive chain and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
NOTICE
ECA10773

Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.

Improper cleaning can damage
plastic parts (such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc.) and
the mufflers. Use only a soft,
clean cloth or sponge with wa-
ter to clean plastic. However, if
the plastic parts cannot be thor-
oughly cleaned with water, di-
luted mild detergent with water
may be used. Be sure to rinse
2RD-9-E0.book 1 ページ ２０１３年１１月２８日　木曜日　午後４時１８分

MOTORCYCLE CARE AND STORAGE
7-2
1
2
3
4
5
678
9
10
11
12
off any detergent residue using
plenty of water, as it is harmful
to plastic parts.

Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.

Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.

For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield. Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.TIPSalt sprayed on roads in the winter may
remain well into spring. 1. Clean the motorcycle with cold wa- ter and a mild detergent, after the
engine has cooled down.
NOTICE: Do not use warm water
since it increases the corrosive
action of the salt.
[ECA10792]
2. Apply a corrosion protection spray on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleaning 1. Dry the motorcycle with a chamois or an absorbing cloth.
2. Immediately dry the drive chain and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine chrome, aluminum and stain-
less-steel parts, including the ex-
haust system. (Even the thermally
induced discoloring of stain-
less-steel exhaust systems can be
removed through polishing.)
4. To prevent corrosion, it is recom- mended to apply a corrosion pro-
tection spray on all metal,
2RD-9-E0.book 2 ページ ２０１３年１１月２８日　木曜日　午後４時１８分

MOTORCYCLE CARE AND STORAGE
7-3
1
2
3
4
5
67
8
9
10
11
12 including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean- er to remove any remaining dirt.
6. Touch up minor paint damage caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely before storing or covering it.
WARNING
EWA11132
Contaminants on the brakes or tires
can cause loss of control.
Make sure that there is no oil or
wax on the brakes or tires.

If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-nering behavior.
NOTICE
ECA10801

Apply spray oil and wax spar-
ingly and make sure to wipe off any excess.

Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.

Avoid using abrasive polishing
compounds as they will wearaway the paint.
TIP
Consult a Yamaha dealer for ad-
vice on what products to use.

Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from thelens.
EAU43203
StorageShort-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the motor-
cycle.NOTICE
ECA10811

Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.

To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months: 1. Follow all the instructions in the “Care” section of this chapter.
2RD-9-E0.book 3 ページ ２０１３年１１月２８日　木曜日　午後４時１８分

MOTORCYCLE CARE AND STORAGE
7-4
1
2
3
4
5
678
9
10
11
12
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to pro- tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap and spark plug.
b. Pour a teaspoonful of engine oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING! To
prevent damage or injury
from sparking, make sure to
ground the spark plug elec-
trodes while turning the en-
gine over.
[EWA10952]
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 C (30 F) or more than 30
 C (90 F)]. For more information
on storing the battery, see page
6-28.TIPMake any necessary repairs beforestoring the motorcycle.
2RD-9-E0.book 4 ページ ２０１３年１１月２８日　木曜日　午後４時１８分

8-1
1
2
3
4
5
6
78
9
10
11
12
SPECIFICATIONS
EAU5091H
Dimensions:Overall length: 2085 mm (82.1 in)
Overall width: 750 mm (29.5 in)
Overall height: 1095 mm (43.1 in)
Seat height:
785 mm (30.9 in)
Wheelbase: 1410 mm (55.5 in)
Ground clearance: 130 mm (5.1 in)
Minimum turning radius:
2400 mm (94.5 in)Weight:Curb weight:174 kg (384 lb)Engine:Engine type:Air cooled 4-stroke, SOHC
Cylinder arrangement: Single cylinder
Displacement:
399 cm
3
Bore  stroke:
87.0  67.2 mm (3.43  2.65 in)
Compression ratio: 8.50 : 1
Starting system:
Kickstarter
Lubrication system: Dry sump
Engine oil:Recommended brand:
YAMALUBE
Type: SAE 10W-30, 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Without oil filter element replacement:
2.00 L (2.11 US qt, 1.76 Imp.qt)
With oil filter element replacement: 2.10 L (2.22 US qt, 1.85 Imp.qt)Air filter:Air filter element:
Oil-coated paper elementFuel:Recommended fuel:Regular unleaded gasoline (Gasohol (E10)
acceptable) Fuel tank capacity:
12.0 L (3.17 US gal, 2.64 Imp.gal)
Fuel reserve amount:
2.2 L (0.58 US gal, 0.48 Imp.gal)
Fuel injection:Throttle body:ID mark: 2RD1 00Spark plug(s):Manufacturer/model:
NGK/BPR6ES
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)
Clutch type: Wet, multiple-discTransmission:Primary reduction ratio:2.567 (77/30)
Final drive: Chain
Secondary reduction ratio:
2.947 (56/19)
Transmission type: Constant mesh 5-speed
Operation: Left foot operation
Gear ratio:
1st: 2.357 (33/14)
2nd:
1.556 (28/18)
3rd: 1.190 (25/21)
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
2RD-9-E0.book 1 ページ ２０１３年１１月２８日　木曜日　午後４時１８分
