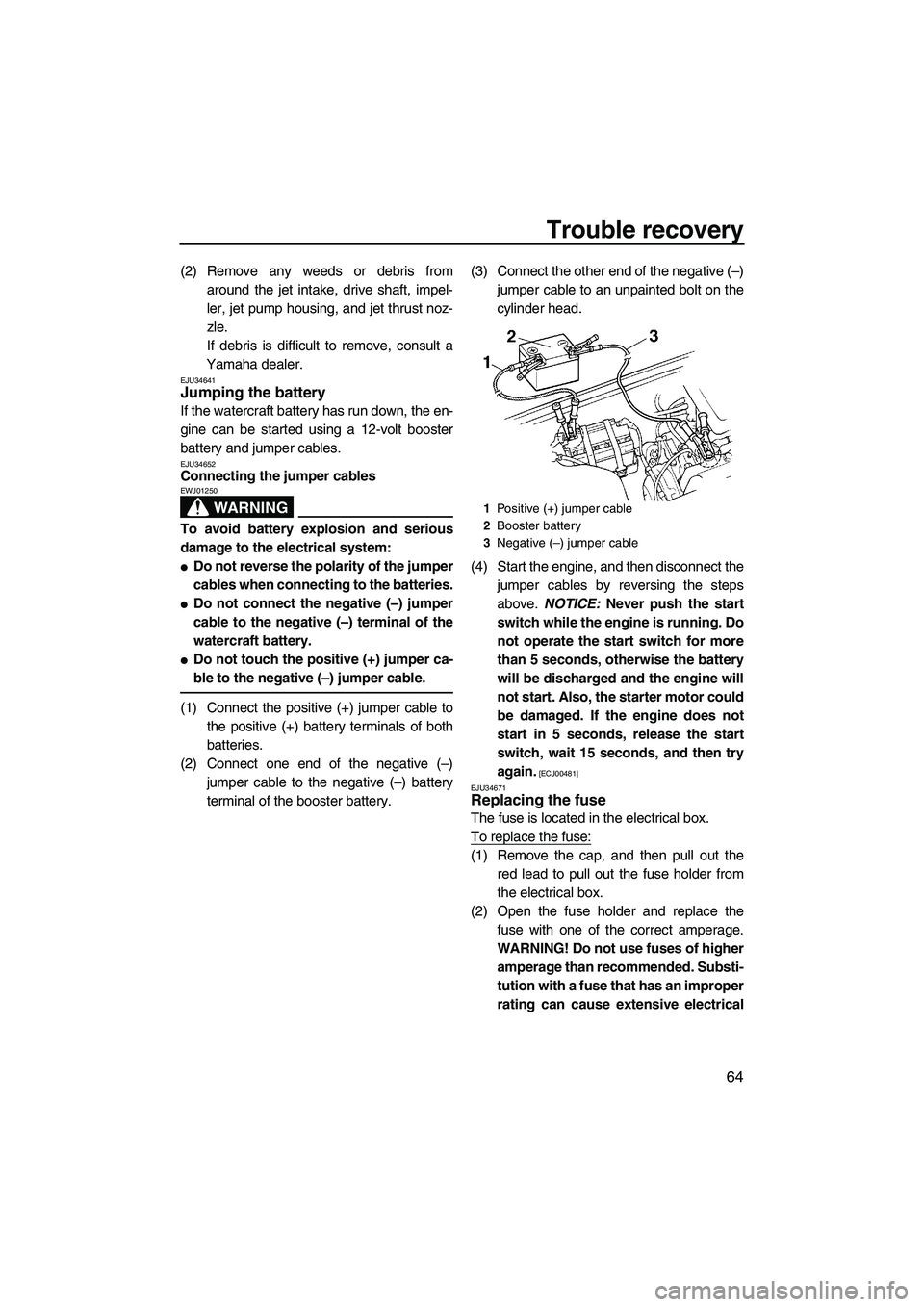

Trouble recovery
64
(2) Remove any weeds or debris from
around the jet intake, drive shaft, impel-
ler, jet pump housing, and jet thrust noz-
zle.
If debris is difficult to remove, consult a
Yamaha dealer.
EJU34641Jumping the battery
If the watercraft battery has run down, the en-
gine can be started using a 12-volt booster
battery and jumper cables.
EJU34652Connecting the jumper cables
WARNING
EWJ01250
To avoid battery explosion and serious
damage to the electrical system:

Do not reverse the polarity of the jumper
cables when connecting to the batteries.

Do not connect the negative (–) jumper
cable to the negative (–) terminal of the
watercraft battery.

Do not touch the positive (+) jumper ca-
ble to the negative (–) jumper cable.
(1) Connect the positive (+) jumper cable to
the positive (+) battery terminals of both
batteries.
(2) Connect one end of the negative (–)
jumper cable to the negative (–) battery
terminal of the booster battery.(3) Connect the other end of the negative (–)
jumper cable to an unpainted bolt on the
cylinder head.
(4) Start the engine, and then disconnect the
jumper cables by reversing the steps
above. NOTICE: Never push the start
switch while the engine is running. Do
not operate the start switch for more
than 5 seconds, otherwise the battery
will be discharged and the engine will
not start. Also, the starter motor could
be damaged. If the engine does not
start in 5 seconds, release the start
switch, wait 15 seconds, and then try
again.
[ECJ00481]
EJU34671
Replacing the fuse
The fuse is located in the electrical box.
To replace the fuse:
(1) Remove the cap, and then pull out the
red lead to pull out the fuse holder from
the electrical box.
(2) Open the fuse holder and replace the
fuse with one of the correct amperage.
WARNING! Do not use fuses of higher
amperage than recommended. Substi-
tution with a fuse that has an improper
rating can cause extensive electrical
1Positive (+) jumper cable
2Booster battery
3Negative (–) jumper cable
UF2F71E0.book Page 64 Thursday, April 10, 2008 11:47 AM

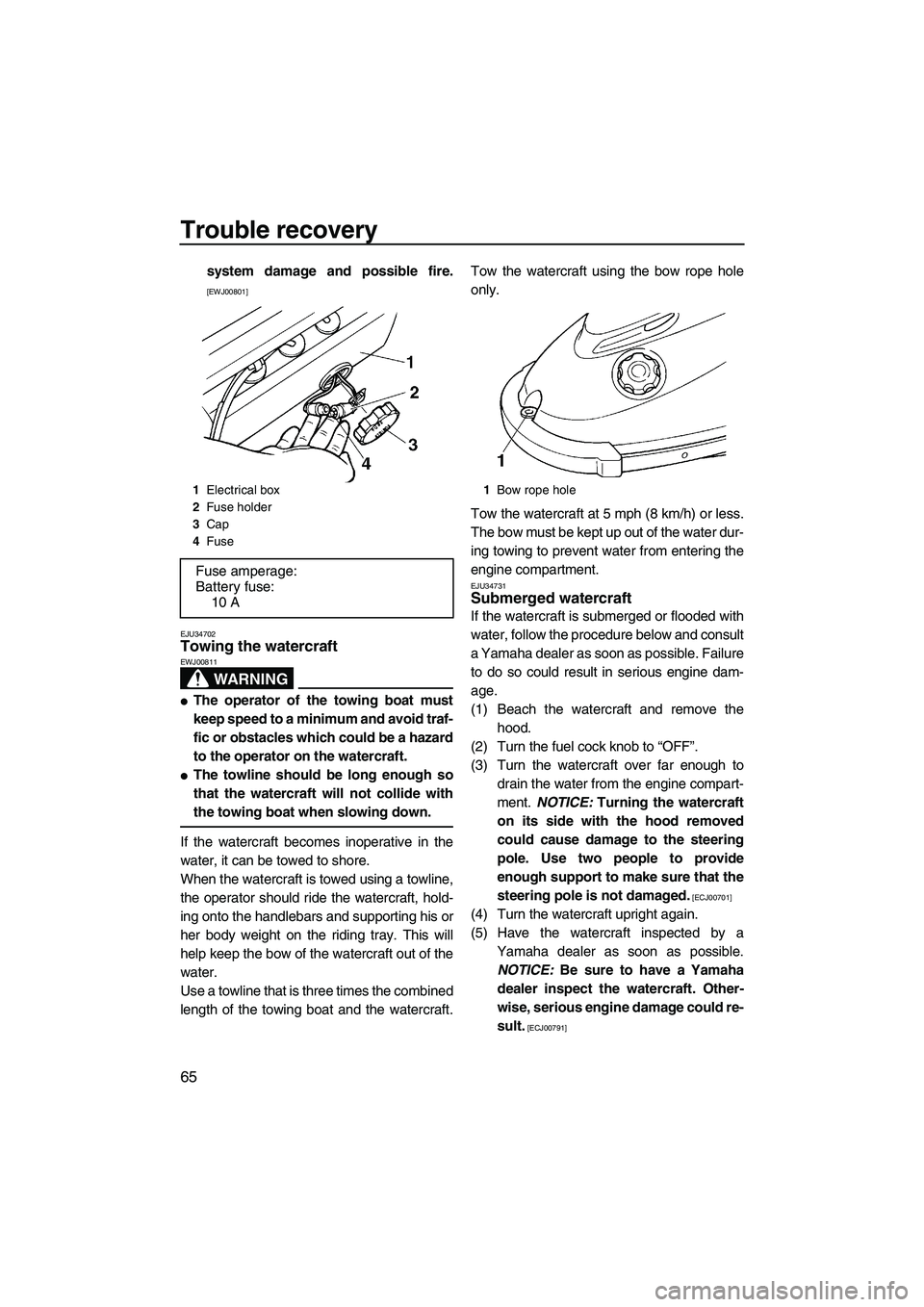

Trouble recovery
65
system damage and possible fire.
[EWJ00801]
EJU34702
Towing the watercraft
WARNING
EWJ00811

The operator of the towing boat must
keep speed to a minimum and avoid traf-
fic or obstacles which could be a hazard
to the operator on the watercraft.

The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down.
If the watercraft becomes inoperative in the
water, it can be towed to shore.
When the watercraft is towed using a towline,
the operator should ride the watercraft, hold-
ing onto the handlebars and supporting his or
her body weight on the riding tray. This will
help keep the bow of the watercraft out of the
water.
Use a towline that is three times the combined
length of the towing boat and the watercraft.Tow the watercraft using the bow rope hole
only.
Tow the watercraft at 5 mph (8 km/h) or less.
The bow must be kept up out of the water dur-
ing towing to prevent water from entering the
engine compartment.
EJU34731Submerged watercraft
If the watercraft is submerged or flooded with
water, follow the procedure below and consult
a Yamaha dealer as soon as possible. Failure
to do so could result in serious engine dam-
age.
(1) Beach the watercraft and remove the
hood.
(2) Turn the fuel cock knob to “OFF”.
(3) Turn the watercraft over far enough to
drain the water from the engine compart-
ment. NOTICE: Turning the watercraft
on its side with the hood removed
could cause damage to the steering
pole. Use two people to provide
enough support to make sure that the
steering pole is not damaged.
[ECJ00701]
(4) Turn the watercraft upright again.
(5) Have the watercraft inspected by a
Yamaha dealer as soon as possible.
NOTICE: Be sure to have a Yamaha
dealer inspect the watercraft. Other-
wise, serious engine damage could re-
sult.
[ECJ00791]
1Electrical box
2Fuse holder
3Cap
4Fuse
Fuse amperage:
Battery fuse:
10 A
1Bow rope hole
UF2F71E0.book Page 65 Thursday, April 10, 2008 11:47 AM

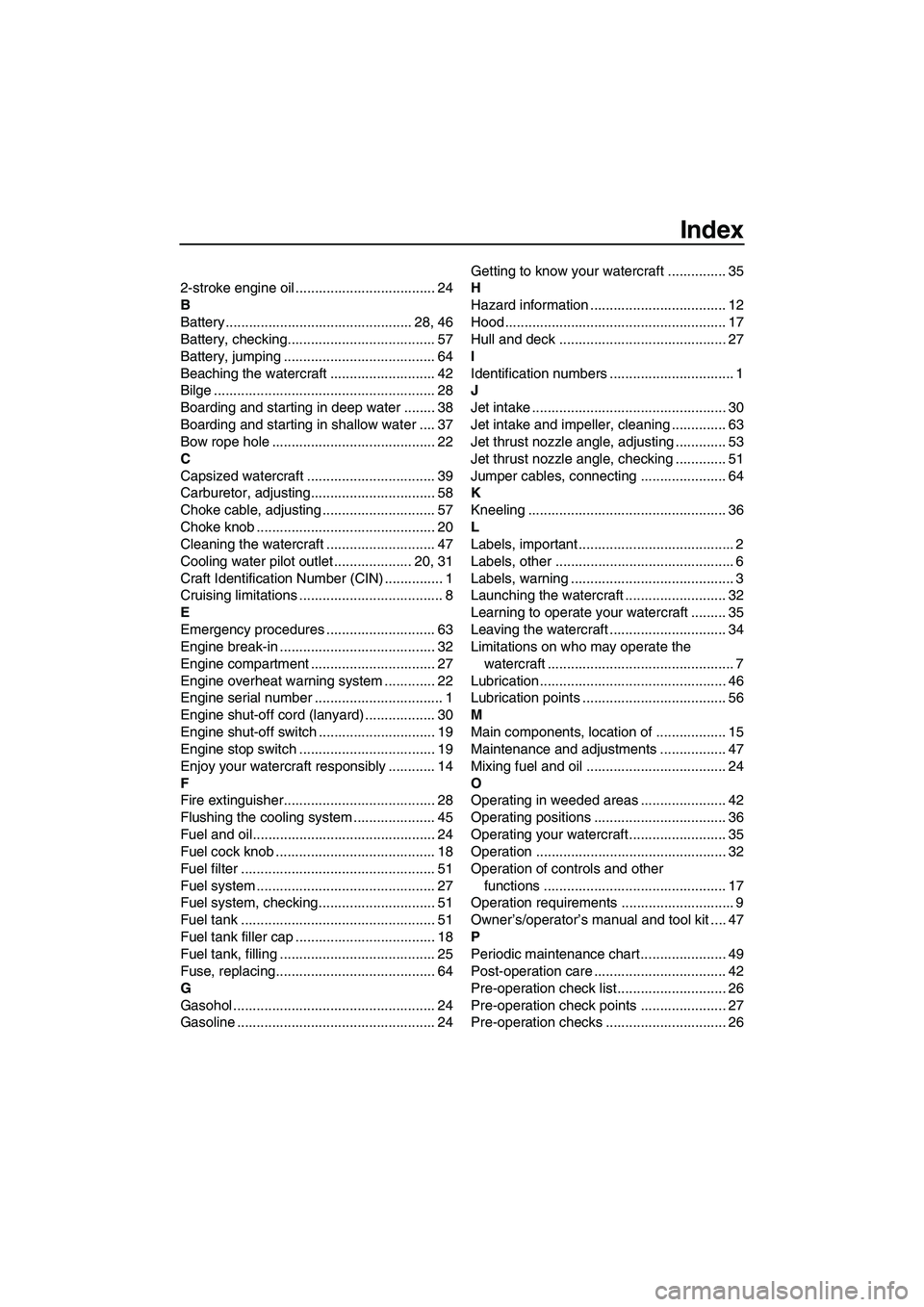

Index
2-stroke engine oil .................................... 24
B
Battery ................................................ 28, 46
Battery, checking...................................... 57
Battery, jumping ....................................... 64
Beaching the watercraft ........................... 42
Bilge ......................................................... 28
Boarding and starting in deep water ........ 38
Boarding and starting in shallow water .... 37
Bow rope hole .......................................... 22
C
Capsized watercraft ................................. 39
Carburetor, adjusting................................ 58
Choke cable, adjusting ............................. 57
Choke knob .............................................. 20
Cleaning the watercraft ............................ 47
Cooling water pilot outlet .................... 20, 31
Craft Identification Number (CIN) ............... 1
Cruising limitations ..................................... 8
E
Emergency procedures ............................ 63
Engine break-in ........................................ 32
Engine compartment ................................ 27
Engine overheat warning system ............. 22
Engine serial number ................................. 1
Engine shut-off cord (lanyard) .................. 30
Engine shut-off switch .............................. 19
Engine stop switch ................................... 19
Enjoy your watercraft responsibly ............ 14
F
Fire extinguisher....................................... 28
Flushing the cooling system ..................... 45
Fuel and oil............................................... 24
Fuel cock knob ......................................... 18
Fuel filter .................................................. 51
Fuel system .............................................. 27
Fuel system, checking.............................. 51
Fuel tank .................................................. 51
Fuel tank filler cap .................................... 18
Fuel tank, filling ........................................ 25
Fuse, replacing......................................... 64
G
Gasohol .................................................... 24
Gasoline ................................................... 24Getting to know your watercraft ............... 35
H
Hazard information ................................... 12
Hood ......................................................... 17
Hull and deck ........................................... 27
I
Identification numbers ................................ 1
J
Jet intake .................................................. 30
Jet intake and impeller, cleaning .............. 63
Jet thrust nozzle angle, adjusting ............. 53
Jet thrust nozzle angle, checking ............. 51
Jumper cables, connecting ...................... 64
K
Kneeling ................................................... 36
L
Labels, important ........................................ 2
Labels, other .............................................. 6
Labels, warning .......................................... 3
Launching the watercraft .......................... 32
Learning to operate your watercraft ......... 35
Leaving the watercraft .............................. 34
Limitations on who may operate the
watercraft ................................................ 7
Lubrication................................................ 46
Lubrication points ..................................... 56
M
Main components, location of .................. 15
Maintenance and adjustments ................. 47
Mixing fuel and oil .................................... 24
O
Operating in weeded areas ...................... 42
Operating positions .................................. 36
Operating your watercraft ......................... 35
Operation ................................................. 32
Operation of controls and other
functions ............................................... 17
Operation requirements ............................. 9
Owner’s/operator’s manual and tool kit .... 47
P
Periodic maintenance chart ...................... 49
Post-operation care .................................. 42
Pre-operation check list ............................ 26
Pre-operation check points ...................... 27
Pre-operation checks ............................... 26
UF2F71E0.book Page 1 Thursday, April 10, 2008 11:47 AM

Index
Primary Identification (PRI-ID) number ...... 1
R
Recommended equipment ....................... 11
S
Safe boating rules .................................... 13
Spark plugs, cleaning and adjusting ........ 55
Standing ................................................... 36
Start switch............................................... 20
Starting the engine ................................... 32
Starting the watercraft .............................. 36
Steering friction, adjusting ........................ 52
Steering pole ...................................... 22, 30
Steering system ................................. 21, 29
Stern rope hole......................................... 22
Stopping the engine ................................. 34
Stopping the watercraft ............................ 41
Storage..................................................... 45
Storage pouch .......................................... 23
Submerged watercraft .............................. 65
Switches ................................................... 30
T
Throttle cable, checking and adjusting ..... 54
Throttle lever ...................................... 20, 29
Towing the watercraft ............................... 65
Transporting ............................................. 43
Trolling speed, adjusting .......................... 58
Troubleshooting ....................................... 61
Troubleshooting chart .............................. 61
Turning the watercraft .............................. 40
W
Water separator ....................................... 27
Watercraft characteristics......................... 12
UF2F71E0.book Page 2 Thursday, April 10, 2008 11:47 AM

UF2F71E0.book Page 3 Thursday, April 10, 2008 11:47 AM

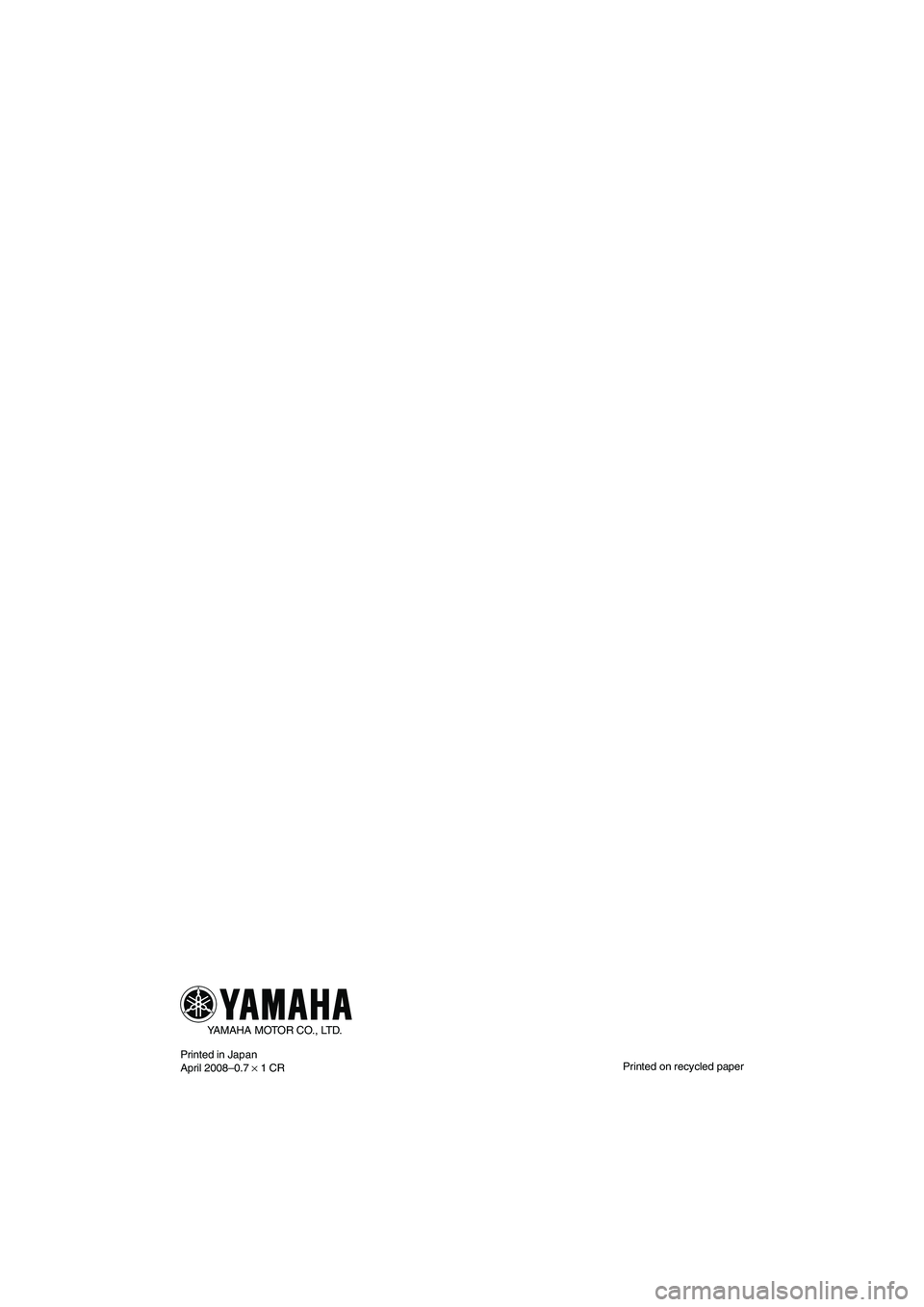

YAMAHA MOTOR CO., LTD.
