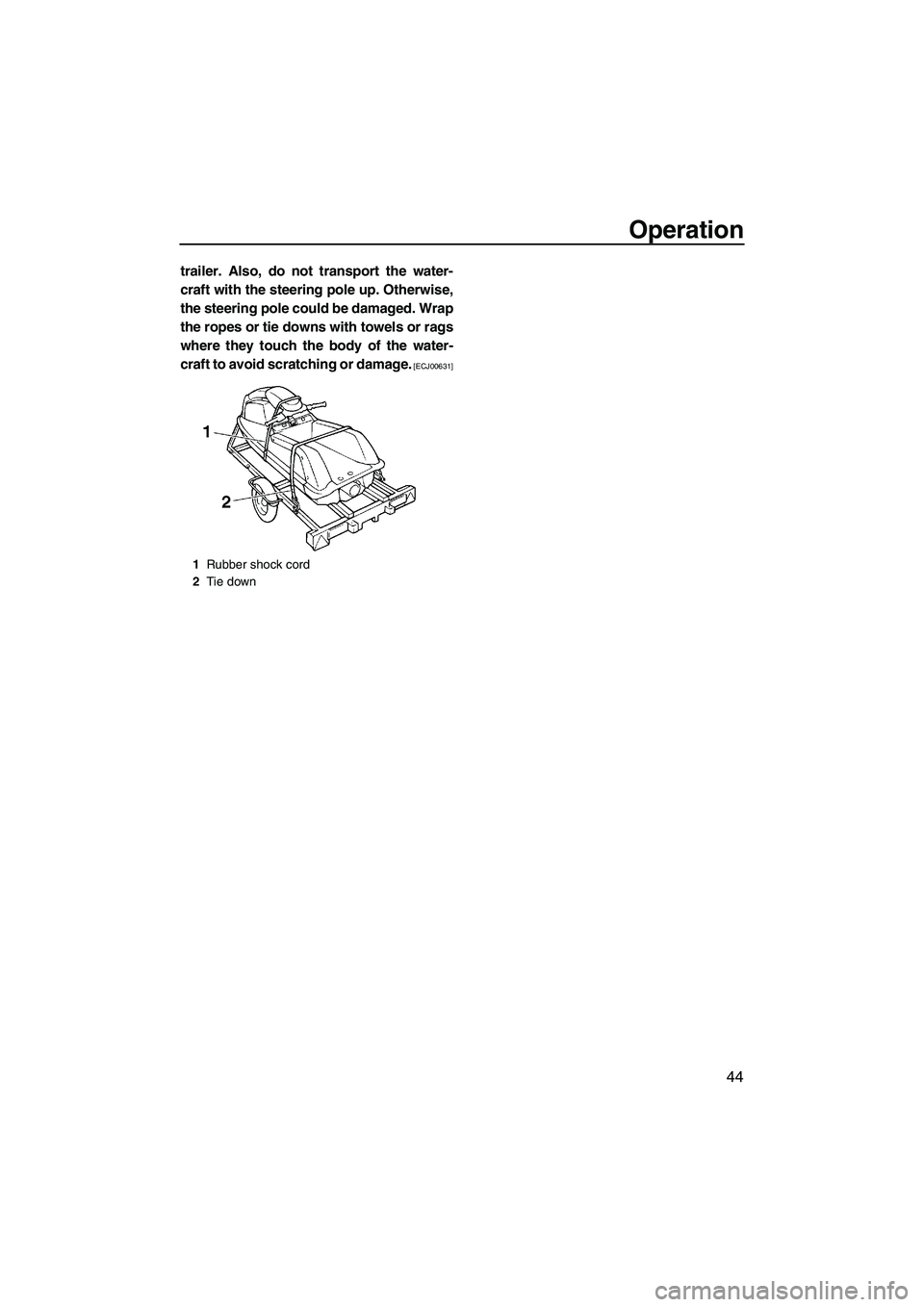

Operation
44
trailer. Also, do not transport the water-
craft with the steering pole up. Otherwise,
the steering pole could be damaged. Wrap
the ropes or tie downs with towels or rags
where they touch the body of the water-
craft to avoid scratching or damage.
[ECJ00631]
1Rubber shock cord
2Tie down
UF2F71E0.book Page 44 Thursday, April 10, 2008 11:47 AM

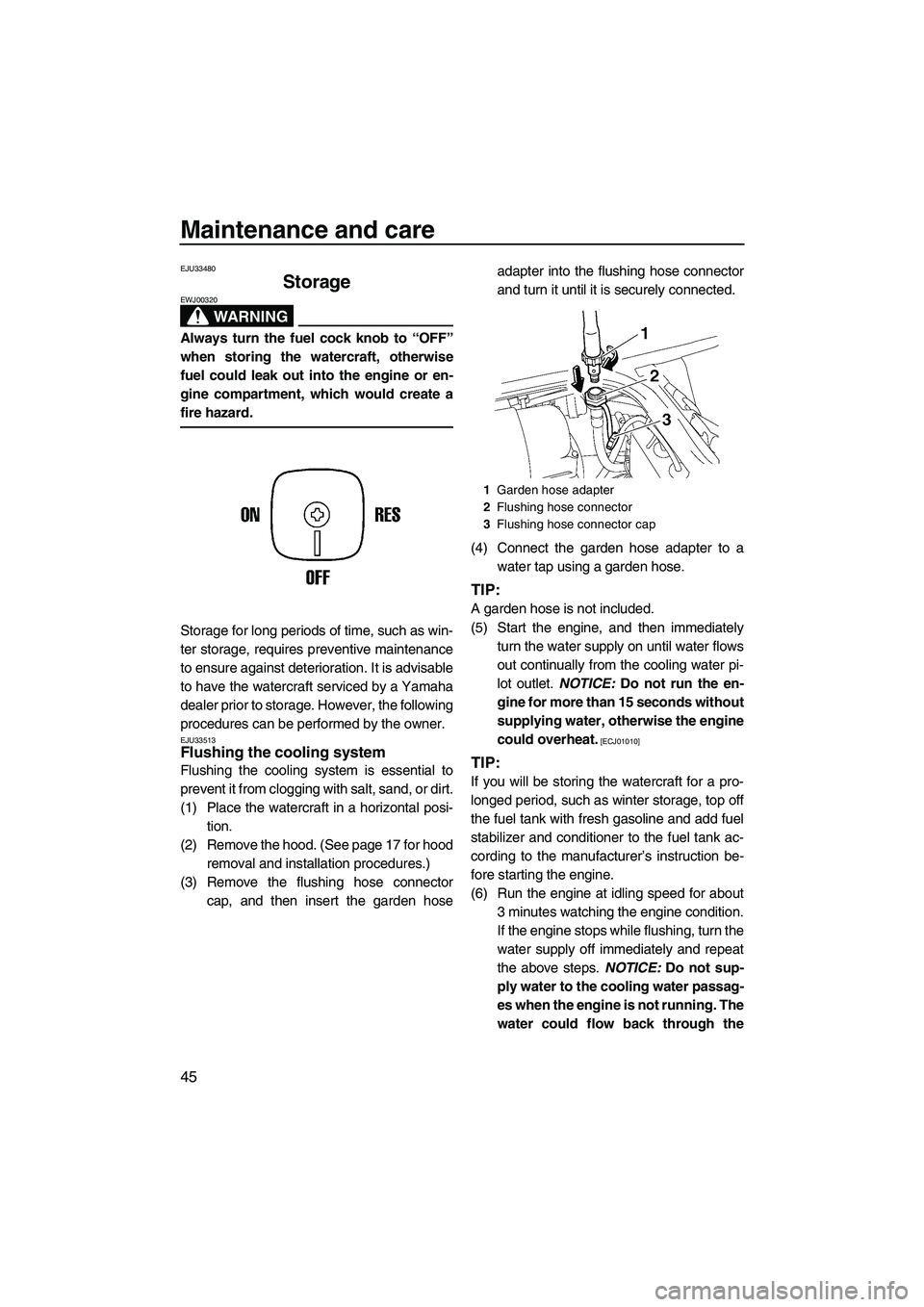

Maintenance and care
45
EJU33480
Storage
WARNING
EWJ00320
Always turn the fuel cock knob to “OFF”
when storing the watercraft, otherwise
fuel could leak out into the engine or en-
gine compartment, which would create a
fire hazard.
Storage for long periods of time, such as win-
ter storage, requires preventive maintenance
to ensure against deterioration. It is advisable
to have the watercraft serviced by a Yamaha
dealer prior to storage. However, the following
procedures can be performed by the owner.
EJU33513Flushing the cooling system
Flushing the cooling system is essential to
prevent it from clogging with salt, sand, or dirt.
(1) Place the watercraft in a horizontal posi-
tion.
(2) Remove the hood. (See page 17 for hood
removal and installation procedures.)
(3) Remove the flushing hose connector
cap, and then insert the garden hoseadapter into the flushing hose connector
and turn it until it is securely connected.
(4) Connect the garden hose adapter to a
water tap using a garden hose.
TIP:
A garden hose is not included.
(5) Start the engine, and then immediately
turn the water supply on until water flows
out continually from the cooling water pi-
lot outlet. NOTICE: Do not run the en-
gine for more than 15 seconds without
supplying water, otherwise the engine
could overheat.
[ECJ01010]
TIP:
If you will be storing the watercraft for a pro-
longed period, such as winter storage, top off
the fuel tank with fresh gasoline and add fuel
stabilizer and conditioner to the fuel tank ac-
cording to the manufacturer’s instruction be-
fore starting the engine.
(6) Run the engine at idling speed for about
3 minutes watching the engine condition.
If the engine stops while flushing, turn the
water supply off immediately and repeat
the above steps. NOTICE: Do not sup-
ply water to the cooling water passag-
es when the engine is not running. The
water could flow back through the
1Garden hose adapter
2Flushing hose connector
3Flushing hose connector cap
UF2F71E0.book Page 45 Thursday, April 10, 2008 11:47 AM

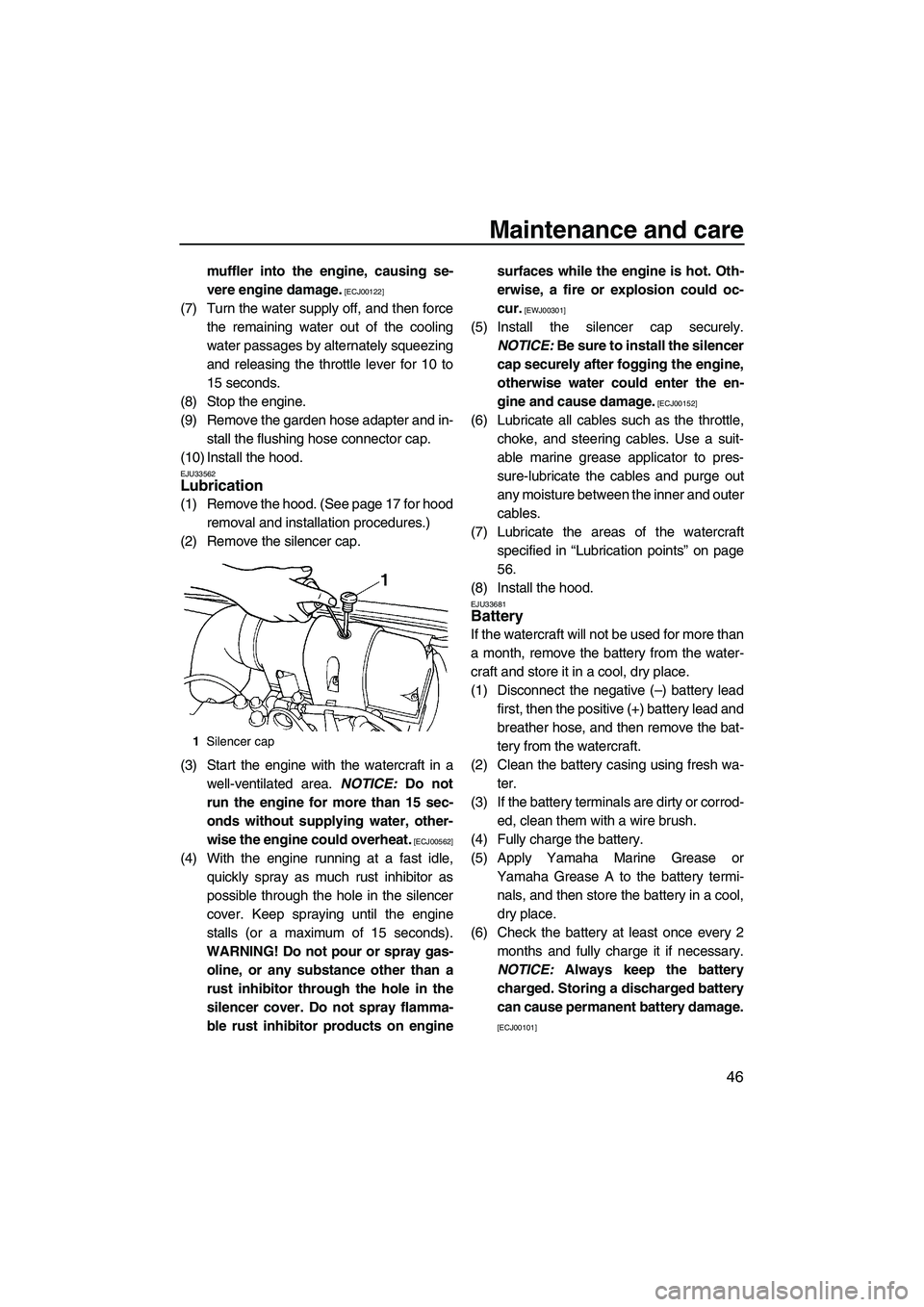

Maintenance and care
46
muffler into the engine, causing se-
vere engine damage.
[ECJ00122]
(7) Turn the water supply off, and then force
the remaining water out of the cooling
water passages by alternately squeezing
and releasing the throttle lever for 10 to
15 seconds.
(8) Stop the engine.
(9) Remove the garden hose adapter and in-
stall the flushing hose connector cap.
(10) Install the hood.
EJU33562Lubrication
(1) Remove the hood. (See page 17 for hood
removal and installation procedures.)
(2) Remove the silencer cap.
(3) Start the engine with the watercraft in a
well-ventilated area. NOTICE: Do not
run the engine for more than 15 sec-
onds without supplying water, other-
wise the engine could overheat.
[ECJ00562]
(4) With the engine running at a fast idle,
quickly spray as much rust inhibitor as
possible through the hole in the silencer
cover. Keep spraying until the engine
stalls (or a maximum of 15 seconds).
WARNING! Do not pour or spray gas-
oline, or any substance other than a
rust inhibitor through the hole in the
silencer cover. Do not spray flamma-
ble rust inhibitor products on enginesurfaces while the engine is hot. Oth-
erwise, a fire or explosion could oc-
cur.
[EWJ00301]
(5) Install the silencer cap securely.
NOTICE: Be sure to install the silencer
cap securely after fogging the engine,
otherwise water could enter the en-
gine and cause damage.
[ECJ00152]
(6) Lubricate all cables such as the throttle,
choke, and steering cables. Use a suit-
able marine grease applicator to pres-
sure-lubricate the cables and purge out
any moisture between the inner and outer
cables.
(7) Lubricate the areas of the watercraft
specified in “Lubrication points” on page
56.
(8) Install the hood.
EJU33681Battery
If the watercraft will not be used for more than
a month, remove the battery from the water-
craft and store it in a cool, dry place.
(1) Disconnect the negative (–) battery lead
first, then the positive (+) battery lead and
breather hose, and then remove the bat-
tery from the watercraft.
(2) Clean the battery casing using fresh wa-
ter.
(3) If the battery terminals are dirty or corrod-
ed, clean them with a wire brush.
(4) Fully charge the battery.
(5) Apply Yamaha Marine Grease or
Yamaha Grease A to the battery termi-
nals, and then store the battery in a cool,
dry place.
(6) Check the battery at least once every 2
months and fully charge it if necessary.
NOTICE: Always keep the battery
charged. Storing a discharged battery
can cause permanent battery damage.
[ECJ00101]
1Silencer cap
UF2F71E0.book Page 46 Thursday, April 10, 2008 11:47 AM

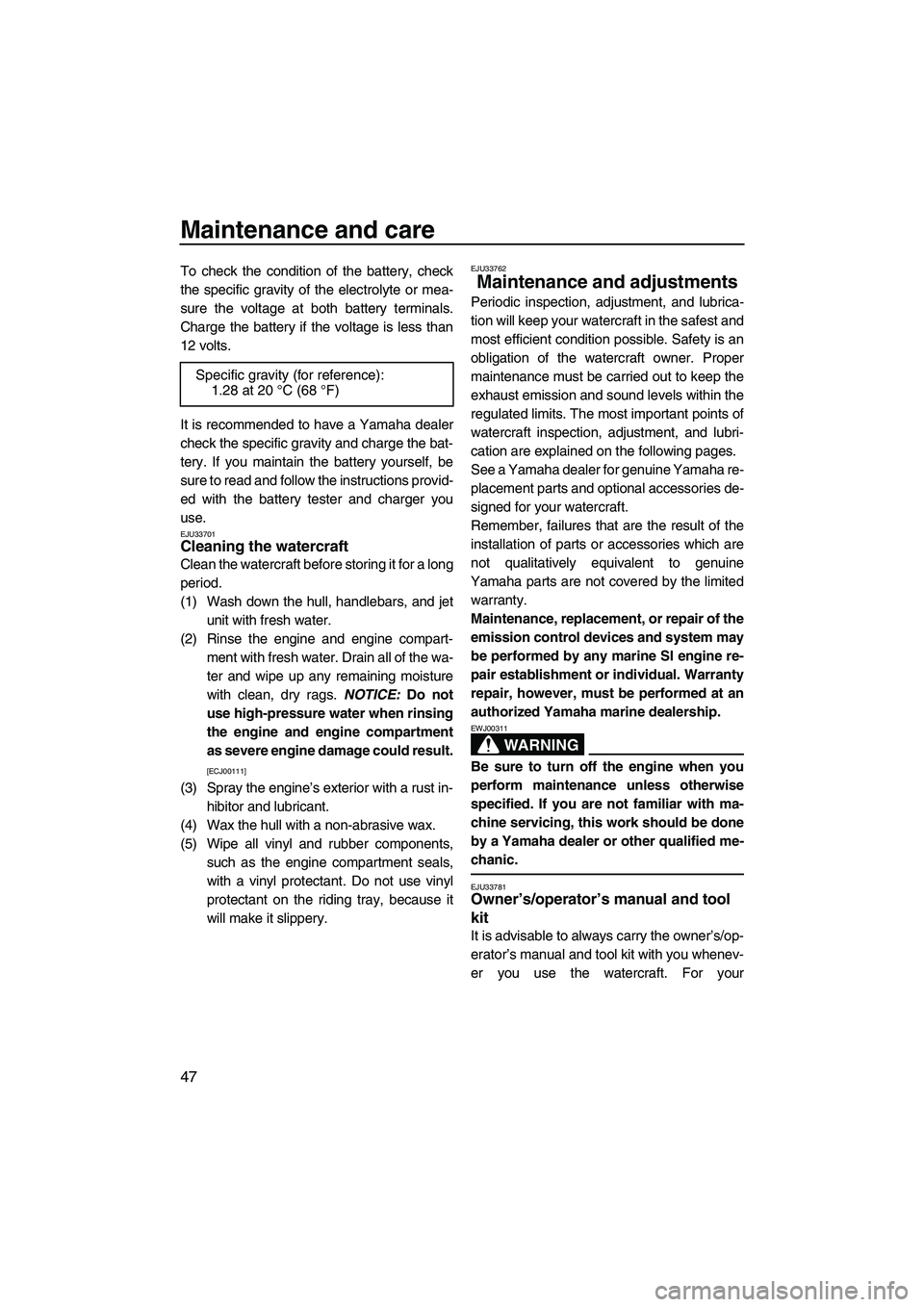

Maintenance and care
47
To check the condition of the battery, check
the specific gravity of the electrolyte or mea-
sure the voltage at both battery terminals.
Charge the battery if the voltage is less than
12 volts.
It is recommended to have a Yamaha dealer
check the specific gravity and charge the bat-
tery. If you maintain the battery yourself, be
sure to read and follow the instructions provid-
ed with the battery tester and charger you
use.
EJU33701Cleaning the watercraft
Clean the watercraft before storing it for a long
period.
(1) Wash down the hull, handlebars, and jet
unit with fresh water.
(2) Rinse the engine and engine compart-
ment with fresh water. Drain all of the wa-
ter and wipe up any remaining moisture
with clean, dry rags. NOTICE: Do not
use high-pressure water when rinsing
the engine and engine compartment
as severe engine damage could result.
[ECJ00111]
(3) Spray the engine’s exterior with a rust in-
hibitor and lubricant.
(4) Wax the hull with a non-abrasive wax.
(5) Wipe all vinyl and rubber components,
such as the engine compartment seals,
with a vinyl protectant. Do not use vinyl
protectant on the riding tray, because it
will make it slippery.
EJU33762
Maintenance and adjustments
Periodic inspection, adjustment, and lubrica-
tion will keep your watercraft in the safest and
most efficient condition possible. Safety is an
obligation of the watercraft owner. Proper
maintenance must be carried out to keep the
exhaust emission and sound levels within the
regulated limits. The most important points of
watercraft inspection, adjustment, and lubri-
cation are explained on the following pages.
See a Yamaha dealer for genuine Yamaha re-
placement parts and optional accessories de-
signed for your watercraft.
Remember, failures that are the result of the
installation of parts or accessories which are
not qualitatively equivalent to genuine
Yamaha parts are not covered by the limited
warranty.
Maintenance, replacement, or repair of the
emission control devices and system may
be performed by any marine SI engine re-
pair establishment or individual. Warranty
repair, however, must be performed at an
authorized Yamaha marine dealership.
WARNING
EWJ00311
Be sure to turn off the engine when you
perform maintenance unless otherwise
specified. If you are not familiar with ma-
chine servicing, this work should be done
by a Yamaha dealer or other qualified me-
chanic.
EJU33781Owner’s/operator’s manual and tool
kit
It is advisable to always carry the owner’s/op-
erator’s manual and tool kit with you whenev-
er you use the watercraft. For your Specific gravity (for reference):
1.28 at 20 °C (68 °F)
UF2F71E0.book Page 47 Thursday, April 10, 2008 11:47 AM

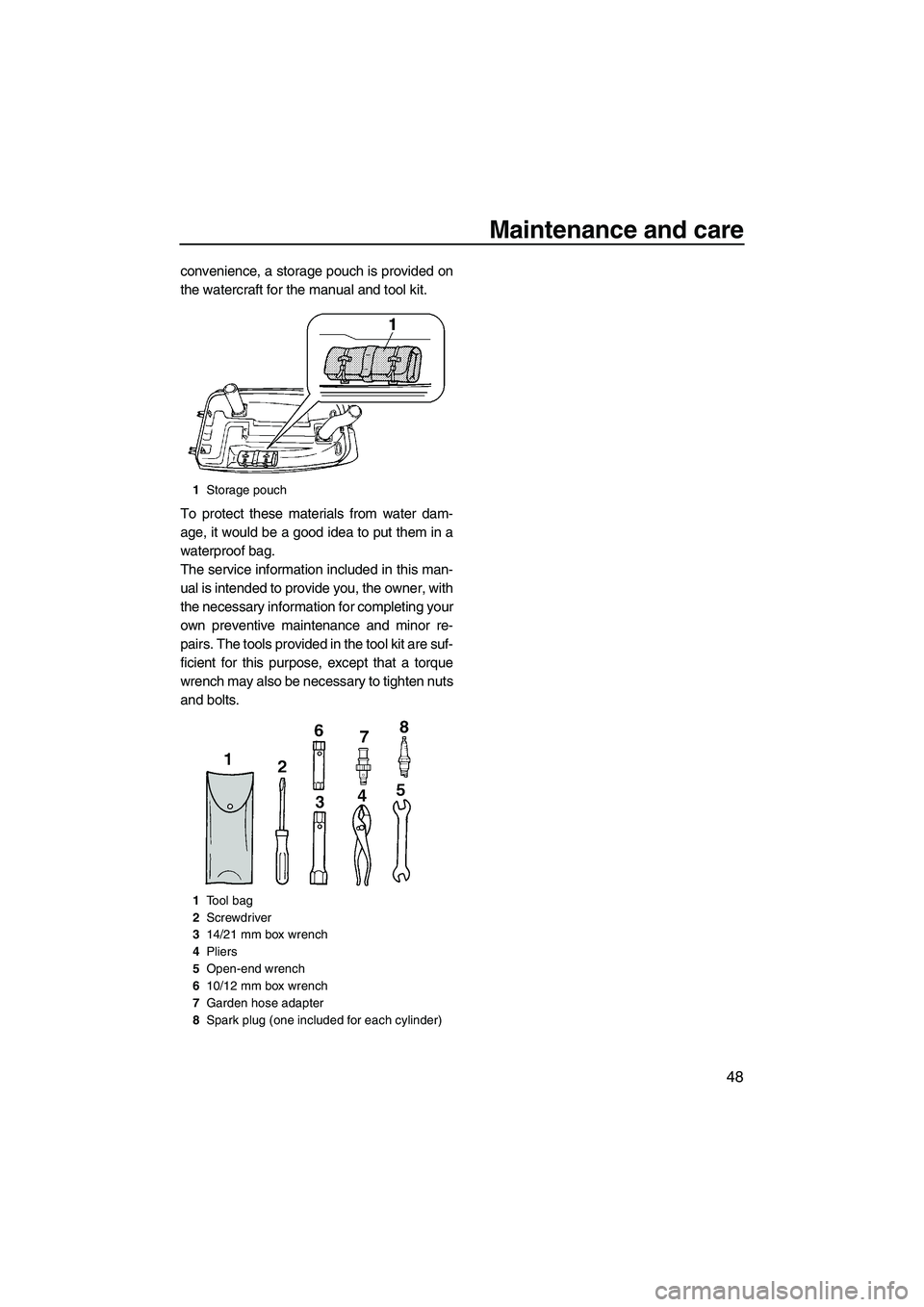

Maintenance and care
48
convenience, a storage pouch is provided on
the watercraft for the manual and tool kit.
To protect these materials from water dam-
age, it would be a good idea to put them in a
waterproof bag.
The service information included in this man-
ual is intended to provide you, the owner, with
the necessary information for completing your
own preventive maintenance and minor re-
pairs. The tools provided in the tool kit are suf-
ficient for this purpose, except that a torque
wrench may also be necessary to tighten nuts
and bolts.
1Storage pouch
1Tool bag
2Screwdriver
314/21 mm box wrench
4Pliers
5Open-end wrench
610/12 mm box wrench
7Garden hose adapter
8Spark plug (one included for each cylinder)
UF2F71E0.book Page 48 Thursday, April 10, 2008 11:47 AM

Maintenance and care
49
EJU33821Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, maintenance
may need to be performed more frequently depending on your operating conditions.
This “ ” mark indicates maintenance that you may do yourself.
This “ ” mark indicates work to be done by a Yamaha dealer.
Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
Spark plugsCheck, clean, adjust 55
Lubrication pointsLubricate 56
Intermediate hous-
ingLubricate 56
Fuel systemCheck 51
Fuel filterCheck, clean, replace 51
Fuel tankCheck, clean 51
CarburetorCheck, adjust 58
Trolling speedCheck, adjust 58
Carburetor throt-
tle shaftCheck —
Cooling water pas-
sagesFlush
*45
Bilge strainerClean —
ImpellerCheck —
Jet thrust nozzle
angleCheck, adjust 51
Handlebar pivot
shaftCheck —
Steering frictionCheck, adjust 52
Throttle cableCheck, adjust 54
Choke cableCheck, adjust 57
BatteryCheck, charge 57
Rubber couplingCheck —
Engine mountCheck —
UF2F71E0.book Page 49 Thursday, April 10, 2008 11:47 AM

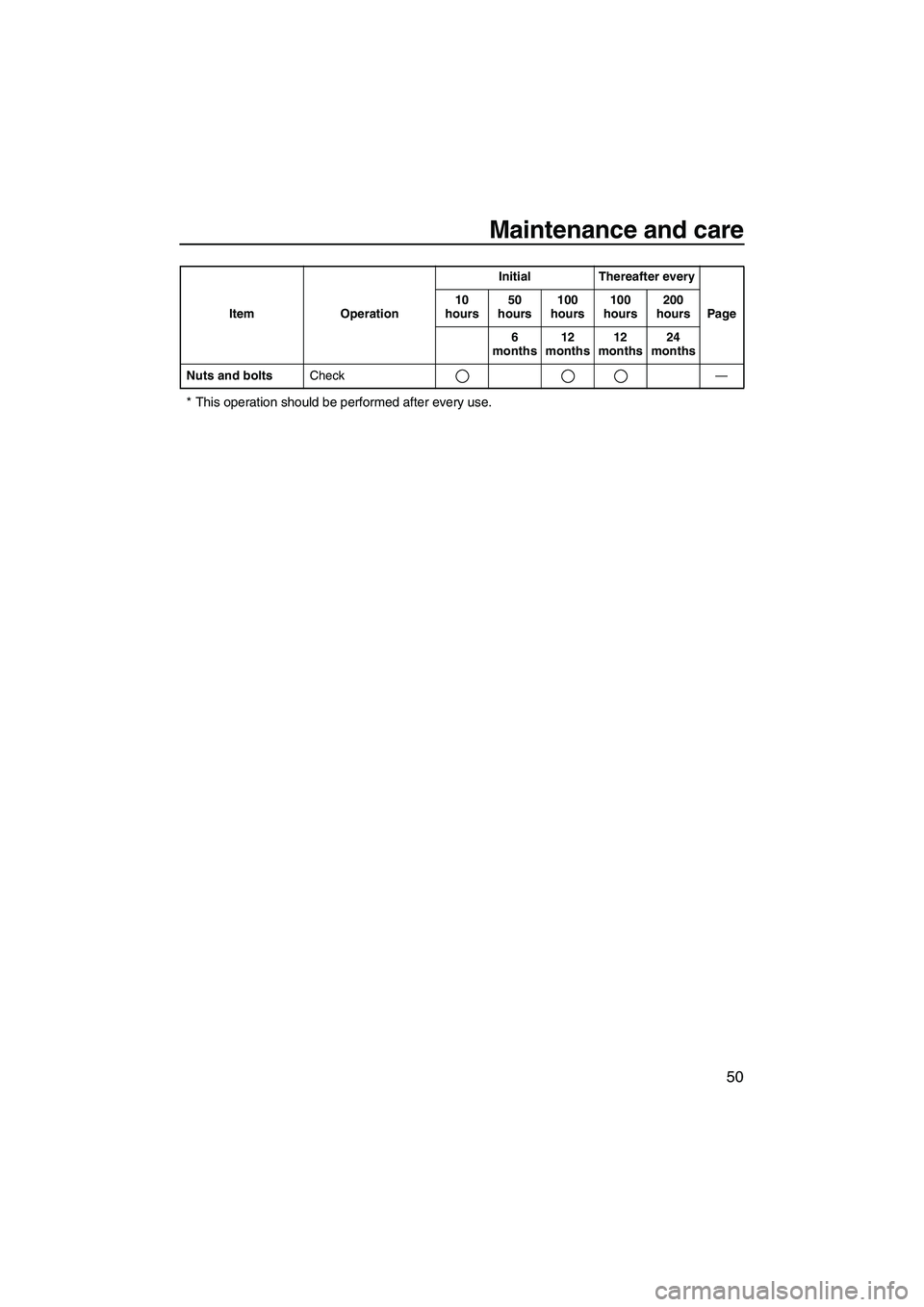

Maintenance and care
50
* This operation should be performed after every use.
Nuts and boltsCheck — Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
UF2F71E0.book Page 50 Thursday, April 10, 2008 11:47 AM

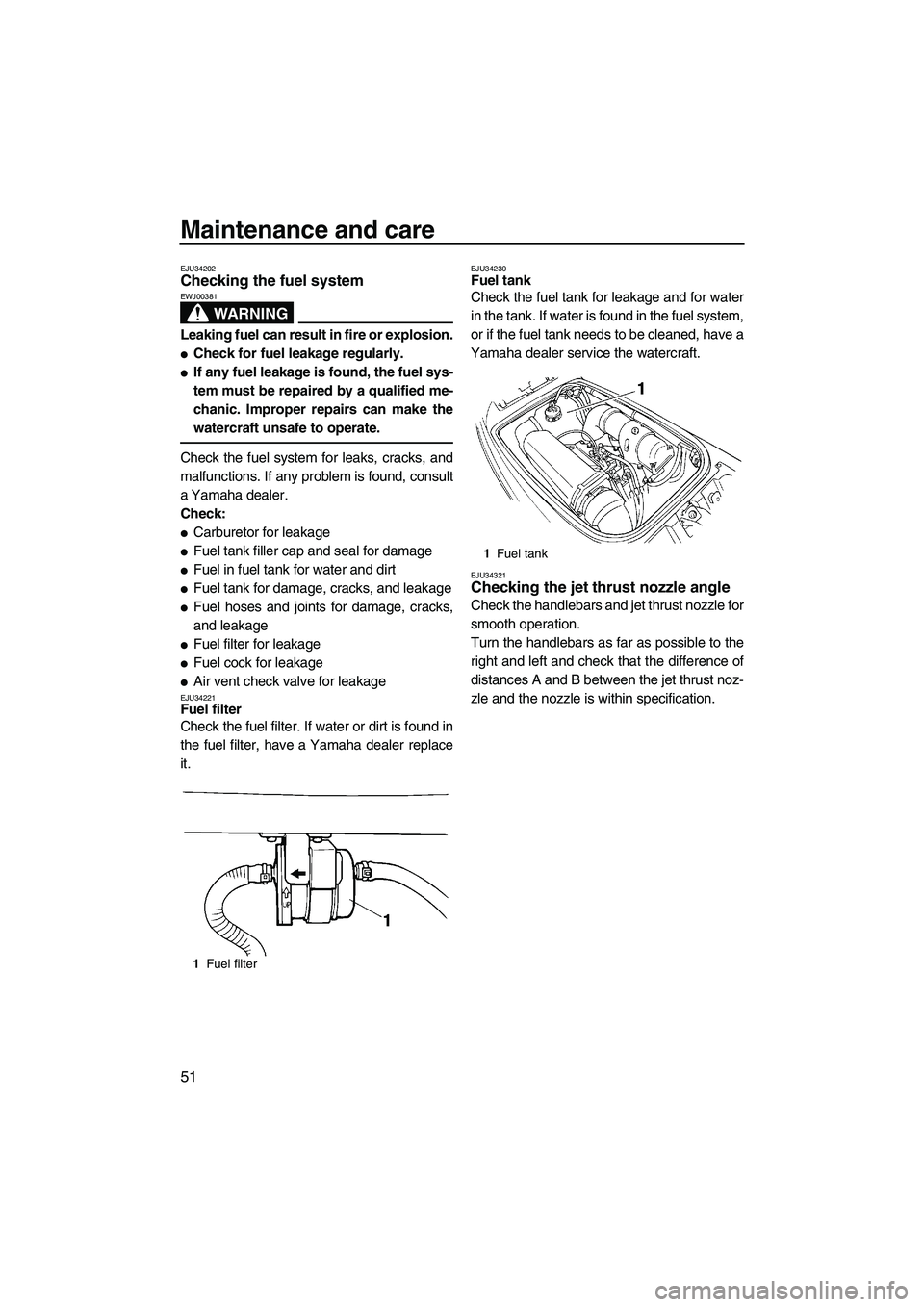

Maintenance and care
51
EJU34202Checking the fuel system
WARNING
EWJ00381
Leaking fuel can result in fire or explosion.

Check for fuel leakage regularly.

If any fuel leakage is found, the fuel sys-
tem must be repaired by a qualified me-
chanic. Improper repairs can make the
watercraft unsafe to operate.
Check the fuel system for leaks, cracks, and
malfunctions. If any problem is found, consult
a Yamaha dealer.
Check:

Carburetor for leakage

Fuel tank filler cap and seal for damage

Fuel in fuel tank for water and dirt

Fuel tank for damage, cracks, and leakage

Fuel hoses and joints for damage, cracks,
and leakage

Fuel filter for leakage

Fuel cock for leakage

Air vent check valve for leakageEJU34221Fuel filter
Check the fuel filter. If water or dirt is found in
the fuel filter, have a Yamaha dealer replace
it.
EJU34230Fuel tank
Check the fuel tank for leakage and for water
in the tank. If water is found in the fuel system,
or if the fuel tank needs to be cleaned, have a
Yamaha dealer service the watercraft.
EJU34321Checking the jet thrust nozzle angle
Check the handlebars and jet thrust nozzle for
smooth operation.
Turn the handlebars as far as possible to the
right and left and check that the difference of
distances A and B between the jet thrust noz-
zle and the nozzle is within specification.
1Fuel filter
1Fuel tank
UF2F71E0.book Page 51 Thursday, April 10, 2008 11:47 AM

Maintenance and care
52

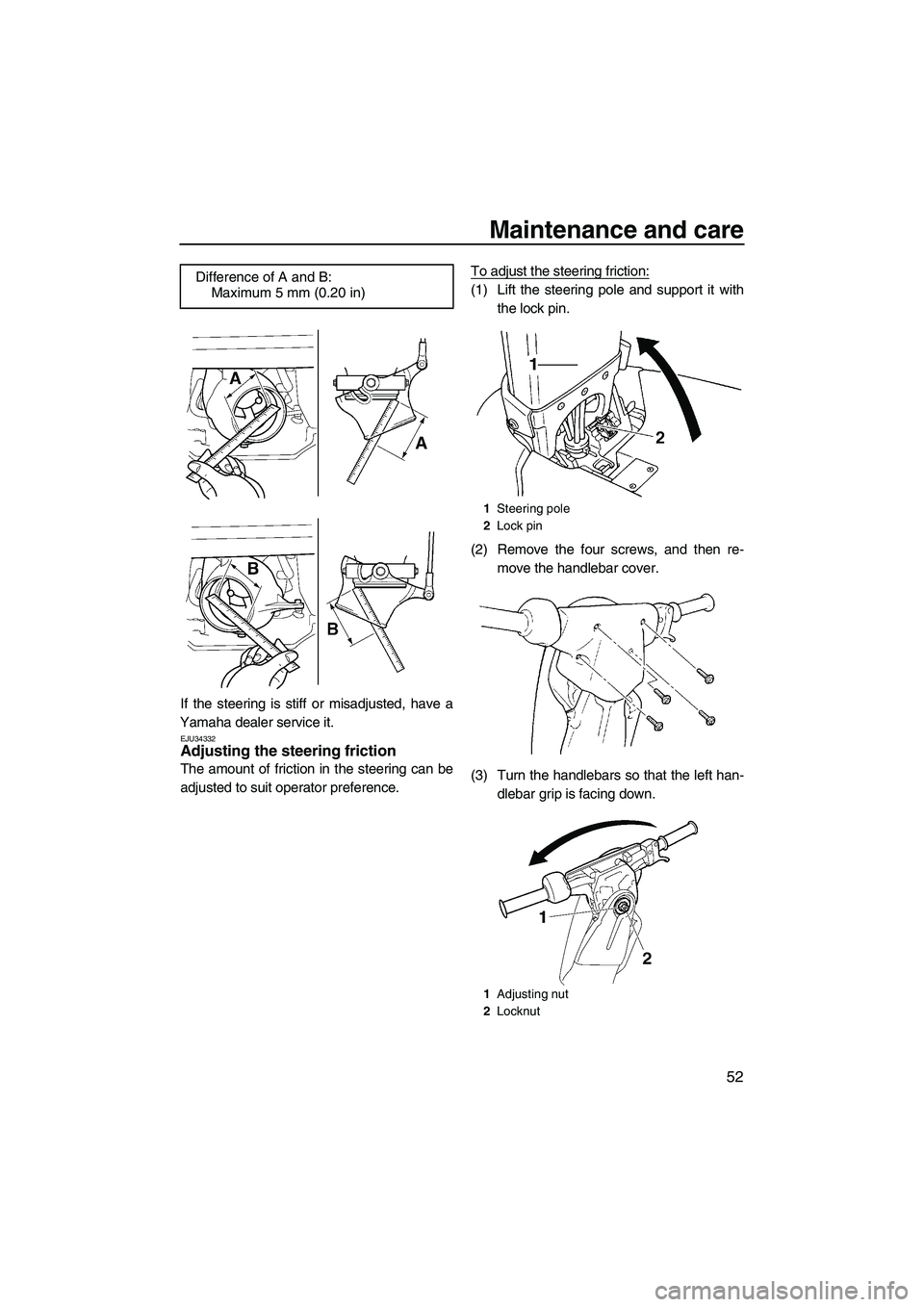

If the steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU34332Adjusting the steering friction
The amount of friction in the steering can be
adjusted to suit operator preference.To adjust the steering friction:
(1) Lift the steering pole and support it with
the lock pin.
(2) Remove the four screws, and then re-
move the handlebar cover.
(3) Turn the handlebars so that the left han-
dlebar grip is facing down. Difference of A and B:
Maximum 5 mm (0.20 in)
1Steering pole
2Lock pin
1Adjusting nut
2Locknut
UF2F71E0.book Page 52 Thursday, April 10, 2008 11:47 AM

Maintenance and care
53

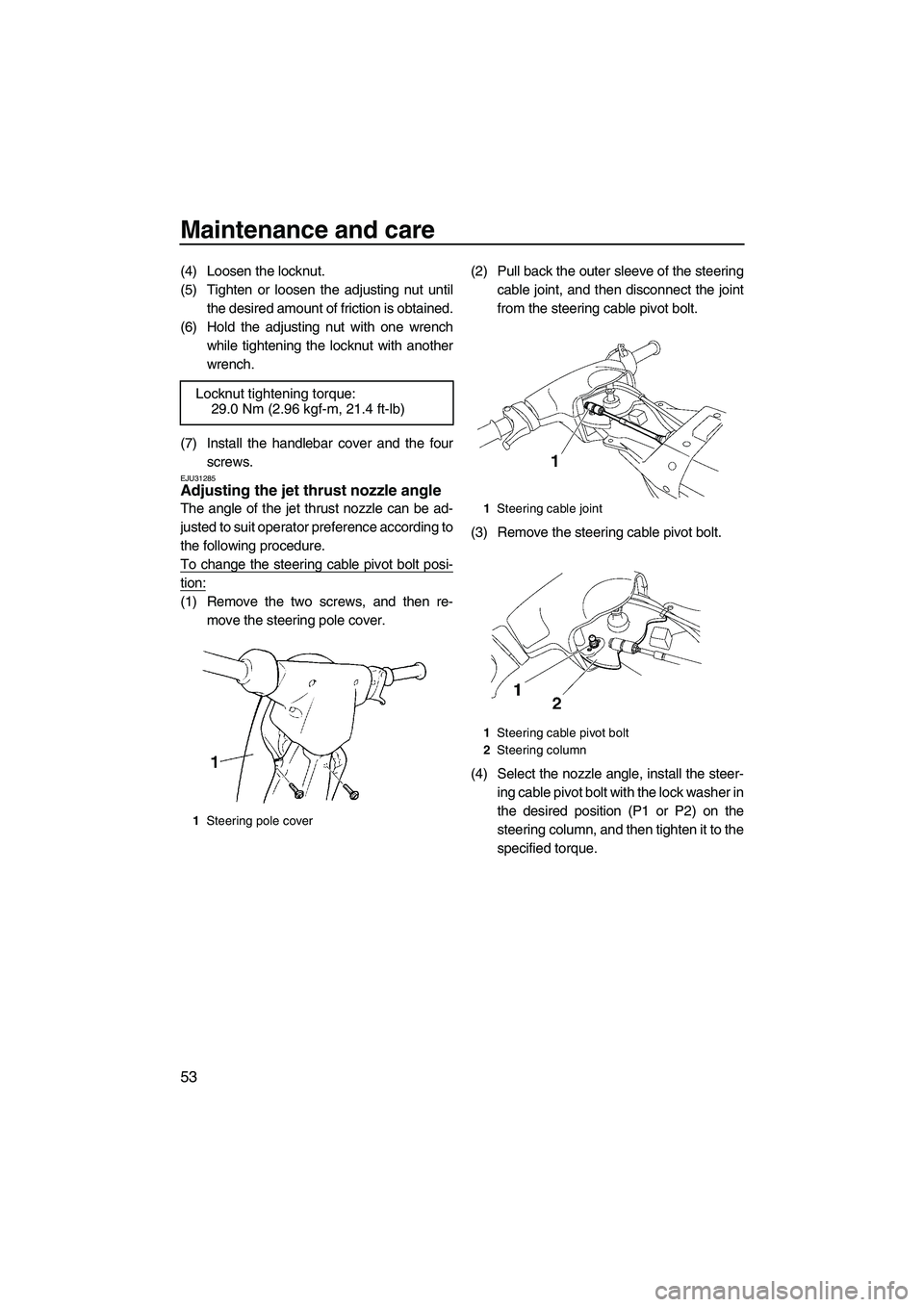

(4) Loosen the locknut.
(5) Tighten or loosen the adjusting nut until
the desired amount of friction is obtained.
(6) Hold the adjusting nut with one wrench
while tightening the locknut with another
wrench.
(7) Install the handlebar cover and the four
screws.
EJU31285Adjusting the jet thrust nozzle angle
The angle of the jet thrust nozzle can be ad-
justed to suit operator preference according to
the following procedure.
To change the steering cable pivot bolt posi-
tion:
(1) Remove the two screws, and then re-
move the steering pole cover.(2) Pull back the outer sleeve of the steering
cable joint, and then disconnect the joint
from the steering cable pivot bolt.
(3) Remove the steering cable pivot bolt.
(4) Select the nozzle angle, install the steer-
ing cable pivot bolt with the lock washer in
the desired position (P1 or P2) on the
steering column, and then tighten it to the
specified torque. Locknut tightening torque:
29.0 Nm (2.96 kgf-m, 21.4 ft-lb)
1Steering pole cover
1Steering cable joint
1Steering cable pivot bolt
2Steering column
UF2F71E0.book Page 53 Thursday, April 10, 2008 11:47 AM
