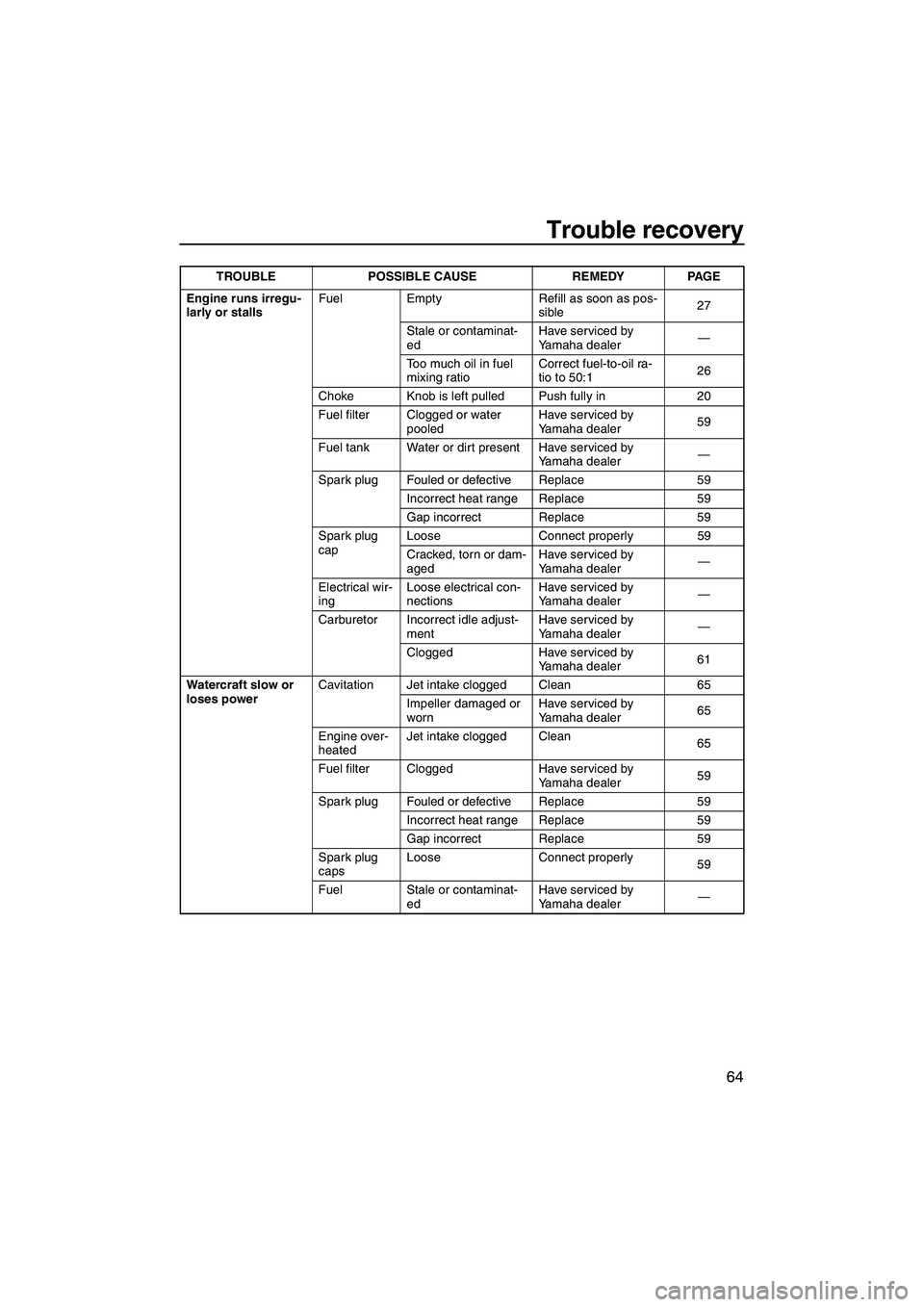

Trouble recovery
64
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as pos-
sible27
Stale or contaminat-
edHave serviced by
Yamaha dealer—
Too much oil in fuel
mixing ratioCorrect fuel-to-oil ra-
tio to 50:126
Choke Knob is left pulled Push fully in 20
Fuel filter Clogged or water
pooledHave serviced by
Yamaha dealer59
Fuel tank Water or dirt present Have serviced by
Yamaha dealer—
Spark plug Fouled or defective Replace 59
Incorrect heat range Replace 59
Gap incorrect Replace 59
Spark plug
capLoose Connect properly 59
Cracked, torn or dam-
agedHave serviced by
Yamaha dealer—
Electrical wir-
ingLoose electrical con-
nectionsHave serviced by
Yamaha dealer—
Carburetor Incorrect idle adjust-
mentHave serviced by
Yamaha dealer—
Clogged Have serviced by
Yamaha dealer61
Watercraft slow or
loses powerCavitation Jet intake clogged Clean 65
Impeller damaged or
wornHave serviced by
Yamaha dealer65
Engine over-
heatedJet intake clogged Clean
65
Fuel filter Clogged Have serviced by
Yamaha dealer59
Spark plug Fouled or defective Replace 59
Incorrect heat range Replace 59
Gap incorrect Replace 59
Spark plug
capsLoose Connect properly
59
Fuel Stale or contaminat-
edHave serviced by
Yamaha dealer— TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF2F72E0.book Page 64 Friday, May 22, 2009 5:11 PM

Trouble recovery
65
EJU34622
Emergency procedures EJU34634Cleaning the jet intake and impeller
WARNING
EWJ00782
Before attempting to remove weeds or de-
bris from the jet intake or impeller area,
shut the engine off and remove the clip
from the engine shut-off switch. Severe in-
jury or death could result from coming in
contact with the rotating parts of the jet
pump.
If weeds or debris gets caught in the jet intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine speed
rises. If this condition is allowed to continue,
the engine will overheat and may seize.
NOTICE: If weeds or debris gets caught in
the jet intake, do not operate the watercraft
above trolling speed until they have been
removed.
[ECJ00653]
If there is any sign that the jet intake or impel-
ler is clogged with weeds or debris, return to
shore and check the intake and impeller. Al-ways stop the engine before beaching the wa-
tercraft.
(1) Place a suitable clean cloth or carpeting
underneath the watercraft to protect it
from abrasions and scratches. Turn the
watercraft on its side as shown. NOTICE:
Always turn the watercraft over onto
its port (left) side. When turning the
watercraft on its side, support the bow
so that the handlebars are not bent or
damaged.
[ECJ00661]
UF2F72E0.book Page 65 Friday, May 22, 2009 5:11 PM

Trouble recovery
66
(2) Remove any weeds or debris from
around the jet intake, drive shaft, impel-
ler, jet pump housing, and jet thrust noz-
zle.
If debris is difficult to remove, consult a
Yamaha dealer.

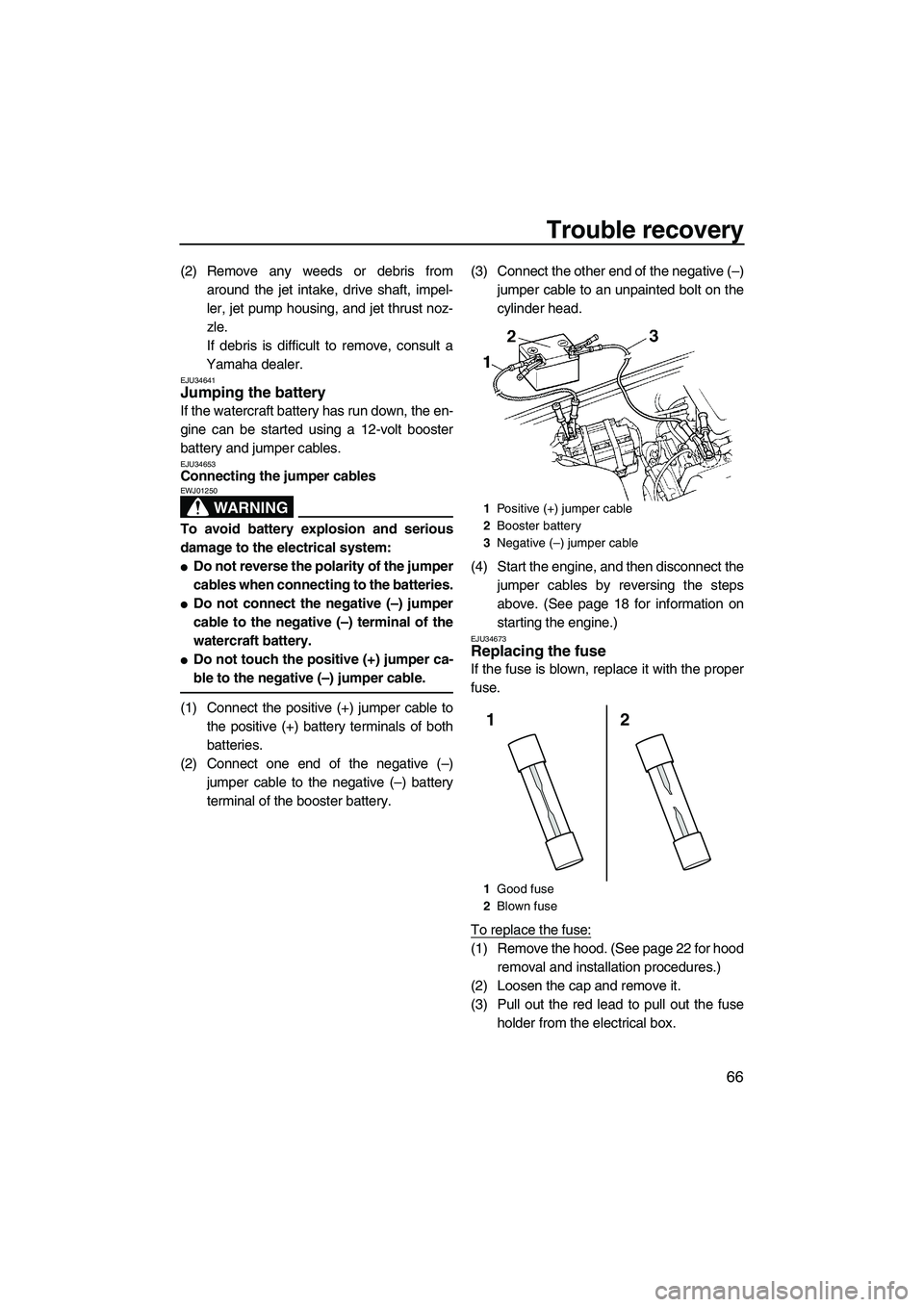

EJU34641Jumping the battery
If the watercraft battery has run down, the en-
gine can be started using a 12-volt booster
battery and jumper cables.
EJU34653Connecting the jumper cables
WARNING
EWJ01250
To avoid battery explosion and serious
damage to the electrical system:

Do not reverse the polarity of the jumper
cables when connecting to the batteries.

Do not connect the negative (–) jumper
cable to the negative (–) terminal of the
watercraft battery.

Do not touch the positive (+) jumper ca-
ble to the negative (–) jumper cable.
(1) Connect the positive (+) jumper cable to
the positive (+) battery terminals of both
batteries.
(2) Connect one end of the negative (–)
jumper cable to the negative (–) battery
terminal of the booster battery.(3) Connect the other end of the negative (–)
jumper cable to an unpainted bolt on the
cylinder head.
(4) Start the engine, and then disconnect the
jumper cables by reversing the steps
above. (See page 18 for information on
starting the engine.)
EJU34673Replacing the fuse
If the fuse is blown, replace it with the proper
fuse.
To replace the fuse:
(1) Remove the hood. (See page 22 for hood
removal and installation procedures.)
(2) Loosen the cap and remove it.
(3) Pull out the red lead to pull out the fuse
holder from the electrical box.
1Positive (+) jumper cable
2Booster battery
3Negative (–) jumper cable
1Good fuse
2Blown fuse
2 1
UF2F72E0.book Page 66 Friday, May 22, 2009 5:11 PM

Trouble recovery
67

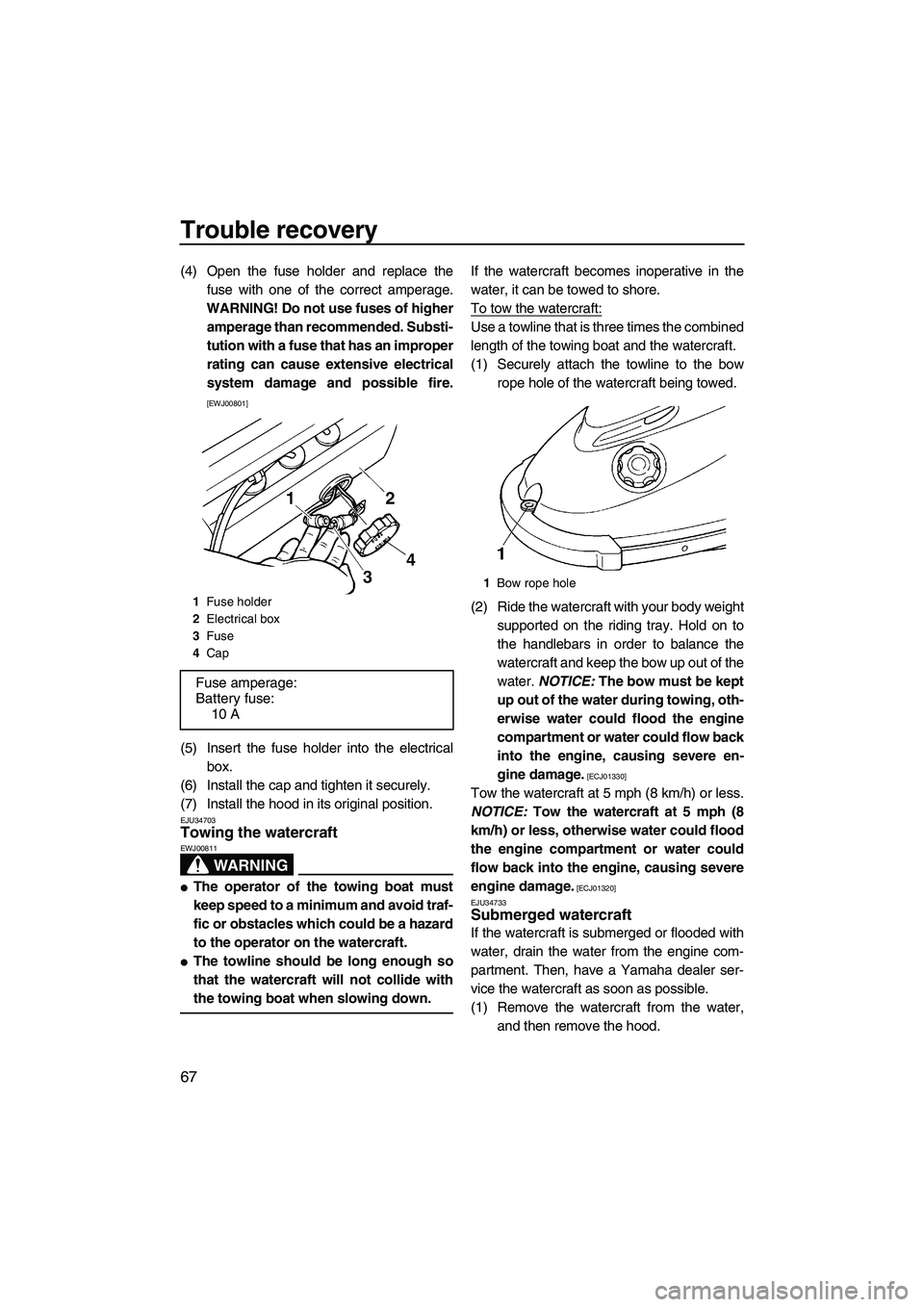

(4) Open the fuse holder and replace the
fuse with one of the correct amperage.
WARNING! Do not use fuses of higher
amperage than recommended. Substi-
tution with a fuse that has an improper
rating can cause extensive electrical
system damage and possible fire.
[EWJ00801]
(5) Insert the fuse holder into the electrical
box.
(6) Install the cap and tighten it securely.
(7) Install the hood in its original position.
EJU34703Towing the watercraft
WARNING
EWJ00811

The operator of the towing boat must
keep speed to a minimum and avoid traf-
fic or obstacles which could be a hazard
to the operator on the watercraft.

The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down.
If the watercraft becomes inoperative in the
water, it can be towed to shore.
To tow the watercraft:
Use a towline that is three times the combined
length of the towing boat and the watercraft.
(1) Securely attach the towline to the bow
rope hole of the watercraft being towed.
(2) Ride the watercraft with your body weight
supported on the riding tray. Hold on to
the handlebars in order to balance the
watercraft and keep the bow up out of the
water. NOTICE: The bow must be kept
up out of the water during towing, oth-
erwise water could flood the engine
compartment or water could flow back
into the engine, causing severe en-
gine damage.
[ECJ01330]
Tow the watercraft at 5 mph (8 km/h) or less.
NOTICE: Tow the watercraft at 5 mph (8
km/h) or less, otherwise water could flood
the engine compartment or water could
flow back into the engine, causing severe
engine damage.
[ECJ01320]
EJU34733
Submerged watercraft
If the watercraft is submerged or flooded with
water, drain the water from the engine com-
partment. Then, have a Yamaha dealer ser-
vice the watercraft as soon as possible.
(1) Remove the watercraft from the water,
and then remove the hood.
1Fuse holder
2Electrical box
3Fuse
4Cap
Fuse amperage:
Battery fuse:
10 A
1Bow rope hole
UF2F72E0.book Page 67 Friday, May 22, 2009 5:11 PM

Trouble recovery
68

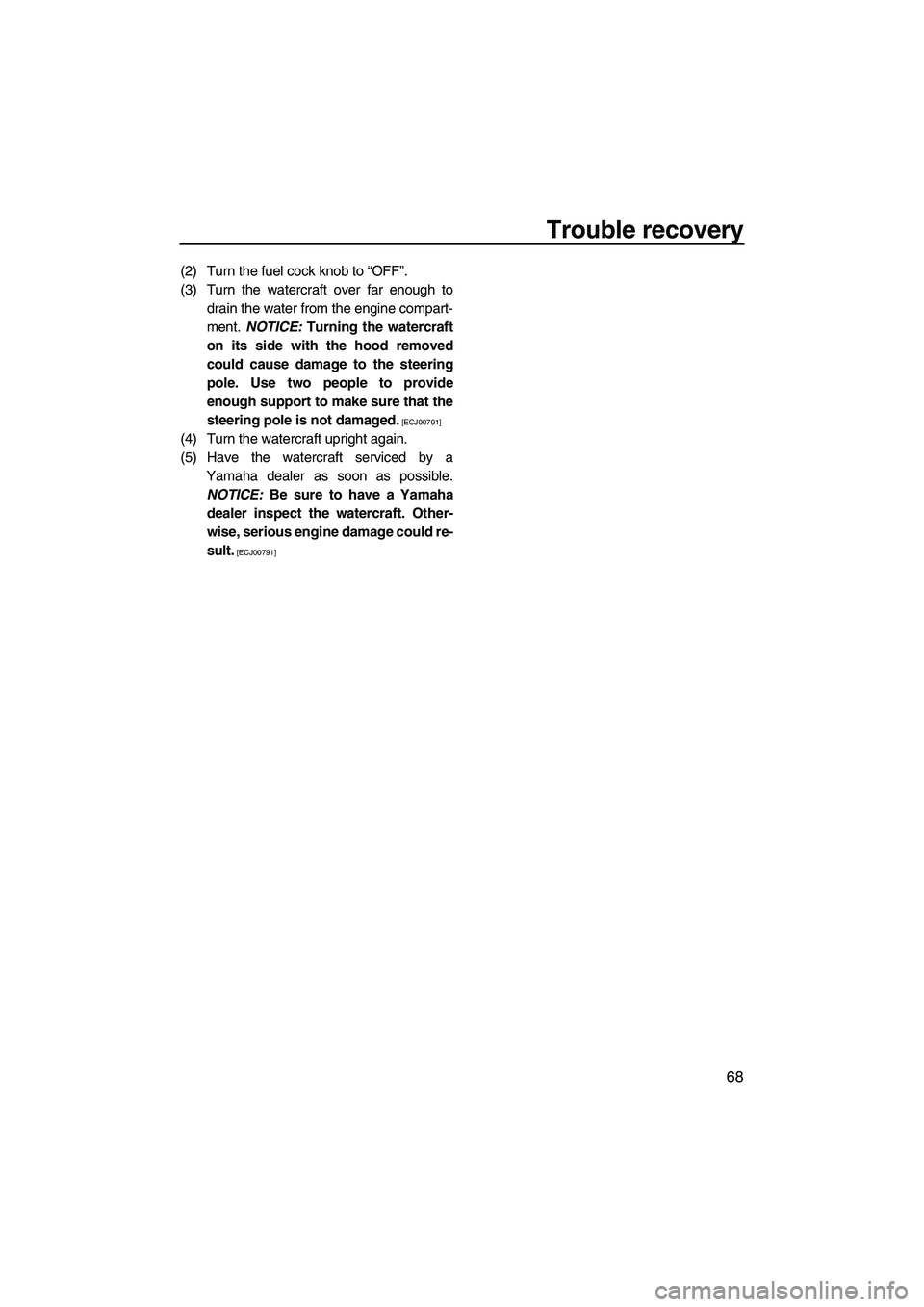

(2) Turn the fuel cock knob to “OFF”.
(3) Turn the watercraft over far enough to
drain the water from the engine compart-
ment. NOTICE: Turning the watercraft
on its side with the hood removed
could cause damage to the steering
pole. Use two people to provide
enough support to make sure that the
steering pole is not damaged.
[ECJ00701]
(4) Turn the watercraft upright again.
(5) Have the watercraft serviced by a
Yamaha dealer as soon as possible.
NOTICE: Be sure to have a Yamaha
dealer inspect the watercraft. Other-
wise, serious engine damage could re-
sult.
[ECJ00791]
UF2F72E0.book Page 68 Friday, May 22, 2009 5:11 PM
