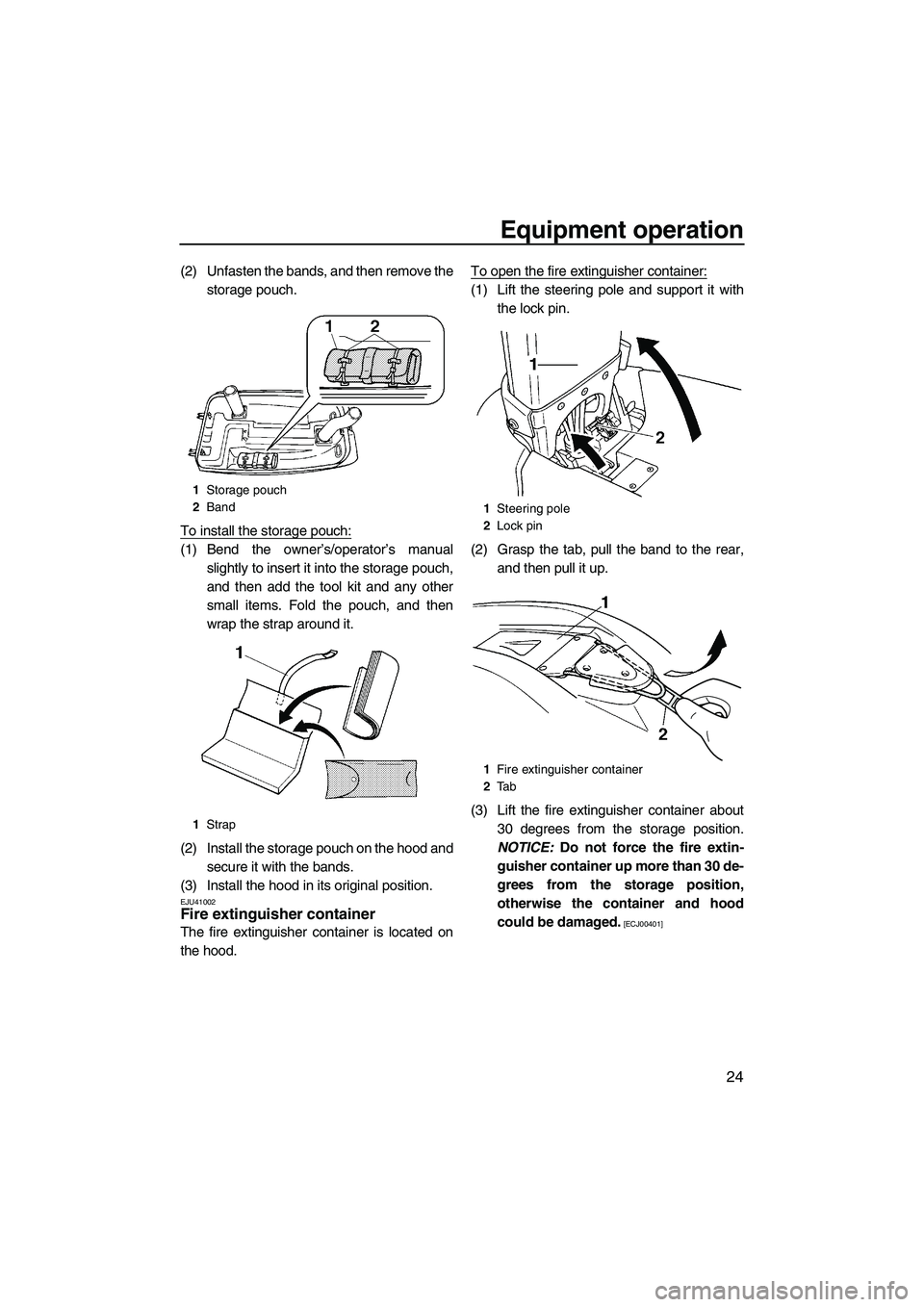

YAMAHA SUPERJET 2010 Owner's Guide

Equipment operation
24
(2) Unfasten the bands, and then remove the
storage pouch.
To install the storage pouch:
(1) Bend the owner’s/operator’s manual
slightly to insert it into the storage pouch,
and then add the tool kit and any other
small items. Fold the pouch, and then
wrap the strap around it.
(2) Install the storage pouch on the hood and
secure it with the bands.
(3) Install the hood in its original position.
EJU41002Fire extinguisher container
The fire extinguisher container is located on
the hood.To open the fire extinguisher container:
(1) Lift the steering pole and support it with
the lock pin.
(2) Grasp the tab, pull the band to the rear,
and then pull it up.
(3) Lift the fire extinguisher container about
30 degrees from the storage position.
NOTICE: Do not force the fire extin-
guisher container up more than 30 de-
grees from the storage position,
otherwise the container and hood
could be damaged.
[ECJ00401]
1Storage pouch
2Band
1Strap
1Steering pole
2Lock pin
1Fire extinguisher container
2Ta b
UF2F72E0.book Page 24 Friday, May 22, 2009 5:11 PM

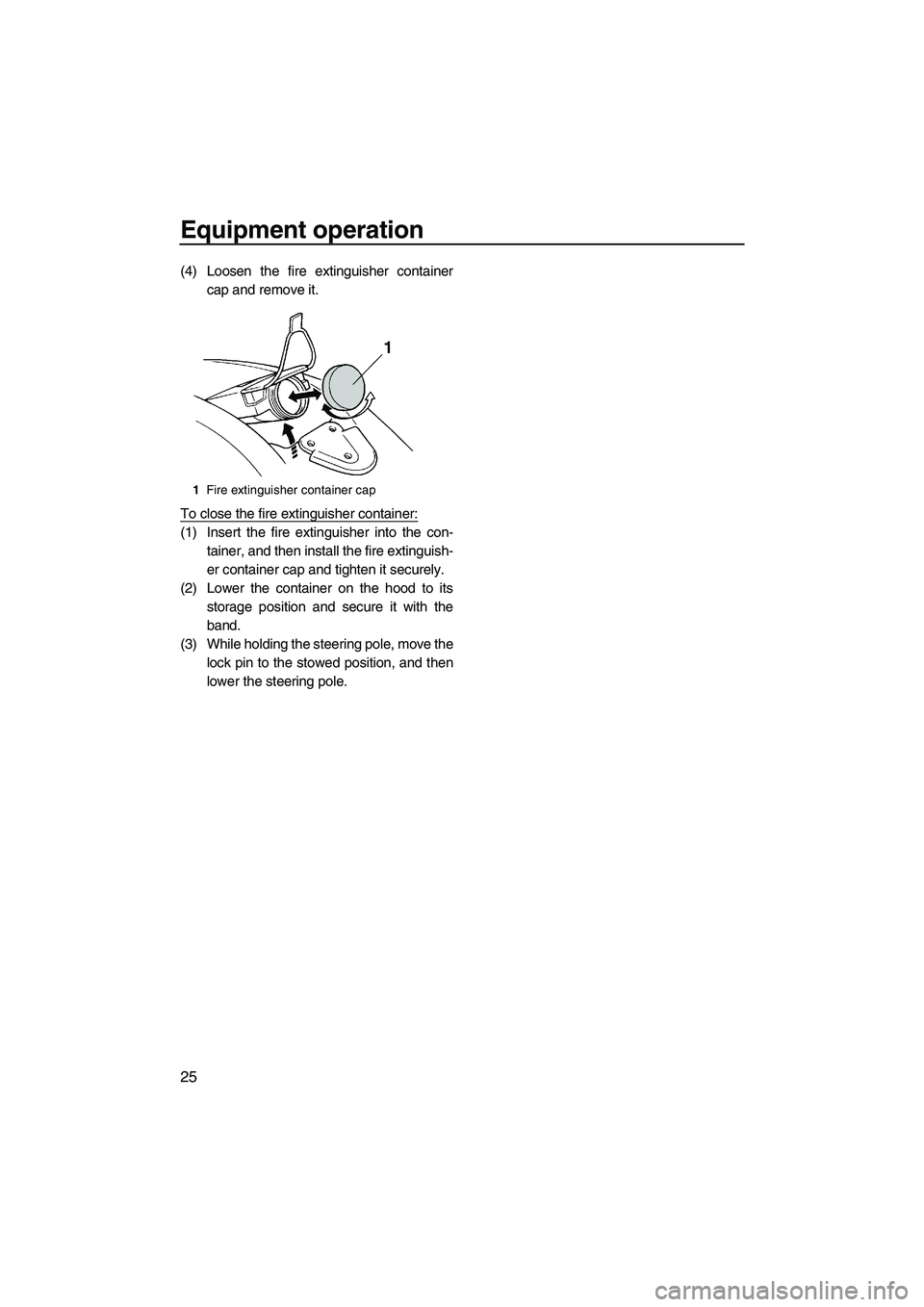

Equipment operation
25
(4) Loosen the fire extinguisher container
cap and remove it.
To close the fire extinguisher container:
(1) Insert the fire extinguisher into the con-
tainer, and then install the fire extinguish-
er container cap and tighten it securely.
(2) Lower the container on the hood to its
storage position and secure it with the
band.
(3) While holding the steering pole, move the
lock pin to the stowed position, and then
lower the steering pole.
1Fire extinguisher container cap
UF2F72E0.book Page 25 Friday, May 22, 2009 5:11 PM

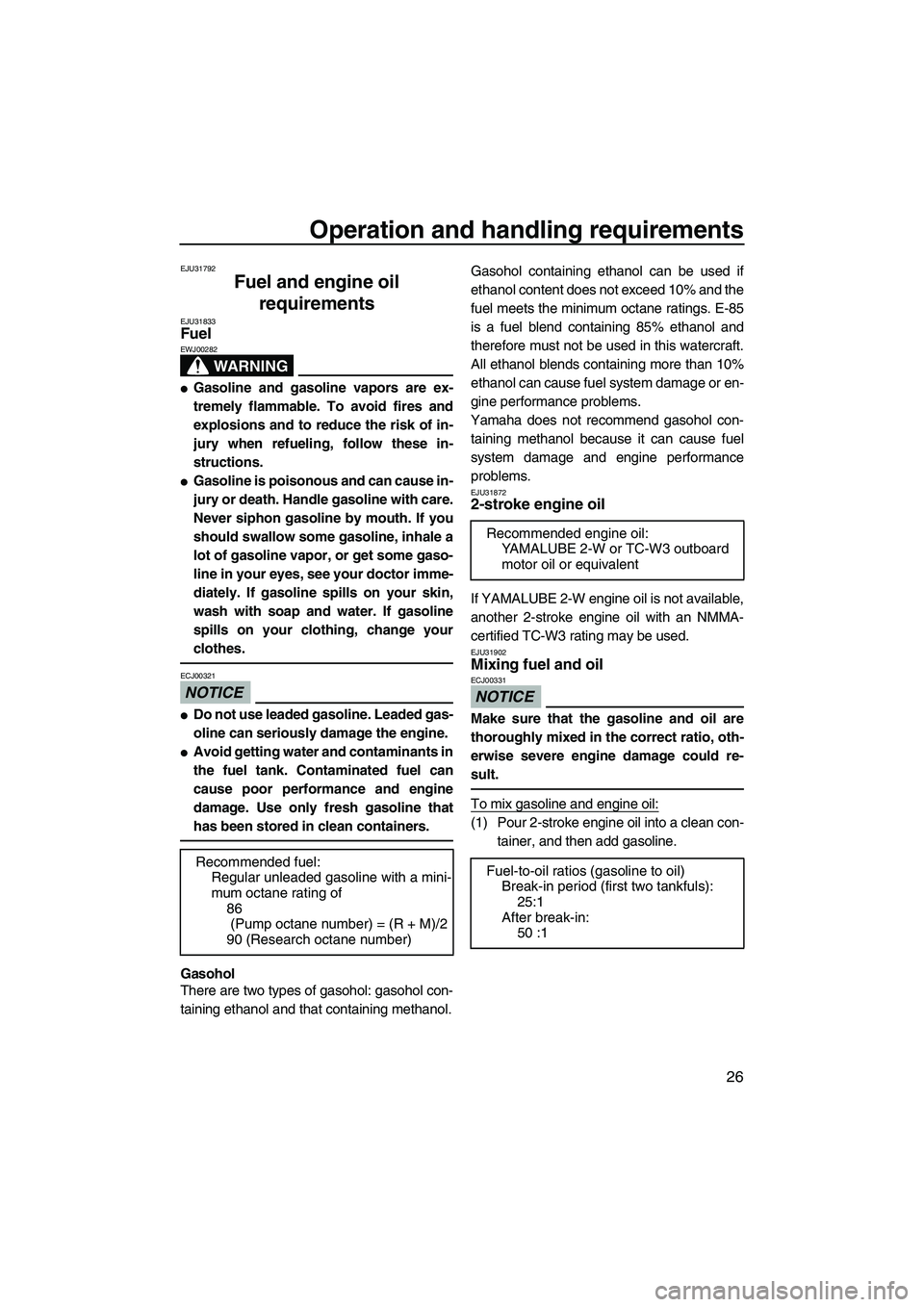

Operation and handling requirements
26
EJU31792
Fuel and engine oil
requirements
EJU31833Fuel
WARNING
EWJ00282

Gasoline and gasoline vapors are ex-
tremely flammable. To avoid fires and
explosions and to reduce the risk of in-
jury when refueling, follow these in-
structions.

Gasoline is poisonous and can cause in-
jury or death. Handle gasoline with care.
Never siphon gasoline by mouth. If you
should swallow some gasoline, inhale a
lot of gasoline vapor, or get some gaso-
line in your eyes, see your doctor imme-
diately. If gasoline spills on your skin,
wash with soap and water. If gasoline
spills on your clothing, change your
clothes.
NOTICE
ECJ00321

Do not use leaded gasoline. Leaded gas-
oline can seriously damage the engine.

Avoid getting water and contaminants in
the fuel tank. Contaminated fuel can
cause poor performance and engine
damage. Use only fresh gasoline that
has been stored in clean containers.
Gasohol
There are two types of gasohol: gasohol con-
taining ethanol and that containing methanol.Gasohol containing ethanol can be used if
ethanol content does not exceed 10% and the
fuel meets the minimum octane ratings. E-85
is a fuel blend containing 85% ethanol and
therefore must not be used in this watercraft.
All ethanol blends containing more than 10%
ethanol can cause fuel system damage or en-
gine performance problems.
Yamaha does not recommend gasohol con-
taining methanol because it can cause fuel
system damage and engine performance
problems.
EJU318722-stroke engine oil
If YAMALUBE 2-W engine oil is not available,
another 2-stroke engine oil with an NMMA-
certified TC-W3 rating may be used.
EJU31902Mixing fuel and oil
NOTICE
ECJ00331
Make sure that the gasoline and oil are
thoroughly mixed in the correct ratio, oth-
erwise severe engine damage could re-
sult.
To mix gasoline and engine oil:
(1) Pour 2-stroke engine oil into a clean con-
tainer, and then add gasoline.
Recommended fuel:
Regular unleaded gasoline with a mini-
mum octane rating of
86
(Pump octane number) = (R + M)/2
90 (Research octane number)
Recommended engine oil:
YAMALUBE 2-W or TC-W3 outboard
motor oil or equivalent
Fuel-to-oil ratios (gasoline to oil)
Break-in period (first two tankfuls):
25:1
After break-in:
50 :1
UF2F72E0.book Page 26 Friday, May 22, 2009 5:11 PM

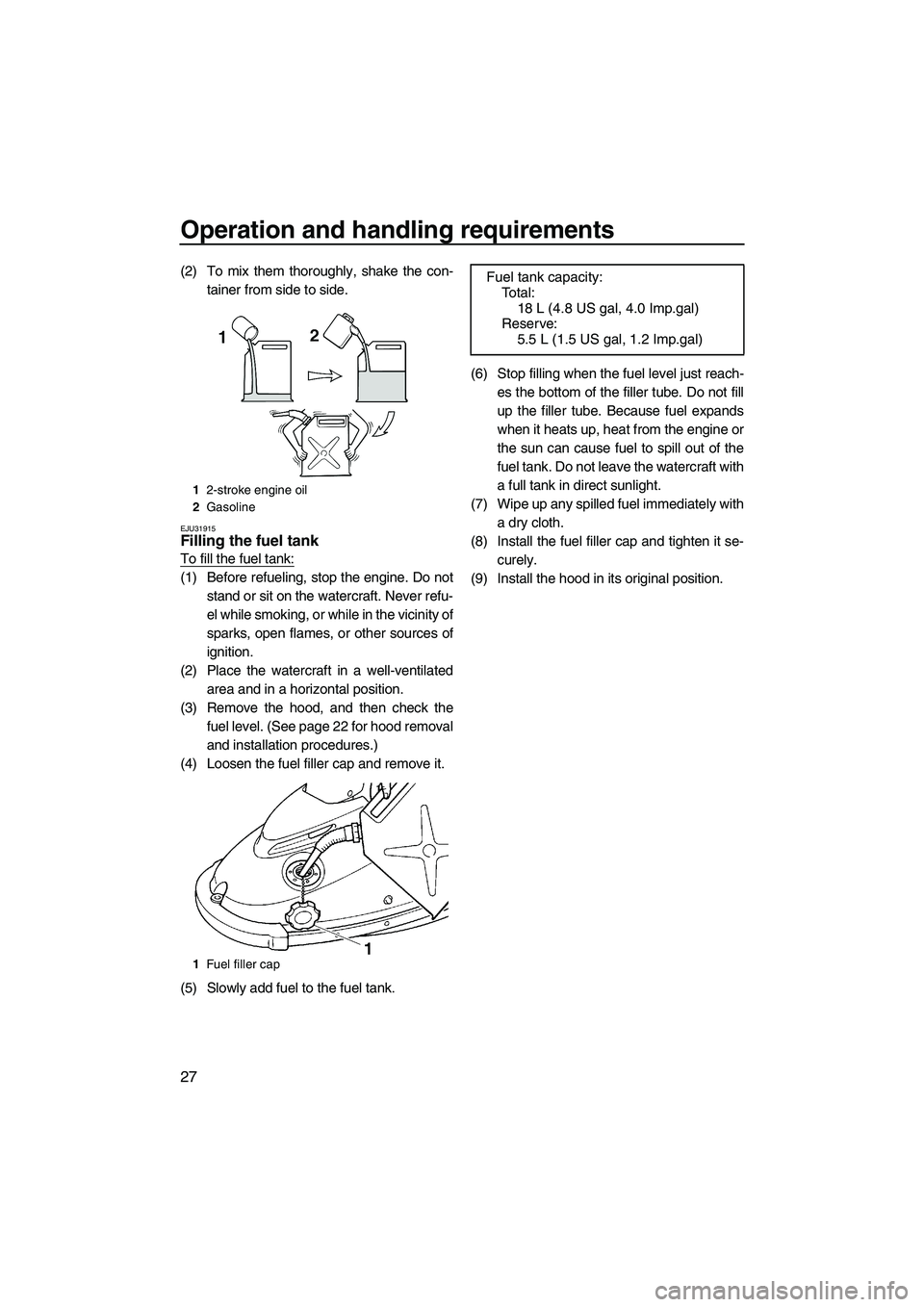

Operation and handling requirements
27
(2) To mix them thoroughly, shake the con-
tainer from side to side.
EJU31915Filling the fuel tank
To fill the fuel tank:
(1) Before refueling, stop the engine. Do not
stand or sit on the watercraft. Never refu-
el while smoking, or while in the vicinity of
sparks, open flames, or other sources of
ignition.
(2) Place the watercraft in a well-ventilated
area and in a horizontal position.
(3) Remove the hood, and then check the
fuel level. (See page 22 for hood removal
and installation procedures.)
(4) Loosen the fuel filler cap and remove it.
(5) Slowly add fuel to the fuel tank.(6) Stop filling when the fuel level just reach-
es the bottom of the filler tube. Do not fill
up the filler tube. Because fuel expands
when it heats up, heat from the engine or
the sun can cause fuel to spill out of the
fuel tank. Do not leave the watercraft with
a full tank in direct sunlight.
(7) Wipe up any spilled fuel immediately with
a dry cloth.
(8) Install the fuel filler cap and tighten it se-
curely.
(9) Install the hood in its original position.
12-stroke engine oil
2Gasoline
1Fuel filler cap
Fuel tank capacity:
To t a l :
18 L (4.8 US gal, 4.0 Imp.gal)
Reserve:
5.5 L (1.5 US gal, 1.2 Imp.gal)
UF2F72E0.book Page 27 Friday, May 22, 2009 5:11 PM

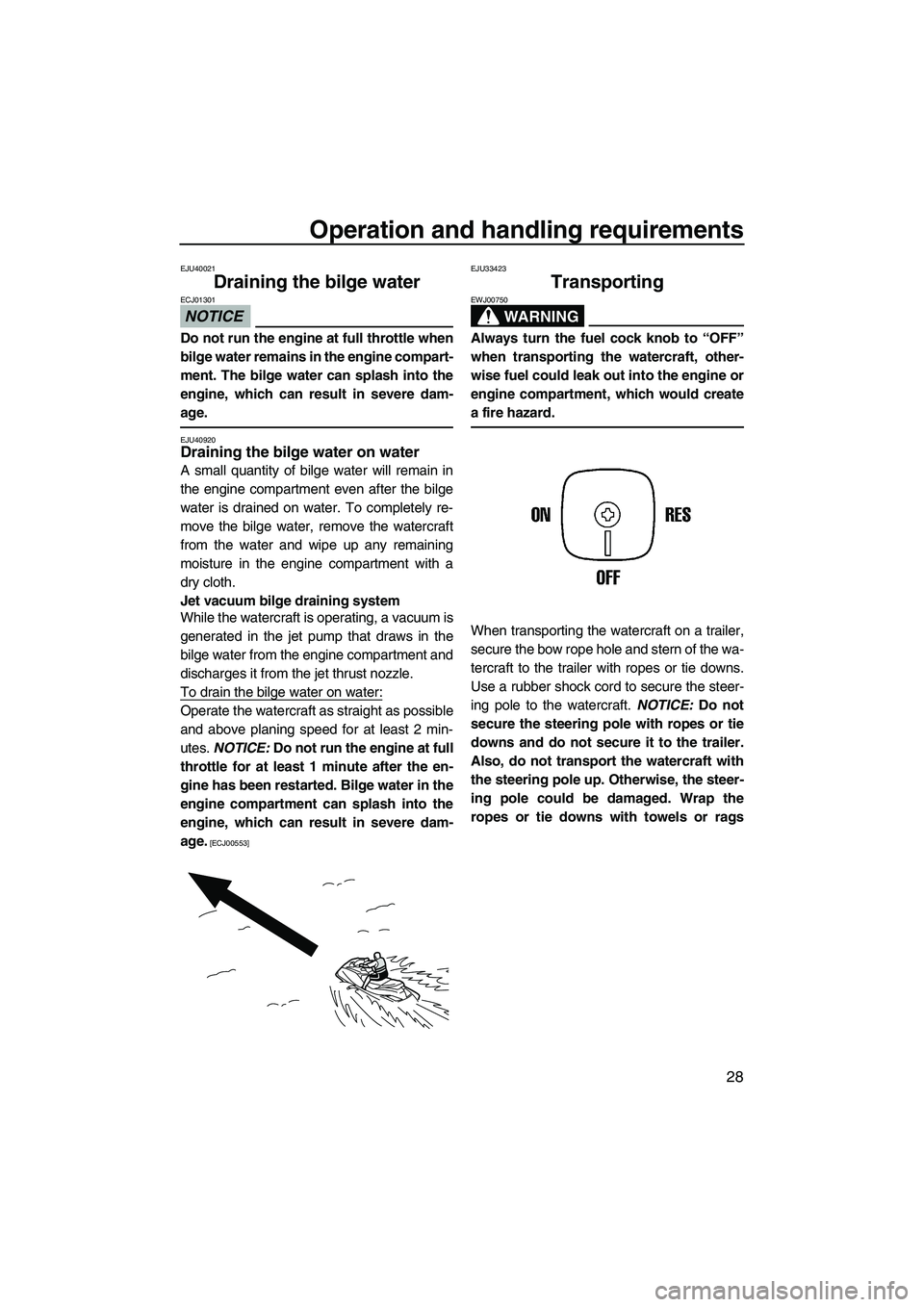

Operation and handling requirements
28
EJU40021
Draining the bilge water
NOTICE
ECJ01301
Do not run the engine at full throttle when
bilge water remains in the engine compart-
ment. The bilge water can splash into the
engine, which can result in severe dam-
age.
EJU40920Draining the bilge water on water
A small quantity of bilge water will remain in
the engine compartment even after the bilge
water is drained on water. To completely re-
move the bilge water, remove the watercraft
from the water and wipe up any remaining
moisture in the engine compartment with a
dry cloth.
Jet vacuum bilge draining system
While the watercraft is operating, a vacuum is
generated in the jet pump that draws in the
bilge water from the engine compartment and
discharges it from the jet thrust nozzle.
To drain the bilge water on water:
Operate the watercraft as straight as possible
and above planing speed for at least 2 min-
utes. NOTICE: Do not run the engine at full
throttle for at least 1 minute after the en-
gine has been restarted. Bilge water in the
engine compartment can splash into the
engine, which can result in severe dam-
age.
[ECJ00553]EJU33423
Transporting
WARNING
EWJ00750
Always turn the fuel cock knob to “OFF”
when transporting the watercraft, other-
wise fuel could leak out into the engine or
engine compartment, which would create
a fire hazard.
When transporting the watercraft on a trailer,
secure the bow rope hole and stern of the wa-
tercraft to the trailer with ropes or tie downs.
Use a rubber shock cord to secure the steer-
ing pole to the watercraft. NOTICE: Do not
secure the steering pole with ropes or tie
downs and do not secure it to the trailer.
Also, do not transport the watercraft with
the steering pole up. Otherwise, the steer-
ing pole could be damaged. Wrap the
ropes or tie downs with towels or rags
UF2F72E0.book Page 28 Friday, May 22, 2009 5:11 PM

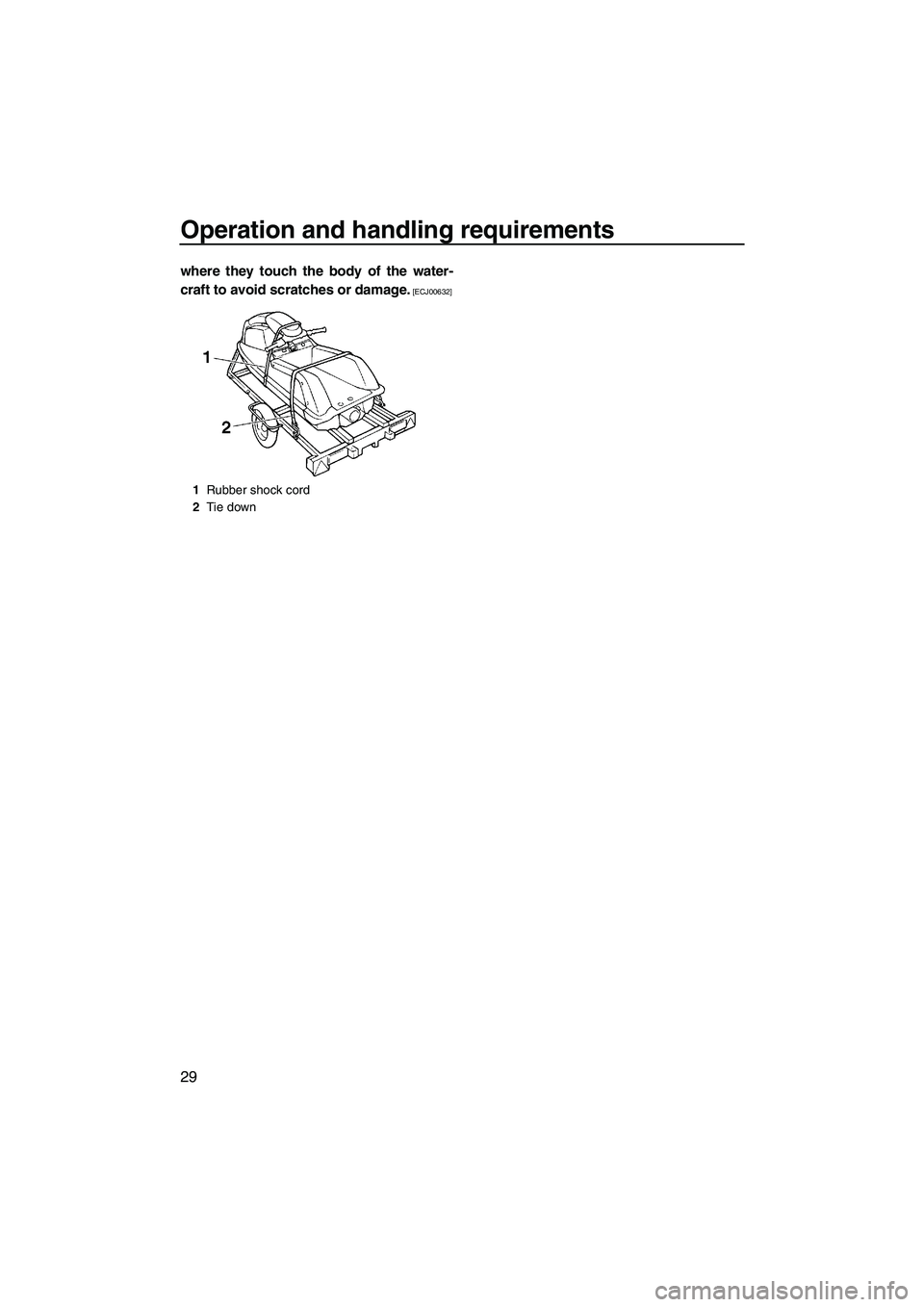

Operation and handling requirements
29
where they touch the body of the water-
craft to avoid scratches or damage.
[ECJ00632]
1Rubber shock cord
2Tie down
UF2F72E0.book Page 29 Friday, May 22, 2009 5:11 PM

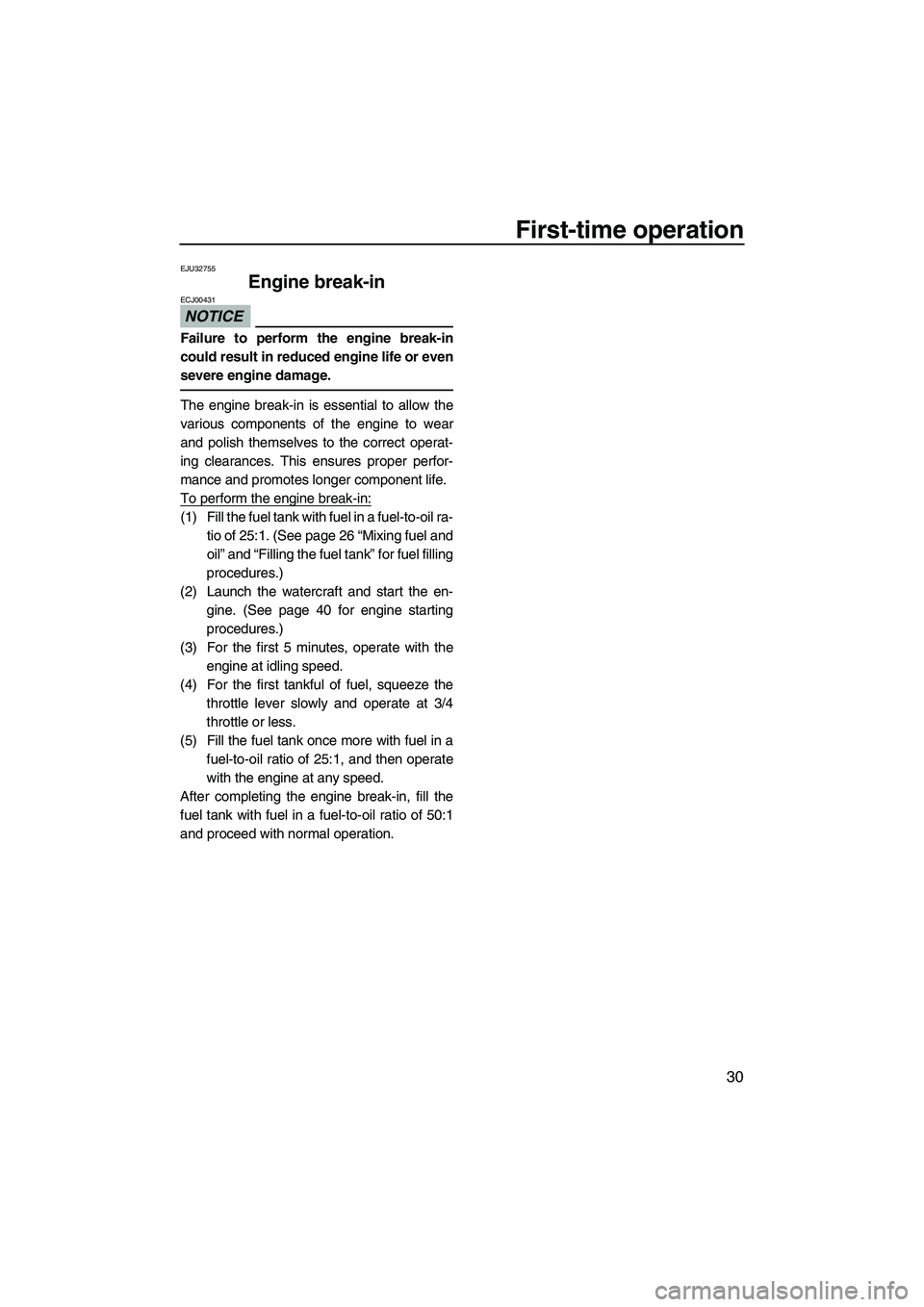

First-time operation
30
EJU32755
Engine break-in
NOTICE
ECJ00431
Failure to perform the engine break-in
could result in reduced engine life or even
severe engine damage.
The engine break-in is essential to allow the
various components of the engine to wear
and polish themselves to the correct operat-
ing clearances. This ensures proper perfor-
mance and promotes longer component life.
To perform the engine break-in:
(1) Fill the fuel tank with fuel in a fuel-to-oil ra-
tio of 25:1. (See page 26 “Mixing fuel and
oil” and “Filling the fuel tank” for fuel filling
procedures.)
(2) Launch the watercraft and start the en-
gine. (See page 40 for engine starting
procedures.)
(3) For the first 5 minutes, operate with the
engine at idling speed.
(4) For the first tankful of fuel, squeeze the
throttle lever slowly and operate at 3/4
throttle or less.
(5) Fill the fuel tank once more with fuel in a
fuel-to-oil ratio of 25:1, and then operate
with the engine at any speed.
After completing the engine break-in, fill the
fuel tank with fuel in a fuel-to-oil ratio of 50:1
and proceed with normal operation.
UF2F72E0.book Page 30 Friday, May 22, 2009 5:11 PM

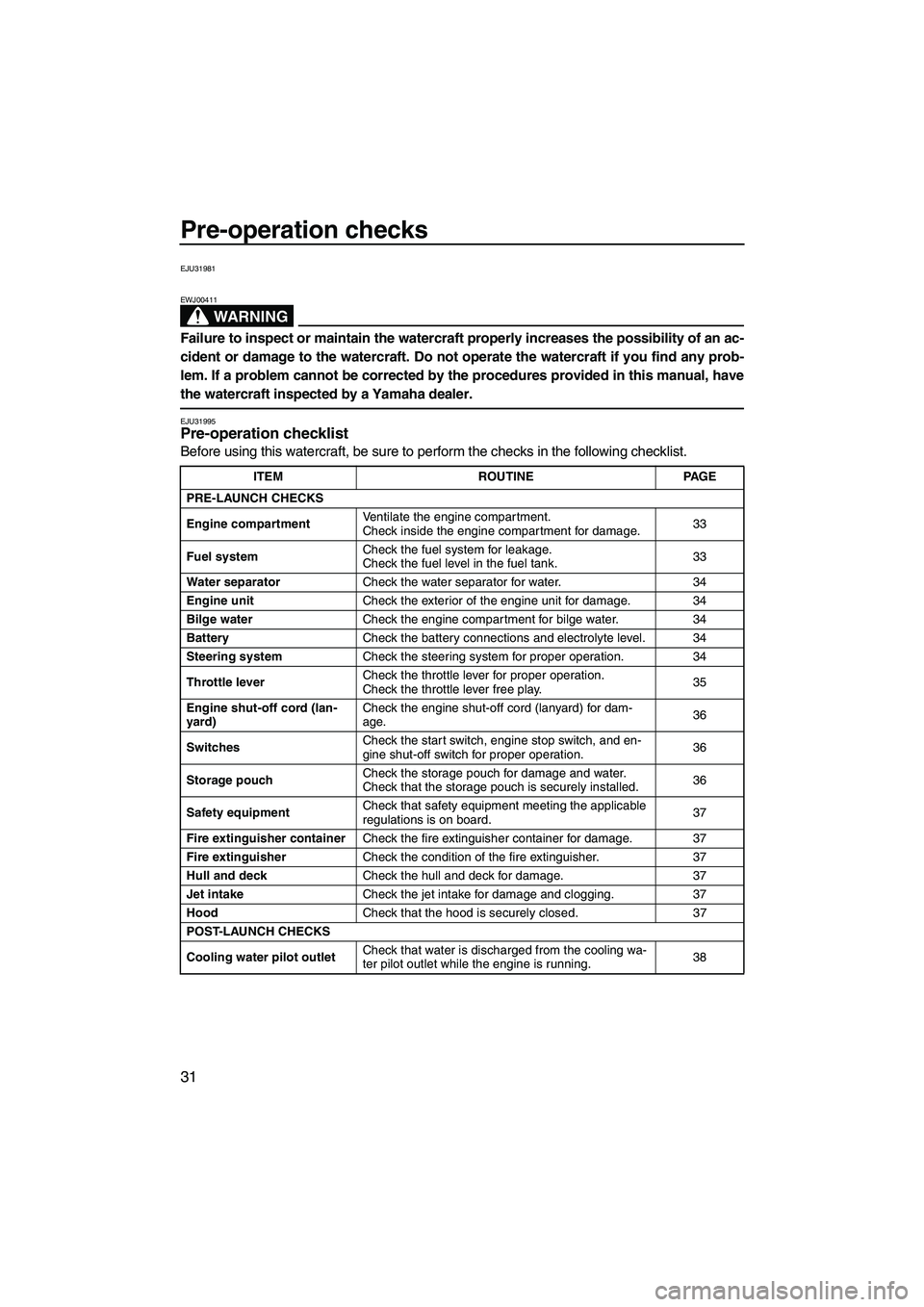

Pre-operation checks
31
EJU31981
WARNING
EWJ00411
Failure to inspect or maintain the watercraft properly increases the possibility of an ac-
cident or damage to the watercraft. Do not operate the watercraft if you find any prob-
lem. If a problem cannot be corrected by the procedures provided in this manual, have
the watercraft inspected by a Yamaha dealer.
EJU31995Pre-operation checklist
Before using this watercraft, be sure to perform the checks in the following checklist.
ITEM ROUTINE PAGE
PRE-LAUNCH CHECKS
Engine compartmentVentilate the engine compartment.
Check inside the engine compartment for damage.33
Fuel systemCheck the fuel system for leakage.
Check the fuel level in the fuel tank.33
Water separatorCheck the water separator for water. 34
Engine unitCheck the exterior of the engine unit for damage. 34
Bilge waterCheck the engine compartment for bilge water. 34
BatteryCheck the battery connections and electrolyte level. 34
Steering systemCheck the steering system for proper operation. 34
Throttle leverCheck the throttle lever for proper operation.
Check the throttle lever free play.35
Engine shut-off cord (lan-
yard)Check the engine shut-off cord (lanyard) for dam-
age.36
SwitchesCheck the start switch, engine stop switch, and en-
gine shut-off switch for proper operation.36
Storage pouchCheck the storage pouch for damage and water.
Check that the storage pouch is securely installed.36
Safety equipmentCheck that safety equipment meeting the applicable
regulations is on board.37
Fire extinguisher containerCheck the fire extinguisher container for damage. 37
Fire extinguisherCheck the condition of the fire extinguisher. 37
Hull and deckCheck the hull and deck for damage. 37
Jet intakeCheck the jet intake for damage and clogging. 37
HoodCheck that the hood is securely closed. 37
POST-LAUNCH CHECKS
Cooling water pilot outletCheck that water is discharged from the cooling wa-
ter pilot outlet while the engine is running.38
UF2F72E0.book Page 31 Friday, May 22, 2009 5:11 PM

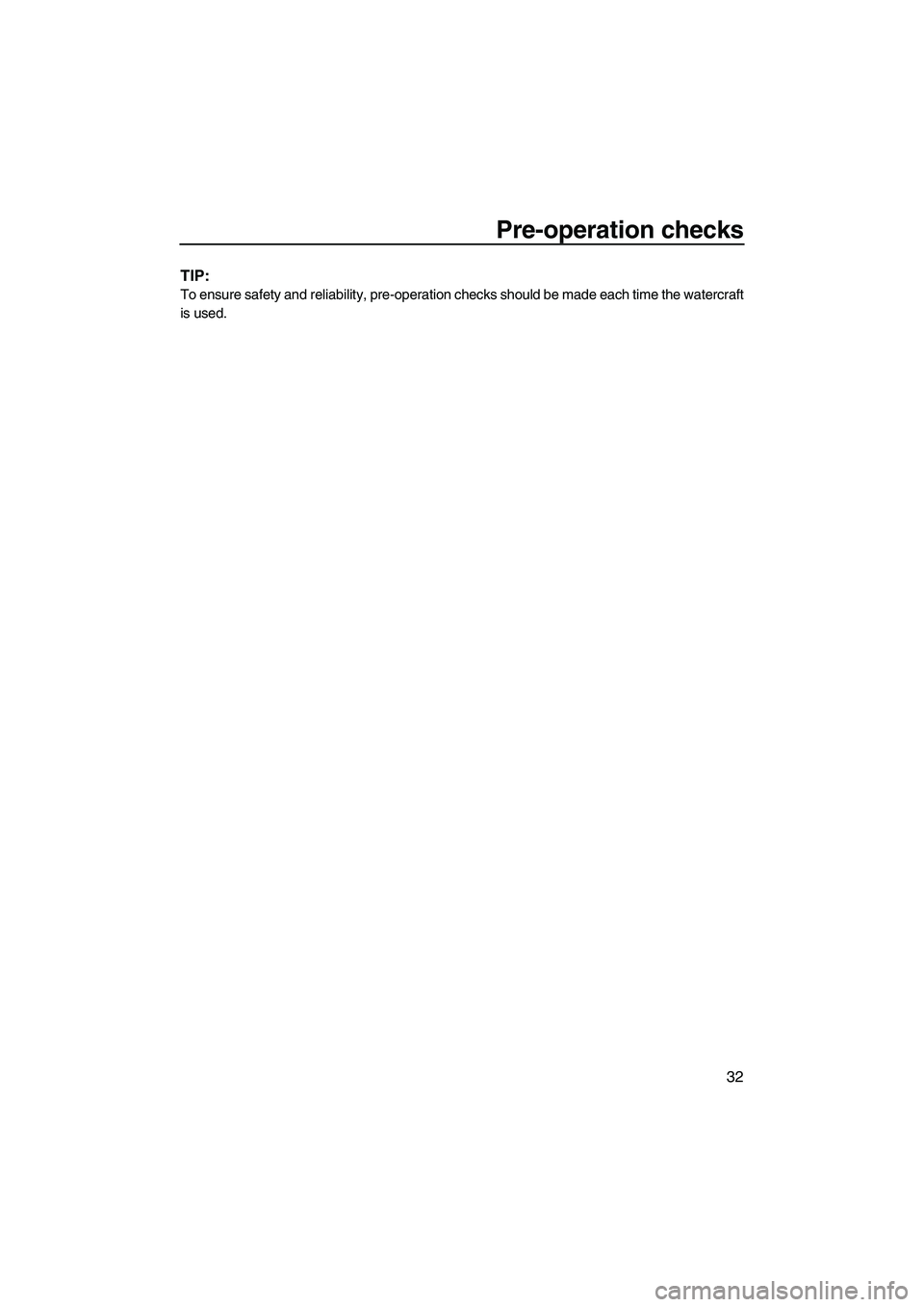

Pre-operation checks
32
TIP:
To ensure safety and reliability, pre-operation checks should be made each time the watercraft
is used.
UF2F72E0.book Page 32 Friday, May 22, 2009 5:11 PM

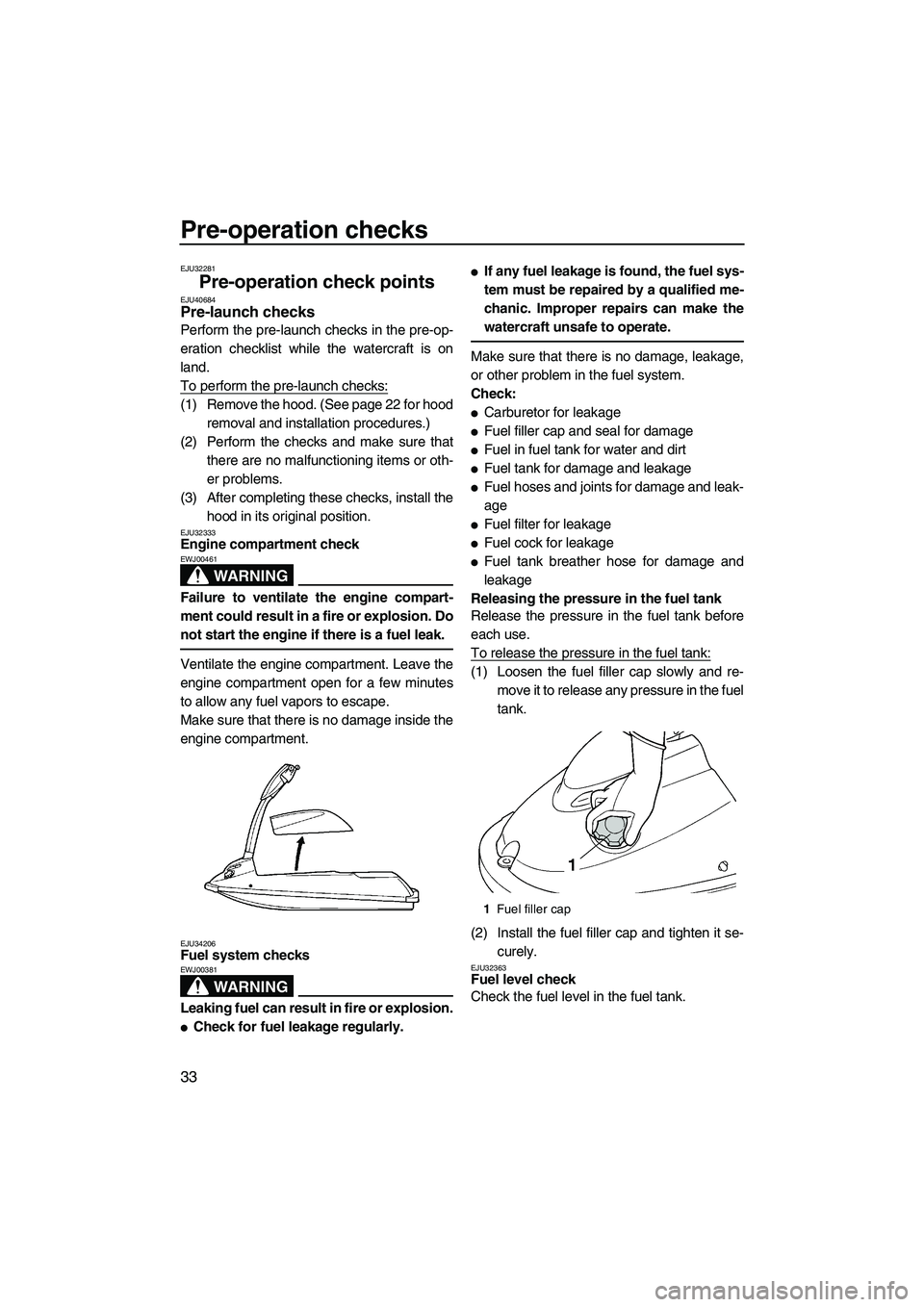

Pre-operation checks
33
EJU32281
Pre-operation check points EJU40684Pre-launch checks
Perform the pre-launch checks in the pre-op-
eration checklist while the watercraft is on
land.
To perform the pre-launch checks:
(1) Remove the hood. (See page 22 for hood
removal and installation procedures.)
(2) Perform the checks and make sure that
there are no malfunctioning items or oth-
er problems.
(3) After completing these checks, install the
hood in its original position.
EJU32333Engine compartment check
WARNING
EWJ00461
Failure to ventilate the engine compart-
ment could result in a fire or explosion. Do
not start the engine if there is a fuel leak.
Ventilate the engine compartment. Leave the
engine compartment open for a few minutes
to allow any fuel vapors to escape.
Make sure that there is no damage inside the
engine compartment.
EJU34206Fuel system checks
WARNING
EWJ00381
Leaking fuel can result in fire or explosion.

Check for fuel leakage regularly.

If any fuel leakage is found, the fuel sys-
tem must be repaired by a qualified me-
chanic. Improper repairs can make the
watercraft unsafe to operate.
Make sure that there is no damage, leakage,
or other problem in the fuel system.
Check:

Carburetor for leakage

Fuel filler cap and seal for damage

Fuel in fuel tank for water and dirt

Fuel tank for damage and leakage

Fuel hoses and joints for damage and leak-
age

Fuel filter for leakage

Fuel cock for leakage

Fuel tank breather hose for damage and
leakage
Releasing the pressure in the fuel tank
Release the pressure in the fuel tank before
each use.
To release the pressure in the fuel tank:
(1) Loosen the fuel filler cap slowly and re-
move it to release any pressure in the fuel
tank.
(2) Install the fuel filler cap and tighten it se-
curely.
EJU32363Fuel level check
Check the fuel level in the fuel tank.
1Fuel filler cap
UF2F72E0.book Page 33 Friday, May 22, 2009 5:11 PM
