YAMAHA SUV 1200 2002 Owners Manual

4-16
E
NOTE:@
Wipe off any water on the spark plug or
inside the cap before installing the spark
plug cap. Push the spark plug cap down
until it clicks.

If a torque wrench is not available when
you are fitting a new spark plug, a good
estimate of the correct torque is 1/4 turn
to 1/2 turn past finger tight. Have the
spark plug adjusted to the correct torque
with a torque wrench as soon as possible.
@
WARNING@ Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks
to escape, which could lead to explosion
or fire.
@
EJU01326
Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.
Recommended water-resistant grease:
Yamaha Marine Grease/
Yamaha Grease A

Throttle cable (carburetor end)

Oil pump cable

Choke cable (carburetor end)
UGU571.book Page 16 Tuesday, July 10, 2001 2:25 PM

4-17
E

Throttle cable (handlebar end)
Squeeze the throttle lever and remove the
seal 1. Spray a rust inhibitor into the outer
cable. Refit the seal securely.

Steering cable (handlebar end)

Steering cable (nozzle end)

Nozzle pivot shaft

QSTS cable (nozzle end)

QSTS cables (pulley end)
UGU571.book Page 17 Tuesday, July 10, 2001 2:25 PM

4-18
E

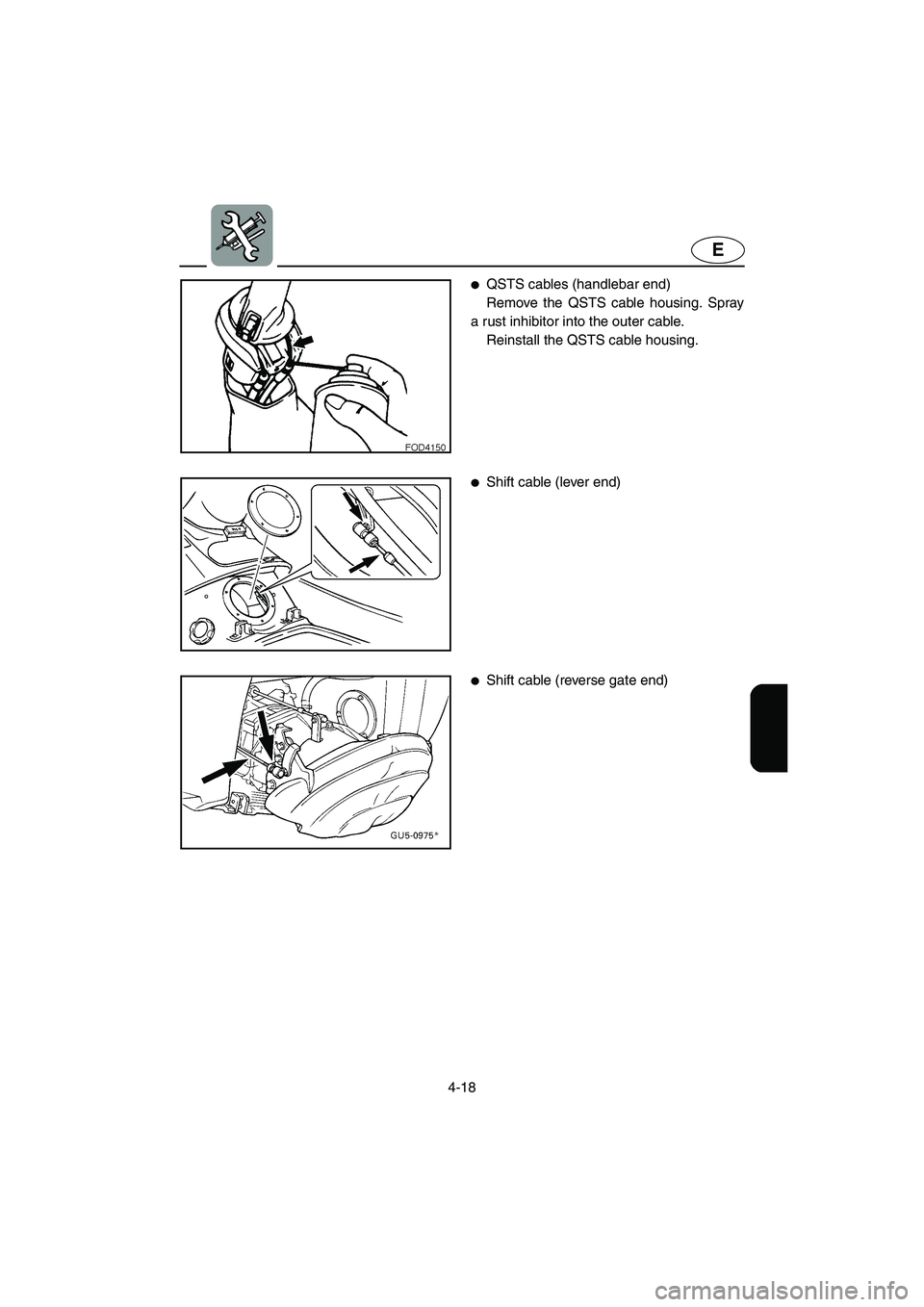

QSTS cables (handlebar end)
Remove the QSTS cable housing. Spray
a rust inhibitor into the outer cable.
Reinstall the QSTS cable housing.

Shift cable (lever end)

Shift cable (reverse gate end)
UGU571.book Page 18 Tuesday, July 10, 2001 2:25 PM

4-19
E

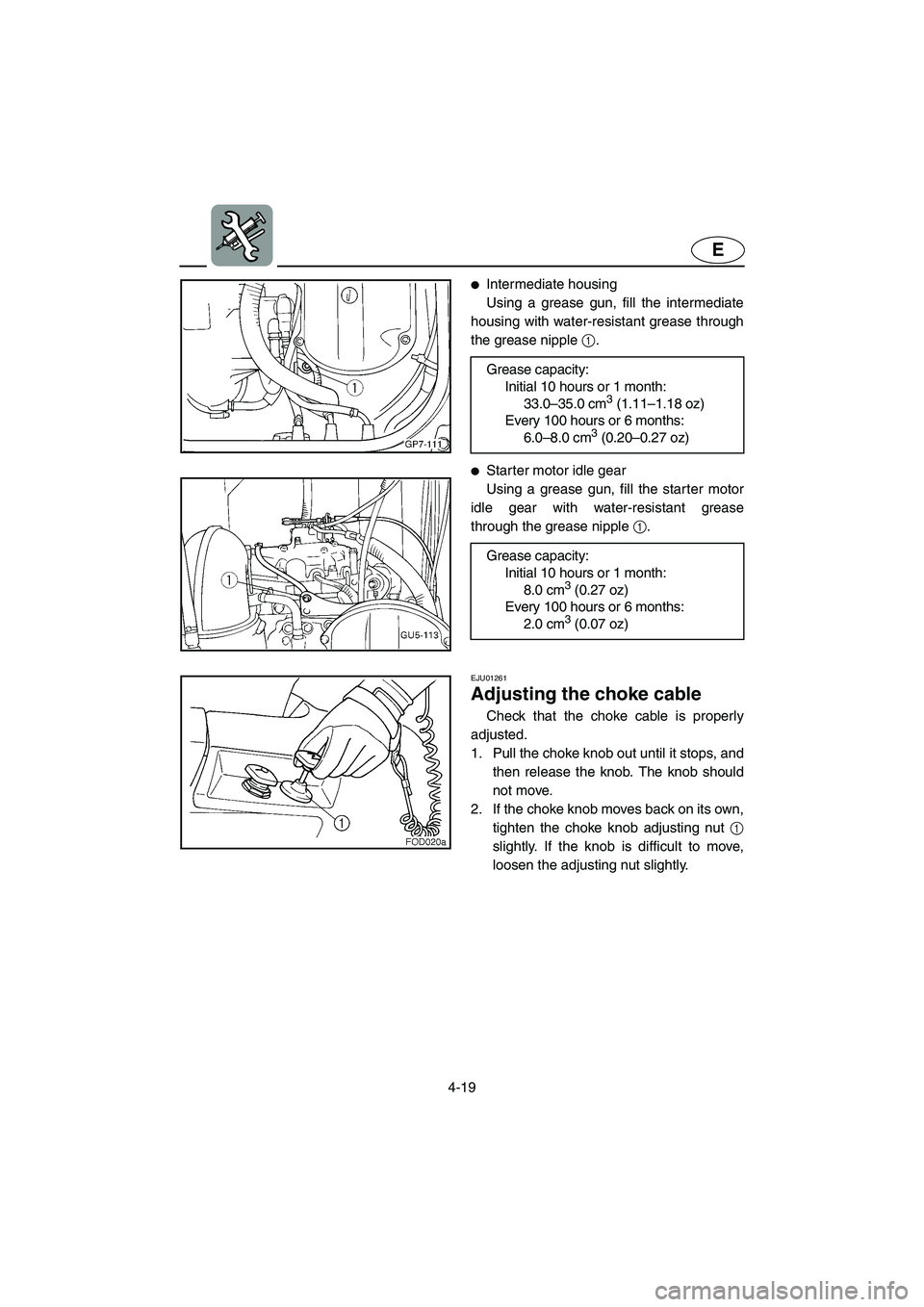

Intermediate housing
Using a grease gun, fill the intermediate
housing with water-resistant grease through
the grease nipple 1.

Starter motor idle gear
Using a grease gun, fill the starter motor
idle gear with water-resistant grease
through the grease nipple 1. Grease capacity:
Initial 10 hours or 1 month:
33.0–35.0 cm
3 (1.11–1.18 oz)
Every 100 hours or 6 months:
6.0–8.0 cm
3 (0.20–0.27 oz)
Grease capacity:
Initial 10 hours or 1 month:
8.0 cm
3 (0.27 oz)
Every 100 hours or 6 months:
2.0 cm
3 (0.07 oz)
EJU01261
Adjusting the choke cable
Check that the choke cable is properly
adjusted.
1. Pull the choke knob out until it stops, and
then release the knob. The knob should
not move.
2. If the choke knob moves back on its own,
tighten the choke knob adjusting nut 1
slightly. If the knob is difficult to move,
loosen the adjusting nut slightly.
UGU571.book Page 19 Tuesday, July 10, 2001 2:25 PM

4-20
E
EJU01108

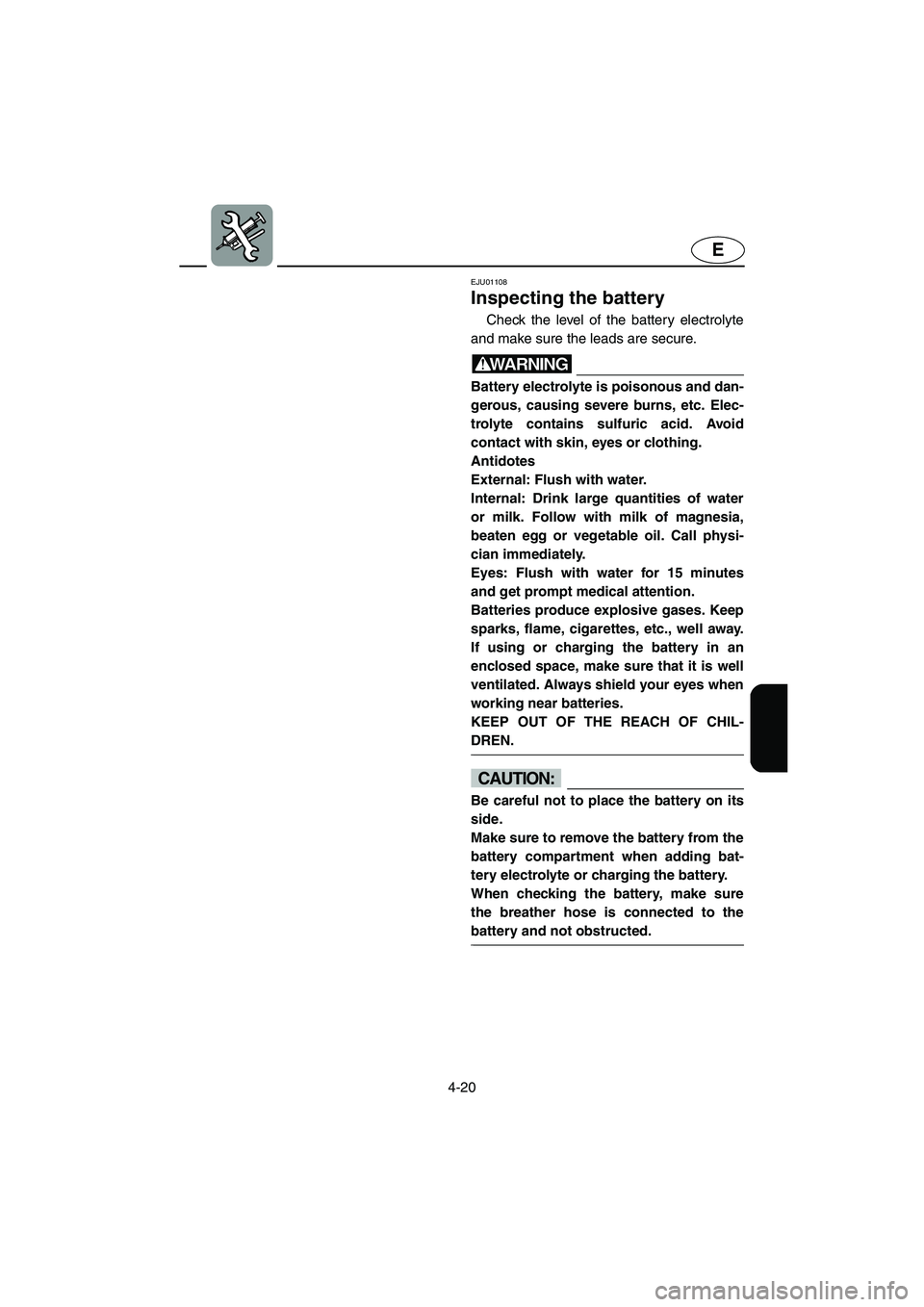

Inspecting the battery
Check the level of the battery electrolyte
and make sure the leads are secure.
WARNING@ Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes or clothing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg or vegetable oil. Call physi-
cian immediately.
Eyes: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes, etc., well away.
If using or charging the battery in an
enclosed space, make sure that it is well
ventilated. Always shield your eyes when
working near batteries.
KEEP OUT OF THE REACH OF CHIL-
DREN.
@
CAUTION:@ Be careful not to place the battery on its
side.
Make sure to remove the battery from the
battery compartment when adding bat-
tery electrolyte or charging the battery.
When checking the battery, make sure
the breather hose is connected to the
battery and not obstructed.
@
UGU571.book Page 20 Tuesday, July 10, 2001 2:25 PM

4-21
E

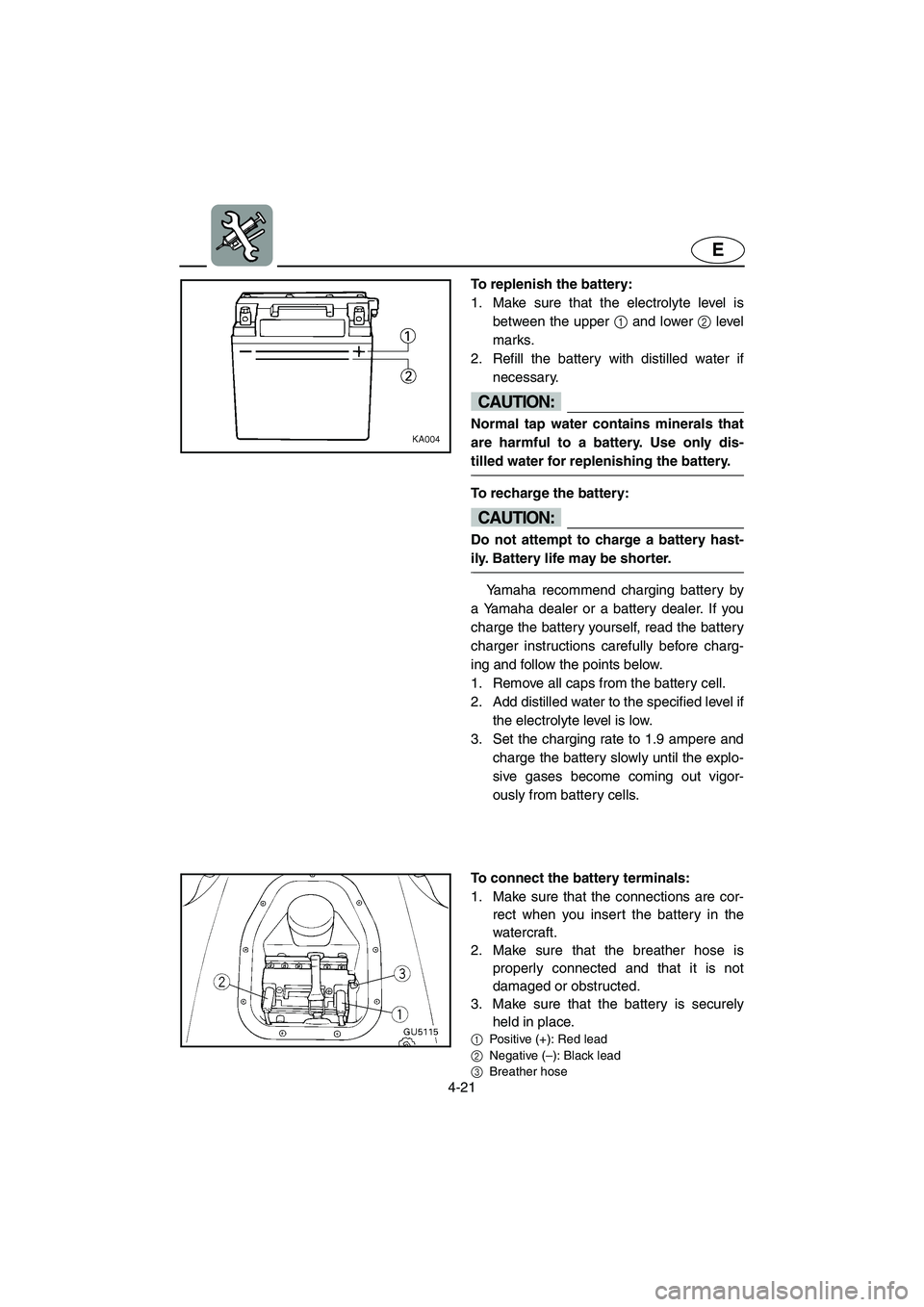

To replenish the battery:
1. Make sure that the electrolyte level is
between the upper 1 and lower 2 level
marks.
2. Refill the battery with distilled water if
necessary.
CAUTION:@ Normal tap water contains minerals that
are harmful to a battery. Use only dis-
tilled water for replenishing the battery.
@
To recharge the battery:
CAUTION:@ Do not attempt to charge a battery hast-
ily. Battery life may be shorter.
@
Yamaha recommend charging battery by
a Yamaha dealer or a battery dealer. If you
charge the battery yourself, read the battery
charger instructions carefully before charg-
ing and follow the points below.
1. Remove all caps from the battery cell.
2. Add distilled water to the specified level if
the electrolyte level is low.
3. Set the charging rate to 1.9 ampere and
charge the battery slowly until the explo-
sive gases become coming out vigor-
ously from battery cells.
To connect the battery terminals:
1. Make sure that the connections are cor-
rect when you insert the battery in the
watercraft.
2. Make sure that the breather hose is
properly connected and that it is not
damaged or obstructed.
3. Make sure that the battery is securely
held in place.
1Positive (+): Red lead
2Negative (–): Black lead
3Breather hose
UGU571.book Page 21 Tuesday, July 10, 2001 2:25 PM

4-22
E
EJU01109
Adjusting the carburetor
The carburetor is a vital part of the engine
and requires very sophisticated adjustment.
Most adjusting should be left to a Yamaha
dealer who has the professional knowledge
and experience to perform it. However, the
operator may adjust the trolling speed as
part of the usual maintenance routine.
CAUTION:@ The carburetor was set at the Yamaha
factory after many tests. If the settings
are disturbed by someone who does not
have the necessary technical knowledge,
poor engine performance and damage
may result.
@
EJU01262
Adjusting the trolling speed
1. Put the watercraft in the water.
2. Start the engine and warm it up for 1 or 2
minutes. Using a diagnostic tachometer
or, if necessary, the tachometer in the
multifunction meter, adjust the engine
speed to specification.
3. Turn the throttle stop screw 1 clockwise
to increase engine speed if necessary.
Turn it counterclockwise to decrease
engine speed if necessary.
Trolling speed: 1,250–1,350 r/min
UGU571.book Page 22 Tuesday, July 10, 2001 2:25 PM

4-23
E
EJU01263
Replacing the fuse
The fuse is in the electrical box 1.
To replace the fuse:
1. Remove the cap 2, pull out the red lead,
and bring the fuse holder 3 out of the
electrical box.
2. Open the fuse holder and replace the
fuse 4 with one of the correct amper-
age.
WARNING@ Do not use fuses of higher amperage that
those recommended. Substitution of a
fuse of improper rating can cause exten-
sive electrical system damage and possi-
ble fire.
@
Fuse amperage: 10 A
EJU01112
Bleeding the oil injection
pump
If the oil tank becomes completely empty,
or any hose connected to the oil pump has
been disconnected, the oil pump must be
bled to ensure proper oil flow.
If bleeding of the oil pump is necessary,
have a Yamaha dealer bleed it.
UGU571.book Page 23 Tuesday, July 10, 2001 2:25 PM

4-24
E
EJU01366
Specifications
MODEL
ITEMUnit SUV1200
WATERCRAFT CAPACITY
Maximum people on board Number of people 4
Maximum load capacity kg (lb) 300 (662)
DIMENSIONS
Length mm (in) 3,850 (151.6)
Width mm (in) 1,510 (59.4)
Height mm (in) 1,140 (44.9)
Dry weight kg (lb) 370 (816)
PERFORMANCE
Maximum output kW (PS) @ r/min 99.3 (135)@ 6,750
Maximum fuel consumption L/h (US gal/h, Imp gal/h) 53.0 (14.0, 11.7)
Cruising range at full throttle hr. 1.3
Trolling speed r/min 1,250–1,350
ENGINE
Engine type 2-stroke
Number of cylinders 3
Engine displacement
cm
3 (cu in)1,131 (69.02)
Bore & stroke mm (in) 84 ×
68 (3.31 ×
2.68)
Compression ratio 6.0:1
Lubrication system Oil injection
Cooling system Water cooled
Starting system Electric starter
Ignition system Digital CDI
Spark plug BR8HS (NGK)
Spark plug gap mm (in) 0.6–0.7 (0.024–0.028)
Battery capacity V-AH 12-19
Charging system Flywheel magneto
DRIVE UNIT
Propulsion system Jet pump
Jet pump type Axial flow, single stage
Impeller rotation Counterclockwise (viewed from rear)
Transmission Direct drive from engine
Jet thrust nozzle angle Degree 26 + 26
Trim nozzle angle Degree -7, -2, 3, 8, 13
FUEL AND OIL
Recommended fuel Regular unleaded gasoline
Minimum octane rating PON
RON86
90
Recommended engine oil YAMALUBE 2-W, or an equivalent NMMA-
certified TC-W3 marine oil
Fuel tank capacity
Total L (US gal, Imp gal) 70 (18.5, 15.4)
Reserve L (US gal, Imp gal) 12 (3.17, 2.64)
Oil tank capacity L (US gal, Imp gal) 5.5 (1.45, 1.21)
UGU571.book Page 24 Tuesday, July 10, 2001 2:25 PM

E

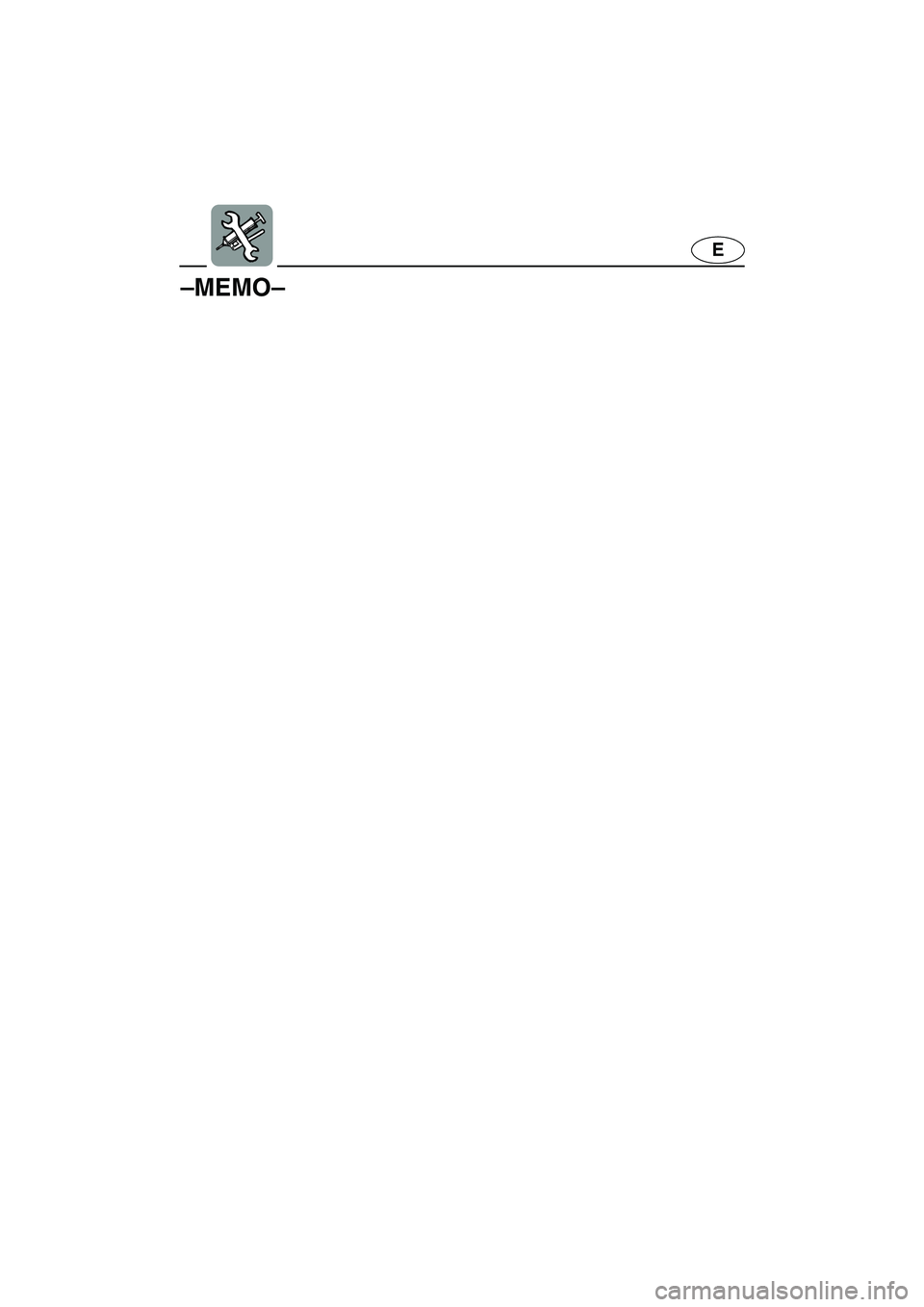

–MEMO–
