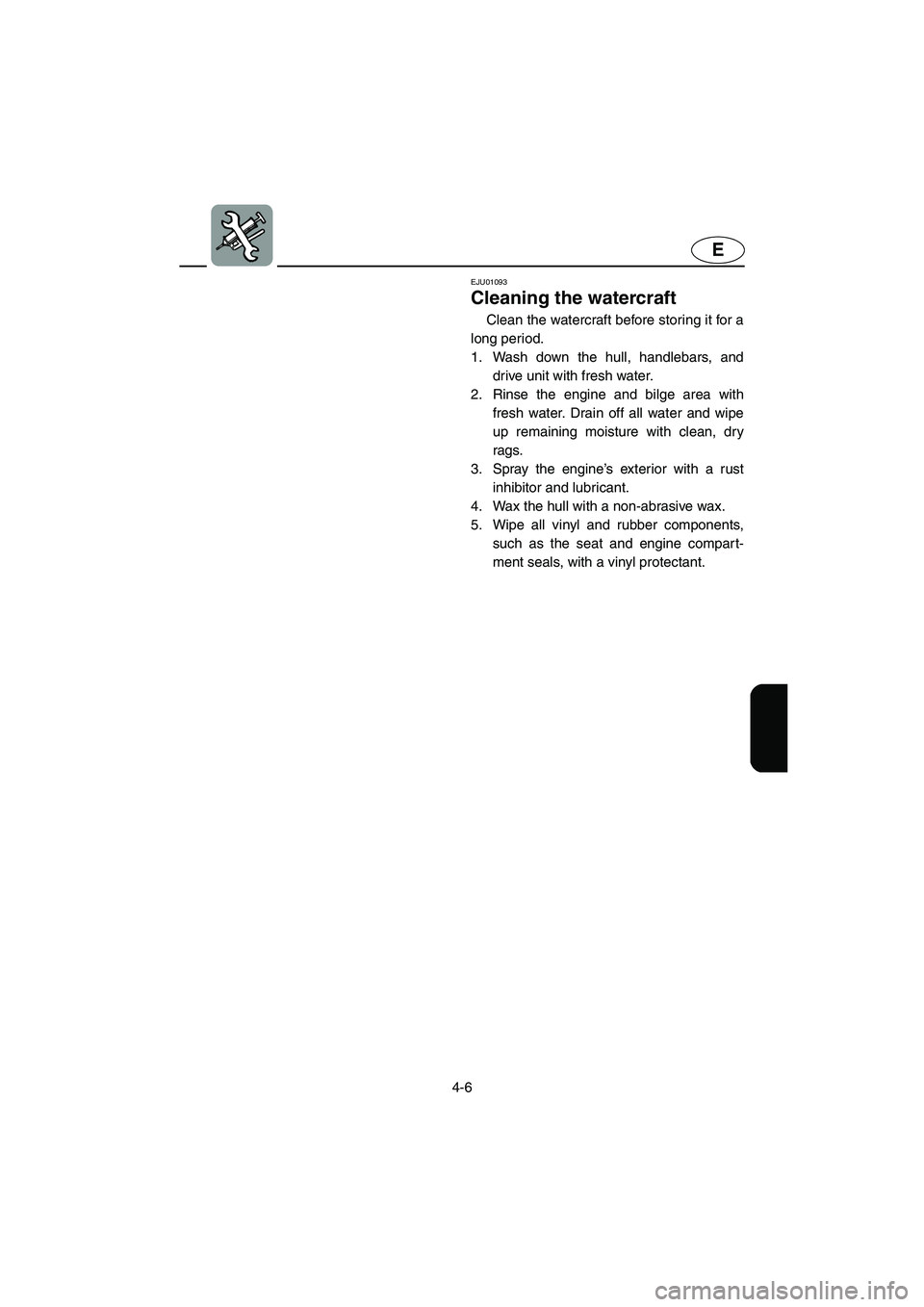

Cleaning the watercraft
Clean the watercraft before storing it for a
long period.
1. Wash down the hull, handlebars, and
drive unit with fresh water.
2. Rinse the engine and bilge area with
fresh water. Drain off all water and wipe
up remaining moisture with clean, dry
rags.
3. Spray the engine’s exterior with a rust
inhibitor and lubricant.
4. Wax the hull with a non-abrasive wax.
5. Wipe all vinyl and rubber components,
such as the seat and engine compart-
ment seals, with a vinyl protectant.
UGU571.book Page 6 Tuesday, July 10, 2001 2:25 PM

4-7
E
EJU01094
Maintenance and
adjustments
Periodic inspection, adjustment and lubri-
cation will keep your watercraft in the safest
and most efficient condition possible. Safety
is an obligation of the watercraft owner. The
most important points of watercraft inspec-
tion, adjustment and lubrication are
explained on the following pages.
See your Yamaha dealer for genuine
Yamaha replacement parts and optional
accessories designed for your watercraft.
Remember that failures that are the result
of the installation of parts or accessories
which are not qualitatively equivalent to gen-
uine Yamaha parts are not covered by the
limited warranty.
WARNING@
Be sure to turn off the engine when
you perform maintenance unless oth-
erwise specified, otherwise an acci-
dent or injury could result from
unexpected operation, moving parts,
or electric shock. If the owner is not
familiar with watercraft servicing, this
work should be done by a Yamaha
dealer. Improperly serviced compo-
nents could fail or stop operating cor-
rectly, which could result in an
accident.

Modifications to this watercraft not
approved by Yamaha may cause loss
of performance or excessive noise, or
render it unsafe for use. Consult a
Yamaha dealer before attempting any
changes.
@
UGU571.book Page 7 Tuesday, July 10, 2001 2:25 PM

4-8
E
EJU01095
Owner’s/Operator’s Manual
and tool kit
It is advisable always to carry the
Owner’s/Operator’s Manual and tool kit 2
with you whenever you use the watercraft.
For your convenience, a storage compart-
ment 1 is provided on the watercraft for the
manual and tool kit.
NOTE:@ To protect these materials from water dam-
age, it would be a good idea to put them in a
waterproof bag.
@
The service information included in this
manual is intended to provide you with the
necessary information for completing your
own preventive maintenance and minor
repairs. The tools provided in the tool kit are
sufficient for this purpose. However, a torque
wrench may also be necessary to tighten
nuts and bolts.
UGU571.book Page 8 Tuesday, July 10, 2001 2:25 PM

4-9
E
EJU01358
Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, depend-
ing on your operating conditions maintenance may need to be performed more frequently.
(

) This mark indicates maintenance that you may do yourself.
(
❍) This mark indicates work to be done by a Yamaha dealer.
*1: Grease capacity: 33.0–35.0 cm3 (1.11–1.18 oz)
*2: Grease capacity: 6.0–8.0 cm3 (0.20–0.27 oz)
*3: Grease capacity: 8.0 cm3 (0.27 oz)
*4: Grease capacity: 2.0 cm3 (0.07 oz)
MAINTENANCE INTERVAL INITIALTHEREAFTER
EVERYPA G E
10
hours50
hours100
hours100
hours200
hours
ITEM
3
months6
months6
months12
months
Spark plug Inspect, clean, adjust




4-15
Lubrication points Lubricate


4-16
Intermediate housing Lubricate❍
*1

*2

*2 4-19
Starter motor idle gear Lubricate❍
*3

*4

*4 4-19
Fuel system Inspect❍❍
4-10
Fuel filter Check, replace❍❍
4-11
Fuel tank Clean❍
4-11
Oil injection system Inspect, clean❍❍
—
Carburetor setting Inspect, adjust❍❍❍
4-22
Trolling speed Adjust


4-22
Carburetor throttle shaft Inspect❍❍
—
Cooling water passages Flush


(after
ever y
use)4-1
Bilge strainer Clean



—
Impeller Inspect



5-4
Steering cable Inspect


4-13
Steering master Inspect❍❍❍
—
QSTS mechanism Inspect


4-14
Shift cable and mechanism Inspect, adjust


4-13
Throttle cable Inspect, adjust


4-13
Choke cable Inspect, adjust


4-19
Stern drain plugs Inspect, replace

3-7
Battery Inspect


(inspect
fluid level
before
ever y
use)
4-20
Rubber coupling Inspect❍
—
Nuts and bolts Tighten❍❍❍
—
UGU571.book Page 9 Tuesday, July 10, 2001 2:25 PM

4-10
E
EJU01383

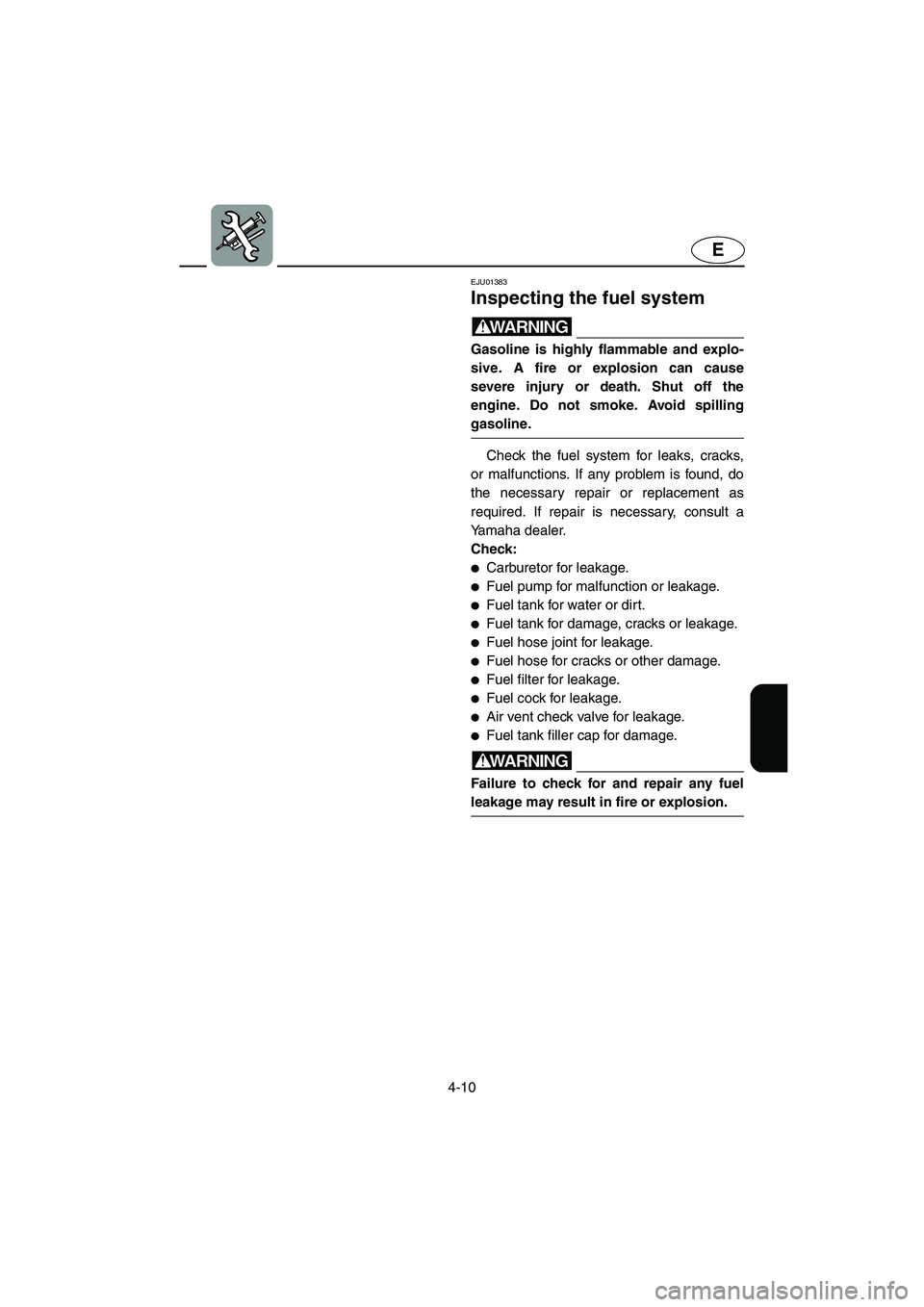

Inspecting the fuel system
WARNING@ Gasoline is highly flammable and explo-
sive. A fire or explosion can cause
severe injury or death. Shut off the
engine. Do not smoke. Avoid spilling
gasoline.
@
Check the fuel system for leaks, cracks,
or malfunctions. If any problem is found, do
the necessary repair or replacement as
required. If repair is necessary, consult a
Yamaha dealer.
Check:

Carburetor for leakage.

Fuel pump for malfunction or leakage.

Fuel tank for water or dirt.

Fuel tank for damage, cracks or leakage.

Fuel hose joint for leakage.

Fuel hose for cracks or other damage.

Fuel filter for leakage.

Fuel cock for leakage.

Air vent check valve for leakage.

Fuel tank filler cap for damage.
WARNING@ Failure to check for and repair any fuel
leakage may result in fire or explosion.
@
UGU571.book Page 10 Tuesday, July 10, 2001 2:25 PM

4-11
E
EJU01098

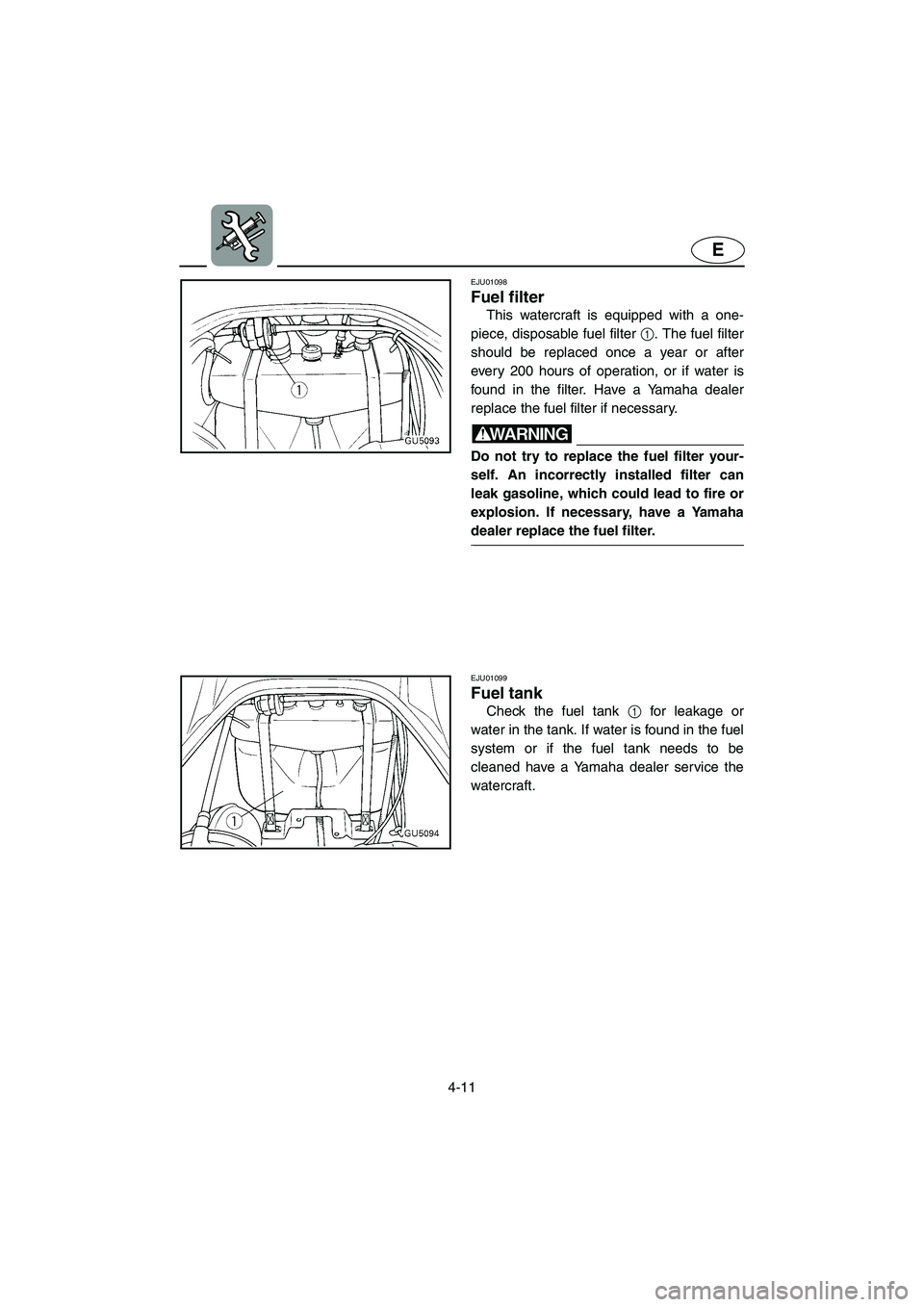

Fuel filter
This watercraft is equipped with a one-
piece, disposable fuel filter 1. The fuel filter
should be replaced once a year or after
every 200 hours of operation, or if water is
found in the filter. Have a Yamaha dealer
replace the fuel filter if necessary.
WARNING@ Do not try to replace the fuel filter your-
self. An incorrectly installed filter can
leak gasoline, which could lead to fire or
explosion. If necessary, have a Yamaha
dealer replace the fuel filter.
@
EJU01099
Fuel tank
Check the fuel tank 1 for leakage or
water in the tank. If water is found in the fuel
system or if the fuel tank needs to be
cleaned have a Yamaha dealer service the
watercraft.
UGU571.book Page 11 Tuesday, July 10, 2001 2:25 PM

4-12
E
EJU01100

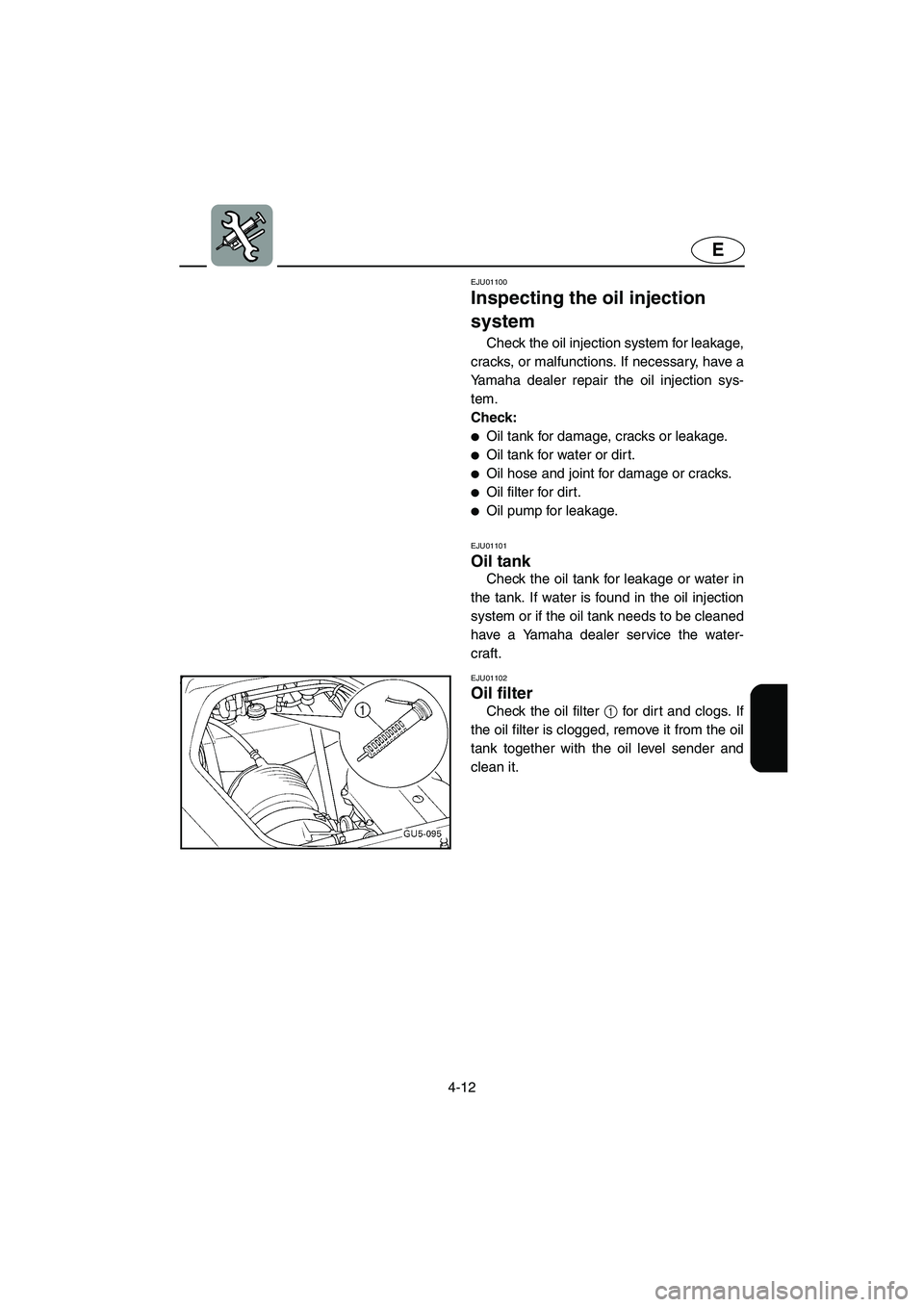

Inspecting the oil injection
system
Check the oil injection system for leakage,
cracks, or malfunctions. If necessary, have a
Yamaha dealer repair the oil injection sys-
tem.
Check:

Oil tank for damage, cracks or leakage.

Oil tank for water or dirt.

Oil hose and joint for damage or cracks.

Oil filter for dirt.

Oil pump for leakage.
EJU01101
Oil tank
Check the oil tank for leakage or water in
the tank. If water is found in the oil injection
system or if the oil tank needs to be cleaned
have a Yamaha dealer service the water-
craft.
EJU01102
Oil filter
Check the oil filter 1 for dirt and clogs. If
the oil filter is clogged, remove it from the oil
tank together with the oil level sender and
clean it.
UGU571.book Page 12 Tuesday, July 10, 2001 2:25 PM

4-13
E
EJU01258

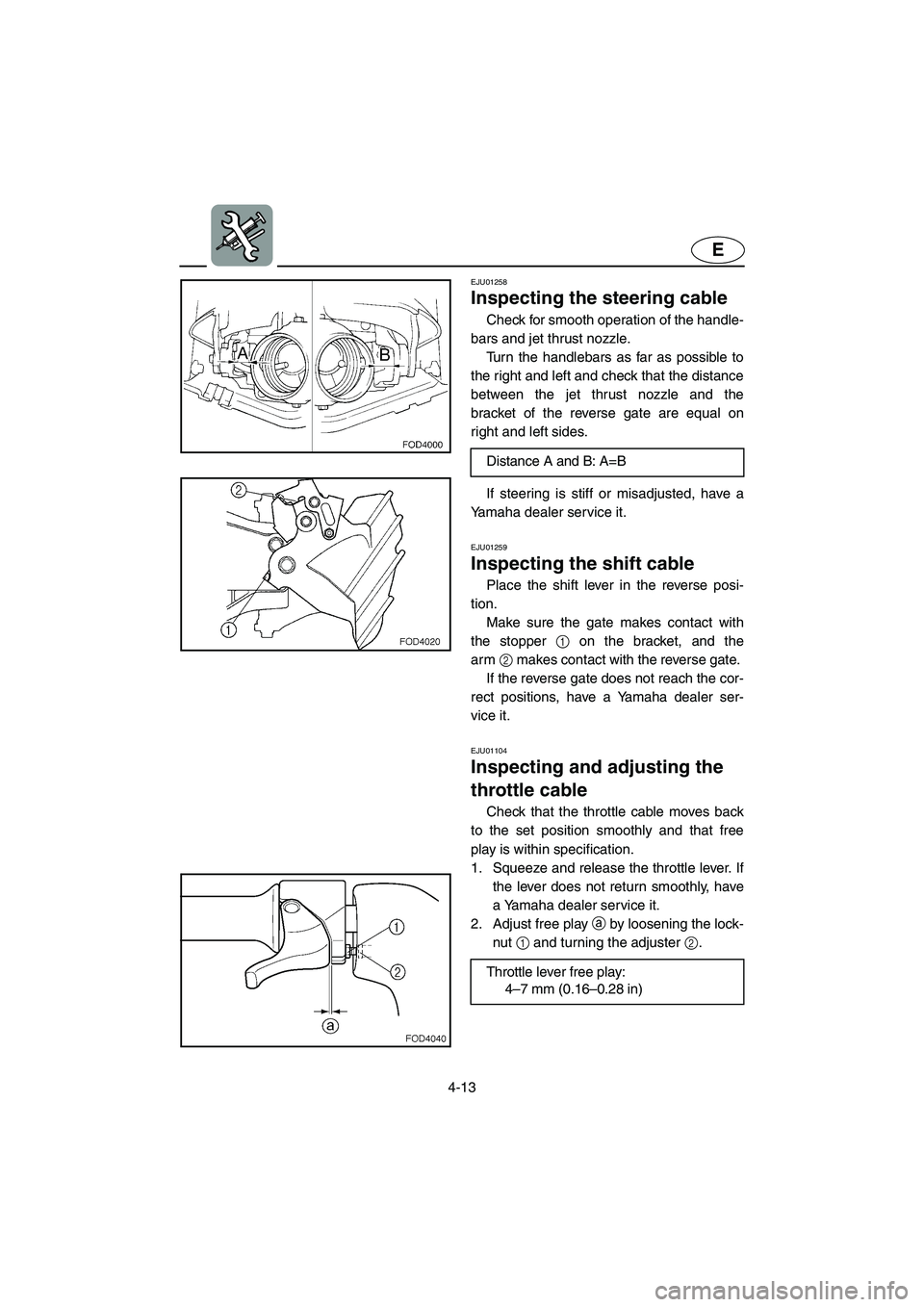

Inspecting the steering cable
Check for smooth operation of the handle-
bars and jet thrust nozzle.
Turn the handlebars as far as possible to
the right and left and check that the distance
between the jet thrust nozzle and the
bracket of the reverse gate are equal on
right and left sides.
If steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU01259
Inspecting the shift cable
Place the shift lever in the reverse posi-
tion.
Make sure the gate makes contact with
the stopper 1 on the bracket, and the
arm2 makes contact with the reverse gate.
If the reverse gate does not reach the cor-
rect positions, have a Yamaha dealer ser-
vice it.
EJU01104
Inspecting and adjusting the
throttle cable
Check that the throttle cable moves back
to the set position smoothly and that free
play is within specification.
1. Squeeze and release the throttle lever. If
the lever does not return smoothly, have
a Yamaha dealer service it.
2. Adjust free play a by loosening the lock-
nut 1 and turning the adjuster 2. Distance A and B: A=B
Throttle lever free play:
4–7 mm (0.16–0.28 in)
UGU571.book Page 13 Tuesday, July 10, 2001 2:25 PM

4-14
E
EJU01105

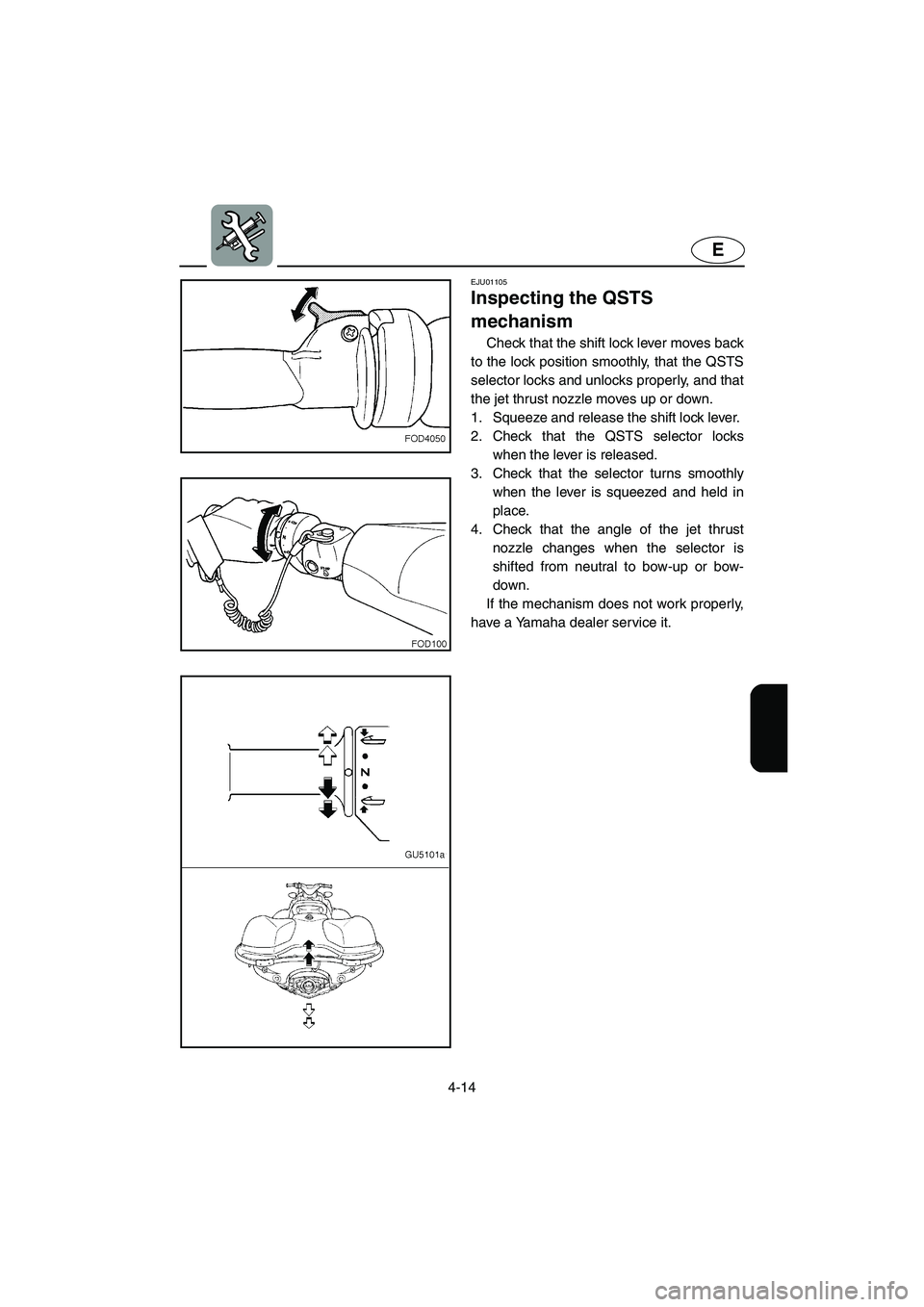

Inspecting the QSTS
mechanism
Check that the shift lock lever moves back
to the lock position smoothly, that the QSTS
selector locks and unlocks properly, and that
the jet thrust nozzle moves up or down.
1. Squeeze and release the shift lock lever.
2. Check that the QSTS selector locks
when the lever is released.
3. Check that the selector turns smoothly
when the lever is squeezed and held in
place.
4. Check that the angle of the jet thrust
nozzle changes when the selector is
shifted from neutral to bow-up or bow-
down.
If the mechanism does not work properly,
have a Yamaha dealer service it.
UGU571.book Page 14 Tuesday, July 10, 2001 2:25 PM

4-15
E
EJU01342
Cleaning and adjusting the
spark plugs
The spark plug is an important engine
component and is easy to inspect. The con-
dition of the spark plug can indicate some-
thing about the condition of the engine. For
example, if the center electrode porcelain is
very white, this could indicate an intake air
leak or carburetion problem in that cylinder.
Do not attempt to diagnose any problems
yourself. Have a Yamaha dealer service the
watercraft.
Remove and inspect the spark plug peri-
odically; heat and deposits will cause the
spark plug to slowly break down and erode.
If electrode erosion becomes excessive, or if
carbon and other deposits are excessive,
replace the spark plug with the specified
plug.
Measure the spark plug gap a with a
wire thickness gauge before installing the
spark plug. Adjust the gap to specification if
necessary.
To reinstall spark plug:
1. Clean the gasket surface.
2. Wipe any dirt from the threads of the
spark plug.
3. Screw the spark plug to the correct
torque. Standard spark plug: BR8HS
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Spark plug torque:
25 N·m (2.5 kgf·m, 18 ft·lb)
