6. The buzzer will sound twice. The warn-
ing light and “SET” blink for 2 seconds.
Then the display turns to “CLOCK” and
shows the time.
NOTE:@ If the battery terminal is disconnected, the
clock will be reset to 12:00.
@
EJU01230
Hour meter
The hour meter is provided to make it
easy to follow the maintenance schedule.
The meter shows how many hours of
engine operation have elapsed since the
watercraft was new.
To show the hour meter, press the
“MODE” button until the display shows
“HOUR.M” while the engine is running.
EJU01231
Trip timer
The trip timer is provided for counting the
time traveled on a given trip.
To show the trip timer, press the “MODE”
button until the display shows “TRIP.T” while
the engine is running.
1
Minutes
2
Seconds
1. When the display shows “TRIP.T,” press
the “A/SET” button to start counting. The
buzzer will sound once.
2. Press the “A/SET” button again to stop
counting. The buzzer will sound once.
3. Press “MODE” button for at least 2 sec-
onds to set the time back to 00:00.
The buzzer will sound twice. The time
display and “TRIP.T” blink for 2 seconds.
Now it is ready to start counting.
UGU571.book Page 24 Tuesday, July 10, 2001 2:25 PM

2-25
E
EJU01238
Tr i p m e t e r
A tripmeter is provided for measuring the
approximate distance traveled.
To show the tripmeter, press the “MODE”
button until the display shows “TRIP” while
the engine is running. After showing “TRIP,”
the display turns to “.KM.”
1. When the display shows “.KM,” press the
“MODE” button for at least 2 seconds.
2. The buzzer will sound twice. The warn-
ing light and “.KM” blink for 2 seconds,
and “000” is displayed. Now the meter
will start to measure the distance you
travel.
3. When the tripmeter begins measuring
the distance traveled, the “.” to the left of
“KM” on the display will blink.
NOTE:@ Measured distance may vary depending on
the water surface conditions, and wind direc-
tion. The measured distance should be used
for a reference.
@
EJU01232
Fuel warning indicator
If the fuel remaining in the tank drops to
about 17 L (4.5 US gal, 3.7 Imp gal), the
lowest fuel level segment, the fuel warning
indicator, “FUEL” and the warning light
begin to blink. The buzzer also starts sound-
ing intermittently.
UGU571.book Page 25 Tuesday, July 10, 2001 2:25 PM

2-26
E
EJU01233
Oil warning indicator
If the oil remaining in the tank drops to
about 1.4 L (0.37 US gal, 0.31 Imp gal) or
the oil filter is clogged, the lowest oil level
segment, the oil warning indicator, “OIL” and
the warning light begin to blink. The buzzer
also starts sounding intermittently.
If the oil warning indicator begins to blink,
refill with engine oil as soon as possible.
NOTE:@ If the warning indicator blinks with adequate
oil in the tank, check the oil filter for clog-
ging.
@
EJU01234
Engine overheat warning
indicator
If the engine starts to overheat, the over-
heat warning indicator, “W. T E M P” and the
warning light begin to blink. The buzzer also
starts sounding intermittently.
Refer to “Engine overheat warning sys-
tem” on page 2-17.
UGU571.book Page 26 Tuesday, July 10, 2001 2:25 PM

2-27
E
EJU01235
Battery warning indicator
If the battery voltage becomes less than
11.5 volts, the battery warning indicator,
“VOLT” and the warning light begin to blink.
The buzzer also starts sounding.
If this happens during operation, beach
the watercraft. Then recharge the battery
and have the charging system inspected by
a Yamaha dealer.
UGU571.book Page 27 Tuesday, July 10, 2001 2:25 PM

2-28
E
EJU01312
Storage compartments
A front storage compartment, a glove
compartment, and rear storage compart-
ments are provided.
NOTE:@
Make sure that the storage compartments
are properly secured before operating the
watercraft.

The storage compartments are not
designed to be waterproof. If you carry
objects that must be kept dry, such as the
manuals, put them in a waterproof bag.
@
EJU01313
Front storage compartment
The front storage compartment 2 is
located at the bow.
To open the front storage compartment,
pull the hood latch 1 up, and then open the
hood.
To close the front storage compartment,
push down on the rear of the hood until it
latches securely.
WARNING@
The front storage compartment is not
ventilated. Fuel vapors can be a fire or
explosion hazard. To avoid injury or
death, do not store fuel or flammable
liquids inside.

Cargo should not exceed 15 kg (33 lb)
in the front storage compartment.
@
NOTE:@ Make sure that the front storage compart-
ment is properly secured before operating
the watercraft.
@
Front storage compartment:
Capacity: 120 L (31.7 US gal, 26.4 Imp gal)
Load limit: 15 kg (33 lb)
UGU571.book Page 28 Tuesday, July 10, 2001 2:25 PM

2-29
E
EJU01038

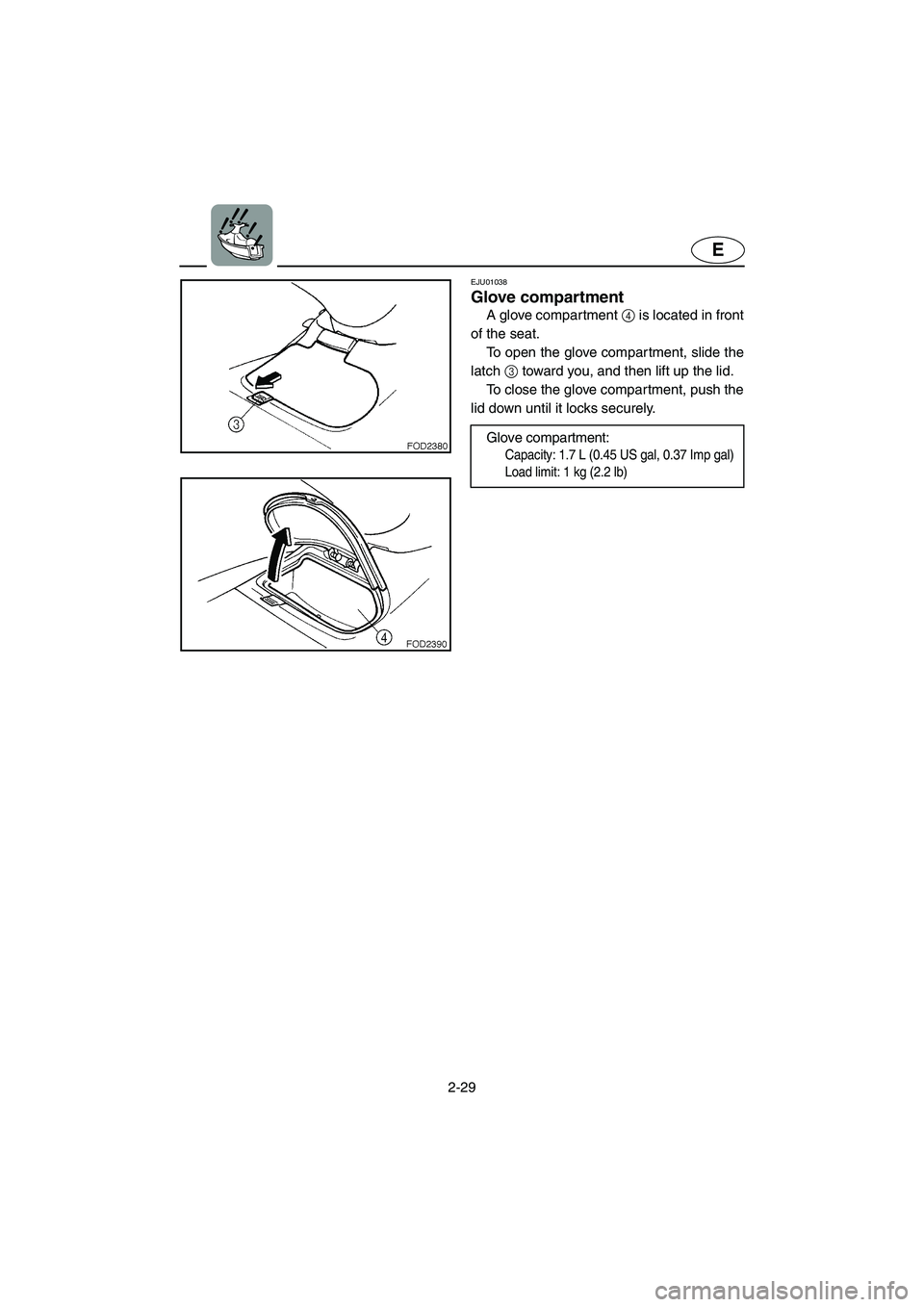

Glove compartment
A glove compartment 4 is located in front
of the seat.
To open the glove compartment, slide the
latch 3 toward you, and then lift up the lid.
To close the glove compartment, push the
lid down until it locks securely.
Glove compartment:
Capacity: 1.7 L (0.45 US gal, 0.37 Imp gal)
Load limit: 1 kg (2.2 lb)
UGU571.book Page 29 Tuesday, July 10, 2001 2:25 PM

2-30
E
EJU01314

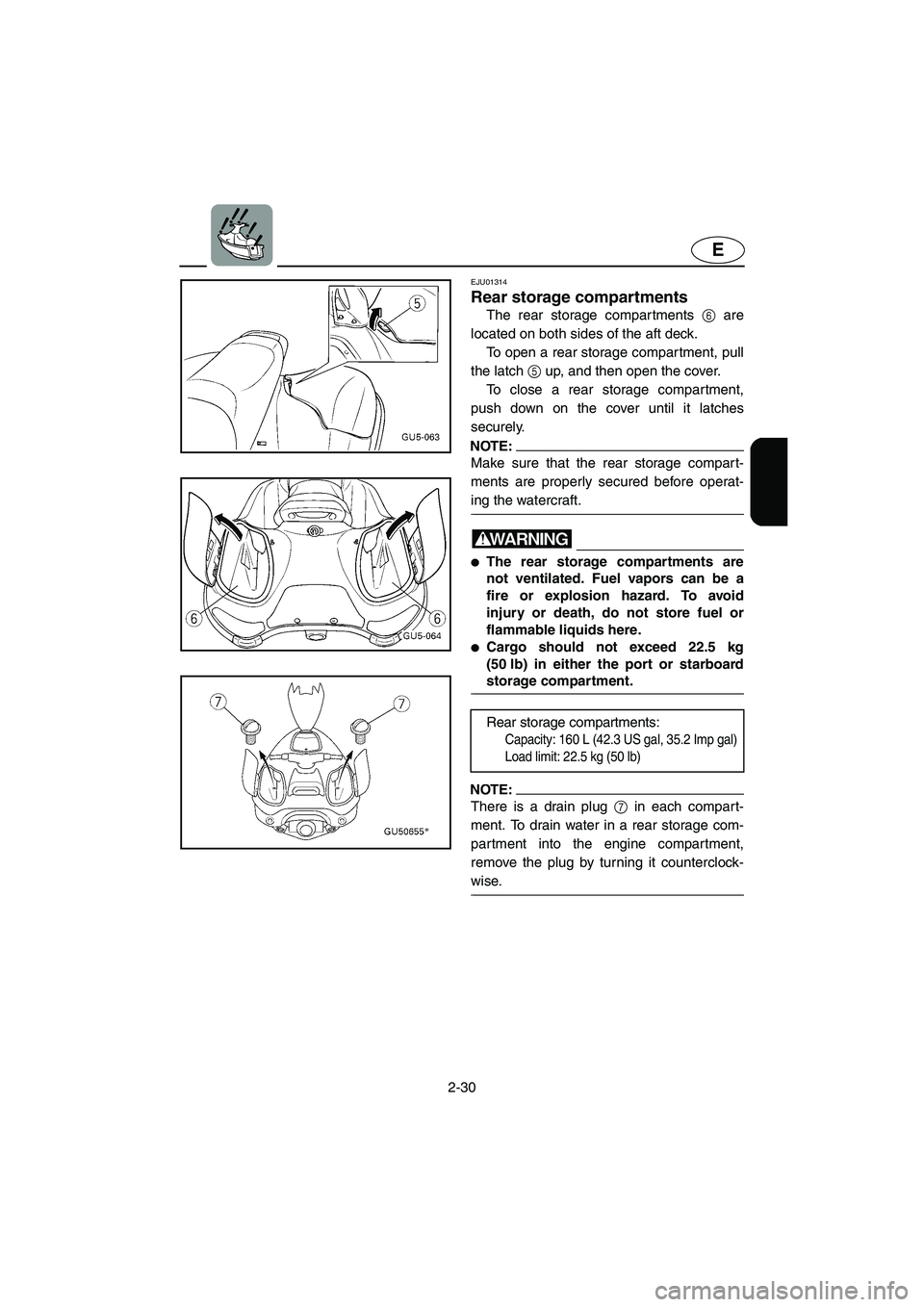

Rear storage compartments
The rear storage compartments 6 are
located on both sides of the aft deck.
To open a rear storage compartment, pull
the latch 5 up, and then open the cover.
To close a rear storage compartment,
push down on the cover until it latches
securely.
NOTE:@ Make sure that the rear storage compart-
ments are properly secured before operat-
ing the watercraft.
@
WARNING@
The rear storage compartments are
not ventilated. Fuel vapors can be a
fire or explosion hazard. To avoid
injury or death, do not store fuel or
flammable liquids here.

Cargo should not exceed 22.5 kg
(50 lb) in either the port or starboard
storage compartment.
@
NOTE:@ There is a drain plug 7 in each compart-
ment. To drain water in a rear storage com-
partment into the engine compartment,
remove the plug by turning it counterclock-
wise.
@
Rear storage compartments:
Capacity: 160 L (42.3 US gal, 35.2 Imp gal)
Load limit: 22.5 kg (50 lb)
UGU571.book Page 30 Tuesday, July 10, 2001 2:25 PM

E

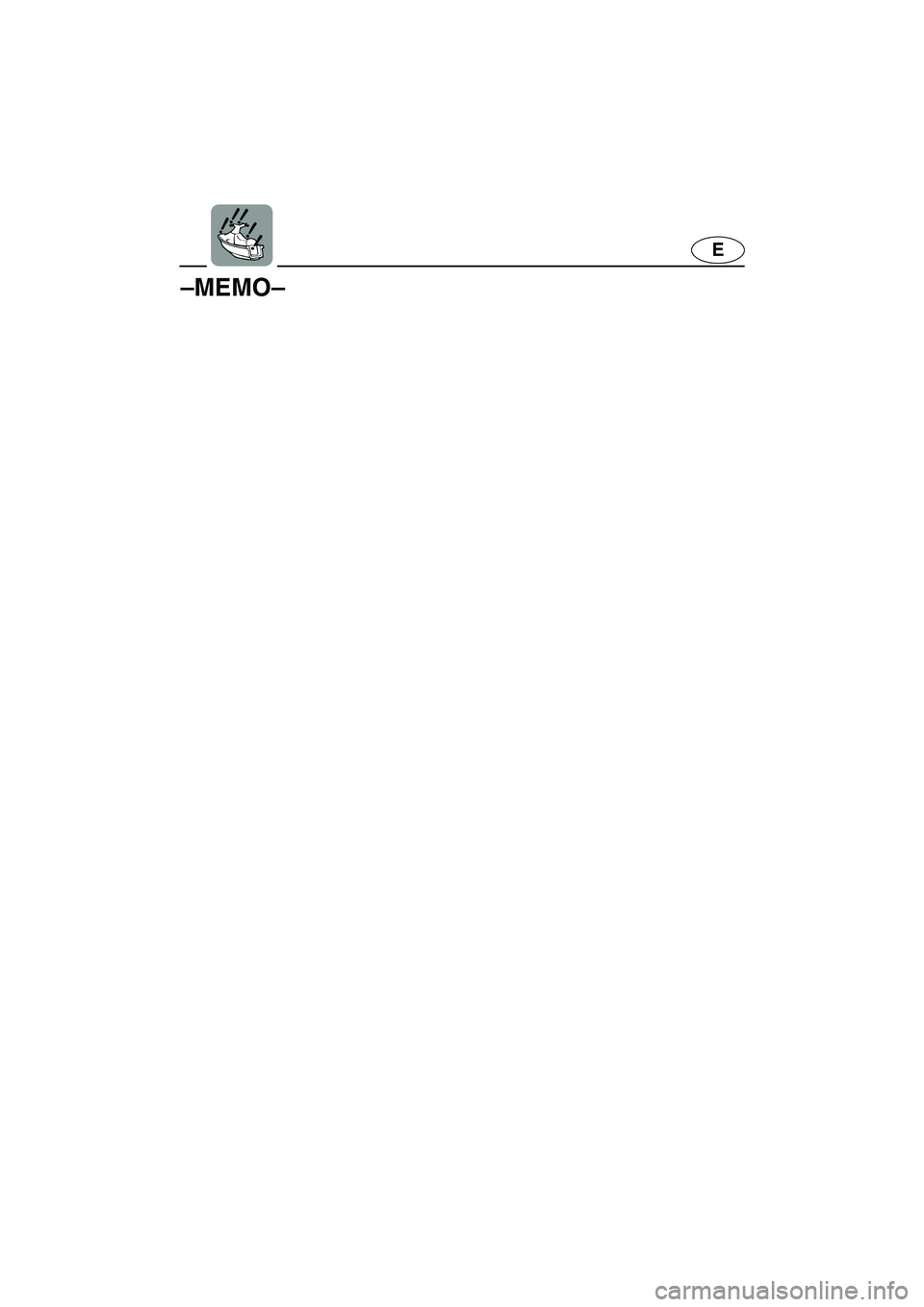

–MEMO–
UGU571.book Page 31 Tuesday, July 10, 2001 2:25 PM

E
3
EJU01040
OPERATION
Fuel and oil ............................................... 3-1
Gasoline ................................................. 3-1
Filling the fuel tank ................................. 3-3
2-stroke engine oil .................................. 3-3
Filling the oil tank ................................... 3-4
Pre-operation checks .............................. 3-5
Pre-operation check list ......................... 3-5
Pre-operation check points .................... 3-6
Operation ................................................ 3-14
Engine break-in .................................... 3-14
Launching the watercraft ..................... 3-16
Starting the engine ............................... 3-16
Stopping the engine ............................. 3-19
Leaving the watercraft ......................... 3-19
Operating your watercraft .................... 3-20
Getting to know your watercraft ........... 3-20
Learning to operate your watercraft .... 3-20
Riding watercraft with passengers ...... 3-21
Starting the watercraft .......................... 3-22
Boarding and starting in deep water ... 3-24
Capsized watercraft ............................. 3-26
Turning the watercraft .......................... 3-28
Stopping the watercraft ........................ 3-30
Beaching the watercraft ....................... 3-31
Docking the watercraft ......................... 3-31
Reverse on waterways ........................ 3-32
Rough water operation ........................ 3-32
Post-operation checks ......................... 3-33
Transporting .......................................... 3-35
UGU571.book Page 1 Tuesday, July 10, 2001 2:25 PM

3-1
E

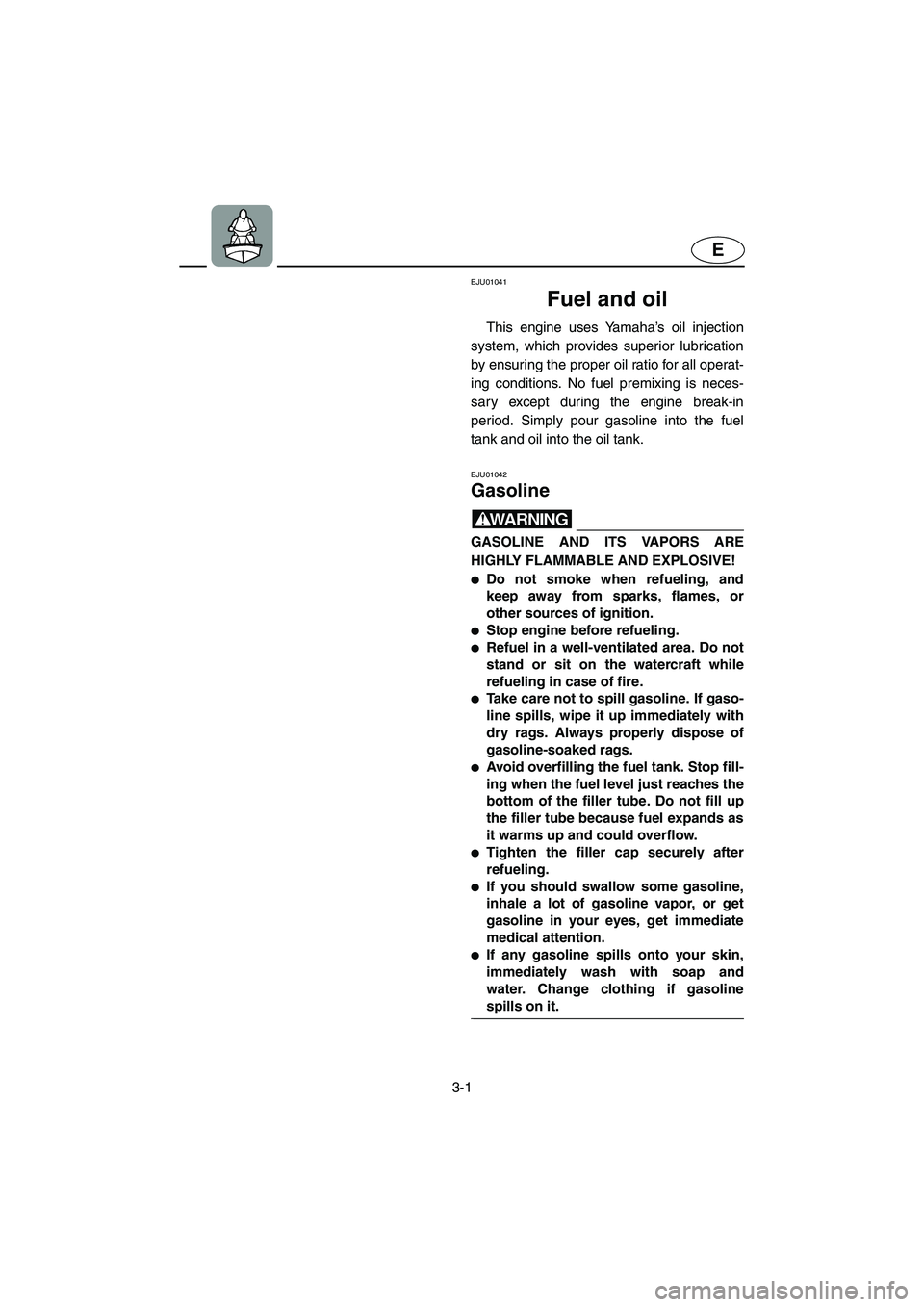

EJU01041
