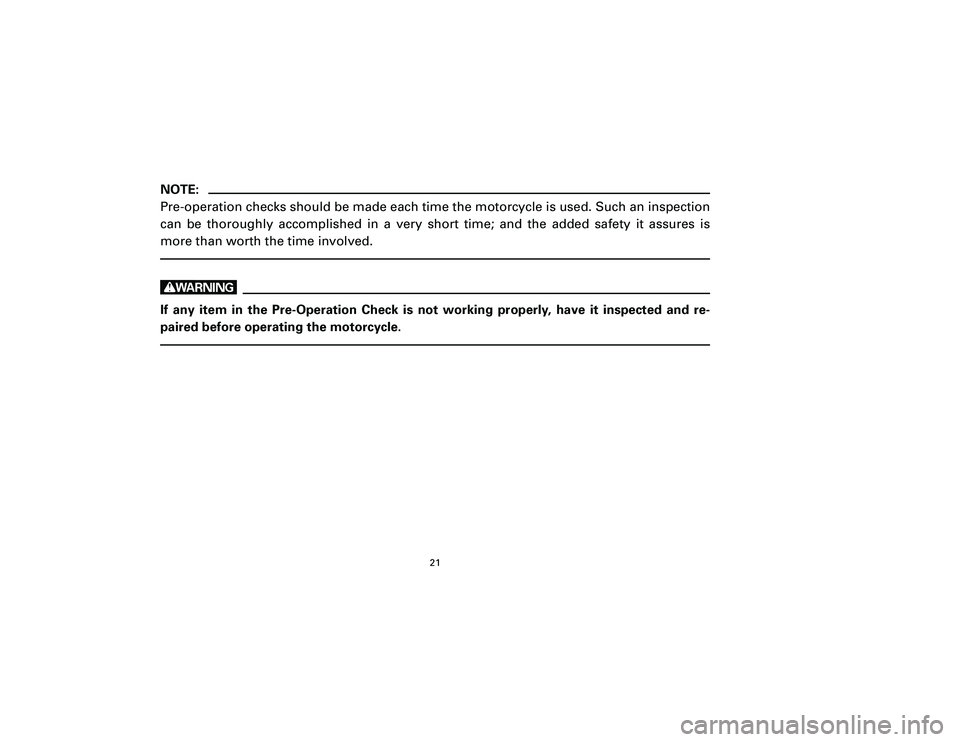

NOTE:
Pre-operation checks should be made each time the motorcycle is used. Such an inspection
can be thoroughly accomplished in a very short time; and the added safety it assures is
more than worth the time involved.wIf any item in the Pre-Operation Check is not working properly, have it inspected and re-
paired before operating the motorcycle.
5SD O/M-1 9/4/01 2:49 PM Page 21 (1,1)

EAE80300EAE80000

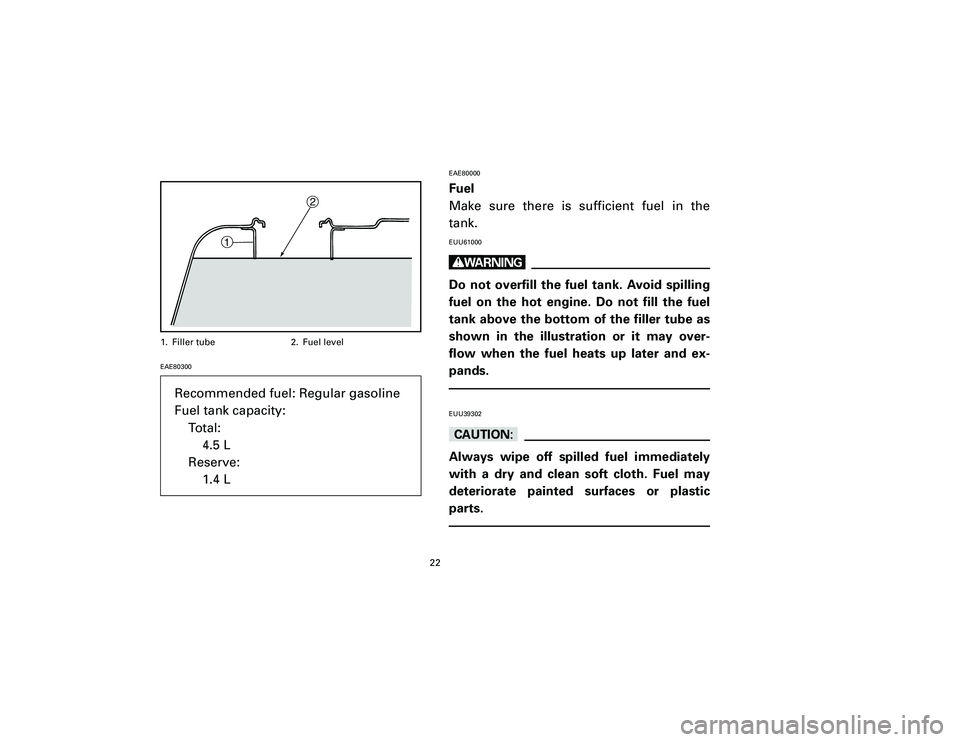

Fuel
Make sure there is sufficient fuel in the
tank.EUU61000wDo not overfill the fuel tank. Avoid spilling
fuel on the hot engine. Do not fill the fuel
tank above the bottom of the filler tube as
shown in the illustration or it may over-
flow when the fuel heats up later and ex-
pands.EUU39302cCAlways wipe off spilled fuel immediately
with a dry and clean soft cloth. Fuel may
deteriorate painted surfaces or plastic
parts.
22
2
1
1. Filler tube 2. Fuel level
Recommended fuel: Regular gasoline
Fuel tank capacity:
Total:
4.5 L
Reserve:
1.4 L
5SD O/M-2 9/4/01 3:02 PM Page 22 (1,1)

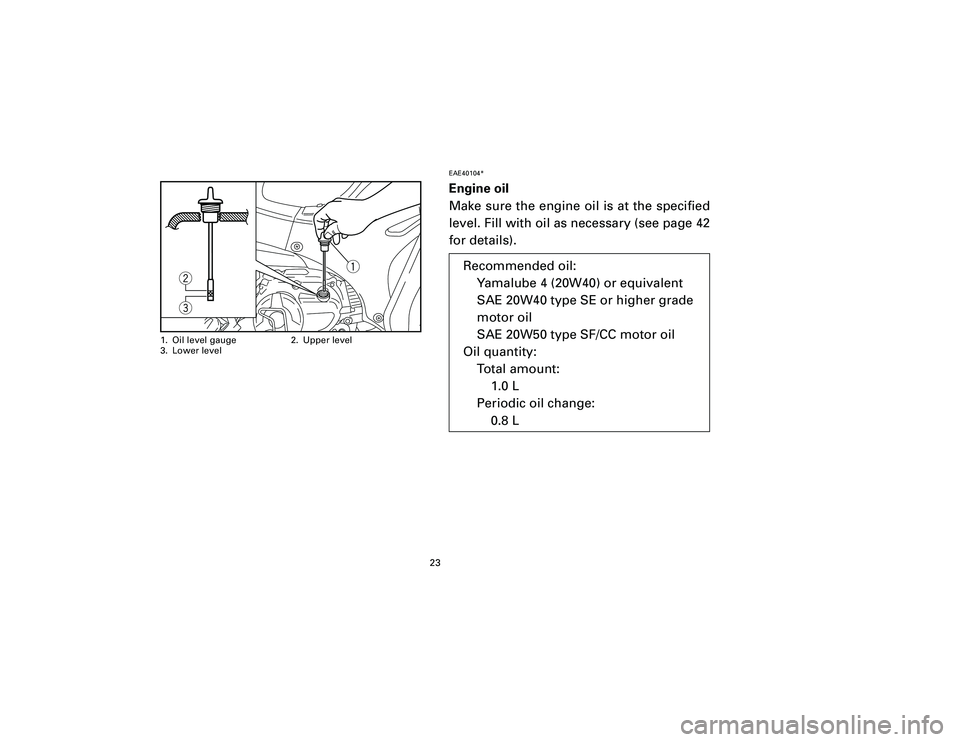

EAE40104*Engine oil
Make sure the engine oil is at the specified
level. Fill with oil as necessary (see page 42
for details).
23
q
w
e
1. Oil level gauge 2. Upper level
3. Lower level
Recommended oil:
Yamalube 4 (20W40) or equivalent
SAE 20W40 type SE or higher grade
motor oil
SAE 20W50 type SF/CC motor oil
Oil quantity:
Total amount:
1.0 L
Periodic oil change:
0.8 L
5SD O/M-2 9/4/01 3:02 PM Page 23 (1,1)

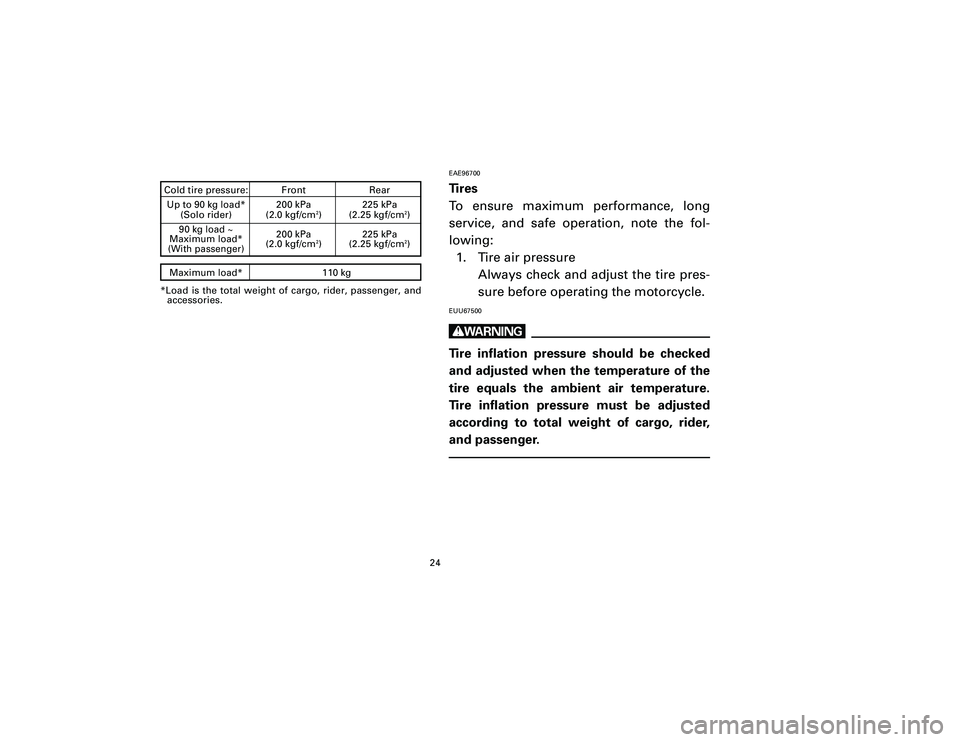

*Load is the total weight of cargo, rider, passenger, and
accessories.
EAE96700Tires
To ensure maximum performance, long
service, and safe operation, note the fol-
lowing:
1. Tire air pressure
Always check and adjust the tire pres-
sure before operating the motorcycle.EUU67500wTire inflation pressure should be checked
and adjusted when the temperature of the
tire equals the ambient air temperature.
Tire inflation pressure must be adjusted
according to total weight of cargo, rider,
and passenger.
24 Cold tire pressure: Front Rear
Up to 90 kg load*
200 kPa 225 kPa
(Solo rider) (2.0 kgf/cm
2) (2.25 kgf/cm
2)
90 kg load ~
Maximum load*
200 kPa 225 kPa
(With passenger)
(2.0 kgf/cm
2) (2.25 kgf/cm
2)
Maximum load* 110 kg
5SD O/M-2 9/4/01 3:02 PM Page 24 (1,1)

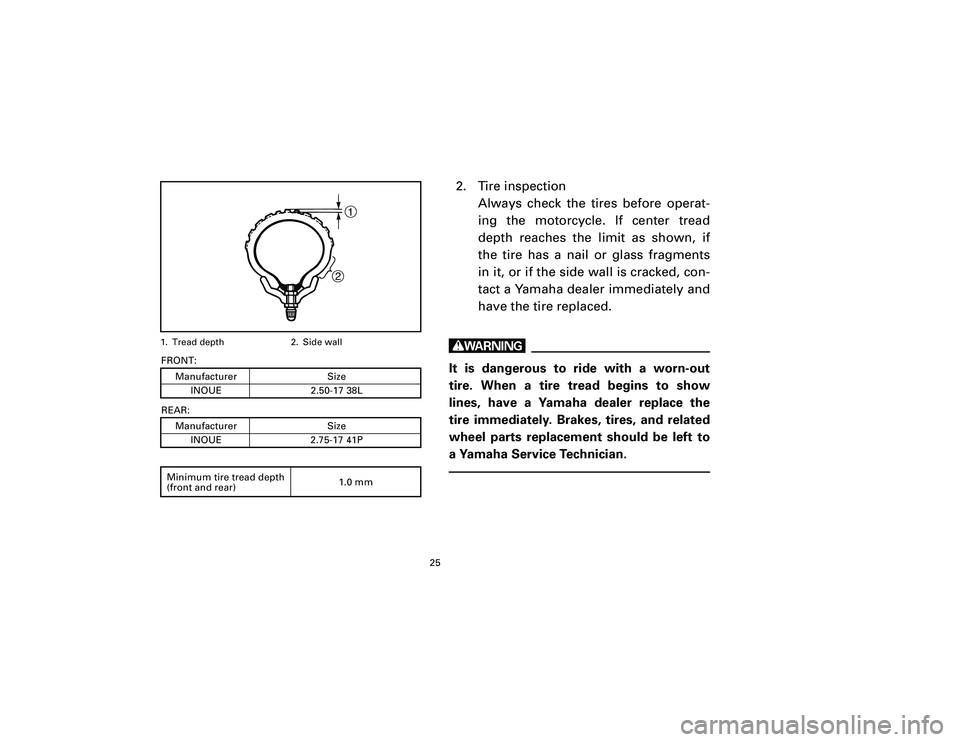

2. Tire inspection
Always check the tires before operat-
ing the motorcycle. If center tread
depth reaches the limit as shown, if
the tire has a nail or glass fragments
in it, or if the side wall is cracked, con-
tact a Yamaha dealer immediately and
have the tire replaced.wIt is dangerous to ride with a worn-out
tire. When a tire tread begins to show
lines, have a Yamaha dealer replace the
tire immediately. Brakes, tires, and related
wheel parts replacement should be left to
a Yamaha Service Technician.
25
1
2
1. Tread depth 2. Side wall
Manufacturer Size
INOUE 2.50-17 38L
Manufacturer Size
INOUE 2.75-17 41P
Minimum tire tread depth
1.0 mm
(front and rear)FRONT:
REAR:
5SD O/M-2 9/4/01 3:02 PM Page 25 (1,1)

EAF00000
OPERATION AND
IMPORTANT RIDING
POINTS

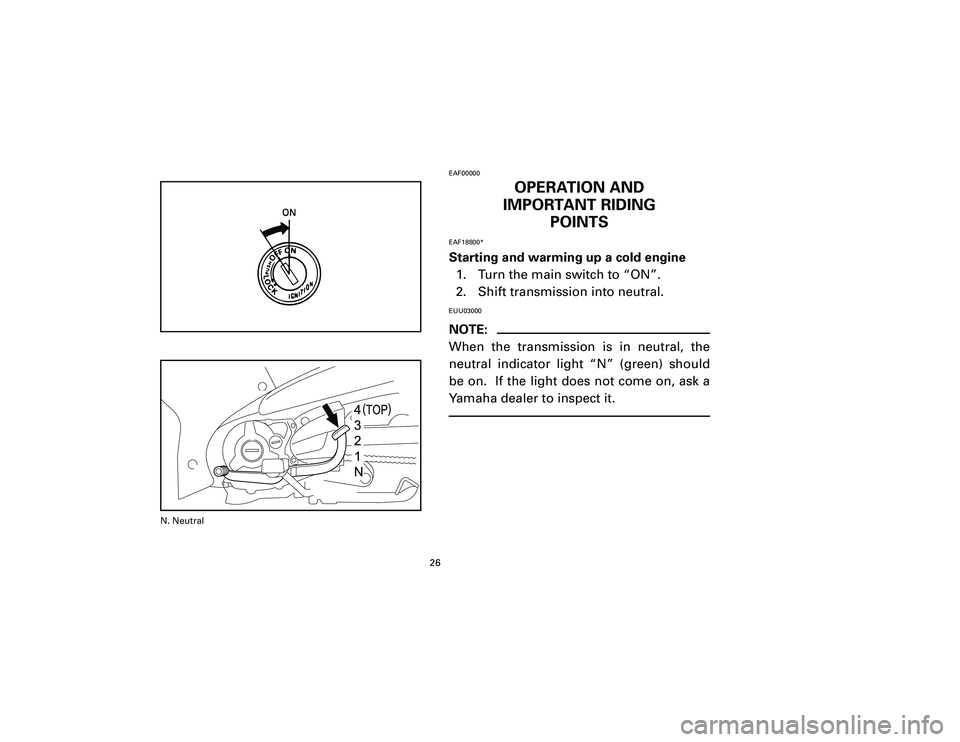

EAF18800*Starting and warming up a cold engine
1. Turn the main switch to “ON”.
2. Shift transmission into neutral.EUU03000NOTE:
When the transmission is in neutral, the
neutral indicator light “N” (green) should
be on. If the light does not come on, ask a
Yamaha dealer to inspect it.
26
N. Neutral
5SD O/M-2 9/4/01 3:02 PM Page 26 (1,1)

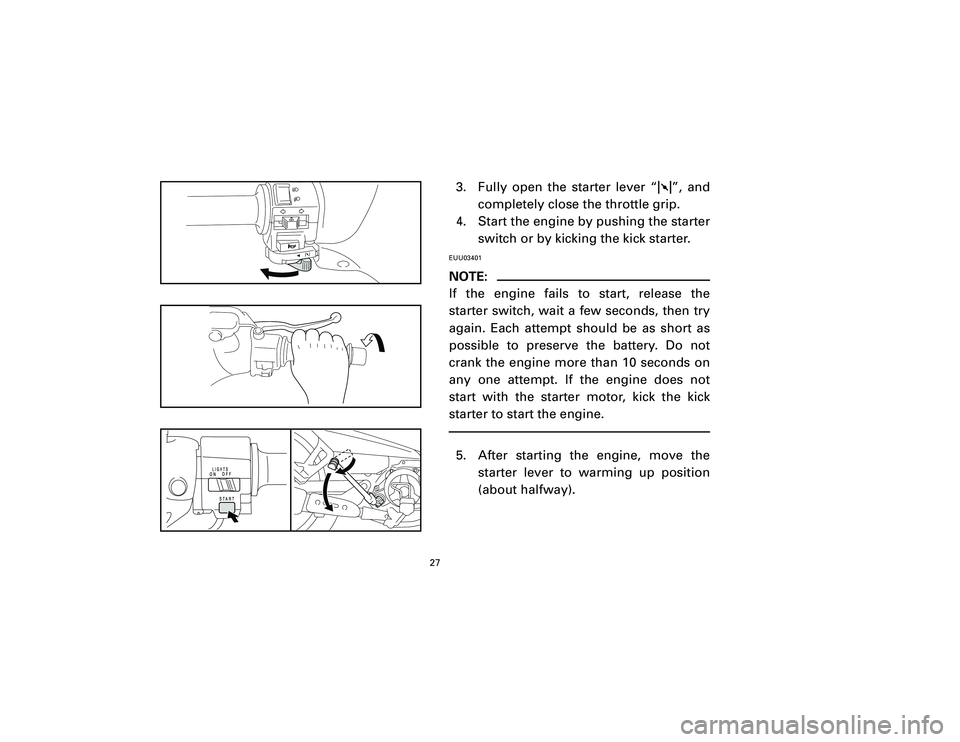

3. Fully open the starter lever “1”, and
completely close the throttle grip.
4. Start the engine by pushing the starter
switch or by kicking the kick starter.EUU03401NOTE:
If the engine fails to start, release the
starter switch, wait a few seconds, then try
again. Each attempt should be as short as
possible to preserve the battery. Do not
crank the engine more than 10 seconds on
any one attempt. If the engine does not
start with the starter motor, kick the kick
starter to start the engine.5. After starting the engine, move the
starter lever to warming up position
(about halfway).
27
5SD O/M-2 9/4/01 3:02 PM Page 27 (1,1)

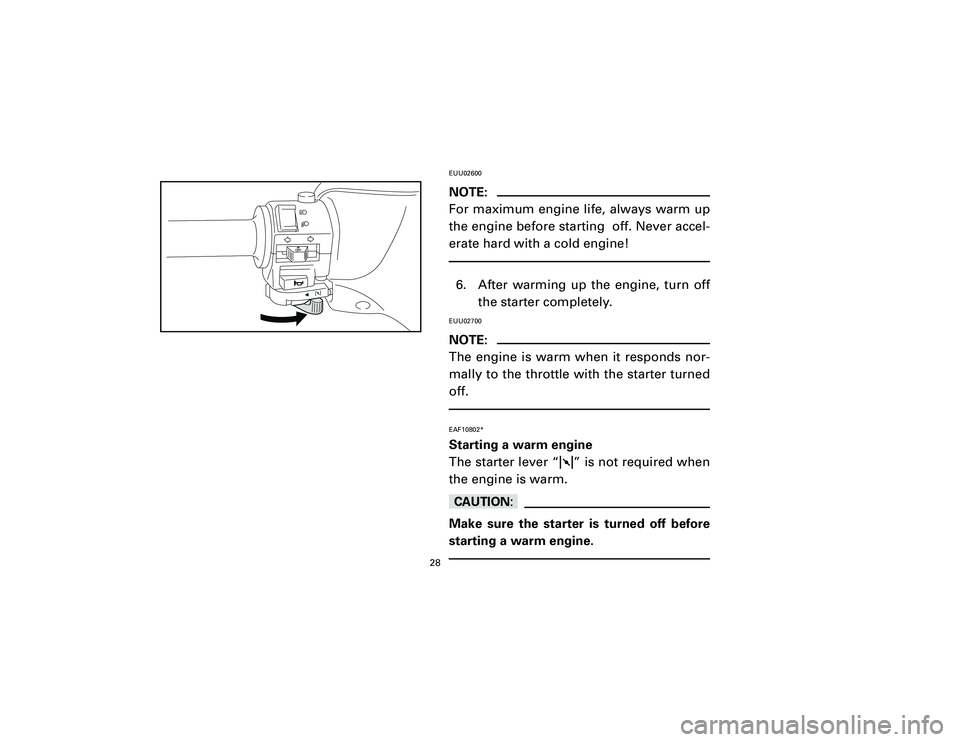

EUU02600NOTE:
For maximum engine life, always warm up
the engine before starting off. Never accel-
erate hard with a cold engine!6. After warming up the engine, turn off
the starter completely.EUU02700NOTE:
The engine is warm when it responds nor-
mally to the throttle with the starter turned
off.EAF10802*Starting a warm engine
The starter lever “1” is not required when
the engine is warm.cCMake sure the starter is turned off before
starting a warm engine.
28
5SD O/M-2 9/4/01 3:02 PM Page 28 (1,1)

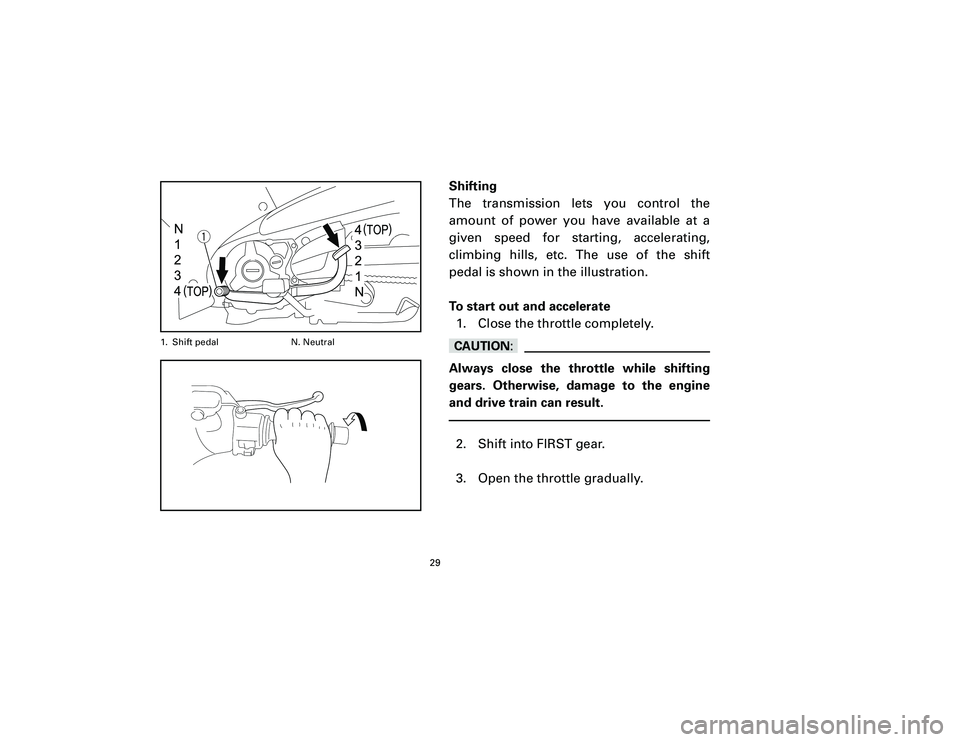

Shifting
The transmission lets you control the
amount of power you have available at a
given speed for starting, accelerating,
climbing hills, etc. The use of the shift
pedal is shown in the illustration.
To start out and accelerate
1. Close the throttle completely.cCAlways close the throttle while shifting
gears. Otherwise, damage to the engine
and drive train can result.2. Shift into FIRST gear.
3. Open the throttle gradually.
29
q
1. Shift pedal N. Neutral
5SD O/M-2 9/4/01 3:02 PM Page 29 (1,1)

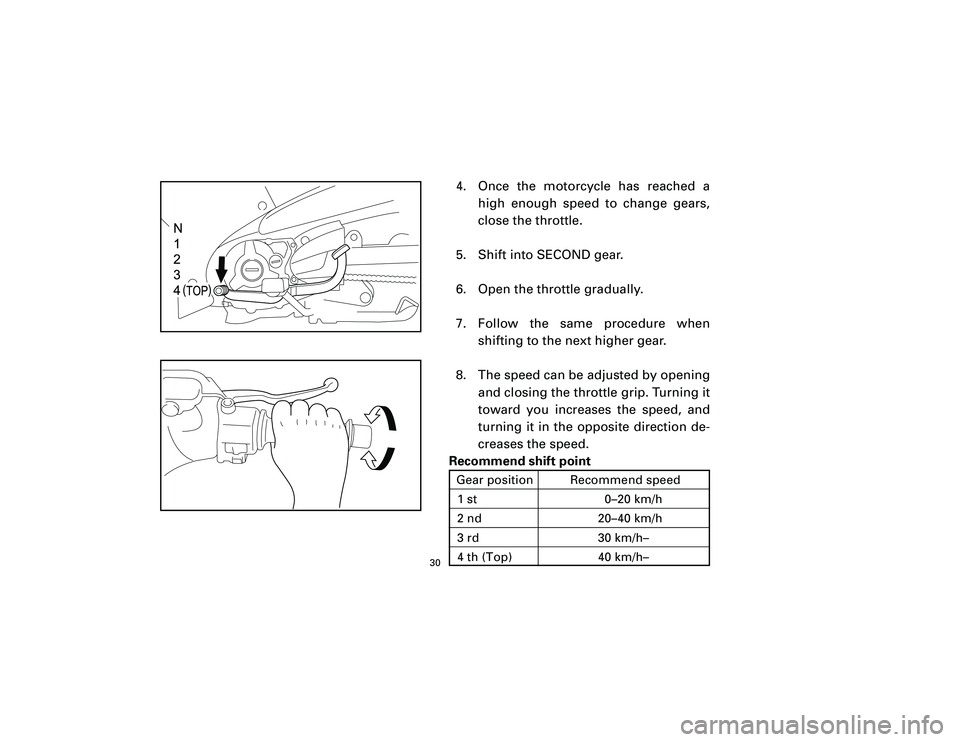

4. Once the motorcycle has reached a
high enough speed to change gears,
close the throttle.
5. Shift into SECOND gear.
6. Open the throttle gradually.
7. Follow the same procedure when
shifting to the next higher gear.
8. The speed can be adjusted by opening
and closing the throttle grip. Turning it
toward you increases the speed, and
turning it in the opposite direction de-
creases the speed.
Recommend shift point
30
Gear position Recommend speed
1 st 0–20 km/h
2 nd 20–40 km/h
3 rd 30 km/h–
4 th (Top) 40 km/h–
