YAMAHA TDM 900 2003 Owners Manual

6-45
6Engine overheating
EW000070
w
8Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
8After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the
hissing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the
cap.
NOTE:
If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended
coolant as soon as possible.
Wait until the
engine has cooled.Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.
The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.
Add coolant. (See NOTE.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
5PS-28199-E1 8/29/02 9:17 AM Page 90

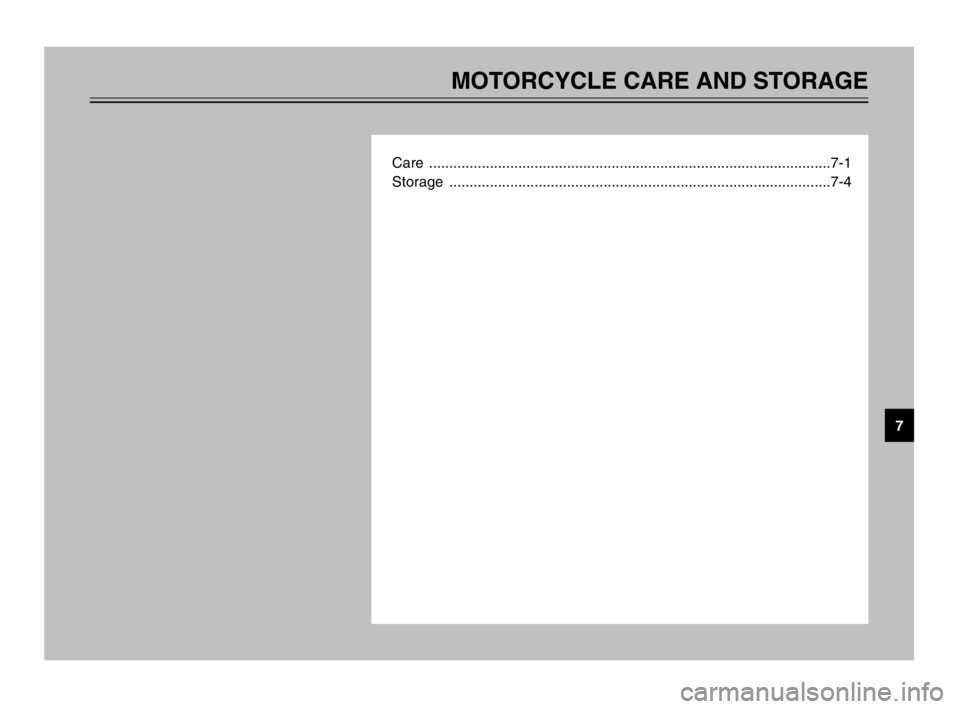

MOTORCYCLE CARE AND STORAGE
Care ...................................................................................................7-1
Storage ..............................................................................................7-4
7
5PS-28199-E1 8/29/02 9:17 AM Page 91

7
7-1
EAU04454
MOTORCYCLE CARE AND STORAGE
CareCareWhile the open design of a motorcy-
cle reveals the attractiveness of the
technology, it also makes it more vul-
nerable. Rust and corrosion can
develop even if high-quality compo-
nents are used. A rusty exhaust pipe
may go unnoticed on a car, however,
it detracts from the overall appear-
ance of a motorcycle. Frequent and
proper care does not only comply
with the terms of the warranty, but it
will also keep your motorcycle looking
good, extend its life and optimize its
performance.Before cleaning
1. Cover the muffler outlets with
plastic bags after the engine has
cooled down.
2. Make sure that all caps and cov-
ers as well as all electrical cou-
plers and connectors, including
the spark plug caps, are tightly
installed.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such
products onto seals, gaskets,
sprockets, the drive chain and
wheel axles. Always rinse the dirt
and degreaser off with water.Cleaning
ECA00010
cC
8Avoid using strong acidic
wheel cleaners, especially on
spoked wheels. If such prod-
ucts are used on hard-to-
remove dirt, do not leave the
cleaner on the affected area
any longer than instructed.
Also, thoroughly rinse the area
off with water, immediately dry
it, and then apply a corrosion
protection spray.
8Improper cleaning can damage
windshields, cowlings, panels
and other plastic parts. Use
only a soft, clean cloth or
sponge with mild detergent
and water to clean plastic.
5PS-28199-E1 8/29/02 9:17 AM Page 92

7
7-2
MOTORCYCLE CARE AND STORAGE
8Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abra-
sive cleaning products, sol-
vent or thinner, fuel (gasoline),
rust removers or inhibitors,
brake fluid, antifreeze or elec-
trolyte.
8Do not use high-pressure
washers or steam-jet cleaners
since they cause water seep-
age and deterioration in the
following areas: seals (of
wheel and swingarm bearings,
fork and brakes), electric com-
ponents (couplers, connec-
tors, instruments, switches
and lights), breather hoses
and vents.8For motorcycles equipped
with a windshield: Do not use
strong cleaners or hard
sponges as they will cause
dulling or scratching. Some
cleaning compounds for plas-
tic may leave scratches on the
windshield. Test the product
on a small hidden part of the
windshield to make sure that it
does not leave any marks. If
the windshield is scratched,
use a quality plastic polishing
compound after washing.After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottle-
brush for hard-to-reach areas.
Stubborn dirt and insects will come
off more easily if the area is covered
with a wet cloth for a few minutes
before cleaning.
After riding in the rain, near the sea
or on salt-sprayed roads
Since sea salt or salt sprayed on
roads during winter are extremely
corrosive in combination with water,
carry out the following steps after
each ride in the rain, near the sea or
on salt-sprayed roads.
NOTE:
Salt sprayed on roads in the winter
may remain well into spring.
5PS-28199-E1 8/29/02 9:17 AM Page 93

7
7-3
MOTORCYCLE CARE AND STORAGE
1. Clean the motorcycle with cold
water and a mild detergent, after
the engine has cooled down.
ECA00012
cC
Do not use warm water since it
increases the corrosive action of
the salt.
2. After drying the motorcycle,
apply a corrosion protection
spray on all metal, including
chrome- and nickel-plated, sur-
faces to prevent corrosion.After cleaning
1. Dry the motorcycle with a
chamois or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally
induced discoloring of stainless-
steel exhaust systems can be
removed through polishing.)
4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal, includ-
ing chrome- and nickel-plated,
surfaces.
5. Use spray oil as a universal
cleaner to remove any remaining
dirt.
6. Touch up minor paint damage
caused by stones, etc.7. Wax all painted surfaces.
8. Let the motorcycle dry complete-
ly before storing or covering it.
EWA00001
w
8Make sure that there is no oil
or wax on the brakes or tires.
If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or
acetone, and wash the tires
with warm water and a mild
detergent.
8Before operating the motorcy-
cle test its braking perfor-
mance and cornering behav-
ior.
5PS-28199-E1 8/29/02 9:17 AM Page 94

7
7-4
MOTORCYCLE CARE AND STORAGE
ECA00013
cC
8Apply spray oil and wax spar-
ingly and make sure to wipe
off any excess.
8Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
8Avoid using abrasive polish-
ing compounds as they will
wear away the paint.
NOTE:
Consult a Yamaha dealer for advice
on what products to use.
Storage
StorageShort-term
Always store your motorcycle in a
cool, dry place and, if necessary, pro-
tect it against dust with a porous
cover.
ECA00014
cC
8Storing the motorcycle in a
poorly ventilated room or cov-
ering it with a tarp, while it is
still wet, will allow water and
humidity to seep in and cause
rust.
8To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your motorcycle for
several months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to
protect the cylinders, piston
rings, etc. from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine
oil into each spark plug bore.
c. Install the spark plug caps
onto the spark plugs, and then
place the spark plugs on the
cylinder head so that the elec-
trodes are grounded. (This will
limit sparking during the next
step.)
5PS-28199-E1 8/29/02 9:17 AM Page 95

7
7-5
MOTORCYCLE CARE AND STORAGE
d. Turn the engine over several
times with the starter. (This
will coat the cylinder walls with
oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
EWA00003
w
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turn-
ing the engine over.
4. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground.
Alternatively, turn the wheels a
little every month in order to pre-
vent the tires from becoming
degraded in one spot.
6. Cover the muffler outlets with
plastic bags to prevent moisture
from entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery
in an excessively cold or warm
place [less than 0 °C or more
than 30 °C]. For more informa-
tion on storing the battery, see
page 6-34.
NOTE:
Make any necessary repairs before
storing the motorcycle.
5PS-28199-E1 8/29/02 9:17 AM Page 96

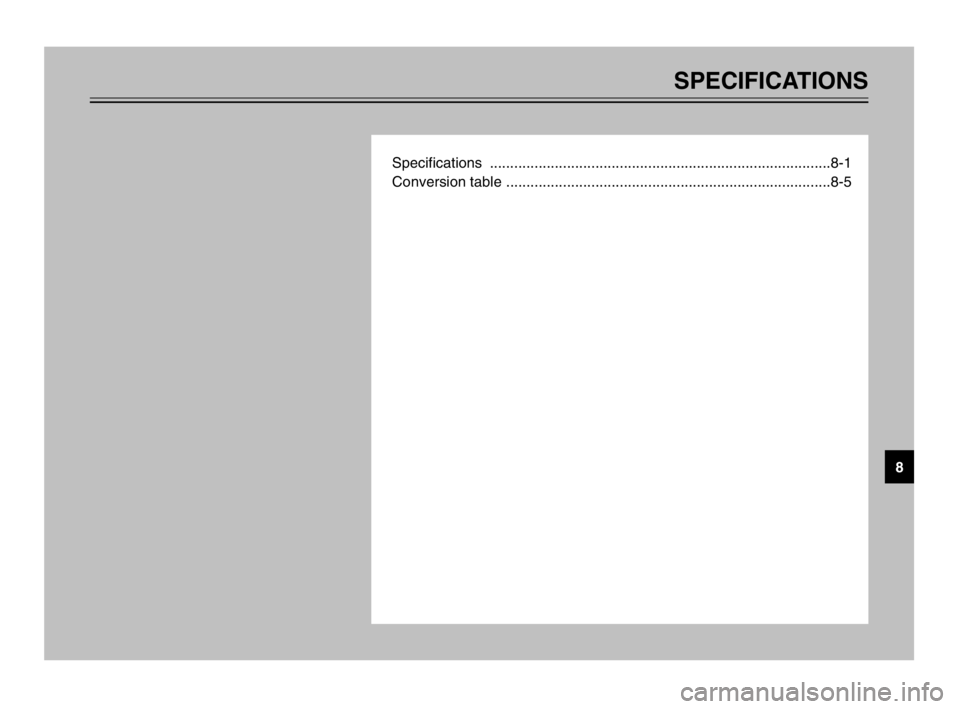

SPECIFICATIONS
Specifications ....................................................................................8-1
Conversion table ................................................................................8-5
8
5PS-28199-E1 8/29/02 9:17 AM Page 97

8
8-1
EAU01038
SPECIFICATIONS
SpecificationsSpecifications
Model TDM900
Dimensions
Overall length 2,180 mm
Overall width 800 mm
Overall height 1,290 mm
Seat height 825 mm
Wheelbase 1,485 mm
Ground clearance 160 mm
Minimum turning radius 2,900 mm
Basic weight (with oil and full
fuel tank)221 kg
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
2-cylinder
Displacement 897 cm
3
Bore ×Stroke 92.0 ×67.5 mm
Compression ratio 10.4:1
Starting system Electric starter
Lubrication system Dry sumpEngine oil
Type
Recommended engine oil
classification API Service SE, SF, SG type
or higher
cC
In order to prevent clutch slippage (since the engine oil also
lubricates the clutch), do not mix any chemical additives. Do
not use oils with a diesel specification of “CD” or oils of a
higher quality than specified. In addition, do not use oils
labeled “ENERGY CONSERVING II” or higher.
Capacity
Without oil filter element
removal 3.8 L
With oil filter element removal 3.9 L
Total amount (dry engine) 4.7 L
5PS-28199-E1 8/29/02 9:17 AM Page 98

8
8-2
SPECIFICATIONS
Cooling system capacity
(total amount)1.7 L
Air filterOil-coated paper element
Fuel
Type REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity 20 L
Fuel reserve amount 3.5 L
Spark plug
Manufacturer/model NGK/DPR8EA-9 or
DENSO/X24EPR-U9
Gap 0.8–0.9 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 1.718
Secondary reduction system Chain drive
Secondary reduction ratio 2.625
Number of drive chain
sprocket teeth (front/rear) 16/42
Transmission type Constant mesh 6-speedOperation Left foot
Gear ratio 1st 2.750
2nd 1.947
3rd 1.545
4th 1.240
5th 1.040
6th 0.923
Chassis
Frame type Diamond
Caster angle 25.5°
Trail 114 mm
Tires
Front
Type Tubeless tire
Size 120/70 ZR18 M/C (59W)
Manufacturer/ Dunlop/D220FSTJ
model Metzeler/MEZ4 FRONT
Rear
Type Tubeless tire
Size 160/60 ZR17 M/C (69W)
Manufacturer/ Dunlop/D220STJ
model Metzeler/MEZ4
5PS-28199-E1 8/29/02 9:17 AM Page 99
