YAMAHA TENERE 700 RALLY EDITION 2022 Service Manual

Instrument and control functions
3-24
3
TIP When turning the spring preload
adjuster in direction (b), the 0 click
position and the 1 click position
may be the same.
 When turning the spring preload
adjuster in direction (a), it may
click beyond the stated specifica- tions, however such adjustments
are ineffective and may damage
the suspension.
Re
boun d d ampin g force
Turn the adjuster in direction (a) to in-
crease the rebound damping force.
Turn the adjuster in direction (b) to de-
crease the rebound damping force.
To set the rebound damping force, turn
the adjuster in direction (a) until it
stops, and then count the clicks in di-
rection (b).
TIP When turning the damping force
adjuster in direction (a), the 0 click
position and the 1 click position
may be the same.
 When turning the damping force
adjuster in direction (b), it may
click beyond the stated specifica-
tions, however such adjustments
are ineffective and may damage
the suspension.Compression dampin g force
Turn the adjuster in direction (a) to in-
crease the compression damping
force.
Turn the adjuster in direction (b) to de-
crease the compression damping
force.
1. Spring preload adjusting knobSprin g preloa d settin g:
Unit for adjustment: Click
Minimum (soft): 0
Standard:
10
Maximum (hard): 24
1
(b) (a)
1. Rebound damping force adjusting screw
1
(b)
(a)
Re
boun d d ampin g settin g:
Unit for adjustment:
Click
Minimum (soft):
23
Standard: 13
Maximum (hard): 0
UBEHEBE0.book Page 24 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-25
3 To set the compression damping
force, turn the adjuster in direction (a)
until it stops, and then count the clicks
in direction (b).
TIP
When turning the damping force
adjuster in direction (a), the 0 click
position and the 1 click position
may be the same.
 When turning the damping force
adjuster in direction (b), it may
click beyond the stated specifica-
tions, however such adjustments
are ineffective and may damage
the suspension.
WARNING
EWA10222
This shock a bsor ber assem bly con-
tains hi ghly pressurize d nitro gen
g as. Rea d an d un derstan d the fol-
lowin g information b efore handlin g
the shock a bsor ber assem bly.
 Do not tamper with or attempt
to open the cylin der assem bly.
 Do not su bject the shock a b-
sor ber assem bly to an open
flame or other hi gh heat source.
This may cause the unit to ex-
plo de due to excessive gas
pressure. 
Do not deform or d amage the
cylin der in any way. Cylin der
d amag e will result in poor
d ampin g performance.
 Do not d ispose of a damag ed or
worn-out shock a bsor ber as-
sem bl

y yourself. Take the shock
a b sor ber assem bly to a Yamaha
d ealer for any service.
1. Compression damping force adjusting
screwCompression dampin g settin g:
Unit for adjustment: Click
Minimum (soft): 18
Standard:
15
Maximum (hard): 0
1
(b) (a)
UBEHEBE0.book Page 25 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-26
3
EAU84680
Lu gga ge strap hol dersUse the indicated strap points to se-
cure luggage ties to the vehicle.
EAUM4130
Front fen der To suit the riding conditions, the front
fender height can be adjusted.
To a djust the front fen der hei ght
1. Loosen the bolts on each side of the front fender.
2. Move the front fender to the de- sired height.
3. Tighten the bolts to the specified torque.
EAUM4201
DC power outletsThis vehicle is equiped with an auxiliary
DC jack, and auxiliary DC connector, a
grip warmer connector and a fog lamp
DC connector.NOTICE
ECA26810
Do not use any sin gle electrical ac-
cessory or com bination of accesso-
ries that require more than the
state d capacity at any one time. This
may overloa d the circuit an d cause
the fuse to b low.TIPTo prevent battery drain, do not use an
accessory with the engine off.
1. Luggage strap holder
1
1. Bolt
Tightenin g torque:
Front fender bolt: 7.5 N·m (0.75 kgf·m, 5.6 lb·ft)
1
DC power outlet circuit capacities:
DC jack and DC connector circuit: 24 W (2 A)
Grip warmer and Fog lamp circuit:
120 W (10 A)
UBEHEBE0.book Page 26 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-27
3 Auxiliary DC jack
A 12-V accessory with the proper con-
nector can be used when the main
switch is on.
To use the auxiliary DC jack
1. Turn the vehicle power off.
2. Remove the auxiliary DC jack cap.
3. Turn the accessory off.
4. Insert the accessory plug into the auxiliary DC jack. 5. Turn the vehicle power on, and
start the engine.
6. Turn the accessory on.
TIPWhen finished riding, be sure to turn off
the accessory, disconnect it, then in-
stall the auxiliary DC jack cap.
WARNING
EWA14361
To prevent electrical shock or short-
circuitin g, make sure that the cap is
installe d when the auxiliary DC jack
is not bein g use d.
Auxiliary DC connectors
This vehicle is equipped with an auxil-
iary DC connector, a grip warmer DC
connector and a fog lamps connector.
Consult a Yamaha dealer before in-
stalling any accessories.
1. Auxiliary DC jack cap
1
1. Auxiliary DC jack
1
UBEHEBE0.book Page 27 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-28
3
EAU15306
Si destan dThe sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the vehicle upright.TIPThe built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain situa-
tions. (See the following section for an
explanation of the ignition circuit cut-
off system.)
WARNING
EWA10242
The vehicle must not b e ridden with
the si destan d d own, or if the si de-
stan d cannot b e properly move d up
(or does not stay up), otherwise the
si destan d coul d contact the groun d
an d d istract the operator, resultin g
in a possi ble loss of control.
Yamaha’s i gnition circuit cut-off
system has been desi gne d to assist
the operator in fulfilling the respon-
si bility of raisin g the si destan d b e-
fore startin g off. Therefore, check this system re
gularly an d have a
Yamaha dealer repair it if it does not
function properly.
EAU44895
I g nition circuit cut-off systemThis system prevents in-gear engine
starts unless the clutch lever is pulled
and the sidestand is up. Also, it will
stop the running engine should the
sidestand be lowered while the trans-
mission is in gear.
Periodically check the system via the
following procedure.TIP This check is most reliable if per-
formed with a warmed-up engine.
 See pages 3-2 and 3-13 for switch
operation information.
UBEHEBE0.book Page 28 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-29
3

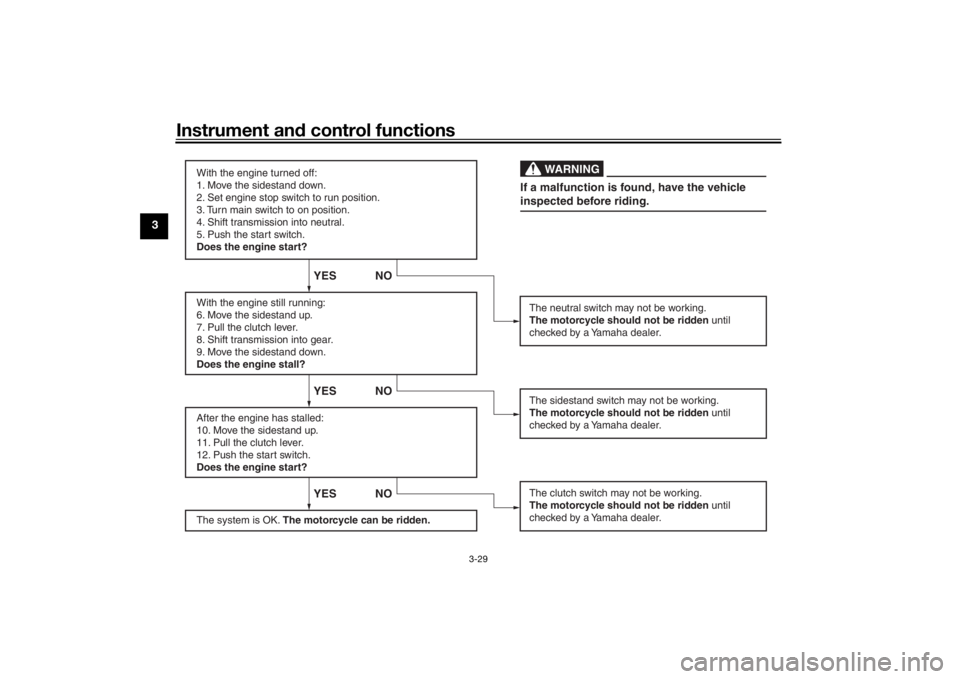

With the engine turned off:
1. Move the sidestand down.
2. Set engine stop switch to run position.
3. Turn main switch to on position.
4. Shift transmission into neutral.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Pull the clutch lever.
8. Shift transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Pull the clutch lever.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
YES NO YES NO YES NO
The neutral switch may not be working.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The sidestand switch may not be working.
The motorcycle should not be ridden until
checked by a Yamaha dealer.If a malfunction is found, have the vehicle
inspected before riding.
WARNING
UBEHEBE0.book Page 29 Friday, October 22, 2021 10:23 AM

For your safety – pre-operation checks
4-1
4
EAU1559B
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11152
Failure to inspect or maintain the vehicle properly increases the possibility of an acci dent or equipment damag e.
Do not operate the vehicle if you fin d any pro blem. If a pro blem cannot be corrected b y the proce dures provi ded in
this manual, have the vehicle inspecte d b y a Yamaha dealer.Before using this vehicle, check the following points:
ITEM CHECKS PAGE
Fuel • Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.
• Check fuel tank breather/overflow hose for obstructions, cracks or damage, and
check hose connection. 3-18, 3-19
En gine oil • Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage. 6-11
Coolant • Check coolant level in reservoir.
• If necessary, add recommended coolant to specified level.
• Check cooling system for leakage. 6-14
Front brake • Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add specified brake fluid to specified level.
• Check hydraulic system for leakage. 6-22, 6-22
UBEHEBE0.book Page 1 Friday, October 22, 2021 10:23 AM

For your safety – pre-operation checks
4-2
4
Rear brake • Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add specified brake fluid to specified level.
• Check hydraulic system for leakage. 6-22, 6-22
Clutch • Check operation.
• Lubricate cable if necessary.
• Check lever free play.
• Adjust if necessary.
6-20
Throttle g rip • Make sure that operation is smooth.
• Check throttle grip free play.
• If necessary, have Yamaha dealer adjust throttle grip free play and lubricate ca-
ble and grip housing. 6-17, 6-27
Control ca bles • Make sure that operation is smooth.
• Lubricate if necessary. 6-26
Drive chain • Check chain slack.
• Adjust if necessary.
• Check chain condition.
• Lubricate if necessary.
6-24, 6-26
Wheels an d tires •Check for damage.
• Check tire condition and tread depth.
• Check air pressure.
• Correct if necessary.
6-17, 6-20
Brake an d shift pe dals • Make sure that operation is smooth.
• Lubricate pedal pivoting points if necessary. 6-27
Brake an d clutch levers • Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.
6-28
Si destan d • Make sure that operation is smooth.
• Lubricate pivot if necessary.
6-28
ITEM
CHECKS PAGE
UBEHEBE0.book Page 2 Friday, October 22, 2021 10:23 AM

For your safety – pre-operation checks
4-3
4
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary. —
Instruments, li ghts, si gnals
an d switches • Check operation.
• Correct if necessary.
—
Si destan d switch • Check operation of ignition circuit cut-off system.
• If system is not working correctly, have Yamaha dealer check vehicle. 3-28
ITEM CHECKS PAGE
UBEHEBE0.book Page 3 Friday, October 22, 2021 10:23 AM

Operation and important rid ing points
5-1
5
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which coul d cause an acci dent
or injury.
EAU16842
En gine break-inThere is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the fol-
lowing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that
might result in engine overheating
must be avoided.
EAU17094
0–1000 km (0–600 mi)
Avoid prolonged operation above 5000
r/min. NOTICE: After 1000 km (600
mi) of operation, the en gine oil must
b e chan ged an d the oil filter car-
tri dg e or element replace d.
[ECA10303]
1000–1600 km (600–1000 mi)
Avoid prolonged operation above 6000
r/min. 1600 km (1000 mi) an
d b eyon d
The vehicle can now be operated nor-
mally.
NOTICE
ECA10311
 Keep the en gine spee d out of
the tachometer red zone.
 If any en gine trou ble shoul d oc-
cur during the en gine break-in
period , imme diately have a
Yamaha dealer check the vehi-
cle.
UBEHEBE0.book Page 1 Friday, October 22, 2021 10:23 AM
