YAMAHA TENERE 700 RALLY EDITION 2022 Owner's Manual

Instrument and control functions
3-4
3
NOTICE
ECA21211
If the warnin g li ght comes on when
the en gine is runnin g, stop the en-
g ine an d check the oil level. If the oil
level is low, a dd sufficient oil of the
recommen ded type. If the warnin g
lig ht remains on after addin g oil,
stop the en gine an d have a Yamaha
d ealer check the vehicle.
EAU11449
Coolant temperature warnin g
lig ht “ ”
This warning light comes on when the
engine is overheating. If this occurs,
stop the engine immediately and allow
the engine to cool. (See page 6-38.)
For vehicles with a radiator fan, the ra-
diator fan(s) automatically switch on or
off according to the coolant tempera-
ture.TIPWhen the vehicle is turned on, the light
will come on for a few seconds, and
then go off. If the light does not come
on, or if the light remains on, have a
Yamaha dealer check the vehicle.
NOTICE
ECA10022
Do not continue to operate the en-
g ine if it is overheatin g.
EAU88331
Malfunction in dicator li ght
(MIL) “ ”
This light comes on or flashes if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the on-
board diagnostic system. The electri-
cal circuit of the warning light can be
checked by turning the vehicle power
on. The light should come on for a few
seconds, and then go off. If the light
does not come on initially when the ve-
hicle power is turned on, or if the light
remains on, have a Yamaha dealer
check the vehicle.NOTICE
ECA26820
If the MIL starts flashin g, re duce en-
g ine spee d to prevent exhaust sys-
tem damag e.
TIPThe engine is sensitively monitored by
the on-board diagnostic system to de-
tect deterioration or malfunction of the
emission control system. Therefore the
MIL may come on or flash due to vehi-
cle modifications, lack of maintenance,
or excessive/improper use of the mo-
torcycle. To prevent this, observe
these precautions.
 Do not attempt to modify the soft-
ware of the engine control unit.
 Do not add any electrical acces-
sories that interfere with engine
control.
 Do not use aftermarket accesso-
ries or parts such as suspension,
spark plugs, injectors, exhaust
system, etc.
 Do not change the drivetrain
specifications (chain, sprockets,
wheels, tires, etc.).
 Do not remove or alter the O2 sen-
sor, air induction system, or ex-
haust parts (catalysts or EXUP,
etc.).
 Maintain the drive chain properly.
 Maintain correct tire pressure.
UBEHEBE0.book Page 4 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-5
3 
Maintain proper brake pedal
height to prevent rear brake from
dragging.
 Do not operate the vehicle in an
extreme manner. For example, re-
peated or excessive opening and
closing of the throttle, racing,
burnouts, wheelies, extended
half-clutch use, etc.
EAU69895
ABS warnin g li ght “ ”
This warning light comes on when the
vehicle is first turned on, and goes off
after starting riding. If the warning light
comes on while riding, the anti-lock
brake system may not work correctly.
WARNING
EWA16043
If the ABS warnin g lig ht does not
turn off after reachin g 10 km/h (6
mi/h), or if the warnin g li ght comes
on while ri din g:
 Use extra caution to avoi d pos-
si ble wheel lock d uring emer-
g ency brakin g.
 Have a Yamaha dealer check
the vehicle as soon as possi ble.
EAUM4080
ABS warnin g li ght “ ”
This warning light comes on when the
anti-lock brake system has been man-
ually disabled, the “OFF-ROAD” indi-
cator comes on at the same time.
WARNING
EWAM1050
Always ri de on paved roads with the
ABS turne d on. Ri din g on pu blic
roa ds with the ABS d isable d may b e
ille gal an d voi d your insurance. Turn
the ABS off only when ri din g on non-
pave d surfaces.
EAUM3622
Immo bilizer system in dicator
li g ht “ ”
When the vehicle is turned off and 30
seconds have passed, the indicator
light will flash steadily to indicate the
immobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
TIPWhen the vehicle is turned on, the light
will come on for a few seconds, and go
off. Otherwise, have a Yamaha dealer
check the vehicle.Trou bleshootin g
If a problem is detected in the immobi-
lizer system, the light will flash in a pat-
tern. If the immobilizer system
indicator light flashes in the pattern,
slowly 5 times then quickly 2 times, this
could be caused by transponder inter-
ference. If this occurs, try the following. 1. Make sure there are no other im- mobilizer keys close to the main
switch. Other immobilizer system
keys may cause signal interfer-
ence and prevent the engine from
starting.
2. Use the code re-registering key to start the engine.
3. If the engine starts, turn it off, and try starting the engine with the
standard keys.
ABS
ABS
UBEHEBE0.book Page 5 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-6
3
4. If one or more of the standard
keys do not start the engine, take
the vehicle and all keys to a
Yamaha dealer to have the stan- dard keys re-registered.
EAUM4173
Multi-function meter unit
The multi-function meter unit is
equipped with the following:  speedometer
 tachometer
 fuel meter
 clock
 eco indicator
 transmission gear display
 OFF-ROAD indicator
 multi-function display
1. Top set button
2. Bottom set button
3. “OFF-ROAD ABS ON/OFF” button
1
2
3
1. Tachometer
2. Clock
3. Speedometer
4. Fuel meter
5. Transmission gear display
6. Eco indicator “ECO”
7. “OFF-ROAD” indicator
8. Multi-function display
1
2
3
4 5
6
7
8
UBEHEBE0.book Page 6 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-7
3
TIP To switch between kilometers and
miles, set the multi-function dis-
play to the odometer or a tripme-
ter, and then push the top set
button until the display units
change.
 The display units will return to fac-
tory settings in case of battery dis-
connection.
WARNING
EWA12423
Be sure to stop the vehicle b efore
makin g any settin g chan ges to the
multi-function meter unit. Chan gin g
settin gs while ri din g can d istract the
operator an d increase the risk of an
acci dent.Speed ometer
The speedometer shows the vehicle’s
traveling speed. Tachometer
The tachometer shows the engine
speed.
NOTICE
ECA23050
Do not operate the en
gine in the ta-
chometer hi gh-r/min zone.
Hi gh-r/min zone: 9400 r/min and
a b ove
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The segments of
the fuel meter disappear from “F” (full)
towards “E” (empty) as the fuel level
decreases. When the last segment of
the fuel meter starts flashing, refuel as
soon as possible.TIPIf a problem is detected in the electrical
circuit, the fuel meter segments will
flash repeatedly. If this occurs, have a
Yamaha dealer check the vehicle.
1. Tachometer
2. Tachometer red zone
1 2
1. Fuel meter
1
UBEHEBE0.book Page 7 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-8
3

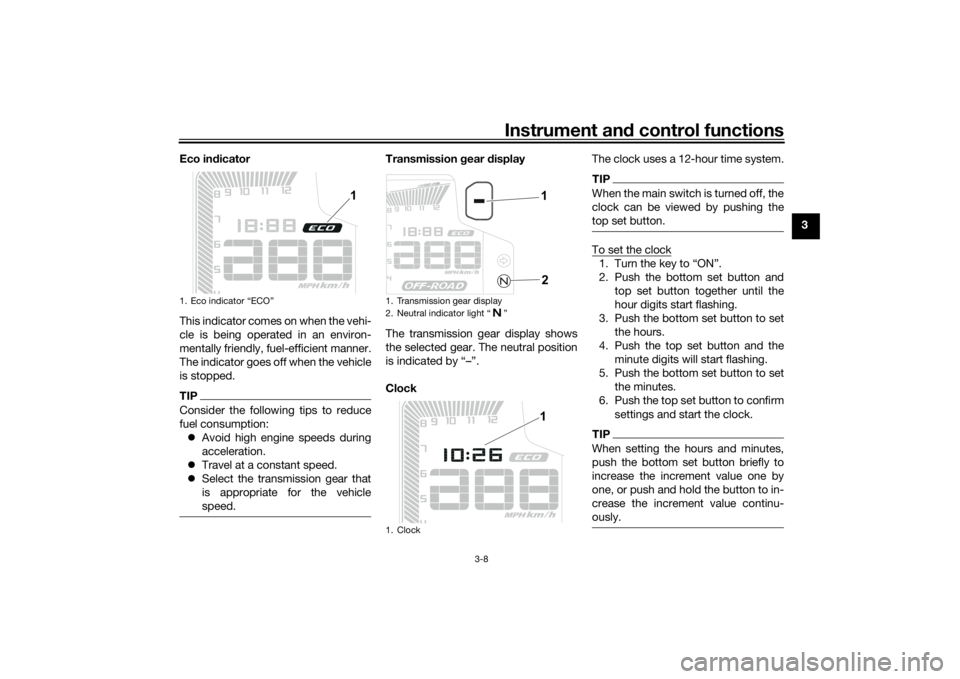

Eco in
dicator
This indicator comes on when the vehi-
cle is being operated in an environ-
mentally friendly, fuel-efficient manner.
The indicator goes off when the vehicle
is stopped.
TIPConsider the following tips to reduce
fuel consumption:  Avoid high engine speeds during
acceleration.
 Travel at a constant speed.
 Select the transmission gear that
is appropriate for the vehicle
speed.
Transmission gear display
The transmission gear display shows
the selected gear. The neutral position
is indicated by “–”.
Clock The clock uses a 12-hour time system.
TIPWhen the main switch is turned off, the
clock can be viewed by pushing the
top set button.To set the clock1. Turn the key to “ON”.
2. Push the bottom set button and
top set button together until the
hour digits start flashing.
3. Push the bottom set button to set the hours.
4. Push the top set button and the minute digits will start flashing.
5. Push the bottom set button to set the minutes.
6. Push the top set button to confirm settings and start the clock.TIPWhen setting the hours and minutes,
push the bottom set button briefly to
increase the increment value one by
one, or push and hold the button to in-
crease the increment value continu-
ously.
1. Eco indicator “ECO”
1
1. Transmission gear display
2. Neutral indicator light “ ”
1. Clock
1
21
UBEHEBE0.book Page 8 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-9
3 OFF-ROAD In
dicator
This indicator comes on when the ABS
has been manually disabled.
To switch off the ABS
1. Turn the key to “ON”.
2. The vehicle being stationary, push the “OFF-ROAD ABS ON/OFF”
button until the “ABS OFF” warn-
ing light starts flashing, then re-
lease the button.
3. The “ABS OFF” warning light and “OFF-ROAD” indicator will come
on simultaneously.TIPThe ABS will be disabled until the key
is turned to “OFF”, or the engine stop
switch is turned to “ ” (stop) when
the engine is running or you stop the
vehicle and push the “OFF-ROAD ABS
ON/OFF” button again. The “ABS
OFF” warning light and the “OFF-
ROAD” indicator will turn off.
WARNING
EWAM1050
Always ri de on paved roads with the
ABS turne d on. Ri din g on pu blic
roa ds with the ABS disa ble d may b eille
gal an d voi d your insurance. Turn
the ABS off only when ri din g on non-
pave d surfaces.
Multi-function display
The multi-function display can show:  an odometer
 two tripmeters
 a countdown tripmeter
 a fuel reserve tripmeter
 an instantaneous fuel consump-
tion display
 an average fuel consumption dis-
play
 a coolant temperature display
 an air temperature display
 a brightness control mode The odometer shows the total distance
the vehicle has traveled. The standard
tripmeters show the distance traveled
since they were last reset. The count-
down tripmeter shows the remaining
distance to travel since it was last set.
The fuel reserve tripmeter shows the
distance traveled since the last seg-
ment of the fuel meter began flashing.
TIP
The odometer will lock at 999999
and cannot be reset.
 The tripmeter will reset to 0 and
continue counting after 9999.9 is
reached.
 The countdown tripmeter does
not automatically reset.Push the top set button to switch the
display in the following order:
ODO → TRIP 1 → TRIP 2 → TRIP CD
→ TRIP F → km/L or L/100 km or MPG
→ AVE_ _._ km/L or AVE_ _._ L/100 km
or AVE_ _._ MPG → _ _ °C → Air_ _ °C
→ ODO
1. Multi-function display
1
UBEHEBE0.book Page 9 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-10
3
TIP Push the bottom set button to
switch the display in the reverse
order.
 The display changes to fuel re-
serve tripmeter “TRIP F” when the
last segment of the fuel meter
starts flashing.
 To reset a tripmeter, select it by
pushing the top set button, and
while the digits flash, push the
bottom set button until it is reset.
 If you do not reset the fuel reserve
tripmeter manually, it will reset au-
tomatically and disappear from
the display after refueling and
traveling 5 km (3 mi).Fuel reserve tripmeter
When the fuel level becomes low, the
last segment of the fuel meter will start
flashing. The fuel reserve tripmeter
“TRIP F” will automatically appear and
start counting the distance traveled
from that point. In this case, push the
top set button to switch the display in
the following order: TRIP F
→ km/L or L/100 km → AVE_
_._ km/L or AVE_ _._ L/100 km → _ _
°C → Air_ _ °C → ODO → TRIP 1 →
TRIP 2 → TRIP CD → TRIP F
For the UK:
TRIP F → km/L, L/100 km or MPG →
AVE_ _._ km/L, AVE_ _._ L/100 km or
AVE_ _._ MPG → _ _ °C → Air_ _ °C →
ODO → TRIP 1 → TRIP 2 → TRIP CD
→ TRIP F
TIP Push the bottom set button to
change the display in the reverse
order.
 You can manually reset the fuel re-
serve tripmeter, or after refueling
and traveling 5 km (3 mi) it will re-
set automatically and disappear
from the display.Countd own tripmeter settin gs
To set the countdown tripmeter, select
it by pushing the top set button. When
the units stop flashing, push the top
and bottom set buttons simultaneously
until the first digit starts flashing. A short press on the top button will incre-
ment the unit from “9” to “0”. Push the
bottom set button to select the next
digit and set it following the same pro-
cedure as the first digit. Push the bot-
tom set button to select the last digit
and follow the same procedure. Push
the bottom set button to confirm the
value.
TIP
The maximum possible entering
value is 900 km or 600 mi.
 The countdown tripmeter will start
as soon as you begin riding. When
the countdown reaches “0” the
display changes to the countdown
tripmeter “TRIP CD” and flashes
10 times.
 To reset the countdown tripmeter,
select it and while the digits flash,
push the bottom set button until it
is reset.
UBEHEBE0.book Page 10 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-11
3 Instantaneous fuel consumption
This function calculates the fuel con-
sumption under current riding condi-
tions.
The instantaneous fuel consumption
display can be set to either “km/L”,
“L/100 km” when using kilometers.
To switch the fuel consumption units,
push the top set button until the mea-
surement units change. When using
miles, the fuel consumption unit is
“MPG”.
 “km/L”: The distance that can be
traveled on 1.0 L of fuel under the
current riding conditions is shown. 
“L/100 km”: The amount of fuel
necessary to travel 100 km under
the current riding conditions is
shown.
 “MPG”: The distance that can be
traveled on 1.0 Imp.gal of fuel un-
der the current riding conditions is
shown.
To switch the instantaneous fuel con-
sumption settings, push and hold the
left set button until the display chang-
es.
TIPIf traveling at speeds under 20 km/h
(12 mi/h), “_ _._” is displayed.Averag e fuel consumption This display shows the average fuel
consumption since it was last reset.
The average fuel consumption can be
set to either “AVE_ _._ km/L”, “AVE_
_._ L/100 km” when using kilometers.
To switch the fuel consumption units,
push the top set button until the mea-
surement units change. When using
miles, the fuel consumption is “AVE_
_._ MPG”.
 “AVE_ _._ km/L”: The average dis-
tance that can be traveled on 1.0 L
of fuel is shown.
 “AVE_ _._ L/100 km”: The average
amount of fuel necessary to travel
100 km is shown.
 “AVE_ _._ MPG”: The average dis-
tance that can be traveled on
1.0 Imp.gal of fuel is shown.
To reset the average fuel consumption,
select it and while the digits flash push
the bottom set button until it is reset.
TIPAfter resetting the average fuel con-
sumption, “_ _._” will be shown until
the vehicle has traveled 1 km (0.6 mi).
1. Instantaneous fuel consumption display
1
1. Average fuel consumption display
1
UBEHEBE0.book Page 11 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-12
3
Coolant temperature
This display shows the coolant tem-
perature from 40 °C to 116 °C in 1 °C
increments.
If the message “Hi” flashes, stop the
vehicle, then stop the engine, and let it
cool. (See page 6-38.)
TIP
When the coolant temperature is
below 40 °C, “Lo” will be dis-
played.
 The coolant temperature varies
with changes in the weather and
engine load.
Air temperature
This display shows the air temperature
from –9 °C to 99 °C in 1 °C increments.TIPWhen the temperature is below –9
°C, “Lo” will be displayed.
 The temperature displayed may
vary from the ambient tempera-
ture.
Brig htness control mo de
The brightness level of the multi-func-
tion meter unit panel can be adjusted.
To adjust the brightness1. Turn the key to “OFF”.
2. Push and hold the top set button.
3. Turn the key to “ON” and continue pushing the top set button until
the display switches to the bright-
ness control mode.
4. Push the bottom set button to set the brightness level.
5. Push the top set button to confirm the selected brightness level and
exit the brightness control mode.
1. Coolant temperature display
1
1. Air temperature display
1
1. Brightness level display
1
UBEHEBE0.book Page 12 Friday, October 22, 2021 10:23 AM

Instrument and control functions
3-13
3
TIPThere are 6 brightness level settings.
EAU1234R
Han dle bar switchesLeft Ri
ght
EAU12362
Pass switch “PASS”
Press this switch to flash the headlight.TIPWhen the dimmer switch is set
to “ ”, the passing switch has no ef-
fect.
EAU12402
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
1. Hazard switch “ ”
2. Pass switch “PASS”
3. Dimmer switch “ / ”
4. Turn signal switch “ / ”
5. Horn switch “ ”
34512
1. Engine stop switch “ / ”
2. “SELECT” switch
3. Start switch “ ”
231
UBEHEBE0.book Page 13 Friday, October 22, 2021 10:23 AM
