8-1
EAU01038
SPECIFICATIONS
8
SpecificationsSpecifications
Model XP500
Dimensions
Overall length 2,235 mm
Overall width 775 mm
Overall height 1,410 mm
Seat height 795 mm
Wheelbase 1,575 mm
Ground clearance 130 mm
Minimum turning radius 2,800 mm
Basic weight (with oil and full
fuel tank)217 kg
Engine
Engine type Liquid-cooled 4-stroke, DOHC
Cylinder arrangement Forward inclined 2–cylinder
Displacement 499 cm
3
Bore ×Stroke 66.0 ×73.0 mm
Compression ratio 10.1:1
Starting system Electric starter
Lubrication system Dry sumpEngine oil
Type SAE 10W-30 or 10W-40
Recommended engine oil
classification API Service SE, SF, SG
type or higher
cCBe sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled “ENERGY
CONSERVING
II”) contain anti-friction additives which will
cause clutch and/or starter clutch slippage, resulting in
reduced component life and poor engine performance.
Quantity
Without oil filter cartridge
replacement 2.8 L
With oil filter cartridge
replacement 2.9 L
Total amount (dry engine) 3.6 L
Chain drive oil
Type SAE 80API “GL-4” hypoid
gear oil
Total amount 0.7 L
5GJ-9-E1 9/4/01 1:27 PM Page 90

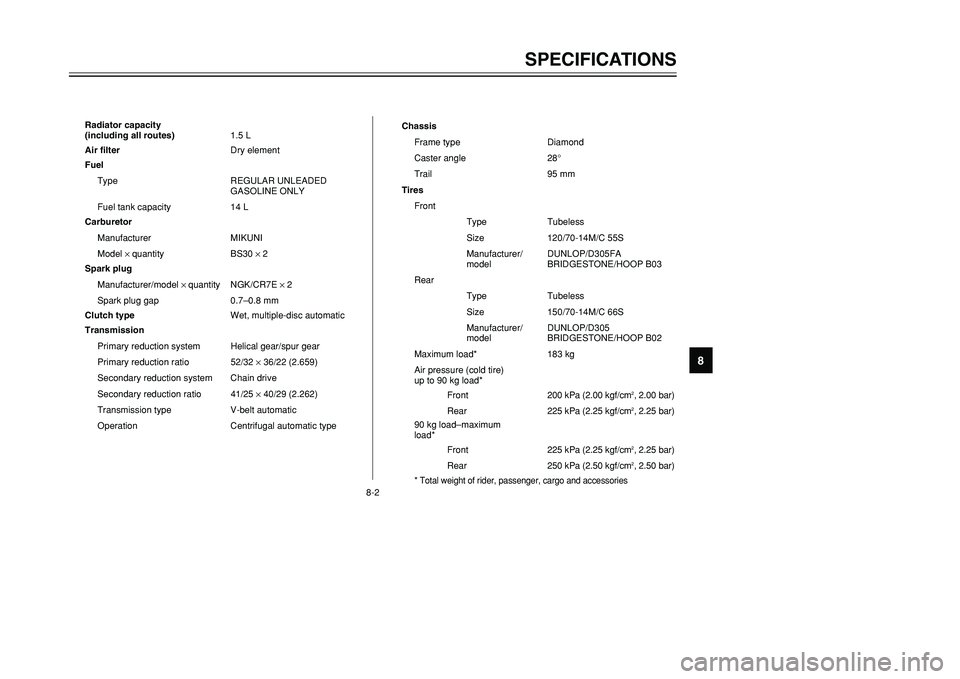

8-2
SPECIFICATIONS
8
Radiator capacity
(including all routes)1.5 L
Air filterDry element
Fuel
Type REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity 14 L
Carburetor
Manufacturer MIKUNI
Model × quantity BS30 × 2
Spark plug
Manufacturer/model × quantity NGK/CR7E × 2
Spark plug gap 0.7–0.8 mm
Clutch typeWet, multiple-disc automatic
Transmission
Primary reduction system Helical gear/spur gear
Primary reduction ratio 52/32 ×36/22 (2.659)
Secondary reduction system Chain drive
Secondary reduction ratio 41/25 ×40/29 (2.262)
Transmission type V-belt automatic
Operation Centrifugal automatic typeChassis
Frame type Diamond
Caster angle 28°
Trail 95 mm
Tires
Front
Type Tubeless
Size 120/70-14M/C 55S
Manufacturer/ DUNLOP/D305FA
model BRIDGESTONE/HOOP B03
Rear
Type Tubeless
Size 150/70-14M/C 66S
Manufacturer/ DUNLOP/D305
model BRIDGESTONE/HOOP B02
Maximum load* 183 kg
Air pressure (cold tire)
up to 90 kg load*
Front200 kPa (2.00 kgf/cm
2, 2.00 bar)
Rear225 kPa (2.25 kgf/cm2, 2.25 bar)
90 kg load–maximum
load*
Front225 kPa (2.25 kgf/cm2, 2.25 bar)
Rear250 kPa (2.50 kgf/cm2, 2.50 bar)
* Total weight of rider, passenger, cargo and accessories
5GJ-9-E1 9/4/01 1:27 PM Page 91

9-1
EAU01039
CONSUMER INFORMATION
9
EAU02944
Identification numbersIdentification numbersRecord the key identification number,
vehicle identification number and
model label information in the spaces
provided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the
vehicle is stolen.
1. KEY IDENTIFICATION
NUMBER:
2. VEHICLE IDENTIFICATION
NUMBER:
3. MODEL LABEL INFORMATION:
EAU01044
Vehicle identification numberThe vehicle identification number is
stamped into the frame.NOTE:
The vehicle identification number is
used to identify your scooter and may
be used to register your scooter with
the licensing authority in your area.
1
1. Vehicle identification number
EAU01041
Key identification numberKey identification numberThe key identification number is
stamped into the key tag.
Record this number in the space pro-
vided and use it for reference when
ordering a new key.
1
1. Key identification number
1
6
5GJ-9-E1 9/4/01 1:27 PM Page 96

9-2
CONSUMER INFORMATION
9
EAU03757
Model labelModel labelThe model label is affixed to the loca-
tion shown. Record the information
on this label in the space provided.
This information will be needed when
ordering spare parts from a Yamaha
dealer.
1
1. Model label
