INTRODUCTION
Welcome to the Yamaha world of motorcycling!
As the owner of an XP500, you are benefiting from Yamaha’s vast experience and newest technolo-
gy regarding the design and manufacture of high-quality products, which have earned Yamaha a rep-
utation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your XP500.
The owner’s manual does not only instruct you in how to operate, inspect and maintain your scooter,
but also in how to safeguard yourself and others from trouble and injury.
In addition, the many tips given in this manual will help keep your scooter in the best possible condi-
tion. If you have any further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
5GJ-9-E1 9/4/01 1:27 PM Page 1

EAU00005
IMPORTANT MANUAL INFORMATIONParticularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY
IS INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death
to the scooter operator, a bystander, or a person inspecting or repairing the
scooter.A CAUTION indicates special precautions that must be taken to avoid damage
to the scooter.A NOTE provides key information to make procedures easier or clearer.
Qw
cCNOTE:
NOTE:
8This manual should be considered a permanent part of this scooter and should remain with it
even if the scooter is subsequently sold.
8Yamaha continually seeks advancements in product design and quality. Therefore, while this
manual contains the most current product information available at the time of printing, there
may be minor discrepancies between your scooter and this manual. If you have any ques-
tions concerning this manual, please consult your Yamaha dealer.
5GJ-9-E1 9/4/01 1:27 PM Page 2

IMPORTANT MANUAL INFORMATION
EW000002
wPLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING
THIS SCOOTER.
5GJ-9-E1 9/4/01 1:27 PM Page 3

XP500
OWNER’S MANUAL
©2001 by Yamaha Motor Co., Ltd.
1st edition, September 2001
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.
EAU04229
5GJ-9-E1 9/4/01 1:27 PM Page 4

EAU00009

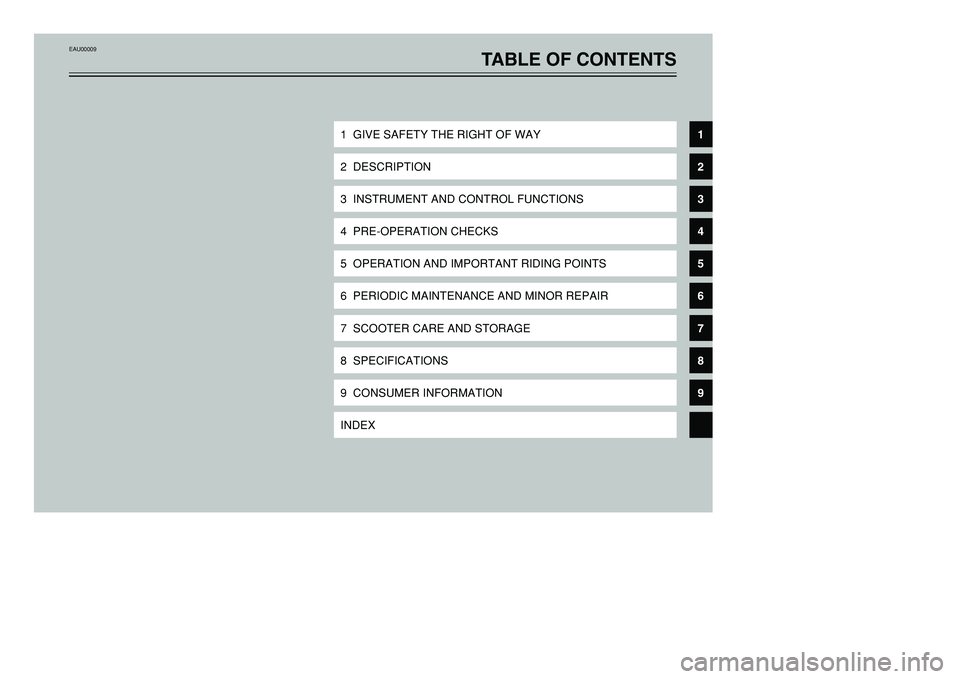

TABLE OF CONTENTS
