YAMAHA TMAX 2003 User Guide

1-2
Q Q
GIVE SAFETY THE RIGHT OF WAY
1
EAU03099
Further safe-riding pointsSafe-riding points
8Be sure to signal clearly when making turns.
8Braking can be extremely difficult on a wet road. Avoid hard braking, because the scooter could
slide. Apply the brakes slowly when stopping on a wet surface.
8Slow down as you approach a corner or turn. Once you have completed a turn, accelerate slowly.
8Be careful when passing parked cars. A driver might not see you and open a door in your path.
8Railroad crossings, streetcar rails, iron plates on road construction sites, and manhole covers
become extremely slippery when wet. Slow down and cross them with caution. Keep the scooter
upright, otherwise it could slide out from under you.
8The brake pads could get wet when you wash the scooter. After washing the scooter, check the
brakes before riding.
8Always wear a helmet, gloves, trousers (tapered around the cuff and ankle so they do not flap),
and a bright colored jacket.
8Do not carry too much luggage on the scooter. An overloaded scooter is unstable.
5GJ-28199-E2 9/9/02 9:15 AM Page 9

5GJ-28199-E2 9/9/02 9:15 AM Page 10

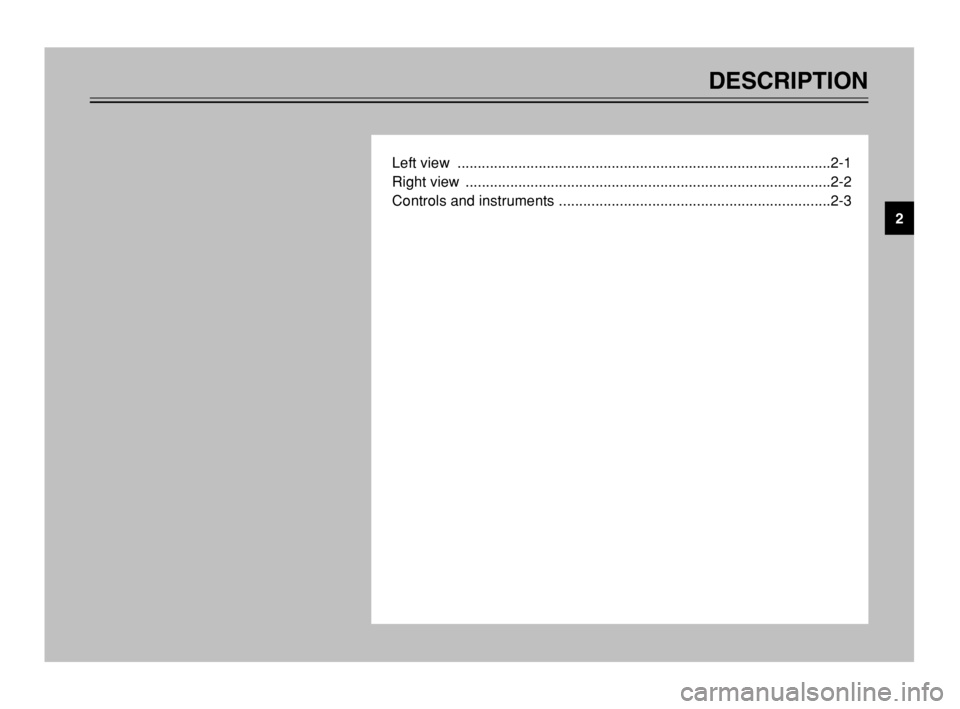

DESCRIPTION
Left view ............................................................................................2-1
Right view ..........................................................................................2-2
Controls and instruments ...................................................................2-3
2
5GJ-28199-E2 9/9/02 9:15 AM Page 11

2-1
EAU00026
DESCRIPTION
2
1. Fuel tank cap (page 3-9)
2. Rear storage compartment (page 3-14)
3. Helmet holder (page 3-13)
4. Grab bar (page 5-2)
5. Chain drive oil filler cap (page 6-15)
6. Engine oil filler cap (page 6-13)7. V-belt air filter element (left)
8. Engine oil drain bolt (page 6-13)
9. Engine oil level check window (page 6-12)
10. Oil filter cartridge (page 6-13)
1234
9876510
Part locations
Left view
5GJ-28199-E2 9/9/02 9:15 AM Page 12

2-2
DESCRIPTION
2
11. Battery, Fuses (page 6-32, 6-34)
12. Owner’s tool kit (page 6-1)
13. Front storage compartment (page 3-14)
14. Windshield
15. Air filter element (page 6-19)16. Radiator
17. Coolant level check window (page 6-17)
18. V-belt air filter element (right)
19. Centerstand (page 6-29)
20. Passenger footrest
1112131415
1817161920
Right view
5GJ-28199-E2 9/9/02 9:15 AM Page 13

2-3
DESCRIPTION
2
1. Rear brake lever (page 3-9)
2. Left handlebar switches (page 3-6)
3. Clock (page 3-5)
4. Speedometer unit (page 3-4)
5. Coolant temperature gauge (page 3-5)6. Fuel gauge (page 3-4)
7. Right handlebar switches (page 3-7)
8. Front brake lever (page 3-9)
9. Throttle grip (page 6-22, 6-29)
10. Main switch/steering lock (page 3-1)
43256781
10
9
Controls and instruments
5GJ-28199-E2 9/9/02 9:15 AM Page 14

INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock ...................................................................3-1
Indicator lights ...................................................................................3-2
Speedometer unit ..............................................................................3-4
Fuel gauge .........................................................................................3-4
Coolant temperature gauge ...............................................................3-5
Clock ..................................................................................................3-5
Self-diagnosis device .........................................................................3-6
Anti-theft alarm (optional) ..................................................................3-6
Handlebar switches ...........................................................................3-6
Front brake lever ...............................................................................3-9
Rear brake lever ................................................................................3-9
Fuel tank cap .....................................................................................3-9
Fuel ..................................................................................................3-10
Seat .................................................................................................3-11
Adjusting the rider backrest .............................................................3-12
Shock absorber ...............................................................................3-13
Helmet holder ..................................................................................3-13
Storage compartments ....................................................................3-14
Sidestand .........................................................................................3-14
Ignition circuit cut-off system ...........................................................3-15
3
5GJ-28199-E2 9/9/02 9:15 AM Page 15

3-1
EAU00029
Main switch/steering lockMain switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU04580
ON
All electrical circuits are supplied with
power; the meter lighting, taillight,
license plate light and auxiliary light
come on, and the engine can be
started. The key cannot be removed.
EAU00027
INSTRUMENT AND CONTROL FUNCTIONS
3IGNITIONP
LOCK
ON
OFF
OPEN
PUSH
PUSH
NOTE:
The headlight comes on automatical-
ly when the engine is started and
stays on until the key is turned to
“OFF” or the sidestand is moved
down.
EAU00038
OFF
All electrical systems are off. The key
can be removed.
EAU00040
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
To lock the steering
1. Turn the handlebars all the way
to the left.
2. Push the key in from the “OFF”
position, and then turn it to
“LOCK” while still pushing it.
3. Remove the key.To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
EW000016
w
Never turn the key to “OFF” or
“LOCK” while the scooter is mov-
ing, otherwise the electrical sys-
tems will be switched off, which
may result in loss of control or an
accident. Make sure that the scoot-
er is stopped before turning the
key to “OFF” or “LOCK”.
5GJ-28199-E2 9/9/02 9:15 AM Page 16

3-2
INSTRUMENT AND CONTROL FUNCTIONS
3
EAU03733.(Parking)
The steering is locked, and the tail-
light, license light and auxiliary light
are on, but all other electrical sys-
tems are off. The key can be
removed.
To turn the main switch to “
.”:
1. Turn the key to “LOCK”.
2. Slightly turn the key counter-
clockwise until it stops.
3. While still turning the key coun-
terclockwise, push it in until it
snaps into place.
ECA00043
cC
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
If the engine oil is changed before the
oil change indicator light comes on
(i.e. before the periodic oil change
interval has been reached), the indi-
cator light must be reset after the oil
change for the next periodic oil
change to be indicated at the correct
time. (See page 6-15 for the resetting
procedure.)
The electrical circuit of the indicator
light can be checked according to the
following procedure.
1. Set the engine stop switch to “#”
and turn the key to “ON”.
2. Check that the indicator comes
on for a few seconds and then
goes off.
3. If the indicator light does not
come on, have a Yamaha dealer
check the electrical circuit.
EAU00056
Indicator lightsIndicator lights
EAU03797
Oil change indicator light “7”Oil change indicator light
This indicator light comes on at the
initial 1,000 km, then at 5,000 km and
every 5,000 km thereafter to indicate
that the engine oil should be
changed.
After changing the engine oil, reset
the oil change indicator light. (See
page 6-15 for the resetting proce-
dure.)
1234
1. Oil change indicator light “7”
2. V-belt replacement indicator light “V-BELT”
3. High beam indicator light “&”
4. Turn signal indicator lights “4” and “6”
5GJ-28199-E2 9/9/02 9:15 AM Page 17

3-3
NOTE:
The oil change indicator light may
flash when the engine is revved with
the scooter on the centerstand, but
this does not indicate a malfunction.
INSTRUMENT AND CONTROL FUNCTIONS
3
EAU04424
V-belt replacement indicator light
“V-BELT”
V-belt replacement indicator light
This indicator light comes on every
20,000 km when the V-belt needs to
be replaced.
The electrical circuit of the indicator
light can be checked according to the
following procedure.
1. Turn the key to “ON” and make
sure that the engine stop switch
is set to “#”.
2. If the indicator light does not
come on, have a Yamaha dealer
check the electrical circuit.
1234
1. Oil change indicator light “7”
2. V-belt replacement indicator light “V-BELT”
3. High beam indicator light “&”
4. Turn signal indicator lights “4” and “6”
EAU00063
High beam indicator light “&”High beam indicator light
This indicator light comes on when
the high beam of the headlight is
switched on.
EAU04121
Turn signal indicator lights “4”
and “6”
Turn signal indicator lights
The corresponding indicator light
flashes when the turn signal switch is
pushed to the left or right.
5GJ-28199-E2 9/9/02 9:15 AM Page 18
