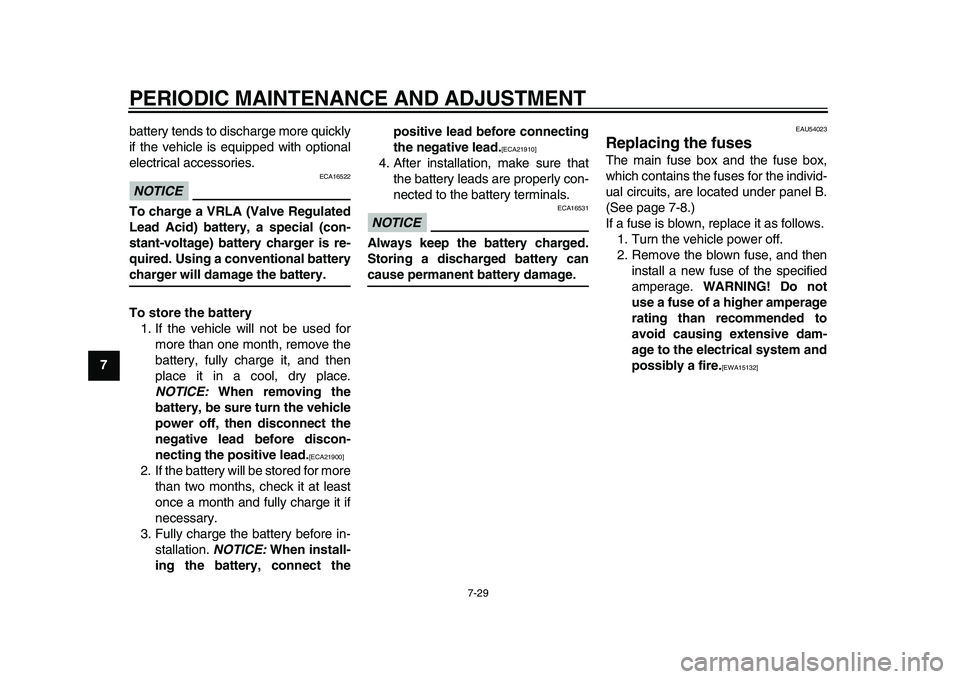

PERIODIC MAINTENANCE AND ADJUSTMENT
7-29
1
2
3
4
5
67
8
9
10
11
12 battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
NOTICE
ECA16522
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional batterycharger will damage the battery.
To store the battery
1. If the vehicle will not be used for more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removing the
battery, be sure turn the vehicle
power off, then disconnect the
negative lead before discon-
necting the positive lead.
[ECA21900]
2. If the battery will be stored for more than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in- stallation. NOTICE: When install-
ing the battery, connect the positive lead before connecting
the negative lead.
[ECA21910]
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.NOTICE
ECA16531
Always keep the battery charged.
Storing a discharged battery cancause permanent battery damage.
EAU54023
Replacing the fusesThe main fuse box and the fuse box,
which contains the fuses for the individ-
ual circuits, are located under panel B.
(See page 7-8.)
If a fuse is blown, replace it as follows.1. Turn the vehicle power off.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]
