YAMAHA TTR125 2004 Owners Manual

SPEC
2 - 18
MAINTENANCE SPECIFICATIONS
NOTE:
- marked portion shall be checked for torque tightening after break-in or before each ride.Part to be tightened Thread size Q’tyTightening torque
Nm m•kg ft•lb
Relay arm and connecting arm M10 × 1.25 1 35 3.5 25
Connecting arm and frame M10 × 1.25 1 35 3.5 25
Rear shock absorber assembly and frame M12 × 1.25 1 53 5.3 38
Rear shock absorber assembly and relay arm M10 × 1.25 1 35 3.5 25
Rear shock absorber and locknut (preload) M46 × 1.5 1 42 4.2 30
Drive chain tensioner (upper) M8 × 1.25 1 23 2.3 17
Drive chain tensioner (lower) M6 × 1.0 1 7 0.7 5.1
Drive chain support and swingarm M6 × 1.0 2 7 0.7 5.1
Drive chain guide and swingarm M6 × 1.0 2 7 0.7 5.1
Drive chain guard mounting M6 × 1.0 2 7 0.7 5.1
Fuel tank mounting M6 × 1.0 2 10 1.0 7.2
Fuel tank and fuel cock M6 × 1.0 2 7 0.7 5.1
Fuel tank and fuel tank bracket M6 × 1.0 4 7 0.7 5.1
Front fender mounting M6 × 1.0 4 7 0.7 5.1
Rear fender mounting M6 × 1.0 4 7 0.7 5.1
Flap guard mounting M6 × 1.0 2 4 0.4 2.9
Left side cover mounting M6 × 1.0 2 7 0.7 5.1
Seat mounting M6 × 1.0 2 7 0.7 5.1
Battery cover and battery box (TT-R125E) M6 × 1.0 1 5 0.5 3.6
Battery box and frame (TT-R125E) M6 × 1.0 2 7 0.7 5.1

SPEC

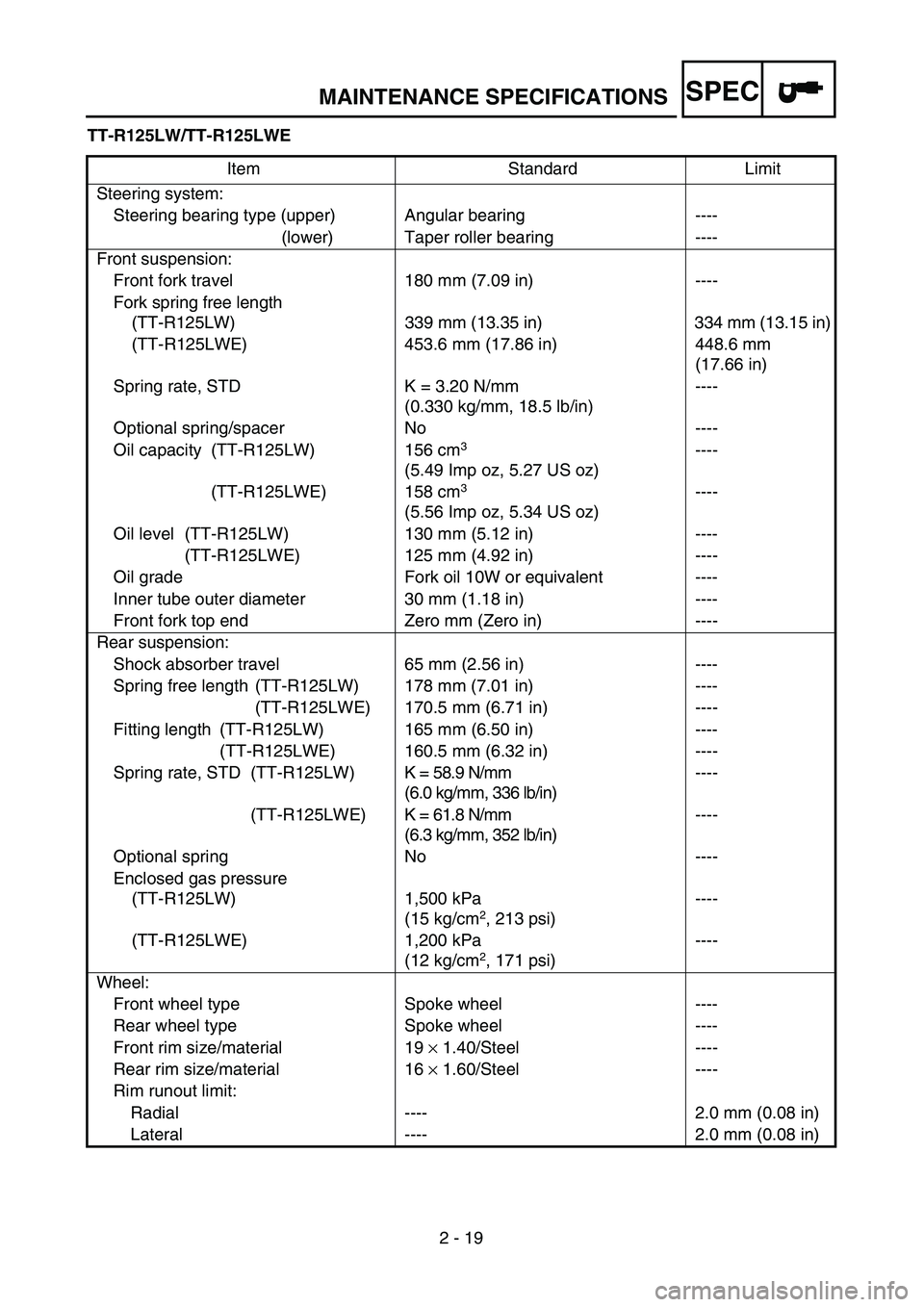

2 - 19
MAINTENANCE SPECIFICATIONS
TT-R125LW/TT-R125LWE
Item Standard Limit
Steering system:
Steering bearing type (upper) Angular bearing ----
(lower) Taper roller bearing ----
Front suspension:
Front fork travel 180 mm (7.09 in) ----
Fork spring free length
(TT-R125LW) 339 mm (13.35 in) 334 mm (13.15 in)
(TT-R125LWE) 453.6 mm (17.86 in) 448.6 mm
(17.66 in)
Spring rate, STD K = 3.20 N/mm
(0.330 kg/mm, 18.5 lb/in)----
Optional spring/spacer No ----
Oil capacity (TT-R125LW) 156 cm
3
(5.49 Imp oz, 5.27 US oz)----
(TT-R125LWE) 158 cm
3
(5.56 Imp oz, 5.34 US oz)----
Oil level (TT-R125LW) 130 mm (5.12 in) ----
(TT-R125LWE) 125 mm (4.92 in) ----
Oil grade Fork oil 10W or equivalent ----
Inner tube outer diameter 30 mm (1.18 in) ----
Front fork top end Zero mm (Zero in) ----
Rear suspension:
Shock absorber travel 65 mm (2.56 in) ----
Spring free length (TT-R125LW) 178 mm (7.01 in) ----
(TT-R125LWE) 170.5 mm (6.71 in) ----
Fitting length (TT-R125LW) 165 mm (6.50 in) ----
(TT-R125LWE) 160.5 mm (6.32 in) ----
Spring rate, STD (TT-R125LW) K = 58.9 N/mm
(6.0 kg/mm, 336 lb/in)----
(TT-R125LWE) K = 61.8 N/mm
(6.3 kg/mm, 352 lb/in)----
Optional spring No ----
Enclosed gas pressure
(TT-R125LW) 1,500 kPa
(15 kg/cm
2, 213 psi)----
(TT-R125LWE) 1,200 kPa
(12 kg/cm
2, 171 psi)----
Wheel:
Front wheel type Spoke wheel ----
Rear wheel type Spoke wheel ----
Front rim size/material 19 × 1.40/Steel ----
Rear rim size/material 16 × 1.60/Steel ----
Rim runout limit:
Radial ---- 2.0 mm (0.08 in)
Lateral ---- 2.0 mm (0.08 in)

SPEC

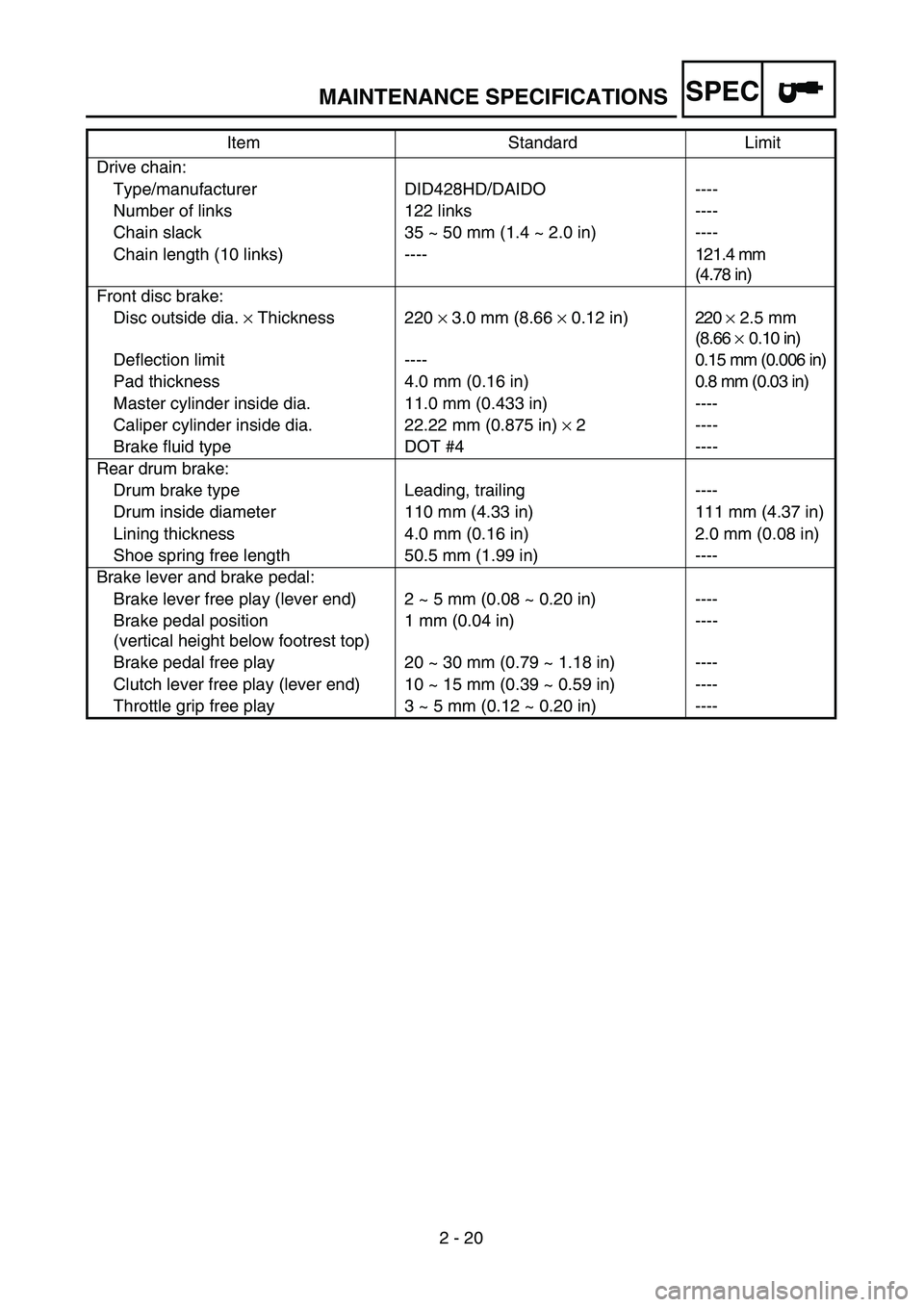

2 - 20
MAINTENANCE SPECIFICATIONS
Drive chain:
Type/manufacturer DID428HD/DAIDO ----
Number of links 122 links ----
Chain slack 35 ~ 50 mm (1.4 ~ 2.0 in) ----
Chain length (10 links) ----121.4 mm
(4.78 in)
Front disc brake:
Disc outside dia. × Thickness 220 × 3.0 mm (8.66 × 0.12 in)220 × 2.5 mm
(8.66 × 0.10 in)
Deflection limit ----0.15 mm (0.006 in)
Pad thickness 4.0 mm (0.16 in)0.8 mm (0.03 in)
Master cylinder inside dia. 11.0 mm (0.433 in) ----
Caliper cylinder inside dia. 22.22 mm (0.875 in) × 2 ----
Brake fluid type DOT #4 ----
Rear drum brake:
Drum brake type Leading, trailing ----
Drum inside diameter 110 mm (4.33 in) 111 mm (4.37 in)
Lining thickness 4.0 mm (0.16 in) 2.0 mm (0.08 in)
Shoe spring free length 50.5 mm (1.99 in) ----
Brake lever and brake pedal:
Brake lever free play (lever end) 2 ~ 5 mm (0.08 ~ 0.20 in) ----
Brake pedal position
(vertical height below footrest top)1 mm (0.04 in) ----
Brake pedal free play 20 ~ 30 mm (0.79 ~ 1.18 in) ----
Clutch lever free play (lever end) 10 ~ 15 mm (0.39 ~ 0.59 in) ----
Throttle grip free play 3 ~ 5 mm (0.12 ~ 0.20 in) ----Item Standard Limit

SPEC

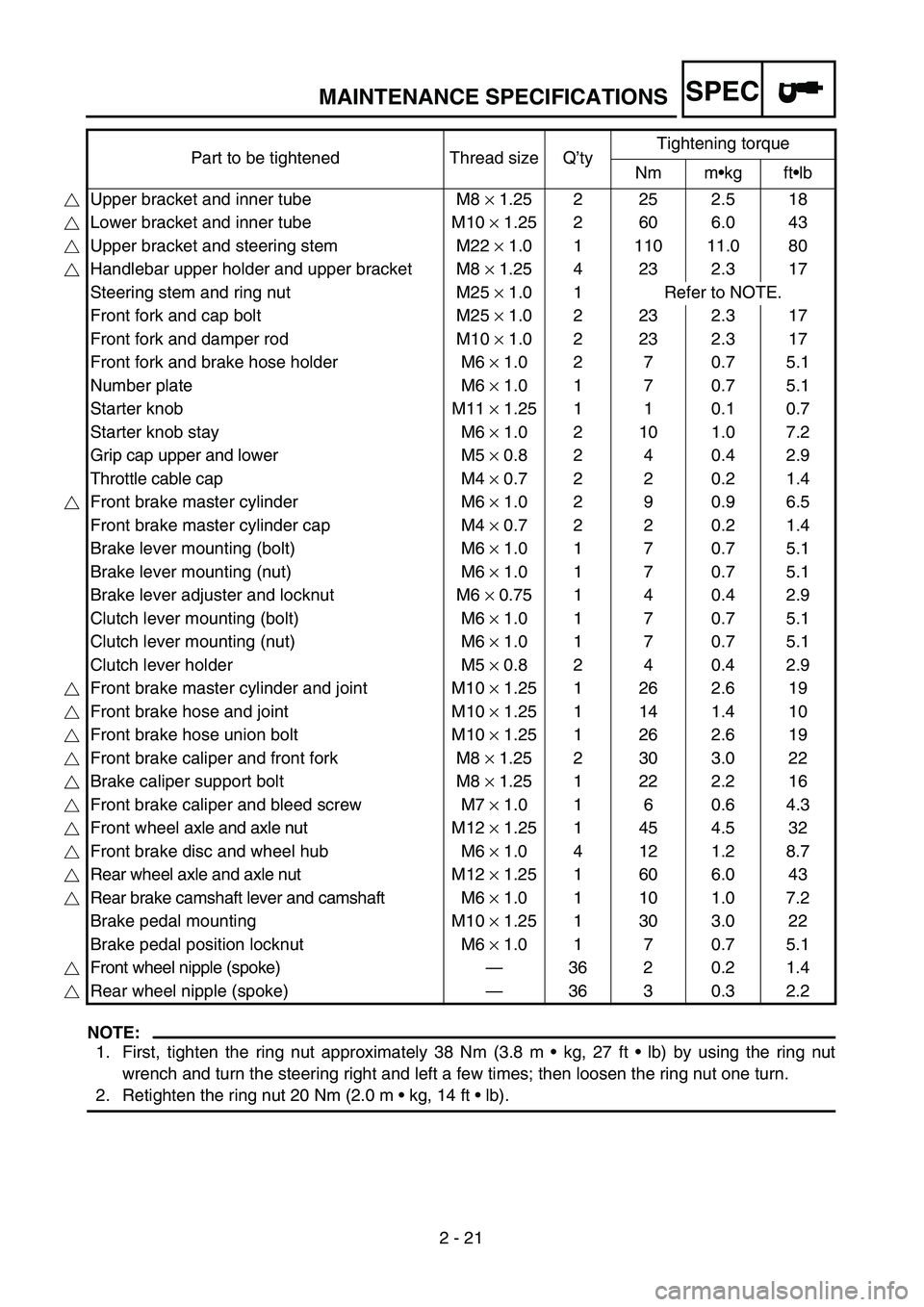

2 - 21
MAINTENANCE SPECIFICATIONS
NOTE:
1. First, tighten the ring nut approximately 38 Nm (3.8 m • kg, 27 ft • lb) by using the ring nut
wrench and turn the steering right and left a few times; then loosen the ring nut one turn.
2. Retighten the ring nut 20 Nm (2.0 m • kg, 14 ft • lb). Part to be tightened Thread size Q’tyTightening torque
Nm m•kg ft•lb
Upper bracket and inner tube M8 × 1.25 2 25 2.5 18
Lower bracket and inner tube M10 × 1.25 2 60 6.0 43
Upper bracket and steering stem M22 × 1.0 1 110 11.0 80
Handlebar upper holder and upper bracket M8 × 1.25 4 23 2.3 17
Steering stem and ring nut M25 × 1.0 1 Refer to NOTE.
Front fork and cap bolt M25 × 1.0 2 23 2.3 17
Front fork and damper rod M10 × 1.0 2 23 2.3 17
Front fork and brake hose holder M6 × 1.0 2 7 0.7 5.1
Number plate M6 × 1.0 1 7 0.7 5.1
Starter knob M11 × 1.25 1 1 0.1 0.7
Starter knob stay M6 × 1.0 2 10 1.0 7.2
Grip cap upper and lower M5 × 0.8 2 4 0.4 2.9
Throttle cable cap M4 × 0.7 2 2 0.2 1.4
Front brake master cylinder M6 × 1.0 2 9 0.9 6.5
Front brake master cylinder cap M4 × 0.7 2 2 0.2 1.4
Brake lever mounting (bolt) M6 × 1.0 1 7 0.7 5.1
Brake lever mounting (nut) M6 × 1.0 1 7 0.7 5.1
Brake lever adjuster and locknut M6 × 0.75 1 4 0.4 2.9
Clutch lever mounting (bolt) M6 × 1.0 1 7 0.7 5.1
Clutch lever mounting (nut) M6 × 1.0 1 7 0.7 5.1
Clutch lever holder M5 × 0.8 2 4 0.4 2.9
Front brake master cylinder and joint M10 × 1.25 1 26 2.6 19
Front brake hose and joint M10 × 1.25 1 14 1.4 10
Front brake hose union bolt M10 × 1.25 1 26 2.6 19
Front brake caliper and front fork M8 × 1.25 2 30 3.0 22
Brake caliper support bolt M8 × 1.25 1 22 2.2 16
Front brake caliper and bleed screw M7 × 1.0 1 6 0.6 4.3
Front wheel axle and axle nut M12 × 1.25 1 45 4.5 32
Front brake disc and wheel hub M6 × 1.0 4 12 1.2 8.7
Rear wheel axle and axle nut M12 × 1.25 1 60 6.0 43
Rear brake camshaft lever and camshaft M6 × 1.0 1 10 1.0 7.2
Brake pedal mounting M10 × 1.25 1 30 3.0 22
Brake pedal position locknut M6 × 1.0 1 7 0.7 5.1
Front wheel nipple (spoke)—36 2 0.2 1.4
Rear wheel nipple (spoke)—36 3 0.3 2.2

SPEC
2 - 22
MAINTENANCE SPECIFICATIONS
NOTE:
- marked portion shall be checked for torque tightening after break-in or before each ride.Part to be tightened Thread size Q’tyTightening torque
Nm m•kg ft•lb
Bead stopper M8 × 1.25 1 3 0.3 2.2
Driven sprocket (nut) M10 × 1.25 4 43 4.3 31
Driven sprocket (stud) M10 × 1.25 4 30 3.0 22
Sidestand mounting (nut) M10 × 1.25 1 44 4.4 32
Engine mounting:
Engine bracket (front) and frame M8 × 1.25 2 40 4.0 29
Engine bracket (front) and engine M8 × 1.25 2 40 4.0 29
Engine bracket (upper) and frame M8 × 1.25 2 40 4.0 29
Engine bracket (upper) and cylinder head M8 × 1.25 1 40 4.0 29
Engine and frame (rear) M8 × 1.25 2 40 4.0 29
Pivot shaft and nut M12 × 1.25 1 53 5.3 38
Relay arm and swingarm (TT-R125LW) M12 × 1.25 1 70 7.0 50
(TT-R125LWE) M12 × 1.25 1 53 5.3 38
Relay arm and connecting arm M10 × 1.25 1 35 3.5 25
Connecting arm and frame M10 × 1.25 1 35 3.5 25
Rear shock absorber assembly and frame M12 × 1.25 1 53 5.3 38
Rear shock absorber assembly and relay arm M10 × 1.25 1 35 3.5 25
Rear shock absorber and locknut (preload) M46 × 1.5 1 42 4.2 30
Drive chain tensioner (upper) M8 × 1.25 1 23 2.3 17
Drive chain tensioner (lower) M6 × 1.0 1 7 0.7 5.1
Drive chain support and swingarm M6 × 1.0 2 7 0.7 5.1
Drive chain guide and swingarm M6 × 1.0 2 7 0.7 5.1
Drive chain guard mounting M6 × 1.0 2 7 0.7 5.1
Fuel tank mounting M6 × 1.0 2 10 1.0 7.2
Fuel tank and fuel cock M6 × 1.0 2 7 0.7 5.1
Fuel tank and fuel tank bracket M6 × 1.0 4 7 0.7 5.1
Front fender mounting M6 × 1.0 4 7 0.7 5.1
Rear fender mounting M6 × 1.0 4 7 0.7 5.1
Flap guard mounting M6 × 1.0 2 4 0.4 2.9
Left side cover mounting M6 × 1.0 2 7 0.7 5.1
Seat mounting M6 × 1.0 2 7 0.7 5.1
Battery cover and battery box (TT-R125LWE) M6 × 1.0 1 5 0.5 3.6
Battery box and frame (TT-R125LWE) M6 × 1.0 2 7 0.7 5.1

SPEC

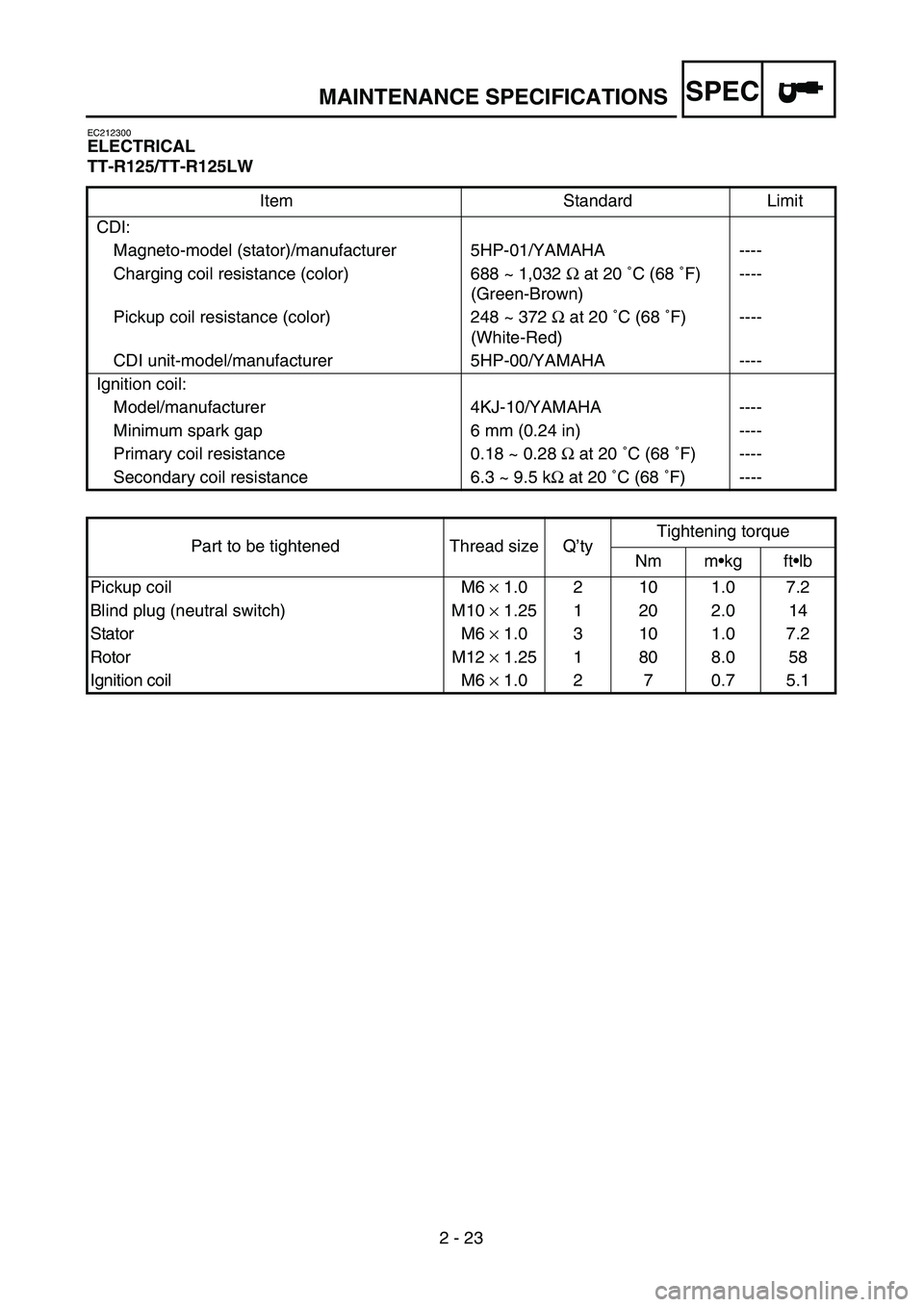

2 - 23
MAINTENANCE SPECIFICATIONS
EC212300
ELECTRICAL
TT-R125/TT-R125LW
Item Standard Limit
CDI:
Magneto-model (stator)/manufacturer 5HP-01/YAMAHA ----
Charging coil resistance (color) 688 ~ 1,032 Ω at 20 ˚C (68 ˚F)
(Green-Brown)----
Pickup coil resistance (color) 248 ~ 372 Ω at 20 ˚C (68 ˚F)
(White-Red)----
CDI unit-model/manufacturer 5HP-00/YAMAHA ----
Ignition coil:
Model/manufacturer 4KJ-10/YAMAHA ----
Minimum spark gap 6 mm (0.24 in) ----
Primary coil resistance 0.18 ~ 0.28 Ω at 20 ˚C (68 ˚F) ----
Secondary coil resistance 6.3 ~ 9.5 kΩ at 20 ˚C (68 ˚F) ----
Part to be tightened Thread size Q’tyTightening torque
Nm m•kg ft•lb
Pickup coil M6 × 1.0 2 10 1.0 7.2
Blind plug (neutral switch) M10 × 1.25 1 20 2.0 14
Stator M6 × 1.0 3 10 1.0 7.2
Rotor M12 × 1.25 1 80 8.0 58
Ignition coil M6 × 1.0 2 7 0.7 5.1

SPEC

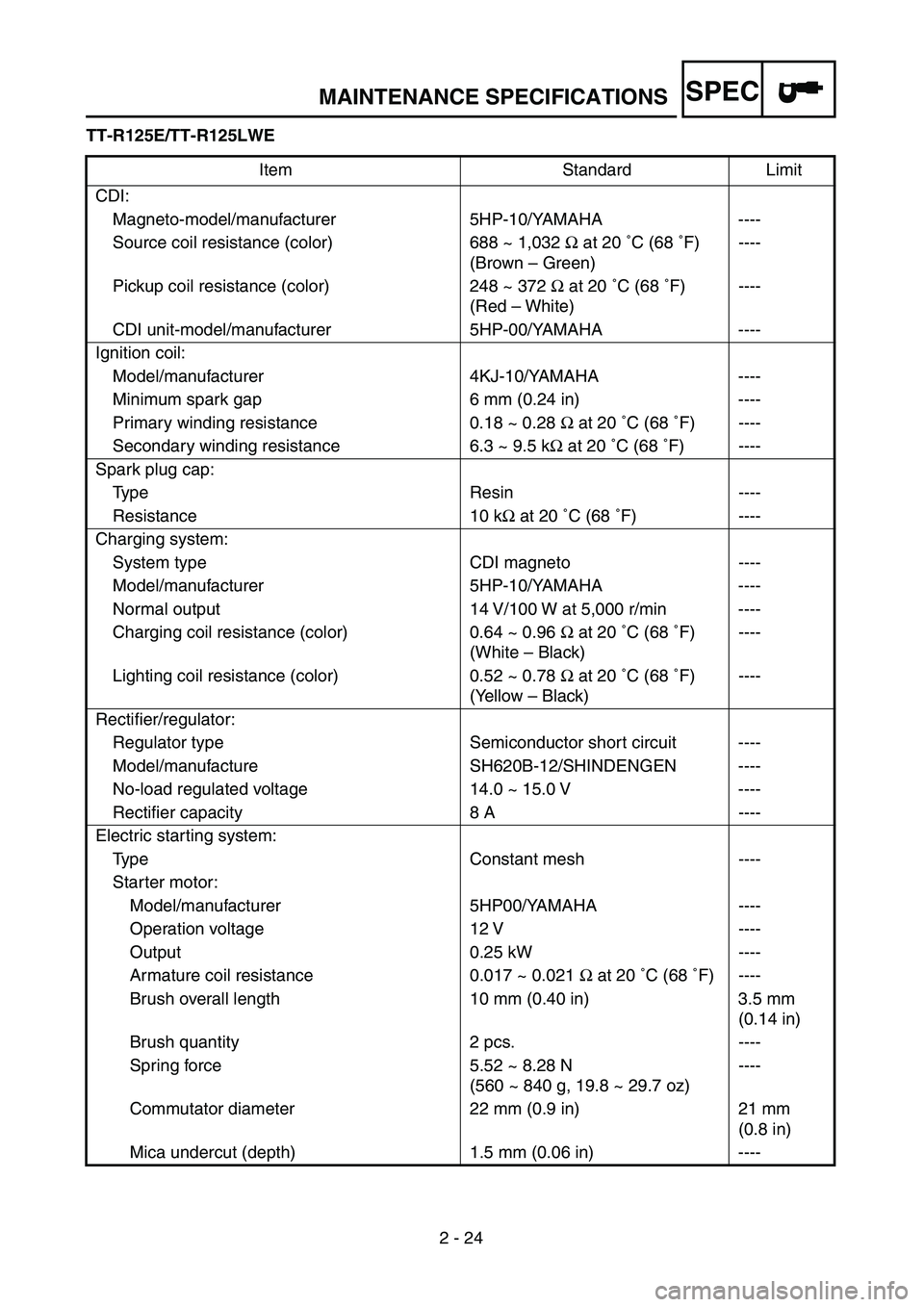

2 - 24
MAINTENANCE SPECIFICATIONS
TT-R125E/TT-R125LWE
Item Standard Limit
CDI:
Magneto-model/manufacturer 5HP-10/YAMAHA ----
Source coil resistance (color) 688 ~ 1,032 Ω at 20 ˚C (68 ˚F)
(Brown – Green)----
Pickup coil resistance (color) 248 ~ 372 Ω at 20 ˚C (68 ˚F)
(Red – White)----
CDI unit-model/manufacturer 5HP-00/YAMAHA ----
Ignition coil:
Model/manufacturer 4KJ-10/YAMAHA ----
Minimum spark gap 6 mm (0.24 in) ----
Primary winding resistance 0.18 ~ 0.28 Ω at 20 ˚C (68 ˚F) ----
Secondary winding resistance 6.3 ~ 9.5 kΩ at 20 ˚C (68 ˚F) ----
Spark plug cap:
Type Resin ----
Resistance 10 kΩ at 20 ˚C (68 ˚F) ----
Charging system:
System type CDI magneto ----
Model/manufacturer 5HP-10/YAMAHA ----
Normal output 14 V/100 W at 5,000 r/min ----
Charging coil resistance (color) 0.64 ~ 0.96 Ω at 20 ˚C (68 ˚F)
(White – Black)----
Lighting coil resistance (color) 0.52 ~ 0.78 Ω at 20 ˚C (68 ˚F)
(Yellow – Black)----
Rectifier/regulator:
Regulator type Semiconductor short circuit ----
Model/manufacture SH620B-12/SHINDENGEN ----
No-load regulated voltage 14.0 ~ 15.0 V ----
Rectifier capacity 8 A ----
Electric starting system:
Type Constant mesh ----
Starter motor:
Model/manufacturer 5HP00/YAMAHA ----
Operation voltage 12 V ----
Output 0.25 kW ----
Armature coil resistance 0.017 ~ 0.021 Ω at 20 ˚C (68 ˚F) ----
Brush overall length 10 mm (0.40 in) 3.5 mm
(0.14 in)
Brush quantity 2 pcs. ----
Spring force 5.52 ~ 8.28 N
(560 ~ 840 g, 19.8 ~ 29.7 oz)----
Commutator diameter 22 mm (0.9 in) 21 mm
(0.8 in)
Mica undercut (depth) 1.5 mm (0.06 in) ----

SPEC
2 - 25
MAINTENANCE SPECIFICATIONS
Starter relay:
Model/manufacturer MS5F-751/JIDECO ----
Amperage rating 180 A ----
Coil winding resistance 4.2 ~ 4.6 Ω at 20 ˚C (68 ˚F) ----
Starting circuit cut-off relay:
Model/manufacturer ACM33221/MATSUSHITA ----
Coil winding resistance 75.69 ~ 92.51 Ω at 20 ˚C (68 ˚F) ----
Fuse (amperage × quantity):
Main fuse 10 A × 1 ----
Reserve fuse 10 A × 1 ----
Part to be tightened Thread size Q’tyTightening torque
Nm m•kg ft•lb
Pickup coil M6 × 1.0 2 10 1.0 7.2
Neutral switch M10 × 1.25 1 18 1.8 13
Stator M6 × 1.0 3 10 1.0 7.2
Rotor M12 × 1.25 1 80 8.0 58
Ignition coil M6 × 1.0 2 7 0.7 5.1
Starter motor M6 × 1.0 2 10 1.0 7.2 Item Standard Limit

SPEC
2 - 26
EC220001
GENERAL TORQUE SPECIFICATIONS
This chart specifies torque for standard fasten-
ers with standard I.S.O. pitch threads. Torque
specifications for special components or
assemblies are included in the applicable sec-
tions of this book. To avoid warpage, tighten
multi-fastener assemblies in a crisscross fash-
ion, in progressive stages, until full torque is
reached. Unless otherwise specified, torque
specifications call for clean, dry threads. Com-
ponents should be at room temperature.
A: Distance between flats
B: Outside thread diameter
EC230000
DEFINITION OF UNITS
A
(Nut)B
(Bolt)TORQUE
SPECIFICATION
Nm m•kg ft•lb
10 mm
12 mm
14 mm
17 mm
19 mm
22 mm6 mm
8 mm
10 mm
12 mm
14 mm
16 mm6
15
30
55
85
1300.6
1.5
3.0
5.5
8.5
134.3
11
22
40
61
94
Unit Read Definition Measure
mm
cmmillimeter
centimeter10
-3 meter
10-2 meterLength
Length
kg kilogram 10
3 gram Weight
N Newton 1 kg
× m/sec2Force
Nm
m • kgNewton meter
Meter kilogramN
× m
m
× kgTorque
Torque
Pa Pascal N/m
2Pressure
N/mm Newton per millimeter N/mm Spring rate
L
cm
3Liter
Cubic centimeter—
—Volume or capacity
Volume or capacity
r/min Revolution per minute—Engine speed
GENERAL TORQUE SPECIFICATIONS/
DEFINITION OF UNITS

SPEC
2 - 1

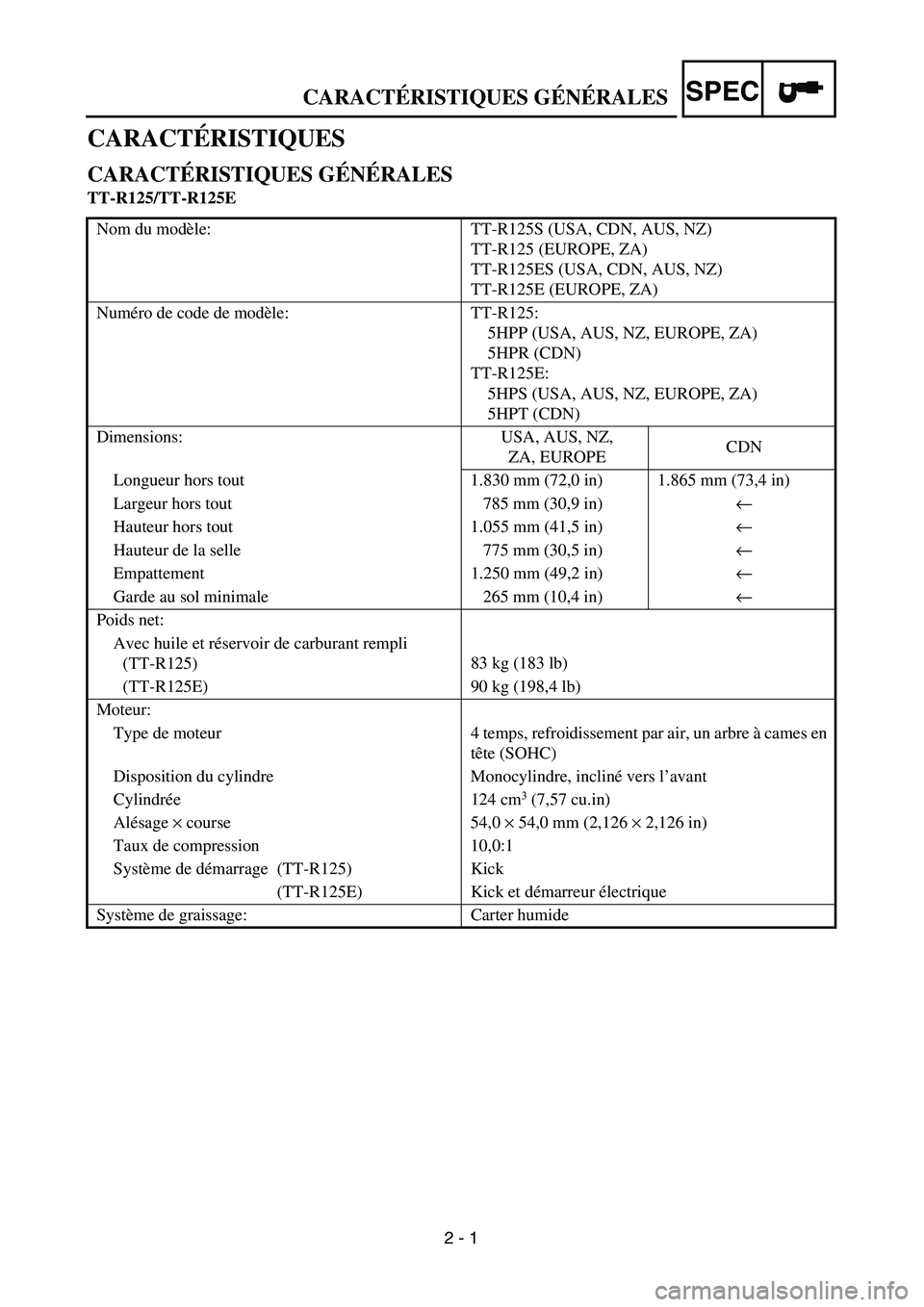

CARACTÉRISTIQUES
CARACTÉRISTIQUES GÉNÉRALES
TT-R125/TT-R125E
Nom du modèle:
TT-R125S (USA, CDN, AUS, NZ)
TT-R125 (EUROPE, ZA)
TT-R125ES (USA, CDN, AUS, NZ)
TT-R125E (EUROPE, ZA)
Numéro de code de modèle:
TT-R125:
5HPP (USA, AUS, NZ, EUROPE, ZA)
5HPR (CDN)
TT-R125E:
5HPS (USA, AUS, NZ, EUROPE, ZA)
5HPT (CDN)
Dimensions: USA, AUS, NZ,
ZA, EUROPECDN
Longueur hors tout 1.830 mm (72,0 in)
1.865 mm (73,4 in)
Largeur hors tout 785 mm (30,9 in)
←
Hauteur hors tout 1.055 mm (41,5 in)
←
Hauteur de la selle 775 mm (30,5 in)
←
Empattement 1.250 mm (49,2 in)
←
Garde au sol minimale 265 mm (10,4 in)
←
Poids net:
Avec huile et réservoir de carburant rempli
(TT-R125)83 kg (183 lb)
(TT-R125E)90 kg (198,4 lb)
Moteur:
Type de moteur 4 temps, refroidissement par air, un arbre à cames en
tête (SOHC)
Disposition du cylindre Monocylindre, incliné vers l’avant
Cylindrée 124 cm
3 (7,57 cu.in)
Alésage × course 54,0 × 54,0 mm (2,126 × 2,126 in)
Taux de compression 10,0:1
Système de démarrage (TT-R125) Kick
(TT-R125E) Kick et démarreur électrique
Système de graissage: Carter humide
CARACTÉRISTIQUES GÉNÉRALES
