steering YAMAHA TTR50 2009 Owners Manual

TABLE OF CONTENTS
SAFETY INFORMATION .................. 1-1
DESCRIPTION .................................. 2-1
Left view .......................................... 2-1
Right view ........................................ 2-2
Controls and instruments ................2-3
INSTRUMENT AND CONTROL
FUNCTIONS....................................... 3-1
Main switch ..................................... 3-1
Handlebar switches ........................ 3-1
Speed limiter .................................. 3-2
Shift pedal ......................................3-3
Brake lever ..................................... 3-3
Brake pedal .................................... 3-3
Fuel tank cap .................................. 3-4
Fuel ................................................ 3-4
Fuel tank breather hose ................. 3-6
Fuel cock ........................................ 3-6
Starter (choke) lever ....................... 3-7
Seat ................................................ 3-7
Sidestand ....................................... 3-8
Starting circuit cut-off system ......... 3-8
FOR YOUR SAFETY –
PRE-OPERATION CHECKS.............. 4-1
Pre-operation check list .................. 4-2OPERATION AND IMPORTANT
RIDING POINTS................................ 5-1
Starting and warming up a cold
engine ......................................... 5-1
Starting a warm engine .................. 5-2
Shifting ........................................... 5-2
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1
Periodic maintenance chart for
the emission control system ....... 6-2
General maintenance and
lubrication chart .......................... 6-3
Checking the spark plug ................ 6-5
Engine oil ....................................... 6-6
Cleaning the air filter element ........ 6-8
Cleaning the spark arrester ........... 6-9
Adjusting the carburetor ............... 6-10
Adjusting the engine idling
speed ........................................ 6-11
Adjusting the throttle cable free
play ........................................... 6-11
Valve clearance ........................... 6-12
Tires ............................................. 6-12
Spoke wheels .............................. 6-14
Adjusting the clutch free play ....... 6-14
Adjusting the brake lever free
play ........................................... 6-15Adjusting the brake pedal free
play ........................................... 6-16
Checking the shift pedal ............... 6-16
Checking the front and rear brake
shoes ........................................ 6-17
Drive chain slack .......................... 6-17
Cleaning and lubricating the drive
chain ......................................... 6-19
Checking and lubricating
the cables ................................. 6-20
Checking and lubricating
the throttle grip and cable ......... 6-20
Checking and lubricating
the brake lever .......................... 6-20
Checking and lubricating
the brake pedal ......................... 6-21
Checking and lubricating
the sidestand ............................ 6-21
Lubricating the swingarm pivots ... 6-21
Checking the front fork ................. 6-22
Checking the steering .................. 6-22
Checking the wheel bearings ....... 6-23
Battery .......................................... 6-23
Replacing the fuse ....................... 6-25
Supporting the motorcycle ........... 6-25
Front wheel .................................. 6-26
Rear wheel ................................... 6-28
Troubleshooting ........................... 6-29
Troubleshooting chart .................. 6-31
U1P683E0.book Page 1 Tuesday, April 29, 2008 2:05 PM

SAFETY INFORMATION
1-4

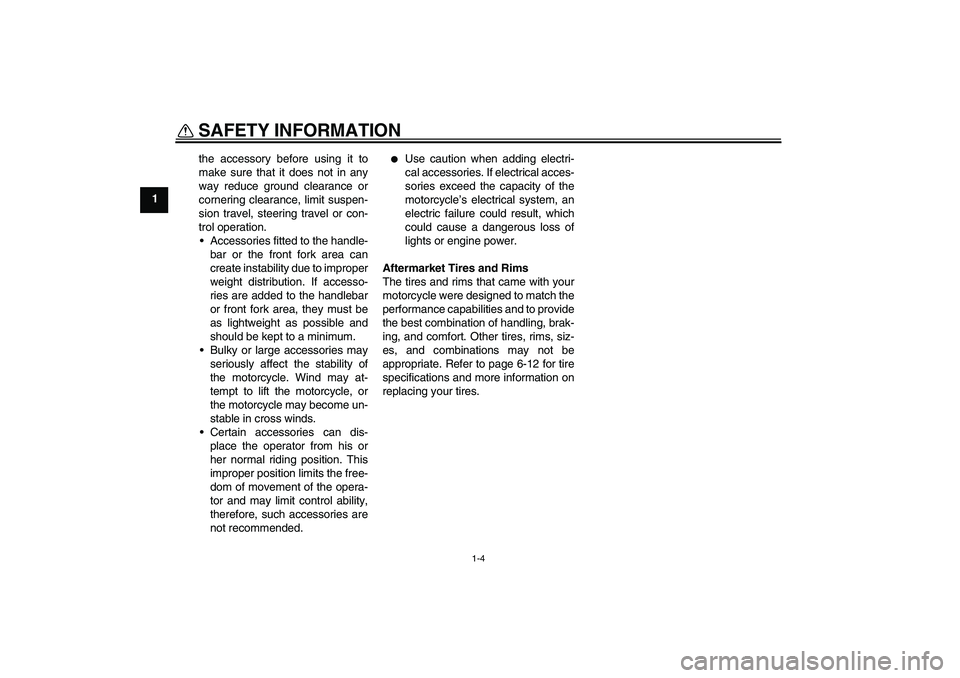

1the accessory before using it to
make sure that it does not in any
way reduce ground clearance or
cornering clearance, limit suspen-
sion travel, steering travel or con-
trol operation.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution. If accesso-
ries are added to the handlebar
or front fork area, they must be
as lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the motorcycle. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds.
Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.


Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match the
performance capabilities and to provide
the best combination of handling, brak-
ing, and comfort. Other tires, rims, siz-
es, and combinations may not be
appropriate. Refer to page 6-12 for tire
specifications and more information on
replacing your tires.
U1P683E0.book Page 4 Tuesday, April 29, 2008 2:05 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU35348
General maintenance and lubrication chart No. ITEM CHECKS AND MAINTENANCE JOBSINITIAL ODOMETER READINGS
1000 km
(600 mi) or
1 month or
30 hours3000 km
(1800 mi) or
6 months or
90 hours5000 km
(3000 mi) or
12 months or
150 hours
1*ClutchCheck operation.
Adjust if necessary.√√√
2*Front brakeCheck operation.
Adjust brake lever free play and replace brake shoes if
necessary.√√√
3*Rear brakeCheck operation.
Adjust brake pedal free play and replace brake shoes if
necessary.√√√
4*WheelsCheck runout, spoke tightness and for damage.
Tighten spokes if necessary.√√√
5*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√
6*Wheel bearingsCheck bearings for smooth operation.
Replace if necessary.√√
7*Swingarm pivot bearingsCheck bearing assemblies for looseness.
Moderately repack with lithium-soap-based grease.√√
8 Drive chainCheck chain slack/alignment and condition.
Adjust and lubricate chain with Yamaha chain and cable
lube thoroughly.Every ride
9*Steering bearingsCheck bearing assemblies for looseness.
Moderately repack with lithium-soap-based grease.√√
U1P683E0.book Page 3 Tuesday, April 29, 2008 2:05 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-22
6
EAU42081

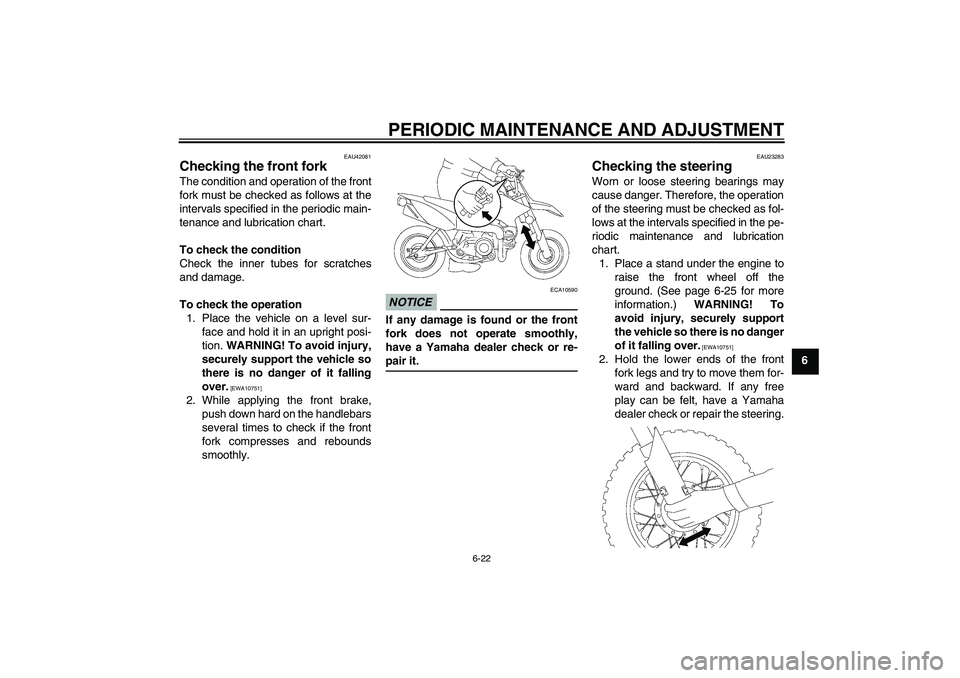

Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
Check the inner tubes for scratches
and damage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10751]
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
NOTICE
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
EAU23283
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground. (See page 6-25 for more
information.) WARNING! To
avoid injury, securely support
the vehicle so there is no danger
of it falling over.
[EWA10751]
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
U1P683E0.book Page 22 Tuesday, April 29, 2008 2:05 PM

CONSUMER INFORMATION
9-1
9
EAU26351

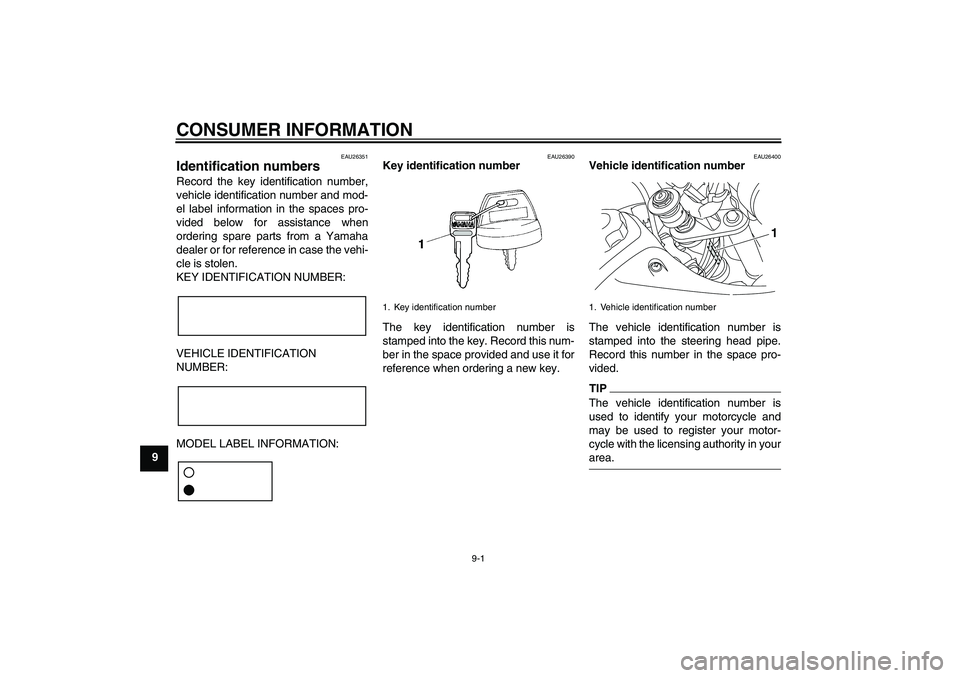

Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26390
Key identification number
The key identification number is
stamped into the key. Record this num-
ber in the space provided and use it for
reference when ordering a new key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
1. Vehicle identification number
1
U1P683E0.book Page 1 Tuesday, April 29, 2008 2:05 PM

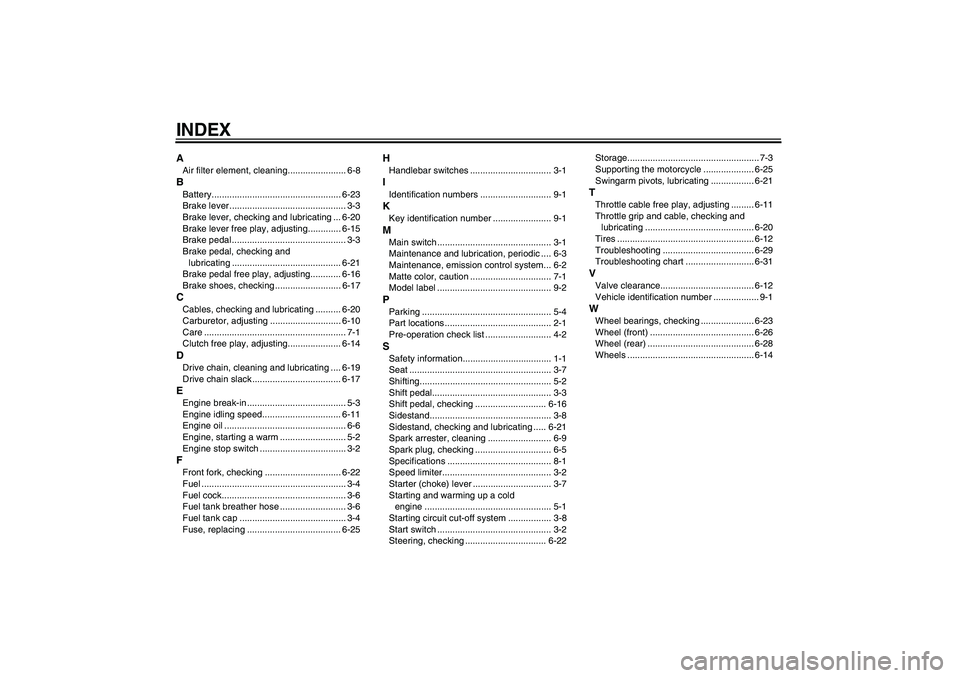

INDEXAAir filter element, cleaning....................... 6-8BBattery................................................... 6-23
Brake lever .............................................. 3-3
Brake lever, checking and lubricating ... 6-20
Brake lever free play, adjusting............. 6-15
Brake pedal ............................................. 3-3
Brake pedal, checking and
lubricating ........................................... 6-21
Brake pedal free play, adjusting............ 6-16
Brake shoes, checking .......................... 6-17CCables, checking and lubricating .......... 6-20
Carburetor, adjusting ............................ 6-10
Care ........................................................ 7-1
Clutch free play, adjusting..................... 6-14DDrive chain, cleaning and lubricating .... 6-19
Drive chain slack ................................... 6-17EEngine break-in ....................................... 5-3
Engine idling speed............................... 6-11
Engine oil ................................................ 6-6
Engine, starting a warm .......................... 5-2
Engine stop switch .................................. 3-2FFront fork, checking .............................. 6-22
Fuel ......................................................... 3-4
Fuel cock................................................. 3-6
Fuel tank breather hose .......................... 3-6
Fuel tank cap .......................................... 3-4
Fuse, replacing ..................................... 6-25
HHandlebar switches ................................ 3-1IIdentification numbers ............................ 9-1KKey identification number ....................... 9-1MMain switch ............................................. 3-1
Maintenance and lubrication, periodic .... 6-3
Maintenance, emission control system... 6-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-2PParking ................................................... 5-4
Part locations .......................................... 2-1
Pre-operation check list .......................... 4-2SSafety information................................... 1-1
Seat ........................................................ 3-7
Shifting.................................................... 5-2
Shift pedal............................................... 3-3
Shift pedal, checking ............................ 6-16
Sidestand................................................ 3-8
Sidestand, checking and lubricating ..... 6-21
Spark arrester, cleaning ......................... 6-9
Spark plug, checking .............................. 6-5
Specifications ......................................... 8-1
Speed limiter........................................... 3-2
Starter (choke) lever ............................... 3-7
Starting and warming up a cold
engine .................................................. 5-1
Starting circuit cut-off system ................. 3-8
Start switch ............................................. 3-2
Steering, checking ................................ 6-22Storage.................................................... 7-3
Supporting the motorcycle .................... 6-25
Swingarm pivots, lubricating ................. 6-21
TThrottle cable free play, adjusting ......... 6-11
Throttle grip and cable, checking and
lubricating ........................................... 6-20
Tires ...................................................... 6-12
Troubleshooting .................................... 6-29
Troubleshooting chart ........................... 6-31VValve clearance..................................... 6-12
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-23
Wheel (front) ......................................... 6-26
Wheel (rear) .......................................... 6-28
Wheels .................................................. 6-14
U1P683E0.book Page 1 Tuesday, April 29, 2008 2:05 PM
