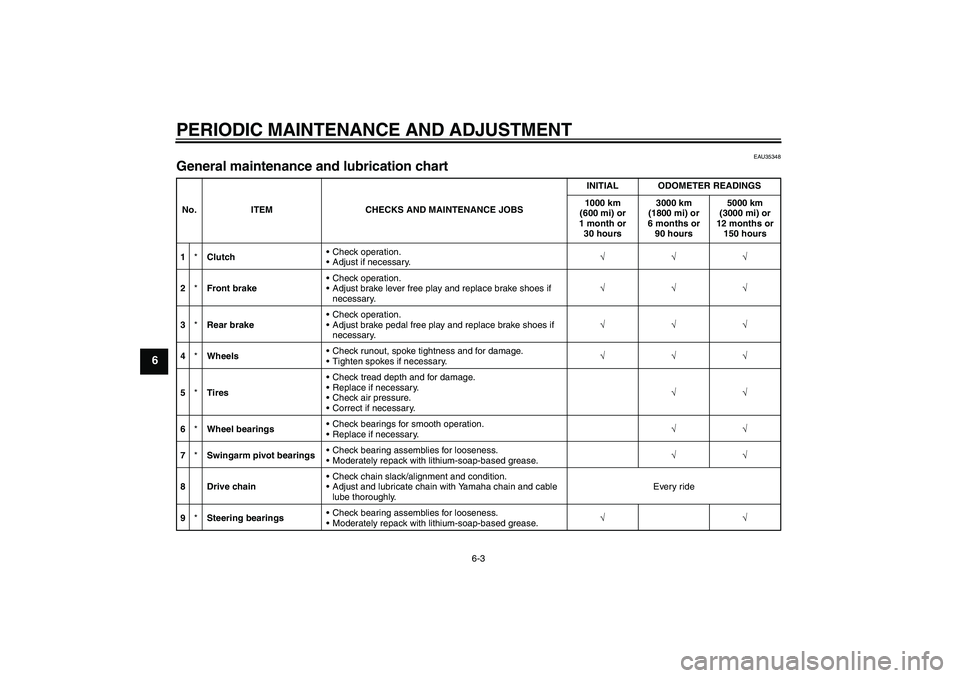

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU35348
General maintenance and lubrication chart No. ITEM CHECKS AND MAINTENANCE JOBSINITIAL ODOMETER READINGS
1000 km
(600 mi) or
1 month or
30 hours3000 km
(1800 mi) or
6 months or
90 hours5000 km
(3000 mi) or
12 months or
150 hours
1*ClutchCheck operation.
Adjust if necessary.√√√
2*Front brakeCheck operation.
Adjust brake lever free play and replace brake shoes if
necessary.√√√
3*Rear brakeCheck operation.
Adjust brake pedal free play and replace brake shoes if
necessary.√√√
4*WheelsCheck runout, spoke tightness and for damage.
Tighten spokes if necessary.√√√
5*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√
6*Wheel bearingsCheck bearings for smooth operation.
Replace if necessary.√√
7*Swingarm pivot bearingsCheck bearing assemblies for looseness.
Moderately repack with lithium-soap-based grease.√√
8 Drive chainCheck chain slack/alignment and condition.
Adjust and lubricate chain with Yamaha chain and cable
lube thoroughly.Every ride
9*Steering bearingsCheck bearing assemblies for looseness.
Moderately repack with lithium-soap-based grease.√√
U1P683E0.book Page 3 Tuesday, April 29, 2008 2:05 PM

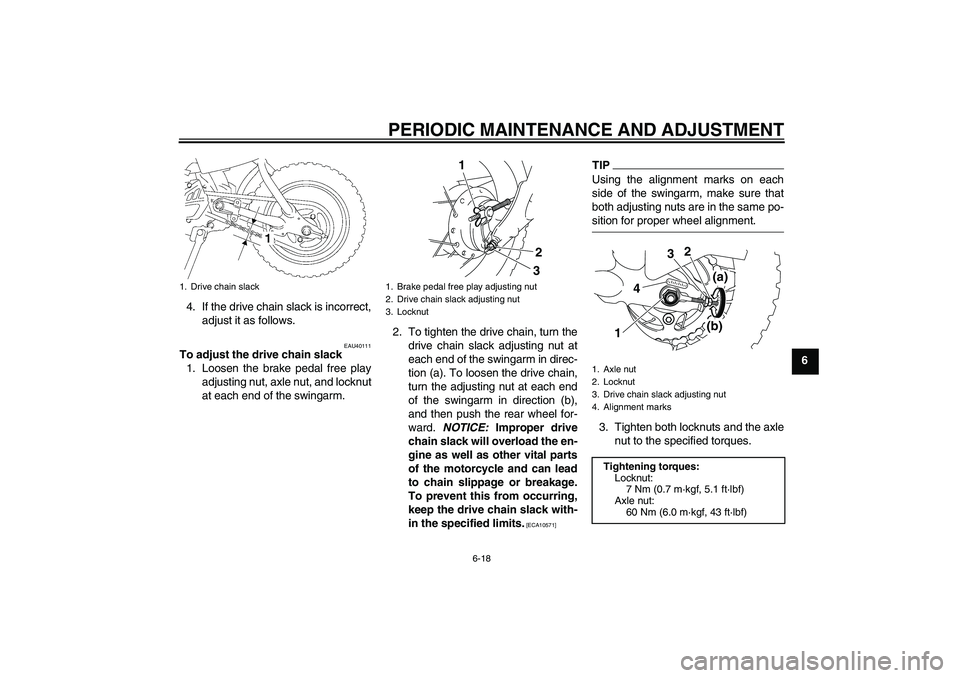

PERIODIC MAINTENANCE AND ADJUSTMENT
6-18
6 4. If the drive chain slack is incorrect,
adjust it as follows.
EAU40111
To adjust the drive chain slack
1. Loosen the brake pedal free play
adjusting nut, axle nut, and locknut
at each end of the swingarm.2. To tighten the drive chain, turn the
drive chain slack adjusting nut at
each end of the swingarm in direc-
tion (a). To loosen the drive chain,
turn the adjusting nut at each end
of the swingarm in direction (b),
and then push the rear wheel for-
ward. NOTICE: Improper drive
chain slack will overload the en-
gine as well as other vital parts
of the motorcycle and can lead
to chain slippage or breakage.
To prevent this from occurring,
keep the drive chain slack with-
in the specified limits.
[ECA10571]
TIPUsing the alignment marks on each
side of the swingarm, make sure that
both adjusting nuts are in the same po-sition for proper wheel alignment.
3. Tighten both locknuts and the axle
nut to the specified torques.
1. Drive chain slack
1. Brake pedal free play adjusting nut
2. Drive chain slack adjusting nut
3. Locknut
1
2
3
1. Axle nut
2. Locknut
3. Drive chain slack adjusting nut
4. Alignment marks
Tightening torques:
Locknut:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Axle nut:
60 Nm (6.0 m·kgf, 43 ft·lbf)1(b) 4(a)
2
3
