INSTRUMENT AND CONTROL FUNCTIONS
3
"Mode""Mode"
"Mode"
"Mode"
12
3
4
ZAUM0391
1. Mode button
2. Digital display
3. Set button1. Total
2. Trip 1
3. Trip 2
4. Trip/Fuel
3-4
1
23ZAUM0581
EAUM1950

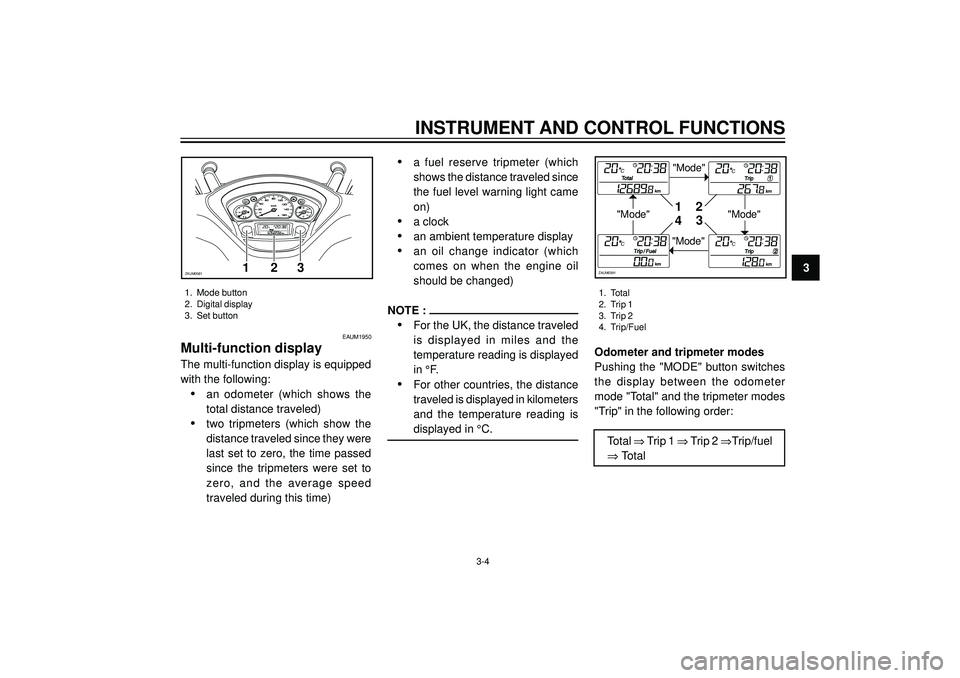

Multi-function display
The multi-function display is equipped
with the following:
•an odometer (which shows the
total distance traveled)
•two tripmeters (which show the
distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to
zero, and the average speed
traveled during this time)
•a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)
•a clock
•an ambient temperature display
•an oil change indicator (which
comes on when the engine oil
should be changed)
NOTE :
•For the UK, the distance traveled
is displayed in miles and the
temperature reading is displayed
in °F.
•For other countries, the distance
traveled is displayed in kilometers
and the temperature reading is
displayed in °C.Odometer and tripmeter modes
Pushing the "MODE" button switches
the display between the odometer
mode "Total" and the tripmeter modes
"Trip" in the following order:
Total ⇒ Trip 1 ⇒ Trip 2 ⇒Trip/fuel
⇒ Total

3
INSTRUMENT AND CONTROL FUNCTIONS
"Set"
"Set""Set"
1
2
3
ZAUM0392ZAUM0393
1. Distance
2. Time
3. Average speed
3-5
NOTE :
•The Trip/fuel odometer is only
activated if the fuel level warning
light comes on.
•The Trip 2 odometer is
automatically reset after turning
the key to "" (2 Hours).
Pushing the "SET" button when in the
tripmeter mode switches the display
between the different tripmeter
functions in the following order:
Distance ⇒ Time ⇒ Average
speed ⇒ DistanceIf the fuel level warning light comes on
(See page 3-3.), the display will
automatically change to the fuel reserve
tripmeter mode "Trip/fuel" and start
counting the distance traveled from that
point. In that case, pushing the "MODE"
button switches the display between the
various tripmeter and odometer modes
in the following order:
Trip/Fuel ⇒ Trip 1 ⇒ Trip 2 ⇒

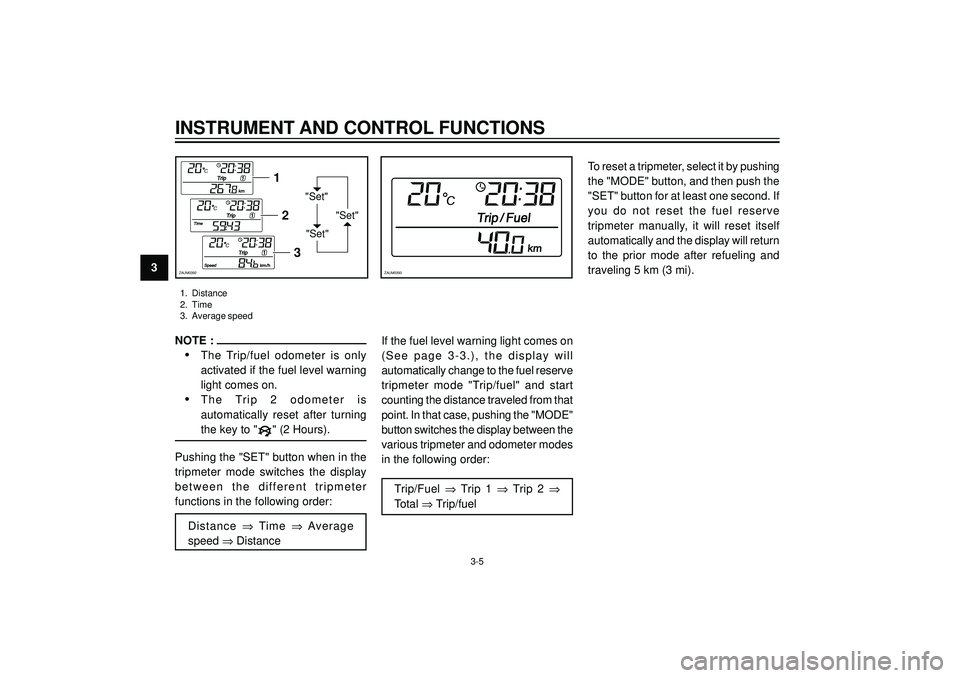

Total ⇒ Trip/fuelTo reset a tripmeter, select it by pushing
the "MODE" button, and then push the
"SET" button for at least one second. If
you do not reset the fuel reserve
tripmeter manually, it will reset itself
automatically and the display will return
to the prior mode after refueling and
traveling 5 km (3 mi).

INSTRUMENT AND CONTROL FUNCTIONS
3ZAUM0394ZAUM0395
1
2
3
ZAUM0396
1. Frost warning indicator ""
2. Minus item
3. Temperature
3-6
Clock mode
To set the clock: 1. When the display is in the "Total" mode, push the "SET" button for
at least two seconds.
2. When the hour digits start flashing, push the "SET" button to
set the hours. 3. Push the "MODE" button, and the
minute digits will start flashing.
4. Push the "SET" button to set the minutes.
5. Push the "MODE" button and then
release it to start the clock. The
display will return to the "Total"
mode. Ambient temperature display
This display shows the ambient
temperature from -30
°C (-86 °F) to 50 °C
(122 °F).
The frost warning indicator "
"
automatically comes on if the
temperature is lower than 3 °C (37,4 °F).

3
INSTRUMENT AND CONTROL FUNCTIONS
EAU00109
Anti-theft alarm (optional)
This scooter can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
1. Oil change indicator
km/hkm/hO1O1O2O2O
4O4O
6O6O10O10O
12O12O
14O14O
16O16O
8O8O
1
ZAUM0406
1. Alarm indicator light
3-7
1
ZAUM0582

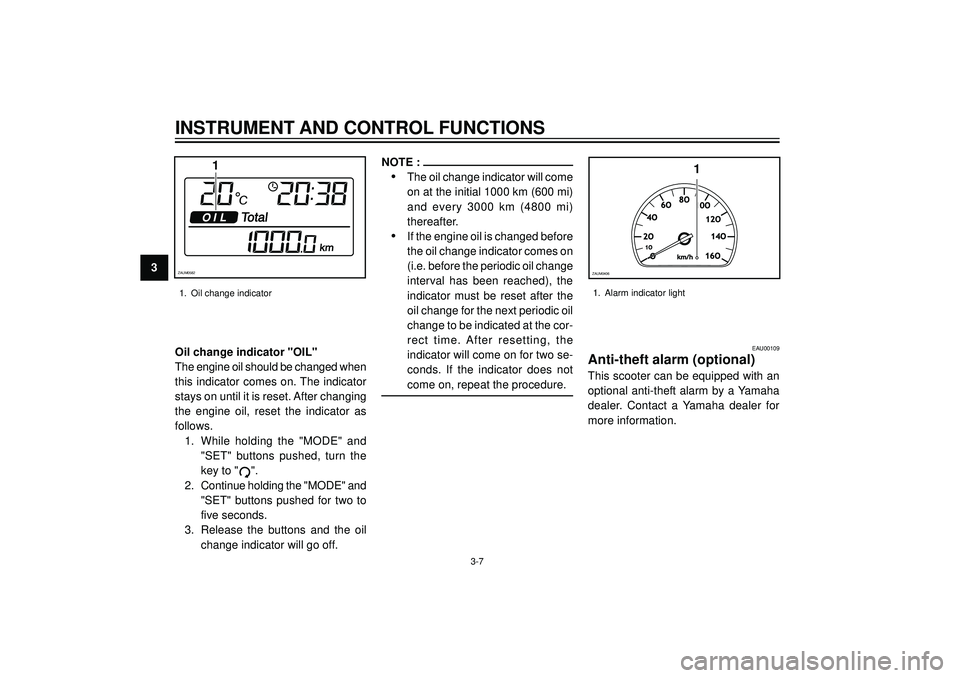

Oil change indicator "OIL"
The engine oil should be changed when
this indicator comes on. The indicator
stays on until it is reset. After changing
the engine oil, reset the indicator as
follows.
1. While holding the "MODE" and
"SET" buttons pushed, turn the
key to "
".
2. Continue holding the "MODE" and
"SET" buttons pushed for two to
five seconds.
3. Release the buttons and the oil
change indicator will go off.
NOTE :
•The oil change indicator will come
on at the initial 1000 km (600 mi)
and every 3000 km (4800 mi)
thereafter.
•If the engine oil is changed before
the oil change indicator comes on
(i.e. before the periodic oil change
interval has been reached), the
indicator must be reset after the
oil change for the next periodic oil
change to be indicated at the cor-
rect time. After resetting, the
indicator will come on for two se-
conds. If the indicator does not
come on, repeat the procedure.

INSTRUMENT AND CONTROL FUNCTIONS
3
1
2
3
4ZAUM0407
1. Pass switch ""
2. Dimmer switch "
/ "
3. Turn signal switch "
/ "
4. Horn switch "
"
EAU00118

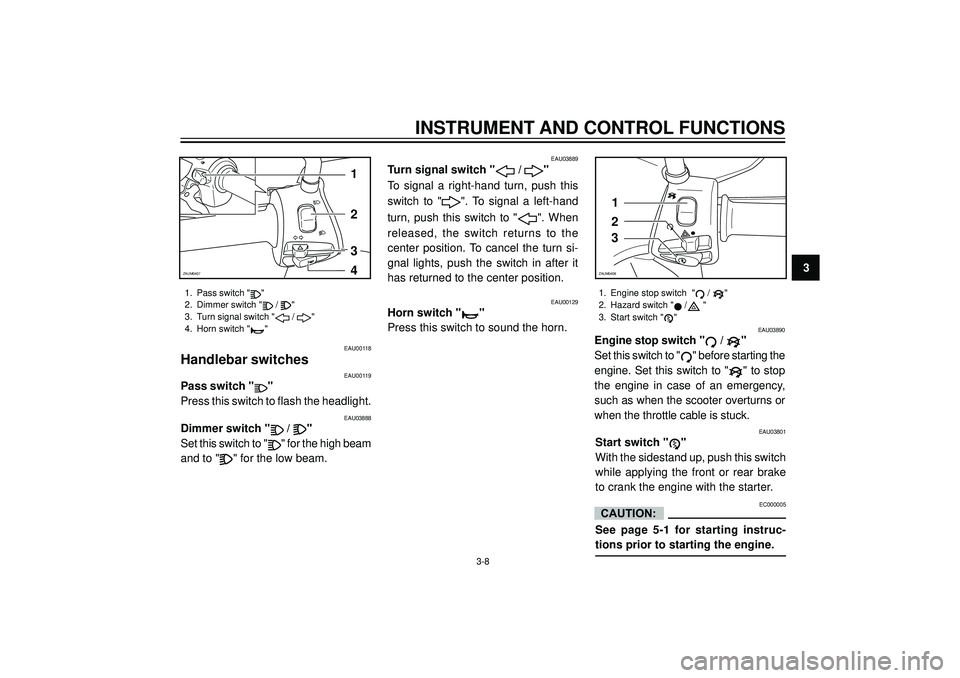

Handlebar switches
EAU00119
Pass switch ""
Press this switch to flash the headlight.
EAU03888
Dimmer switch " / "
Set this switch to "
" for the high beam
and to "
" for the low beam.
EAU03889
Turn signal switch " / "
To signal a right-hand turn, push this
switch to "
". To signal a left-hand
turn, push this switch to "
". When
released, the switch returns to the
center position. To cancel the turn si-
gnal lights, push the switch in after it
has returned to the center position.
EAU00129
Horn switch ""
Press this switch to sound the horn.
1
2
3
ZAUM0408
1. Engine stop switch " / "
2. Hazard switch "
/ "
3. Start switch "
"
EAU03890
Engine stop switch " / "
Set this switch to "
" before starting the
engine. Set this switch to "
" to stop
the engine in case of an emergency,
such as when the scooter overturns or
when the throttle cable is stuck.
3-8
EAU03801
Start switch ""
With the sidestand up, push this switch
while applying the front or rear brake
to crank the engine with the starter.
EC000005
See page 5-1 for starting instruc-
tions prior to starting the engine.
CAUTION:

3
INSTRUMENT AND CONTROL FUNCTIONS
CAUTION:
1
ZAUM0084
1
ZAUM0085
EAU03882
Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the
handlebar grip.
EAU00163
Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the
handlebar grip.
1. Front brake lever
1. Rear brake lever
3-9
EC000006
Do not use the hazard light for an
extended length of time, otherwise
the battery may discharge.
EAUM0111

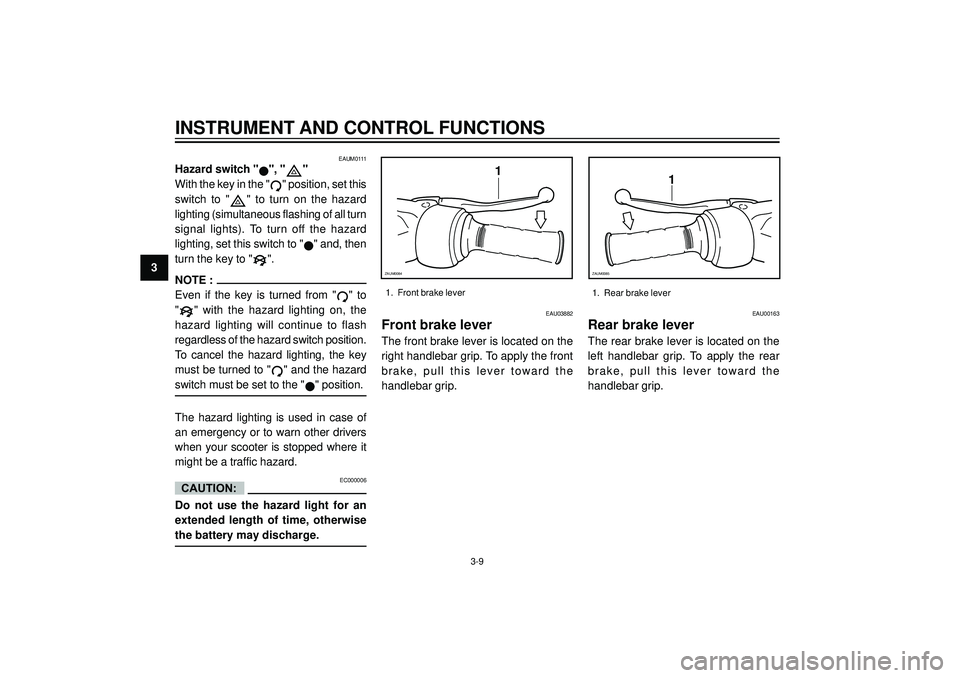

Hazard switch "", ""
With the key in the "
" position, set this
switch to "
" to turn on the hazard
lighting (simultaneous flashing of all turn
signal lights). To turn off the hazard
lighting, set this switch to "
" and, then
turn the key to "
".
NOTE :
Even if the key is turned from "
" to
"
" with the hazard lighting on, the
hazard lighting will continue to flash
regardless of the hazard switch position.
To cancel the hazard lighting, the key
must be turned to "
" and the hazard
switch must be set to the "" position.
The hazard lighting is used in case of
an emergency or to warn other drivers
when your scooter is stopped where it
might be a traffic hazard.

INSTRUMENT AND CONTROL FUNCTIONS
3
1
ZAUM0409

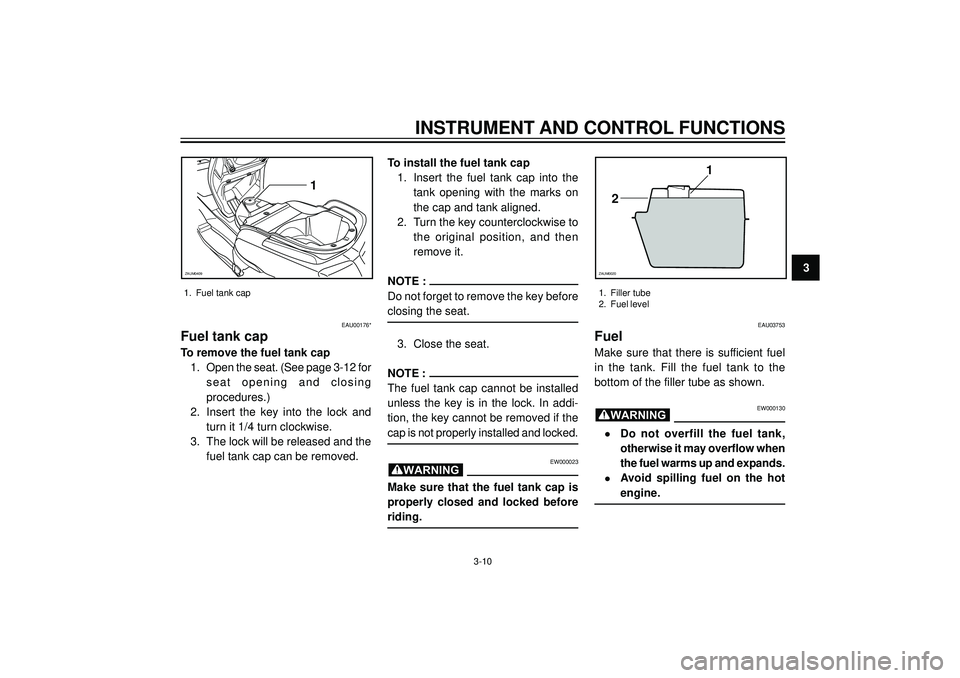

1. Fuel tank cap
EAU00176*
Fuel tank cap
To remove the fuel tank cap
1. Open the seat. (See page 3-12 for
seat opening and closing
procedures.)
2. Insert the key into the lock and
turn it 1/4 turn clockwise.
3. The lock will be released and the
fuel tank cap can be removed.To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening with the marks on
the cap and tank aligned.
2. Turn the key counterclockwise to
the original position, and then
remove it.
NOTE :
Do not forget to remove the key before
closing the seat.
3. Close the seat.
NOTE :
The fuel tank cap cannot be installed
unless the key is in the lock. In addi-
tion, the key cannot be removed if the
cap is not properly installed and locked.
EW000023
Make sure that the fuel tank cap is
properly closed and locked before
riding.
WARNING
1
2
ZAUM0020
1. Filler tube
2. Fuel level
EAU03753
Fuel
Make sure that there is sufficient fuel
in the tank. Fill the fuel tank to the
bottom of the filler tube as shown.
EW000130
•Do not overfill the fuel tank,
otherwise it may overflow when
the fuel warms up and expands.
•Avoid spilling fuel on the hot
engine.
WARNING
3-10

3
INSTRUMENT AND CONTROL FUNCTIONS
EAU00185
EC000008
Immediately wipe off spilled fuel with
a clean, dry, soft cloth, since fuel may
deteriorate painted surfaces or plas-
tic parts.
CAUTION:
EAU04284

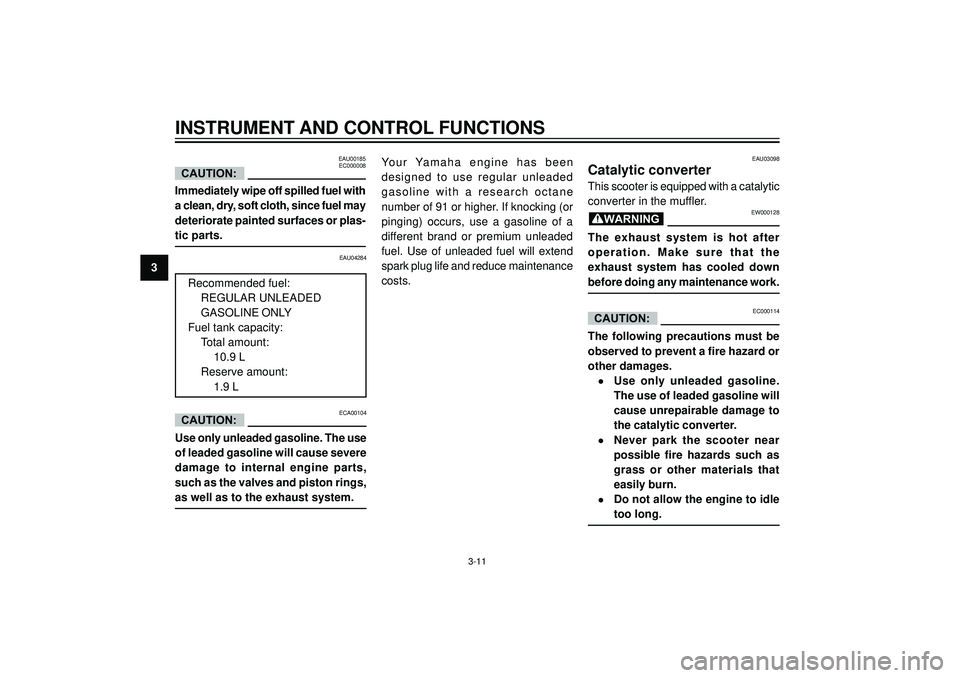

Recommended fuel:
REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity:
Total amount:
10.9 L
Reserve amount:
1.9 L
ECA00104
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been
designed to use regular unleaded
gasoline with a research octane
number of 91 or higher. If knocking (or
pinging) occurs, use a gasoline of a
different brand or premium unleaded
fuel. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.
CAUTION:
EAU03098
Catalytic converter
This scooter is equipped with a catalytic
converter in the muffler.
EW000128
The exhaust system is hot after
operation. Make sure that the
exhaust system has cooled down
before doing any maintenance work.
EC000114
The following precautions must be
observed to prevent a fire hazard or
other damages.
•Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
•Never park the scooter near
possible fire hazards such as
grass or other materials that
easily burn.
•Do not allow the engine to idle
too long.
WARNING
CAUTION:
3-11

INSTRUMENT AND CONTROL FUNCTIONS
3
PUSHOPEN
a
ZAUM0410
a. Open
EAU03802
Seat
To open the seat
1. Place the scooter on the
centerstand.
2. Insert the key into the main switch,
and then turn it counterclockwise.
NOTE :
Do not push inward when turning the
key.
3. Fold the seat up.To close the seat
1. Fold the seat down, and then push
it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left
unattended.
NOTE :
Make sure that the seat is properly
secured before riding.
OPEN
OPEN
UNLOCKLOCK
OPEN
OPEN
UNLOCKLOCK
OPENOPEN
UNLOCKLOCK
1
2
ZAUM0411
1. Lock
2. Front storage compartment A
EAUM0096*
Storage compartments
Front storage compartment A
To unlock the storage compartment
Insert the key in the lock and turn it 1/4
turn clockwise.
To open the storage compartment
when it is unlocked
Turn the knob 1/4 turn clockwise. The
knob will return to its original position
after released.
To close the storage compartment
Push the lid into the original position.
3-12

3
INSTRUMENT AND CONTROL FUNCTIONS
1
ZAUM0412
To lock the storage compartment
Insert the key in the lock and turn it 1/4
turn counterclockwise, and then
remove the key.
EWA00005
•Do not exceed the load limit of 1
kg for the storage compartment.
•Do not exceed the maximum
load of 202 kg for the vehicle.
WARNING
1. Rear storage compartment
EWA00034
Do not store heavy items in this
compartment.
WARNING
1
ZAUM0413
1. Front storage compartment B
EAUM0061*
Rear storage compartment
There is a storage compartment under
the seat. (See page 3-12 for seat
opening and closing procedures.)
EWA00005
•Do not exceed the load limit of 5
kg for the storage compartment.
•Do not exceed the maximum
load of 202 kg for the vehicle.
WARNING
3-13
EAUM0101*
Front storage compartment B
To open the storage compartment
Push on the "
" mark of the storage
compartment lid.
To close the storage compartment
Push the lid into the original position.
