INSTRUMENT AND CONTROL FUNCTIONS
3
EC000010

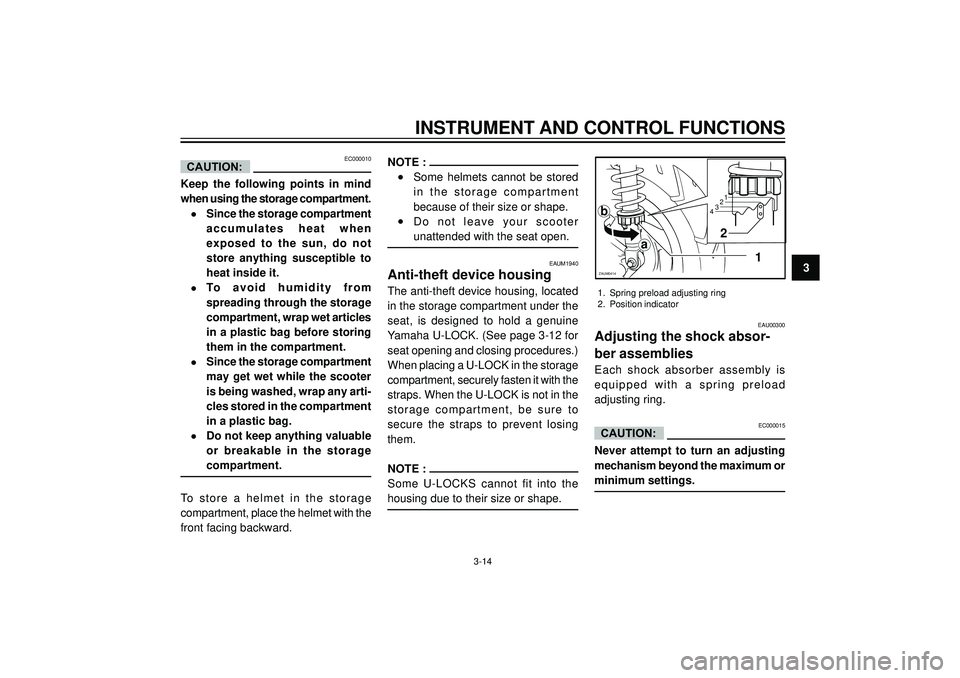

Keep the following points in mind
when using the storage compartment.
•Since the storage compartment
accumulates heat when
exposed to the sun, do not
store anything susceptible to
heat inside it.
•To avoid humidity from
spreading through the storage
compartment, wrap wet articles
in a plastic bag before storing
them in the compartment.
•Since the storage compartment
may get wet while the scooter
is being washed, wrap any arti-
cles stored in the compartment
in a plastic bag.
•Do not keep anything valuable
or breakable in the storage
compartment.
To store a helmet in the storage
compartment, place the helmet with the
front facing backward.
NOTE :
•Some helmets cannot be stored
in the storage compartment
because of their size or shape.
•Do not leave your scooter
unattended with the seat open.
CAUTION:
1
2
3
4
1 a
b
2
ZAUM0414
1. Spring preload adjusting ring
2. Position indicator
EAU00300
Adjusting the shock absor-
ber assemblies
Each shock absorber assembly is
equipped with a spring preload
adjusting ring.
EC000015
Never attempt to turn an adjusting
mechanism beyond the maximum or
minimum settings.
CAUTION:
3-14
EAUM1940
Anti-theft device housing
The anti-theft device housing, located
in the storage compartment under the
seat, is designed to hold a genuine
Yamaha U-LOCK. (See page 3-12 for
seat opening and closing procedures.)
When placing a U-LOCK in the storage
compartment, securely fasten it with the
straps. When the U-LOCK is not in the
storage compartment, be sure to
secure the straps to prevent losing
them.
NOTE :
Some U-LOCKS cannot fit into the
housing due to their size or shape.
Page 32 of 104
3
INSTRUMENT AND CONTROL FUNCTIONS

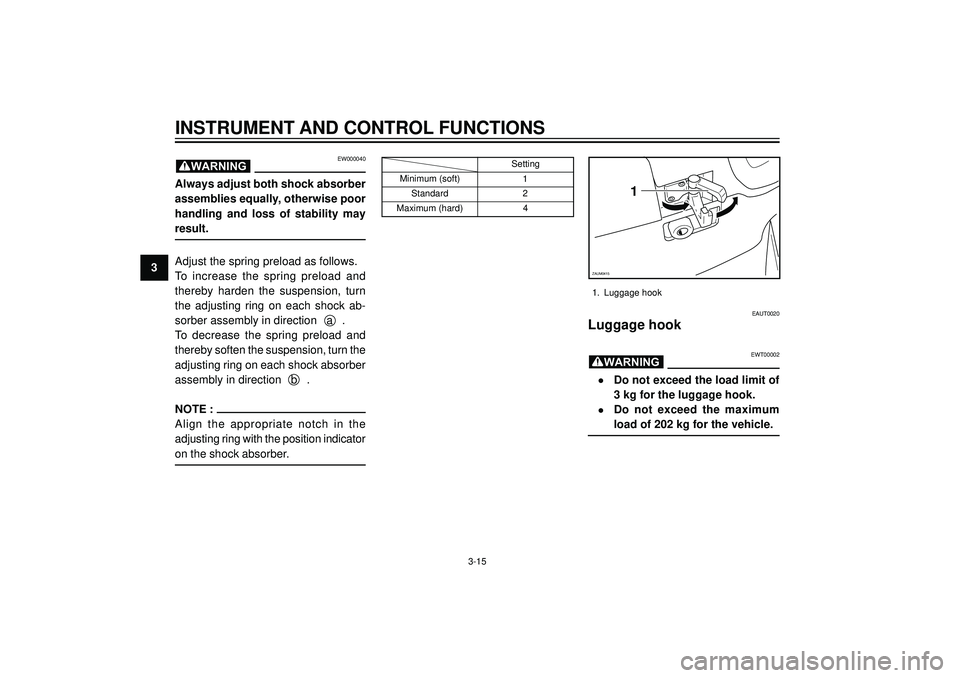

EW000040
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock ab-
sorber assembly in direction a .
To decrease the spring preload and
thereby soften the suspension, turn the
adjusting ring on each shock absorber
assembly in direction b .
NOTE :
Align the appropriate notch in the
adjusting ring with the position indicator
on the shock absorber.
WARNINGSetting
Minimum (soft)
1
Standard2
Maximum (hard)4
1
ZAUM0415
1. Luggage hook
EAUT0020
Luggage hook
EWT00002
•Do not exceed the load limit of
3 kg for the luggage hook.
•Do not exceed the maximum
load of 202 kg for the vehicle.
WARNING
3-15
Page 33 of 104
INSTRUMENT AND CONTROL FUNCTIONS
3
1
ZAUM0416
EAU00330
Sidestand
The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
scooter upright.
NOTE :
The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation
of the ignition circuit cut-off system.)
EW000044
The scooter must not be ridden with
the sidestand down, or if the
sidestand cannot be properly moved
up (or does not stay up), otherwise
the sidestand could contact the
ground and distract the operator,
resulting in a possible loss of
control. Yamaha’s ignition circuit cut-
off system has been designed to
assist the operator in fulfilling the
responsibility of raising the
sidestand before starting off.
Therefore, check this system
regularly as described below and
have a Yamaha dealer repair it if it
does not function properly.
1. Sidestand switch
WARNINGEAU00337

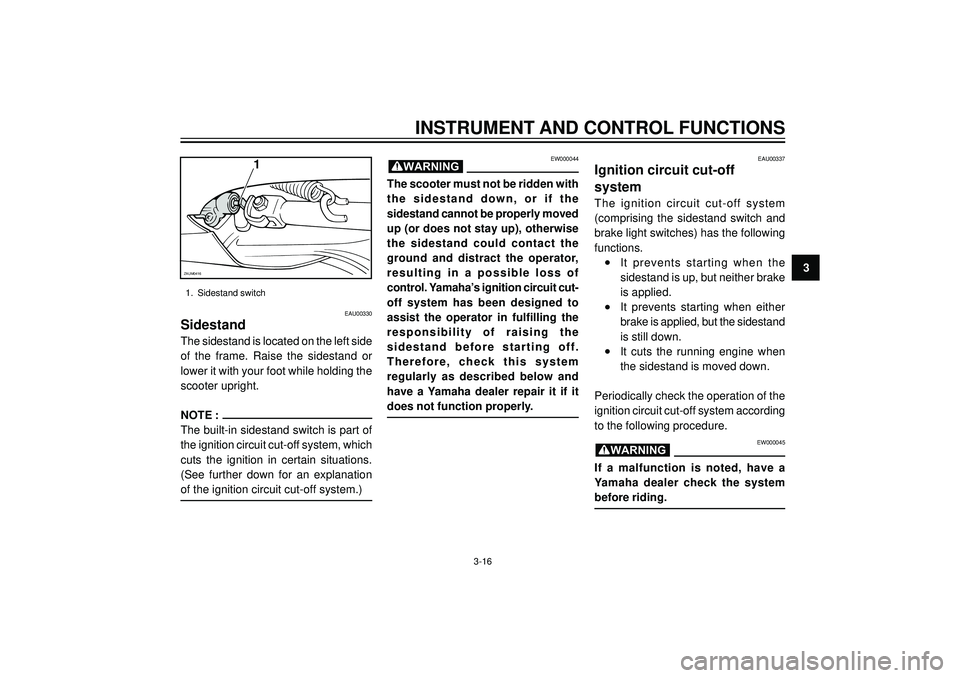

Ignition circuit cut-off
system
The ignition circuit cut-off system
(comprising the sidestand switch and
brake light switches) has the following
functions.
•It prevents starting when the
sidestand is up, but neither brake
is applied.
•It prevents starting when either
brake is applied, but the sidestand
is still down.
•It cuts the running engine when
the sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
EW000045
If a malfunction is noted, have a
Yamaha dealer check the system
before riding.
WARNING
3-16
Page 34 of 104
3
INSTRUMENT AND CONTROL FUNCTIONS
The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO

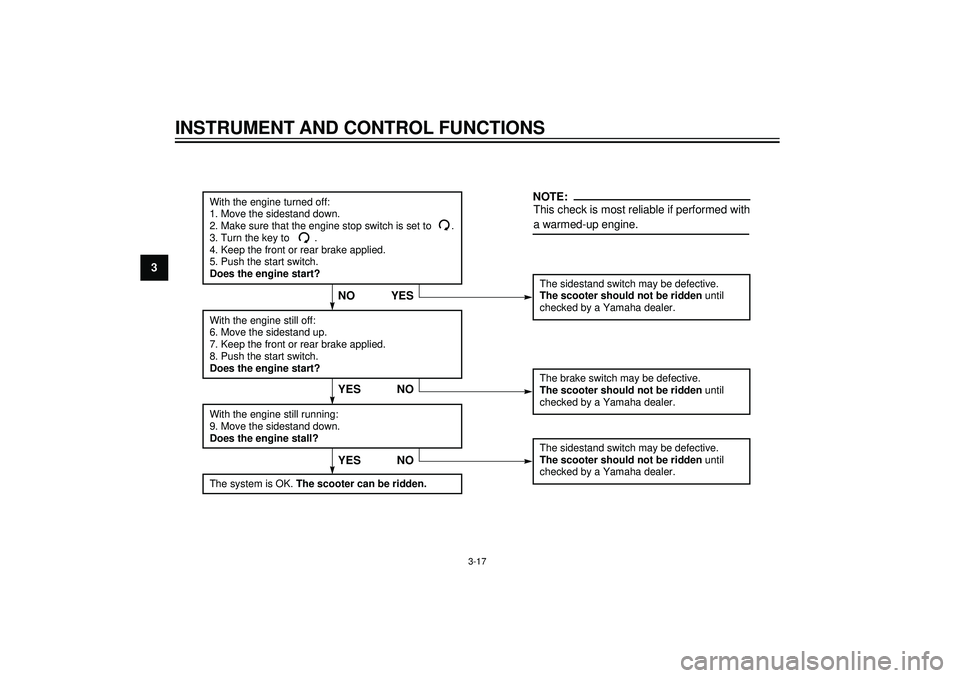

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to .
3. Turn the key to .
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
The brake switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
NOTE:
This check is most reliable if performed with
a warmed-up engine.
YES NO
The system is OK. The scooter can be ridden.
YES NO
3-17
Page 35 of 104
INSTRUMENT AND CONTROL FUNCTIONS
3
1. Auxiliary DC jack
EAUM0102*

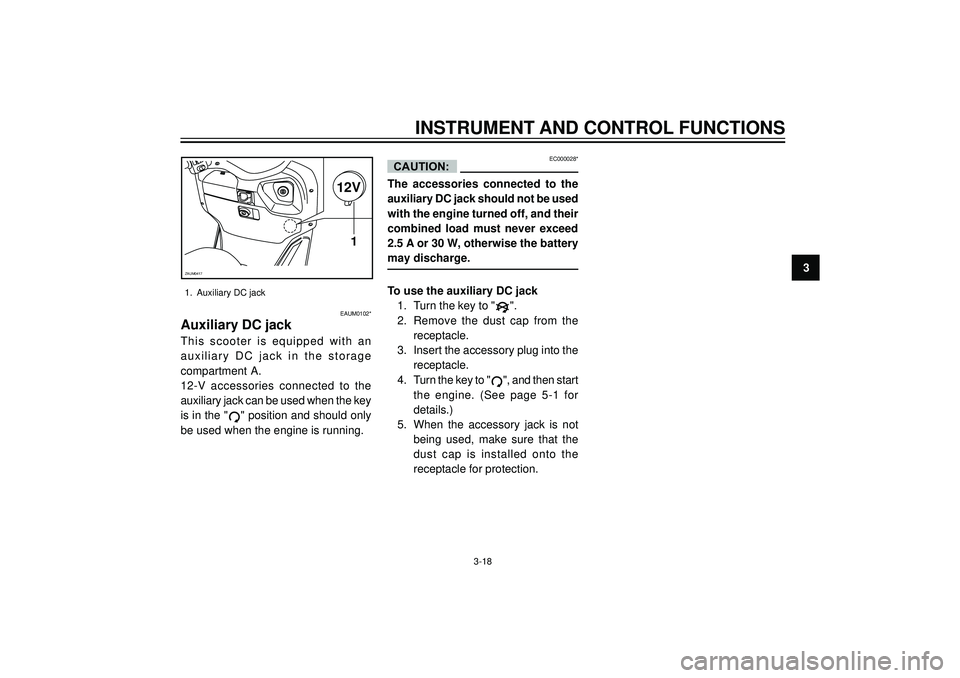

Auxiliary DC jack
This scooter is equipped with an
auxiliary DC jack in the storage
compartment A.
12-V accessories connected to the
auxiliary jack can be used when the key
is in the "
" position and should only
be used when the engine is running.
EC000028*
The accessories connected to the
auxiliary DC jack should not be used
with the engine turned off, and their
combined load must never exceed
2.5 A or 30 W, otherwise the battery
may discharge.
To use the auxiliary DC jack
1. Turn the key to "
".
2. Remove the dust cap from the
receptacle.
3. Insert the accessory plug into the
receptacle.
4. Turn the key to "
", and then start
the engine. (See page 5-1 for
details.)
5. When the accessory jack is not
being used, make sure that the
dust cap is installed onto the
receptacle for protection.
CAUTION:
12V
1
ZAUM0417
3-18
Page 36 of 104
Page 37 of 104

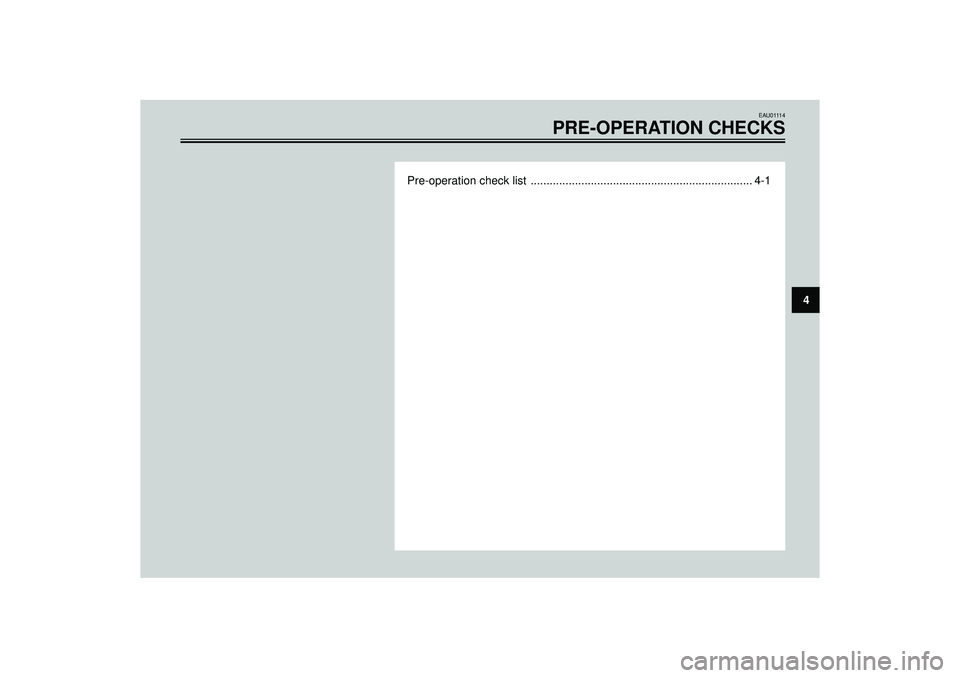

EAU01114

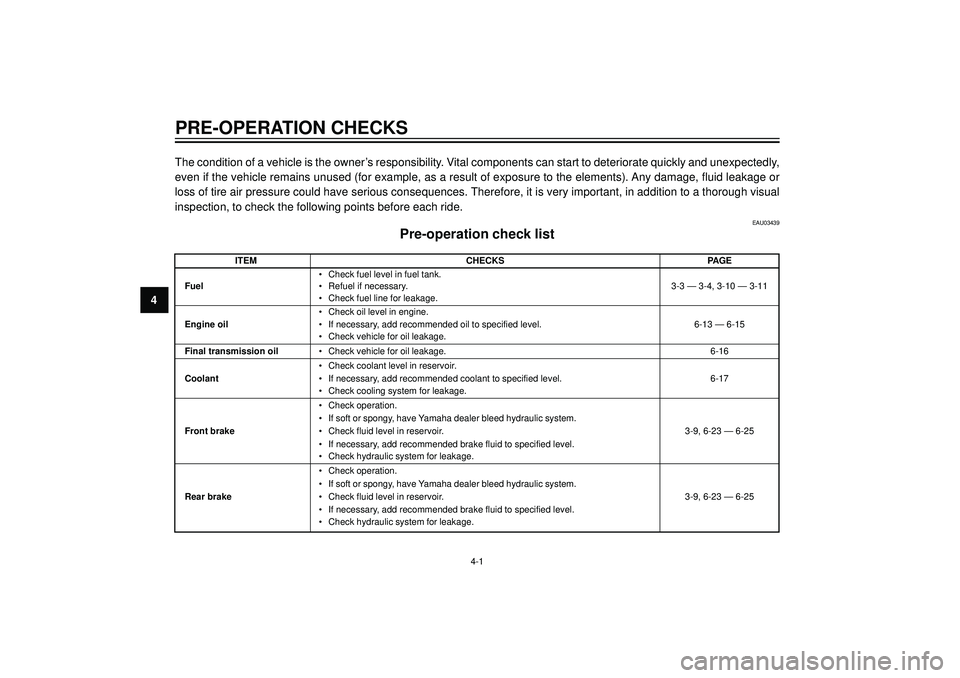

PRE-OPERATION CHECKS
Pre-operation check list ...................................................................... 4-1
4
Page 38 of 104
PRE-OPERATION CHECKS
4The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or
loss of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual
inspection, to check the following points before each ride.
EAU03439
Pre-operation check list
ITEM CHECKS PAGE
•Check fuel level in fuel tank.
Fuel•Refuel if necessary. 3-3 — 3-4, 3-10 — 3-11
•Check fuel line for leakage.
•Check oil level in engine.
Engine oil•If necessary, add recommended oil to specified level. 6-13 — 6-15
•Check vehicle for oil leakage.
Final transmission oil•Check vehicle for oil leakage. 6-16
•Check coolant level in reservoir.
Coolant•If necessary, add recommended coolant to specified level. 6-17
•Check cooling system for leakage.
•Check operation.
•If soft or spongy, have Yamaha dealer bleed hydraulic system.
Front brake•Check fluid level in reservoir. 3-9, 6-23 — 6-25
•If necessary, add recommended brake fluid to specified level.
•Check hydraulic system for leakage.
•Check operation.
•If soft or spongy, have Yamaha dealer bleed hydraulic system.
Rear brake•Check fluid level in reservoir. 3-9, 6-23 — 6-25
•If necessary, add recommended brake fluid to specified level.
•Check hydraulic system for leakage.
4-1
Page 39 of 104
4
PRE-OPERATION CHECKS

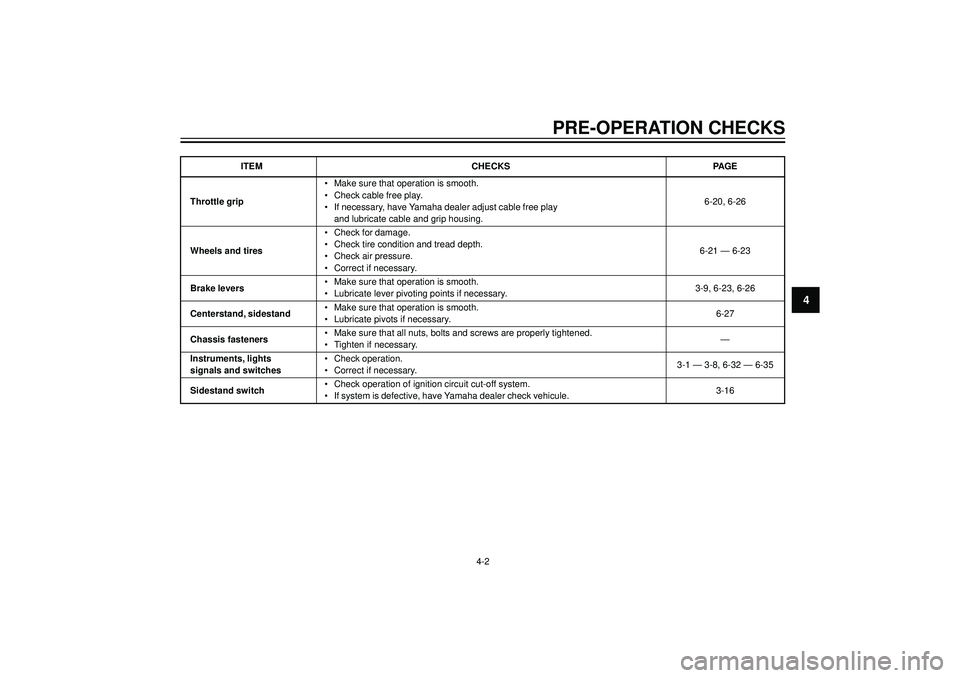

ITEM CHECKS PAGE
•Make sure that operation is smooth.
Throttle grip•Check cable free play.
6-20, 6-26
•If necessary, have Yamaha dealer adjust cable free play
and lubricate cable and grip housing.
•Check for damage.
Wheels and tires•Check tire condition and tread depth.
6-21 — 6-23
•Check air pressure.
•Correct if necessary.
Brake levers•Make sure that operation is smooth.
3-9, 6-23, 6-26
•Lubricate lever pivoting points if necessary.
Centerstand, sidestand•Make sure that operation is smooth.
6-27
•Lubricate pivots if necessary.
Chassis fasteners•Make sure that all nuts, bolts and screws are properly tightened.
—
•Tighten if necessary.
Instruments, lights•Check operation.
3-1 — 3-8, 6-32 — 6-35
signals and switches•Correct if necessary.
Sidestand switch•Check operation of ignition circuit cut-off system.
3-16
•If system is defective, have Yamaha dealer check vehicule.
4-2
Page 40 of 104
PRE-OPERATION CHECKS
4

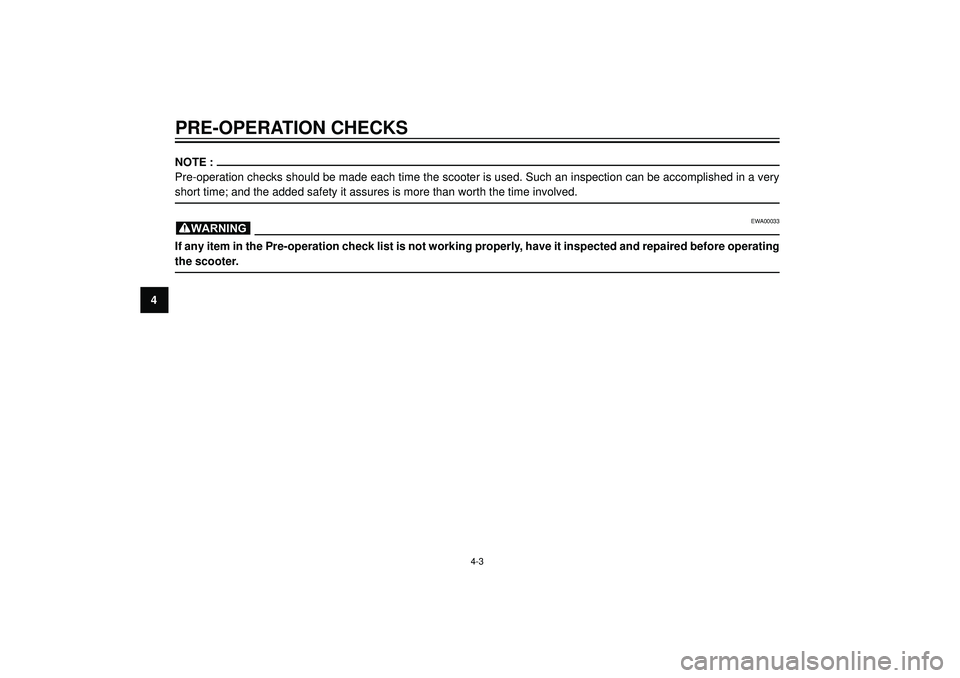

NOTE :
Pre-operation checks should be made each time the scooter is used. Such an inspection can be accomplished in a very
short time; and the added safety it assures is more than worth the time involved.
EWA00033
If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operating
the scooter.
WARNING
4-3
