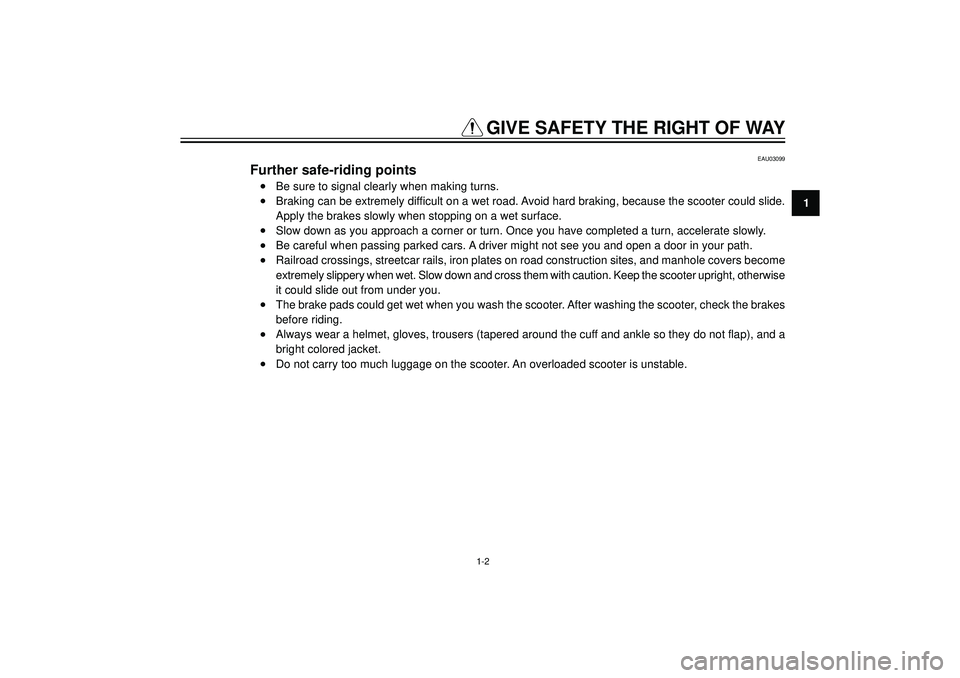

GIVE SAFETY THE RIGHT OF WAY
1
EAU03099
Further safe-riding points
•Be sure to signal clearly when making turns.
•Braking can be extremely difficult on a wet road. Avoid hard braking, because the scooter could slide.
Apply the brakes slowly when stopping on a wet surface.
•Slow down as you approach a corner or turn. Once you have completed a turn, accelerate slowly.
•Be careful when passing parked cars. A driver might not see you and open a door in your path.
•Railroad crossings, streetcar rails, iron plates on road construction sites, and manhole covers become
extremely slippery when wet. Slow down and cross them with caution. Keep the scooter upright, otherwise
it could slide out from under you.
•The brake pads could get wet when you wash the scooter. After washing the scooter, check the brakes
before riding.
•Always wear a helmet, gloves, trousers (tapered around the cuff and ankle so they do not flap), and a
bright colored jacket.
•Do not carry too much luggage on the scooter. An overloaded scooter is unstable.
1-2
Page 12 of 104
Page 13 of 104
EAU00026

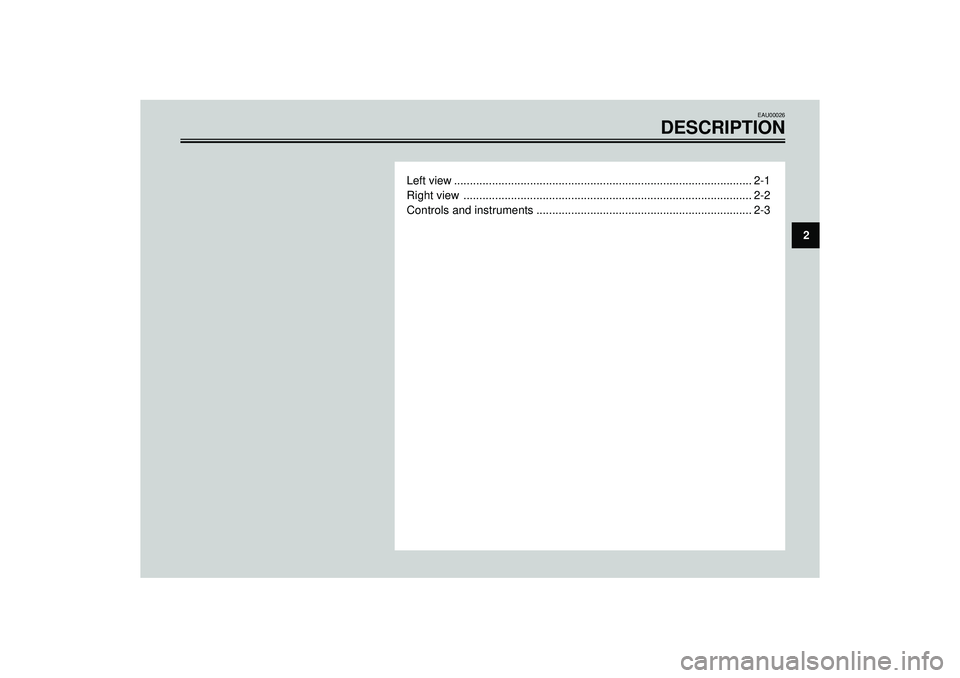

DESCRIPTION
Left view .............................................................................................. 2-1
Right view ........................................................................................... 2-2
Controls and instruments .................................................................... 2-3
2
Page 14 of 104
2
DESCRIPTION

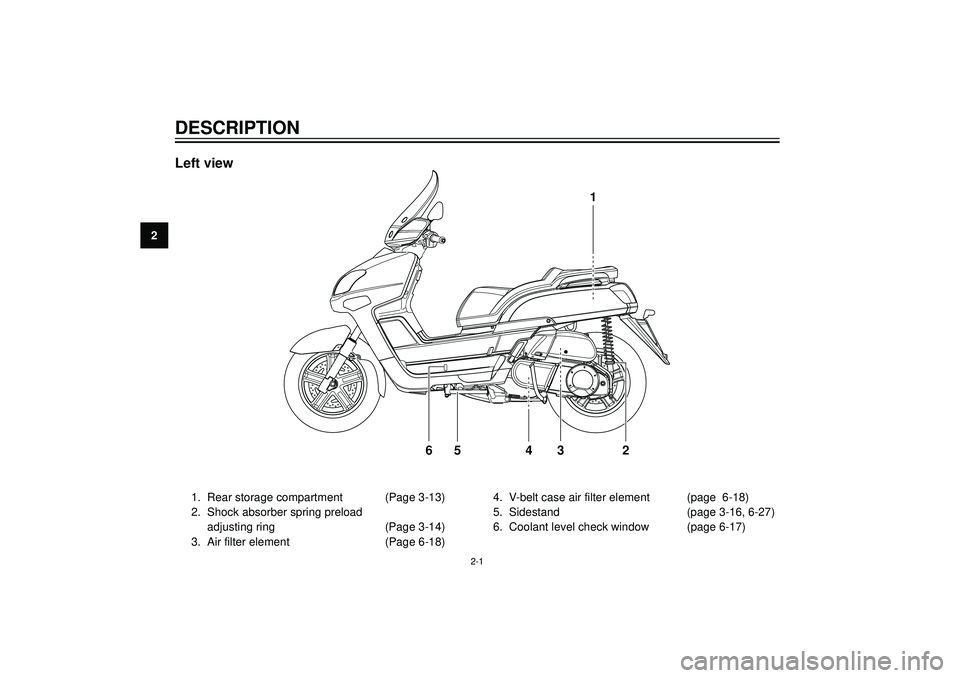

Left view
1
2 3 4 5 6
1. Rear storage compartment (Page 3-13)
2. Shock absorber spring preload
adjusting ring (Page 3-14)
3. Air filter element (Page 6-18)4. V-belt case air filter element (page 6-18)
5. Sidestand (page 3-16, 6-27)
6. Coolant level check window (page 6-17)
2-1
Page 15 of 104
2
DESCRIPTION

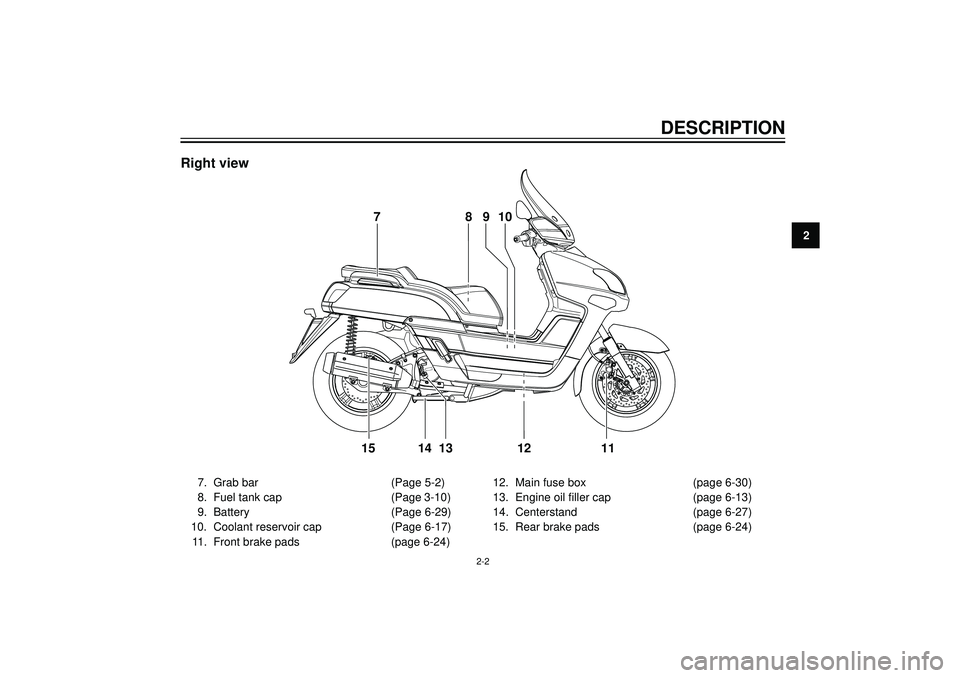

Right view
7. Grab bar (Page 5-2)
8. Fuel tank cap (Page 3-10)
9. Battery (Page 6-29)
10. Coolant reservoir cap (Page 6-17)
11. Front brake pads (page 6-24)12. Main fuse box (page 6-30)
13. Engine oil filler cap (page 6-13)
14. Centerstand (page 6-27)
15. Rear brake pads (page 6-24)
7
15 14 13 12 118910
2-2
Page 16 of 104
2
DESCRIPTION

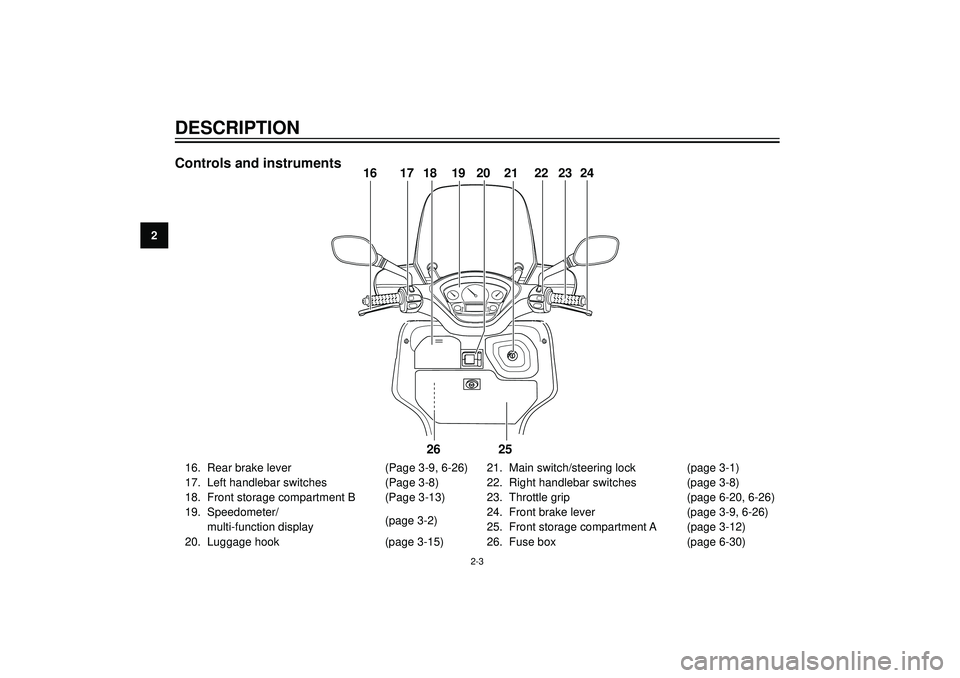

Controls and instruments
PUSHOPEN
16 17 18 19 20 21 22 2423
25 26
16. Rear brake lever (Page 3-9, 6-26)
17. Left handlebar switches (Page 3-8)
18. Front storage compartment B (Page 3-13)
19. Speedometer/
multi-function display(page 3-2)
20. Luggage hook (page 3-15)21. Main switch/steering lock (page 3-1)
22. Right handlebar switches (page 3-8)
23. Throttle grip (page 6-20, 6-26)
24. Front brake lever (page 3-9, 6-26)
25. Front storage compartment A (page 3-12)
26. Fuse box (page 6-30)
2-3
Page 17 of 104
EAU00027

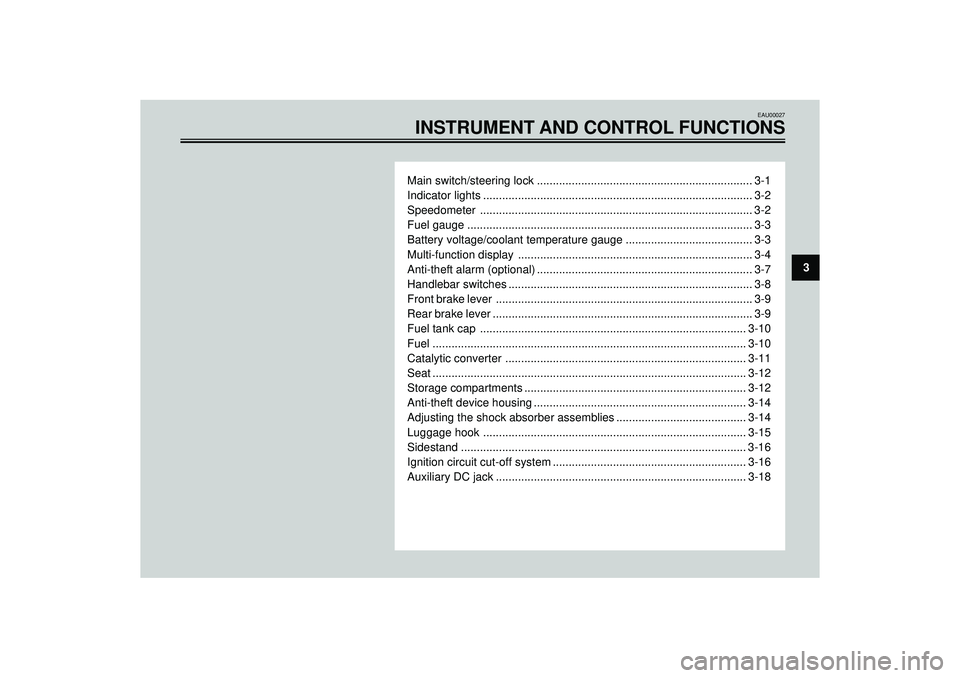

INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock .................................................................... 3-1
Indicator lights ..................................................................................... 3-2
Speedometer ...................................................................................... 3-2
Fuel gauge .......................................................................................... 3-3
Battery voltage/coolant temperature gauge ........................................ 3-3
Multi-function display .......................................................................... 3-4
Anti-theft alarm (optional) .................................................................... 3-7
Handlebar switches ............................................................................. 3-8
Front brake lever ................................................................................. 3-9
Rear brake lever .................................................................................. 3-9
Fuel tank cap .................................................................................... 3-10
Fuel ................................................................................................... 3-10
Catalytic converter ............................................................................ 3-11
Seat ................................................................................................... 3-12
Storage compartments ...................................................................... 3-12
Anti-theft device housing ................................................................... 3-14
Adjusting the shock absorber assemblies ......................................... 3-14
Luggage hook ................................................................................... 3-15
Sidestand .......................................................................................... 3-16
Ignition circuit cut-off system ............................................................. 3-16
Auxiliary DC jack ............................................................................... 3-18
3
Page 18 of 104
3
INSTRUMENT AND CONTROL FUNCTIONS
PUSH
OPEN
ZAUM0253
WARNING
3-1
EAU00029

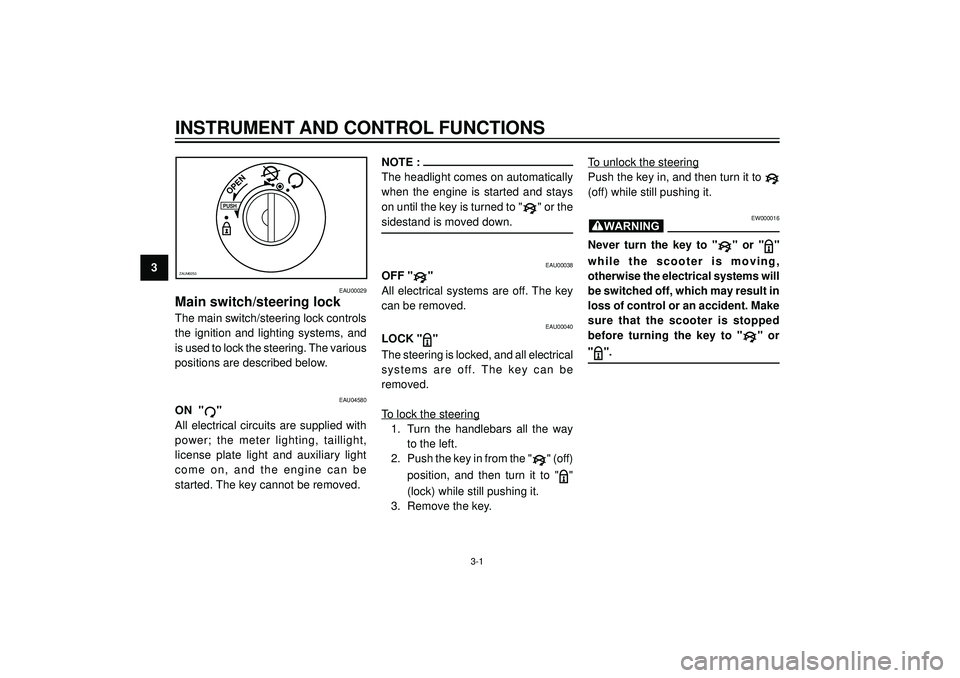

Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and
is used to lock the steering. The various
positions are described below.
EAU00038
OFF ""
All electrical systems are off. The key
can be removed.
EAU00040
LOCK ""
The steering is locked, and all electrical
systems are off. The key can be
removed.
To lock the steering
1. Turn the handlebars all the way
to the left.
2. Push the key in from the "
" (off)
position, and then turn it to "
"
(lock) while still pushing it.
3. Remove the key.
To unlock the steering
Push the key in, and then turn it to
(off) while still pushing it.
EW000016
Never turn the key to "" or ""
while the scooter is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the scooter is stopped
before turning the key to "
" or
"".
EAU04580
ON ""
All electrical circuits are supplied with
power; the meter lighting, taillight,
license plate light and auxiliary light
come on, and the engine can be
started. The key cannot be removed.
NOTE :
The headlight comes on automatically
when the engine is started and stays
on until the key is turned to "
" or the
sidestand is moved down.
Page 19 of 104
INSTRUMENT AND CONTROL FUNCTIONS
3
EAU04121
Turn signal indicator lights ""
and "
"
The corresponding indicator light
flashes when the turn signal switch is
pushed to the left or right.
EAU00063
High beam indicator light ""
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU04031
Speedometer
The speedometer shows the riding
speed.
EAUM0090
Low beam indicator light ""
This indicator light comes on when the
low beam of the headlight is switched
on.
1. Low beam indicator light ""
2. Left turn signal indicator "
"
3. Right turn signal indicator "
"
4. High beam indicator light "
"
km/hkm/hO1O1O2O2O
4O4O6O6O10O10O12O12O
14O14O
16O16O
8O8O
km/hkm/hO1O1O2O2O
4O4O6O6O10O10O12O12O
14O14O
16O16O
8O8O
O 2O
2O4O4O6O6O
10O10O8O8Omphmph
11
ZAUM0402
1. Speedometer
EAU00056

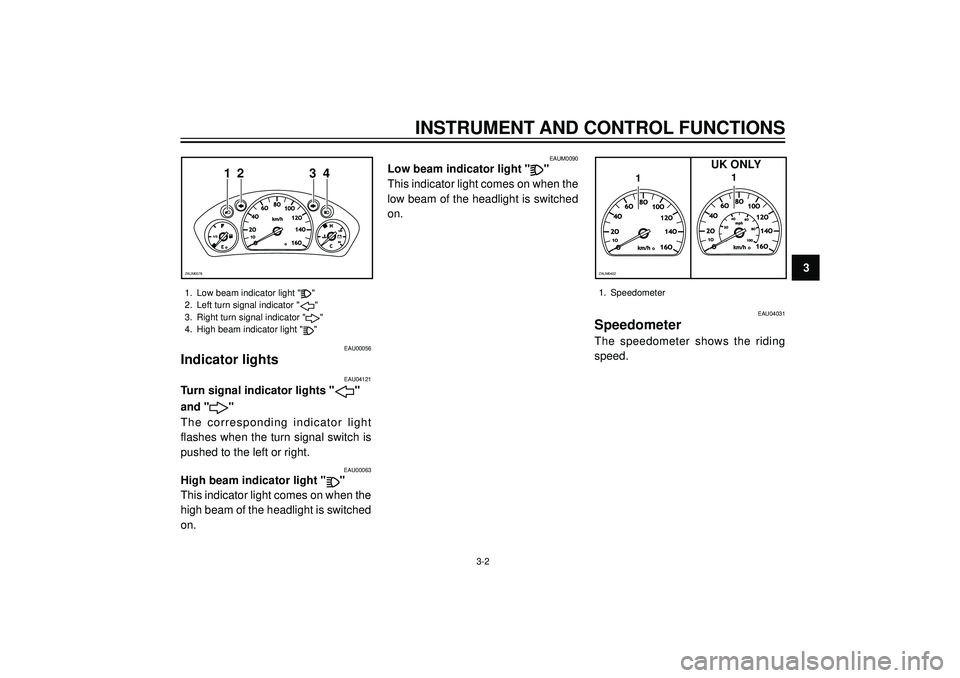

Indicator lights
3-2
UK ONLY
km/hkm/h
O1O1O2O2O
4O4O6O6O10O10O12O12O
14O14O
16O16O
8O8O
F1/2E
H
C15V15V9V9V
12 34
ZAUM0578
Page 20 of 104
3
INSTRUMENT AND CONTROL FUNCTIONS
EAUM0098

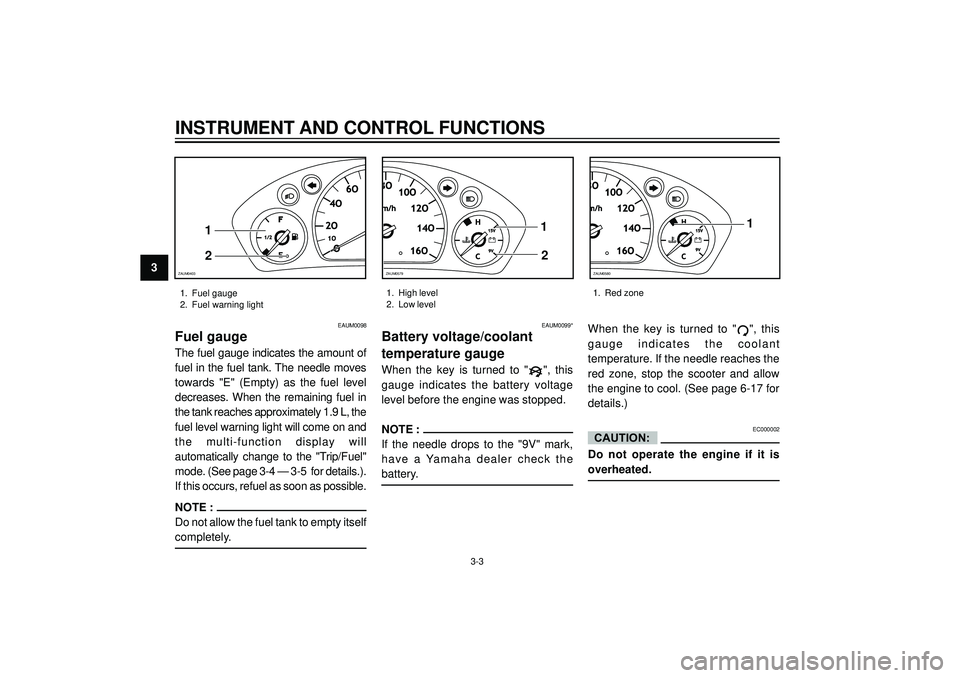

Fuel gauge
The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards "E" (Empty) as the fuel level
decreases. When the remaining fuel in
the tank reaches approximately 1.9 L, the
fuel level warning light will come on and
the multi-function display will
automatically change to the "Trip/Fuel"
mode. (See page 3-4 — 3-5 for details.).
If this occurs, refuel as soon as possible.
NOTE :
Do not allow the fuel tank to empty itself
completely.
EAUM0099*
Battery voltage/coolant
temperature gauge
When the key is turned to "", this
gauge indicates the battery voltage
level before the engine was stopped.
NOTE :
If the needle drops to the "9V" mark,
have a Yamaha dealer check the
battery.When the key is turned to "
", this
gauge indicates the coolant
temperature. If the needle reaches the
red zone, stop the scooter and allow
the engine to cool. (See page 6-17 for
details.)
EC000002
Do not operate the engine if it is
overheated.
CAUTION:
1. Fuel gauge
2. Fuel warning light1. High level
2. Low level1. Red zone
O1O1O
2O2O
4O4O
6O6O
F
1/21/2
E
1
2
ZAUM0403
3-3
10O10O
12O12O
14O14O
16O16O
H
C15V15V
9V9V
1
2
ZAUM0579
10O
12O
14O
16O
H
C15V 15V
9V 9V1
ZAUM0580
