1. Seat belt (× 3) 2. Latch plate ( × 3)
3. Buckle ( × 3)To wear the seat belt properly, do the follow-
ing:
1. Hold the latch plate as you pull the belt across your lap and chest. Make sure the
belt is not twisted and is not caught on
any portion of the vehicle, your clothing,
or any equipment you are carrying. 2. If the latch plate is not positioned in the
correct location along the seat belt,
squeeze the latch plate ends together
along its long edges in order to more eas-
ily adjust its location up or down along the
length of the belt.
3. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make
sure it is secure.
3 2
1
2
1
1XP7C_EE.book Page 7 Monday, June 9, 2014 5:17 PM
Page 92 of 182
7-8
7
8
9
10
11
12
13
14
1. Buckle 2. Latch plate
3. Release button4. Put the lap portion of the belt low on your
hips. Pull up on the shoulder part so the
belt is snug across your hips. Be sure the
seat belt is not caught on the shoulder
bolster or other object.
5. Position the shoulder belt over your shoulder and across your chest. The
shoulder belt should fit against your
chest. If it is loose, pull the belt out all the
way and then let it retract. 6. Check if the seat belt shoulder position
suits the size of the driver and passen-
gers.
To lower the belt, insert the belt into the
seat belt height adjuster slot as shown.
To raise the belt, remove the belt from
the height adjuster slot.
1. Seat belt height adjuster 2. Seat belt
3. Slot7. To release the buckle, firmly press the re-lease button.
1
3
2
1
2
3
1XP7C_EE.book Page 8 Monday, June 9, 2014 5:17 PM
Page 93 of 182
7-9
1
2
3
4
5
67
8
9
10
11
12
13
14

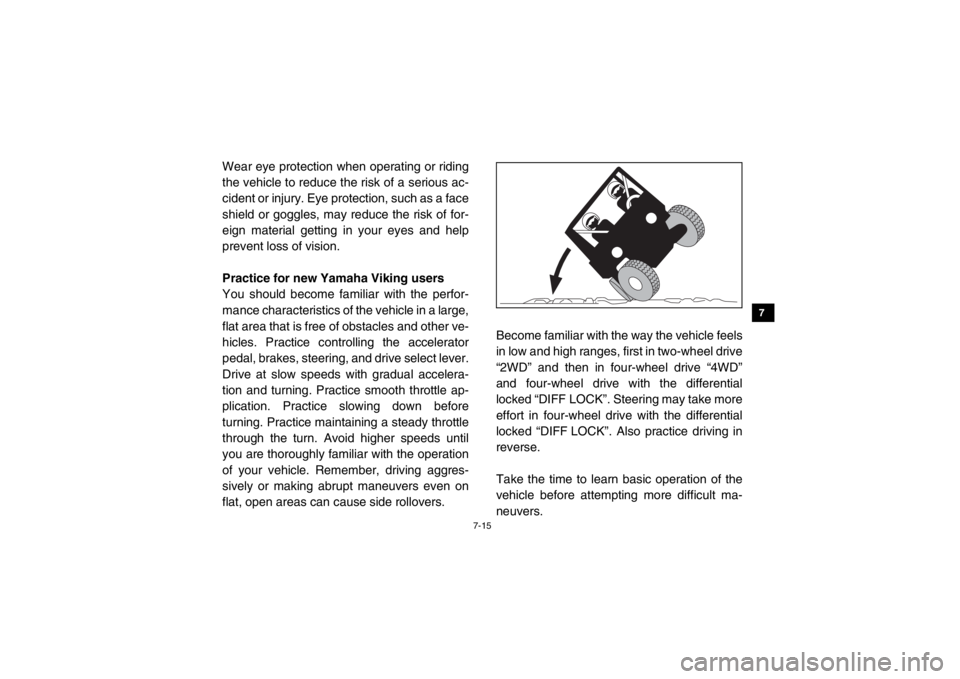

Doors
The doors are designed to reduce the likeli-
hood that you will stick your leg out to stop the
vehicle from tipping over or for any other rea-
son in a rollover. The doors may also reduce
intrusion of objects into the occupant area.
Make sure the door is securely latched before
operation. Do not place your arm or hand on
the door during operation. Your hand or arm
may be struck by objects or crushed against
outside objects or the ground during a roll-
over.Passenger handhold
The passenger handhold is provided to grip
during operation to maintain proper position
and balance. Holding onto the handhold helps
to reduce the likelihood that the passengers
put a hand outside the vehicle if the vehicle
begins to tip.
The driver should make sure the passengers
are holding onto the handhold with both
hands before operating the vehicle.1XP7C_EE.book Page 9 Monday, June 9, 2014 5:17 PM
Page 94 of 182
7-10
7
8
9
10
11
12
13
14
Adjusting the handhold positionThe handhold can be adjusted to one of three
positions to suit the passengers’ preference.
Adjust the handhold position as follows. 1. Remove the locking pins.
1. Passenger handhold 2. Locking pin (
× 2)
1
2
1XP7C_EE.book Page 10 Monday, June 9, 2014 5:17 PM
Page 95 of 182
7-11
1
2
3
4
5
67
8
9
10
11
12
13
14
2. Slide the handhold to the desired positionand align the holes in the handhold bar
with the holes in the handhold supports.1. Handhold bar 2. Handhold support3. Insert the pins into the holes and secure
them with the wire loops. Make sure that
the handhold is properly secured before
riding.
1. Wire loop
2
1
1
1XP7C_EE.book Page 11 Monday, June 9, 2014 5:17 PM
Page 96 of 182
7-12
7
8
9
10
11
12
13
14
Seat and shoulder bolsters
The seats and shoulder bolsters are designed
to help keep you in the vehicle. Do not put
your hand or arm on or outside of the shoulder
bolster during operation. Your hand or arm
may be struck by objects or crushed against
outside objects or the ground during a roll-
over. Floorboard
The floorboard allows you to brace your feet,
which helps you keep your body in the vehicle
in the event of an accident or rollover. Keep
your feet on the floorboard during operation.1XP7C_EE.book Page 12 Monday, June 9, 2014 5:17 PM
Page 97 of 182
7-13
1
2
3
4
5
67
8
9
10
11
12
13
14
Steering wheel
Keep both hands on the steering wheel. Do
not hold the steering wheel with your thumbs
inside the rim. Keep your palms on the out-
side of the steering wheel. Similar to other off-
road vehicles, if the Viking hits a deep rut or
large obstacle, the steering wheel could brief-
ly jerk in one direction or back and forth as the
tires and vehicle respond to the obstacle. This
quick motion could injure your thumbs or wrist
if your thumbs or hand(s) are inside the steer-
ing wheel. Grip the steering wheel so that
your thumbs will not be hit by the spokes. As
an example, see the illustration.
CORRECT GRIP EXAMPLE
INCORRECT GRIP EXAMPLE
1XP7C_EE.book Page 13 Monday, June 9, 2014 5:17 PM
Page 98 of 182
7-14
7
8
9
10
11
12
13
14
LEARNING TO OPERATE YOUR
VEHICLEPersonal protective equipment1. Approved motorcycle helmet
2. Eye protection 3. Long-sleeved shirt or jacket
4. Gloves 5. Long pants
6. Over-the-ankle boots
The driver and passengers should wear the
following to reduce risk of injury in an acci-
dent:●
Approved motorcycle helmet that fits prop-
erly
●
Eye protection (goggles, helmet face
shield, or protective eyewear)
●
Over-the-ankle boots, gloves, long-sleeved
shirt or jacket, and long pants
An approved helmet and other personal pro-
tective equipment can help in a variety of
ways, including:
●
Reduce the severity of injuries if any part of
you is outside the vehicle cage/frame pro-
tective structure during a rollover.
●
Help protect you if outside objects intrude
inside the vehicle during operation.
●
Help protect you in the event of vehicle im-
pact with an obstacle.
1 2
3
4
5
6
1XP7C_EE.book Page 14 Monday, June 9, 2014 5:17 PM
Page 99 of 182
7-15
1
2
3
4
5
67
8
9
10
11
12
13
14
Wear eye protection when operating or riding
the vehicle to reduce the risk of a serious ac-
cident or injury. Eye protection, such as a face
shield or goggles, may reduce the risk of for-
eign material getting in your eyes and help
prevent loss of vision.
Practice for new Yamaha Viking users
You should become familiar with the perfor-
mance characteristics of the vehicle in a large,
flat area that is free of obstacles and other ve-
hicles. Practice controlling the accelerator
pedal, brakes, steering, and drive select lever.
Drive at slow speeds with gradual accelera-
tion and turning. Practice smooth throttle ap-
plication. Practice slowing down before
turning. Practice maintaining a steady throttle
through the turn. Avoid higher speeds until
you are thoroughly familiar with the operation
of your vehicle. Remember, driving aggres-
sively or making abrupt maneuvers even on
flat, open areas can cause side rollovers.Become familiar with the way the vehicle feels
in low and high ranges, first in two-wheel drive
“2WD” and then in four-wheel drive “4WD”
and four-wheel drive with the differential
locked “DIFF LOCK”. Steering may take more
effort in four-wheel drive with the differential
locked “DIFF LOCK”. Also practice driving in
reverse.
Take the time to learn basic operation of the
vehicle before attempting more difficult ma-
neuvers.1XP7C_EE.book Page 15 Monday, June 9, 2014 5:17 PM
Page 100 of 182
7-16
7
8
9
10
11
12
13
14
Getting ready to ride
Perform the Pre-Operation Checks on page
5-1. Follow the instructions starting on page
6-2 to start the engine. Turning
Use care in turns – turning the steering wheel
too far or too fast can result in loss of control
or a rollover. Slow down before entering turns.
When making tight turns from a standstill or at
slow speeds, avoid sudden or hard accelera-
tion. Driving aggressively or making abrupt
maneuvers even on flat, open areas can
cause side rollovers. Avoid sideways sliding,
skidding, or back-wheel sliding, and never do
donuts. If you feel the Viking begin to slide
sideways or the back wheels slide during a
turn, steer into the direction of the slide, if pos-
sible, and gradually let off the accelerator ped-
al to regain directional control and avoid
rollover. For example, if you feel the back of
the vehicle start to slide to your right, steer to
the right.1XP7C_EE.book Page 16 Monday, June 9, 2014 5:17 PM
