Page 61 of 182

YAMAHA VIKING 2015 Repair Manual 4-29
1
2
34
5
6
7
8
9
10
11
12
13
14

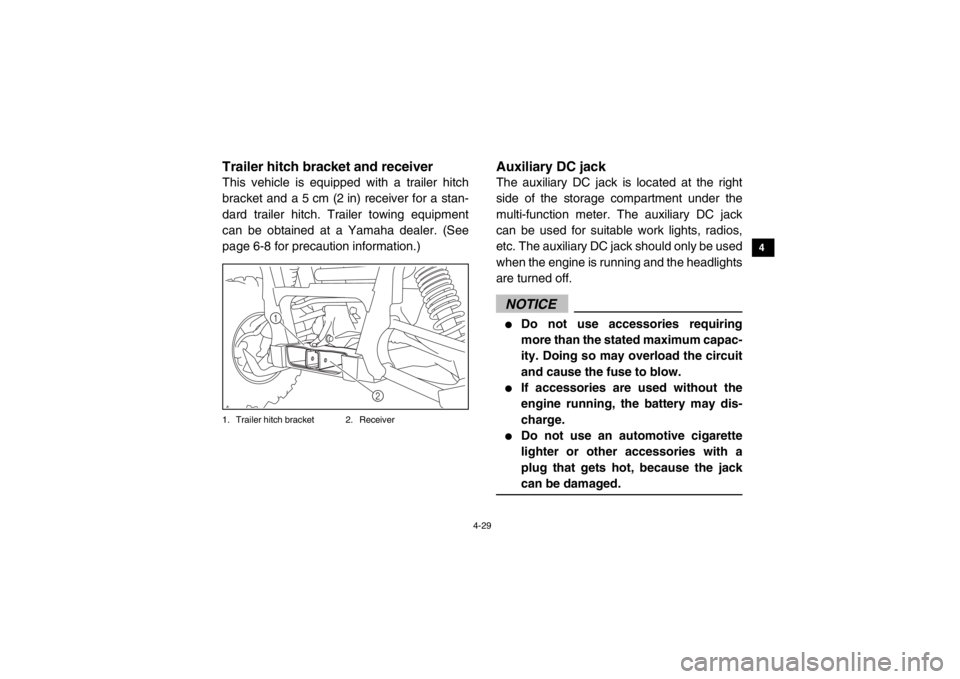

EVU00370Trailer hitch bracket and receiverThis vehicle is equipped with a trailer hitch
bracket and a 5 cm (2 in) receiver for a stan-
dard trailer hitch. Trailer

Page 62 of 182

YAMAHA VIKING 2015 Repair Manual 4-30
4
5
6
7
8
9
10
11
12
13
14
1. Set the light switch to “ ”.
2. Turn the accessory off.
3. Start the engine. (See page 6-2.)

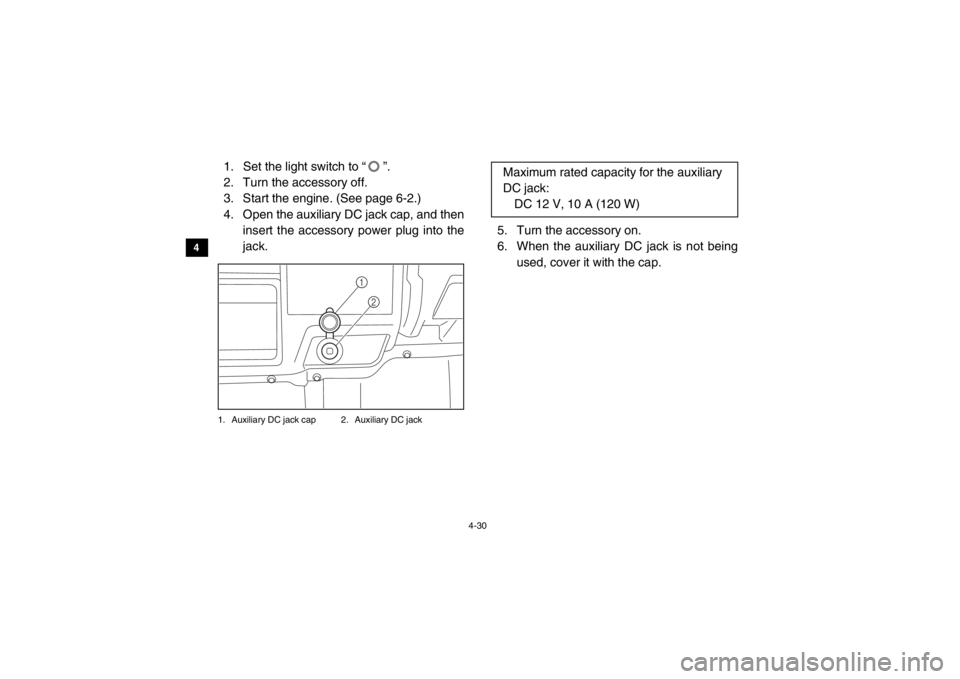

4. Open the auxiliary DC jack cap, and then insert the accessory pow

Page 63 of 182

YAMAHA VIKING 2015 Repair Manual 5-1
1
2
3
45
6
7
8
9
10
11
12
13
14
EVU01200
1-FOR YOUR SAFETY – PRE-OPERATION CHECKS
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition.
Always follow

Page 64 of 182

YAMAHA VIKING 2015 Repair Manual 5-2
5
6
7
8
9
10
11
12
13
14 Final gear oil/
Differential gear oil
 Check for leakage. 5-7, 8-15, 8-17
Accelerator pedal  Check for proper accelerator pedal operation. 5-7
Seat belts  Check for proper

Page 65 of 182

YAMAHA VIKING 2015 Repair Manual 5-3
1
2
3
45
6
7
8
9
10
11
12
13
14
EVU00390Front and rear brakesBrake pedal●
Check that there is no free play in the brake
pedal. If there is free play, have a Yamaha
dealer check the brake system.

Page 66 of 182

YAMAHA VIKING 2015 Repair Manual 5-4
5
6
7
8
9
10
11
12
13
14
EVU00400FuelMake sure there is sufficient fuel in the tank.
WARNING
Gasoline and gasoline vapors are ex-
tremely flammable. To avoid fires and ex-
plosions and to reduce t

Page 67 of 182

YAMAHA VIKING 2015 Repair Manual 5-5
1
2
3
45
6
7
8
9
10
11
12
13
14
Portable fuel containers
If you carry a portable fuel container in the bed
of your Yamaha Viking, be sure to secure it
with the cap tightened before driving the veh

Page 68 of 182

YAMAHA VIKING 2015 Repair Manual 5-6
5
6
7
8
9
10
11
12
13
14
EVU00410Engine oilMake sure the engine oil is at the specified
level. Add oil as necessary. (See page 8-9.)NOTICE●
In order to prevent clutch slippage
(since the engine

Page 69 of 182

YAMAHA VIKING 2015 Repair Manual 5-7
1
2
3
45
6
7
8
9
10
11
12
13
14
EVU00430Final gear oilMake sure the final gear oil is at the specified
level. Add oil as necessary. (See page 8-15
for details.)
If desired, an SAE 80W-90 hypoid ge

Page 70 of 182

YAMAHA VIKING 2015 Repair Manual 5-8
5
6
7
8
9
10
11
12
13
14
A crash can damage the restraint systems in
your vehicle. A damaged restraint system
may not properly protect the person using it,
resulting in serious injury or death in
