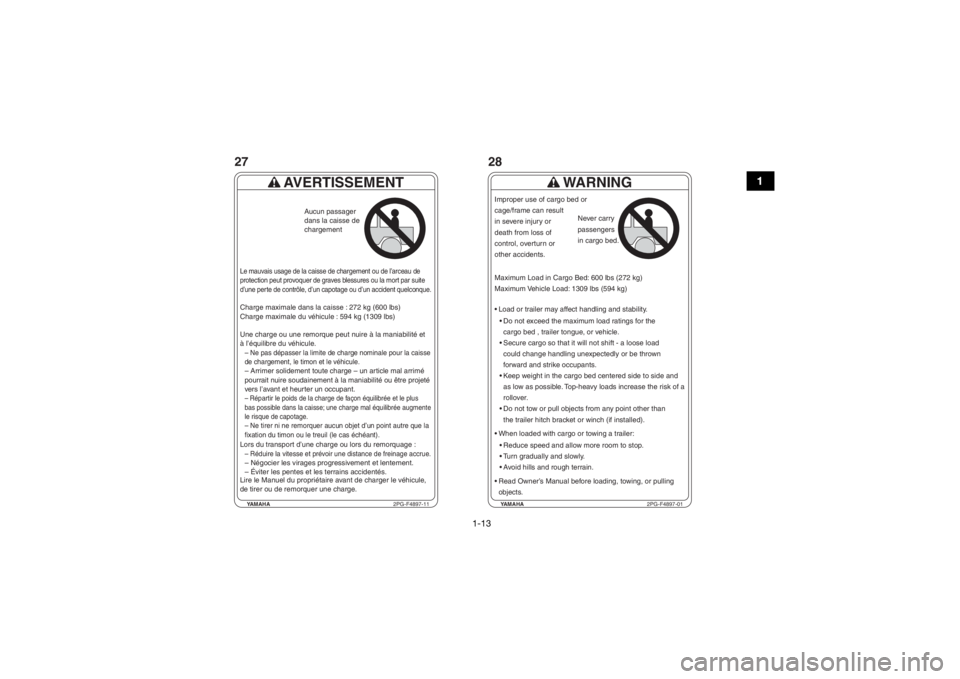

YAMAHA VIKING VI 2016 Notices Demploi (in French)

1-13
1
YAMAHA2PG-F4897-11
AVERTISSEMENT
Charge maximale dans la caisse : 272 kg (600 lbs)
Charge maximale du véhicule : 594 kg (1309 lbs)
Une charge ou une remorque peut nuire à la maniabilité et
à l’équilibre du véhicule.
Lors du transport d’une charge ou lors du remorquage :
Lire le Manuel du propriétaire avant de charger le véhicule,
de tirer ou de remorquer une charge.– Ne pas dépasser la limite de charge nominale pour la caisse
de chargement, le timon et le véhicule.– Réduire la vitesse et prévoir une distance de freinage accrue.– Négocier les virages progressivement et lentement.
– Éviter les pentes et les terrains accidentés.– Arrimer solidement toute charge – un article mal arrimé
pourrait nuire soudainement à la maniabilité ou être projeté
vers l’avant et heurter un occupant.– Répartir le poids de la charge de façon équilibrée et le plus
bas possible dans la caisse; une charge mal équilibrée augmente
le risque de capotage.– Ne tirer ni ne remorquer aucun objet d’un point autre que la
fixation du timon ou le treuil (le cas échéant).Le mauvais usage de la caisse de chargement ou de l’arceau de
protection peut provoquer de graves blessures ou la mort par suite
d’une perte de contrôle, d’un capotage ou d’un accident quelconque.
Aucun passager
dans la caisse de
chargement
YAMAHA2PG-F4897-01
WARNING
Load or trailer may affect handling and stability.
Do not exceed the maximum load ratings for thecargo bed , trailer tongue, or vehicle.
When loaded with cargo or towing a trailer: Reduce speed and allow more room to stop.
Turn gradually and slowly.
Avoid hills and rough terrain. Secure cargo so that it will not shift - a loose loadcould change handling unexpectedly or be thrown
forward and strike occupants.
Keep weight in the cargo bed centered side to side and as low as possible. Top-heavy loads increase the risk of a
rollover.
Do not tow or pull objects from any point other than the trailer hitch bracket or winch (if installed).
Read Owner’s Manual before loading, towing, or pulling objects.
Improper use of cargo bed or
cage/frame can result
in severe injury or
death from loss of
control, overturn or
other accidents.
Maximum Load in Cargo Bed: 600 lbs (272 kg)
Maximum Vehicle Load: 1309 lbs (594 kg)
Never carry
passengers
in cargo bed.
27
28
UB857AF0.book Page 13 Monday, August 24, 2015 9:01 AM

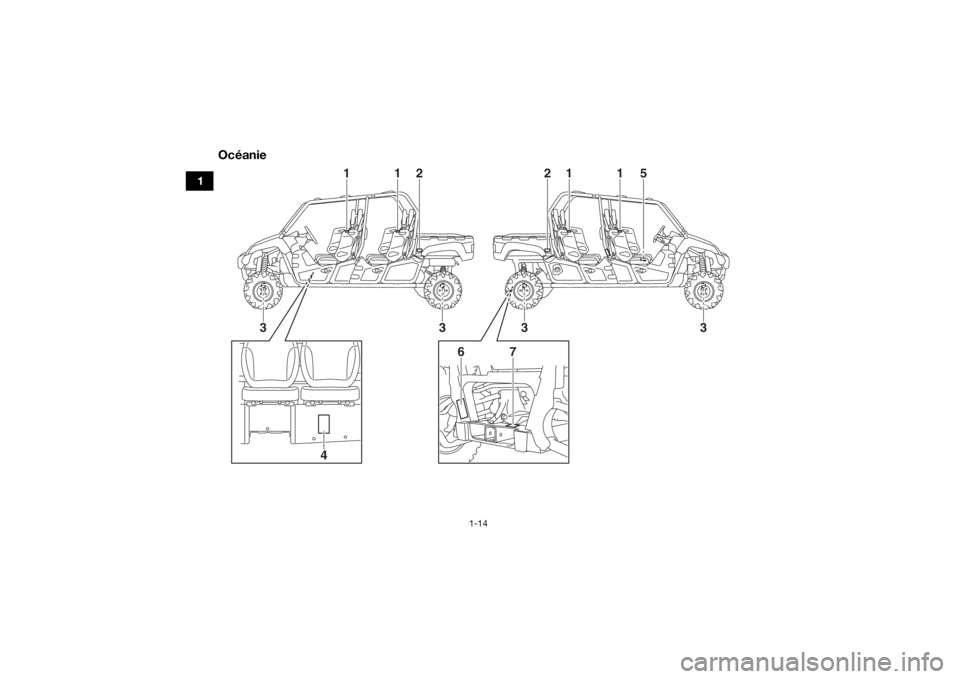

1-14
1
Océanie
2
1
1
6
7
33
4 21
1
5
3
3
UB857AF0.book Page 14 Monday, August 24, 2015 9:01 AM

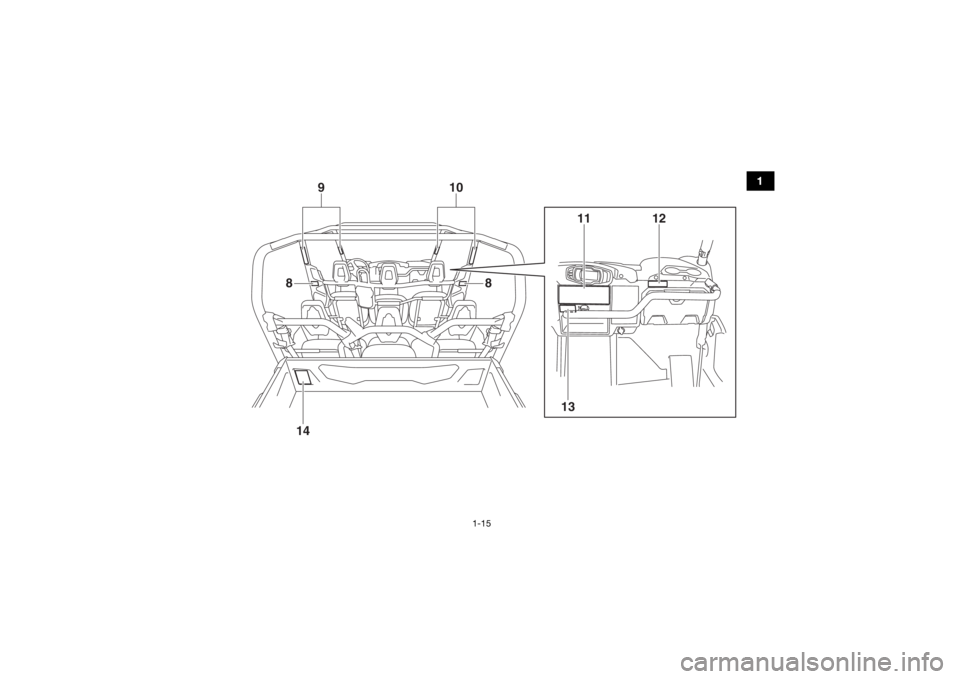

1-15
1
11 12
13
149108
8
UB857AF0.book Page 15 Monday, August 24, 2015 9:01 AM

1-16
1
YAMAHA1XD-K8483-00
WARNING
Do not rest hands or arms on door or shoulder bolster.
To avoid Injury, keep hands and arms completely
Inside the vehicle by holding the steering wheel or handhold.
Keep hands, body, and other
people away from pinch points
when lowering bed. Do not hold
the cage/frame while closing bed.
YAMAHA 5B4-K7764-00
WARNING
!
1HP-F2259-21
12
3
UB857AF0.book Page 16 Monday, August 24, 2015 9:01 AM

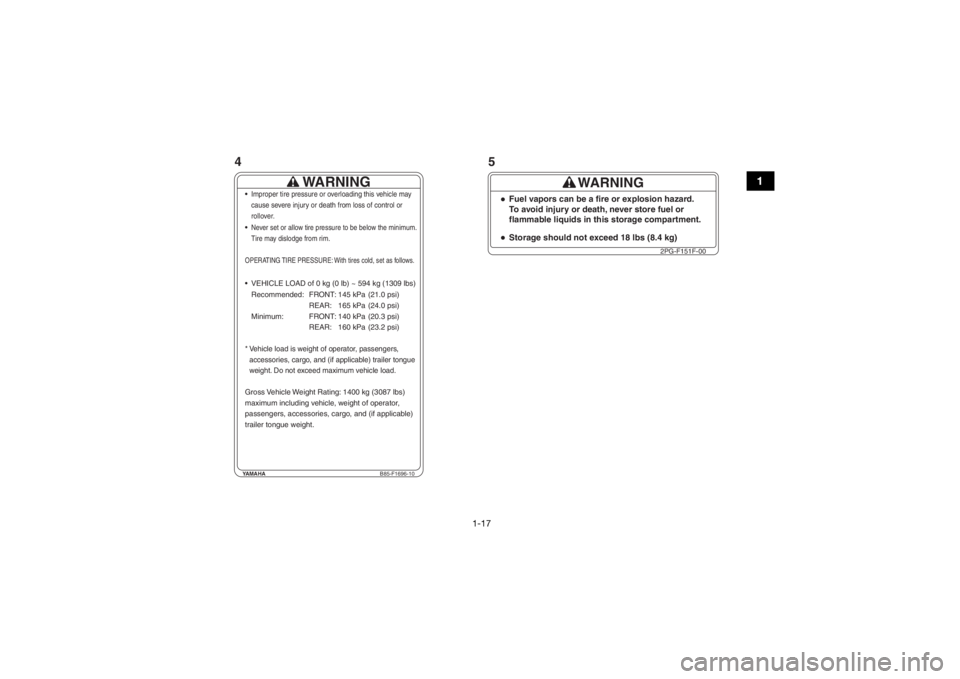

1-17
1
YAMAHAB85-F1696-10
WARNING
Improper tire pressure or overloading this vehicle may
cause severe injury or death from loss of control or
rollover.Never set or allow tire pressure to be below the minimum.
Tire may dislodge from rim. VEHICLE LOAD of 0 kg (0 lb) ~ 594 kg (1309 lbs)
Recommended: FRONT: REAR:
Minimum: FRONT: REAR:145 kPa
165 kPa
140 kPa
160 kPa (21.0 psi)
(24.0 psi)
(20.3 psi)
(23.2 psi)
*Vehicle load is weight of operator, passengers,
accessories, cargo, and (if applicable) trailer tongue
weight. Do not exceed maximum vehicle load.Gross Vehicle Weight Rating: 1400 kg (3087 lbs)
maximum including vehicle, weight of operator,
passengers, accessories, cargo, and (if applicable)
trailer tongue weight.OPERATING TIRE PRESSURE: With tires cold, set as follows.
WARNING
Storage should not exceed 18 lbs (8.4 kg)Fuel vapors can be a fire or explosion hazard.
To avoid injury or death, never store fuel or
flammable liquids in this storage compartment.
2PG-F151F-00
45
UB857AF0.book Page 17 Monday, August 24, 2015 9:01 AM

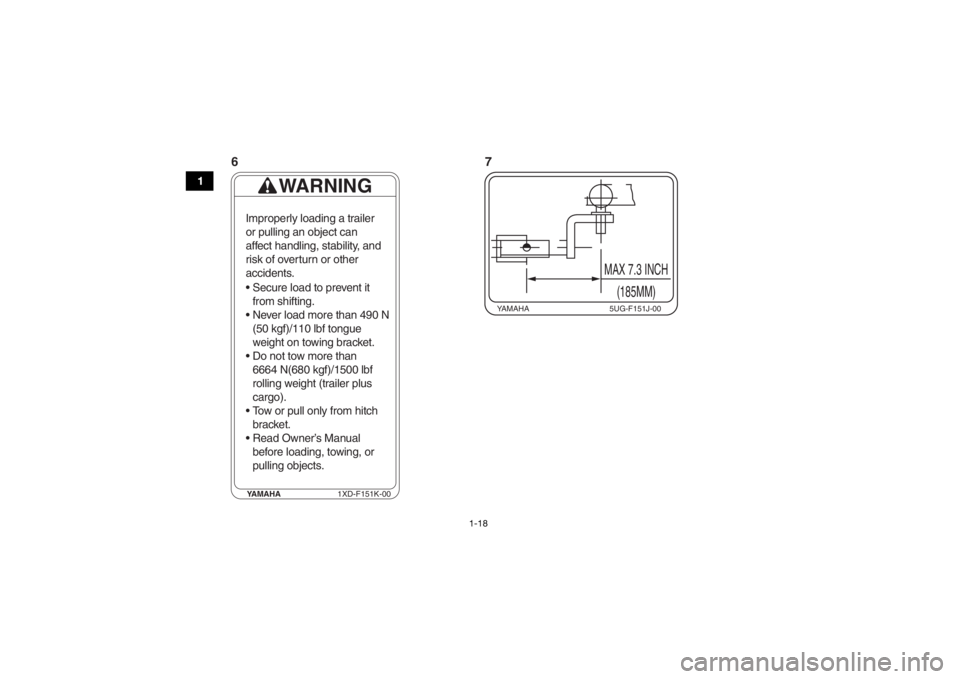

1-18
1
YAMAHA1XD-F151K-00
WARNING
Improperly loading a trailer
or pulling an object can
affect handling, stability, and
risk of overturn or other
accidents.
Secure load to prevent it
from shifting.
Never load more than 490 N (50 kgf)/110 lbf tongue
weight on towing bracket.
Do not tow more than 6664 N(680 kgf)/1500 lbf
rolling weight (trailer plus
cargo).
Tow or pull only from hitch bracket.
Read Owner’s Manual before loading, towing, or
pulling objects.
YAMAHA 5UG-F151J-00
MAX 7.3 INCH
(185MM)
67
UB857AF0.book Page 18 Monday, August 24, 2015 9:01 AM

1-19
1

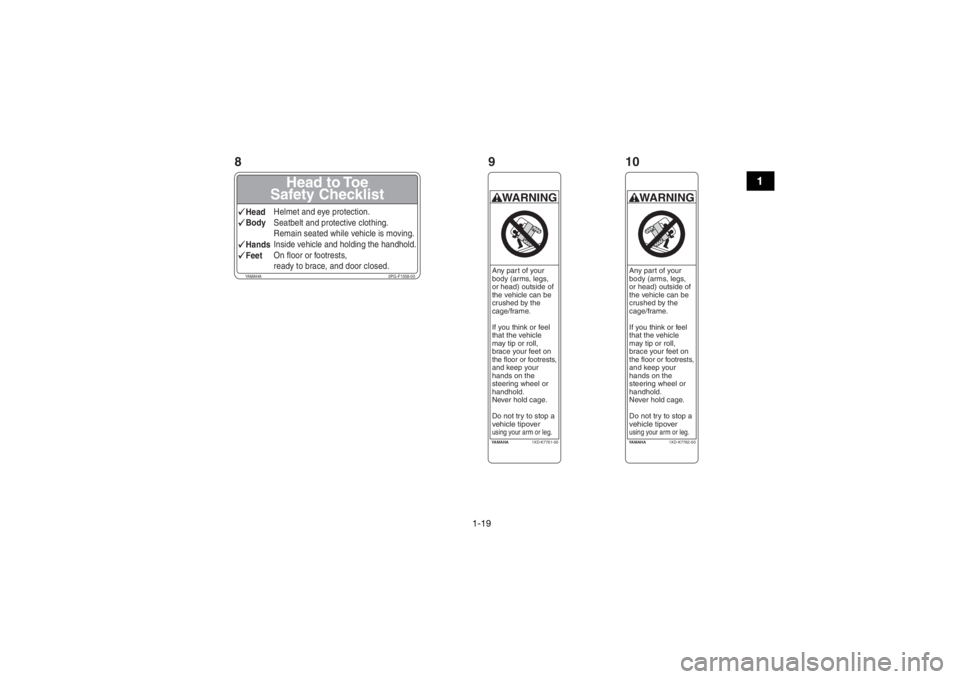

Head to Toe
Safety Checklist
YAMAHA 2PG-F1558-00HeadHelmet and eye protection.BodySeatbelt and protective clothing.
Remain seated while vehicle is moving.Hands
Inside vehicle and holding the handhold.
FeetOn floor or footrests,
ready to brace, and door closed.
YA M A H A
1XD-K7762-00WARNINGAny part of your
body (arms, legs,
or head) outside of
the vehicle can be
crushed by the
cage/frame.
If you think or feel
that the vehicle
may tip or roll,
brace your feet on the floor or footrests,and keep your
hands on the
steering wheel or
handhold.
Never hold cage.
Do not try to stop a vehicle tipover using your arm or leg.
YAMAHA1XD-K7761-00WARNINGAny part of your
body (arms, legs,
or head) outside of
the vehicle can be
crushed by the
cage/frame.
If you think or feel
that the vehicle
may tip or roll,
brace your feet on the floor or footrests,and keep your
hands on the
steering wheel or
handhold.
Never hold cage.
Do not try to stop a vehicle tipover using your arm or leg.91 0
8
UB857AF0.book Page 19 Monday, August 24, 2015 9:01 AM

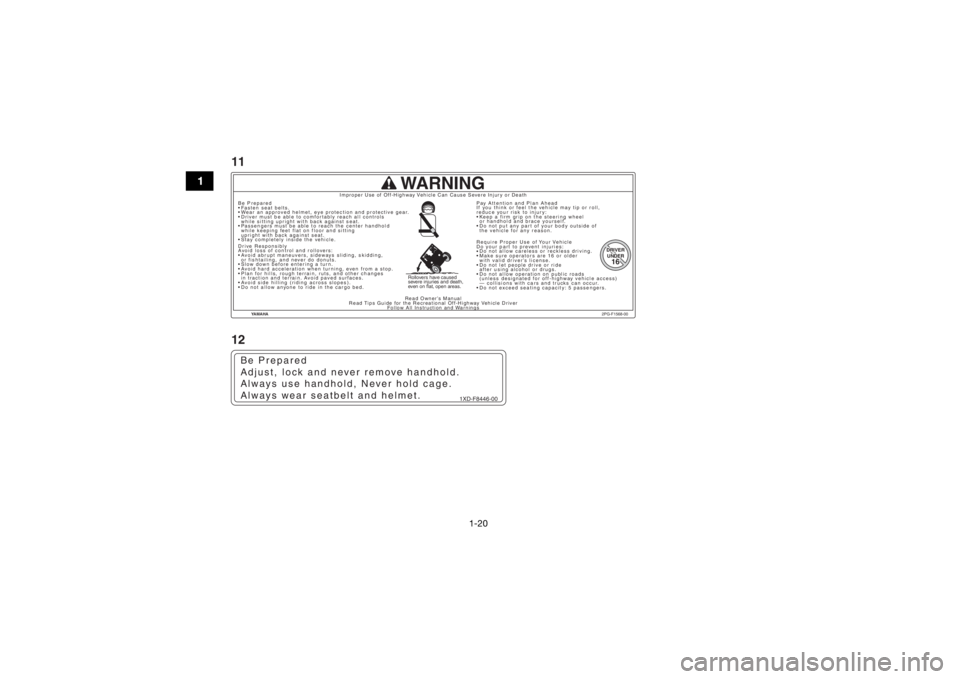

1-20
1
YAMAHA2PG-F1568-00
WARNING
DRIVER
DRIVER
UNDER
UNDER16
16DRIVERUNDER16
Improper Use of Off-Highway Vehicle Can Cause Severe Injury or Death
Read Owner’s Manual
Read Tips Guide for the Recreational Off-Highway Vehicle Driver Follow All Instruction and Warnings
Be Prepared
Drive Responsibly
If you think or feel the vehicle may tip or roll,
reduce your risk to injury: Pay Attention and Plan Ahead
Do not allow careless or reckless driving.
Do your part to prevent injuries: Require Proper Use of Your Vehicle
Rollovers have caused
severe injuries and death,
even on flat, open areas.
Stay completely inside the vehicle.
Passengers must be able to reach the center handhold
while keeping feet flat on floor and sitting
upright with back against seat.
Driver must be able to comfortably reach all controls
while sitting upright with back against seat.
Wear an approved helmet, eye protection and protective gear.
Fasten seat belts.

Do not allow anyone to ride in the cargo bed.
Avoid side hilling (riding across slopes).
Plan for hills, rough terrain, ruts, and other changes
in traction and terrain. Avoid paved surfaces.
Avoid hard acceleration when turning, even from a stop.
Slow down before entering a turn.
Avoid abrupt maneuvers, sideways sliding, skidding,
or fishtailing, and never do donuts.
Avoid loss of control and rollovers: Do not put any part of your body outside of
the vehicle for any reason.
Keep a firm grip on the steering wheel
or handhold and brace yourself.

Do not exceed seating capacity: 5 passengers.
Do not allow operation on public roads
(unless designated for off-highway vehicle access)
— collisions with cars and trucks can occur.
Do not let people drive or ride
after using alcohol or drugs.
Make sure operators are 16 or older
with valid driver’s license.

1XD-F8446-00
Be Prepared
Adjust, lock and never remove handhold.
Always use handhold, Never hold cage.
Always wear seatbelt and helmet.11
12
UB857AF0.book Page 20 Monday, August 24, 2015 9:01 AM

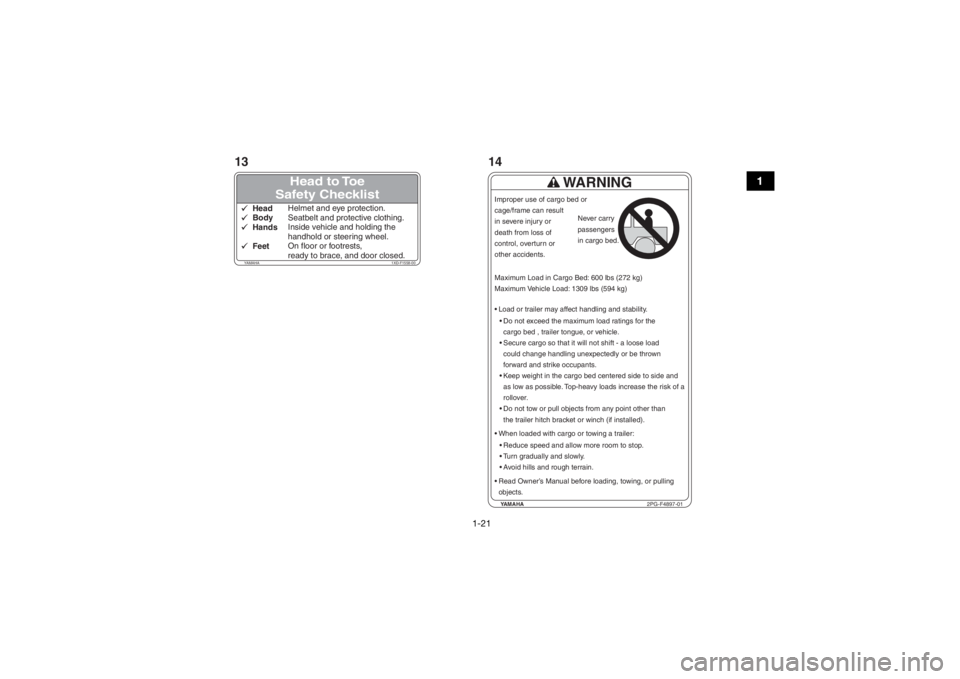

1-21
1
Head to Toe
Safety Checklist
YAMAHA 1XD-F1558-00HeadHelmet and eye protection.BodySeatbelt and protective clothing.HandsInside vehicle and holding the
handhold or steering wheel.FeetOn floor or footrests,
ready to brace, and door closed.
YAMAHA
2PG-F4897-01
WARNING
Load or trailer may affect handling and stability.
Do not exceed the maximum load ratings for thecargo bed , trailer tongue, or vehicle.
When loaded with cargo or towing a trailer: Reduce speed and allow more room to stop.
Turn gradually and slowly.
Avoid hills and rough terrain. Secure cargo so that it will not shift - a loose loadcould change handling unexpectedly or be thrown
forward and strike occupants.
Keep weight in the cargo bed centered side to side and as low as possible. Top-heavy loads increase the risk of a
rollover.
Do not tow or pull objects from any point other than the trailer hitch bracket or winch (if installed).
Read Owner’s Manual before loading, towing, or pulling objects.
Improper use of cargo bed or
cage/frame can result
in severe injury or
death from loss of
control, overturn or
other accidents.
Maximum Load in Cargo Bed: 600 lbs (272 kg)
Maximum Vehicle Load: 1309 lbs (594 kg)
Never carry
passengers
in cargo bed.
13
14
UB857AF0.book Page 21 Monday, August 24, 2015 9:01 AM

2-1
2
FBU31150
CONSIGNES DE SÉCURITÉ
CONSIGNES DE SÉCURITÉ
FBU33180Être un propriétaire responsable
La responsabilité du fonctionnement correct et en toute sécurité du Yamaha Viking VI incombe
à son propriétaire. Bien que la bonne compréhension de l’intégralité de ce manuel soit impor-
tante, il est impératif que le propriétaire du véhi cule lise attentivement ce chapitre-ci, ainsi que
les instructions au Chapitre 7, avant la première utilisation de son Yamaha Viking VI. Il convient
également de se référer à ces deux chapitres et au x étiquettes lors de la remise d’instructions à
tout nouveau pilote ou passager. Ne permettre à quiconque de piloter ou de rouler dans ce vé-
hicule si l’on doute de sa volonté ou de sa capacité d’obtempérer à ces instructions.
Se familiariser avec son véhicule
Ce véhicule tout terrain a une tenue de route et une maniabilité différente des voitures, moto-
quads, karts, voiturettes de golf et des véhicules d’entretien. Veiller à suivre ces instructions afin
de réduire les risques d’accidents et les risques de blessures graves ou mortelles en cas d’acci-
dent.UB857AF0.book Page 1 Monday, August 24, 2015 9:01 AM
