YAMAHA WOLVERINE 2017 Owners Manual

8-59
8
EBU32710Troubleshooting chartsStarting problems or poor engine performanceCheck the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
Operate the electric starter.4. Compression
There is compression.
There is no compression.
The engine does not start.
Have a Yamaha dealer check the vehicle.Have a Yamaha dealer check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug. Have a Yamaha dealer check the vehicle.
The engine does not start.
Check the compression.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.
DryWet
Operate the electric starter.
Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
The engine does not start.
Check the ignition.
U2MB7BE0.book Page 59 Thursday, March 3, 2016 11:46 AM

8-60
8

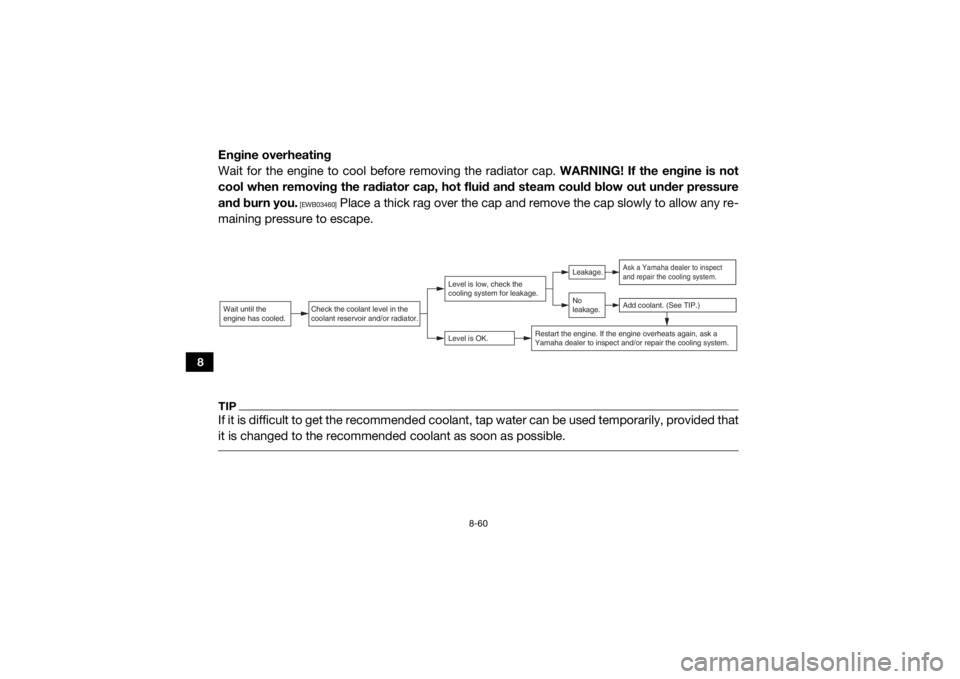

Engine overheating
Wait for the engine to cool before removing the radiator cap. WARNING! If the engine is not
cool when removing the radiator cap, hot fluid and steam could blow out under pressure
and burn you.
[EWB03460]
Place a thick rag over the cap and remove the cap slowly to allow any re-
maining pressure to escape.
TIPIf it is difficult to get the recommended coolant, tap water can be used temporarily, provided that
it is changed to the recommende d coolant as soon as possible. Wait until the
engine has cooled.
Check the coolant level in the
coolant reservoir and/or radiator.
Level is OK.Level is low, check the
cooling system for leakage.
No
leakage.Leakage.
Ask a Yamaha dealer to inspect
and repair the cooling system.Add coolant. (See TIP.)
Restart the engine. If the engine overheats again, ask a
Yamaha dealer to inspect and/or repair the cooling system.
U2MB7BE0.book Page 60 Thursday, March 3, 2016 11:46 AM

9-1
9
EBU32720
CLEANING AND STORAGE
EBU33681CleaningFrequent, thorough cleaning of your vehicle
will not only enhance its appearance but will
improve its general performance and extend
the useful life of many components.1. Before cleaning the vehicle: a. Block off the end of the exhaust pipeto prevent water entry. A plastic bag
and strong rubber band may be used.
b. Make sure the spark plug and all filler caps are properly installed.
2. If the engine case is excessively greasy, apply degreaser with a paint brush. Do
not apply degreaser to the wheel axles.
3. Rinse the dirt and degreaser off with a garden hose. Use only enough pressure
to do the job. WARNING! Test the
brakes after washing. Apply the
brakes several times at slow speeds to
let friction dry the brakes. Wet brakes may have reduced stopping ability, in-
creasing the chance of an accident.
[EWB03471]

NOTICE: Excessive water pres-
sure may cause water seepage and
deterioration of wheel bearings,
brakes, transmission seals and electri-
cal devices. Many expensive repair
bills have resulted from improper high-
pressure detergent applications such
as those available in coin-operated car
washers.
[ECB00712]
TIPThe tailgate can be removed to make it easier
to clean the cargo bed. To separate the tail-
gate from the cargo bed, unhook the latches,
and then pull up the tailgate. (See page 4-21
for tailgate removal and installation proce-
dures.)
U2MB7BE0.book Page 1 Thursday, March 3, 2016 11:46 AM

9-2
9
4. Once the majority of the dirt has beenhosed off, wash all surfaces with warm
water and mild, detergent-type soap. An
old toothbrush or bottle brush is handy
for hard-to-get-at places.
5. Rinse the vehicle off immediately with
clean water and dry all surfaces with a
clean chamois towel or soft, absorbent
cloth.
6. Clean the seats with a vinyl upholstery cleaner to keep the covers pliable and
glossy.
7. Automotive-type wax may be applied to all painted and chrome-plated surfaces.
Avoid combination cleaner-waxes. Many
contain abrasives which may scratch the
paint or protective finish. When finished,
start the engine and let it idle for several
minutes.
EBU36120StorageLong term storage (60 days or more) of your
vehicle will require some preventive proce-
dures to guard against deterioration. Make
any necessary repairs be fore storing the vehi-
cle.
After thoroughly cleaning the vehicle, prepare
for storage as follows: 1. Fill the fuel tank with fresh fuel and add the specified amount of Fuel Med Rx or
another high-quality fuel stabilizer prod-
uct. Follow the instructions on the prod-
uct label. Operate the vehicle for at least
5 minutes to distribute treated fuel
through the fuel system.
2. Remove the spark plug and pour one ta- blespoon of fresh engine oil into the cyl-
inder and then re-install the spark plug.Specified amount:1 oz of stabilizer to each gallon of fuel (or
7.5 ml of stabilizer to each liter of fuel)
U2MB7BE0.book Page 2 Thursday, March 3, 2016 11:46 AM

9-3
9
Remove the spark plug wire and ground
it. Operate the electric starter to turn the
engine over several times and coat the
cylinder walls with oil.
3. Lubricate all control cables.
4. Put the frame on stands or blocks to raise
all wheels off the ground.
5. Tie a plastic bag over the exhaust pipe
outlet to prevent moisture from entering.
6. If storing in a humid or salt-air atmo- sphere, coat all exposed metal surfaces
with a light film of oil. Do not apply oil to
any rubber parts or the seat covers.
7. Remove the battery and charge it. Store
it in a dry place and recharge it once a
month. Do not store the battery in an ex-
cessively warm or cold place [less than 0
°C (30 °F) or more than 30 °C (90 °F)].
Use of fuel stabilizer eliminates the need to
drain the fuel system. Consult a Yamaha
dealer if the fuel system needs to be drained.
U2MB7BE0.book Page 3 Thursday, March 3, 2016 11:46 AM

10-1
10
EBU32750
SPECIFICATIONS
Dimensions:Overall length:2970 mm (116.9 in)
Overall width: 1540 mm (60.6 in)
Overall height:
1885 mm (74.2 in)
Wheelbase: 2065 mm (81.3 in)
Ground clearance: 290 mm (11.4 in)
Minimum turning radius:
4600 mm (181 in)Weight:Curb weight:595.0 kg (1312 lb)Noise and vibration level:Noise level (77/311/EEC):80.0 dB(A) at 3125 r/min (YXE70WPAH, YXE70WPXH)
Uncertainty of measurement: 3.0 dB(A) (YXE70WPAH, YXE70WPXH)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s² (YXE70WPAH, YXE70WPXH)
Uncertainty of measurement: 0.0 m/s² (YXE70WPAH, YXE70WPXH)
Vibration on handle (EN1032, ISO5008): Will not exceed 2.5 m/s² (YXE70WPAH, YXE70WPXH) Uncertainty of measurement:
0.5 m/s² (YXE70WPAH, YXE70WPXH)
Engine:Engine type:Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Single cylinder
Displacement: 708 cm³
Bore × stroke:
103.0 × 85.0 mm (4.06 × 3.35 in)
Compression ratio:
10.1 : 1
Starting system: Electric starter
Lubrication system: Wet sumpEngine oil:Recommended brand:YAMALUBE
U2MB7BE0.book Page 1 Thursday, March 3, 2016 11:46 AM

10-2
10
Type:SAE 0W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Engine oil quantity: Without oil filter cartridge replacement:2.20 L (2.33 US qt, 1.94 Imp.qt)
With oil filter cartridge replacement: 2.30 L (2.43 US qt, 2.02 Imp.qt)Final gear oil:Type:SAE 80 API GL-4 Hypoid gear oil
Quantity: 0.64 L (0.68 US qt, 0.56 Imp.qt)Differential gear oil:Type:SAE 80 API GL-4 Hypoid gear oil Quantity:
0.18 L (0.19 US qt, 0.16 Imp.qt)
Coolant quantity:Coolant reservoir (up to the maximum level mark):
0.28 L (0.30 US qt, 0.25 Imp.qt)
Radiator (including all routes): 2.85 L (3.01 US qt, 2.51 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:Regular unleaded gasoline only
Fuel tank capacity:
36.7 L (9.69 US gal, 8.07 Imp.gal)Fuel injection:Throttle body:ID mark:2MB1 00Spark plug (s):Manufacturer/model:
NGK/CPR7EA-9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:
Wet, centrifugal automaticTransmission:Secondary reduction system:Shaft drive
0 10 30 50 70 90 110 130 F
–20 –10 0 10 20 30 40 50 CSAE 0W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
U2MB7BE0.book Page 2 Thursday, March 3, 2016 11:46 AM

10-3
10
Secondary reduction ratio:43/21 × 17/12 × 33/9 (10.636)
Transmission type: V-belt automatic
Operation:
Right hand operation
Reverse gear: 23/14 × 28/23 (2.000)
Low range: 31/16 (1.938)
High range:
30/22 (1.364)Chassis:Frame type:Steel tube frame
Caster angle:
3.70 °
Trail: 19.0 mm (0.75 in)Front tire:Type:
Tubeless
Size: 26 x 8-12NHS
Manufacturer/model: MAXXIS/MU09Rear tire:Type:Tubeless
Size: 26 x 10-12NHS Manufacturer/model:
MAXXIS/MU10
Loading:Maximum loading limit:
327.0 kg (721 lb)
(Total weight of operator, passengers, cargo, accessories,
and tongue)Tire air pressure (measured on cold tires):Recommended:
Vehicle load: 0 - maximum
Front:
75.0 kPa (0.750 kgf/cm², 11 psi)
Rear: 75.0 kPa (0.750 kgf/cm², 11 psi)
Minimum: Vehicle load: 0 - maximum
Front: 70.0 kPa (0.700 kgf/cm², 10 psi)
Rear:
70.0 kPa (0.700 kgf/cm², 10 psi)Front wheel:Wheel type:Cast wheel (YXE70WPAH)
Panel wheel (YXE70WPHH, YXE70WPXH)
Rim size: 12 x 6.0AT
U2MB7BE0.book Page 3 Thursday, March 3, 2016 11:46 AM

10-4
10
Rear wheel:Wheel type:Cast wheel (YXE70WPAH)
Panel wheel (YXE70WPHH, YXE70WPXH)
Rim size: 12 x 7.5ATFront brake:Type:Hydraulic disc brake
Operation: Unified brake
Specified brake fluid:
DOT 4Rear brake:Type:Hydraulic disc brake
Operation:
Unified brake
Specified brake fluid: DOT 4Front suspension:Type:
Double wishbone
Spring/shock absorber type: Coil spring/gas-oil damper
Wheel travel: 246 mm (9.7 in)Rear suspension:Type:Double wishbone Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel: 269 mm (10.6 in)
Electrical system:Ignition system:TCI
Charging system: AC magnetoBattery:Model:U1-H11L
Voltage, capacity: 12 V, 28.0 AhHeadlight(s):Bulb type:Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 35.0/35.0 W × 2
Tail/brake light: 12 V, 5.0/21.0 W × 2
Neutral indicator light: LED
Reverse indicator light:
LED
Coolant temperature warning light: LED
Engine trouble warning light: LED
U2MB7BE0.book Page 4 Thursday, March 3, 2016 11:46 AM

10-5
10
Parking brake indicator light:LED
On-Command four-wheel-drive/differential gear lock
indicator: LCD
High-range indicator light: LED
Low-range indicator light:
LED
Differential gear lock indicator light: LED
EPS warning light: LED
Helmet/Seat belt indicator light:
14 V, 0.85 W × 2Fuses:Main fuse:
40.0 A
Fuel injection system fuse:
10.0 A
EPS fuse: 40.0 A
Headlight fuse: 15.0 A
Signaling system fuse:
10.0 A
Ignition fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
Backup fuse:
10.0 A Four-wheel-drive motor fuse:
10.0 A
Radiator fan motor fuse: 25.0 A
EBU33221For Europe only
The figures quoted are emission levels and
are not necessarily safe working levels. Whilst
there is a correlation between the emission
and exposure levels, this cannot be used reli-
ably to determine whether or not further pre-
cautions are required. Factors that influence
the actual level of exposure of work-force in-
clude the characteristics of the work room,
the other sources of noise, etc. i.e. the num-
ber of machines and other adjacent process-
es, and the length of time for which an
operator is exposed to the noise. Also the
permissible exposure level can vary from
country. This information, however, will en-
able the user of the machine to make a better
evaluation of the hazard and risk.
