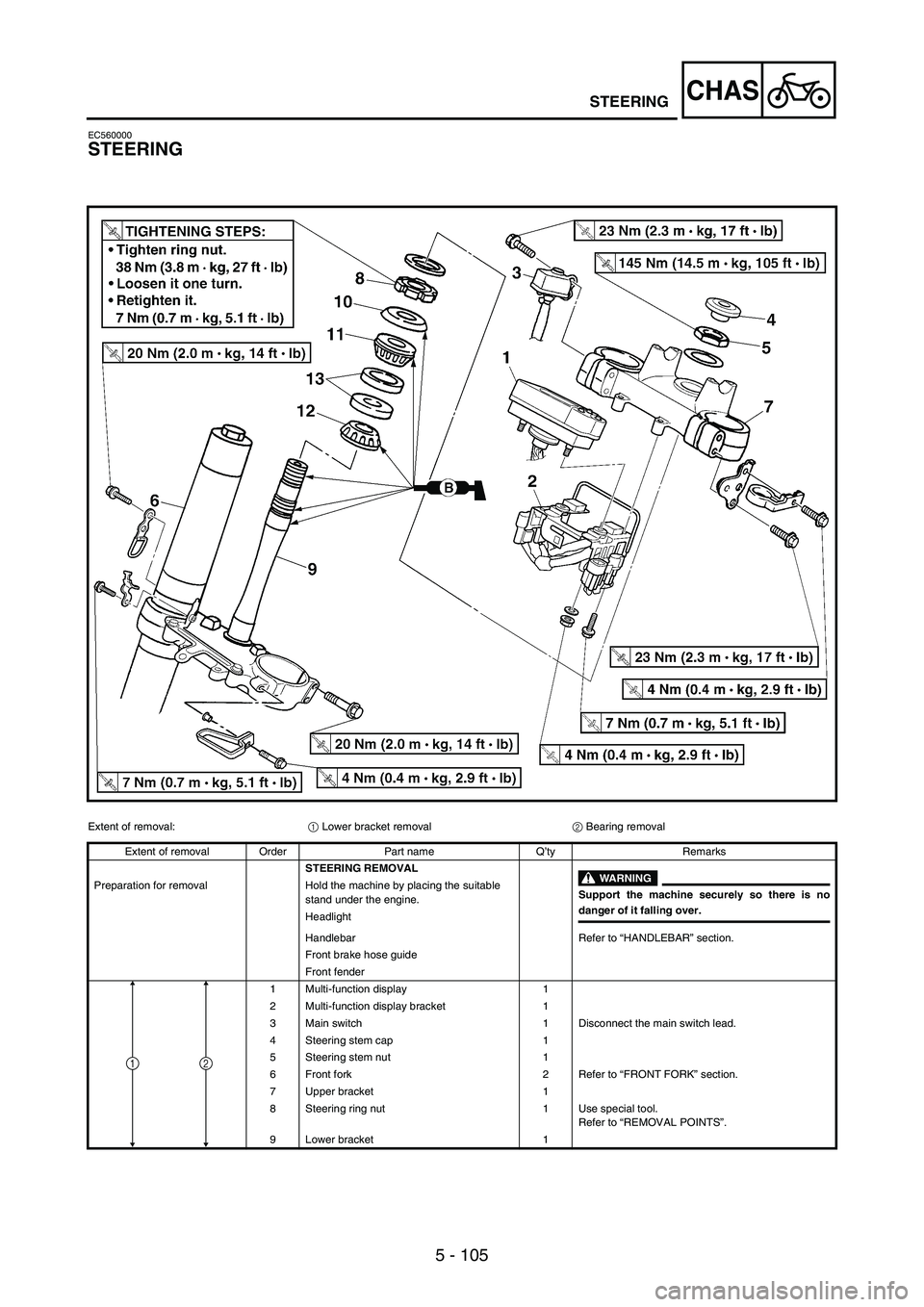

5 - 105
CHASSTEERING
EC560000
STEERING
Extent of removal:
1 Lower bracket removal
2 Bearing removal
Extent of removal Order Part name Q’ty Remarks
STEERING REMOVAL
WARNING
Support the machine securely so there is nodanger of it falling over. Preparation for removal Hold the machine by placing the suitable
stand under the engine.
Headlight
Handlebar Refer to “HANDLEBAR” section.
Front brake hose guide
Front fender
1 Multi-function display 1
2 Multi-function display bracket 1
3 Main switch 1 Disconnect the main switch lead.
4 Steering stem cap 1
5 Steering stem nut 1
6 Front fork 2 Refer to “FRONT FORK” section.
7 Upper bracket 1
8 Steering ring nut 1 Use special tool.
Refer to “REMOVAL POINTS”.
9 Lower bracket 1
12

5 - 121
CHASSWINGARM
EC570000
SWINGARM
Extent of removal:
1 Swingarm removal
Extent of removal Order Part name Q’ty Remarks
SWINGARM REMOVAL
WARNING
Support the machine securely so there is nodanger of it falling over. Preparation for removal Hold the machine by placing the suitable
stand under the engine.
Brake hose holder
Refer to “FRONT BRAKE AND REAR BRAKE”
section.
Rear brake caliper
Bolt (brake pedal) Shift the brake pedal backward.
Drive chain
1 Drive chain support 1
2 Lower chain tensioner 1
3 Bolt (rear shock absorber-relay arm) 1 Hold the swingarm.
4 Bolt (connecting rod) 1
5 Pivot shaft 1
6 Swingarm 1
1

5 - 141
CHASREAR SHOCK ABSORBER
EC580000
REAR SHOCK ABSORBER
Extent of removal:
1 Rear shock absorber removal
2 Rear shock absorber disassembly
Extent of removal Order Part name Q’ty Remarks
REAR SHOCK ABSORBER REMOVAL
WARNING
Support the machine securely so there is nodanger of it falling over. Preparation for removal Hold the machine by placing the suitable
stand under the engine.
Seat, fitting band and side covers Refer to “SEAT, FUEL TANK AND SIDE COVERS”
section in the CHAPTER 4.
Air filter case cover Refer to “AIR FILTER CLEANING” section in the
CHAPTER 3.
Silencer Refer to “EXHAUST PIPE AND SILENCER” section
in the CHAPTER 4.
Drain the coolant. Refer to “COOLANT REPLACEMENT” section in the
CHAPTER 3.
Coolant reservoir breather hose Disconnect at the coolant reservoir side.
Coolant reservoir hose Disconnect at the coolant reservoir side.
Air induction hose (air cut-off valve-air filter
case)Disconnect at the air filter case side.
Cylinder head breather hose Disconnect at the air filter case side.
Battery Refer to “BATTERY INSPECTION AND
CHARGING” section in the CHAPTER 3.
Disconnect the starter relay coupler.
Starter motor lead Disconnect at the starter relay side.

6 - 1
–+ELECELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC600000
ELECTRICAL
EC610000
ELECTRICAL COMPONENTS AND WIRING DIAGRAM
EC611000ELECTRICAL COMPONENTS
1Headlight
2Multi-function display
3Engine stop switch
4Clutch switch
5Diode
6Starter relay diode
7Throttle position sensor
8Starter relay
9Fuse
0Starting circuit cut-off relay
ATaillightBNeutral switch
CStarter motor
DAC magneto
ERectifier/regulator
FIgnition coil
GSpark plug
HStart switch
IMain switch
JCDI unit
KSpeed sensor
LBatteryCOLOR CODE
B ...................... Black
Br ..................... Brown
Ch .................... Chocolate
Dg .................... Dark green
Gy .................... Gray
L ...................... Blue
O...................... Orange
R ...................... Red
Sb .................... Sky blue
W ..................... WhiteY ...................... Yellow
B/L ................... Black/Blue
B/W .................. Black/White
L/B ................... Blue/Black
L/R ................... Blue/Red
L/Y ................... Blue/Yellow
L/W .................. Blue/White
R/B................... Red/Black
R/W.................. Red/White
EC612000WIRING DIAGRAM
1 234
56
789
0A
B C
D EFGH
I
J
K
L
B/L
W
W
R
BR/BBr
R
BR/BBr
R
Y
Y
L/R/BBB
SbL/W
L/YBBB
WY
RY
R
LY
B
YLB/L
B
B
ON
OFF
10A
BB
OFF
START
R-BrL/W
B
BrL/W
BrL/W
L/B
-Y
Y
B
LY
B
L/WSb
B/WBBB
W/R/W
R/
BGyBrL/W
ON
STOP
O
LSbB/L
W RBrB/W
L
/
BGyWR
/B
B O
L/YSbL/R
R W
Y W
Y W
Y
L B
B
B
RRR/B
B Br B
B B B B
L/W
R
R
R R B
R
BrBr
L/W L/
W
Br B
L/B
L/B
L/R

Br
R/B
L/B L
/W
B/W
WW
/RW
RO
L
Y
ELO
B
L
Y
B/LSb
SbB/W
B
B
L/R L/Y L/Y
B
SbSb
B
Gy
D
E
CI
6
H4 5
B3J
K
2FG
7
8L9
1A
W
B
R/W
Ch
Dg
Y
B BrRW
WRB/W
SIGNAL
+
Backup
SLCT1
SLCT2
RST
GND
BrR/WB
B
R/WBr
WRB/W
R B
W
ChDgYB
B/WWRB/WWR
0
R
W
W W
B/L
Y B
RB
B
L
L
SbBB/LYO
L

6 - 3
–+ELECMAP-CONTROLLED CDI UNIT
MAP-CONTROLLED CDI UNIT
A map-controlled, CDI ignition system is used in the WR250F.
The microcomputer in the CDI unit detects the engine speed and throttle position, thus determining the optimum ignition
timing through the entire operating range. In this way, quick throttle response can be achieved according to various riding
conditions.






Function of Component






Principal of 3-Dimensional Control
Conventionally, ignition timing was controlled only by
engine revolutions (2-dimensional control).
However, ignition timing needs advancement also by
engine load. Thus, accurate ignition timing can be deter-
mined by adding throttle opening to determine ignition
timing (3-dimensional control).
3-D Image Map of Ignition Timing
(different from actual characteristics)
Component Function
Throttle position sensor Detects throttle valve opening and inputs it into the computer in the CDI unit as a
throttle opening signal.
Pickup coil Detects signal rotor revolutions and inputs them into the computer in the CDI unit as
engine revolution signals.
CDI unit The signals of the throttle position sensor and pickup coil sensor are analyzed by
the computer in the CDI unit, which then adjusts ignition timing for the operation
requirements.
Throttle position sensorCDI unitIgnition coil
Pickup coilAC magneto rotor
Ignition timing
Th
rot
t
le
o
peni
ngRev
ol
ut
ion
s

6 - 8
–+ELECIGNITION SYSTEM
EC620000
IGNITION SYSTEM
INSPECTION STEPS
Use the following steps for checking the possibility of the malfunctioning engine being attributable to ignition system failure
and for checking the spark plug which will not spark.
*1 marked: Refer to “FUSE INSPECTION” section in the CHAPTER 3.
*2 marked: Refer to “BATTERY INSPECTION AND CHARGING” section in the CHAPTER 3.
*3 marked: Only when the ignition checker is used.
NOTE:•Remove the following parts before inspection.
1) Seat
2) Fuel tank
•Use the following special tools in this inspection.
*1 Check fuse.Replace fuse and check
wire harness.
*2 Check battery. Recharge or replace.
Spark gap test*3 Clean or replace spark
plug.
Check entire ignition system for
connection.
(couplers, leads and ignition coil)Repair or replace.
Check engine stop switch. Replace.
Check main switch.Replace.
Check ignition coil. Primary coil Replace.
Secondary coil Replace.
Check AC magneto. Pickup coil Replace.
Check neutral switch. Repair or replace.
Replace CDI unit.
Dynamic spark tester:
YM-34487
Ignition checker:
90890-06754
Pocket tester:
YU-3112-C/
90890-03112
No good
OK
No good
OK
Spark
No spark
No good
OK
No good
OK
No good
OK
No good
OKNo good
No good
OK
No good
OK

6 - 13
–+ELECIGNITION SYSTEM
SPARK GAP TEST
1. Disconnect the ignition coil from
spark plug.
2. Remove the ignition coil cap.
3. Connect the dynamic spark
tester
1 (ignition checker
2) as
shown.
•Ignition coil
3
•Spark plug
4
ÈFor USA and CDN
ÉExcept for USA and CDN
4. Kick the kickstarter crank.
5. Check the ignition spark gap.
6. Start engine, and increase spark
gap until misfire occurs. (for USA
and CDN only)
Minimum spark gap:
6.0 mm (0.24 in)
È
É
COUPLERS, LEADS AND
IGNITION COIL CONNECTION
INSPECTION
1. Check:
•Couplers and leads connec-
tion
Rust/dust/looseness/short-cir-
cuit
→ Repair or replace.
•Ignition coil and spark plug as
they are fitted
Push in the ignition coil until it
closely contacts the spark plug
hole in the cylinder head
cover.
ENGINE STOP SWITCH
INSPECTION
1. Inspect:
•Engine stop switch conduct
No continuity while being pushed
→
Replace.
Continuity while being freed
→
Replace.Tester (+) lead →
Black lead 1

Tester (–) lead →
Black lead 2

B
1
B
2
Tester
selector
position
PUSH IN
Ω
×
1
FREE
TEST DE LA LONGUEUR
D’ETINCELLE
1. Déconnecter la bobine d’allumage
de la bougie.
2. Déposer le capuchon de la bobine
d’allumage.
3. Connecter le testeur dynamique
d’étincelle 1 (contrôleur d’allu-
mage 2) comme indiqué.
Bobine d’allumage 3
Bougie 4
È
USA et CDN
É
Sauf USA et CDN
4. Actionner le kick.
5. Contrôler la longueur d’étincelle
d’allumage.
6. Démarrer le moteur et augmenter la
longueur d’étincelle jusqu’à ce
qu’un raté se produise. (uniquement
USA et CDN)
Longueur d’étincelle
minimum:
6,0 mm (0,24 in)
CONTROLE DES CONNEXIONS
DES FICHES RAPIDES, DES FILS
ET DE LA BOBINE D’ALLUMAGE
1. Vérifier:
Connexion des coupleurs et des
fils
Rouille/poussière/jeu/court-cir-
cuit → Réparer ou remplacer.
Bobine d’allumage et bougie en
place
Appuyer sur la bobine d’allu-
mage jusqu’à ce qu’elle soit en
contact étroit avec le trou de bou-
gie du couvre-culasse.
CONTROLE DU COUPE-CIRCUIT
DU MOTEUR
1. Contrôler:
Continuité du coupe-circuit du
moteur
Pas de continuité lorsque enfoncé →
Remplacer.
Continuité lorsque relâché → Rempla-
cer.Fil (+) du multimètre → fil noir 1
Fil (–) du multimètre → fil noir 2
B
1 B
2 Position du
sélecteur du
multimètre
ENFONCE
Ω × 1
RELACHE
SYSTEME D’ALLUMAGE

6 - 21

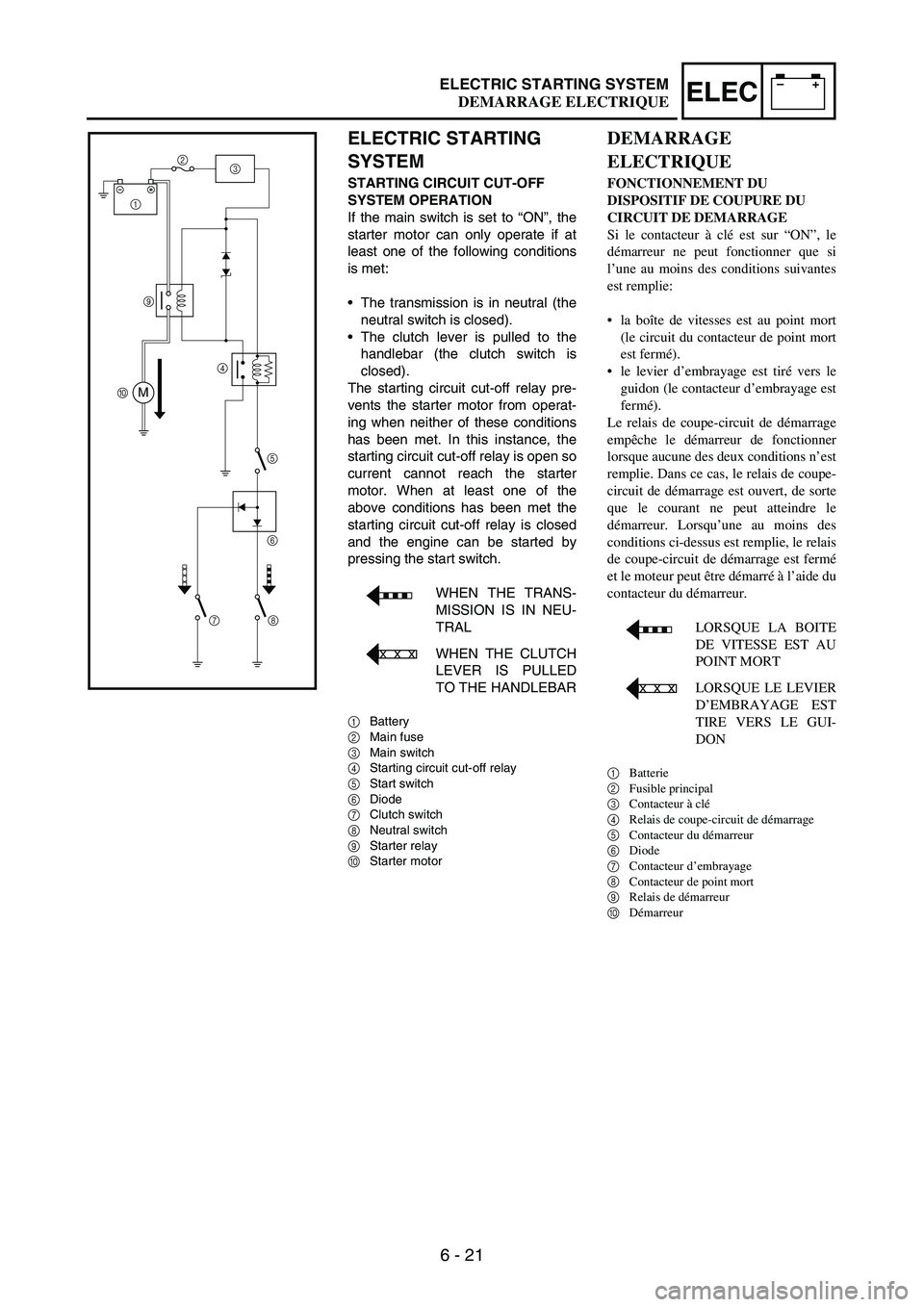

–+ELECELECTRIC STARTING SYSTEM
ELECTRIC STARTING
SYSTEM
STARTING CIRCUIT CUT-OFF
SYSTEM OPERATION
If the main switch is set to “ON”, the
starter motor can only operate if at
least one of the following conditions
is met:
•The transmission is in neutral (the
neutral switch is closed).
•The clutch lever is pulled to the
handlebar (the clutch switch is
closed).
The starting circuit cut-off relay pre-
vents the starter motor from operat-
ing when neither of these conditions
has been met. In this instance, the
starting circuit cut-off relay is open so
current cannot reach the starter
motor. When at least one of the
above conditions has been met the
starting circuit cut-off relay is closed
and the engine can be started by
pressing the start switch.
WHEN THE TRANS-
MISSION IS IN NEU-
TRAL
WHEN THE CLUTCH
LEVER IS PULLED
TO THE HANDLEBAR
1Battery
2Main fuse
3Main switch
4Starting circuit cut-off relay
5Start switch
6Diode
7Clutch switch
8Neutral switch
9Starter relay
0Starter motor
12
M
3
4
5
8 76 9
0
DEMARRAGE
ELECTRIQUE
FONCTIONNEMENT DU
DISPOSITIF DE COUPURE DU
CIRCUIT DE DEMARRAGE
Si le contacteur à clé est sur “ON”, le
démarreur ne peut fonctionner que si
l’une au moins des conditions suivantes
est remplie:
la boîte de vitesses est au point mort
(le circuit du contacteur de point mort
est fermé).
le levier d’embrayage est tiré vers le
guidon (le contacteur d’embrayage est
fermé).
Le relais de coupe-circuit de démarrage
empêche le démarreur de fonctionner
lorsque aucune des deux conditions n’est
remplie. Dans ce cas, le relais de coupe-
circuit de démarrage est ouvert, de sorte
que le courant ne peut atteindre le
démarreur. Lorsqu’une au moins des
conditions ci-dessus est remplie, le relais
de coupe-circuit de démarrage est fermé
et le moteur peut être démarré à l’aide du
contacteur du démarreur.
LORSQUE LA BOITE
DE VITESSE EST AU
POINT MORT
LORSQUE LE LEVIER
D’EMBRAYAGE EST
TIRE VERS LE GUI-
DON
1
Batterie
2
Fusible principal
3
Contacteur à clé
4
Relais de coupe-circuit de démarrage
5
Contacteur du démarreur
6
Diode
7
Contacteur d’embrayage
8
Contacteur de point mort
9
Relais de démarreur
0
Démarreur
DEMARRAGE ELECTRIQUE

6 - 51
–+ELECCHARGING SYSTEM
EC624000COUPLERS AND LEADS
CONNECTION INSPECTION
1. Check:
•Couplers and leads connec-
tion
Rust/dust/looseness/short-cir-
cuit
→ Repair or replace.
CHARGING VOLTAGE
INSPECTION
1. Start the engine.
2. Inspect:
•Charging voltage
Out of specification
→ If no
failure is found in checking the
source coil resistance, replace
the rectifier/regulator.
Tester (+) lead →
Red lead 1

Tester (–) lead →
Black lead 2

Charging
voltageTester
selector
position
14.1 ~ 14.9 V
at 5,000 r/minDCV-20
R
BW Y1
2
3. Inspect:
•Charging coil resistance
Out of specification
→
Replace.
Tester (+) lead →
White lead 1

Tester (–) lead →
Ground 2

Charging coil
resistanceTester
selector
position
0.288 ~ 0.432 Ω

at 20 °C (68 °F)Ω
×
1
CONTROLE DES CONNEXIONS
DES FICHES RAPIDES ET DES
FILS
1. Contrôler:
Connexion des fiches rapides et
des fils
Rouille/poussière/jeu/court-cir-
cuit → Réparer ou remplacer.
CONTROLE DE LA TENSION DE
CHARGE
1. Mettre le moteur en marche.
2. Contrôler:
Tension de charge
Hors spécifications → Si le con-
trôle de la résistance de la bobine
d’alimentation ne révèle aucun
problème, remplacer le redres-
seur/régulateur.
Fil (+) du multimètre →
fil rouge 1
Fil (–) du multimètre → fil noir 2
Tension de
chargePosition du
sélecteur du
multimètre
14,1 à 14,9 V à
5.000 tr/minDCV-20
3. Contrôler:
Résistance de la bobine de charge
Hors spécifications → Rempla-
cer.
Fil (+) du multimètre →
fil blanc 1
Fil (–) du multimètre → terre 2
Résistance de la
bobine de
chargePosition du
sélecteur du
multimètre
0,288 à 0,432 Ω à
20 °C (68 °F)Ω × 1
SYSTEME DE CHARGE

6 - 59
–+ELECTHROTTLE POSITION SENSOR SYSTEM
HANDLING NOTE
CAUTION:
Do not loosen the screws (throttle
position sensor) 1
except when
changing the throttle position sen-
sor due to failure because it will
cause a drop in engine perfor-
mance.
1
EC624000COUPLERS AND LEADS
CONNECTION INSPECTION
1. Check:
•Couplers and leads connec-
tion
Rust/dust/looseness/short-cir-
cuit
→ Repair or replace.
THROTTLE POSITION SENSOR
COIL INSPECTION
1. Inspect:
•Throttle position sensor coil
resistance
Out of specification
→
Replace.
Tester (+) lead →
Blue lead 1

Tester (–) lead →
Black lead 2
Throttle
position
sensor coil
resistanceTester
selector
position
4 ~ 6 kΩ at
20 °C (68 °F)kΩ × 1
2. Loosen:
•Throttle stop screw 1
NOTE:Turn out the throttle stop screw until
the throttle shaft is in the full close
position.
REMARQUES CONCERNANT LA
MANIPULATION
ATTENTION:
Ne pas desserrer les vis (capteur de
position de papillon des gaz) 1 sauf
en cas de remplacement du capteur de
position de papillon des gaz en raison
d’une panne, car cela provoquerait
une baisse des performances du
moteur.
CONTROLE DES CONNEXIONS
DES FICHES RAPIDES ET DES
FILS
1. Contrôler:
Connexion des fiches rapides et
des fils
Rouille/poussière/jeu/court-cir-
cuit → Réparer ou remplacer.
CONTROLE DE LA BOBINE DU
CAPTEUR DE POSITION DE
PAPILLON DES GAZ
1. Contrôler:
Résistance de la bobine du cap-
teur de position de papillon des
gaz
Hors spécifications → Rempla-
cer.
Fil (+) du multimètre → fil bleu 1
Fil (–) du multimètre → fil noir 2
Résistance de la
bobine du
capteur de
position de
papillon des gazPosition du
sélecteur du
multimètre
4 à 6 kΩ à 20 °C
(68 °F)kΩ × 1
2. Desserrer:
Vis de butée de papillon des gaz
1
N.B.:
Dévisser la vis de butée de papillon des
gaz jusqu’à ce que l’axe de papillon soit
en position complètement fermée.
SYSTEME DU CAPTEUR DE POSITION DE PAPILLON DES GAZ
