YAMAHA WR 450F 2006 Owners Manual

SPEC
2 - 2 Oil capacity:
Engine oil
Periodic oil change 1.0 L (0.88 Imp qt, 1.06 US qt)
With oil filter replacement 1.1 L (0.97 Imp qt, 1.16 US qt)
Total amount 1.2 L (1.06 Imp qt, 1.27 US qt)
Coolant capacity (including all routes): 1.56 L (1.37 Imp qt, 1.65 US qt)
Air filter: Wet type element
Fuel:
Type Premium unleaded gasoline only with a
research octane number of 95 or higher.
Tank capacity 8.0 L (1.76 Imp gal, 2.11 US gal)
Reserve 1.1 L (0.24 Imp gal, 0.29 US gal)
Carburetor:
Type FCR MX39
Manufacturer KEIHIN
Spark plug:
Type/manufacturer CR8E/NGK (resistance type)
Gap 0.7 ~ 0.8 mm (0.028 ~ 0.031 in)
Clutch type: Wet, multiple-disc
Transmission:
Primary reduction system Gear
Primary reduction ratio 62/22 (2.818)
Secondary reduction system Chain drive
Secondary reduction ratio 50/14 (3.571)
Transmission type Constant mesh, 5-speed
Operation Left foot operation
Gear ratio: 1st 29/12 (2.416)
2nd 26/15 (1.733)
3rd 21/16 (1.312)
4th 21/20 (1.050)
5th 21/25 (0.840)
Chassis: USA, ZA, CDN EUROPE, AUS, NZ
Frame type Semi double cradle←
Caster angle 27.4°27.3°
Trail 120 mm (4.72 in) 119 mm (4.69 in)
Tire:
Type With tube
Size (front) 80/100-21 51M (USA, CDN, ZA)
90/90-21 54R (EUROPE, AUS, NZ)
Size (rear) 110/100-18 64M (USA, CDN, ZA)
130/90-18 69R (EUROPE, AUS, NZ)
Tire pressure (front and rear) 100 kPa (1.0 kgf/cm
2, 15 psi)
GENERAL SPECIFICATIONS

2

SPEC
2 - 3 Brake:
Front brake type Single disc brake
Operation Right hand operation
Rear brake type Single disc brake
Operation Right foot operation
Suspension:
Front suspension Telescopic fork
Rear suspension Swingarm (link type monocross suspension)
Shock absorber:
Front shock absorber Coil spring/oil damper
Rear shock absorber Coil spring/gas, oil damper
Wheel travel:
Front wheel travel 300 mm (11.8 in)
Rear wheel travel 305 mm (12.0 in)
Electrical:
Ignition system CDI
Generator system AC magneto
Battery type YTZ7S
Battery voltage/capacity 12 V/6 AH
Specific gravity 1.310
Headlight type: Quartz bulb (halogen)
Bulb wattage × quantity:
Headlight 12 V 60/55 W × 1
Taillight 12 V 21/5 W × 1
GENERAL SPECIFICATIONS

SPEC
2 - 4
MAINTENANCE SPECIFICATIONS
ENGINE
Item Standard Limit
Cylinder head:
Warp limit ---- 0.05 mm
(0.002 in)
Cylinder:
Bore size 95.00 ~ 95.01 mm
(3.7402 ~ 3.7406 in)----
Out of round limit ---- 0.05 mm
(0.002 in)
Camshaft:
Drive method Chain drive (Left) ----
Camshaft cap inside diameter 22.000 ~ 22.021 mm
(0.8661 ~ 0.8670 in)----
Camshaft journal diameter 21.959 ~ 21.972 mm
(0.8645 ~ 0.8650 in)----
Shaft-to-cap clearance 0.028 ~ 0.062 mm
(0.0011 ~ 0.0024 in)0.08 mm
(0.003 in)
Cam dimensions
Intake“A”31.200 ~ 31.300 mm
(1.2283 ~ 1.2323 in)31.100 mm
(1.2244 in)
“B”22.550 ~ 22.650 mm
(0.8878 ~ 0.8917 in)22.450 mm
(0.8839 in)
Exhaust“A”30.950 ~ 31.050 mm
(1.2185 ~ 1.2224 in)30.850 mm
(1.2146 in)
“B”22.494 ~ 22.594 mm
(0.8856 ~ 0.8895 in)22.394 mm
(0.8817 in)
Camshaft runout limit ---- 0.03 mm
(0.0012 in)
A
B
MAINTENANCE SPECIFICATIONS

SPEC
2 - 5 Cam chain:
Cam chain type/No. of links 98XRH2010-118M/118 ----
Cam chain adjustment method Automatic ----
Valve, valve seat, valve guide:
Valve clearance (cold) IN 0.10 ~ 0.15 mm
(0.0039 ~ 0.0059 in)----
EX 0.20 ~ 0.25 mm
(0.0079 ~ 0.0098 in)----
Valve dimensions:
“A” head diameter IN 26.9 ~ 27.1 mm
(1.0591 ~ 1.0669 in)----
EX 27.9 ~ 28.1 mm
(1.0984 ~ 1.1063 in)----
“B” face width IN 2.26 mm (0.089 in) ----
EX 2.26 mm (0.089 in) ----
“C” seat width IN 0.9 ~ 1.1 mm
(0.0354 ~ 0.0433 in)1.6 mm
(0.0630 in)
EX 0.9 ~ 1.1 mm
(0.0354 ~ 0.0433 in)1.6 mm
(0.0630 in)
“D” margin thickness IN 1 mm (0.0394 in) 0.85 mm
(0.033 in)
EX 1 mm (0.0394 in) 0.85 mm
(0.033 in)
Stem outside diameter IN 4.475 ~ 4.490 mm
(0.1762 ~ 0.1768 in)4.445 mm
(0.1750 in)
EX 4.965 ~ 4.980 mm
(0.1955 ~ 0.1961 in)4.935 mm
(0.1943 in)
Guide inside diameter IN 4.500 ~ 4.512 mm
(0.1772 ~ 0.1776 in)4.550 mm
(0.1791 in)
EX 5.000 ~ 5.012 mm
(0.1969 ~ 0.1973 in)5.050 mm
(0.1988 in)
Stem-to-guide clearance IN 0.010 ~ 0.037 mm
(0.0004 ~ 0.0015 in)0.08 mm
(0.003 in)
EX 0.020 ~ 0.047 mm
(0.0008 ~ 0.0019 in)0.10 mm
(0.004 in)
Stem runout limit ---- 0.01 mm
(0.0004 in) Item Standard Limit
BC
DA
Head Diameter Face Width Seat Width Margin Thickness
MAINTENANCE SPECIFICATIONS

SPEC
2 - 6 Valve spring:
Free length IN 37.03 mm (1.46 in) 36.03 mm
(1.42 in)
EX 37.68 mm (1.48 in) 36.68 mm
(1.44 in)
Set length (valve closed) IN 27.87 mm (1.10 in) ----
EX 27.38 mm (1.08 in) ----
Compressed force
(installed) IN 111.3 ~ 127.9 N at 27.87 mm
(11.3 ~ 13.0 kg at 27.87 mm,
24.91 ~ 28.66 lb at 1.10 in)----
EX 127.4 ~ 146.4 N at 27.38 mm
(13.0 ~ 14.9 kg at 27.38 mm,
28.66 ~ 32.85 lb at 1.08 in)----
Tilt limit IN ----
2.5°/ 1.61 mm
(2.5°/0.063 in)
EX ----2.5°/1.65 mm
(2.5°/0.065 in)
Direction of winding (top view) IN Clockwise ----
EX Clockwise ----
Piston:
Piston to cylinder clearance 0.040 ~ 0.065 mm
(0.0016 ~ 0.0026 in)0.1 mm
(0.004 in)
Piston size “D”94.945 ~ 94.960 mm
(3.738 ~ 3.739 in)----
Measuring point “H”8 mm (0.315 in) ----
Piston off-set 1 mm (0.0394 in) ----
Piston pin bore inside diameter 18.004 ~ 18.015 mm
(0.7088 ~ 0.7093 in)18.045 mm
(0.7104 in)
Piston pin outside diameter 17.991 ~ 18.000 mm
(0.7083 ~ 0.7087 in)17.971 mm
(0.7075 in) Item Standard Limit
*
H
D
MAINTENANCE SPECIFICATIONS

SPEC
2 - 7 Piston rings:
Top ring:
Type Barrel ----
Dimensions (B × T) 1.2 × 3.5 mm (0.05 × 0.14 in) ----
End gap (installed) 0.20 ~ 0.30 mm
(0.008 ~ 0.012 in)0.55 mm
(0.022 in)
Side clearance (installed) 0.030 ~ 0.065 mm
(0.0012 ~ 0.0026 in)0.12 mm
(0.005 in)
2nd ring:
Type Taper ----
Dimensions (B × T) 1.00 × 3.35 mm (0.04 × 0.13 in) ----
End gap (installed) 0.35 ~ 0.50 mm
(0.014 ~ 0.020 in)0.85 mm
(0.033 in)
Side clearance 0.020 ~ 0.055 mm
(0.0008 ~ 0.0022 in)0.12 mm
(0.005 in)
Oil ring:
Dimensions (B × T) 2.0 × 2.9 mm (0.08 × 0.11 in) ----
End gap (installed) 0.2 ~ 0.5 mm (0.01 ~ 0.02 in) ----
Crankshaft:
Crank width “A”61.95 ~ 62.00 mm
(2.439 ~ 2.441 in)----
Runout limit “C”0.03 mm (0.0012 in) 0.05 mm
(0.002 in)
Big end side clearance “D”0.15 ~ 0.45 mm
(0.0059 ~ 0.0177 in)0.50 mm
(0.02 in)
Small end free play “F”0.4 ~ 1.0 mm (0.02 ~ 0.04 in) 2.0 mm
(0.08 in)
Balancer:
Balancer drive method Gear ----
Air filter oil grade: Foam-air-filter oil or equivalent
oil ---- Item Standard Limit
T
B
B
T
B
T
MAINTENANCE SPECIFICATIONS

SPEC
2 - 8 Clutch:
Friction plate thickness 2.92 ~ 3.08 mm
(0.115 ~ 0.121 in)2.8 mm
(0.110 in)
Quantity 8 ----
Clutch plate 1 thickness 1.9 ~ 2.1 mm (0.075 ~ 0.083 in) ----
Quantity 4 ----
Warp limit ---- 0.1 mm
(0.004 in)
Clutch plate 2 thickness 1.5 ~ 1.7 mm (0.059 ~ 0.067 in) ----
Quantity 3 ----
Warp limit ---- 0.1 mm
(0.004 in)
Clutch spring free length 50.0 mm (1.97 in) 49.0 mm
(1.93 in)
Quantity 6 ----
Clutch housing thrust clearance 0.10 ~ 0.35 mm
(0.0039 ~ 0.0138 in)----
Clutch housing radial clearance 0.010 ~ 0.044 mm
(0.0004 ~ 0.0017 in)----
Clutch release method Inner push, cam push ----
Shifter:
Shifter type Cam drum and guide bar ----
Guide bar bending limit ---- 0.05 mm
(0.002 in)
Kickstarter:
Type Ratchet type ----
Carburetor:
I. D. mark 5TJ8 80 ----
Main jet (M.J) #165 ----
Main air jet (M.A.J)ø2.0 ----
Jet needle (J.N) NFNT ----
Cutaway (C.A) 1.5 ----
Pilot jet (P.J) #45 ----
Pilot air jet (P.A.J) #80 ----
Pilot outlet (P.O)ø0.9 ----
Bypass (B.P)ø1.0 ----
Valve seat size (V.S)ø3.8 ----
Starter jet (G.S) #65 ----
Leak jet (Acc.P) #50 ----
Float height (F.H) 8 mm (0.31 in) ----
Engine idle speed 1,700 ~ 1,900 r/min ----
Intake vacuum 34.3 ~ 40.7 kPa
(260 ~ 300 mmHg,
10.24 ~ 11.81 inHg)----
Hot starter lever free play 3 ~ 6 mm (0.12 ~ 0.24 in) ----Item Standard Limit
MAINTENANCE SPECIFICATIONS

SPEC
2 - 9 Lubrication system:
Oil filter type Paper type ----
Oil pump type Trochoid type ----
Tip clearance “A”0.12 mm or less
(0.0047 in or less)0.20 mm
(0.008 in)
Tip clearance “B”0.09 ~ 0.17 mm
(0.0035 ~ 0.0067 in)0.24 mm
(0.009 in)
Side clearance “C”0.03 ~ 0.10 mm
(0.0012 ~ 0.0039 in)0.17 mm
(0.007 in)
Bypass valve setting pressure 40 ~ 80 kPa (0.4 ~ 0.8 kg/cm
2,
5.69 ~ 11.38 psi)----
Cooling:
Radiator core size
Width 117.8 mm (4.6 in) ----
Height 260 mm (10.2 in) ----
Thickness 32 mm (1.26 in) ----
Radiator cap opening pressure 110 kPa (1.1 kg/cm
2, 15.6 psi) ----
Radiator capacity (total) 0.71 L (0.62 Imp qt, 0.75 US qt) ----
Water pump
Type Single-suction centrifugal pump ----Item Standard Limit
MAINTENANCE SPECIFICATIONS

SPEC
2 - 10 Item Standard

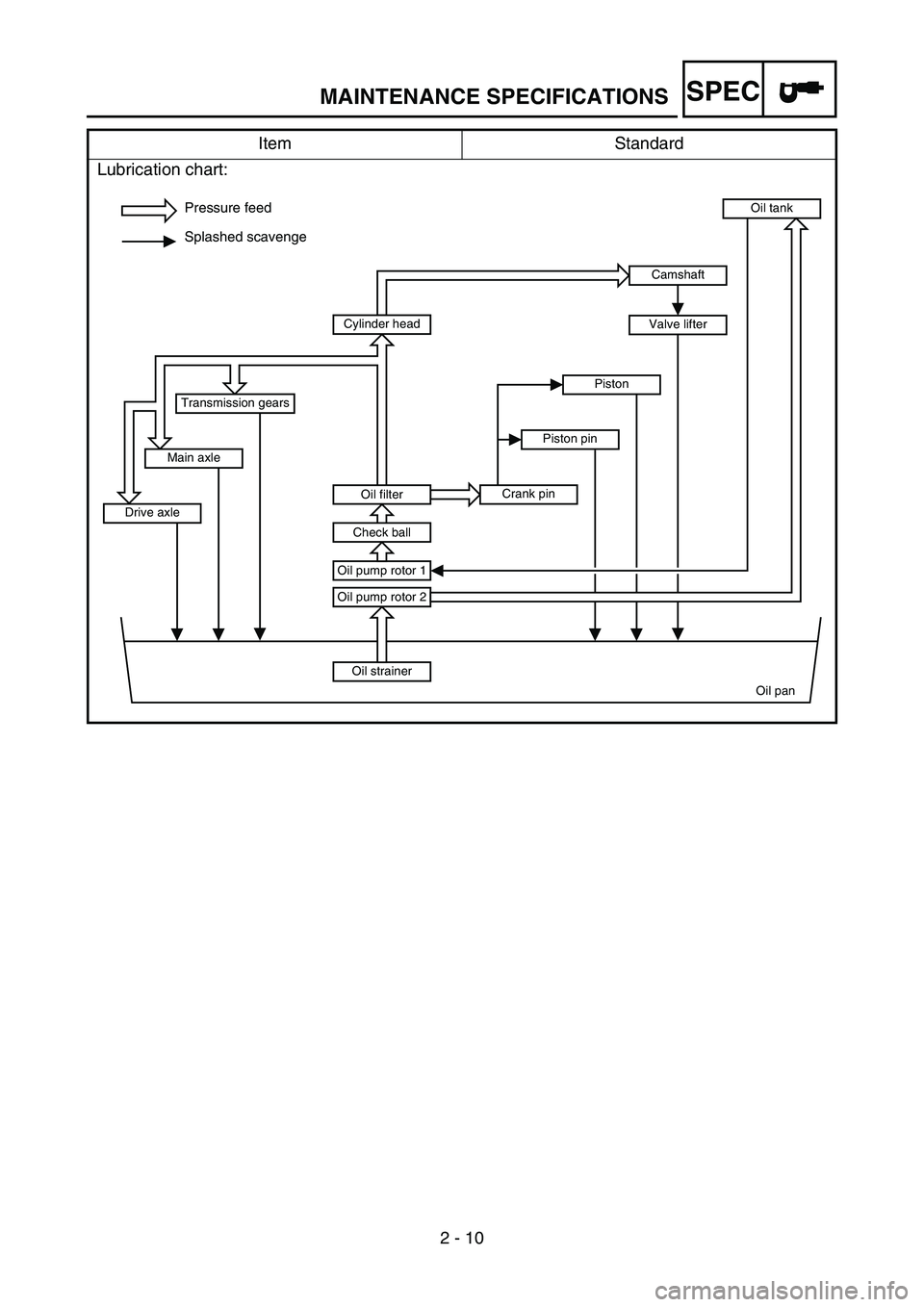

Lubrication chart:
Pressure feed
Splashed scavenge
Oil strainer
Oil pan Oil pump rotor 2
Oil pump rotor 1
Oil tank
Oil filter
Check ball
Cylinder head
Crank pinPiston pinPiston
Drive axleMain axleTransmission gears
Camshaft
Valve lifter
MAINTENANCE SPECIFICATIONS

SPEC
2 - 11 Part to be tightened Thread size Q’tyTightening torque
Nm m·kg ft·lb
Spark plug M10S × 1.0 1 13 1.3 9.4
Camshaft cap M6 × 1.0 10 10 1.0 7.2
Cylinder head blind plug screw M12 × 1.0 1 28 2.8 20
Cylinder head (stud bolt) M6 × 1.0 2 7 0.7 5.1
M8 × 1.25 1 15 1.5 11
(bolt) M10 × 1.25 4 Refer to NOTE.*
1
(nut) M6 × 1.0 2 10 1.0 7.2
Cylinder head cover M6 × 1.0 2 10 1.0 7.2
Cylinder M6 × 1.0 1 10 1.0 7.2
Timing chain tensioner M6 × 1.0 2 10 1.0 7.2
Tensioner cap bolt M6 × 1.0 1 7 0.7 5.1
Timing chain guide (rear) M6 × 1.0 2 10 1.0 7.2
Exhaust pipe (nut) M8 × 1.25 1 13 1.3 9.4
(bolt) M8 × 1.25 1 24 2.4 17
Silencer M8 × 1.25 2 35 3.5 25
Silencer clamp M8 × 1.25 1 16 1.6 11
Exhaust pipe protector M6 × 1.0 3 10 1.0 7.2
Spark arrester M5 × 0.8 4 7 0.7 5.1
Silencer cap M5 × 0.8 6 5 0.5 3.6
Carburetor joint clamp (cylinder head side) M5 × 0.8 1 3 0.3 2.2
Carburetor joint clamp (carburetor side) M4 × 0.7 1 3 0.3 2.2
Air filter case M6 × 1.0 2 8 0.8 5.8
Air filter joint clamp M6 × 1.0 1 3 0.3 2.2
Air filter joint and air filter case M5 × 0.8 1 4 0.4 2.9
Throttle cable (pull) M6 × 1.0 1 4 0.4 2.9
Throttle cable (return) M12 × 1.0 1 11 1.1 8.0
Throttle cable cover M5 × 0.8 2 4 0.4 2.9
Hot starter plunger M12 × 1.0 1 2 0.2 1.4
Radiator panel (upper) M6 × 1.0 2 10 1.0 7.2
Radiator M6 × 1.0 6 10 1.0 7.2
Radiator hose clamp M6 × 1.0 8 2 0.2 1.4
Radiator pipe 1, 2 M10 × 1.0 2 10 1.0 7.2
Impeller M8 × 1.25 1 14 1.4 10
Water pump housing cover M6 × 1.0 3 10 1.0 7.2
Coolant drain bolt M6 × 1.0 1 10 1.0 7.2
Oil pump cover M4 × 0.7 1 2 0.2 1.4
Oil pump M6 × 1.0 3 9 0.9 6.5
Engine oil drain bolt (oil filter) M6 × 1.0 1 10 1.0 7.2
Oil filter cover M6 × 1.0 2 10 1.0 7.2
Oil delivery pipe 1 M10 × 1.25 1 20 2.0 14
M8 × 1.25 2 18 1.8 13
Oil delivery pipe 2 M6 × 1.0 1 10 1.0 7.2
Oil hose M6 × 1.0 2 8 0.8 5.8
