YAMAHA WR 450F 2013 Repair Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
6-18
2
3
4
567
8
9
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU52881
Tires Tires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10441
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).

The tire air pressure must be ad-
justed in accordance with the
riding speed and with the totalweight of rider, cargo, and ac-
cessories approved for this
model.WARNING
EWA10511
Never overload your vehicle. Opera-
tion of an overloaded vehicle couldcause an accident.
Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):Front: 150 kPa (1.50 kgf/cm
2, 22 psi)
Rear: 200 kPa (2.00 kgf/cm2, 29 psi)
Maximum load*:
90 kg (198 lb)
* Total weight of rider, cargo and ac- cessories
1DX-9-E1.book 18 ページ ２０１２年７月３１日　火曜日　午前９時３１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-19
1
2
3
4
56
7
8
9Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
TIPThe tire tread depth limits may differ
from country to country. Always complywith the local regulations. Tire information
This motorcycle is equipped with spoke
wheels and tube tires.
Tires age, even if they have not been
used or have only been used occasion-
ally. Cracking of the tread and sidewall
rubber, sometimes accompanied by
carcass deformation, is an evidence of
ageing. Old and aged tires shall be
checked by tire specialists to ascertain
their suitability for further use.
WARNING
EWA10461
The front and rear tires should be of
the same make and design, other-
wise the handling characteristics of
the vehicle may be different, whichcould lead to an accident.
After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha Motor Co., Ltd.
WARNING
EWA10571

Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the mo-
torcycle with excessively worn
tires decreases riding stability
and can lead to loss of control.

The replacement of all wheel-
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.

It is not recommended to patch
a punctured tube. If unavoid-
able, however, patch the tube
very carefully and replace it as
soon as possible with a

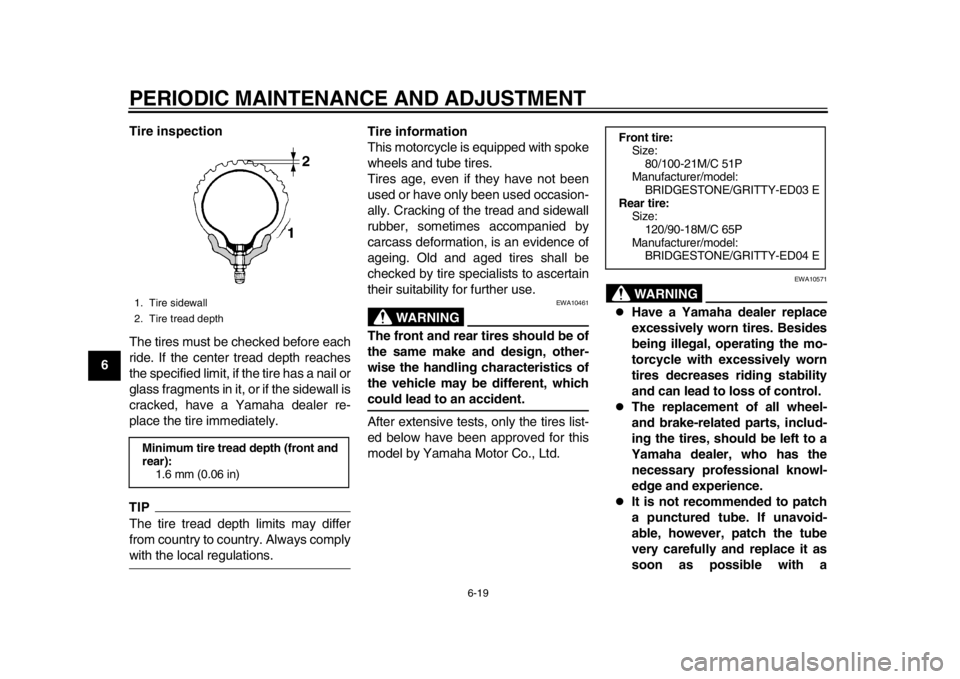

1. Tire sidewall
2. Tire tread depthMinimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
Front tire: Size:80/100-21M/C 51P
Manufacturer/model:
BRIDGESTONE/GRITTY-ED03 E
Rear tire: Size:
120/90-18M/C 65P
Manufacturer/model: BRIDGESTONE/GRITTY-ED04 E
1DX-9-E1.book 19 ページ ２０１２年７月３１日　火曜日　午前９時３１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-20
2
3
4
567
8
9
high-quality product.

Ride at moderate speeds after
changing a tire since the tire
surface must first be “broken
in” for it to develop its optimalcharacteristics.
EAU21943
Spoke wheels
WARNING
EWA10610
The wheels on this model are not de-
signed for use with tubeless tires.
Do not attempt to use tubeless tireson this model.
To maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
the specified wheels.
The wheel rims should be checked
for cracks, bends, warpage or oth-
er damage, and the spokes for
looseness or damage before each
ride. If any damage is found, have
a Yamaha dealer replace the
wheel. Do not attempt even the
smallest repair to the wheel. A de-
formed or cracked wheel must be
replaced.

The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
EAU52911

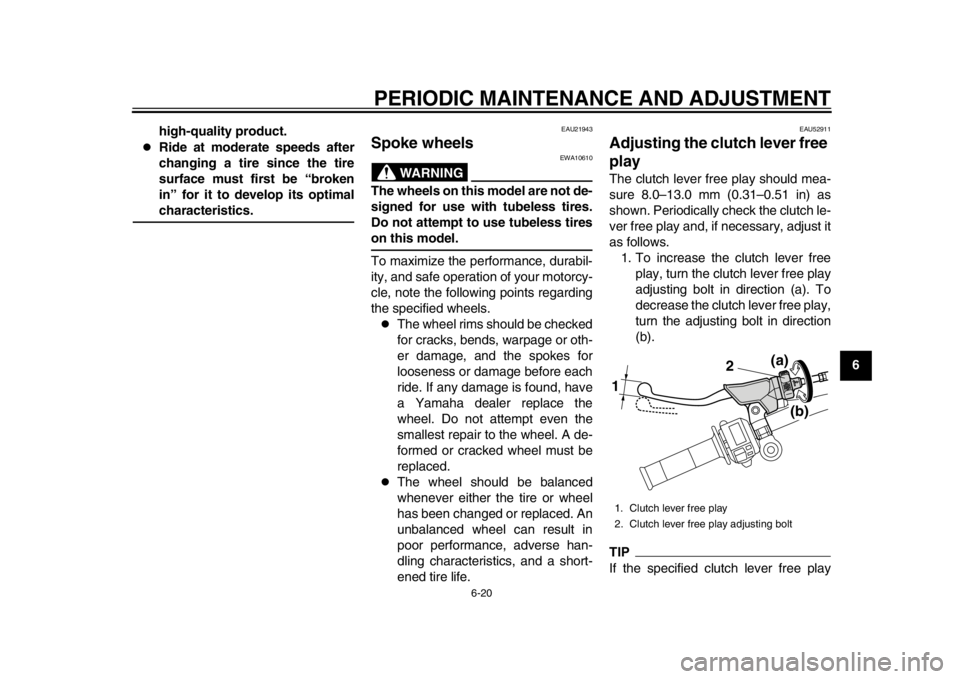

Adjusting the cl
utch lever free
play The clutch lever free play should mea-
sure 8.0–13.0 mm (0.31–0.51 in) as
shown. Periodically check the clutch le-
ver free play and, if necessary, adjust it
as follows.
1. To increase the clutch lever free play, turn the clutch lever free play
adjusting bolt in direction (a). To
decrease the clutch lever free play,
turn the adjusting bolt in direction
(b).TIPIf the specified clutch lever free play1. Clutch lever free play
2. Clutch lever free play adjusting bolt1
(a)
(b)
2
1DX-9-E1.book 20 ページ ２０１２年７月３１日　火曜日　午前９時３１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-21
1
2
3
4
56
7
8
9could be obtained as described above,
skip steps 2–5.

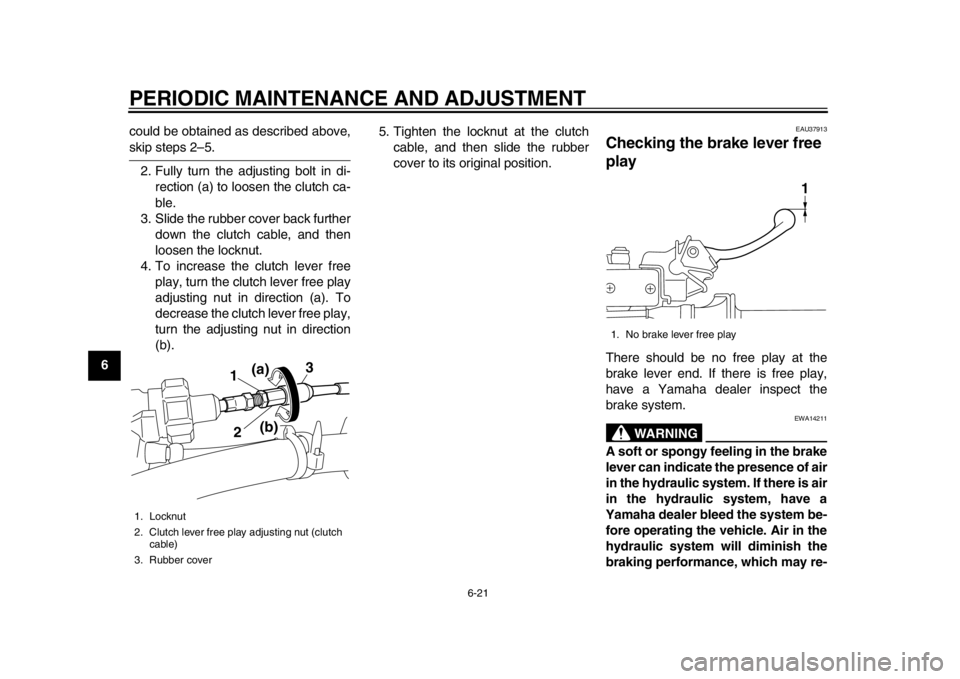

2. Fully turn the adjusting bolt in di- rection (a) to loosen the clutch ca-
ble.
3. Slide the rubber cover back further down the clutch cable, and then
loosen the locknut.
4. To increase the clutch lever free play, turn the clutch lever free play
adjusting nut in direction (a). To
decrease the clutch lever free play,
turn the adjusting nut in direction
(b). 5. Tighten the locknut at the clutch
cable, and then slide the rubber
cover to its original position.
EAU37913
Checking the brake lever free
play There should be no free play at the
brake lever end. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14211
A soft or spongy feeling in the brake
lever can indicate the presence of air
in the hydraulic system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the vehicle. Air in the
hydraulic system will diminish the
braking performance, which may re-
1. Locknut
2. Clutch lever free play adjusting nut (clutch
cable)
3. Rubber cover
1
2 (a)
(b)
3
1. No brake lever free play
1
1DX-9-E1.book 21 ページ ２０１２年７月３１日　火曜日　午前９時３１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-22
2
3
4
567
8
9
sult in loss of control and an acci-
dent.
EAU44820
Checking the
shift pedal The operation of the shift pedal should
be checked before each ride. If opera-
tion is not smooth, have a Yamaha
dealer check the vehicle.
EAU22273
Brake light switches The brake light, which is activated by
the brake pedal and brake lever, should
come on just before braking takes ef-
fect. If necessary, adjust the rear brake
light switch as follows, but the front
brake light switch should be adjusted
by a Yamaha dealer.

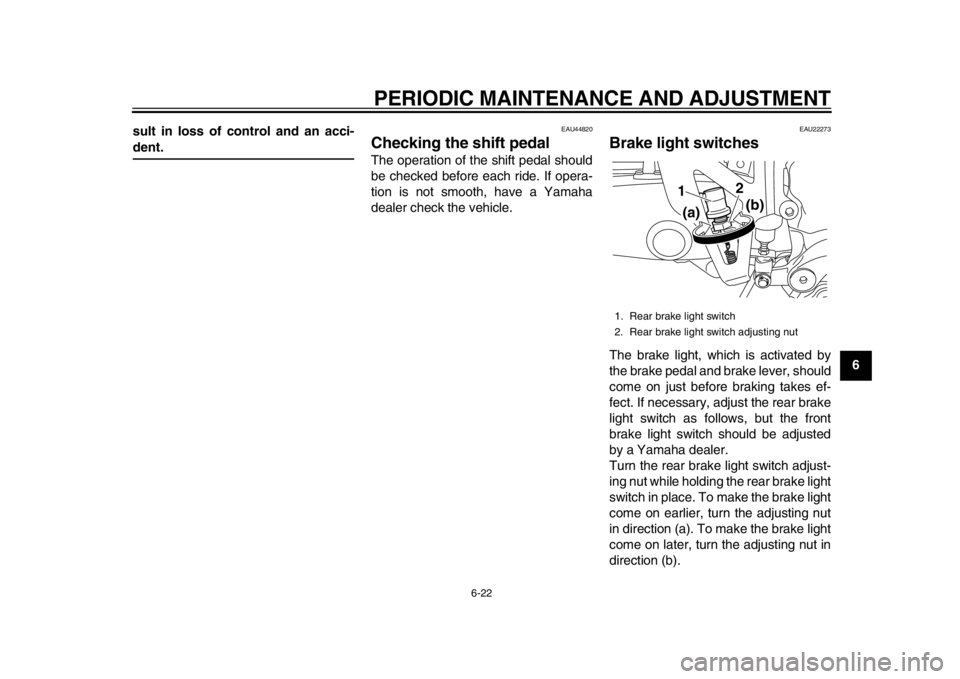

Turn the rear brake light switch adjust-
ing nut while holding the rear brake light
switch in place. To make the brake light
come on earlier, turn the adjusting nut
in direction (a). To make the brake light
come on later, turn the adjusting nut in
direction (b).1. Rear brake light switch
2. Rear brake light switch adjusting nut
12
(a) (b)
1DX-9-E1.book 22 ページ ２０１２年７月３１日　火曜日　午前９時３１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-23
1
2
3
4
56
7
8
9
EAU22392
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22430

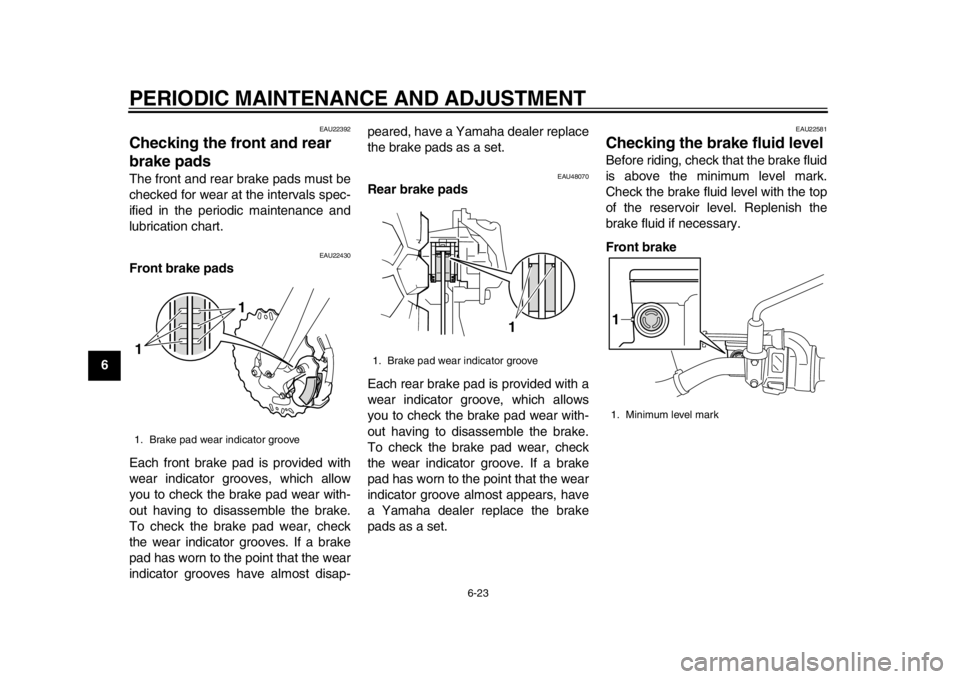

Front brake pads
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wear
indicator grooves have almost disap-peared, have a Yamaha dealer replace
the brake pads as a set.
EAU48070
Rear brake pads
Each rear brake pad is provided with a
wear indicator groove, which allows
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator groove. If a brake
pad has worn to the point that the wear
indicator groove almost appears, have
a Yamaha dealer replace the brake
pads as a set.
EAU22581
Checking the brake
fluid level Before riding, check that the brake fluid
is above the minimum level mark.

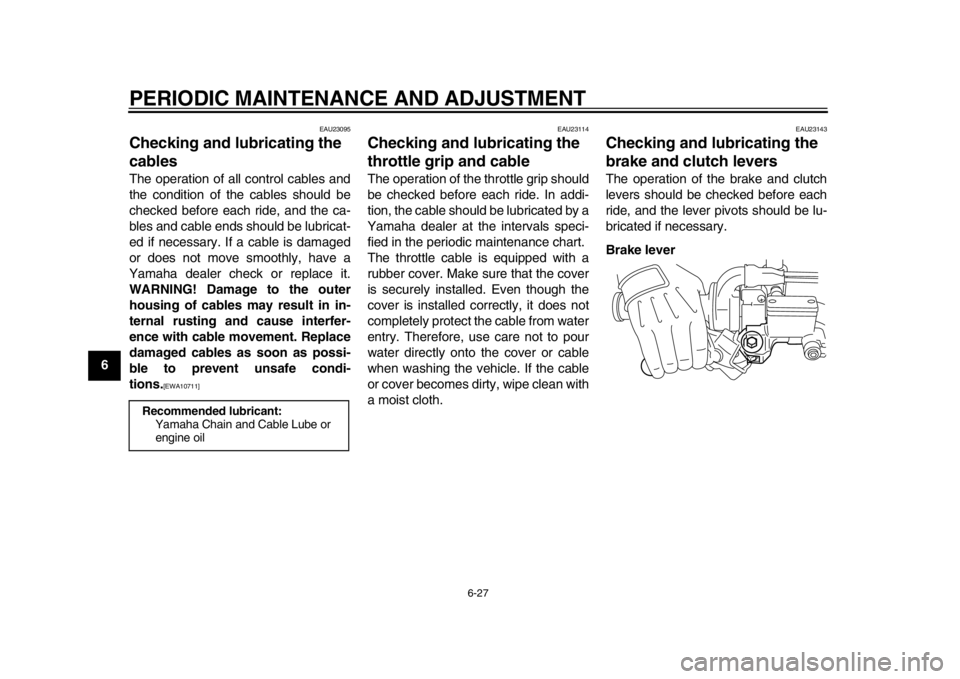

Check the brake fluid level with the top
of the reservoir level. Replenish the
brake fluid if necessary.
Front brake
1. Brake pad wear indicator groove11
1. Brake pad wear indicator groove
1
1. Minimum level mark1
1DX-9-E1.book 23 ページ ２０１２年７月３１日　火曜日　午前９時３１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-24
2
3
4
567
8
9
Rear brake
WARNING
EWA15990
Improper maintenance can result in
loss of braking ability. Observe
these precautions:
Insufficient brake fluid may al-
low air to enter the brake sys-
tem, reducing braking
performance.

Clean the filler cap before re-
moving. Use only DOT 4 brake
fluid from a sealed container.

Use only the specified brake flu-
id; otherwise, the rubber seals may deteriorate, causing leak-
age.

Refill with the same type of
brake fluid. Adding a brake fluid
other than DOT 4 may result in a
harmful chemical reaction.

Be careful that water does not
enter the brake fluid reservoir
when refilling. Water will signifi-
cantly lower the boiling point of
the fluid and may result in vaporlock.
NOTICE
ECA17640
Brake fluid may damage painted sur-
faces or plastic parts. Always cleanup spilled fluid immediately.
As the brake pads wear, it is normal for
the brake fluid level to gradually go
down. A low brake fluid level may indi-
cate worn brake pads and/or brake sys-
tem leakage; therefore, be sure to
check the brake pads for wear and the
brake system for leakage. If the brake
fluid level goes down suddenly, have a
Yamaha dealer check the cause before
further riding.
EAU52952
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the periodic maintenance and lubrica-
tion chart. In addition, have the oil seals
of the master cylinders and calipers as
well as the brake hoses replaced every
20000 km (12000 mi) or every two
years or whenever they are damaged
or leaking.
1. Minimum level markSpecified brake fluid:
DOT 41
1DX-9-E1.book 24 ページ ２０１２年７月３１日　火曜日　午前９時３１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
1
2
3
4
56
7
8
9
EAU22760

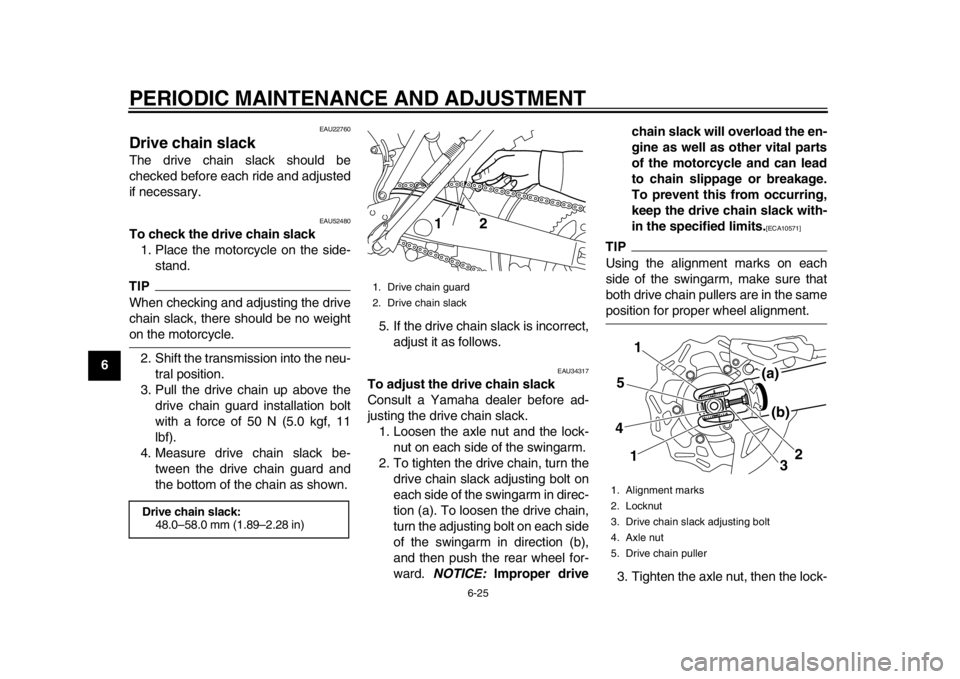

Drive chain slack The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU52480
To check the drive chain slack1. Place the motorcycle on the side- stand.TIPWhen checking and adjusting the drive
chain slack, there should be no weighton the motorcycle.
2. Shift the transmission into the neu- tral position.
3. Pull the drive chain up above the drive chain guard installation bolt
with a force of 50 N (5.0 kgf, 11
lbf).
4. Measure drive chain slack be- tween the drive chain guard and
the bottom of the chain as shown. 5. If the drive chain slack is incorrect,
adjust it as follows.
EAU34317
To adjust the drive chain slack
Consult a Yamaha dealer before ad-
justing the drive chain slack.1. Loosen the axle nut and the lock- nut on each side of the swingarm.
2. To tighten the drive chain, turn the drive chain slack adjusting bolt on
each side of the swingarm in direc-
tion (a). To loosen the drive chain,
turn the adjusting bolt on each side
of the swingarm in direction (b),
and then push the rear wheel for-
ward. NOTICE: Improper drive chain slack will overload the en-
gine as well as other vital parts
of the motorcycle and can lead
to chain slippage or breakage.
To prevent this from occurring,
keep the drive chain slack with-
in the specified limits.
[ECA10571]

TIPUsing the alignment marks on each
side of the swingarm, make sure that
both drive chain pullers are in the sameposition for proper wheel alignment.
3. Tighten the axle nut, then the lock-
Drive chain slack: 48.0–58.0 mm (1.89–2.28 in)
1. Drive chain guard
2. Drive chain slack
12
1. Alignment marks
2. Locknut
3. Drive chain slack adjusting bolt
4. Axle nut
5. Drive chain puller
1
1
5
4 32
(a)
(b)
1DX-9-E1.book 25 ページ ２０１２年７月３１日　火曜日　午前９時３１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
2
3
4
567
8
9
nuts to their specified torques.
4. Make sure that the drive chain pull- ers are in the same position, the
drive chain slack is correct, and
the drive chain moves smoothly.
EAU23025
Cleaning and l ubricating the
drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.NOTICE
ECA10583
The drive chain must be lubricated
after washing the motorcycle, ridingin the rain or riding in wet areas.
1. Clean the drive chain with kero- sene and a small soft brush.
NOTICE: To prevent damaging
the O-rings, do not clean the
drive chain with steam cleaners,
high-pressure washers or inap-
propriate solvents.
[ECA11121]

2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a special O-ring chain
lubricant. NOTICE: Do not use
engine oil or any other lubri-
cants for the drive chain, as they may contain substances that
could damage the O-rings.
[ECA11111]

Tightening torques:
Axle nut: 125 Nm (12.5 m·kgf, 90 ft·lbf)
Locknut: 19 Nm (1.9 m·kgf, 14 ft·lbf)
1DX-9-E1.book 26 ページ ２０１２年７月３１日　火曜日　午前９時３１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
1
2
3
4
56
7
8
9
EAU23095
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING! Damage to the outer
housing of cables may result in in-
ternal rusting and cause interfer-
ence with cable movement. Replace
damaged cables as soon as possi-
ble to prevent unsafe condi-
tions.
[EWA10711]

EAU23114
Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated by a
Yamaha dealer at the intervals speci-
fied in the periodic maintenance chart.
The throttle cable is equipped with a
rubber cover. Make sure that the cover
is securely installed. Even though the
cover is installed correctly, it does not
completely protect the cable from water
entry. Therefore, use care not to pour
water directly onto the cover or cable
when washing the vehicle. If the cable
or cover becomes dirty, wipe clean with
a moist cloth.
EAU23143
Checking and lubricating the
brake and clutch levers The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
Brake lever
Recommended lubricant: Yamaha Chain and Cable Lube or
engine oil
1DX-9-E1.book 27 ページ ２０１２年７月３１日　火曜日　午前９時３１分
