YAMAHA WR 450F 2016 Owners Manual

RADIATOR
7-2
4 Right radiator1
5 Radiator hose 2 1
6 Radiator hose 3 1
7 Radiator hose 4 1
8 Radiator pipe 2 1
9 Radiator breather hose 1
10 Left radiator 1
11 Radiator hose 1 1
12 Radiator pipe 1 1
13 Coolant temperature sensor 1
For installation, reverse the removal proce-
dure.

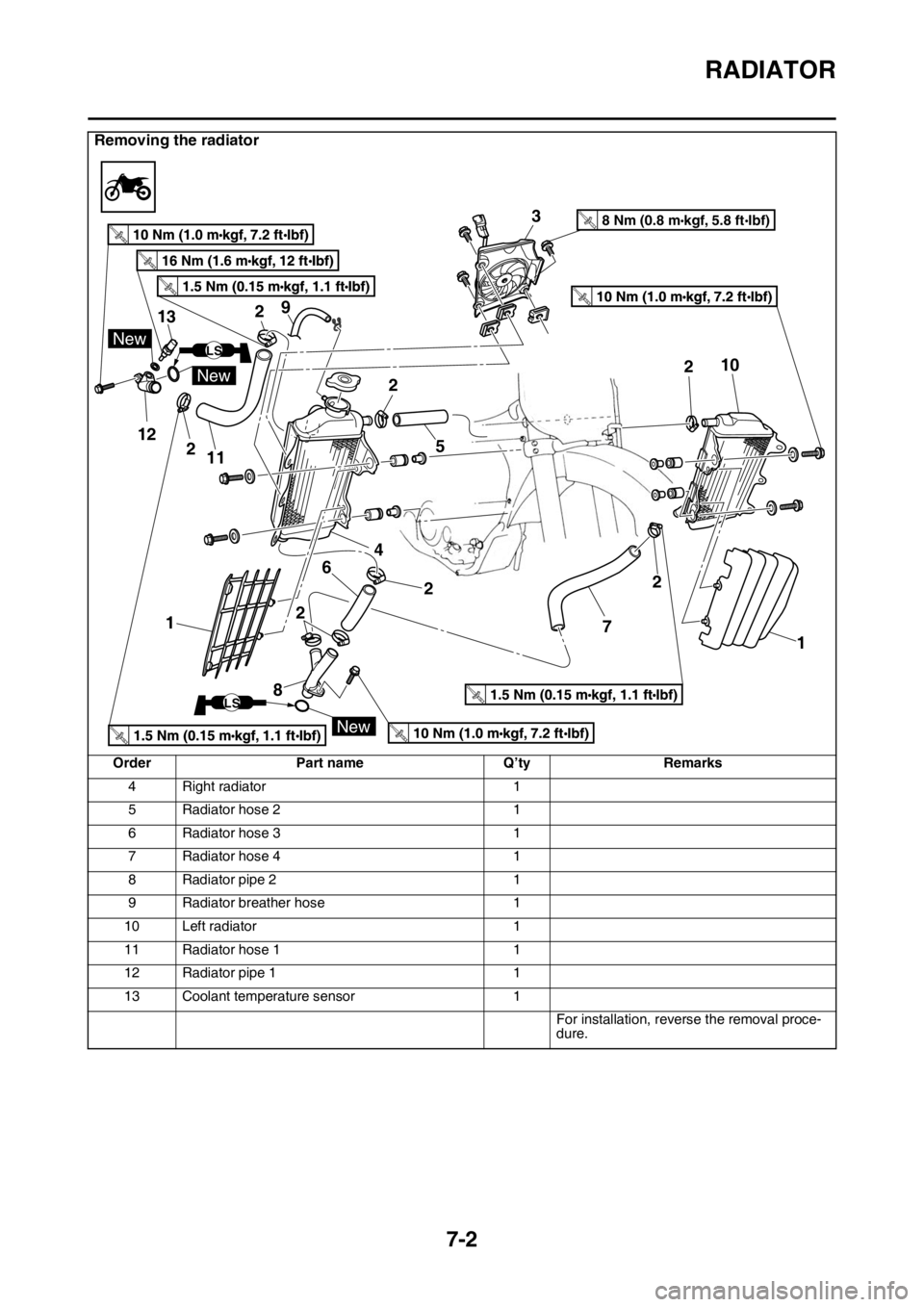

Removing the radiator
Order Part name Q’tyRemarks
12
13
New
New
New
LS
LS
3
4 58 Nm (0.8 m kgf, 5.8 ft Ibf)T.R.
6
7
8 9
10
11 2
2
2
2
2
2
2
1
1

RADIATOR
7-3
EAS2GC1330HANDLING NOTEEWA
WARNING
If coolant seems hot, do not remove the ra-
diator cap.
EAS2GC1331CHECKING THE RADIATOR
1. Check:• Radiator fins “1”
Obstructions  Clean.
Apply compressed air to the rear of the radi-
ator.
Damage  Repair or replace.
TIP
Correct any flattened fins with a thin, flat-head
screwdriver.
2. Check:
• Radiator hoses
• Radiator pipes
Crack/damage  Replace.

WATER PUMP
7-4
EAS2GC1332
WATER PUMP

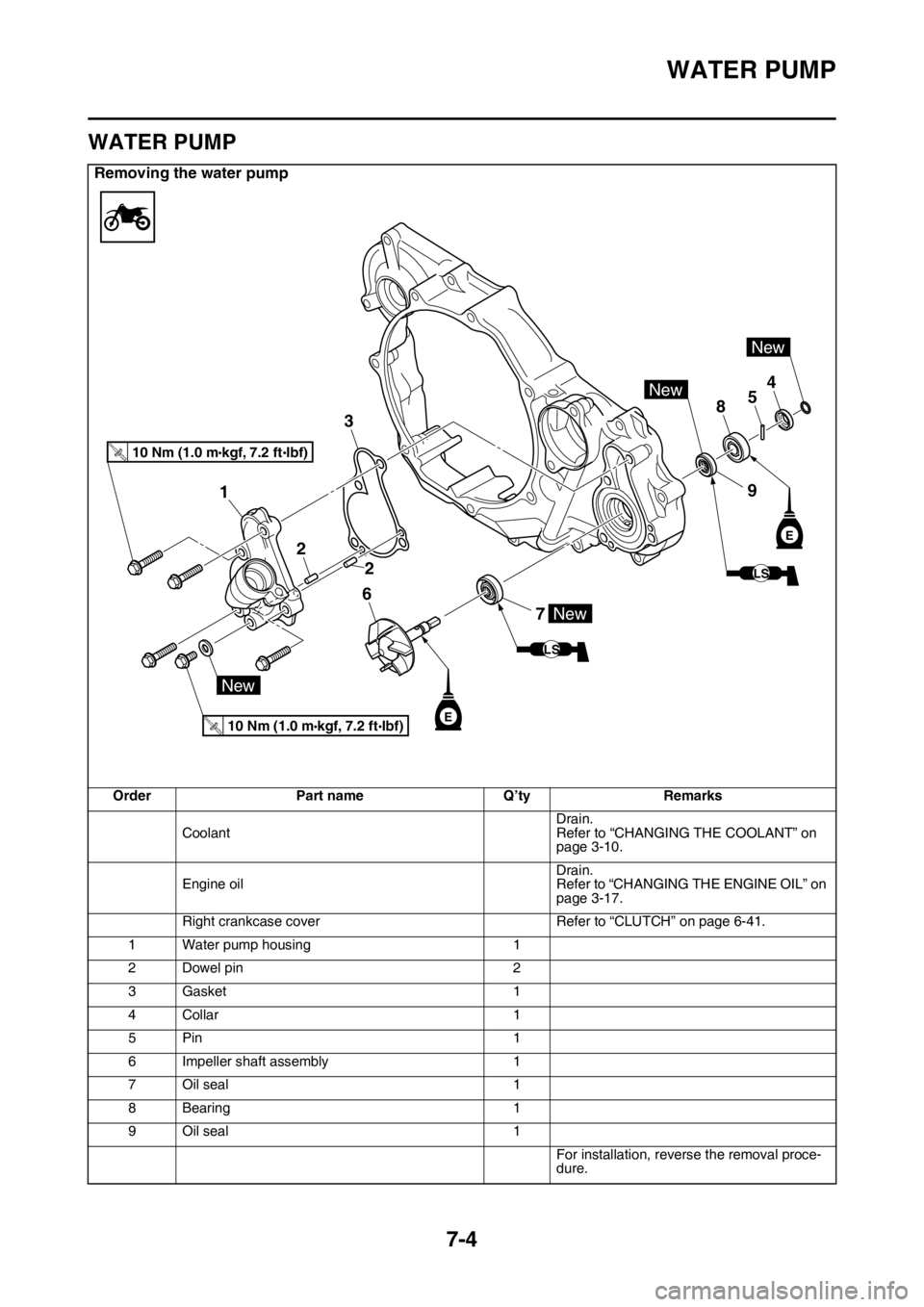

Removing the water pump
OrderPart name Q’tyRemarks
Coolant Drain.
Refer to “CHANGING THE COOLANT” on
page 3-10.
Engine oil Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-17.
Right crankcase cover Refer to “CLUTCH” on page 6-41.
1 Water pump housing 1
2 Dowel pin 2
3Gasket 1
4Collar 1
5Pin 1
6 Impeller shaft assembly 1
7 Oil seal 1
8 Bearing 1
9 Oil seal 1
For installation, reverse the removal proce-
dure.
LS
LS
7
6
2 2
3
1
854
New
New
New
E
9
New
E
10 Nm (1.0 m kgf, 7.2 ft Ibf)T.R.
10 Nm (1.0 m kgf, 7.2 ft Ibf)T.R.

WATER PUMP
7-5

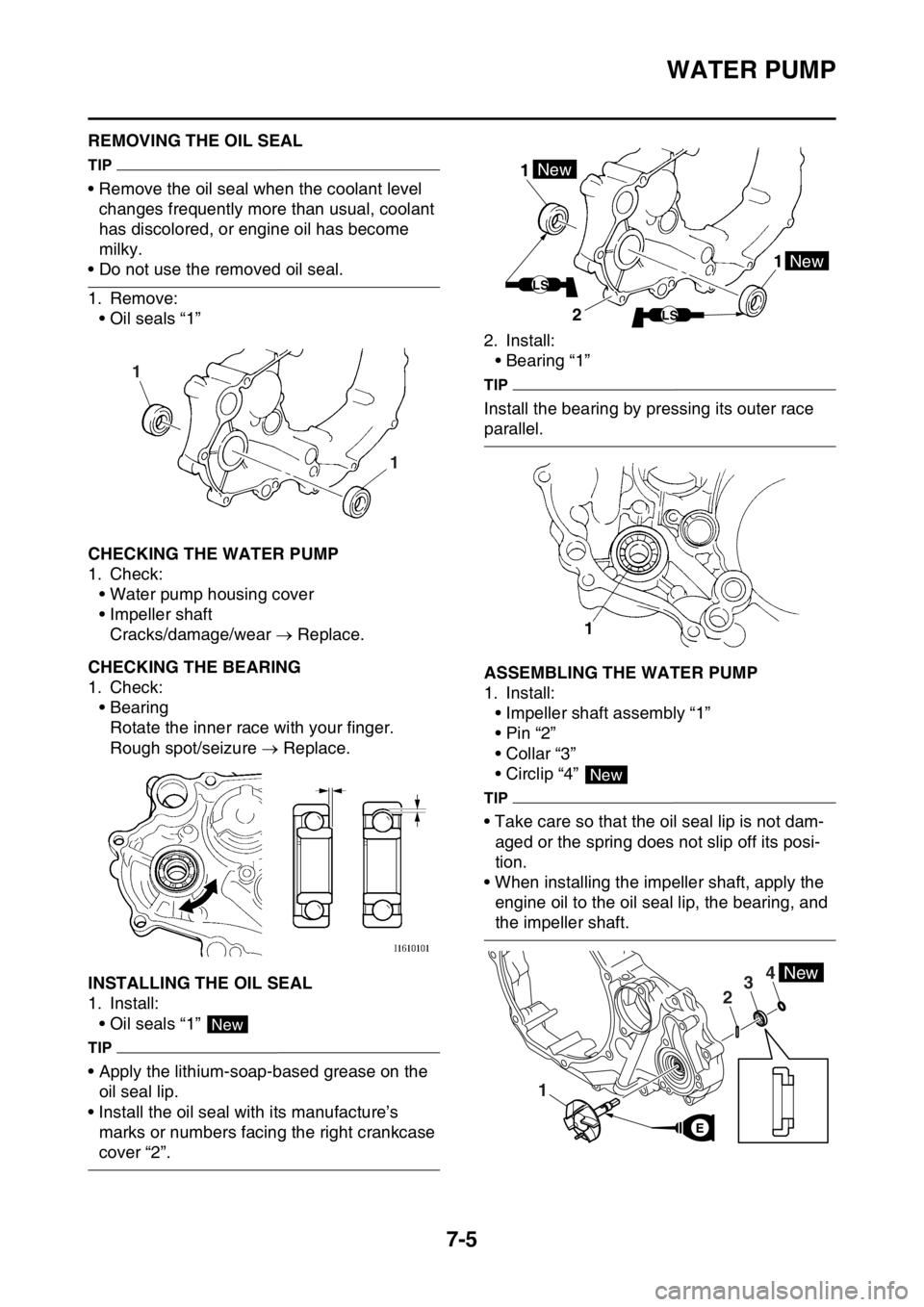

EAS2GC1333REMOVING THE OIL SEAL
TIP
• Remove the oil seal when the coolant level changes frequently more than usual, coolant
has discolored, or engine oil has become
milky.
• Do not use the removed oil seal.
1. Remove:• Oil seals “1”
EAS2GC1334CHECKING THE WATER PUMP
1. Check:
• Water pump housing cover
• Impeller shaftCracks/damage/wear  Replace.
EAS2GC1335CHECKING THE BEARING
1. Check:
• BearingRotate the inner race with your finger.
Rough spot/seizure  Replace.
EAS2GC1336INSTALLING THE OIL SEAL
1. Install:
• Oil seals “1”
TIP
• Apply the lithium-soap-based grease on the oil seal lip.
• Install the oil seal with its manufacture’s marks or numbers facing the right crankcase
cover “2”. 2. Install:
• Bearing “1”
TIP
Install the bearing by pressing its outer race
parallel.
EAS2GC1337ASSEMBLING THE WATER PUMP
1. Install:
• Impeller shaft assembly “1”
•Pin “2”
• Collar “3”
• Circlip “4”
TIP
• Take care so that the oil seal lip is not dam-aged or the spring does not slip off its posi-
tion.
• When installing the impeller shaft, apply the engine oil to the oil seal lip, the bearing, and
the impeller shaft.
1
1
New
1
1New
New
LS
LS2
New
4
1
23New
E

WATER PUMP
7-6

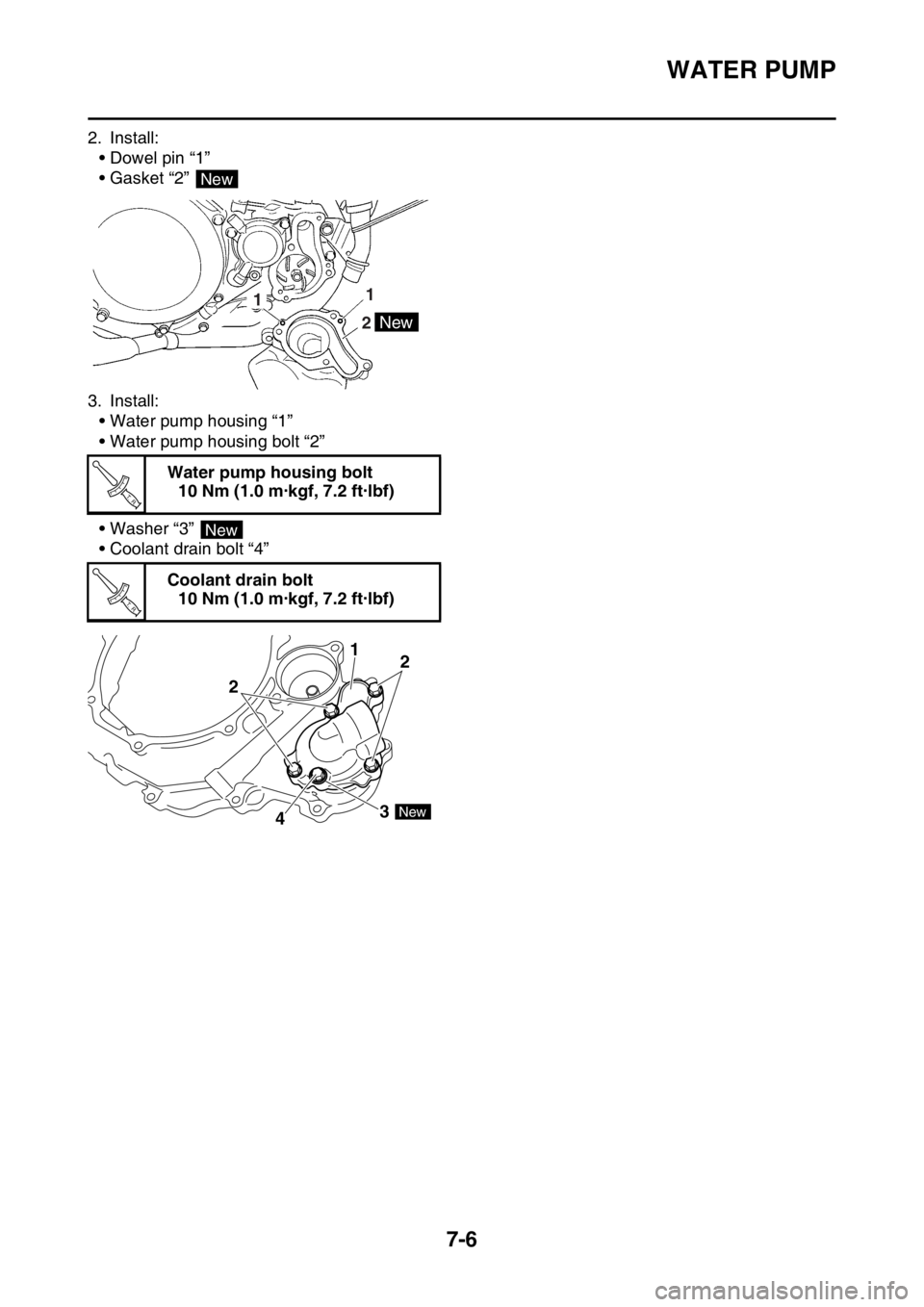

2. Install:• Dowel pin “1”
• Gasket “2”
3. Install: • Water pump housing “1”
• Water pump housing bolt “2”
• Washer “3”
• Coolant drain bolt “4” Water pump housing bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Coolant drain bolt 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
New
21
1New
T R..
New
T R..
2
2
4 3
1
New

WATER PUMP
7-7

8
FUEL SYSTEM
FUEL TANK...................................................................................................... 8-1
REMOVING THE FUEL TANK ................................................................... 8-3
REMOVING THE FUEL PUMP .................................................................. 8-3
CHECKING THE FUEL PUMP BODY........................................................ 8-3
INSTALLING THE FUEL PUMP ................................................................. 8-3
REMOVING THE FUEL SENDER.............................................................. 8-4
CHECKING THE FUEL SENDER .............................................................. 8-4
INSTALLING THE FUEL SENDER ............................................................ 8-4
INSTALLING THE FUEL TANK.................................................................. 8-4
CHECKING THE FUEL PRESSURE ......................................................... 8-5
CHECKING THE DAMPER ........................................................................ 8-5
CHECKING AND REPLACING THE PROTECTOR .................................. 8-6
THROTTLE BODY ............................................................................................ 8-7
CHECKING THE INJECTOR ................................................................... 8-10
CHECKING THE THROTTLE BODY ....................................................... 8-10
CHECKING THE THROTTLE BODY JOINT ............................................ 8-10
ADJUSTING THE THROTTLE POSITION SENSOR............................... 8-11
INSTALLING THE INJECTOR ................................................................. 8-11

FUEL TANK
8-1
EAS2GC1338
TIP
This section is intended for those who have basic knowledge and skill concerning the servicing of
Yamaha motorcycles (e.g., Yamaha dealers, serv ice engineers, etc.). Those who have little knowl-
edge and skill concerning servicing are requested not to undertake inspection, adjustment, disas-
sembly, or reassembly only by reference to this manual. It may lead to servicing trouble and
mechanical damage.
EAS2GC1339
FUEL TANK

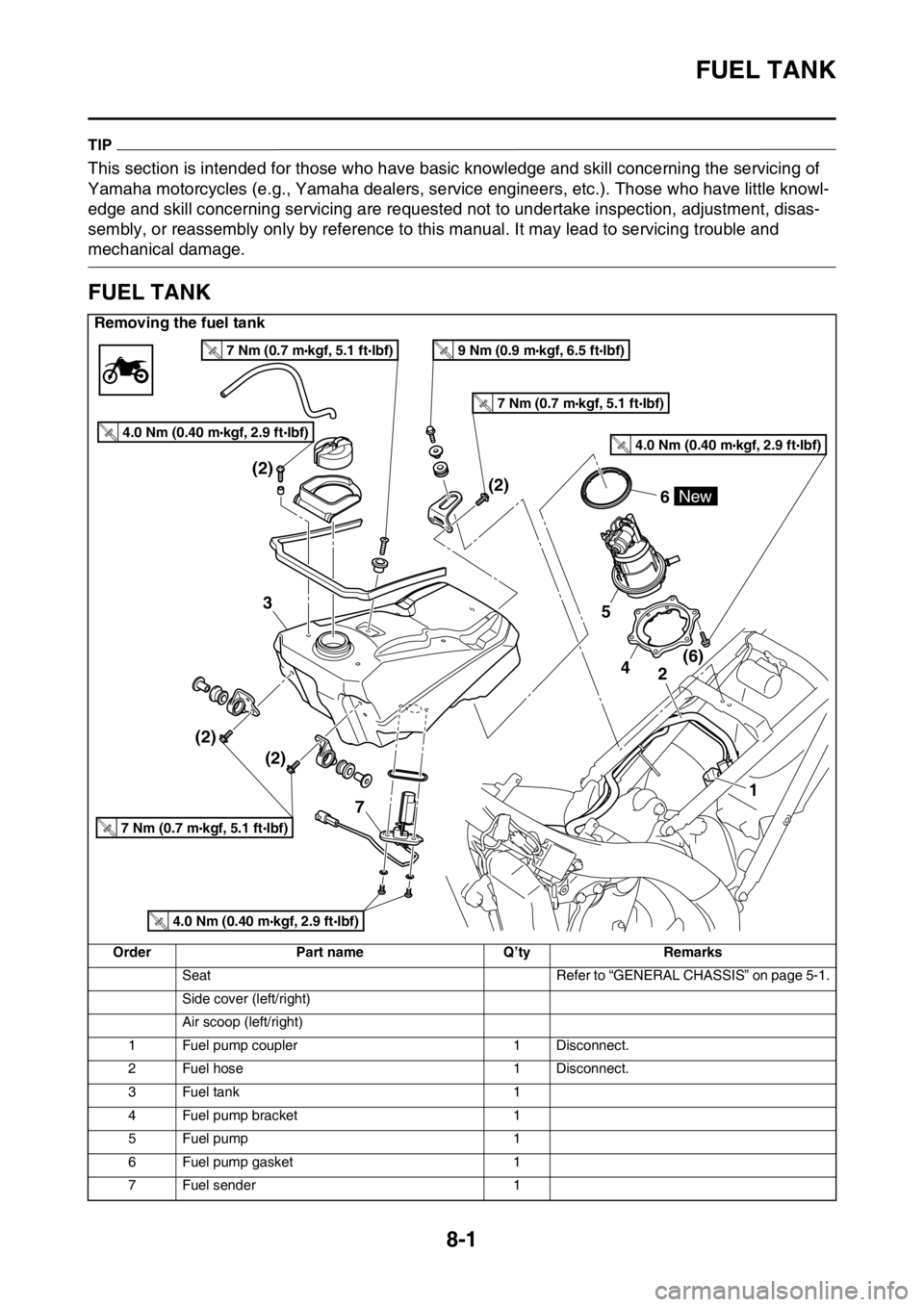

Removing the fuel tank
OrderPart name Q’tyRemarks
Seat Refer to “GENERAL CHASSIS” on page 5-1.
Side cover (left/right)
Air scoop (left/right)
1 Fuel pump coupler 1 Disconnect.
2 Fuel hose 1 Disconnect.
3Fuel tank 1
4 Fuel pump bracket 1
5 Fuel pump 1
6 Fuel pump gasket 1
7 Fuel sender 1
4(6)
(2)
(2)
(2) (2)2
5
6
3
1
New
4.0 Nm (0.40 m kgf, 2.9 ft Ibf)T.R.
7 Nm (0.7 m kgf, 5.1 ft Ibf)T.R.
7 Nm (0.7 m kgf, 5.1 ft Ibf)T.R.
7 Nm (0.7 m kgf, 5.1 ft Ibf)T.R.
9 Nm (0.9 m kgf, 6.5 ft Ibf)T.R.
4.0 Nm (0.40 m kgf, 2.9 ft Ibf)T.R.
4.0 Nm (0.40 m kgf, 2.9 ft Ibf)T.R.
7

FUEL TANK
8-2
For installation, reverse the removal proce-
dure.

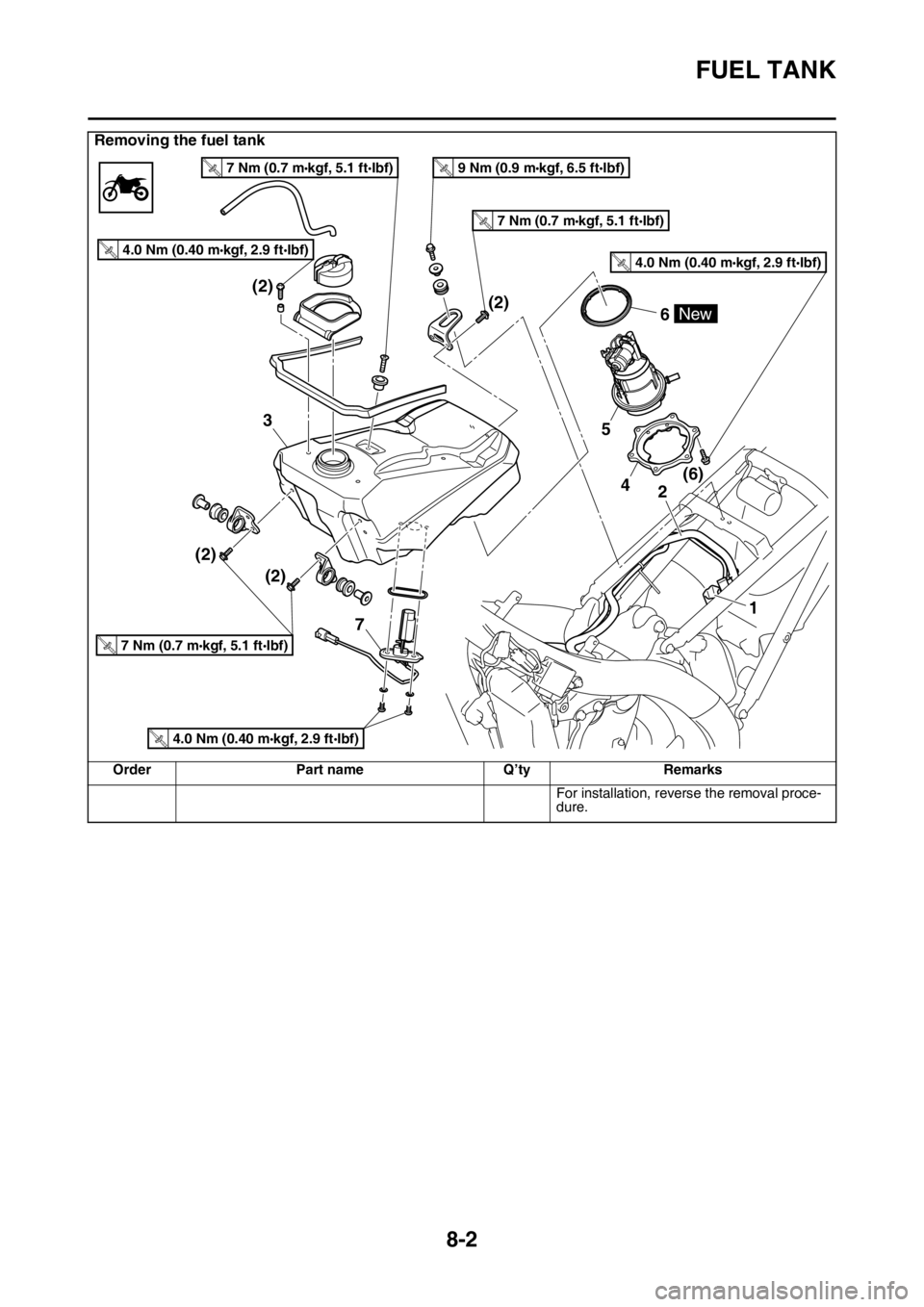

Removing the fuel tank
OrderPart name Q’tyRemarks
4(6)
(2)
(2)
(2) (2)2
5
6
3
1
New
4.0 Nm (0.40 m kgf, 2.9 ft Ibf)T.R.
7 Nm (0.7 m kgf, 5.1 ft Ibf)T.R.
7 Nm (0.7 m kgf, 5.1 ft Ibf)T.R.
7 Nm (0.7 m kgf, 5.1 ft Ibf)T.R.
9 Nm (0.9 m kgf, 6.5 ft Ibf)T.R.
4.0 Nm (0.40 m kgf, 2.9 ft Ibf)T.R.
4.0 Nm (0.40 m kgf, 2.9 ft Ibf)T.R.
7

FUEL TANK
8-3

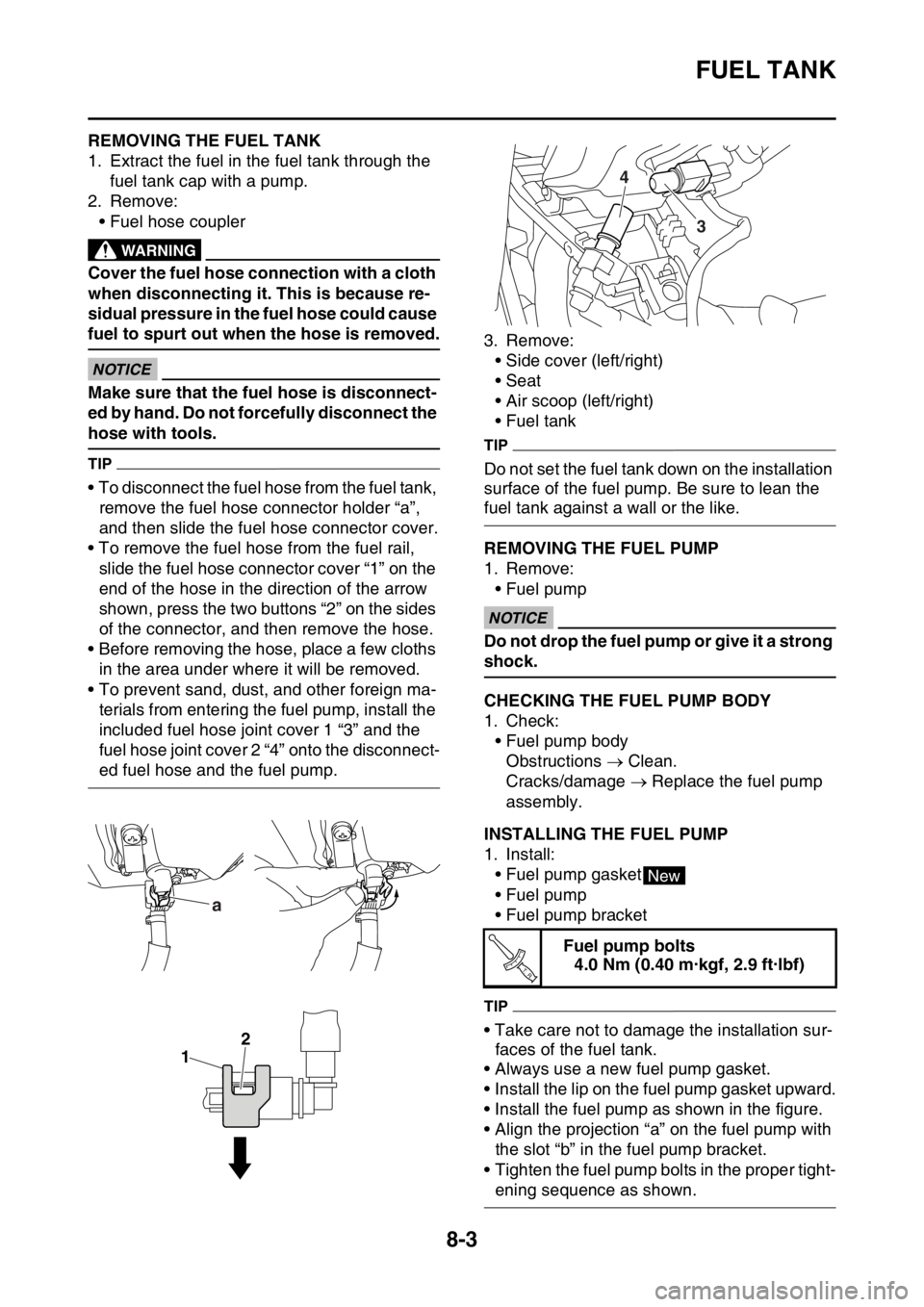

EAS2GC1340REMOVING THE FUEL TANK
1. Extract the fuel in the fuel tank through the fuel tank cap with a pump.
2. Remove:
• Fuel hose coupler
EWA
WARNING
Cover the fuel hose connection with a cloth
when disconnecting it. This is because re-
sidual pressure in the fuel hose could cause
fuel to spurt out when the hose is removed.
ECA
NOTICE
Make sure that the fuel hose is disconnect-
ed by hand. Do not forcefully disconnect the
hose with tools.
TIP
• To disconnect the fuel hose from the fuel tank, remove the fuel hose connector holder “a”,
and then slide the fuel hose connector cover.
• To remove the fuel hose from the fuel rail,
slide the fuel hose connector cover “1” on the
end of the hose in the direction of the arrow
shown, press the two buttons “2” on the sides
of the connector, and then remove the hose.
• Before removing the hose, place a few cloths in the area under where it will be removed.
• To prevent sand, dust, and other foreign ma- terials from entering the fuel pump, install the
included fuel hose joint cover 1 “3” and the
fuel hose joint cover 2 “4” onto the disconnect-
ed fuel hose and the fuel pump. 3. Remove:
• Side cover (left/right)
• Seat
• Air scoop (left/right)
• Fuel tank
TIP
Do not set the fuel tank down on the installation
surface of the fuel pump. Be sure to lean the
fuel tank against a wall or the like.
EAS2GC1341REMOVING THE FUEL PUMP
1. Remove:
• Fuel pump
ECA
NOTICE
Do not drop the fuel pump or give it a strong
shock.
EAS2GC1342CHECKING THE FUEL PUMP BODY
1. Check:• Fuel pump bodyObstructions  Clean.
Cracks/damage  Replace the fuel pump
assembly.
EAS2GC1343INSTALLING THE FUEL PUMP
1. Install: • Fuel pump gasket
• Fuel pump
• Fuel pump bracket
TIP
• Take care not to damage the installation sur-faces of the fuel tank.
• Always use a new fuel pump gasket.
• Install the lip on the fuel pump gasket upward.
• Install the fuel pump as shown in the figure.
• Align the projection “a” on the fuel pump with
the slot “b” in the fuel pump bracket.
• Tighten the fuel pump bolts in the proper tight-
ening sequence as shown.
a
1
2
Fuel pump bolts 4.0 Nm (0.40 m·kgf, 2.9 ft·lbf)
3
4
New
T R..
