LIST OF SELF-DIAGNOSTIC AND FAIL-SAFE ACTIONS
10-8
ACTUATOR OPERATION TABLEDiag-
nostic code No. Item Actuation Procedure
30 Ignition coil Actuates the ignition coil five times at one-second inter-
vals.
“WARNING” on the Yamaha
diagnostic tool blinks five
times when the ignition coil is
actuated.Check that a spark is gener-
ated five times.
• Connect an ignition
checker.
36 Injector Actuates the injector five times at one-second inter-
vals.
“WARNING” on the Yamaha
diagnostic tool blinks five
times when the radiator fan
motor relay is actuated.TIP: Before performing
this operation, be sure to
disconnect the fuel pump
coupler.
Check that injector is actu-
ated five times by listening
for the operating sound.
51 Radiator fan motor relay Actuates the radiator fan mo- tor relay five times at five-sec-
ond intervals.
“WARNING” on the Yamaha
diagnostic tool blinks five
times when the radiator fan
motor relay is actuated.Check that the radiator fan
motor relay is actuated five
times by listening for the op-
erating sound.
52 Headlight relay Actuates the headlight relay five times at five-second in-
tervals.
“WARNING” on the Yamaha
diagnostic tool blinks five
times when the headlight re-
lay is actuated.Check that the headlight re-
lay is actuated five times by
listening for the operating
sound.

EAS2GC1427

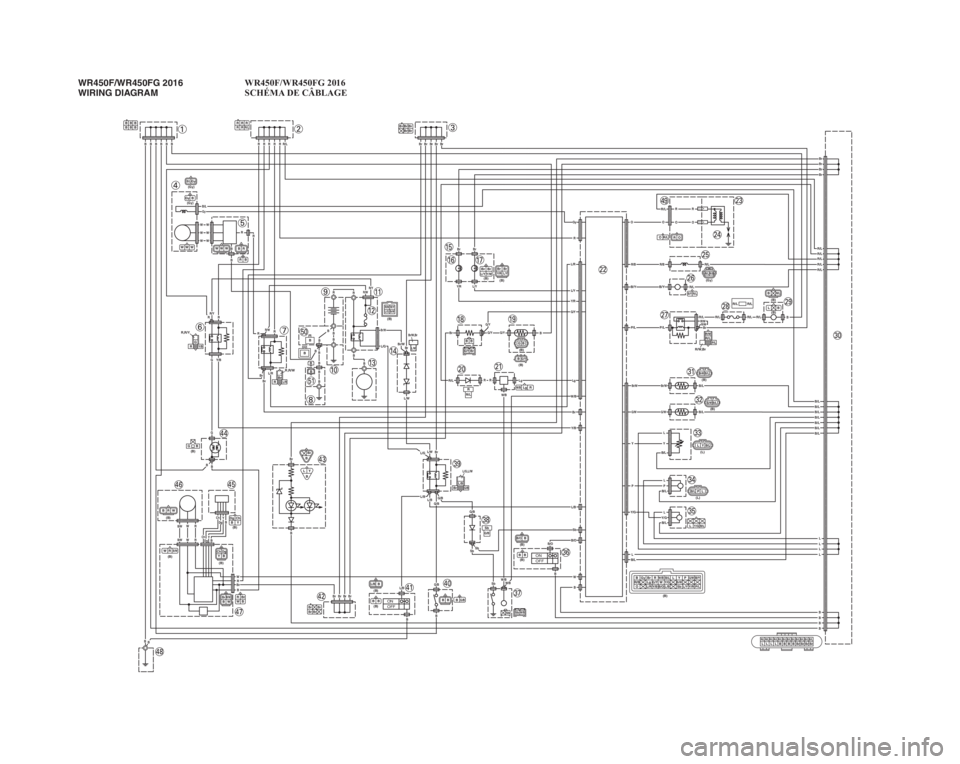

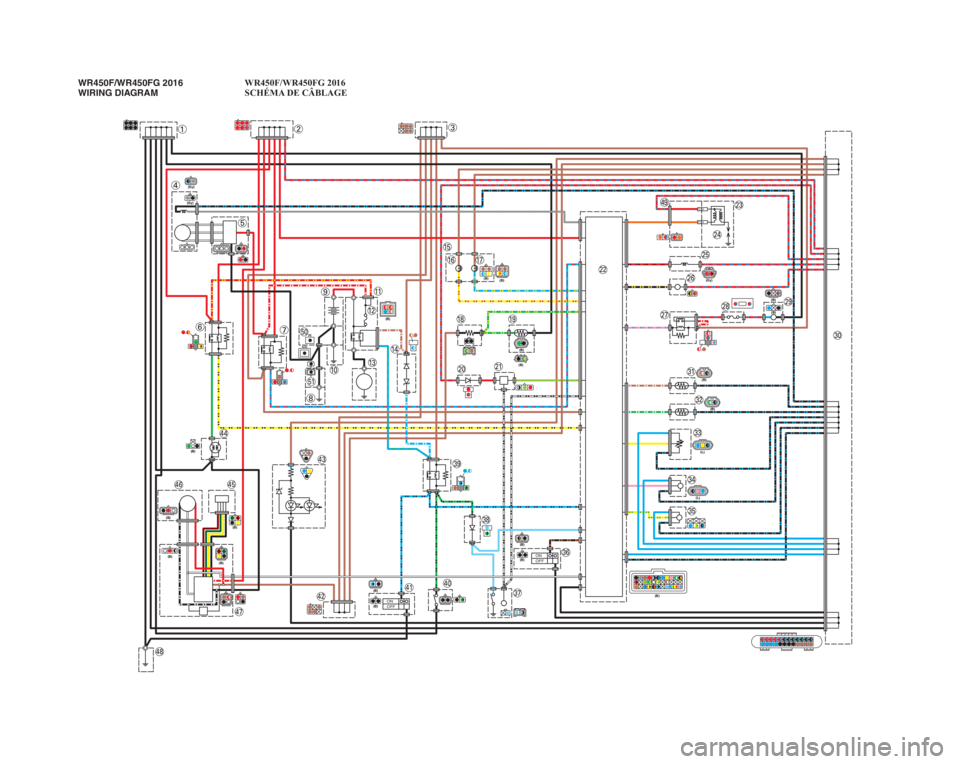

WIRING DIAGRAM
WR450F/WR450FG 2016
1. Joint connector
2. Joint connector
3. Joint connector
4. AC magneto
5. Rectifier/regulator
6. Headlight relay
7. Main relay
8. Engine ground
9. Battery
10. Frame ground
11. Starter relay
12. Main fuse
13. Starter motor
14. Starter relay diode
15. Indicator light
16. Engine trouble warning light
17. Fuel level warning light
18. Resistor
19. Fuel sender
20. Diode
21. Coupler for connecting option-al part
22. ECU (engine control unit)
23. Ignition coil
24. Spark plug
25. Injector
26. Fuel pump
27. Radiator fan motor relay
28. Radiator fan motor fuse
29. Radiator fan motor
30. Joint connector
31. Intake air temperature sensor
32. Coolant temperature sensor
33. Throttle position sensor
34. Intake air pressure sensor
35. Lean angle sensor
36. Engine stop switch
37. Neutral switch
38. Diode
39. Starting circuit cut-off relay
40. Clutch switch
41. Start switch
42. Joint connector
43. Taillight
44. Headlight
45. Coupler for connecting option- al switch
46. Speed sensor
47. Multi-function display
48. Frame ground
49. Ignition coil sub-lead
50. Negative battery lead
51. Engine ground sub-lead
EAS2GC1428
COLOR CODE
BBlack
Br Brown
Ch Chocolate
Dg Dark green
G Green
Gy Gray
LBlue
Lg Light green
O Orange
PPink
RRed
Sb Sky blue
WWhite
Y Yellow
B/L Black/Blue
B/O Black/Orange
B/W Black/White
B/Y Black/Yellow
Br/W Brown/White
G/B Green/Black
G/W Green/White
G/Y Green/Yellow
L/B Blue/Black
L/G Blue/Green
L/R Blue/Red
L/W Blue/White
L/Y Blue/Yellow
P/L Pink/Blue
R/B Red/Black
R/L Red/Blue
R/W Red/White
R/Y Red/Yellow
W/B White/Black
Y/B Yellow/Black
Y/G Yellow/Green
Y/R Yellow/Red
