OPERATION AND IMPORTANT RIDING POINTS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-5.frame
EAU00373
lBefore riding this motorcycle,
become thoroughly familiar
with all operating controls and
their functions. Consult a
Yamaha dealer regarding any
control or function that you do
not thoroughly understand.
lNever start your engine or let it
run for any length of time in a
closed area. The exhaust fumes
are poisonous and can cause
loss of consciousness and
death within a short time. Al-
ways operate your motorcycle
in an area with adequate ventila-
tion.
lBefore starting out, always be
sure the sidestand is up. Failure
to retract the sidestand com-
pletely can result in a serious
accident when you try to turn a
corner.
EAU00381
Starting the engine
NOTE:
This motorcycle is equipped with an ig-
nition circuit cut-off system. The engine
can be started only under one of the
following conditions:
lThe transmission is in neutral.
lThe sidestand is up, the transmis-
sion is in gear and the clutch is dis-
engaged.
The motorcycle must not be ridden
when the sidestand is down.
EW000054
Before going through the following
steps, check the function of the
sidestand switch and clutch switch.
(Refer to page 3-17.)
EAU00372
Page 42 of 101

R
5-2
OPERATION AND IMPORTANT RIDING POINTS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-5.frame
TURN THE MAIN SWITCH TO ÒONÓ AND THE
ENGINE STOP SWITCH TO Ò Ó.
IF TRANSMISSION IS IN NEUTRAL AND
SIDESTAND IS DOWN,
PUSH THE START SWITCH.
ENGINE WILL START.
RETRACT SIDESTAND AND PUT
TRANSMISSION IN GEAR.
IF TRANSMISSION IS IN GEAR AND
SIDESTAND IS UP,
PULL IN THE CLUTCH LEVER AND PUSH THE
START SWITCH. ENGINE WILL START.
MOTORCYCLE CAN BE RIDDEN.MOTORCYCLE CAN BE RIDDEN.
Page 43 of 101

L
5-3
OPERATION AND IMPORTANT RIDING POINTS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-5.frame
1. Turn the fuel cock to ÒONÓ.
2. Turn the main switch to ÒONÓ and
the engine stop switch to Ò Ó.
3. Shift transmission into neutral.
NOTE:
When the transmission is in neutral, the
neutral indicator light should be on. If
the light does not come on, ask a
Yamaha dealer to inspect it.
4. Turn on the starter (choke) and
completely close the throttle grip.
5. Start the engine by pushing the
start switch.
NOTE:
If the engine fails to start, release the
start switch, wait a few seconds, then
try again. Each attempt should be as
short as possible to preserve the bat-
tery. Do not crank the engine more
than 10 seconds on any one attempt.
EC000034
CAUTION:
The oil level indicator light should
come on when the start switch is
pushed and should go off when the
start switch is released. If the indica-
tor light flickers or remains on, im-
mediately stop the engine and
check the engine oil level and for oil
leakage. If necessary, fill the engine
with oil and check to see that the oil
level indicator light goes off. If the
light does not go off even with suffi-
cient oil in the crankcase or the light
does not come on when pushing the
start switch, consult a Yamaha
dealer.
6. After starting the engine, move the
starter (choke) halfway back.
NOTE:
For maximum engine life, never accel-
erate hard with a cold engine!7. After the engine is warm, turn off
the starter (choke) completely.
NOTE:
The engine is warm when it responds
normally to the throttle with the starter
(choke) turned off.
Page 44 of 101

R
5-4
OPERATION AND IMPORTANT RIDING POINTS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-5.frame
EAU01258
Starting a warm engine
The starter (choke) is not required
when the engine is warm.
EC000046
CAUTION:
See the ÒEngine break-inÓ section
prior to operating the motorcycle for
the first time.
1. Shift pedal
N. Neutral
EAU00423
Shifting
The transmission lets you control the
amount of power you have available at
a given speed for starting, accelerating,
climbing hills, etc. The use of the shift
pedal is shown in the illustration.
To shift into neutral, depress the shift
pedal repeatedly until it reaches the
end of its travel, then raise the pedal
slightly.
EC000048
CAUTION:
lDo not coast for long periods
with the engine off, and do not
tow the motorcycle a long dis-
tance. Even with gears in neu-
tral, the transmission is only
properly lubricated when the
engine is running. Inadequate
lubrication may damage the
transmission.
lAlways use the clutch when
changing gears. The engine,
transmission, and driveline are
not designed to withstand the
shock of forced shifting and
can be damaged by shifting
without using the clutch.
Page 45 of 101

L
5-5
OPERATION AND IMPORTANT RIDING POINTS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-5.frame
EAU02937
Recommended shift points
(for Switzerland only)
The recommended shift points are
shown in the table below.
NOTE:
When shifting two gears down from 5th
to 3rd, bring your motorcycle to a
speed of 35 km/h.
Acceleration shift point
(km/h)
1st®2nd
2nd®3rd
3rd®4th
4th®5th
5th®6th20
30
40
50
60
EAU00424
Tips for reducing fuel
consumption
Your motorcycleÕs fuel consumption
depends to a large extent on your
riding style. The following tips can help
reduce fuel consumption:
lWarm up the engine before riding.
lTurn off the starter (choke) as
soon as possible.
lShift up swiftly and avoid high en-
gine speeds during acceleration.
lDo not double-clutch or rev the en-
gine while shifting down and avoid
high engine speeds with no load
on the engine.
lTurn off the engine instead of let-
ting it idle for an extended length
of time, i.e. in traffic jams, at traffic
lights or railroad crossings.
EAU00436
Engine break-in
There is never a more important period
in the life of your motorcycle than the
period between zero and 1,000 km. For
this reason we ask that you carefully
read the following material. Because
the engine is brand new, you must not
put an excessive load on it for the first
1,000 km. The various parts in the en-
gine wear and polish themselves to the
correct operating clearances. During
this period, prolonged full throttle oper-
ation, or any condition which might re-
sult in excessive heating of the engine,
must be avoided.
Page 46 of 101

R
5-6
OPERATION AND IMPORTANT RIDING POINTS
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-5.frame
EAU00440
0 ~ 150 km
Avoid operation above 5,000 r/min.
Stop the engine and let it cool for 5 to
10 minutes after every hour of opera-
tion. Vary the speed of the motorcycle
from time to time. Do not operate it at
one set throttle position.
150 ~ 500 km
Avoid prolonged operation above
6,000 r/min. Rev the motorcycle freely
through the gears, but do not use full
throttle at any time.
500 ~ 1,000 km
Avoid prolonged full throttle operation.
Avoid cruising speeds in excess of
7,000 r/min.
EC000052
CAUTION:
After 1,000 km of operation, be sure
to replace the engine oil and oil fil-
ter.1,000 km and beyond
Full throttle can be used.
EC000053
CAUTION:
lNever let engine speeds enter
the red zone.
lIf any engine trouble should oc-
cur during the break-in period,
consult a Yamaha dealer imme-
diately.
EAU00460
Parking
When parking the motorcycle, stop the
engine and remove the ignition key.
EW000058
The exhaust system is hot. Park the
motorcycle in a place where pedes-
trians or children are not likely to
touch the motorcycle. Do not park
the motorcycle on a slope or soft
ground; the motorcycle may over-
turn.
Page 47 of 101

/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-5.frame
Page 48 of 101

R
PERIODIC MAINTENANCE AND MINOR REPAIR
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-6TOC.-
Tool kit ................................................................ 6-1
Periodic maintenance and lubrication................. 6-2
Panel removal and installation ........................... 6-5
Panel A ............................................................... 6-5
Spark plug inspection ......................................... 6-6
Engine oil............................................................ 6-7
Air filter ............................................................. 6-10
Carburetor adjustment ...................................... 6-11
Idle speed adjustment ...................................... 6-12
Throttle cable free play inspection .................... 6-12
Valve clearance adjustment ............................. 6-13
Tires ................................................................. 6-13
Wheels ............................................................. 6-15
Clutch lever free play adjustment ..................... 6-15
Rear brake pedal height adjustment ................ 6-17
Brake light switch adjustment ........................... 6-17
Checking the front and rear brake pads ........... 6-18
Inspecting the brake fluid level ......................... 6-19
Brake fluid replacement .................................... 6-20
Drive chain slack check .................................... 6-20
Drive chain slack adjustment ............................ 6-21Drive chain lubrication....................................... 6-21
Cable inspection and lubrication ....................... 6-22
Throttle cable and grip lubrication ..................... 6-22
Brake and shift pedal lubrication ....................... 6-22
Brake and clutch lever lubrication ..................... 6-23
Center and sidestand lubrication ...................... 6-23
Rear suspension lubrication.............................. 6-23
Front fork inspection ......................................... 6-24
Steering inspection ........................................... 6-24
Wheel bearings ................................................. 6-25
Battery............................................................... 6-25
Fuse replacement ............................................. 6-26
Headlight bulb replacement (for XJ600S) ......... 6-27
Headlight bulb replacement (for XJ600N) ......... 6-29
Front wheel removal ......................................... 6-31
Front wheel installation ..................................... 6-31
Rear wheel removal .......................................... 6-33
Rear wheel installation ...................................... 6-34
Troubleshooting ................................................ 6-34
Troubleshooting chart ....................................... 6-35
Page 49 of 101

L
6-1
PERIODIC MAINTENANCE AND MINOR REPAIR
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-6.frame
EAU00464
Periodic inspection, adjustment and lu-
brication will keep your motorcycle in
the safest and most efficient condition
possible. Safety is an obligation of the
motorcycle owner. The maintenance
and lubrication schedule chart should
be considered strictly as a guide to
general maintenance and lubrication
intervals. YOU MUST TAKE INTO
CONSIDERATION THAT WEATHER,
TERRAIN, GEOGRAPHICAL LOCA-
TIONS, AND A VARIETY OF INDIVID-
UAL USES ALL TEND TO DEMAND
THAT EACH OWNER ALTER THIS
TIME SCHEDULE TO SHORTER IN-
TERVALS TO MATCH THE ENVI-
RONMENT. The most important points
of motorcycle inspection, adjustment,
and lubrication are explained in the fol-
lowing pages.
EW000060
If you are not familiar with motor-
cycle service, this work should be
done by a Yamaha dealer.
EAU00462

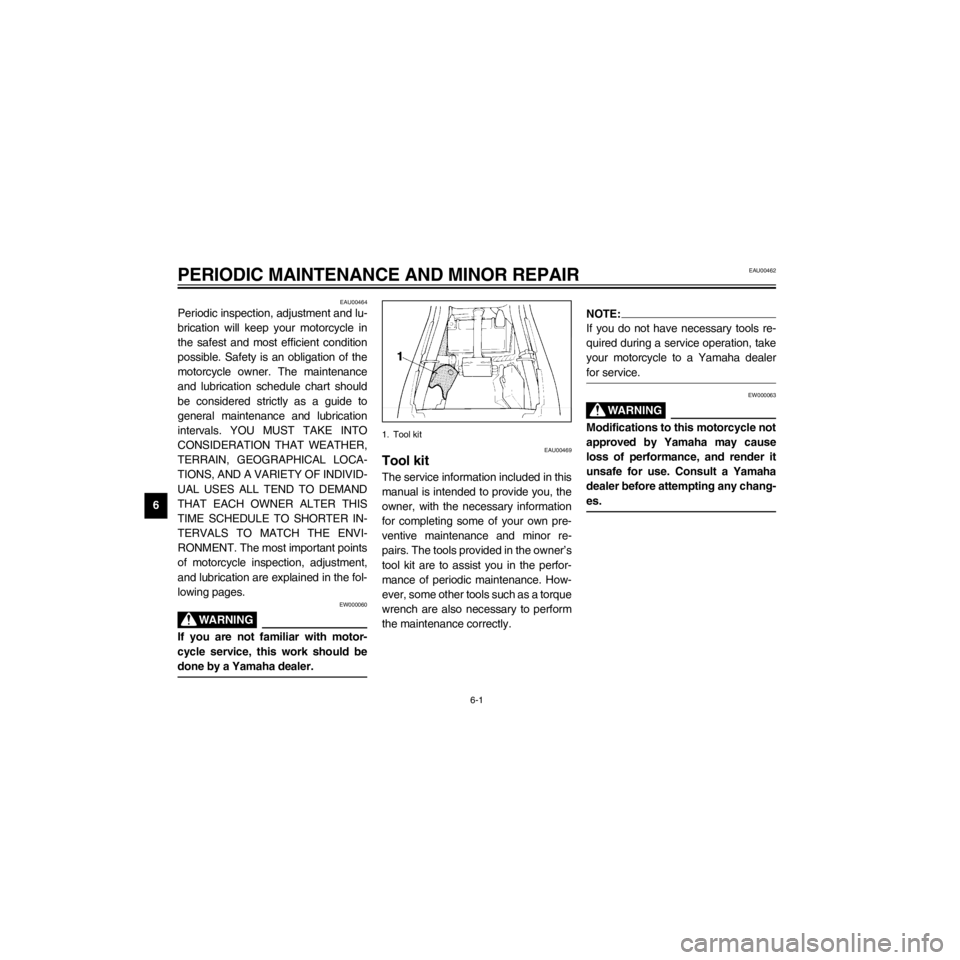

1. Tool kit
EAU00469
Tool kit
The service information included in this
manual is intended to provide you, the
owner, with the necessary information
for completing some of your own pre-
ventive maintenance and minor re-
pairs. The tools provided in the ownerÕs
tool kit are to assist you in the perfor-
mance of periodic maintenance. How-
ever, some other tools such as a torque
wrench are also necessary to perform
the maintenance correctly.
NOTE:
If you do not have necessary tools re-
quired during a service operation, take
your motorcycle to a Yamaha dealer
for service.
EW000063
Modifications to this motorcycle not
approved by Yamaha may cause
loss of performance, and render it
unsafe for use. Consult a Yamaha
dealer before attempting any chang-
es.
Page 50 of 101

R
6-2
PERIODIC MAINTENANCE AND MINOR REPAIR
/Net/layout8/layout_G2/work/Imai_work/OM-PS/AA9156_XJ600SN-E6/English/E-6.frame
EAU00473
PERIODIC MAINTENANCE AND LUBRICATION
NO. ITEM CHECKS AND MAINTENANCE JOBSINITIAL
(1,000 km)EVERY
6,000 km
or
6 months
(whichever
comes first)12,000 km
or
12 months
(whichever
comes first)
1
*Fuel line ¥ Check fuel hoses and vacuum hose for cracks or damage.
¥ Replace if necessary.ÖÖ
2
*Fuel filter¥ Check condition.
¥ Replace if necessary.Ö
3 Spark plugs¥ Check condition.
¥ Clean, regap or replace if necessary.ÖÖÖ
4
*Valves¥ Check valve clearance.
¥ Adjust if necessary.Every 24,000 km or 24 months
(whichever comes first)
5 Air filter¥ Clean or replace if necessary.ÖÖ
6Clutch¥ Check operation.
¥ Adjust or replace cable.ÖÖÖ
7
*Front brake¥ Check operation, fluid level and vehicle for fluid leakage. (See NOTE
on page 6-4.)
¥ Correct accordingly.
¥ Replace brake pads if necessary.ÖÖÖ
8
*Rear brake¥ Check operation, fluid level and vehicle for fluid leakage. (See NOTE
on page 6-4.)
¥ Correct accordingly.
¥ Replace brake pads if necessary.ÖÖÖ
9
*Wheels¥ Check balance, runout and for damage.
¥ Rebalance or replace if necessary.ÖÖ
10
*Tires¥ Check tread depth and for damage.
¥ Replace if necessary.
¥ Check air pressure.
¥ Correct if necessary.ÖÖ
