INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
NOTE:This fuel meter is equipped with a self-
diagnosis system. If the electrical circuit
is defective, the display segments and
symbol “” will flash. If this occurs,
have a Yamaha dealer check the elec-trical circuit.
Clock mode
To set the clock:1. Turn the key to “ON”.
2. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
3. When the hour digits start flashing,
push the “RESET” button to set the
hours.
4. Push the “SELECT” button, and
the minute digits will start flashing.
5. Push the “RESET” button to set
the minutes.
6. Push the “SELECT” button and
then release it to start the clock.
EAU12330
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12343
Handlebar switches Left1. Pass switch “PA S S”
2. Dimmer switch “/”
3. Hazard switch “”
4. Turn signal switch “/”
5. Horn switch “”
U5WME2E0.book Page 7 Tuesday, August 3, 2004 11:40 AM
Page 22 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3Right
EAU12360
Pass switch “PASS”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “”
Push this switch to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
EAU12731
Hazard switch “”
With the key in the “ON” or “” posi-
tion, use this switch to turn on the haz-
ard light (simultaneous flashing of all
turn signal lights).
The hazard light is used in case of an
emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.CAUTION:
ECA10060
Do not use the hazard light for an ex-
tended length of time, otherwise thebattery may discharge.
1. Engine stop switch “/”
2. Start switch “”U5WME2E0.book Page 8 Tuesday, August 3, 2004 11:40 AM
Page 23 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU12830

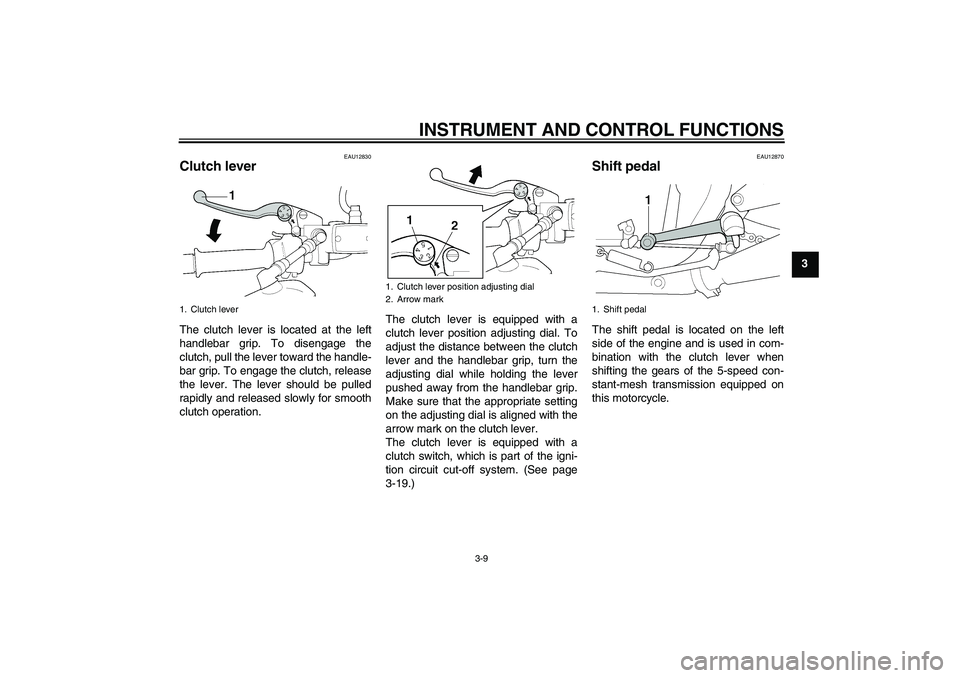

Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.The clutch lever is equipped with a
clutch lever position adjusting dial. To
adjust the distance between the clutch
lever and the handlebar grip, turn the
adjusting dial while holding the lever
pushed away from the handlebar grip.
Make sure that the appropriate setting
on the adjusting dial is aligned with the
arrow mark on the clutch lever.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-19.)
EAU12870
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
1. Clutch lever
1. Clutch lever position adjusting dial
2. Arrow mark
1. Shift pedal
U5WME2E0.book Page 9 Tuesday, August 3, 2004 11:40 AM
Page 24 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU26822

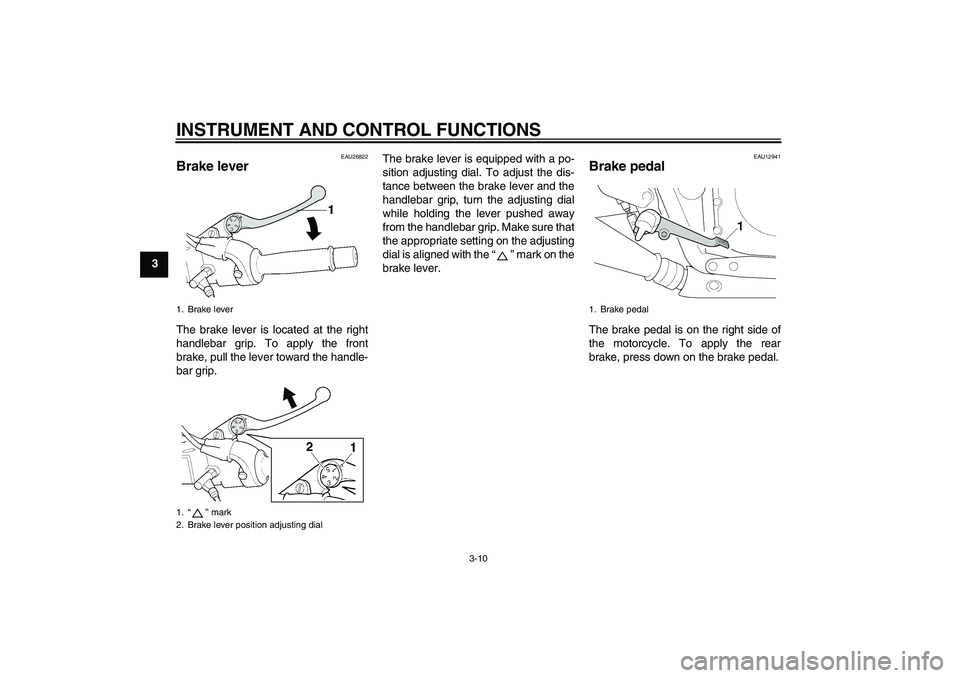

Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.The brake lever is equipped with a po-
sition adjusting dial. To adjust the dis-
tance between the brake lever and the
handlebar grip, turn the adjusting dial
while holding the lever pushed away
from the handlebar grip. Make sure that
the appropriate setting on the adjusting
dial is aligned with the “” mark on the
brake lever.
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
1. Brake lever
1.“” mark
2. Brake lever position adjusting dial
1. Brake pedal
U5WME2E0.book Page 10 Tuesday, August 3, 2004 11:40 AM
Page 25 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU13070
Fuel tank cap To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into position
with the key inserted in the lock.
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
NOTE:The fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap isnot properly closed and locked.
WARNING
EWA11090
Make sure that the fuel tank cap isproperly closed before riding.
EAU13210
Fuel Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING
EWA10880
Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.
Avoid spilling fuel on the hot en-gine.
1. Fuel tank cap lock cover
2. Unlock.
1. Fuel tank filler tube
2. Fuel level
U5WME2E0.book Page 11 Tuesday, August 3, 2004 11:40 AM
Page 26 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
CAUTION:
ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-es or plastic parts.
EAU13320
CAUTION:
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brandor premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU13410
Fuel tank breather hose Before operating the motorcycle:
Check the fuel tank breather hose
connection.
Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.
Make sure that the end of the fuel
tank breather hose is not blocked,
and clean it if necessary.
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
21.0 L (5.55 US gal) (4.62 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal) (0.99 Imp.gal)
1. Fuel tank breather hose
2. Original position (white mark)
U5WME2E0.book Page 12 Tuesday, August 3, 2004 11:40 AM
Page 27 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
EAU13440
Catalytic converter This vehicle is equipped with a catalytic
converter in the muffler.
WARNING
EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-ing any maintenance work.CAUTION:
ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.
Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.
Do not allow the engine to idletoo long.
EAU13570

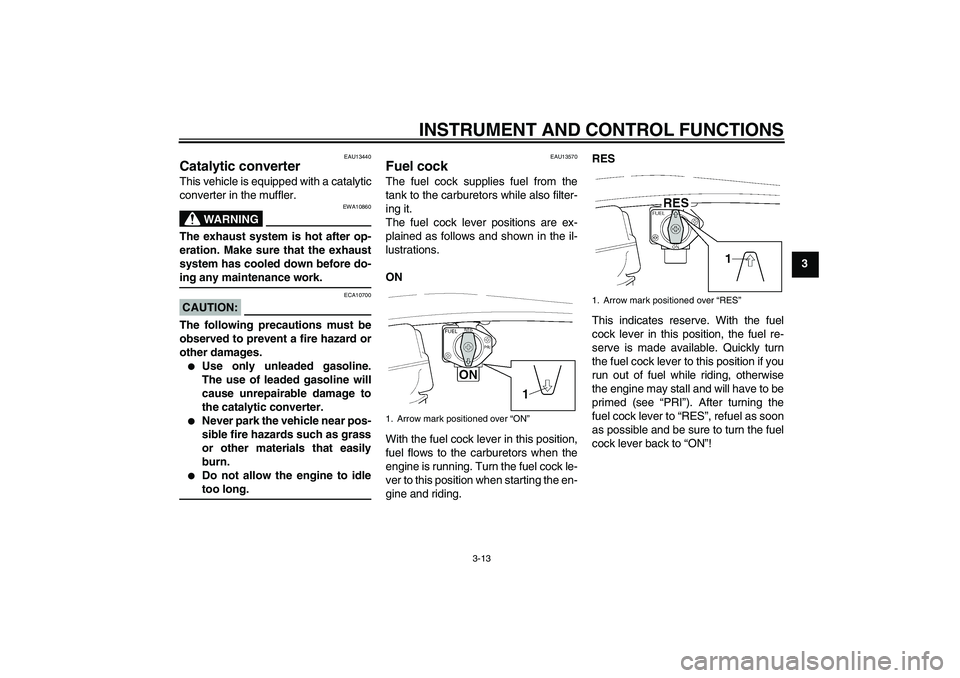

Fuel cock The fuel cock supplies fuel from the
tank to the carburetors while also filter-
ing it.
The fuel cock lever positions are ex-
plained as follows and shown in the il-
lustrations.
ON
With the fuel cock lever in this position,
fuel flows to the carburetors when the
engine is running. Turn the fuel cock le-
ver to this position when starting the en-
gine and riding.RES
This indicates reserve. With the fuel
cock lever in this position, the fuel re-
serve is made available. Quickly turn
the fuel cock lever to this position if you
run out of fuel while riding, otherwise
the engine may stall and will have to be
primed (see “PRI”). After turning the
fuel cock lever to “RES”, refuel as soon
as possible and be sure to turn the fuel
cock lever back to “ON”!1. Arrow mark positioned over “ON”
1. Arrow mark positioned over “RES”
U5WME2E0.book Page 13 Tuesday, August 3, 2004 11:40 AM
Page 28 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-14
3PRI

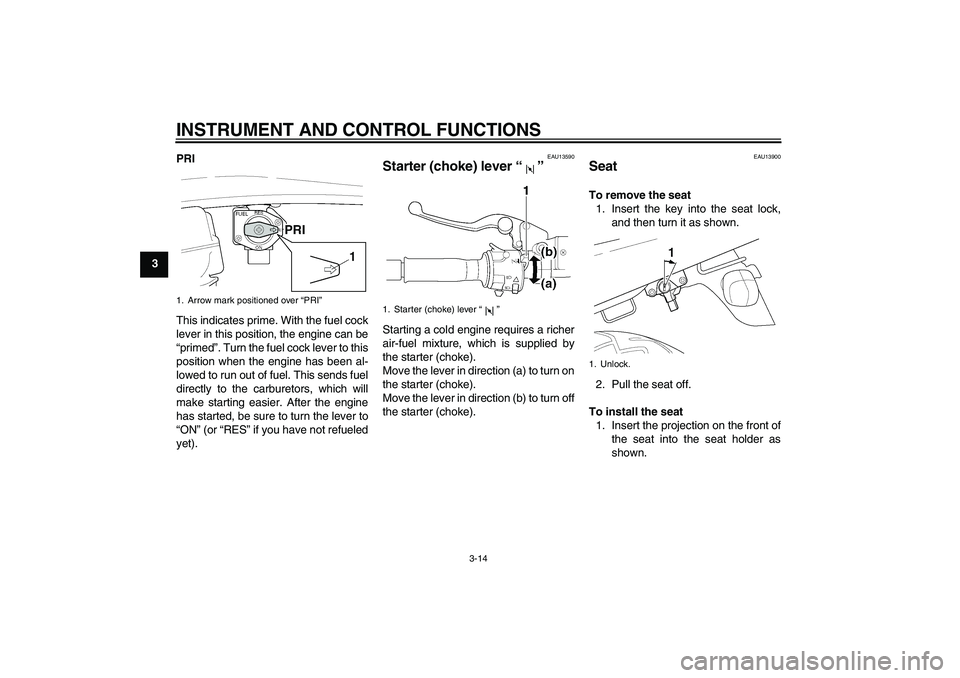

This indicates prime. With the fuel cock
lever in this position, the engine can be
“primed”. Turn the fuel cock lever to this
position when the engine has been al-
lowed to run out of fuel. This sends fuel
directly to the carburetors, which will
make starting easier. After the engine
has started, be sure to turn the lever to
“ON” (or “RES” if you have not refueled
yet).
EAU13590
Starter (choke) lever “” Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the lever in direction (a) to turn on
the starter (choke).
Move the lever in direction (b) to turn off
the starter (choke).
EAU13900
Seat To remove the seat
1. Insert the key into the seat lock,
and then turn it as shown.
2. Pull the seat off.
To install the seat
1. Insert the projection on the front of
the seat into the seat holder as
shown.
1. Arrow mark positioned over “PRI”
1. Starter (choke) lever “”
1. Unlock.
U5WME2E0.book Page 14 Tuesday, August 3, 2004 11:40 AM
Page 29 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
2. Push the rear of the seat down to
lock it in place.
3. Remove the key.
NOTE:Make sure that the seat is properly se-cured before riding.
EAU14350
Helmet holder To open the helmet holder, insert the
key into the seat lock, and then turn the
key as shown.
To lock the helmet holder, turn the key
to the original position, and then re-
move it.
WARNING
EWA10160
Never ride with a helmet attached to
the helmet holder, since the helmet
may hit objects, causing loss of con-trol and possibly an accident.
EAU14411
Storage compartment This storage compartment is designed
to hold an optional genuine Yamaha U-
LOCK. (Other locks may not fit.) When
placing a U-LOCK in the storage com-
partment, securely fasten it with the
straps. When the U-LOCK is not in the
storage compartment, be sure to se-
cure the straps to prevent losing them.
When storing the owner’s manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get wet.
1. Projection
2. Seat holder
1. Unlock.
1. U-LOCK bar (optional)
2. Strap
3. Yamaha U-LOCK (optional)
U5WME2E0.book Page 15 Tuesday, August 3, 2004 11:40 AM
Page 30 of 90

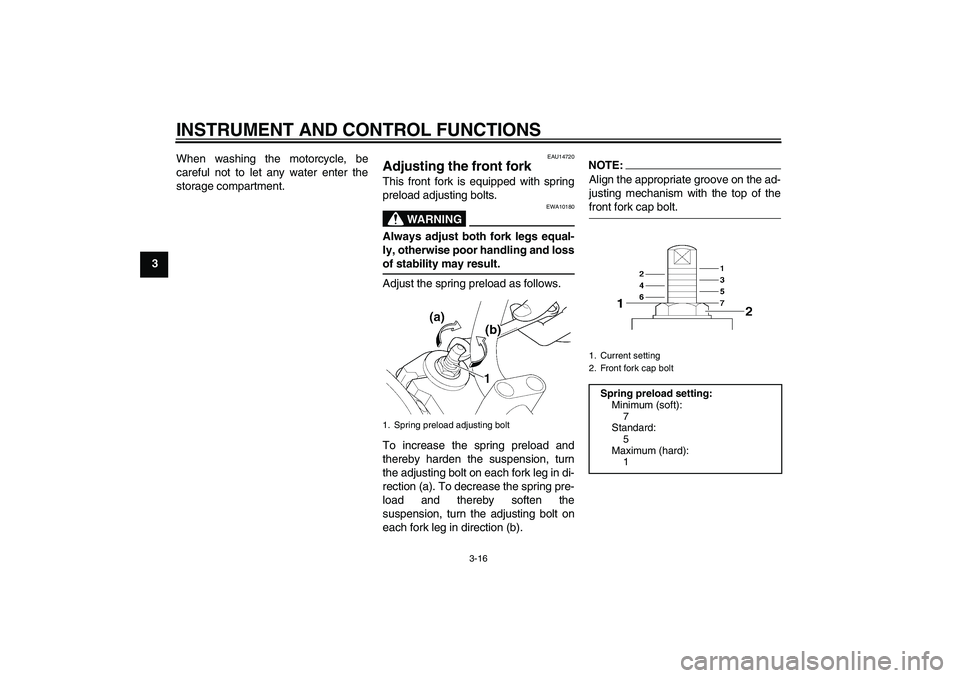

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3When washing the motorcycle, be
careful not to let any water enter the
storage compartment.
EAU14720
Adjusting the front fork This front fork is equipped with spring
preload adjusting bolts.
WARNING
EWA10180
Always adjust both fork legs equal-
ly, otherwise poor handling and lossof stability may result.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting bolt on each fork leg in di-
rection (a). To decrease the spring pre-
load and thereby soften the
suspension, turn the adjusting bolt on
each fork leg in direction (b).
NOTE:Align the appropriate groove on the ad-
justing mechanism with the top of thefront fork cap bolt.
1. Spring preload adjusting bolt
1. Current setting
2. Front fork cap boltSpring preload setting:
Minimum (soft):
7
Standard:
5
Maximum (hard):
1
U5WME2E0.book Page 16 Tuesday, August 3, 2004 11:40 AM
