INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EAU14901

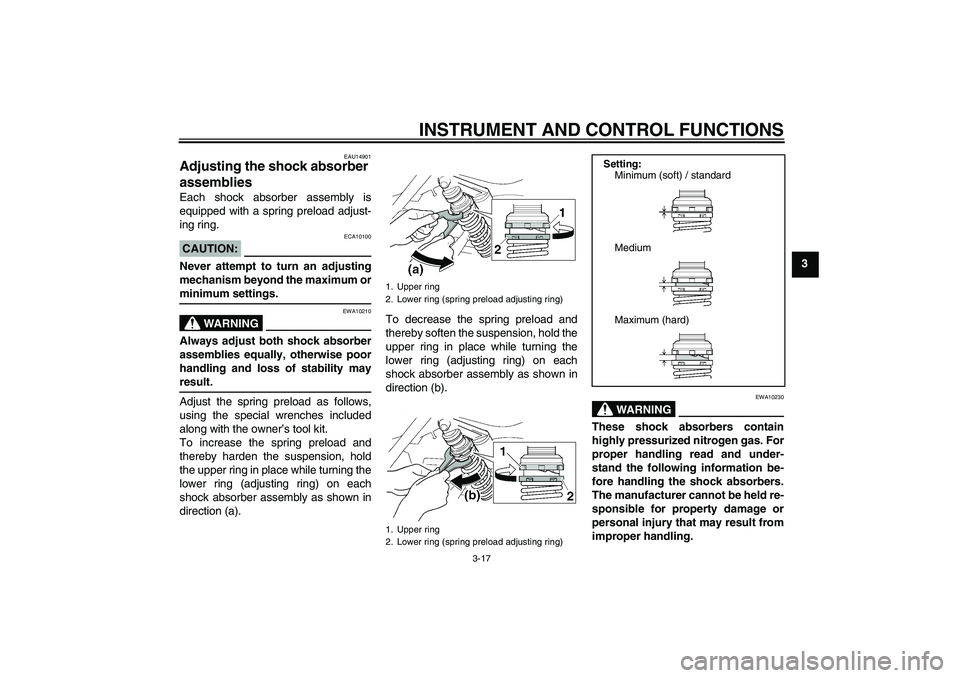

Adjusting the shock absorber
assemblies Each shock absorber assembly is
equipped with a spring preload adjust-
ing ring.CAUTION:
ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum orminimum settings.
WARNING
EWA10210
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability mayresult.
Adjust the spring preload as follows,
using the special wrenches included
along with the owner’s tool kit.
To increase the spring preload and
thereby harden the suspension, hold
the upper ring in place while turning the
lower ring (adjusting ring) on each
shock absorber assembly as shown in
direction (a).To decrease the spring preload and
thereby soften the suspension, hold the
upper ring in place while turning the
lower ring (adjusting ring) on each
shock absorber assembly as shown in
direction (b).
WARNING
EWA10230
These shock absorbers contain
highly pressurized nitrogen gas. For
proper handling read and under-
stand the following information be-
fore handling the shock absorbers.
The manufacturer cannot be held re-
sponsible for property damage or
personal injury that may result from
improper handling.
1. Upper ring
2. Lower ring (spring preload adjusting ring)
1. Upper ring
2. Lower ring (spring preload adjusting ring)
Setting:
Minimum (soft) / standard
Medium
Maximum (hard)
U5WME2E0.book Page 17 Tuesday, August 3, 2004 11:40 AM
Page 32 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
Do not tamper with or attempt to
open the gas cylinders.
Do not subject the shock ab-
sorbers to an open flame or oth-
er high heat sources, otherwise
they may explode due to exces-
sive gas pressure.
Do not deform or damage the
gas cylinders in any way, as this
will result in poor damping per-
formance.
Always have a Yamaha dealerservice the shock absorbers.
EAU15230

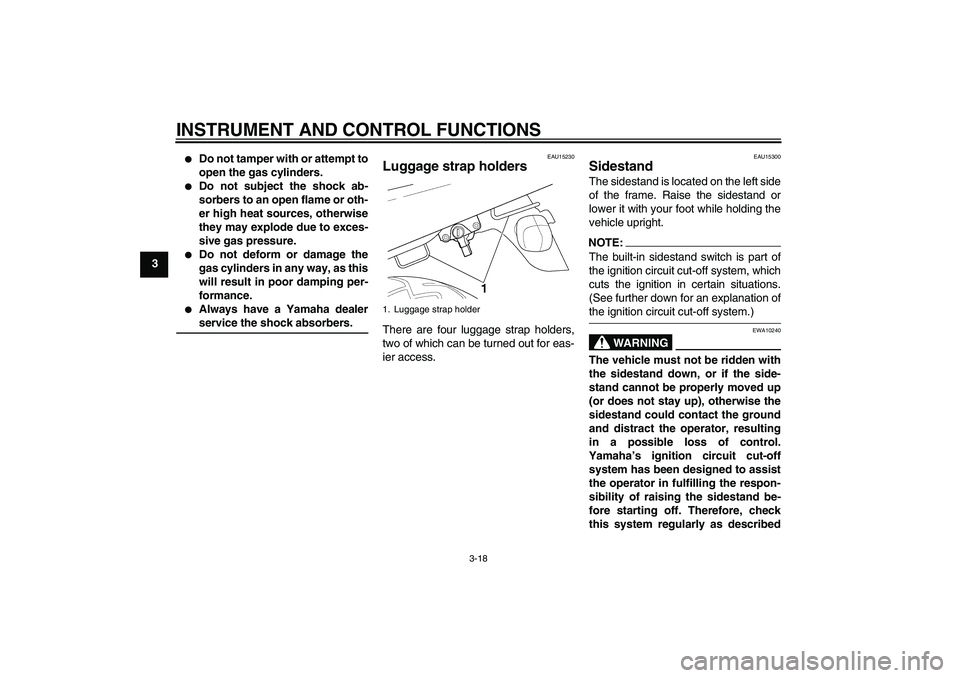

Luggage strap holders There are four luggage strap holders,
two of which can be turned out for eas-
ier access.
EAU15300
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.NOTE:The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation ofthe ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as described
1. Luggage strap holder
U5WME2E0.book Page 18 Tuesday, August 3, 2004 11:40 AM
Page 33 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-19
3 below and have a Yamaha dealer re-
pair it if it does not function proper-
ly.
EAU15321
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.
It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.
It prevents starting when the trans-
mission is in gear and the clutch le-
ver is pulled, but the sidestand is
still down.
It cuts the running engine when the
transmission is in gear and the sid-
estand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.WARNING
EWA10260
The vehicle must be placed on
the centerstand during this in-
spection.
If a malfunction is noted, have a
Yamaha dealer check the sys-tem before riding.
U5WME2E0.book Page 19 Tuesday, August 3, 2004 11:40 AM
Page 34 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
This check is most reliable if performed with
a warmed-up engine.The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NONOTE:
U5WME2E0.book Page 20 Tuesday, August 3, 2004 11:40 AM
Page 35 of 90
PRE-OPERATION CHECKS
4-1
4
EAU15591
The condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.NOTE:Pre-operation checks should be made each time the vehicle is used. Such an inspection can be accomplished in a very shorttime; and the added safety it assures is more than worth the time involved.
WARNING
EWA11150
If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operatingthe vehicle.
U5WME2E0.book Page 1 Tuesday, August 3, 2004 11:40 AM
Page 36 of 90
PRE-OPERATION CHECKS
4-2
4
EAU15603
Pre-operation check list
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-11
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-8
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-17, 6-18
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-17, 6-18
ClutchCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check fluid level in reservoir.
If necessary, add recommended fluid to specified level.
Check hydraulic system for leakage.6-16, 6-18
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-12, 6-22
U5WME2E0.book Page 2 Tuesday, August 3, 2004 11:40 AM
Page 37 of 90
PRE-OPERATION CHECKS
4-3
4
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-21
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-19, 6-21
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-13, 6-16
Brake and shift pedalsMake sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-22
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-23
Centerstand, sidestandMake sure that operation is smooth.
Lubricate pivots if necessary.6-23
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switchCheck operation of ignition circuit cut-off system.
If system is defective, have Yamaha dealer check vehicle.3-18 ITEM CHECKS PAGE
U5WME2E0.book Page 3 Tuesday, August 3, 2004 11:40 AM
Page 38 of 90
OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15950
WARNING
EWA10270
Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.
Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible lossof control.
EAU36600
Starting a cold engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.
The transmission is in gear with
the clutch lever pulled and the sid-
estand up.WARNING
EWA10290
Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-19.
Never ride with the sidestanddown.
1. Turn the fuel cock lever to “ON”.
2. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
3. Shift the transmission into the neu-
tral position.
NOTE:When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-cuit.
4. Turn the starter (choke) on and
completely close the throttle. (See
page 3-14.)
5. Start the engine by pushing the
start switch.NOTE:If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any oneattempt.CAUTION:
ECA15050
The oil level warning light
should come on when the key is
turned to “ON”, and then go off
after a few seconds. If the oil
level warning light flickers or re-
mains on after starting, immedi-
U5WME2E0.book Page 1 Tuesday, August 3, 2004 11:40 AM
Page 39 of 90
OPERATION AND IMPORTANT RIDING POINTS
5-2
5 ately stop the engine, and then
check the engine oil level and
the vehicle for oil leakage. If
necessary, add engine oil, and
then check the warning light
again. If the warning light does
not come on when turning the
key to “ON”, or if it does not go
off after starting the engine with
sufficient engine oil, have a
Yamaha dealer check the elec-
trical circuit.
The immobilizer system indica-
tor light should come on when
the key is turned to “ON”, and
then go off after a few seconds.
If the indicator light does not
come on when the key is turned
to “ON”, then go off, have a
Yamaha dealer check the elec-trical circuit.
6. After starting the engine, move the
starter (choke) back halfway.
CAUTION:
ECA11040
For maximum engine life, never ac-
celerate hard when the engine iscold!7. When the engine is warm, turn the
starter (choke) off.
NOTE:The engine is warm when it responds
normally to the throttle with the starter(choke) turned off.
EAU16640
Starting a warm engine Follow the same procedure as for start-
ing a cold engine with the exception
that the starter (choke) is not required
when the engine is warm.
U5WME2E0.book Page 2 Tuesday, August 3, 2004 11:40 AM
Page 40 of 90
OPERATION AND IMPORTANT RIDING POINTS
5-3
5
EAU16671
Shifting Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the il-
lustration.NOTE:To shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of itstravel, and then slightly raise it.
CAUTION:
ECA10260
Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long dis-
tances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.
Always use the clutch while
changing gears to avoid damag-
ing the engine, transmission,
and drive train, which are not
designed to withstand theshock of forced shifting.
EAU16800
Tips for reducing fuel
consumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:
Turn the starter (choke) off as
soon as possible.
Shift up swiftly, and avoid high en-
gine speeds during acceleration.
Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.
Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
1. Shift pedal
2. Neutral positionU5WME2E0.book Page 3 Tuesday, August 3, 2004 11:40 AM
