YAMAHA XMAX 125 2007 Owner's Guide

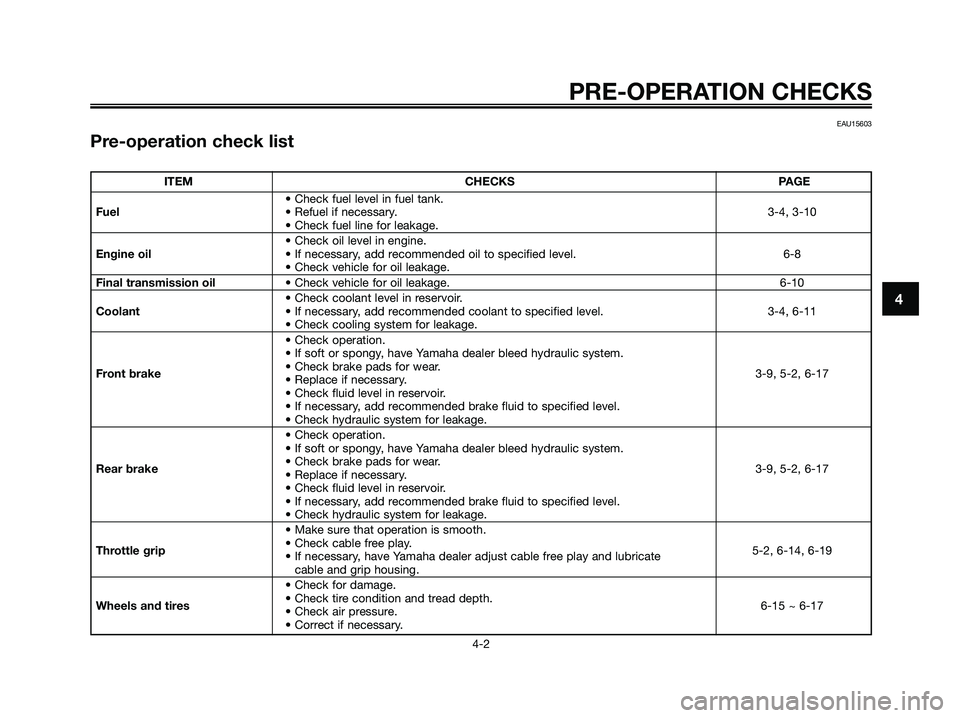

4
PRE-OPERATION CHECKS
4-2
EAU15603
Pre-operation check list
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary. 3-4, 3-10
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 6-8
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-10
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 3-4, 6-11
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
Front brake• Check brake pads for wear.
3-9, 5-2, 6-17
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
Rear brake• Check brake pads for wear.
3-9, 5-2, 6-17
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
5-2, 6-14, 6-19
• If necessary, have Yamaha dealer adjust cable free play and lubricate
cable and grip housing.
• Check for damage.
Wheels and tires• Check tire condition and tread depth.
6-15 ~ 6-17
• Check air pressure.
• Correct if necessary.
1B9-F8199-E1.qxd 9/10/06 09:59 Página 31

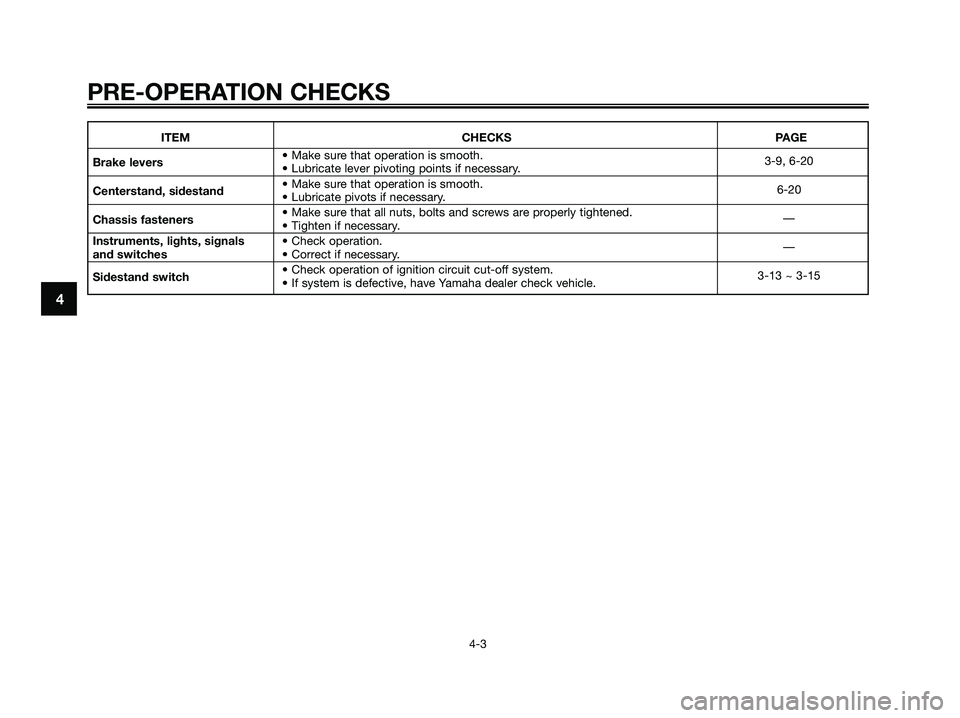

4
PRE-OPERATION CHECKS
4-3
ITEM CHECKS PAGE
Brake levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.3-9, 6-20
Centerstand, sidestand• Make sure that operation is smooth.
• Lubricate pivots if necessary.6-20
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.—
Instruments, lights, signals • Check operation.
and switches• Correct if necessary.—
Sidestand switch• Check operation of ignition circuit cut-off system.
• If system is defective, have Yamaha dealer check vehicle.3-13 ~ 3-15
1B9-F8199-E1.qxd 9/10/06 09:59 Página 32

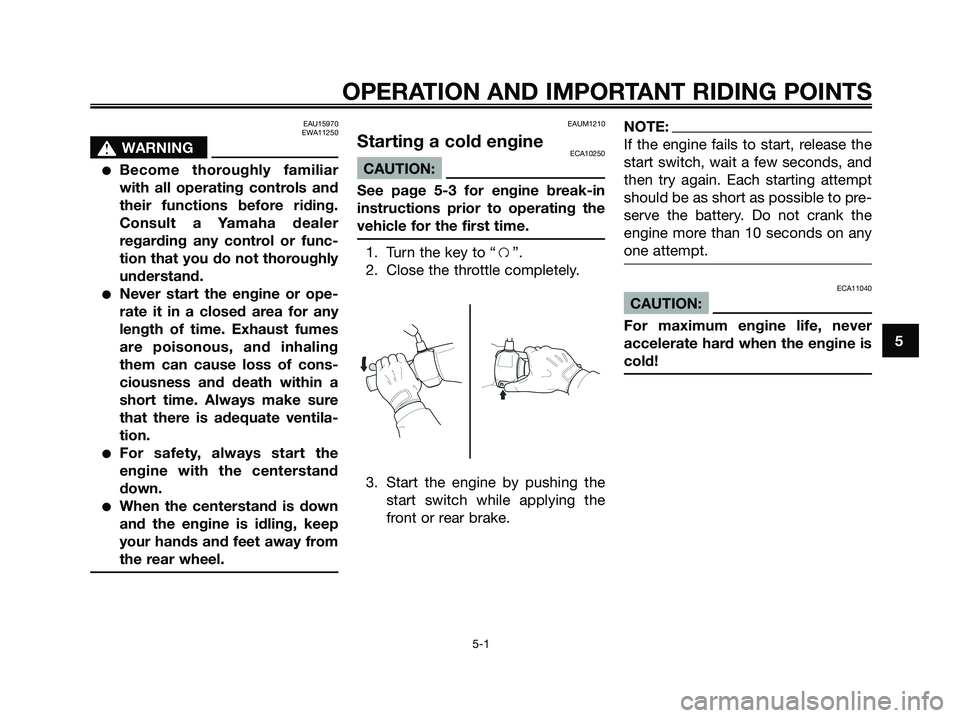

EAU15970
EWA11250
s s
WARNING
Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer
regarding any control or func-
tion that you do not thoroughly
understand.
Never start the engine or ope-
rate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of cons-
ciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
For safety, always start the
engine with the centerstand
down.
When the centerstand is down
and the engine is idling, keep
your hands and feet away from
the rear wheel.
EAUM1210
Starting a cold engineECA10250
CAUTION:
See page 5-3 for engine break-in
instructions prior to operating the
vehicle for the first time.
1. Turn the key to “f”.
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the
front or rear brake.
NOTE:
If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the
engine more than 10 seconds on any
one attempt.
ECA11040
CAUTION:
For maximum engine life, never
accelerate hard when the engine is
cold!
5
OPERATION AND IMPORTANT RIDING POINTS
5-1
1B9-F8199-E1.qxd 9/10/06 09:59 Página 33

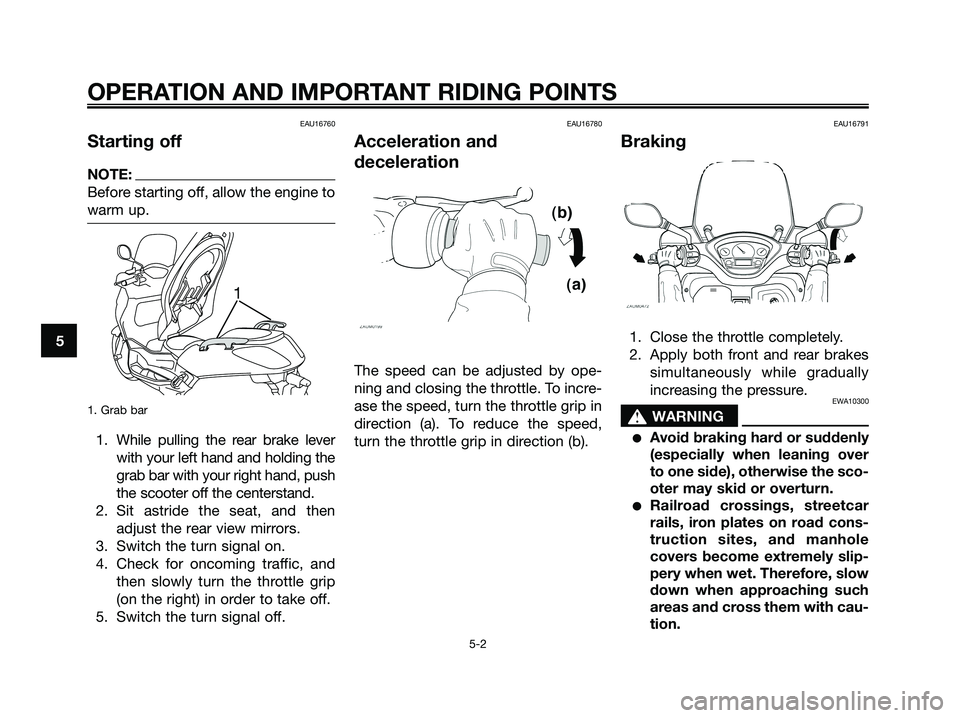

EAU16760
Starting off
NOTE:
Before starting off, allow the engine to
warm up.
1. Grab bar
1. While pulling the rear brake lever
with your left hand and holding the
grab bar with your right hand, push
the scooter off the centerstand.
2. Sit astride the seat, and then
adjust the rear view mirrors.
3. Switch the turn signal on.
4. Check for oncoming traffic, and
then slowly turn the throttle grip
(on the right) in order to take off.
5. Switch the turn signal off.
EAU16780
Acceleration and
deceleration
The speed can be adjusted by ope-
ning and closing the throttle. To incre-
ase the speed, turn the throttle grip in
direction (a). To reduce the speed,
turn the throttle grip in direction (b).
EAU16791
Braking
1. Close the throttle completely.
2. Apply both front and rear brakes
simultaneously while gradually
increasing the pressure.
EWA10300
s s
WARNING
Avoid braking hard or suddenly
(especially when leaning over
to one side), otherwise the sco-
oter may skid or overturn.
Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Therefore, slow
down when approaching such
areas and cross them with cau-
tion.
1
5
OPERATION AND IMPORTANT RIDING POINTS
5-2
1B9-F8199-E1.qxd 9/10/06 09:59 Página 34

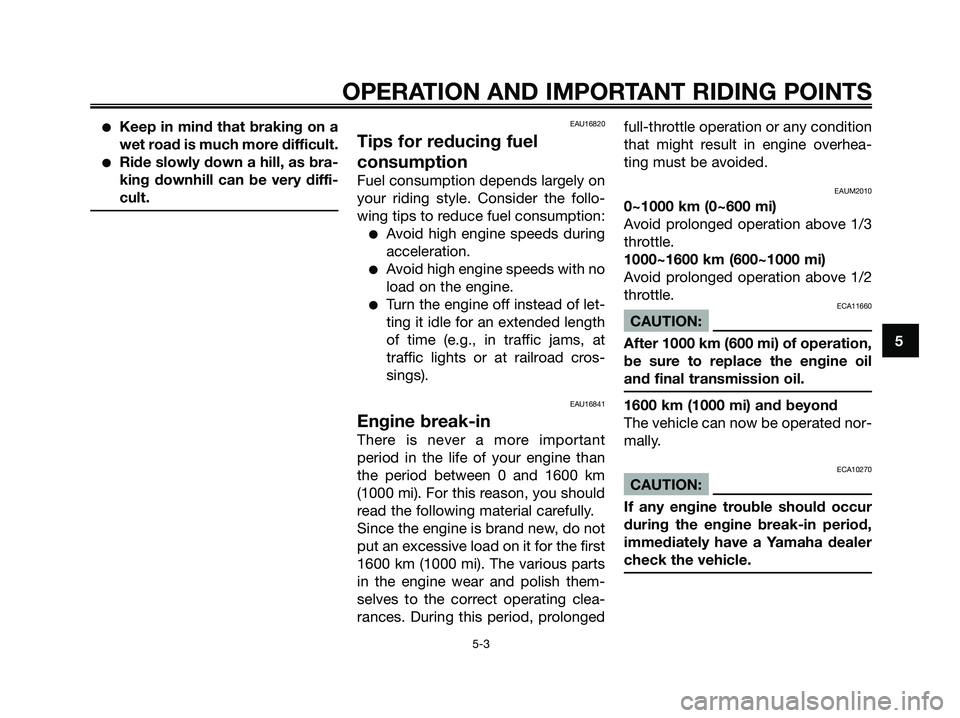

Keep in mind that braking on a
wet road is much more difficult.
Ride slowly down a hill, as bra-
king downhill can be very diffi-
cult.
EAU16820
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the follo-
wing tips to reduce fuel consumption:
Avoid high engine speeds during
acceleration.
Avoid high engine speeds with no
load on the engine.
Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at
traffic lights or at railroad cros-
sings).
EAU16841
Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1600 km
(1000 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts
in the engine wear and polish them-
selves to the correct operating clea-
rances. During this period, prolongedfull-throttle operation or any condition
that might result in engine overhea-
ting must be avoided.
EAUM2010
0~1000 km (0~600 mi)
Avoid prolonged operation above 1/3
throttle.
1000~1600 km (600~1000 mi)
Avoid prolonged operation above 1/2
throttle.
ECA11660
CAUTION:
After 1000 km (600 mi) of operation,
be sure to replace the engine oil
and final transmission oil.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.
ECA10270
CAUTION:
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
5
OPERATION AND IMPORTANT RIDING POINTS
5-3
1B9-F8199-E1.qxd 9/10/06 09:59 Página 35

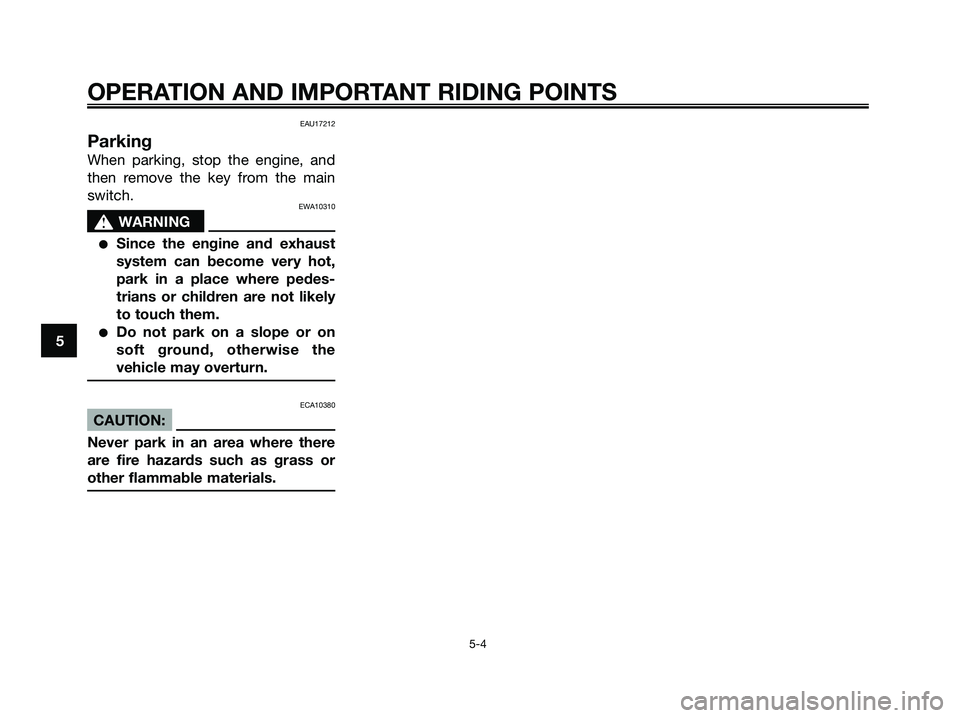

EAU17212
Parking
When parking, stop the engine, and
then remove the key from the main
switch.
EWA10310
s s
WARNING
Since the engine and exhaust
system can become very hot,
park in a place where pedes-
trians or children are not likely
to touch them.
Do not park on a slope or on
soft ground, otherwise the
vehicle may overturn.
ECA10380
CAUTION:
Never park in an area where there
are fire hazards such as grass or
other flammable materials.
5
OPERATION AND IMPORTANT RIDING POINTS
5-4
1B9-F8199-E1.qxd 9/10/06 09:59 Página 36

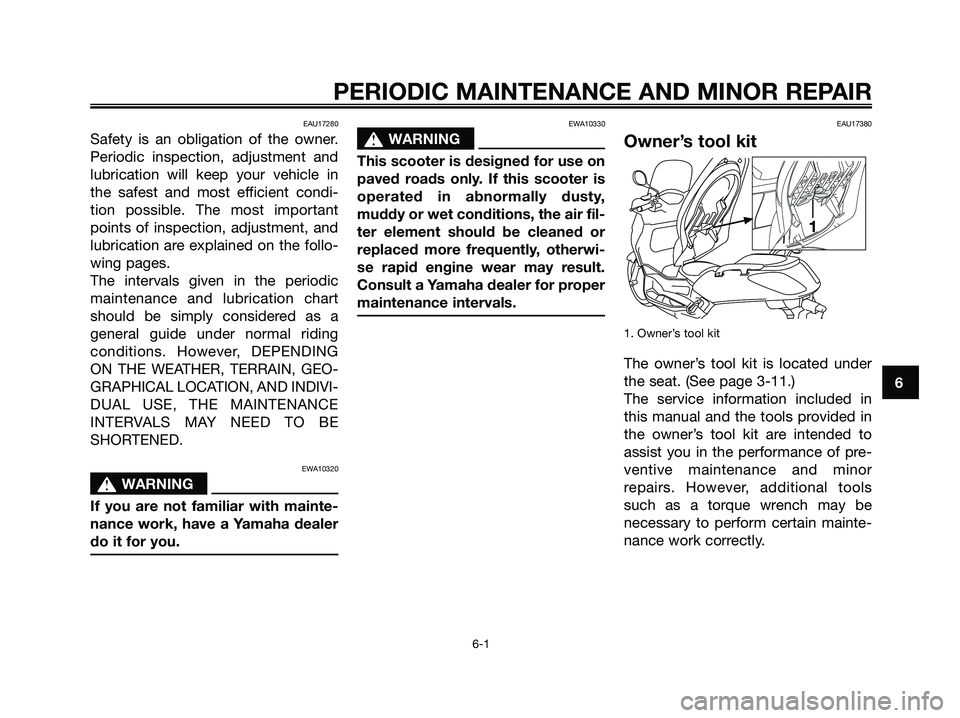

EAU17280
Safety is an obligation of the owner.
Periodic inspection, adjustment and
lubrication will keep your vehicle in
the safest and most efficient condi-
tion possible. The most important
points of inspection, adjustment, and
lubrication are explained on the follo-
wing pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a
general guide under normal riding
conditions. However, DEPENDING
ON THE WEATHER, TERRAIN, GEO-
GRAPHICAL LOCATION, AND INDIVI-
DUAL USE, THE MAINTENANCE
INTERVALS MAY NEED TO BE
SHORTENED.
EWA10320
s s
WARNING
If you are not familiar with mainte-
nance work, have a Yamaha dealer
do it for you.
EWA10330
s s
WARNING
This scooter is designed for use on
paved roads only. If this scooter is
operated in abnormally dusty,
muddy or wet conditions, the air fil-
ter element should be cleaned or
replaced more frequently, otherwi-
se rapid engine wear may result.
Consult a Yamaha dealer for proper
maintenance intervals.
EAU17380
Owner’s tool kit
1. Owner’s tool kit
The owner’s tool kit is located under
the seat. (See page 3-11.)
The service information included in
this manual and the tools provided in
the owner’s tool kit are intended to
assist you in the performance of pre-
ventive maintenance and minor
repairs. However, additional tools
such as a torque wrench may be
necessary to perform certain mainte-
nance work correctly.
1
PERIODIC MAINTENANCE AND MINOR REPAIR
6-1
6
1B9-F8199-E1.qxd 9/10/06 09:59 Página 37

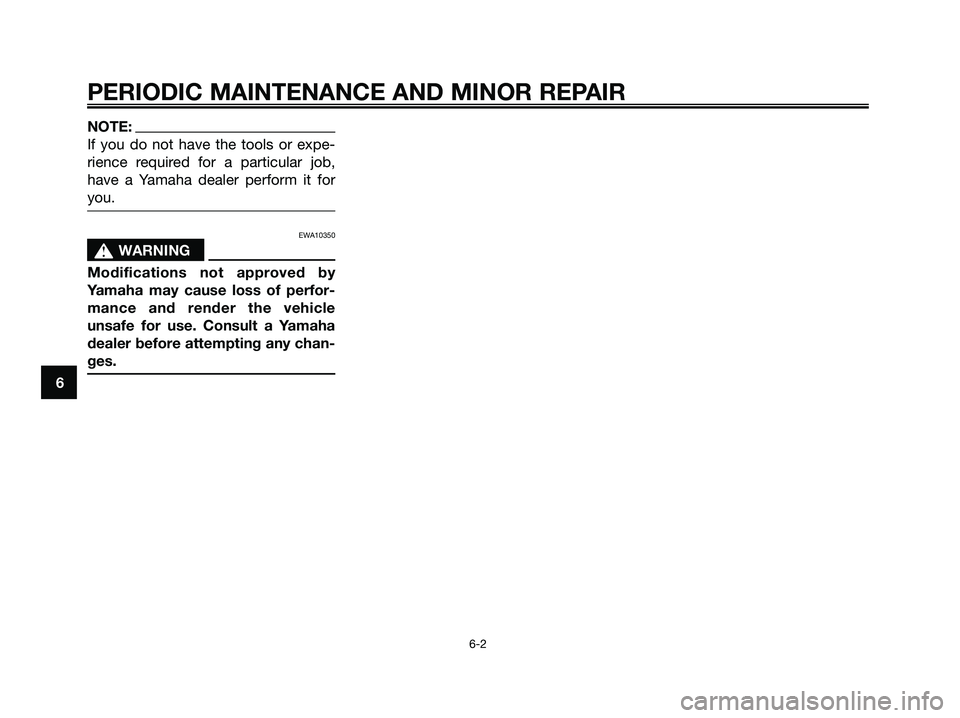

NOTE:
If you do not have the tools or expe-
rience required for a particular job,
have a Yamaha dealer perform it for
you.
EWA10350
s s
WARNING
Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle
unsafe for use. Consult a Yamaha
dealer before attempting any chan-
ges.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
1B9-F8199-E1.qxd 9/10/06 09:59 Página 38

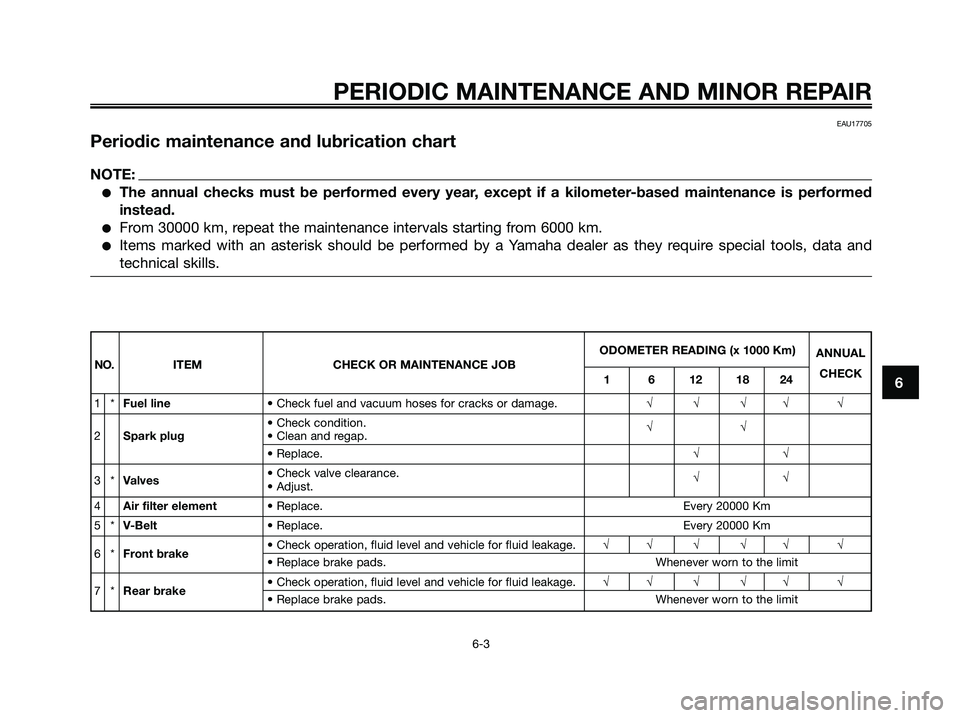

6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
EAU17705
Periodic maintenance and lubrication chart
NOTE:
The annual checks must be performed every year, except if a kilometer-based maintenance is performed
instead.
From 30000 km, repeat the maintenance intervals starting from 6000 km.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
ODOMETER READING (x 1000 Km)
ANNUAL
CHECKNO. ITEM CHECK OR MAINTENANCE JOB
1 6 12 18 24
1*Fuel line• Check fuel and vacuum hoses for cracks or damage.√√√√ √
• Check condition.
2Spark plug• Clean and regap.√√
• Replace.√√
3*Valves• Check valve clearance.
• Adjust.√√
4Air filter element• Replace. Every 20000 Km
5*V-Belt• Replace. Every 20000 Km
6*Front brake• Check operation, fluid level and vehicle for fluid leakage.√√ √ √√ √• Replace brake pads. Whenever worn to the limit
7*Rear brake• Check operation, fluid level and vehicle for fluid leakage.√√ √ √√ √
• Replace brake pads. Whenever worn to the limit
1B9-F8199-E1.qxd 9/10/06 09:59 Página 39

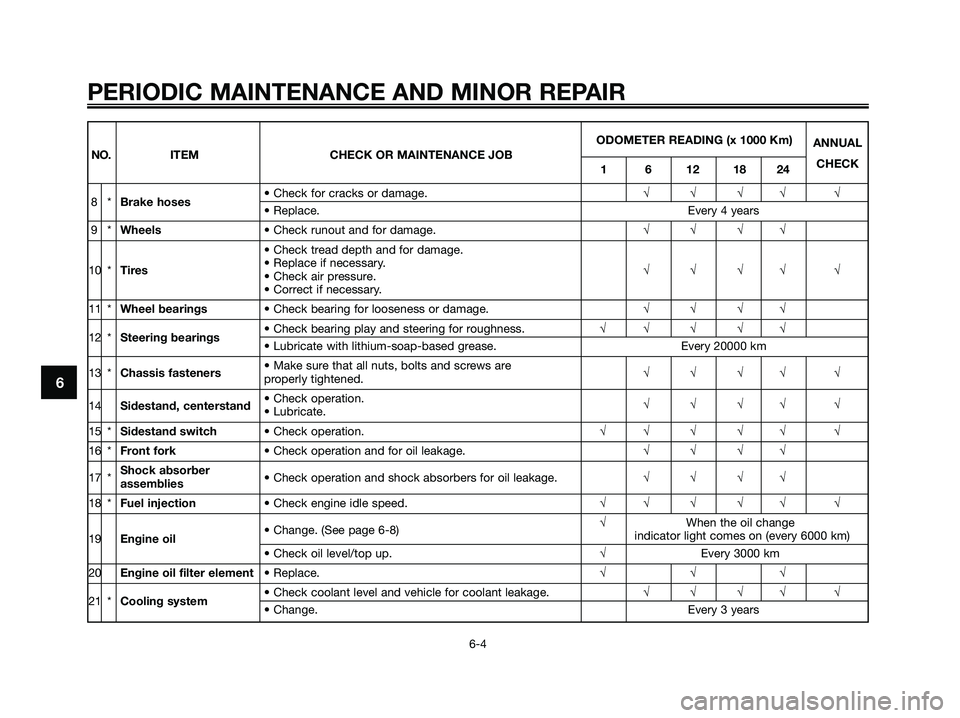

6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
ODOMETER READING (x 1000 Km)
ANNUAL
CHECKNO. ITEM CHECK OR MAINTENANCE JOB
1 6 12 18 24
8*Brake hoses• Check for cracks or damage.√√√√ √• Replace. Every 4 years
9*Wheels• Check runout and for damage.√√√√
• Check tread depth and for damage.
10 *Tires• Replace if necessary.
√√√√ √
• Check air pressure.
• Correct if necessary.
11 *Wheel bearings• Check bearing for looseness or damage.√√√√
12 *Steering bearings• Check bearing play and steering for roughness.√√ √ √√• Lubricate with lithium-soap-based grease. Every 20000 km
13 *Chassis fasteners• Make sure that all nuts, bolts and screws are
√√√√ √
properly tightened.
14Sidestand, centerstand• Check operation.
• Lubricate.√√√√ √
15 *Sidestand switch• Check operation.√√ √ √√ √
16 *Front fork• Check operation and for oil leakage.√√√√
17 *Shock absorber
• Check operation and shock absorbers for oil leakage.√√√√
assemblies
18 *Fuel injection• Check engine idle speed.√√ √ √√ √
• Change. (See page 6-8)√When the oil change
19Engine oilindicator light comes on (every 6000 km)• Check oil level/top up.√Every 3000 km
20Engine oil filter element• Replace.√√√
21 *Cooling system• Check coolant level and vehicle for coolant leakage.√√√√ √
• Change. Every 3 years
1B9-F8199-E1.qxd 9/10/06 09:59 Página 40
