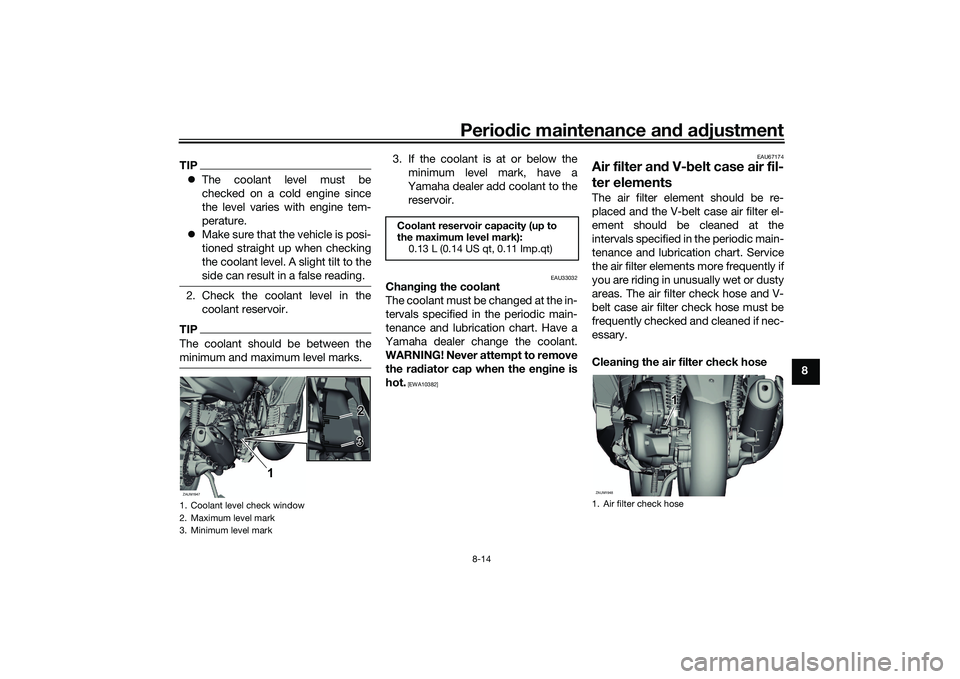

Periodic maintenance an d a djustment
8-14
8
TIP The coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
 Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.2. Check the coolant level in the
coolant reservoir.TIPThe coolant should be between the
minimum and maximum level marks.
3. If the coolant is at or below theminimum level mark, have a
Yamaha dealer add coolant to the reservoir.
EAU33032
Chan gin g the coolant
The coolant must be changed at the in-
tervals specified in the periodic main-
tenance and lubrication chart. Have a
Yamaha dealer change the coolant.
WARNING! Never attempt to remove
the ra diator cap when the en gine is
hot.
[EWA10382] EAU67174
Air filter an
d V- belt case air fil-
ter elementsThe air filter element should be re-
placed and the V-belt case air filter el-
ement should be cleaned at the
intervals specified in the periodic main-
tenance and lubrication chart. Service
the air filter elements more frequently if
you are riding in unusually wet or dusty
areas. The air filter check hose and V-
belt case air filter check hose must be
frequently checked and cleaned if nec-
essary.
Cleanin g the air filter check hose
1. Coolant level check window
2. Maximum level mark
3. Minimum level markZAUM1947
1 2
2
3 2
3
Coolant reservoir capacity (up to
the maximum level mark): 0.13 L (0.14 US qt, 0.11 Imp.qt)
1. Air filter check hoseZAUM1948
1 11
UB9YE1E0.book Page 14 Tuesday, October 12, 2021 2:29 PM

12-1
12
IndexAABS warning light ................................... 5-2
Acceleration and deceleration ................ 7-3
Activating the Stop and Start System .... 4-1
Air filter and V-belt case air filter
elements ............................................. 8-14
Anti-lock brake system (ABS) ............... 5-14
Auxiliary DC jack ................................... 5-26BBattery .................................................. 8-26
Brake fluid, changing ............................ 8-22
Brake fluid level, checking .................... 8-21
Brake lever, front .................................. 5-14
Brake lever, rear.................................... 5-14
Brake levers, lubricating ....................... 8-23
Braking.................................................... 7-3CCables, checking and lubricating ......... 8-23
Canister................................................. 8-10
Care ........................................................ 9-1
Catalytic converter ................................ 5-20
Centerstand and sidestand, checking and lubricating .................................... 8-24
Coolant ................................................. 8-13DData recording, vehicle ......................... 11-2
Diagnostic connector............................ 11-2
Dimmer/Pass switch ............................. 5-12EEmergency mode.................................. 8-34
Engine break-in....................................... 7-1
Engine oil and oil strainer...................... 8-10
Engine overheating ............................... 8-33
Engine serial number ............................ 11-1
FFinal transmission oil ............................ 8-12
Front and rear brake lever free play, checking............................................. 8-19
Front and rear brake pads, checking ... 8-20
Front fork, checking ............................. 8-25
Front turn signal light............................ 8-29
Fuel ....................................................... 5-18
Fuel consumption, tips for reducing ...... 7-4
Fuel tank cap ........................................ 5-17
Fuel tank overflow hose ....................... 5-20
Fuses, replacing ................................... 8-27HHandlebar position, adjusting .............. 5-25
Handlebar switches .............................. 5-12
Hazard switch....................................... 5-13
High beam indicator light ....................... 5-1
Horn switch .......................................... 5-13IIdentification numbers .......................... 11-1
Ignition circuit cut-off system ............... 5-27
Indicator lights and warning lights ......... 5-1KKey, handling of smart and mechanical keys ...................................................... 3-3LLicense plate light bulb, replacing........ 8-30MMain switch ............................................ 3-8
Maintenance and lubrication, periodic ... 8-4
Maintenance, emission control system.................................................. 8-3
Malfunction indicator light (MIL) ............. 5-1
Matte color, caution ............................... 9-1 Model label ...........................................11-1
Multi-function display .............................5-4
OOperating range of the smart key
system ..................................................3-2PPanel, removing and installing ................8-8
Parking ....................................................7-4
Part locations ..........................................2-1
Precautions when using the Stop and Start System .........................................4-3SSafe-riding points....................................1-5
Safety information ...................................1-1
Shock absorber assemblies, adjusting .............................................5-25
Sidestand ..............................................5-27
Smart key ................................................3-5
Smart key battery, replacing ...................3-6
Smart key system ...................................3-1
Smart key system indicator light.............5-2
Smart key system, troubleshooting ......8-31
Spark plug, checking ..............................8-9
Specifications .......................................10-1
Speedometer ..........................................5-3
Starting off ..............................................7-3
Starting the engine ..................................7-2
Steering, checking ................................8-25
Stop and Start System............................4-1
Stop and Start System indicator light .....5-2
Stop and Start System operation ...........4-1
Stop and Start System switch ..............5-13
Stop/Run/Start switch ..........................5-13
Storage ...................................................9-3
